USER MANUAL AK7548BS Zephyr

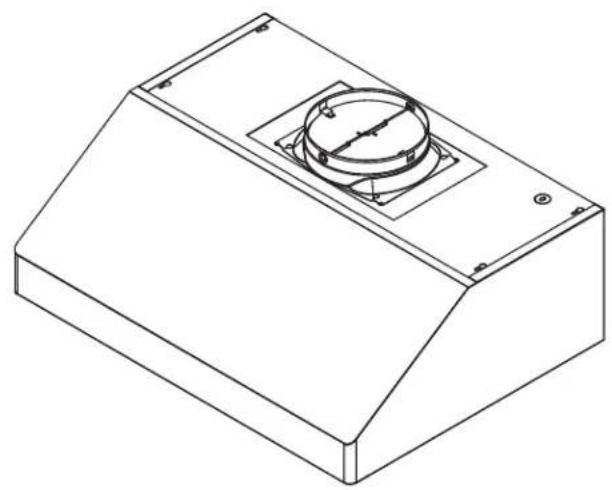

Isometric line drawing of a mechanical component with a circular top and mounting base (no text or symbols)

Model number: ____

Serial Number: ____

Date of Purchase: ____

Sales Dealer: ____

SAFETY NOTICE 2-3

LIST OF MATERIALS 4

INSTALLATION

Ducting Calculation Sheet 5

Mounting Height & Clearance 6

Ducting Options 7

Specifications 8

Mounting the Range Hood 9-10

Horizontal Conversion.... 11-12

PBD-1200A Dual Blower 13-14

FEATURES & CONTROLS

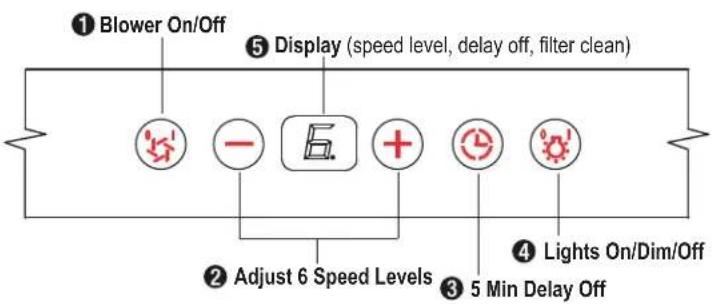

Touch Controls & Features 15-17

Optional Remote Control.... 18

MAINTENANCE

Cleaning, Filters & Recirculating 19

Lights....20

TROUBLESHOOTING 21

WIRING DIAGRAMS 22

FAN CURVE DIAGRAMS 23-24

LIST OF PARTS AND ACCESSORIES.... 25

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.

WARNING

TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b. Always turn hood ON when cooking at high heat or when flaming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or fi liter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, fi Iters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don't leave hood unattended when cooking
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Including fi re-rated construction.
b. Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. NEVER place a switch where it can be reached from a tub or shower.
f. Make sure the power is off before installing, wiring or maintaining.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages.

No for use over an outdoor grill.

OPERATION

Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

ELECTRICAL REQUIREMENTS

Important:

Observe all governing codes and ordinances.

It is the customer's responsibility:

• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the range hood is properly grounded.

Do not have a fuse in the neutral or ground circuit.

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

MODELS: AK7000BS, AK7036BS, AK7042BS

PARTS SUPPLIED

1 - Hood
2 - Baffl e fil ters (3 - AK7036BS and AK7042BS)
2 - Halogen light bulbs (pre-installed)
1 - Single internal blower and blower plate (pre-installed)
1 - Rectangular starting collar (for single blower horizontal ducting)
1 - 8" round starting collar
1 - Rectangular metal cap (for single blower horizontal ducting)
1 - Hardware package

HARDWARE PACKAGE CONTENTS

Light Bulb Removal Suction Cup (1)

Simple line drawing of a laboratory flask with a narrow neck and central opening (no text or symbols)

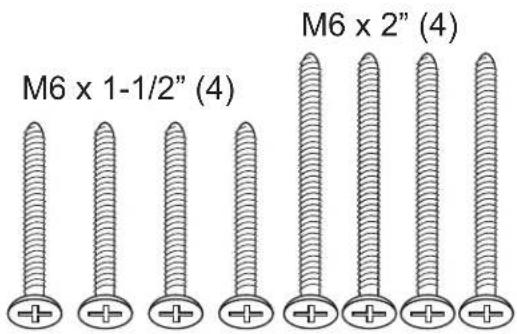

M3.5 × 8 (4)

3/16 × 3/8 (4)

Wire Caps (3)

Three identical line drawings of conical flutes or containers, no text or symbols present.

Washers (4)

PARTS NOT SUPPLIED

• Ducting, conduit and all installation tools
• Cable connector (if required by local codes)

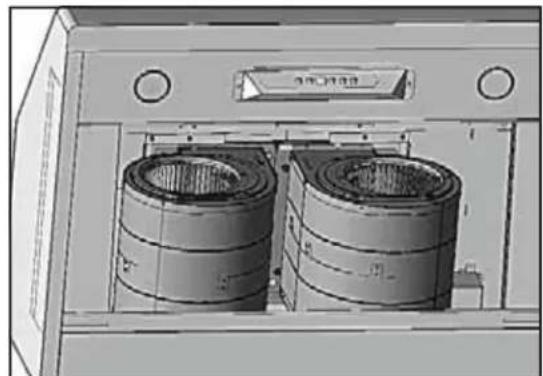

• Dual blower kit (PBD-1200A, compatible with AK7036BS and AK7042BS only)
• Recirculating kit accessory *

*Recirculating kit only compatible with single internal blower, not with dual internal blower.

Duct pieces		Equivalent number length x used =	Total
	3-1/4" x 10" Rect., straight	1 Ft. x ( ) =	Ft.
	6" Round, straight	1 Ft. x ( ) =	Ft.
	7"-10" Round, straight	1 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.90° elbow	15 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.45° elbow	9 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.90° flat elbow	24 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect. wall cap with damper	30 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.to 6" round transition	5 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.to 6" round transition 90° elbow	20 Ft. x ( ) =	Ft.
	6" Round, 90° elbow	15 Ft. x ( ) =	Ft.
	6" Round, 45° elbow	9 Ft. x ( ) =	Ft.
Subtotal column 1 =			Ft.

Duct pieces		Equivalent number length x used =	Total
	6" Round wall cap with damper	30 Ft. x ( ) =	Ft.
	6" Round, roof cap	30 Ft. x ( ) =	Ft.
	6" round to 3-1/4" x 10" rect. transition	1 Ft. x ( ) =	Ft.
	6" round to 3-1/4" x 10" rect. transition 90° elbow	16 Ft. x ( ) =	Ft.
	7" - 10" Round, 90° elbow	15 Ft. x ( ) =	Ft.
	7" - 10" Round, 45° elbow	9 Ft. x ( ) =	Ft.
	7" - 10" Round wall cap with damper	30 Ft. x ( ) =	Ft.
	7" - 10" Round, roof cap	30 Ft. x ( ) =	Ft.
	7" round to 3 1/4" x 10" rect. transition	8 Ft. x ( ) =	Ft.
	7" round to 3-1/4" x 10" rect. transition 90° elbow	23 Ft. x ( ) =	Ft.
Subtotal column 2 = Subtotal column 1 = Total ductwork =			Ft.
			Ft.
			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 100 equivalent feet.

DUCTING

A minimum of 8" round or 3-1/4" x 10" rectangular duct must be used to maintain maximum airflow efficiency for single blower and 10" round duct for dual blower.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Also use calculation (on page 5) to compute total available duct run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size from 8" to 10".

If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible.

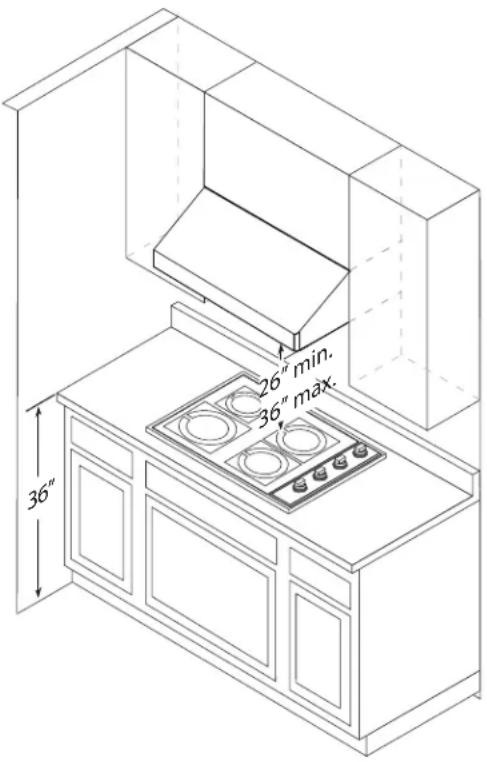

Minimum mount height between range top to hood bottom should be no less than 26".

Maximum mount height should be no higher than 36".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fi re hazard; while hoods mounted too high will be hard to reach and will lose its performance and effi ciency.

If available, also refer range manufacturer's height clearance requirements and recommended hood mounting height above range.

Vertical Ducting:

8" round minimum (singe blower)
10" round minimum (dual blower)

Horizontal Ducting:

3-1/4"x10" minimum (single blower)
8" round minimum (single blower)
No horizontal option available for dual blower

DAMAGE-SHIPMENT / INSTALLATION:

• Please fully inspect unit for damage before installation.
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.

Use metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints with certifi ed Silver Tape or Duct Tape.

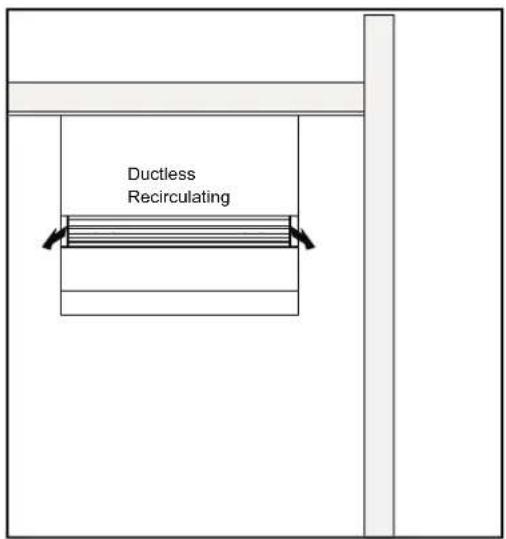

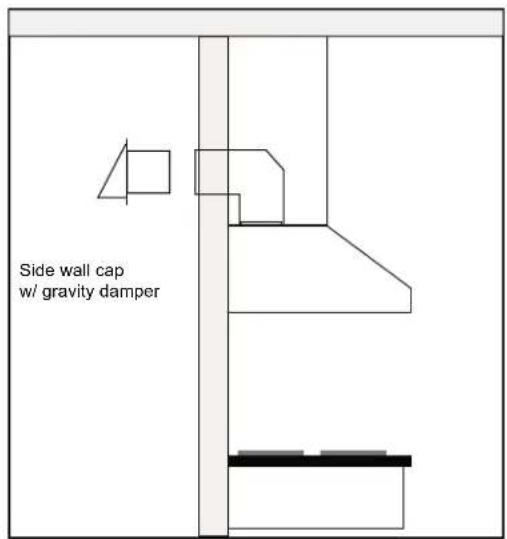

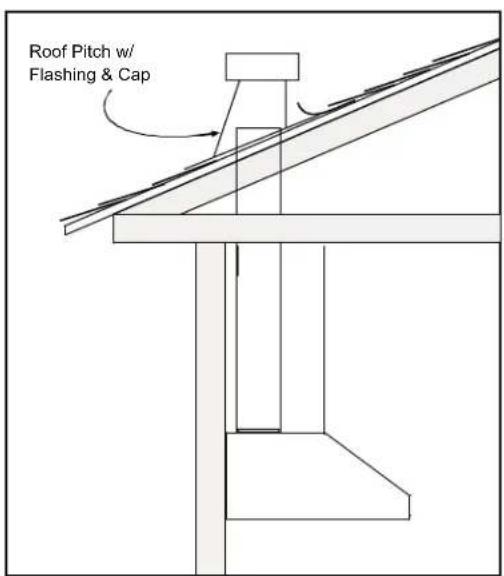

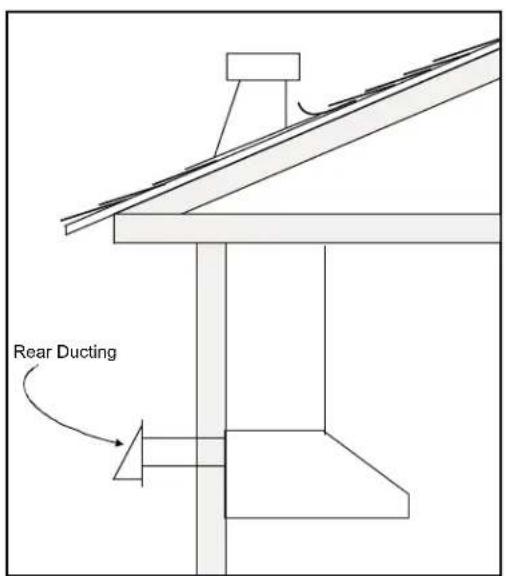

Some Ducting Options

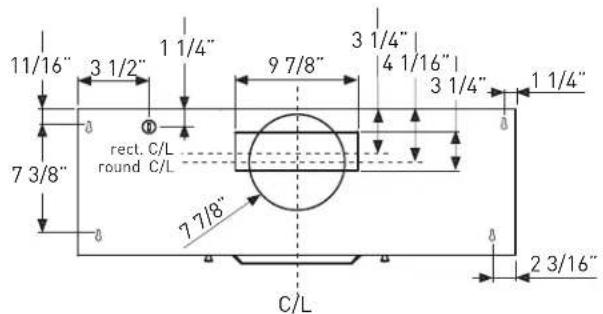

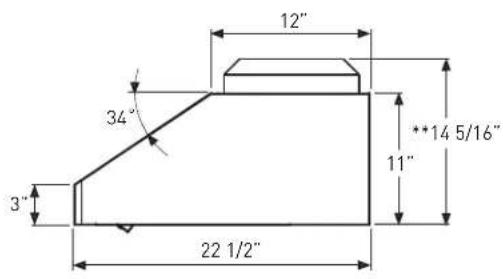

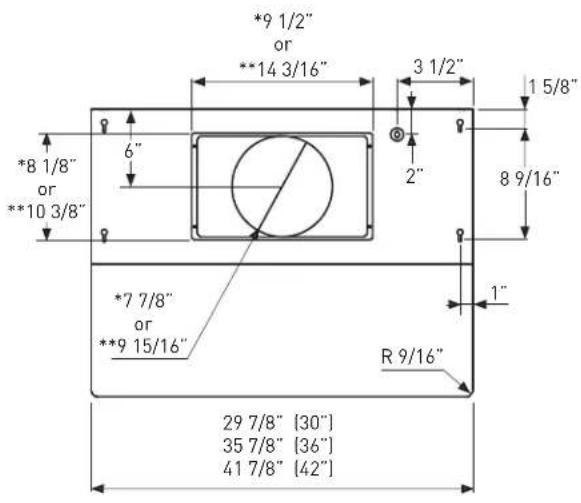

Installation – Specifications

side
* Single Blower Dimension
** Dual Blower Dimension

top

back

ELECTRICAL

WARNING

All Electrical work must be performed by qualified electrician or person with similar technical know how and background.

For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.

Follow national electrical codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ground. Please also refer Electrical Diagram labeled on product.

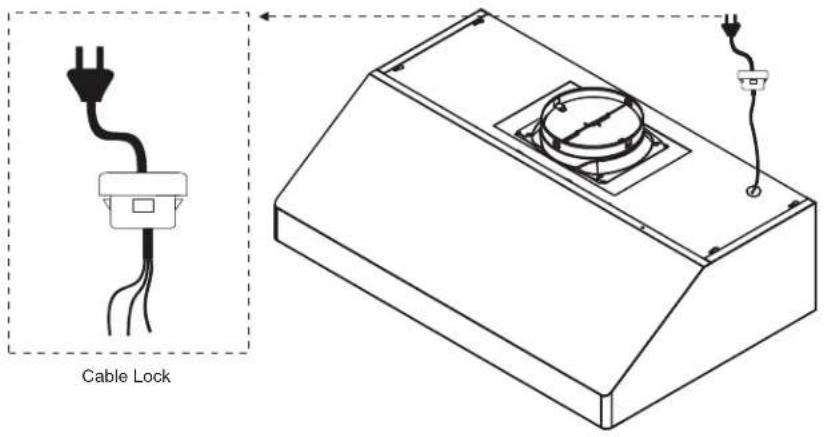

Cable Lock:

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary.

For dual blower installation instructions please refer to page 13.

If recirculating range hood refer to the manual included with ZRC-07xxxB recirculating kit or on our website prior to installing hood. Recirculating kit compatible with 650cfm single internal blower only.

For Mounting Under a Kitchen Cabinet

1. Select preferred duct location (vertical or horizontal).
2. Begin installation by removing the baffl e fi Iters.
3. Reinforce cabinet with 1"x2" wood strips if additional strengthening is required or if cabinets are framed.
4. Temporarily position the range hood in the desired mounting location. Measure and mark the mounting holes, duct and electrical locations with a pencil. NOTE: If using single internal blower a 8" round duct opening is necessary. If using a dual internal blower, please refer to page 14 for cut-out dimensions.
5. Drill/cut out the required openings for duct and electrical access; make sure the duct opening is large enough to apply duct tape.
6. Fasten hood onto cabinet with (4) M4 wood screws provided.
7. Install electrical.
8. Install duct work and duct tape.
9. Reinstall baffl e fi Iters.
10. Power up hood and check for leaks around duct tape.

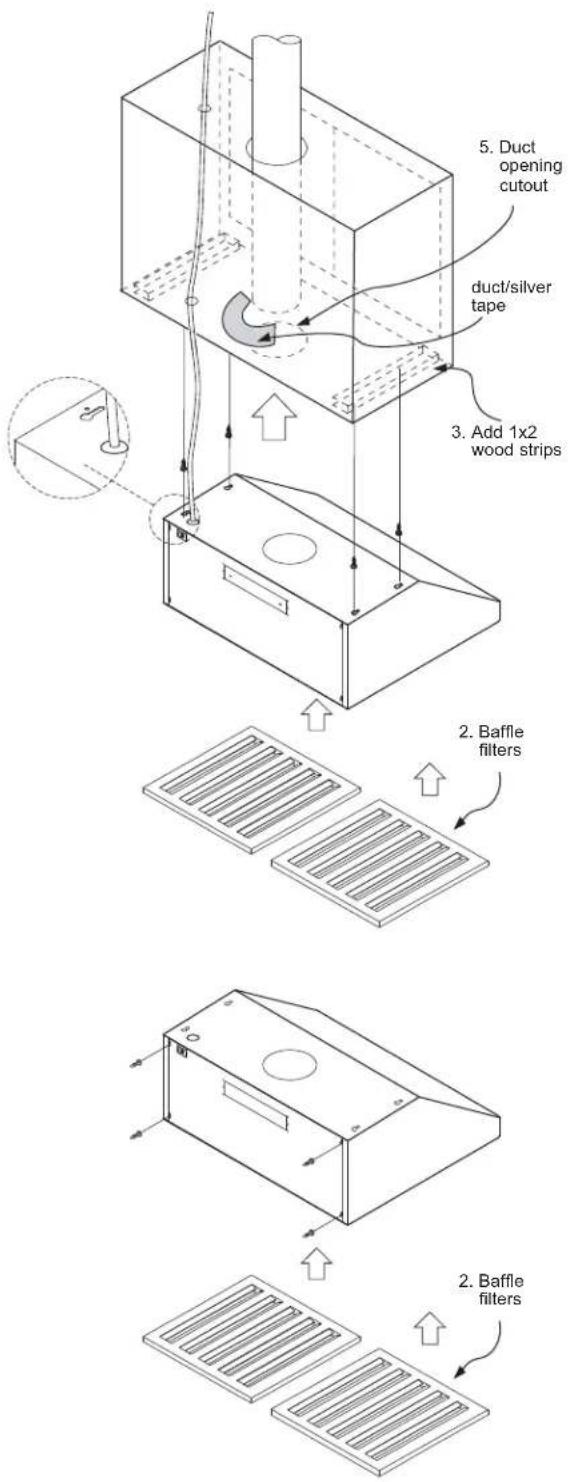

For Mounting to a Wall

1. Select preferred duct location (vertical or horizontal).
2. Begin installation by removing the baffl e fil tters.
3. Temporarily position the range hood in the desired mounting location. Measure and mark the mounting holes, duct and electrical locations with a pencil.
4. Drill/cut out required openings.
5. Fasten hood onto wall with screws provided.
6. Install electrical.
7. Install duct work and duct tape.
8. Reinstall baffl e fi Iters.
9. Power up hood and check for leaks around duct tape.


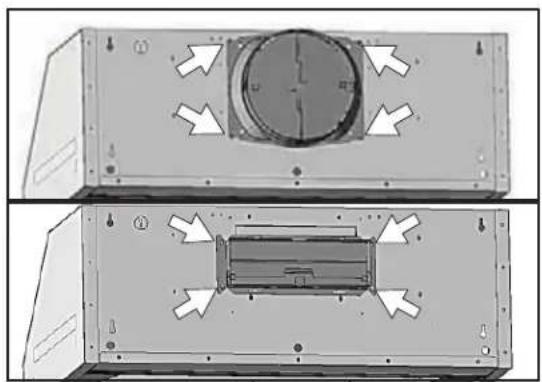

This range hood is equipped standard with a 8" round vertical duct option. To convert from 8" round vertical to 8" round horizontal ducting or 3-1/4" x 10" rectangular horizontal ducting please following the instructions below. NOTE: Horizontal ducting is only available for the single internal blower.

NOTE: If horizontally ducting via 3 1/4" x 10" rectangular ducting, the maximum airflow of 650 CFM will be reduced to 550 CFM. Other CFM levels will not be affected.

VERTICAL TO HORIZONTAL DUCTING CONVERSION

Mechanical component with internal gear and directional arrow (no text or symbols)

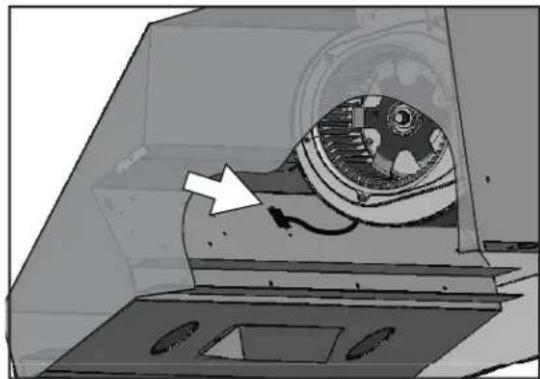

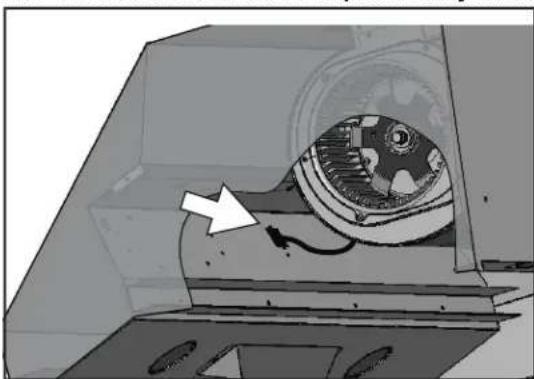

1. Disconnect blower plug.

Interior view of a room with a central chamber and directional arrows indicating flow or movement (no text or symbols present)

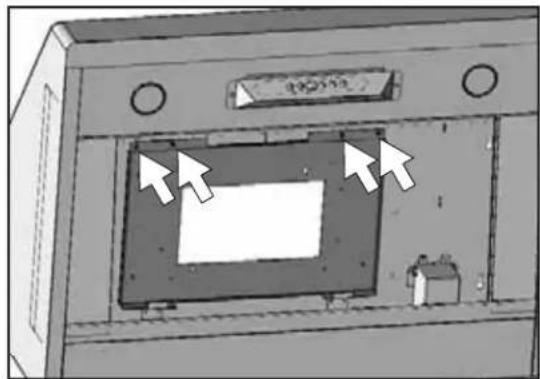

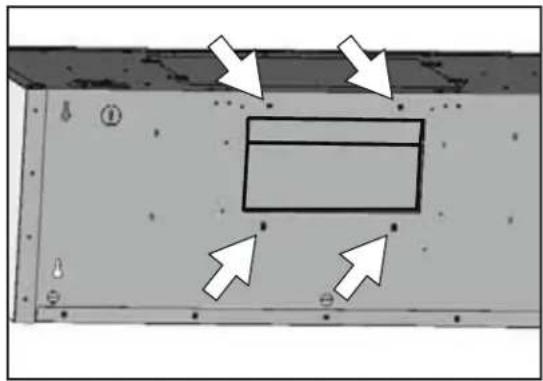

1. Remove (4) screws at top of hood body attaching blower to blower plate. Remove blower from interior of hood body.

Diagram of a device with arrows pointing to a central panel (no text or symbols visible)

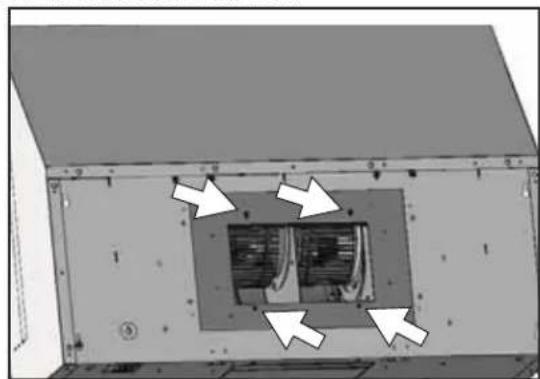

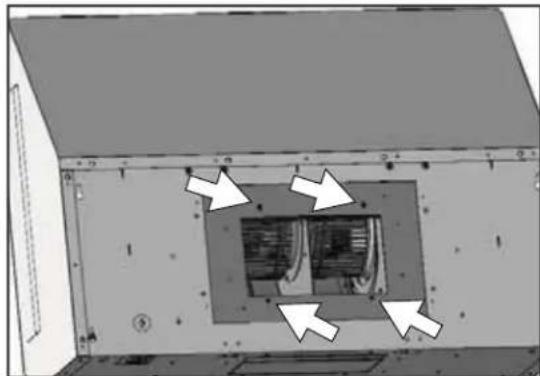

1. Remove (4) screws from interior of hood body attaching blower plate to hood body. Remove blower plate.

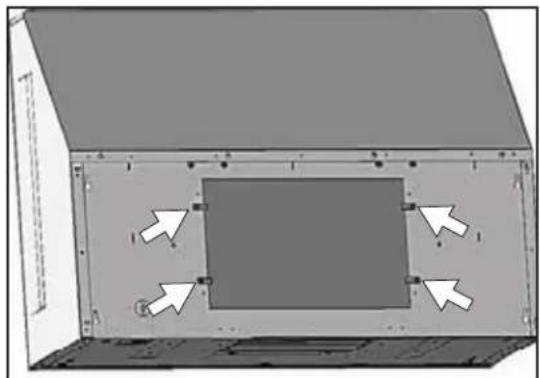

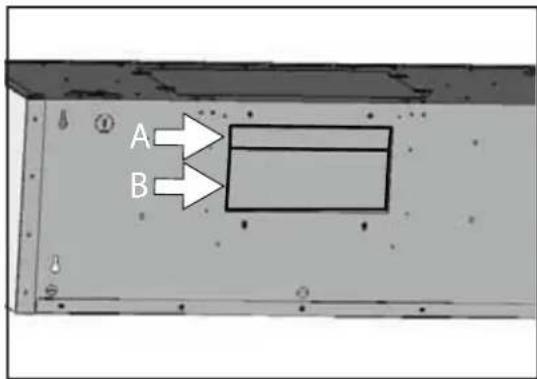

1. Knock out rear plates A & B for 8" round rear ducting or plate B only for 3 1/4" x 10" rectangular rear ducting.

Technical diagram of a mechanical assembly with internal components and mounting holes (no visible text or symbols)

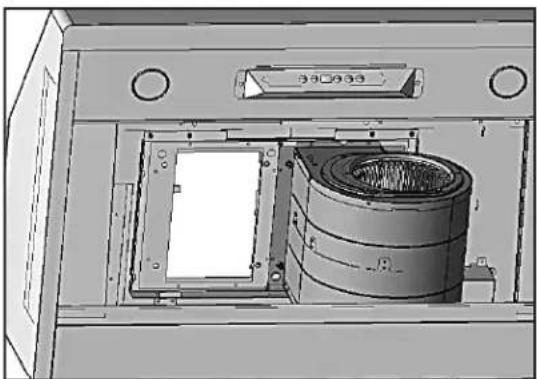

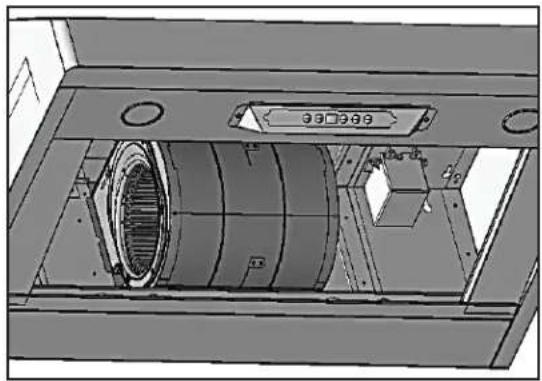

1. Place blower inside hood as shown.

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

1. Attach blower to hood body from the back of hood using (4) previously removed blower screws and reconnect blower plug.

Technical diagram of a mechanical housing with internal components and directional arrows indicating movement (no text or symbols)

1. Attach 8" round duct collar or 3 1/4"x10" rectangular duct collar to back of hood body using (4) M3.5 x 8 screws.

3D diagram of a rectangular enclosure with four arrows pointing inward, no text or symbols present

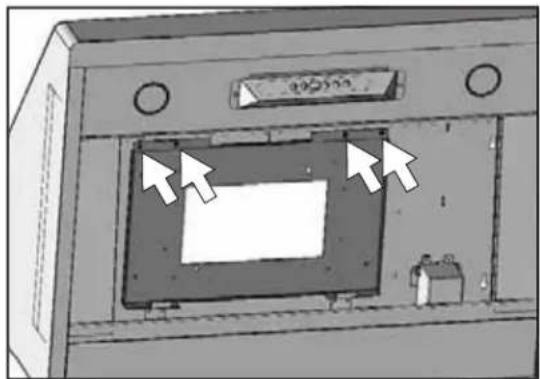

1. Attach top cover plate to top of hood body using (4) 3/16 x 3/8 screws.

This range hood is equipped standard with a single blower vertical duct option. To convert from single blower vertical ducting to dual blower vertical ducting please following the instructions below. PBD-1200A dual blower kit compatible only with AK7036BS and AK7042BS models.

Mechanical component diagram showing internal gear and housing with a white arrow indicating direction (no text or symbols)

1. Disconnect blower plug.

3D diagram of a device interior with arrows indicating directional flow or movement, no visible text or symbols

1. Remove (4) screws at top of hood body attaching blower to single blower plate. Remove blower from hood body.

Diagram of a computer monitor with an open screen and directional arrows indicating orientation (no text or symbols)

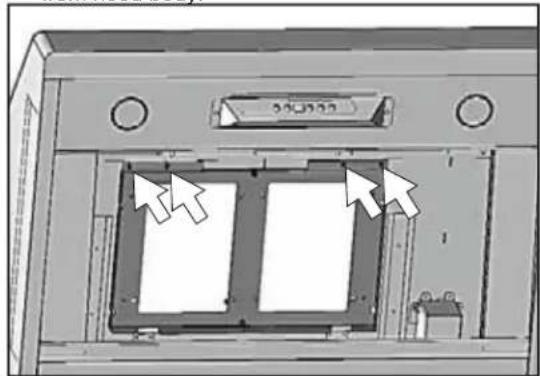

1. Remove (4) screws from inside hood body attaching single blower plate. Remove single blower plate from hood body.

Technical diagram of a device rear panel with two rectangular blocks and circular ports, showing no text or symbols.

1. Install dual blower plate from PBD-1200A kit into hood body. Attach by (4) screws previously removed from step 3.

Technical diagram of a mechanical device with a cylindrical component and control panel (no visible text or symbols)

1. Install previously removed blower onto one side of dual blower plate and attach by (4) previously removed screws from step 2.

Technical illustration of a mechanical device with two cylindrical components and control panel (no visible text or symbols)

1. Install blower from PBD-1200A kit onto other side of dual blower plate by (4) 3/16 x 3/8 screws.

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

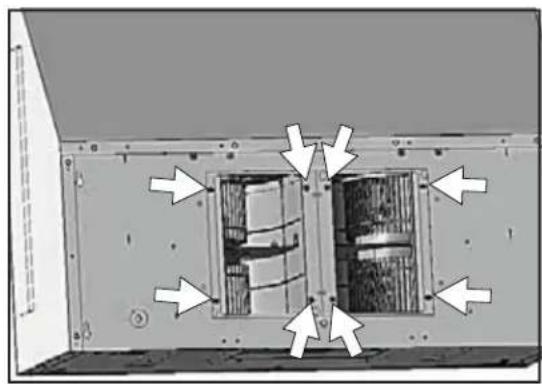

1. Dual Blower screw mount locations.

Diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

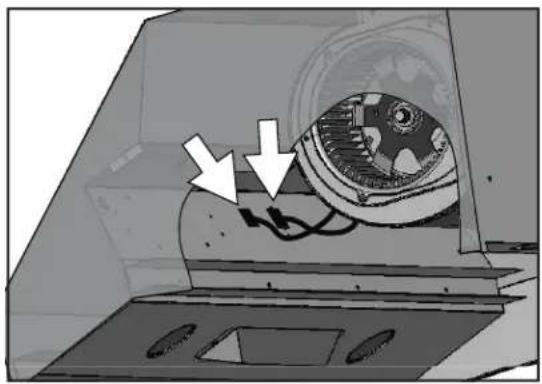

1. Connect blower wire extension cable from PBD-1200A kit to new blower. Connect both blower plugs.

Technical diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

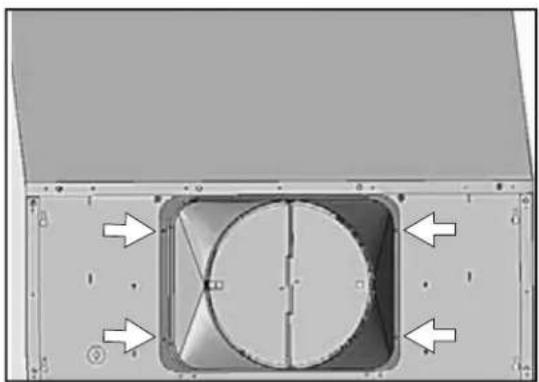

1. Place 10" round adapter (included with PBD-1200A) on top of hood and secure with (4) M3.5 x 8 screws.

NOTE: To secure the 10" transition adapter to top of hood a cut out of 14 1/2" width x 10 1/2" depth will need to be made in the cabinet bottom.

If internal cabinet dimensions prevent this size of a cut out then the 10" transition adapter may be mounted to the cabinet bottom rather than the top of the hood. Cut out dimensions for this type of installation are 13 1/4" width x 6 1/4" depth.

1. Blower On/Off

By pressing ⚙ the blower is switched on and off. When switched on, the blower starts up on speed level 1.

ACT Verification

- Airflow Control Technology (ACT) allows the installer to set the maximum blower CFM to align with local codes and regulations.

- To verify the maximum blower CFM:

- With hood off, hold the ⏻ button for 3-4 seconds. If number 6 displays = default max. CFM, if number 3 displays = max. 390 CFM, and if number 2 displays = max. 290 CFM.

2. Speed Selection

The 6 speed levels are selected by pressing ⏻ to decrease and ⚠ to increase speed levels. The display indicates levels selected.

ACT Enabled Speed Selections

- When ACT is enabled, the number of blower speeds will be reduced as follows:

• 390 CFM = Maximum 3 speeds
• 290 CFM = Maximum 2 speeds

3. Delay Off

This feature is used for programmed shut down of blower 5 minutes after the function is activated. Press ⚙ once, a dot flashes in the lower right side of display 6 , indicating the function is on. The blower will completely shut down after 5 minutes.

4. Lights On/Dim/Off

Switch lights on by pressing ⚙ once, press a second time to dim and again to shut off lights.

5. Display Window

The display window indicates speed levels and features such as baffle filter clean reminder, delay off and clean air indicator.

Charcoal Filter Change Reminder (charcoal filter, if installed)

When your hood is installed as a recirculating unit, it is fitted with a set of charcoal filters to purify exhaust and fumes from cooking, then re-circulates the air within the home. These charcoal filters are required to be replaced after every 120 hours of use. The charcoal filters should never be cleaned or placed in a dish washer.

The filter change reminder function in the microprocessor needs to be switched on. When switched on, the microprocessor will elapse and count usage time and indicate by a flashing ☐ when charcoal filter replacements are needed.

Setting the Filter Change Reminder

When off, hold Ⓐ for approximately 5 seconds. The display will change from — (exhaust mode) to ⓒ (recirculating mode) this indicates that the elapse timer function is switched on and charcoal filters are used.

Filter Replace Indicator

When the display Ⓗ starts flashing, the charcoal filters need to be replaced.

Re-setting Function

Once filters are replaced, with hood off, press and hold ⚠ the display will appear; hold for approximately 5 seconds until ⓒ on displays disappears □. The filter change reminder is now re-set and a new 120 hour elapse cycle is initiated.

Set Mode

hold 5 sec. display from <- > to < C >

Change Filters

display < C > flashes

To Reset

hold 5 sec. display from < C > to < >

Baffle Filter Clean Reminder

Aa set of baffle filters are fitted by the factory, these baffle filters are intended to filter out residue from cooking. The filters need not be replaced on a regular basis but are required to be kept clean. The Baffle-Filter Clean reminder function in the microprocessor will automatically indicate by a flashing F when the baffle filters need to be cleaned after every 30 hours of use. Filters can be cleaned by hand with non-abrasive soap or in a dishwasher. Heavily soiled filters should also be soaked in grease cutting detergent prior to cleaning.

Baffle Filter Clean Indicator

When E flashes on the display, the baffle filters need to be cleaned. This will occur after every 30 hours of use.

Reset the filter clean reminder timer after filters are cleaned and re-installed. With hood off, press and hold ⏻ for approximately 5 seconds until F on display disappears □. The filter clean reminder function is now reset and a new 30 hours elapse cycle is initiated.

Clean Filters

display < F > flashes

To Reset

hold 5 sec. display from < F > to < >

Clean Air Function

Clean Air is a feature that turns on the blower on low speed every 4 hours for 10 minutes to remove stagnant air in the kitchen. The Clean Air function is disabled by default and must be enabled by the user.

Clean Air Indicator

While Clean Air is active, the display will alternate between A1,A1, , , ,

After 10 minutes of Clean Air operation, the blower will power off and the 4 hour timer will reset.

If the blower speed is changed while the Clean Air Function is in use, the cycle will be interrupted and the timer will reset after.

To Enable

hold 3 sec.

and

display < A > flashes

To Disable

hold 3 sec. display from to < >

and

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

SYNCHRONIZATION: To create a unique link between your hood and remote control please follow these steps:

1. With hood off, press and hold the "lights" button on the hood until the letter "F" shows on the display screen.
2. Press the "lights" button on the remote, the lights on the hood will turn on and synchronization is complete.

RF REMOTE FUNCTIONS:

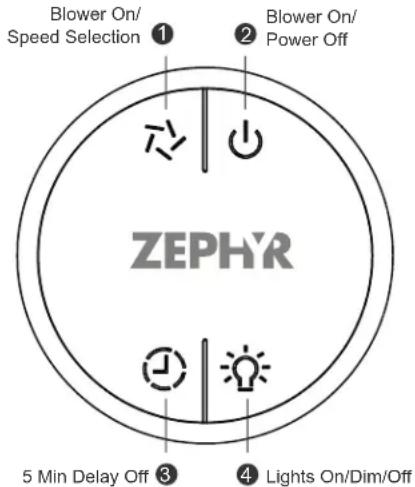

① Blower On / Speed Selection

Press ↗ to power on blower and cycle through all six blower speeds.

② Blower On / Power Off

By pressing ⏻, the blowers will power on at the last speed setting. Press ⏻ again and the entire hood will power off, including lights.

③ Delay Off

By pressing Ⓧ, the blower and lights will enter Delay Off mode. A dot will appear in the lower right corner of the hood display ⏱ indicating the function is on. The blower will change to speed 1 and shut down after 5 minutes.

④ Lights On / Dim / Off

Switch lights On by pressing once, again to dim and again to switch Off.

RF REMOTE FEATURES:

The RF remote control is equipped with a magnet on the back for easy storage. The remote may be placed on any magnetic surface such as a refrigerator or the Zephyr remote holder, FIG. 1. The remote holder can be inserted into a standard electrical outlet for easy storage. Note: The remote holder does not charge the RF remote.

Maximum remote control communication distance is 15 feet from the hood.

RF REMOTE MAINTENANCE:

Clean the remote control using non abrasive detergents

Follow instructions below for replacing battery.

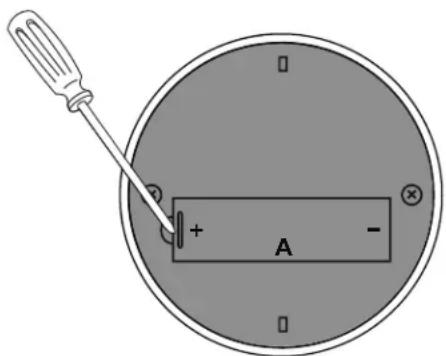

Using a small fl at head screwdriver, raise the cover of the battery door (A) in order to access the battery compartment. FIG. 2.

Remove the battery and replace with battery type A23 12V.

Negative end of battery should face the spring inside the remote.

Re-install battery door and recycle old battery.

THE RF REMOVE CONTROL IS AN OPTIONAL ACCESSORY NOT INCLUDED WITH THE HOOD AND MUST BE PURCHASED SEPARATELY

FIG. 1

FIG. 2

SURFACE MAINTENANCE:

Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners.

For heavier soil use liquid degreaser.

After cleaning, you may use non-abrasive stainless steel polish/ cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly using a micro fiber or clean cotton cloth and with grain.

Stainless Steel Baffl e Filters

The stainless steel baffle filters are intended to trap residue and grease from cooking. Although the filters should never need replacing, they are required to be cleaned every 30 days or more often depending on cooking habits.

Filters may be placed in dishwasher at low heat or soaked in hot soapy water Dry filters and re-install before using hood.

Removing Baffle Filters, FIG. 3

1. Push fi Iter toward back of range hood using handles.
2. Pivot front of filter downward.
3. Remove filter by pulling away from hood.

Replacing Baffle Filters

Hood Model: Part No. Qty. to Order.

AK7000BS	50210020	2
AK7036BS	50210020	3
AK7042BS	50210020	3

Recirculating Kit (includes charcoal fi Iters and air diverter)

Hood Model: Part No. Qty. to Order.

AK7000BS	ZRC-7000B	1
AK7036BS	ZRC-7036B	1
AK7042BS	ZRC-7042B	1

Replacement Charcoal Filters also available by ordering part number Z0F-C002.

See manual included with recirculating kit for more information.

Simple geometric shape with a horizontal line and arrow, no text or symbols present

Simple line drawing of a trapezoidal shape with an arrow and a separate diagonal line (no text or symbols)

Simple line drawing of a trapezoidal shape with an arrow and number 3, no text or symbols present.

FIG. 3

REPLACING LIGHT BULBS

CAUTION: Light bulb becomes extremely hot when turned on.

DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.

Make sure all power is turned off and bulbs are not hot.

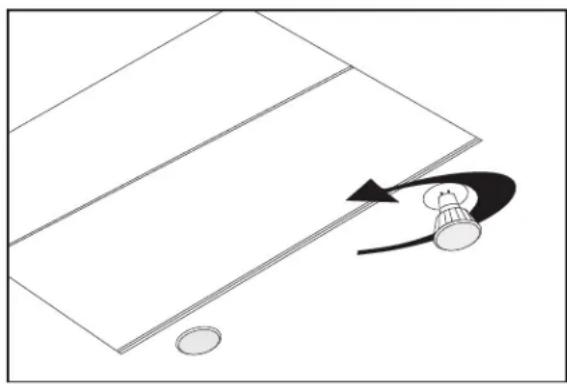

Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out.

If bulbs are difficult to turn due to prolonged use, firmly attach the provided glass suction cup or use a rubber/latex glove and turn counter clockwise.

Replacement bulbs are available at specialty lighting stores. Purchase type MR16 (GU-10) 35W halogen.

For Zephyr part numbers please turn to page 25 of the manual.

Simple line drawing of a light bulb and a coin on a flat surface, with an arrow indicating motion (no text or symbols)

TROUBLESHOOTING PROCEDURES FOR TEMPEST I

Issue Cause What to do
After installation, the unit doesn't work.	1. The power source is not turned ON. 1. Make sure	the circuit breaker and the unit's power is ON.
	2. The power line and the cable locking connector is not connecting properly.	2. Check the power connection with the unit is connected properly.
	3. The switch board and control board wirings are disconnected.	3. Make sure the wirings between the switch board and control board are connected properly.
	4. The wires on control board are loose. 4. Make sure	the wires on the control board are connected properly.
	5. The switch board or control board is defective. 5.	Change the switch board or control board.
Lights work, but blower is not turning.	1. The blower wire is not connected. 1. Make sure	the blower wire is plugged into the molex connector.
	2. Blower molex plug pin is not making contact. 2.	Disconnect the blower molex plug, check pins inside plug to see if pin is pushed inside the plug too far. Reseat pin if needed.
	3. The blower is defective, possible seized. 3. Change the blower.
	4. The thermally protected system detects if the blower is too hot to operate and shuts the blower down.	4. The blower will function properly after the thermally protected system cool down.
	5. Damaged capacitor. 5. Change the capacitor.
The unit is vibrating.	1. The blower is not secure in place. 1. Tighten the blower in place.
	2. Damaged blower wheel. 2. Change the blower.
	3. The hood is not secured in place. 3. Check the installation of the hood.
The blower is working, but the lights are not.	1. The light bulb plug is disconnected.	1. Connect the light bulb plug.
	2. Defective halogen bulb.	2. Change the halogen bulb.
	3. The light bulb is loose.	3. Tighten the light bulb.
The speed levels of the blower sound the same.	1. Using the wrong size of ducting.	1. Change the ducting to at least 8" round or 3-1/4"x10" rectangular for single blower or 10" round for dual blower.
The hood is not venting out properly.	1. The hood might be hanging to high from the cook top.	1. Adjust the distance between the cook top and the bottom of the hood within 26" and 36" range.
	2. The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.	2. Close all the windows and doors to eliminate the outside wind flow.
	3. Blockage in the duct opening or duct work.	3. Remove all the blocking from the duct work or duct opening.
	4. The direction of duct opening is against the wind.	4. Adjust the duct opening direction.
	5. Using the wrong size of ducting.	5. Change the ducting to correct size.
Metal filter is vibrating.	1. Metal filter is loose.	1. Change the metal filter.
	2. Spring clip is broken.	2. Change the spring clip.
RF Remote control does not work.	1. Battery is dead.	1. Replace the battery with type A23 12v.
	2. Poor communication with the hood.	2. Remote must be within 15 feet of the hood.
	3. RF remote lost communication with the hood.	3. Reset the hood and remote by switching the power off at the circuit breaker for 5 minutes. Perform remote synchronization process on page 18.
The blower turns on by itself.	1. The clean air function has been enabled turning the blower on every 4 hours.	1. Disable the clean air function by following the steps on page 17.

USE ONLY TYPE MR16, GU10, 35 W. MAX. HALOGEN LIGHT BULBS.

AK7000BS, AK7036BSAK7042BS	VOLTS	HZ	MAX AMPS
	120	60	Single Motor 4
			Dual Motor 7.4

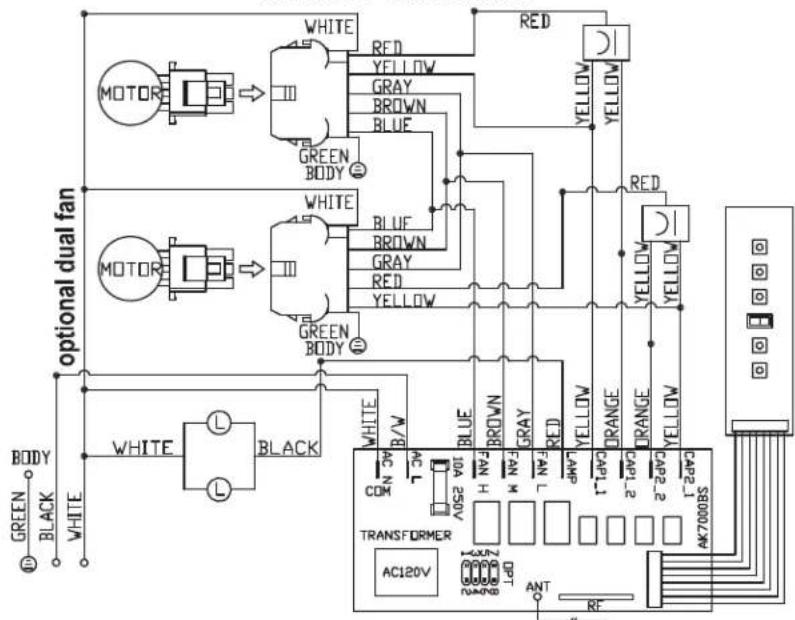

CIRCUIT DIAGRAM

REMARKS: CONDENSER 11+11uF 250VAC 2PCS FIT AC120V 60Hz

ACT 390 CFM - Fan Max. 355W @ 2.8A

ACT 290 CFM - Fan Max. 255W @ 2.2A

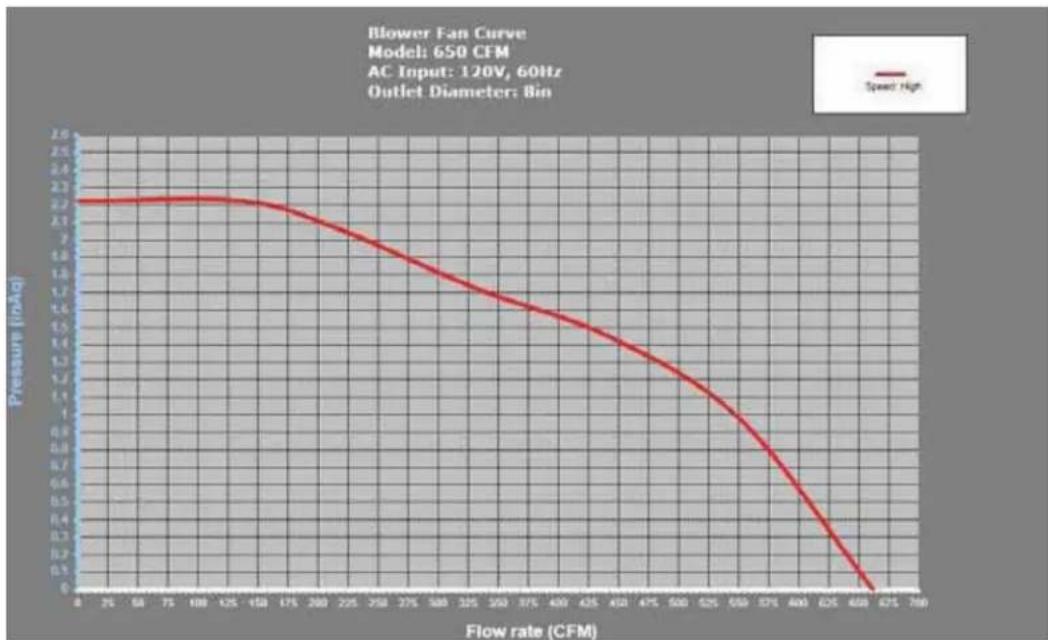

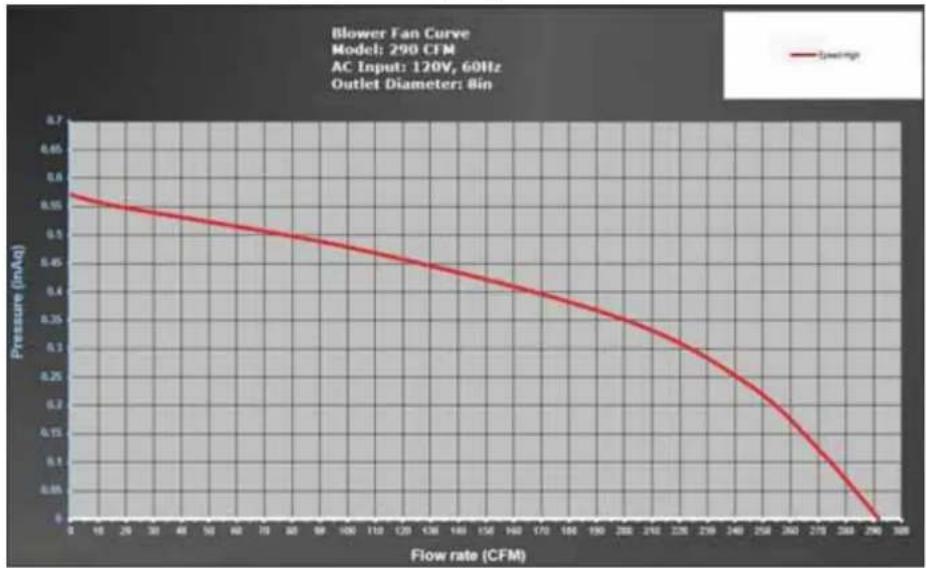

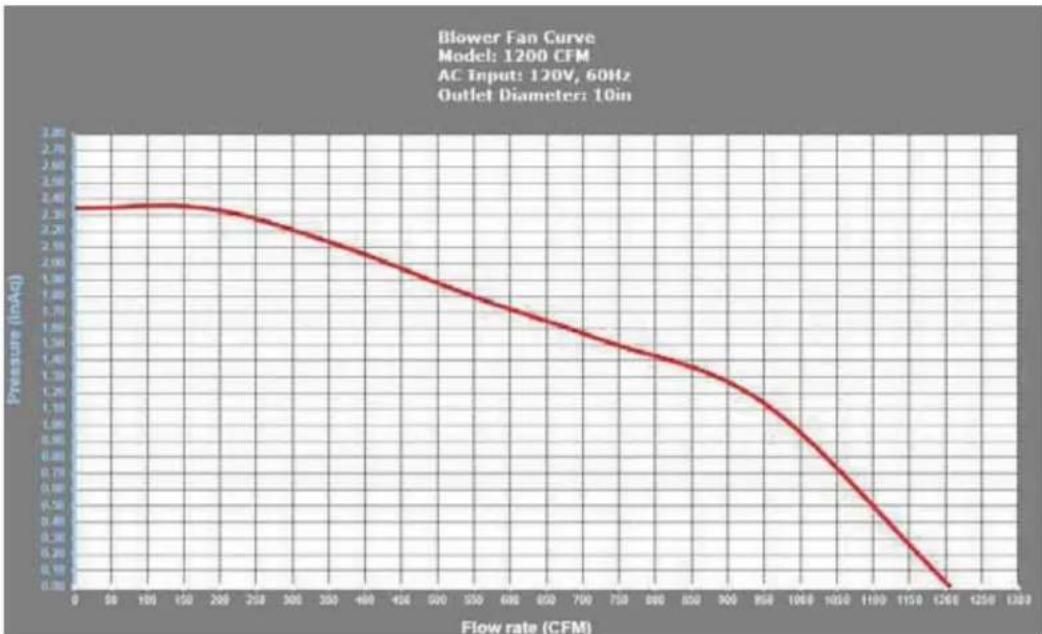

Single Blower Fan Curve Diagram

Dual Blower Fan Curve Diagram

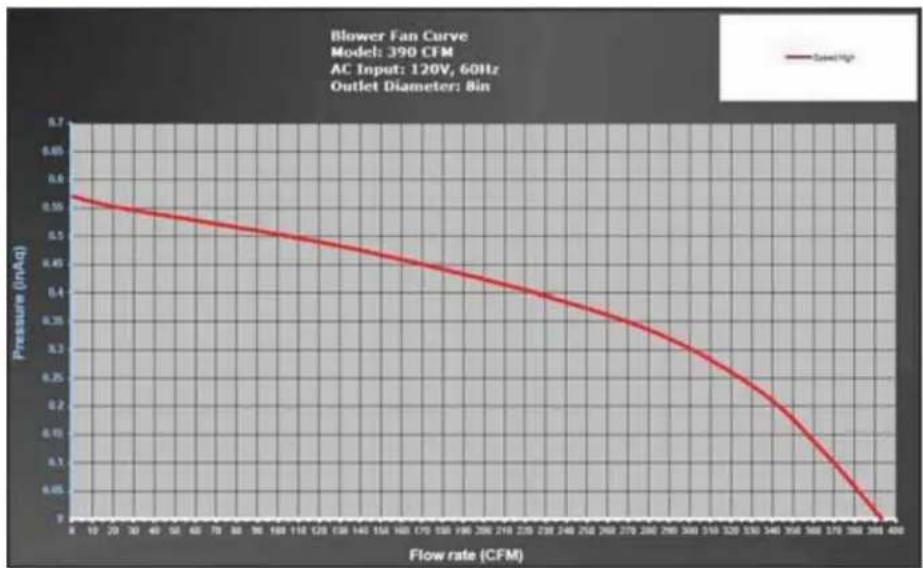

Airflow Control Technology (ACT)

Some local codes limit the maximum amount of CFM a range hood can move. ACT allows you to control the maximum blower CFM of hoods with of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels; 390 or 290 CFM. The usage of ACT may not be necessary for your installation. Please check your local codes for CFM restrictions.

By default the maximum blower CFM is set to 650.

To verify if your installer enabled ACT; With hood off, press and hold the blower on/off button for three seconds. If the number 6 displays = default max. CFM, if the number 3 displays = max. 390 CFM, and if the number 2 displays = max. 290 CFM. When ACT is enabled, the number of blower speeds will be reduced. 390 CFM = max. 3 speeds and 290 CFM = max. 2 speeds. There should also be a foil label located inside the hood body near the wiring diagram that indicates the blower CFM.

DESCRIPTION

PART #

Replacement Parts

Light Bulb MR16 (GU10) 35W (each) Z0B-0023

Baffl e Filter (each) 50210020

Optional Accessories

Dual Internal Blower Kit (w/ 1 blower) *	PBD-1200A
Recirculating Kit (30") **	ZRC-7000B
Recirculating Kit (36") **	ZRC-7036B
Recirculating Kit (42") **	ZRC-7042B
Backsplash w/Shelves (AK7000BS) AK0710
Backsplash w/Shelves (AK7036BS) AK0716
Backsplash w/Shelves (AK7042BS) AK0712
Universal Make-Up Air Damper, 650 CFM MUA008A
Universal Make-Up Air Damper, 1200 CFM MUA010A

To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368

*Dual Internal Blower Kit only compatible with AK7036BS and AK7042BS

**Recirculating kit only compatible with single internal blower, not dual internal blower.

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call:

1-888-880-8368

Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as incandescent or halogen light bulbs, metal and carbon filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; or (g) damage to the Products caused by accident, fire, floods or act of God. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and applies in the United States and Canada.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identification number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.

Please check our website for any revisions, www.zephyronline.com.

Tempest I

AK7000BS

AK7036BS

AK7042BS

Isometric line drawing of a mechanical component with a circular top and mounting holes (no text or symbols)

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Simple line drawing of a laboratory flask with a narrow neck and central opening (no text or symbols)

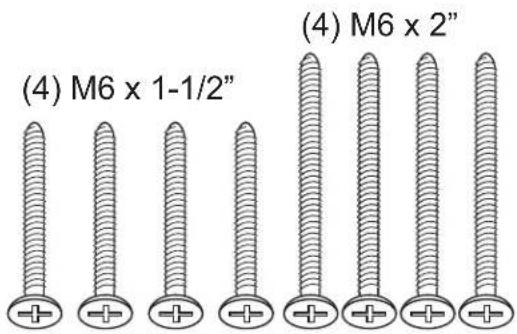

(4) M3.5 × 8

(4) 3/16 × 3/8

Three identical line drawings of conical plastic or paper slabs, no text or symbols present.

(4) Rondelles

PIÈCES NON FOURNIES

Côté

Arrière

ÉLECTRICITÉ

AVERTISSEMENT

Mechanical device interior view showing internal components and a white arrow indicating direction (no text or symbols)

Interior view of a technical enclosure with internal components and directional arrows indicating movement (no text or symbols)

Diagram of a device with an open panel and control buttons, showing no readable text or symbols.

Technical diagram of a mechanical assembly with internal components and mounting holes (no visible text or symbols)

Technical diagram of a mechanical housing with internal components and directional arrows indicating movement (no text or symbols)

Diagram of a ceiling-mounted device with directional arrows indicating movement or force (no text or symbols present)

3D diagram of a rectangular enclosure with four arrows pointing inward, no text or symbols present

Mechanical component with internal gear and a white arrow indicating direction (no text or symbols)

3D diagram of a device interior with arrows indicating directional flow or movement, no visible text or symbols

Diagram of a device with a central display and two arrows pointing to it, no visible text or symbols.

Technical diagram of a mechanical assembly with a cylindrical component and mounting bracket (no visible text or symbols)

Technical diagram of a mechanical device with two cylindrical components and control panel (no visible text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows indicating movement or force (no text or symbols present)

Technical diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

FIG. 1

FIG. 2

Simple line drawing of a geometric shape with an arrow and label '1' (no text or symbols beyond basic geometry)

Simple line drawing of a trapezoidal shape with an arrow and a diagonal line, no text or symbols present.

REEMPLACEMENT DES AMPOULES

Simple line drawing of a table with an arrow and a light bulb, no text or symbols present

TROUBLESHOOTING PROCEDURES FOR TEMPEST I

Zephyr Corporation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368
