Product Type	Undercounter Beer Dispenser
Brand	Perlick
Model	HP24TS32L2
Dimensions (W x D x H)	24 in x 28.5 in x 34.5 in
Weight	165 lbs
Power Supply	120V / 60Hz / 15A
Cooling System	Forced air refrigeration
Temperature Range	36°F – 40°F (2°C – 4°C)
Keg Capacity	Up to 2 half-barrel kegs or 4 quarter-barrel kegs
Tower / Faucet Type	Single or double faucet (optional)
Drip Tray	Removable stainless steel drip tray
Control Type	Digital thermostat with LED display
Interior Light	LED interior light
Condenser Location	Front-venting for easy installation
Cleaning	Regular cleaning of faucet, lines, and drip tray recommended; use approved cleaning solutions
Safety Features	Temperature alarm, lockable door
Spare Parts Availability	Authorized service centers; common parts include faucets, CO2 regulators, and cooling fans
Warranty	1 year parts and labor
Installation	Undercounter with front ventilation
Compatible Keg Types	Standard American Sankey D system

Frequently Asked Questions - HP24TS32L2 Perlick

How do I clean the beer lines on the Perlick HP24TS32L2?

Use a line cleaning kit with warm water and a mild beer line cleaner. Flush the system thoroughly and rinse with water. Clean every 2–4 weeks for best taste.

What is the correct temperature setting for serving beer?

Set the digital thermostat between 36°F and 40°F (2°C–4°C) for optimal carbonation and flavor.

Can I install the HP24TS32L2 under a counter?

Yes, it is designed for undercounter installation. Ensure proper front ventilation and clearance per manual.

How do I replace the faucet on this unit?

Turn off the gas and beer supply. Unscrew the existing faucet, apply thread tape, and install the new faucet. Tighten by hand and reconnect lines.

What type of CO2 regulator is recommended?

Use a standard CO2 regulator with a secondary gauge for serving pressure (typically 12–14 PSI).

Why is my beer foaming excessively?

Check temperature (too warm), CO2 pressure (too high), or dirty lines. Ensure keg is not over-carbonated. Clean system and adjust pressure to 12–14 PSI.

How do I change the interior LED light?

The LED light is integrated and not user-serviceable. Contact Perlick service for replacement.

What keg sizes fit in the HP24TS32L2?

It holds up to two half-barrel (15.5 gal) or four quarter-barrel (7.75 gal) kegs.

Does the dispenser require a drain?

The drip tray collects spills; no floor drain needed. Empty tray regularly.

How often should I replace the CO2 tank?

Depends on usage; a 5lb tank typically lasts 3–6 months. Monitor the regulator gauge; replace when pressure drops below 600 PSI.

USER MANUAL HP24TS32L2 Perlick

24" SIGNATURE SERIES BEER DISPENSER

HP24TS-324" INDOOR MODEL HP24TO-324" OUTDOOR MODEL

QUALITY & INNOVATION THAT INSPIRES

Exterior view of a stainless steel multi-tiered refrigeration unit with water inlet (no visible text or symbols)

Solid Door Model

Industrial machine with dual vertical trowed valve and base platform (no visible text or symbols)

Available with 1 or 2 faucets (2 faucet shown)

GENERAL SIGNATURE SERIES FEATURES

• Zero-clearance hinging allows for abutment with surrounding cabinetry
- Perlick's exclusive commercial-grade 995 Btu variable speed compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior and exterior
- Industry Exclusive adjustable, full-extension pull-out shelves (drawer models and beer dispenser excluded)
• State-of-the-art digital control module

• Optional door locks (factory installed)
• Indoor and outdoor models available
- Also available - 24" Freezer, Refrigerator, Beverage Center and Wine Reserve
• 5.2 cubic feet of capacity
- Industry Best Three Year Warranty plus additional three years on sealed system

HP24TS-3/TO-3 FEATURES

• Available with solid stainless steel door or solid wood overlay door
• Stores (1) 1/4 barrel or (2) 1/6 barrels
• Complete, self-contained beer system
• Portable drainer; no plumbing required
• 1- or 2-faucet tapping kit
- Low profile coupler for "D" system keg valves included
• Beer Dispenser temperature 33°-42°F

(1) 1/4 barrel

Illustration of two speakers on a front panel with a circular button, no text or symbols present.

(2) 1/6 barrel

Form No.HP24T-3 Rev. 09.06.2017

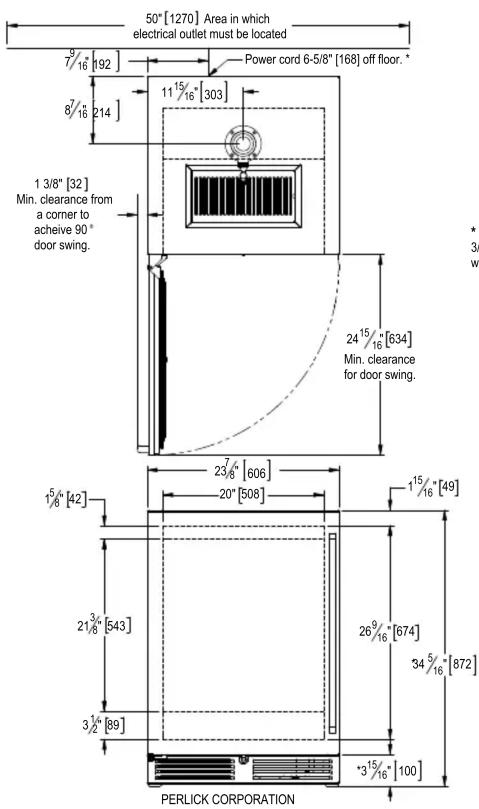

PRODUCT SPECIFICATIONS INDOOR MODELS

Overall Width 23-7/8" (60.64 cm.)

Overall Height 34-1/4" (86.96 cm.)

Overall Depth 24" (60.96 cm.)

Opening Width 24" (60.96 cm.)

Opening Height 34-3/8" (87.31 cm.)

Opening Depth 24" (60.96 cm.)

Refrigerated Volume 5.2 cu. ft.

Door Swing Clearance 25" (63.5 cm.) minimum

Electrical 115V, 60Hz., 1 Phase, 2.3 amps

Plumbing None Required

Annual Energy Usage 290 kWh/yr

Shipping Weight 222 lbs (100.7 kg.)

HP24TS-3-1L* Solid stainless steel door, hinge left

HP24TS-3-2L* Solid wood overlay door, hinge left

OUTDOOR MODELS

HP24TO-3-1L* Solid stainless steel door, hinge left

HP24TO-3-2L* Solid wood overlay door, hinge left

# Number of faucets (24" models are available with 1 or 2 taps)

* Also available hinge right

* - Leg levelers can add 3/4" [19] to these dimensions when fully extended.

Line drawing of a laboratory apparatus with a labeled component 'els' (no other text or symbols)
