Product Type	Cooker (Electric Hob and Electric Oven)
Brand	Indesit
Model	K3E11(W)/R
Oven Capacity	58 L
Oven Cavity Dimensions (WxDxH)	39 x 44 x 34 cm
Oven Power Consumption	2100 W
Hob Power Consumption (Max)	7000 W
Hob Plates	4 electric plates (including 2 fast plates)
Fast Plate 1 (145 mm) Power	1500 W
Fast Plate 2 (180 mm) Power	2000 W
Oven Functions	Static, Bottom Heat, Top Heat, Grill, Rotisserie (where present)
Oven Thermostat Range	50°C to maximum (approx 250°C)
Timer	Mechanical timer (up to 120 min)
Oven Light	Yes (25W, E14)
Storage Compartment	Yes, below oven
Removable Lid	Yes
Cleaning	Manual cleaning, removable lid for easy access
Energy Source	Electricity
Control Type	Rotary knobs for oven and hob
Installation	Requires qualified technician
Voltage	230 V (typical, see data plate)
Frequency	50 Hz (typical, see data plate)

Frequently Asked Questions - K3E11(W)/R INDESIT

How should I install the cooker?

Installation must be carried out by a qualified technician according to the instructions. Ensure proper electrical connection (230V, 50Hz, with earthing) and gas supply if applicable. The cooker should be placed away from curtains and with a minimum distance of 200 mm from taller cabinets.

What are the electrical requirements for this cooker?

The cooker requires a 230V single-phase supply at 50Hz with a dedicated circuit. An omnipolar switch with at least 3 mm contact opening must be installed. The earthing must be efficient. Total power is up to 9100W (hob 7000W + oven 2100W).

How do I clean the oven and hob?

Before cleaning, disconnect the cooker from the mains. Clean the enamel surfaces with warm water and mild detergent, avoiding abrasives. The electric plates should be wiped with a damp cloth and lubricated with oil while warm. The oven interior can be cleaned with warm water and detergent. The lid is removable for easier cleaning.

How do I replace the oven lamp?

First, unplug the cooker. Remove the glass cover of the lamp-holder. Replace the lamp with a high-temperature resistant type (25W, E14, 300°C). Reattach the cover and reconnect to the mains.

How do I use the timer?

Wind the timer knob fully clockwise, then turn it back to the desired time. The timer will ring when the time is up. The maximum timer setting is approximately 120 minutes.

What oven functions are available?

The oven offers static heating (top and bottom elements), bottom heat alone, top heat (grill), and rotisserie (if equipped). The functions are selected using the selector knob and thermostat knob.

How do I use the grill?

Set the selector knob to the grill position. Preheat for 5 minutes. Place food on the rack and position the dripping pan on the bottom shelf to catch grease. Keep the oven door closed during grilling for best results and energy saving (about 10%).

Can I use the rotisserie?

Yes, if your model is equipped. Insert the rotisserie spit through the hole at the back of the oven, place the dripping pan on the first rack, and set the selector knob to the rotisserie function. The motor will rotate the spit automatically.

What should I do if the oven is not heating?

Check that the power supply is connected and the circuit breaker is on. Ensure the thermostat knob is set to a temperature above room temperature. If the pilot lamp does not light, the heating element or thermostat may be defective; contact a service center.

Is the cooker safe for children?

The cooker can become very hot during use. Keep children away from the oven door and hob. Do not allow unsupervised use. The storage recess below the oven should not be used to store flammable materials.

USER MANUAL K3E11(W)/R INDESIT

Installation and use

Important safety warnings

To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

• call only the Service Centers authorized by the manufacturer • always use original Spare Parts

1 This appliance is intended for nonprofessional use within the home. 2 These instructions are only for those countries whose symbols appear in the booklet and on the serial number plate of the appliance. 3 This owner's manual is for a class 1 appliance (insulated) or class 2, subclass 1 appliances (installed between two cabinets). 4 Before using your appliance, read the instructions in this owner's manual carefully since it provides all the information you need to ensure safe installation, use and maintenance. Always keep this owner's manual close to hand since you may need to refer to it in the future. 5 When you have removed the packing, check that the appliance is not damaged. If you have any doubts, do not use the appliance and contact your nearest Ariston Service Centre. Never leave the packing components (plastic bags, polystyrene foam, nails, etc.) within the reach of children since they are a source of potential danger. 6 The appliance must be installed only by a qualified technician in compliance with the instructions provided. The manufacturer declines all liability for improper installation, which may result in personal injury and damage to property. 7 The electrical safety of this appliance can only be guaranteed if it is correctly and efficiently earthed, in compliance with regulations on electrical safety. Always ensure that the earthing is efficient. If you have any doubts, contact a qualified technician to check the system. The manufacturer declines all liability for damage resulting from a system which has not been earthed. 8 Before plugging the appliance into the mains, check that the specifications indicated on the data plate (on the appliance and/or packaging) correspond with those of the electrical and gas systems in your home. 9 Check that the electrical capacity of the system and sockets will support the maximum power of the appliance, as indicated on the data plate. If you have any doubts, contact a qualified technician. 10 An omnipolar switch with a contact opening of at least 3 mm or more is required for installation. 11 If the socket and appliance plug are not compatible, have the socket replaced with a suitable model by a qualified technician, who should also check that the cross-section of the socket cable is sufficient for the power absorbed by the appliance. The use of adaptors, multiple sockets and/or extensions is not recommended. If their use cannot be avoided, remember to use only single or multiple adapters and extensions which comply with current safety regulations. In these cases, never exceed the maximum current capacity indicated on the individual adaptor or extension and the maximum power indicated on the multiple adapter. 12 Do not leave the appliance plugged in if it is not in use. Switch off the main switch and gas supply when you are not using the appliance. 13 The openings and slots used for ventilation and heat dispersion must never be covered. 14 The user must not replace the supply cable of this appliance. Always contact an after-sales service centre which has been authorised by the manufacturer if the cable has been damaged or needs replacement. 15 This appliance must be used for the purpose for which it

was expressly designed. Any other use (e.g., heating rooms) is considered improper and consequently dangerous. The manufacturer declines all liability for damage resulting from improper and irresponsible use.

16 A number of fundamental rules must be followed when using electrical appliances. The following are of particular importance:

• Do not touch the appliance when your hands or feet are wet.
• Do not use the appliance barefooted.
• Do not use extension cords, but if they are necessary, caution must be exercised.
• Never pull the power supply cable or the appliance to unplug the appliance plug from the mains.
• Never leave the appliance exposed to atmospheric agents (rain, sun, etc.).
• Do not allow children or persons who are not familiar with the appliance to use it without supervision.

17 Always unplug the appliance from the mains or switch off the main switch before cleaning or carrying out maintenance. 18 If you are no longer using an appliance of this type, remember to make it unserviceable by unplugging the appliance from the mains and cutting the supply cable. Also make all potentially dangerous parts of the appliance safe, above all for children who could play with the appliance. 19 To avoid accidental spillage, do not use cookware with uneven or deformed bottoms on the electric plates. Turn the handles of pots and pans inwards to avoid knocking them over accidentally. 20 Never use flammable liquids such as alcohol or gasoline, etc., near the appliance when it is in use. 21 When using small electric appliances near the hob, keep the supply cord away from the hot parts. 22 Make sure the knobs are in the “•”/“O” position when the appliance is not in use. 23 When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away. 24 If the cooker is placed on a pedestal, take the necessary precautions to prevent it from sliding off the pedestal itself. 25 Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.

The following instructions should be read by a qualified technician to ensure that the appliance is installed, regulated, and technically serviced correctly in compliance with current regulations.

Important: disconnect the cooker from the electricity when making any adjustment, maintenance operation, etc.

Positioning

The appliance can be installed next to furniture units which are no taller than the top of the cooker hob. For proper installation of the cooker, the following precautions must be taken:

a) Kitchen cabinets installed next to the cooker that are taller than the top of the hob must be situated at least 200 mm from the edge of the hob. b) Hoods must be installed according to the requirements in the installation manual for the hoods themselves and in any case at a minimum distance of 650 mm. c) Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure). d) Should the cooker be installed beneath a wall cabinet, the latter should be situated at least 700 mm (millimetres) away from the hob, as shown in the figure. e) The cut-out for the cooker cabinet should have the dimensions indicated in the figure.

Levelling your appliance (only on a few models)

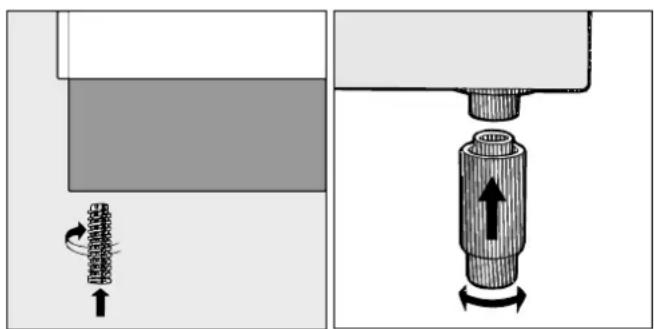

Your cooker is supplied with feet for levelling the appliance. If necessary, these feet can be screwed into the housings in the corners of the cooker base (Fig. A).

Mounting the legs (only on a few models)

Press-fit legs are supplied which fit under the base of your cooker (Fig. B).

Fig. A Fig. B

Electrical connection

The power supply cable, since its size depends on the electric connection (see the following connection diagram).

Feeding cable installation

Terminal block opening:

• Unscrew screw "V" (Fig. C)

- Pull and open the junction block lid

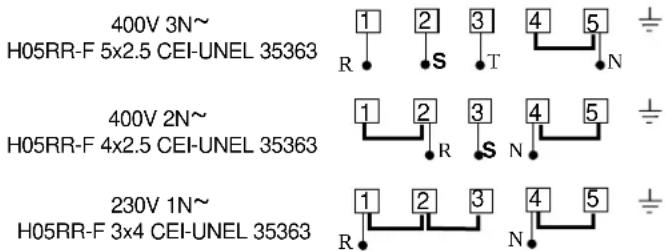

For the installation of the feeding cable carry out the following operations:

- Position the small connection A-B according to the type of connection that has to be performed using the scheme shown in the figure D.

Note: The small connections are prepared by the Factory for the 230V monophase connection (contacts 1-2-3 are connected to one another). The bridge 4-5 is situated in the lower part of the terminal block.

• Introduce the cables (N and L) as shown in the figure and tighten the relative screws.
• Fix the remaining cables on the 1-2-3 clips.
• Fix the feeding cable in the special cable stop and close the cover, fastening it with the screw "V".

Fig. C Fig. D

Connecting the supply cable to the mains

Fit a plug, normalised for the load indicated on the data plate, on the cable; when making the connection directly to the mains, an omnipolar switch with a minimum opening of 3 mm between the contacts must be installed between the appliance and the mains. This switch must be sufficient for the load and must comply with regulations in force (the earthing wire must not be interrupted by the switch). The power supply cable must be positioned so that it does not exceed 50°C more than room temperature at any point of its length. Before making the connection, check that:

• The limiter valve and the home system can support the appliance load (see data plate);
• The power supply system has an efficient earthing connection which complies with the provisions of current regulations;
• The socket or omnipolar circuit-breaker is easily accessible once the cooker has been installed.

Oven

Dimensions (WxDxH)

39×44×34 cm

Volume

58 L

Oven absorption Max

2100 W

Electric Hob

Fast ∅ 145 mm: 1500 W

Fast ∅ 180 mm: 2000 W

Electric Hob absorption Max

7000 W

ENERGY LABEL

Directive 2002/40/EC on the label of electric ovens Norm EN 50304

Energy consumption Class certification Natural convection

heating mode: Static

Voltage and frequency

see data plate

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.

All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

This appliance conforms with the following

European Economic Community directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications;

- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications;

- 93/68/EEC of 22/07/93 and subsequent modifications.

The cooker with electric oven and electric hob

A. Tray for Catching Overflows B. Electric Plates C. Control Panel D. Oven Racks E. Dripping Pan or Baking Sheet F. Adjustable Feet or Legs G. Selector Knob H. The green pilot lamp I. Electric plate knob L. Thermostat Light M. Timer Knob N. Thermostat Knob

The different functions and uses of the oven

The various functions included in the cooker are selected by operating the control devices located on the cooker control panel.

Notice: The first time you use your appliance, we recommend that you set the thermostat to the highest setting and leave the oven on for about half an hour with nothing in it, with the oven door shut. Then, open the oven door and let the room air. The odour that is often detected during this initial use is due to the evaporation of substances used to protect the oven during storage and until it is installed.

Attention: Only use the bottom shelf of the oven when using the rotisserie to cook (where present). For all other types of cooking, never use the bottom shelf and never place anything on the bottom of the oven when it is in operation because this could damage the enamel. Always place your cookware (dishes, aluminium foil, etc. etc.) on the grate provided with the appliance inserted especially along the oven guides.

The oven knobs

With these two controls you can select the different functions of the oven and choose the cooking temperature suitable for the food you are preparing. The different cooking functions are set up by operating the two knobs:

G - the selection knob

N - the thermostat knob on the oven panel.

For any selection-knob setting different from idle, identified by the "0", the oven light turns on; the knob setting marked permits turning on the oven light without any heating element being switched on. When the oven light is on, it means that the oven is in use, and it will remain on for the entire time the oven is being used.

1. Static oven

- Knob "G" setting: ____

- Knob "N" setting: anywhere between 50°C and Max

The oven light turns on and the top and bottom heating elements (resistors) switch on. The temperature, fixed by the thermostat knob, is reached automatically and kept constant by the thermostat control. This function permits cooking and type of food thanks to excellent temperature distribution.

1. The bottom heating element

- Knob "G" setting: |____|

- Knob "N" setting: anywhere between 50°C and Max

The oven light turns on and so does the bottom heating element. The temperature, fixed by the thermostat knob, is reached automatically and kept constant. This setting is recommended for finishing the cooking of foods (placed in pans) that are well done on the outside but still not done inside or for desserts covered with fruit or jam which require a light browning on top. Note that this function does not permit reaching the maximum (250°C) temperature inside for cooking foods always on this oven setting unless the foods are cakes which only require temperatures below or equal to 180°C.

1. The Top Heating element

- Knob "G" setting: |

- Knob "N" setting: anywhere between 50°C and Max

The oven light turns on and so does the infra-red ray grill, and the motor starts turning the spit. The rather high and direct temperature of the grill permits browning the outside of meats immediately thus keeping in the juices and assuring tenderness.

1. The Grill

- Knob "G" setting: |

- Knob "N" setting: anywhere between 50°C and Max

The oven light turns on and so does the double heating element of the grill and the motor starts turning the spit. This grill is larger than the average and has a completely new design: cooking performance is increased 50%. The double grill makes sure that even the corners are touched by heat.

Important: when using the grill, keep the oven door closed to obtain the best results and save energy (about 10%).

When utilizing the grill, place the rack at the lower levels (see cooking table). To catch grease or fat and prevent smoke, place a dripping-pan at the bottom rack level.

Important: when using the grill, the oven door must be left partly open by positioning the deflector "D" between door and panel to prevent the cooker knobs from overheating.

The rotisserie

To operate the rotisserie, proceed as follows:

a) place the dripping-pan on the 1st rack;

b) insert the special rotisserie support on the 4th rack and position the spit by inserting it through the special hole into the rotisserie at the back of the oven;

c) to start the spit, set the oven selection knob (G) on setting which delivers 50% of the total grill power) for small quantities of food, or on setting which delivers total grill power).

The oven-operating pilot lamp (L)

Signals when the oven is heating. It switches off when the temperature inside the oven reached the temperature selected by the knob. At this point the alternate turning on and turning off of this light indicates that the thermostat is operating correctly to keep the oven temperature constant.

The cook-top electric plate control knobs (I)

The cookers may be equipped with standard, fast and automatic electric plates in various combinations (the fast plates distinguished from the others by a red dot in the centre, the automatic ones by a round aluminium disk at the centre.

To avoid heat dispersion and damage to the plates, recommend using cooking vessels with flat bottoms in diameters which are not smaller than the plate diameter. Table shows the correspondence between the position indicated on the knobs and the use for which the plates advised.

Setting Normal or Fast Plate
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time.

Before using the hot plates for the first time, heat them at maximum temperature for approximately 4 minutes without any pans. During this initial stage, their protective coating hardens and reaches its maximum resistance.

The green pilot lamp (H)

This lights up when an electric plate is turned on.

Timer Knob

To use the timer, wind the ringer "M" by turning the knob one full turn clockwise; then turn it back to the desired time so that the number of minutes on the knob matches the reference mark on the panel.

Attention

Avoid children touching the oven door because it is very hot during cooking.

! The internal surfaces of the compartment (where present) may become hot.

Warning: never place hot containers or items and flammable materials inside the dishwarmer drawer.

Storage recess below the oven (only a few models)

Below the oven, a recess can be used to contain cooking pans and cooker accessories. Moreover, during oven operation, it may be used to keep food warm. To open the storage, turn it downwards.

Caution: this storage recess must not be used to store inflammable materials.

Cooking advice

The oven offers a wide range of alternatives that allow you to cook any type of food in the best possible way. With time, you will learn to make the best use of this versatile cooking appliance, and the following directions are only a guideline that may be varied according to your own personal experience.

Baking cakes

The oven should always be warm before putting in cakes; wait until the end of preheating (about 10-15 min.). Cake-baking temperatures are normally around 160°C/200°C. Do not open the oven door during the baking process as this could cause the cake to sink. In general:

Pastry is too dry

Increase the temperature by 10°C and reduce the cooking time.

Pastry dropped

Use less liquid or lower the temperature by 10°C.

Pastry is too dark on top

Place it on a lower rack, lower the temperature, and increase the cooking time.

Cooked well on the inside but sticky on the outside

Use less liquid, lower the temperature, and increase the cooking time.

The pastry sticks to the pan

Grease the pan well and sprinkle it with a dusting of flour.

Cooking fish and meat

When cooking white meat, fowl, and fish, use low temperatures (150°C-175°C). When red meat must be superficially well-cooked but succulent inside, it is advisable to start with a high temperature (200-220°C) for a short time, and then to reduce it at a later point. Generally speaking, the more meat there is, the lower the temperature and the longer the cooking time should be. Place the

meat in the centre of the grid and put a spill-tray underneath to catch grease drips. Insert the grid so that it is in the middle of the oven. If more heat from below is required, use the 1st bottom shelf.

To grill

When using any of the grilling modes, it is recommended that the thermostat knob be turned to the highest setting, as it is the most efficient way to use the grill (which utilizes infrared rays). If necessary, however, the thermostat can be set to lower temperatures for grilling. When using the grill functions, place the grid on the lower racks (see cooking table) then, to prevent fat and grease from dripping onto the bottom of the oven and smoke from forming, place a dripping-pan on the 1st oven rack from the bottom.

Important: always use the grill with the oven door closed. This will allow you both to obtain excellent results and to save on energy (approximately 10%). Table 1 includes the recommended temperatures, cooking times, and positions for you to obtain the best results when cooking.

Cooker routine maintenance and cleaning

Before each operation, disconnect the cooker from the electricity. To assure the long life of the cooker, it must be thoroughly cleaned frequently, keeping in mind that:

• Do not use steam equipment to clean the appliance.
• The enamelled parts and the self-cleaning panels are washed with warm water without using any abrasive powders or corrosive substances which could ruin them;
• The inside of the oven should be cleaned fairly often while it is still warm using warm water and detergent, followed by careful rinsing and drying;
• The electric plates are cleaned with a damp cloth and they should be lubricated with a little oil while they are still warm. Stainless steel may become marked if it comes into contact with very hard water or harsh detergents (containing phosphorous) for long periods of time. After cleaning, it is advisable to rinse thoroughly and dry. It is also recommended to dry any water drops;

Replacing the oven lamp

Unplug the oven from the mains; remove the glass cover of the lamp-holder; remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics: voltage 230V, wattage 25W, type E14. Replace the glass cover and reconnect the oven to the mains.

Removing the lid

The cooker lid can be removed to facilitate cleaning. To remove the lid, first open it completely and pull it upwards (see figure)

Cooking advice

Selection knob setting	Foods Wt.	(Kg)	Cooking position from bottom	Heating time (minutes)	Thermostat knob	Cooking time (minutes)
1 Static——	Lasagne	2,5	2	5	200	45-50
	Cannelloni	2,5	3	5	200	30-35
	Pasta bakes au gratin	2,0	3	5	200	30-35
	Veal	1,7	2	10	180	60-70
	Chicken	1,5	3	10	200	80-90
	Duck	1,8	3	10	180	90-100
	Rabbit	2	3	10	180	70-80
	Pork	2,1	3	10	180	70-80
	Lamb	1,8	3	10	180	70-80
	Mackerel	1,1	2	5	180	30-40
	Red porgy	1,5	2	5	180	30-35
	Trout baked in paper	1	2	5	180	25-30
	Napolitan pizza	1	2	15	220	15-20
	Biscuits or cookies	0,5	3	10	180	10-15
	Flan or tart	1,1	3	10	180	25-30
	Savoury pie	1	3	10	180	30-35
	Yeast cake	0,5	3	10	160	25-30
	Fruit cake	1	3	10	170	25-30
2 Oven bottom|—|	Finishing touches
3 Top bottom|←→|	Sole and cuttlefish	1	4	5	Max	8
	Squid and shrimp on spits	1	4	5	Max	4
	Cod fillets	1	4	5	Max	10
	Grilled vegetables	1	3/4	5	Max	8-10
4 Grill|←→|	Veal steaks	1	4	5	Max	15-20
	Cutlets	1,5	4	5	Max	20
	Hamburgers	1	3	5	Max	7
	Mackerels	1	4	5	Max	15-20
	Toast sandwiches	n.° 4	4	5	Max	5
	With rotisserie (only in few models)	1,0	-	5	Max	70-80
	Veal on the spit	2,0	-	5	Max	70-80
	Chicken on the spit

NB: cooking times are approximate and may vary according to personal taste. When cooking using the grill or double grill, the dripping-pan must always be placed on the 1st oven rack from the bottom.

Figure A Figure B

Figure C Figure D

Baking tips

Removing the lid

Baking tips

Fig. A

Fig. B

Fig. C

Fig. D

Oven operation indicator light (L)

Baking tips

Storing the cover

Baking tips

Poloha otočného gombíka vol'by	Potraviny	Hmotnost' (kg)	Poloha úrovne pri pečení, smerom odspodu	Doba pečenia (minúty)	Otočný gombík termostatu	Trvanie pečenia (minúty)
1 Staticý ohrev——	LasagneCannelloniGratínované cestovinyTel'acieKurčaKačkaKrálikBravčovéJahňacieMakrelaMakrelyPstruh v alobaleNeapolská pizzaSušienky a koláčeTaštičky a nekysnuté sladké tortySlané tortyKysnuté tortyOvocné torty	2,52,52,01,71,51,822,11,81,11,5110,51,110,51	23323333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333	55510101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101	200200200180200180180180180180220180180180160170	45-5030-3530-3560-7080-9090-10070-8070-8070-8030-4030-3525-3015-2010-1525-30
2 Dno sporáku|——|	Dopečenie
3 Vrchný ohrev| [IMAGE]	Platesy a sépieOlihne a krevety na ražniTreščie filéGrilovaná zelenina	1111	4443/4	5555	Max.Max.Max.Max.	84108-10
4 Gril| [IMAGE]	Tel'ací biftekRezneHamburgeryMakrelyHrianky	11,511n. 4	44344	5555	Max.Max.Max.Max.	15-2020715-205
	Na ražniTel'acie na ražniKurča na ražni	1,02,0	--	55	Max.Max.	70-8070-80
