P5 SSD - SSD Drive Crucial - Free user manual and instructions

Product Type	SSD (Solid State Drive)
Form Factor	M.2 2280
Interface	NVMe PCIe 3.0 x4
Capacity	500 GB, 1 TB, 2 TB
Sequential Read Speed	Up to 3400 MB/s
Sequential Write Speed	Up to 3000 MB/s
Random Read (IOPS)	Up to 390K
Random Write (IOPS)	Up to 500K
NAND Type	3D NAND TLC
Controller	Phison E12S
Endurance (TBW)	600 TBW (1TB model)
Power Consumption (Active)	6.5 W (Typical)
Power Consumption (Idle)	0.8 W
Operating Temperature	0 °C to 70 °C
Storage Temperature	-40 °C to 85 °C
Dimensions (L x W x H)	80 mm x 22 mm x 2.3 mm
Weight	7 g
Warranty	5 years limited
Key Features	Dynamic Write Acceleration, Temperature Monitoring, Data Protection
Cleaning Instructions	Use a dry, lint-free cloth; avoid liquids
Safety Precautions	Handle with care; avoid static discharge; do not disassemble
Spare Parts / Repairability	Not user-serviceable; no spare parts available

Frequently Asked Questions - P5 SSD Crucial

What is the Crucial P5 SSD?

The Crucial P5 is a high-performance NVMe M.2 SSD using 3D NAND technology, designed for fast boot times and application loading.

Is the Crucial P5 compatible with my computer?

It requires an M.2 slot with PCIe 3.0 x4 or higher interface. Most modern laptops and desktops support this, but check your motherboard manual.

How do I install the Crucial P5 SSD?

Insert the SSD at a 30-degree angle into the M.2 slot, then secure it with the screw. No cables needed. Refer to your motherboard manual for exact steps.

Does the Crucial P5 require any special software?

It works out-of-the-box. Optional Crucial Storage Executive software can monitor drive health, update firmware, and enable features like Momentum Cache.

What is the warranty coverage for the Crucial P5?

Crucial offers a 5-year limited warranty covering defects in materials and workmanship. It does not cover damage from misuse.

How do I clone my existing drive to the Crucial P5?

Use Crucial's free cloning software (Acronis True Image for Crucial) or other tools like Macrium Reflect. Connect both drives and follow the software prompts.

What is the TBW endurance of the Crucial P5?

Terabytes Written (TBW) varies by capacity: 500GB = 300 TBW, 1TB = 600 TBW, 2TB = 1200 TBW. This indicates the total data that can be written before degradation.

Can I use the Crucial P5 in a PlayStation 5?

The PS5 requires a PCIe 4.0 SSD for optimal performance, but the P5 (PCIe 3.0) can be used in an external enclosure or as internal storage for PS4 games.

Why is my Crucial P5 not detected?

Check that the SSD is fully seated in the M.2 slot, the screw is tight, and the slot is enabled in BIOS/UEFI. If using an adapter, ensure compatibility.

How do I clean the Crucial P5 SSD?

Do not use liquids or sprays. Gently wipe the outer casing with a dry microfiber cloth. Avoid touching the gold contacts to prevent static damage.

USER MANUAL P5 SSD Crucial

Installing a Crucial SSD is easy and makes your computer significantly faster!

PART 1: PREPARE

Close-up of a wooden desk with a screwdriver, a small electronic device, and a smartphone displaying a webpage (no visible text or symbols on the devices)

1. Gather supplies

You'll need your computer, a screwdriver, your new Crucial SSD, and your computer's owner's manual.

Close-up of hands inserting a USB into a laptop keyboard and cable (no text or symbols visible)

2. Back up important files

Before starting the install process, save any important files on your computer to an external storage drive, a USB flash drive, or cloud storage.

Top-down view of a laptop keyboard and a small electronic circuit board on a wooden surface (no text or symbols visible)

3. Go slowly and deliberately

The information you need is all here. Your computer will likely look different than the ones shown, but the process is the same. Read each step thoroughly and consult our Helpful Tips for more info.

HELPFUL TIP

NVMe SSD support and drivers are not available for Windows ^® 7. Your computer or motherboard manufacturer might be able to add support. There is also a hotfix available from Microsoft ^® that can be applied to natively support NVMe drives for Windows 7.

DID YOU KNOW...?

Clearing your workspace helps prevent the buildup of static electricity that could damage your new drive.

PART 2: INSTALL

Close-up of a finger pressing on a keyboard with a highlighted button (no text or symbols visible)

1. Shut down your system

Turn off your computer completely.

Hand holding a small black cable inserted into a metallic device (no visible text or symbols)

2. Remove the power cable and battery

Now remove the power cable and battery. The battery removal step applies only to laptops when it's possible to remove the battery. To see how to remove the battery, refer to your owner's manual.

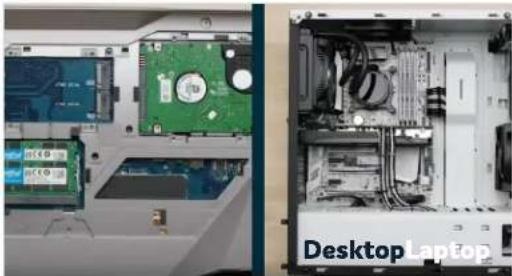

3. Discharge residual power

If your laptop has a removable battery, remove it, and hold the power button for five seconds to discharge any electricity left in the system.

Interior view of a desktop computer setup showing CPU socket, drive bays, and motherboard (no visible text or symbols)

4. Open the case

How you do this will vary from system to system, so consult your owner's manual for exact instructions.

Close-up of a computer setup showing a green CPU socket on the left and a close-up of a desktop computer tower with visible circuitry (no text or symbols)

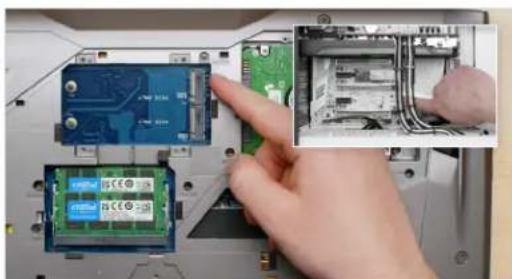

5. Ground yourself

Touch an unpainted metal surface to ground yourself. This protects your computer's components from the static electricity that's naturally present in your body – grounding is an extra safeguard.

Close-up of hands installing a circuit board component into an electronic device (no visible text or symbols)

6. Locate the M.2 PCIe slot

This slot is usually easy to find in desktops, but in laptops the location will vary – it's typically under the bottom panel, or under the keyboard. Refer to your owner's manual for the exact location, as every system looks slightly different.

Close-up of a hand inserting a PCI3C OTC module into an electronic device chassis (no visible text or symbols)

7. Insert the SSD

Depending on your computer, there might be a heat sink or screw that needs to be removed prior to inserting your new NVMe PCIe SSD. To insert your Crucial NVMe PCIe SSD, hold the SSD carefully by the sides. Do not touch the gold connector pins. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a 30-degree angle. Do not force the connection.

To secure the drive, it might be necessary to insert the screw into the provided mount on the motherboard. Do not overtighten the screw.

Close-up of hands holding a white plastic sheet with visible slots and patterns, placed on a laptop (no text or symbols)

8. Reassemble your system

After the SSD is securely seated in the slot, put your computer back together and reconnect the battery if it was removed.

Close-up of a hand pressing a finger on a keyboard (no visible text or symbols)

9. Turn on your computer

Turn on your computer. Unless you removed your old storage drive in a previous step, the computer is booting from the old drive. Part 3 will walk you through how to clone your data to use your new drive to boot up.

HELPFUL TIP

With some motherboards, you might see some messages about configuring to increase speeds of NVMe SSDs or about enabling and disabling shared bandwidth of SATA and NVMe ports. This is not a malfunction. You can configure your hardware for optimal performance and avoid malfunctions by obtaining detailed information about your motherboard from the manufacturer.

Amount of data on old hard drive Time it may take to copy to new SSD

Less than 256GB 20-30 minutes

256-512GB 30-60 minutes

512GB-1TB 60-90 minutes

More than 1TB 90+ minutes

DID YOU KNOW...?

The longest part of the SSD install process is copying everything from your old drive to your new SSD. Before you start, get a sense of how long this'll take by referring to our chart on the left.

PART 3: COPY

1. Download the cloning software

On the computer with the SSD, go to www.crucial.com/clone to download the software that will copy your old drive to your new SSD. This software comes free with Crucial SSDs.

2. Install the software you downloaded

Open the file you downloaded and accept all of the prompts. A screen will then pop up. Click Install. After installation is complete, start the application.

3. Prepare to copy (clone) your data

You'll now see several options in the software. Select the Clone Disk option. You'll then be asked to select a clone mode. If you've never done this before, we recommend the Automatic method, then click the Next button.

HELPFUL TIP

If your old storage drive is 128GB (for example) and you copy its contents to a 275GB SSD, the SSD may show up in your system as a 128GB drive, even though it's actually the size that you bought. No need to fear – you can still store more on it, but you'll need to make some adjustments to the drive's settings. This doesn't usually happen, but if it does, we want to let you know that it's OK and that it's based on your system, not you.

DID YOU KNOW...?

Millions of people have used this software to copy data, from everyday home users with passwords and precious home photos to corporate users who have lots of proprietary information. The security and privacy of your data is important to us, and we don't compromise that. Copying is a safe, secure process.

4. Select source and destination drives

Your “source” drive is your existing drive (disk). Select it by clicking on it, then click Next. Now select your “destination” drive (your new SSD) and click Next. On the following screen, click Proceed to start copying your data.

Hand holding an orange plastic container next to a black laptop keyboard (no text or symbols visible)

5. Wait for your data to copy

It'll take a while for everything to copy, but the Acronis software will keep you updated on the progress.

Laptop chassis showing internal components including a green hard drive and a CD-ROM drive, with no visible text or symbols.

6. Change your primary or boot drive

When everything has copied over, you'll need to tell your operating system to use your new SSD as the primary drive. This can be done by removing the old drive, which will force your system to use the new drive. Check your computer's owner's manual or contact the computer manufacturer for instructions on how to change the primary drive.

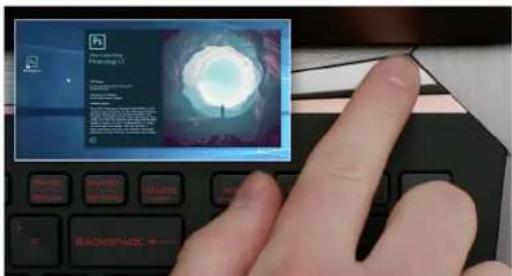

7. Have some fun

See how fast your favorite apps open when you click on them! Your SSD is installed, but you can make it even faster by enabling a special feature.

PART 4: DOWNLOAD

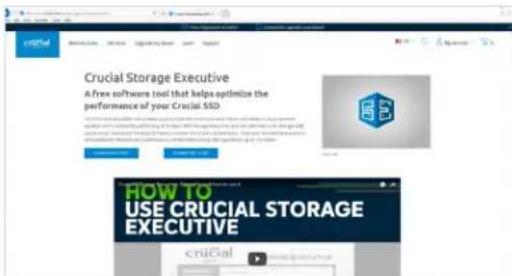

1. Enable Storage Executive

This free software enables your SSD to receive performance updates and to improve the performance of your new SSD by using system resources to increase performance.

2. Click on one of the "Download" buttons

Download times will vary based on your internet connection, but average 1–3 minutes.

3. Install and run Storage Executive

Click on the file you just downloaded. If it doesn't open right away, double-click on it, then save it to your desktop and open it from there. Follow the onscreen prompts and instructions to install and start using the software.

4. Enable Momentum Cache and make your SSD even faster

In the left menu, click on Momentum Cache. Enabling this feature forces your computer to restart, which is normal. The feature doesn't work with RAID arrays.

HELPFUL TIP

Download the 64-bit version of the software if you have a 64-bit operating system (most users). Download the 32-bit version if you have a 32-bit operating system. Not sure which one you have? Follow the steps in our chart below.

Operating system How to know if you have the 32-bit or 64-bit version

Windows® 10	In the Start menu, type This PC into the Windows search bar, but don't hit enter. Right click on the This PC option that displays, then select Properties and your type of operating system will be displayed onscreen.
Windows *8	Move your mouse to the upper right side of the screen and click on the search tool that appears. Type Computer into the search field, then right click on it and select Properties. Your type of operating system will be displayed onscreen.
Windows *7	In the Start menu, right click on Computer, then select Properties and your type of operating system will be displayed onscreen.

If you see anything other than 64-bit, download the 32-bit version of the software.

DID YOU KNOW...?

You can use Storage Executive to see how much storage you've used, monitor your drive's temperature, and enable the Momentum Cache feature, which makes many SSD operations up to 10x faster.

Close-up of a laptop with a visible 3D MSCI drive and a close-up of its internal components (no text or symbols on the hardware surface)

Congratulations!

Now that you're an expert installer, watch out! Your friends and family might start asking you to do their installs;)
