Product Type	Baby Car Seat
Brand	Evenflo
Model	Active
Dimensions (L x W x H)	62 x 44 x 58 cm
Weight	5.2 kg
Weight Capacity	0 to 18 kg (birth to approx. 4 years)
Installation Type	Seat belt or Isofix base (base sold separately)
Orientation	Forward-facing (from 9 kg) and rear-facing (up to 13 kg)
Harness	Height-adjustable 5-point harness
Recline Positions	3 positions (adjustable recline for comfort)
Materials	Polypropylene shell, EPS foam, washable polyester fabric
Safety Standards	ECE R44/04 certified
Care and Cleaning	Machine washable cover at 30°C; shell cleanable with damp cloth
Spare Parts	Covers, harness buckles, headrest available from manufacturer
Repairability	Spare parts available on request; lifespan 6 years
Included Accessories	Newborn insert, belt guide, instruction manual
Warranty	2 years

Frequently Asked Questions - Active Evenflo

How to install the Active car seat in rear-facing position?

To install the seat in rear-facing position, place the seat on the rear seat of the vehicle and route the seat belt following the red guides. Ensure the belt is tight. The seat should be reclined at 45° for optimal baby comfort.

Can I use the Active car seat without Isofix base?

Yes, the Active car seat can be installed using the vehicle's seat belt, without an Isofix base. However, for easier and more secure installation, the Isofix base is recommended (sold separately).

Up to what weight can I use the seat in rear-facing position?

Rear-facing is recommended until your child reaches 13 kg (approximately 12 to 15 months). After that, turn the seat forward-facing.

How to clean the car seat cover?

The cover is removable and machine washable at 30°C. Use a gentle cycle and air dry. Do not use bleach or tumble dry.

Is the 5-point harness height adjustable?

Yes, the 5-point harness has multiple height positions. To adjust, pull the tab at the back of the seat and move the straps up or down.

What is the lifespan of the Active car seat?

The recommended lifespan is 6 years from the date of manufacture. After that, materials may deteriorate and safety is no longer guaranteed.

Can I use this car seat on an airplane?

Yes, the Active car seat is certified for airplane use, provided it is installed forward-facing. Check with your airline for boarding conditions.

How to know if the seat is properly installed?

Check that the seat does not move more than 2.5 cm forward and backward at the belt path. Ensure the belt is locked and the harness is snug without slack.

Can I order spare parts for the Active car seat?

Yes, spare parts such as covers, harness buckles, and headrest are available on the Evenflo website or through customer service.

Is the Active car seat compatible with all vehicles?

The seat is compatible with most vehicles equipped with 3-point seat belts. For guaranteed compatibility, check the vehicle list in the manual or use the Isofix base.

USER MANUAL Active Evenflo

Read all instructions before assembly and use of the child carrier. Keep instructions for future use.

Adjusting the Seat 3

Wearing the Carrier 4

Using the Side-entry Buckle 5

Using the Carrier as a Front Pack – Facing Inward 7

Using the Carrier as a Front Pack – Facing Outward 8

Using the Carrier as a Backpack 9

Care and Maintenance 11

Limited Warranty 11

For Australian Consumers 12

IMPORTANT!

KEEP FOR FUTURE USE.

READ ALL INSTRUCTIONS BEFORE ASSEMBLING

AND USING THE SOFT CARRIER.

WARNING

FALL AND SUFFOCATION HAZARD

FALL HAZARD – Infants can fall through a wide leg opening or out of carrier.

• Adjust leg openings to fit baby's legs snugly.
• Before each use, make sure all fasteners are secure.
  • Take special care when leaning or walking.
• Never bend at waist; bend at knees.
• Only use this carrier for children between 7 lb and 32 lbs (3.2 kg and 14.5 kg).

SUFFOCATION HAZARD – Infants under four months can suffocate in this product if face is pressed tight against your body.

• Do not strap infant too tight against your body.
• Allow room for head movement.
• Keep infant's face free from obstructions at all times.

WARNING

• NEVER leave child in carrier unless being worn by caregiver. Child may fall, suffocate, or strangle.
• Child must face towards you until he or she can hold head upright.
• Check to assure all buckles, snaps, straps and adjustments are secure before each use.
• Check for ripped seams, torn straps or fabrics, and damaged fasteners before each use.
• Ensure proper placement of child in product, including leg placement.
• Premature infants, infants with respiratory problems, and infants under four months are at the greatest risk of suffocation.
• Never use a soft carrier when balance or mobility is impaired because of exercise, drowsiness, or medical conditions.
• Never use a soft carrier while engaging in activities such as cooking and cleaning, which involve a heat source or exposure to chemicals.
• Never wear a soft carrier while driving or being a passenger in a motor vehicle.
• Do not place sharp objects in carrier pockets.
• Ensure child's body parts are clear when closing any fasteners.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at www.evenflo.com/registerproduct.

For future reference, record the model number of your carrier AND the date of manufacture below.

Model Number:

Date of Manufacture:

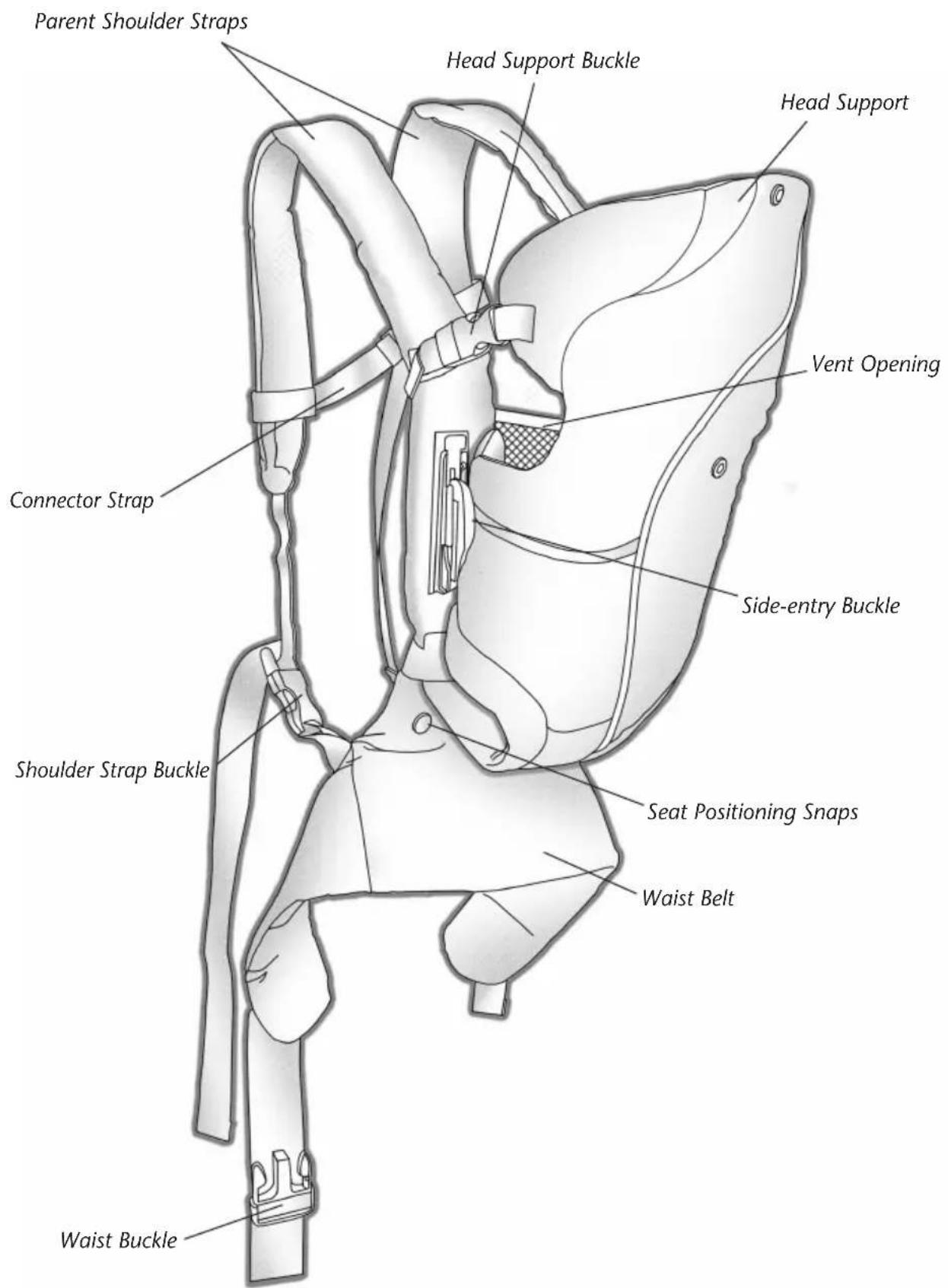

Parent Shoulder Straps Head Support Buckle Head Support Vent Opening Connector Strap Side-entry Buckle Shoulder Strap Buckle Seat Positioning Snaps Waist Belt Waist Buckle

1 A B

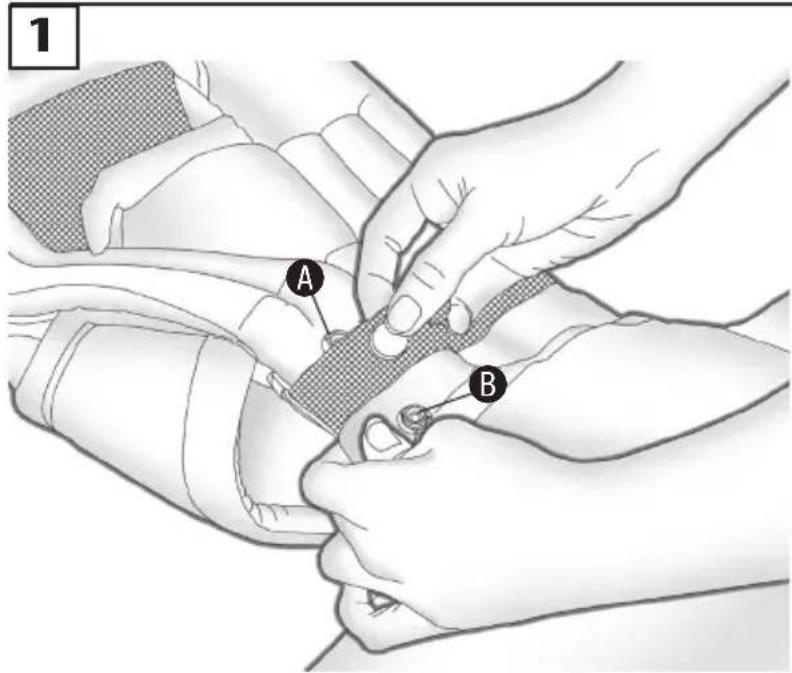

The carrier can be adjusted to two seat positions as baby grows. The highest snap Ⓐ is used for infants. To change the seat position, unsnap each seat positioning snap Ⓑ and slide to the desired level. Fasten snaps securely BEFORE placing baby in carrier.

Illustration of a woman holding a baby with a medical device, no text or symbols present

Illustration of a woman holding a baby, both in a relaxed pose (no text or symbols)

Always select a seat height position that provides the smallest leg opening suitable for the baby. You should be able to fit two fingers between the baby's leg and the carrier's leg openings ©.

1

A B C

Put the carrier on before placing your baby in the carrier.

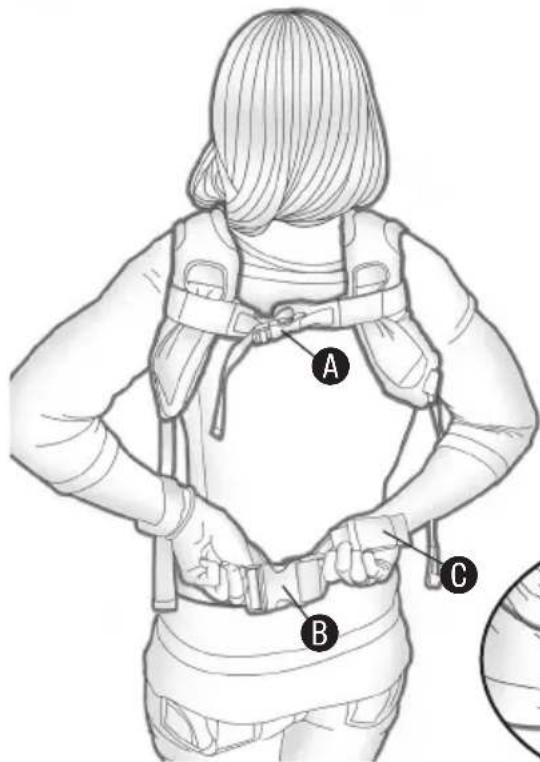

Make sure the connector strap Ⓐ in the back is buckled securely. With the carrier in front of you, slip the carrier over your head. Buckle the waist belt Ⓑ securely with an audible click.

WARNING

Connector strap must be buckled securely when carrying baby in the front position. Baby could be seriously injured if shoulder straps slip out of position.

Illustration of a person's wrist with a belt and wristband, showing a finger movement (no text or symbols)

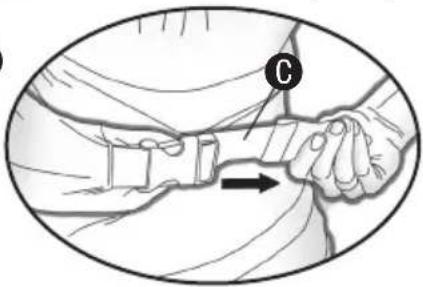

Pull on excess waist belt strap Ⓐ to remove all slack.

2

Medical illustration showing a woman holding a patient's abdomen with labeled points D and E

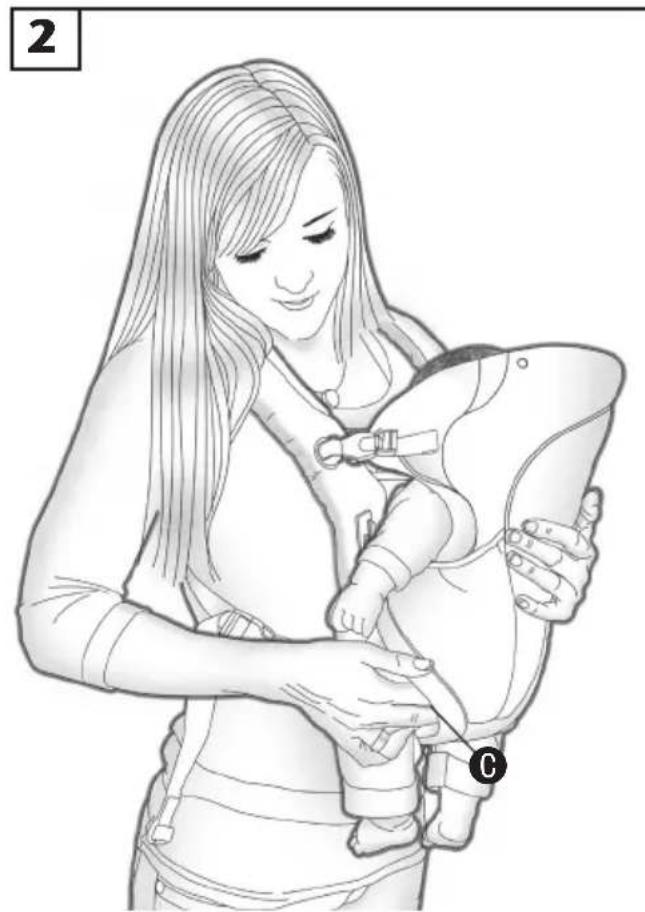

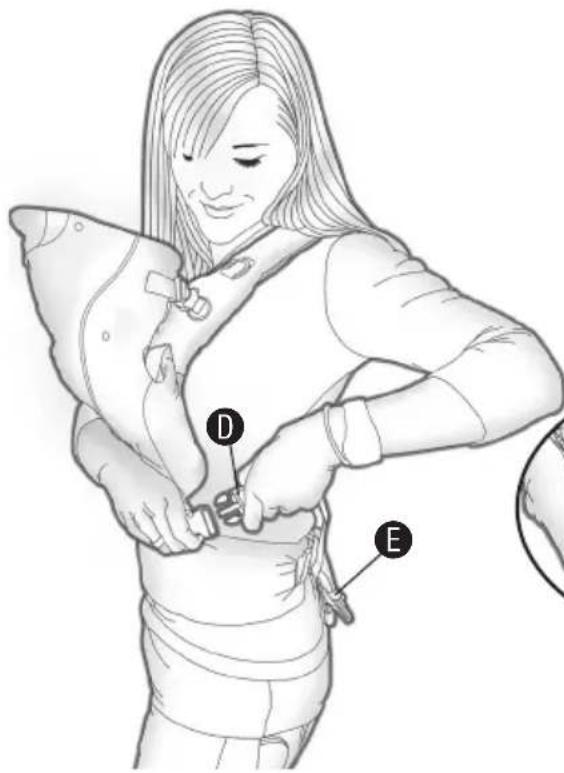

Buckle both shoulder straps Ⓓ. Make sure they fasten with an audible click.

E

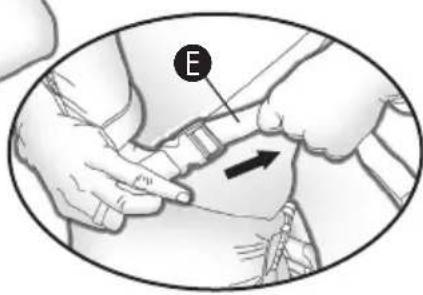

Tighten the shoulder straps by pulling on the excess strap Ⓔ.

To fasten the side-entry buckle

1

Illustration of a woman carrying a baby in a chair, with no visible text or symbols

Technical diagram showing three-step assembly steps of a mechanical clamp or clamp device, labeled A and B with directional arrows indicating movement.

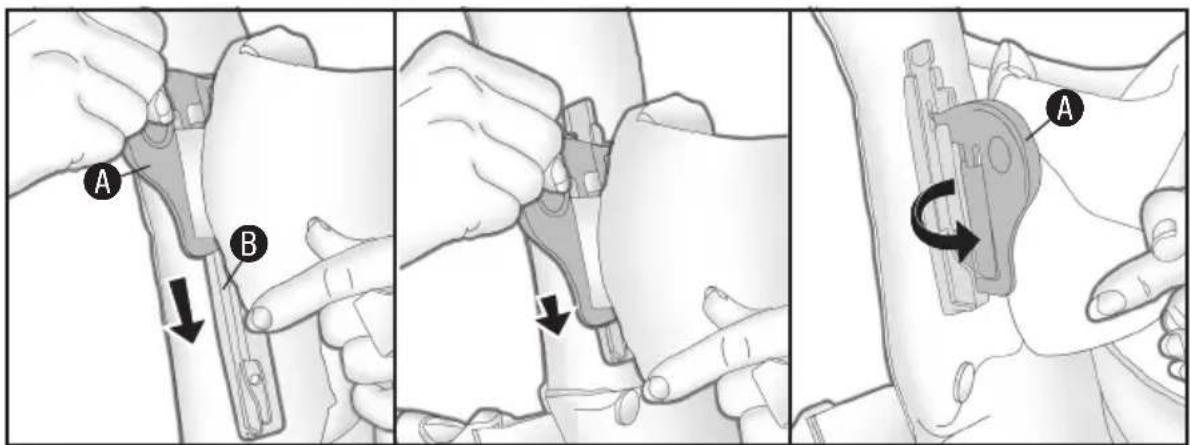

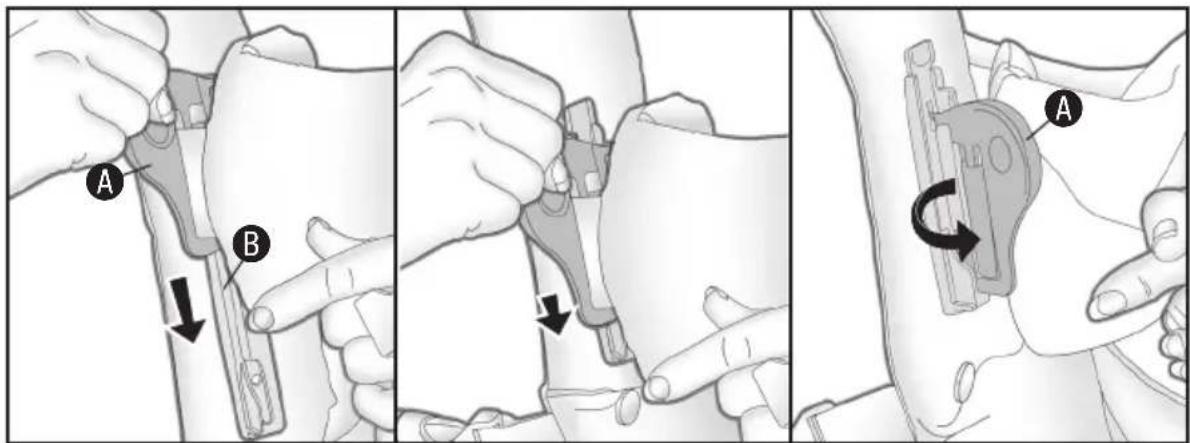

Holding the buckle handle Ⓐ parallel to your body, as shown, place it in the holder Ⓑ and slide it downward. As you slide the handle, it will rotate away from your body. Keep sliding it downward until it locks into position with an audible click.

2

Medical diagram showing hands performing a procedure on a device labeled A and C, with a magnified view of the device.

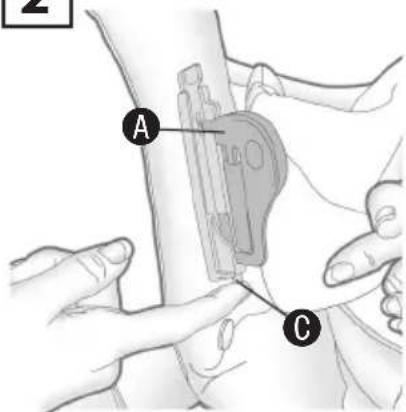

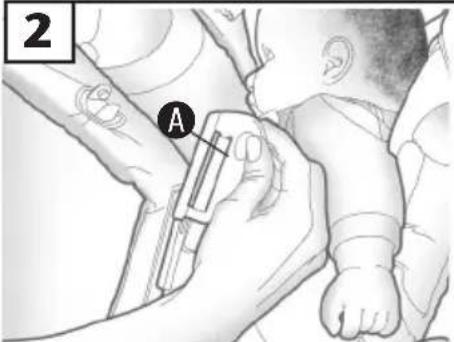

Important: Check that the handle Ⓐ is locked properly in position by feeling for the handle tip Ⓐ at the bottom of the holder, as shown. If you can't feel the tip, push the handle downward until you do.

To unfasten the side-entry buckle

1

Medical illustration showing a baby being adjusted to a child's seatbelt using a device (no text or symbols present)

Sit down before removing baby from carrier.

Release both head support buckles and fold down top of head support.

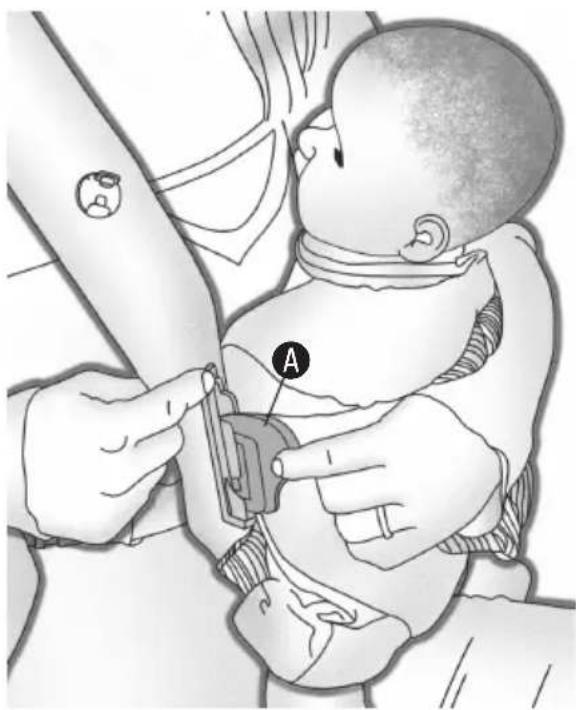

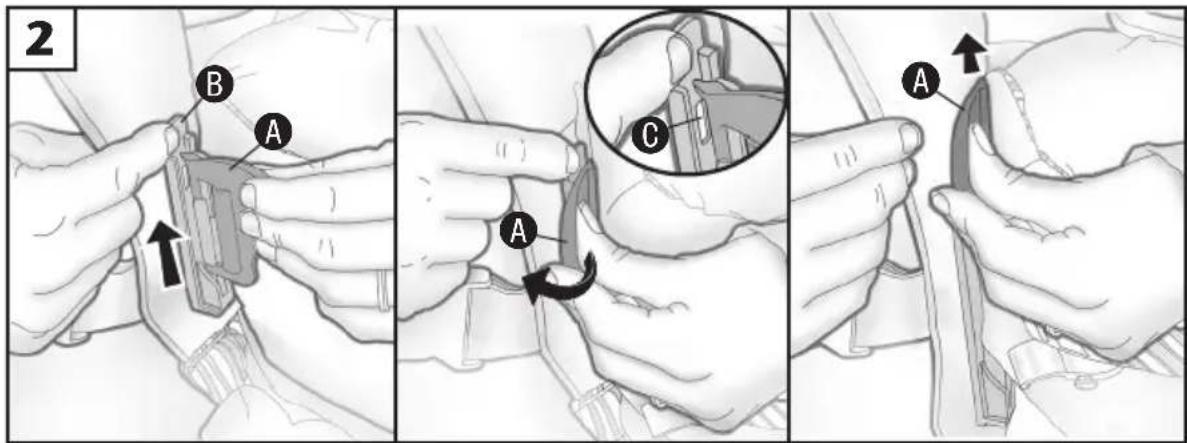

With your left arm supporting baby, grasp the side-entry buckle handle Ⓐ with your left hand, as shown.

2 B A C A

With your right hand, press the handle release tab Ⓑ and continue to hold down. With your left hand, lift the buckle handle Ⓐ upward until it clicks.

Twist the buckle handle Ⓐ away from baby in an upward motion until you hear a click.

Note: Twist until the handle tongue completely clears the groove Ⓐ in the holder.

Slide buckle handle Ⓐ upward out of holder.

Tip!

The front position with BABY FACING IN is best for young infants with limited neck control.

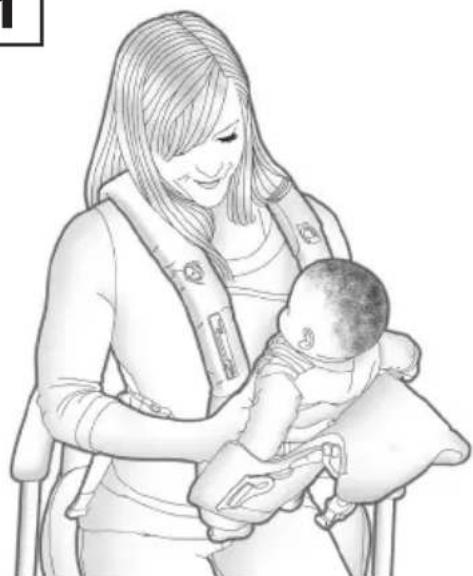

1

Illustration of a woman carrying a baby in a walker (no text or symbols)

Sit down.

Be sure the side entry buckles and the infant shoulder straps are un-buckled, and carrier is on your lap. Place baby onto carrier facing you with legs straddling carrier.

BE PREPARED FOR BABY'S SUDDEN MOVEMENT!

While supporting baby's head and back, carefully raise carrier and baby up toward your chest.

2

2 A

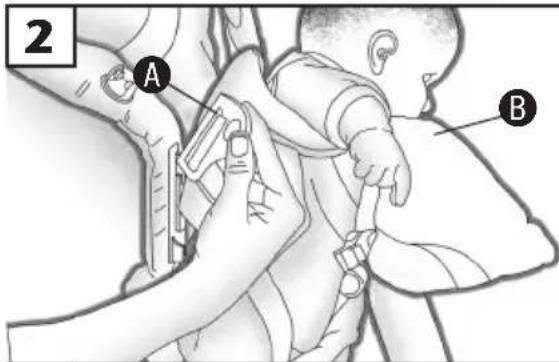

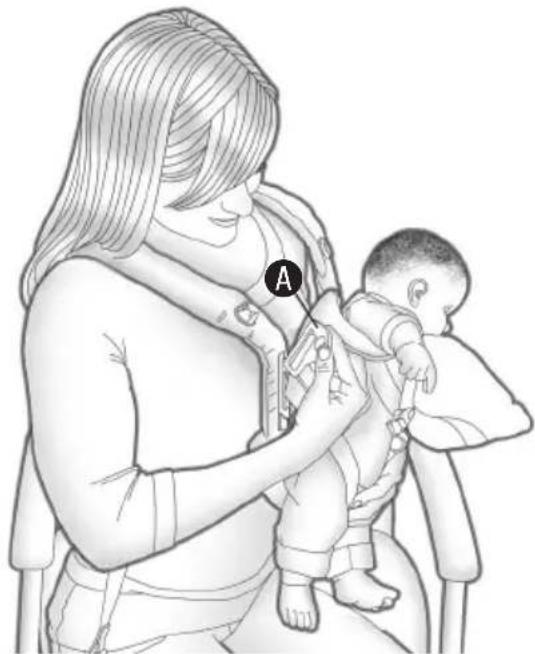

Fasten the side-entry buckle Ⓐ (see page 5). Make sure it fastens with an audible click.

3

Illustration of a woman carrying a baby in a chair, no text or symbols present

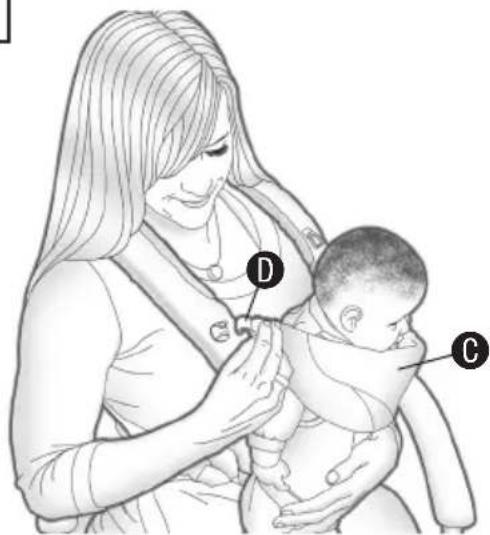

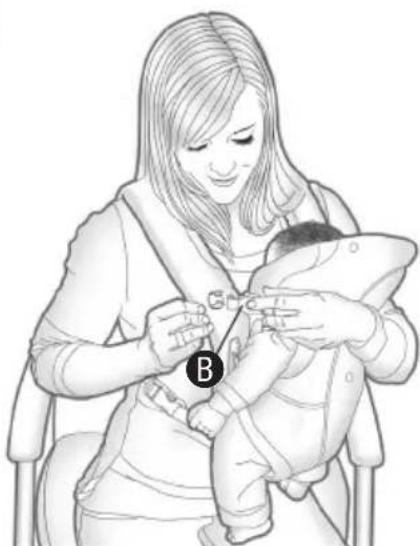

While supporting baby, fasten the head support buckle Ⓑ to the shoulder strap. Make sure it fastens with an audible click.

Adjust head support as necessary to support baby's head.

Repeat on the other side.

4

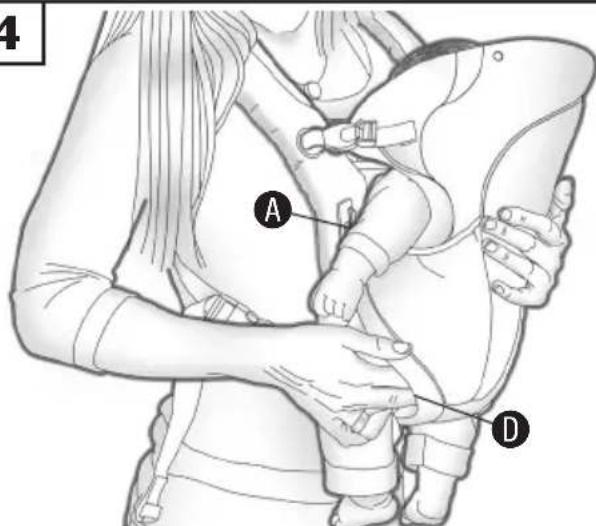

4 A D

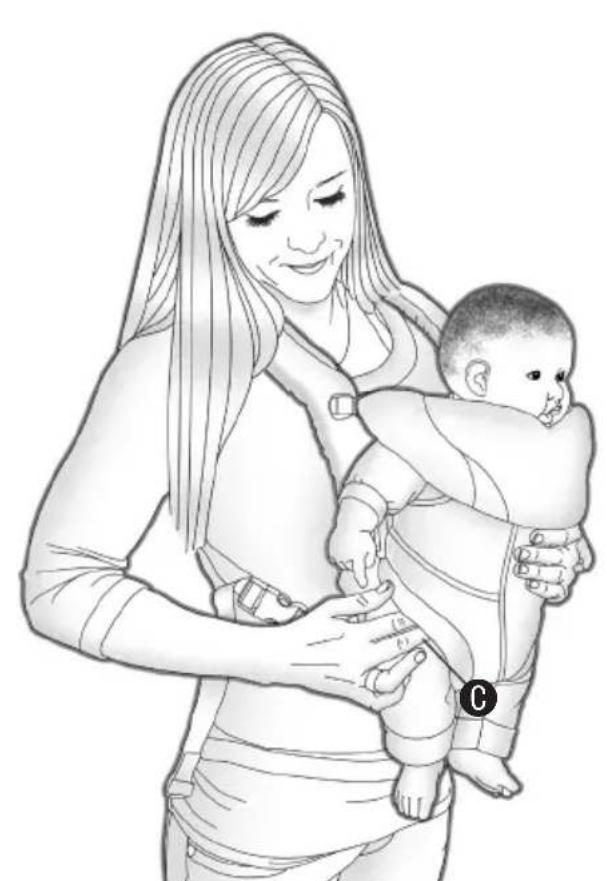

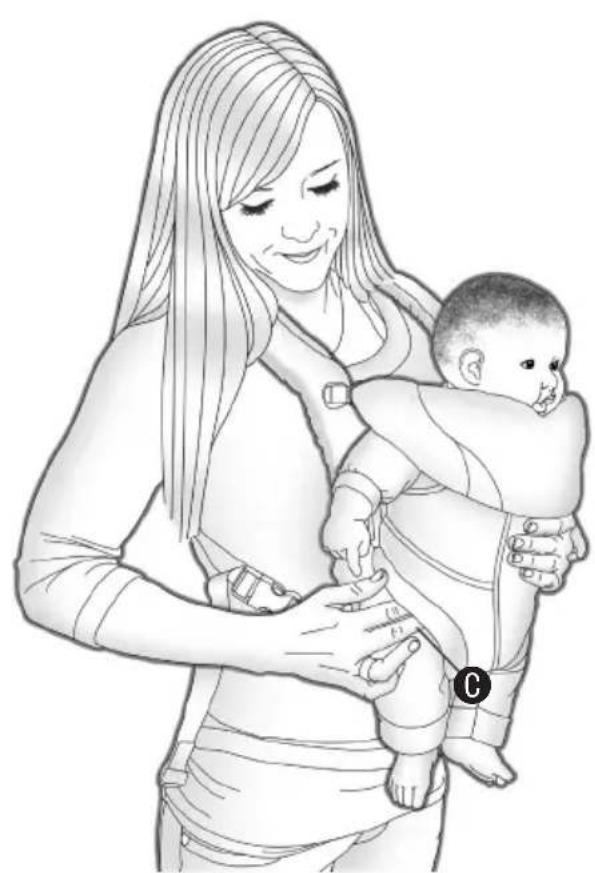

Make sure baby is comfortable with legs fully through leg openings Ⓓ and baby's arms resting above the side-entry buckle Ⓔ. You should be able to fit two fingers between the baby's leg and the leg openings Ⓓ.

MAKE SURE ALL BUCKLES ARE FASTENED SECURELY.

Using the Carrier as a Front Pack – Facing Outward

IMPORTANT: The front position with BABY FACING OUTWARD is only for babies who can hold up head and neck unassisted (about 4 to 5 months old).

1

Illustration of a woman holding a baby while seated on a chair (no text or symbols)

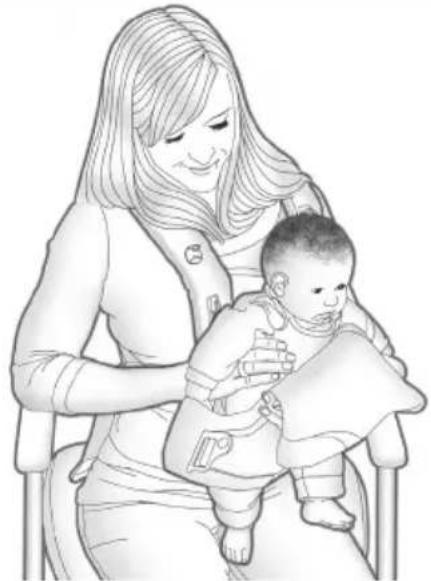

Sit down.

With unbuckled carrier on your lap, place baby onto carrier facing away from you with legs straddling carrier.

BE PREPARED FOR BABY'S SUDDEN MOVEMENT!

Support baby's chest while bringing the carrier up toward baby's chest.

2 A B

Fasten the side-entry buckle A (see page 5). Make sure it fastens with an audible click. Secure the bib to the Velcro inside carrier B.

3

Medical illustration showing a woman carrying a baby with labeled points D and C indicating anatomical or pathological features.

Fold head support and bib C down, then fasten the head support buckle D to the shoulder strap. Make sure it fastens with an audible click. Repeat on the other side.

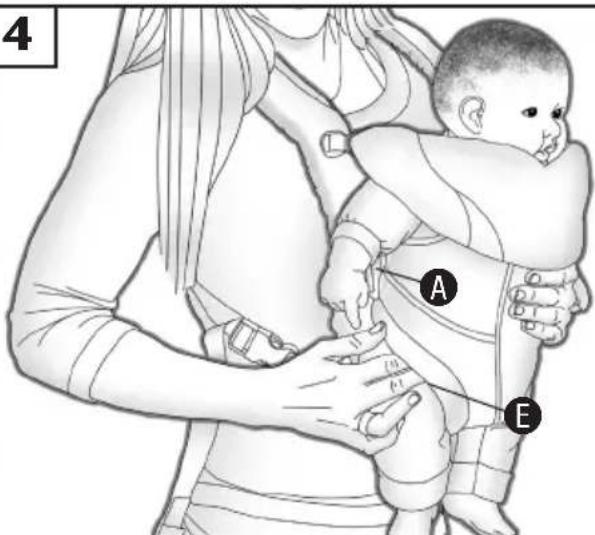

4 A E

Make sure baby is comfortable with legs fully through leg openings Ⓔ and baby's arms resting above the side-entry buckle Ⓔ. You should be able to fit two fingers between the baby's leg and the leg openings Ⓔ.

MAKE SURE ALL BUCKLES ARE FASTENED SECURELY.

IMPORTANT: Child MUST be able to sit upright unassisted (about 6 months old) and MUST be in the face-in position.

1

A A B

Sit down.

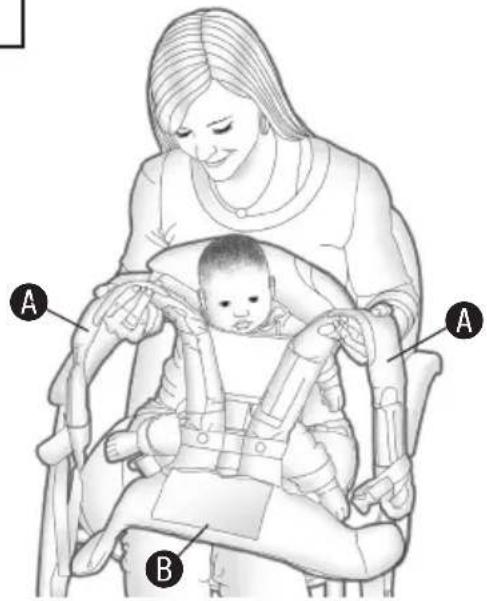

With carrier on your lap, have child sit with legs straddling the carrier seat. Parent straps Ⓐ and waist belt Ⓑ should be facing away from you, as shown.

BE PREPARED FOR BABY'S SUDDEN MOVEMENT!

2

Illustration of hands holding a mechanical component with a labeled section (C), no text or symbols present.

While supporting baby's head and back, fasten the side-entry buckle Ⓐ (see page 5). Make sure it fastens with an audible click.

3

3 Have the c pare A

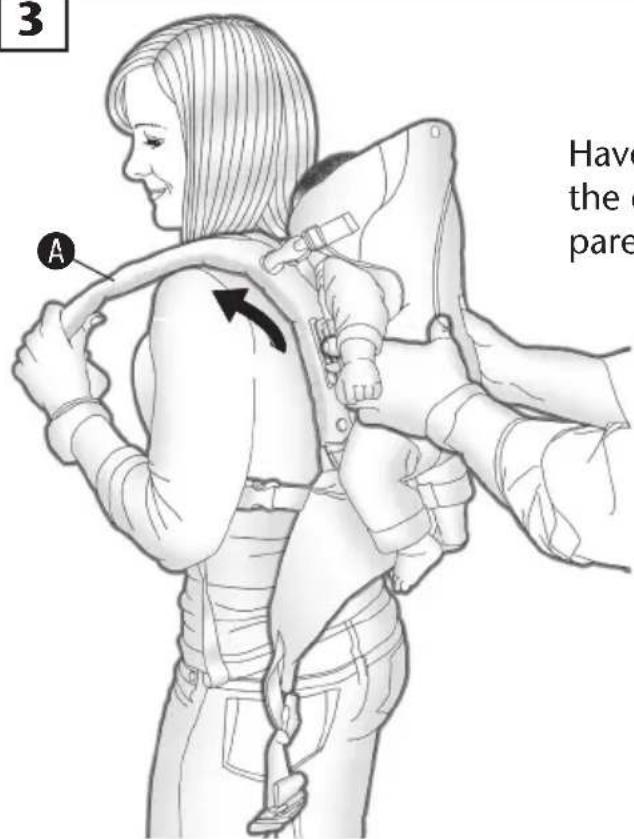

Have a second person put the carrier with the child in it on your back as you pull the parent straps Ⓐ over your shoulders.

Using the Carrier as a Backpack

4

Line drawing of a person wearing a seatbelt, hands on hips (no text or symbols)

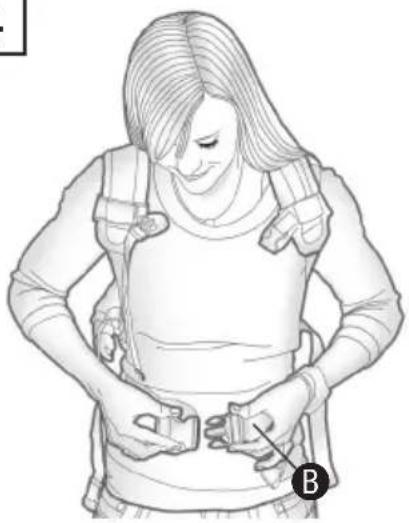

Fasten waist belt Ⓑ. Make sure it fastens with an audible click.

5

Illustration of a person adjusting a device with a labeled point D (no text or symbols beyond the label)

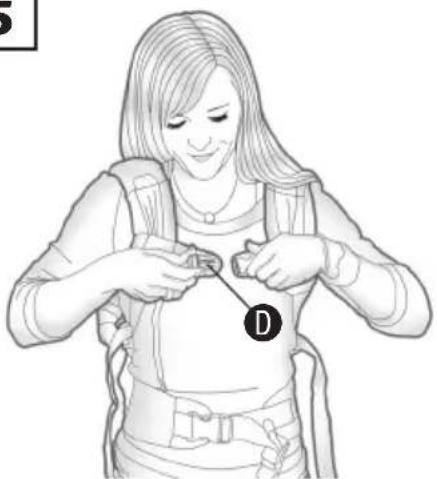

Fasten connector strap Ⓓ. Make sure it fastens with an audible click.

6

Line drawing of a person wearing a full-body safety harness and vest (no text or symbols)

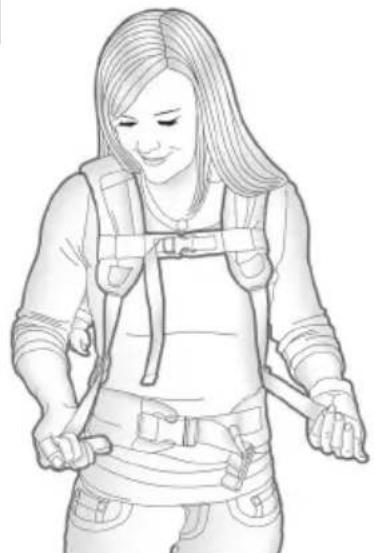

Tighten the parent straps, waist belt, and connector straps by pulling on the excess straps.

7

Illustration of a woman carrying a baby in a bager (no text or symbols present)

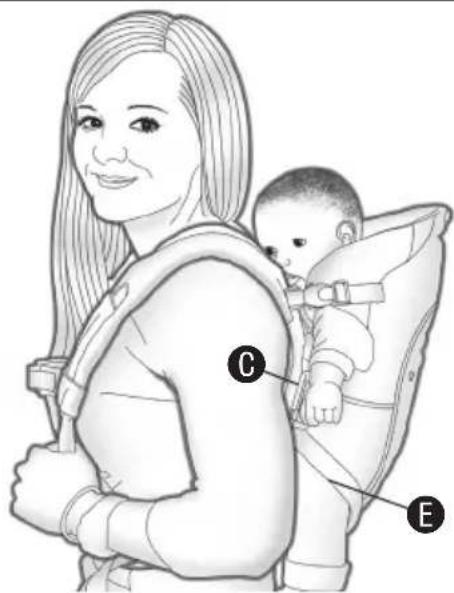

Make sure baby is comfortable, with legs fully through leg openings Ⓔ and baby's arms above the side-entry buckle Ⓐ. You should be able to fit two fingers between the child's leg and the leg openings Ⓑ.

MAKE SURE ALL BUCKLES ARE FASTENED SECURELY.

• Buckle all straps before laundering.
• Hand or machine wash separately in cold water, gentle cycle.
• Do not bleach or iron. Line dry.
- PRODUCT STORAGE/LIFETIME: For optimal durability and use of this carrier, the manufacturer recommends storing this product in its original packaging or an airtight container in a cool, dry place. Do not expose the product to sun or extreme temperatures. Always check the straps, buckles, and fabric condition before use, particularly after any period of extended storage. This product has a useful lifetime of six (6) years from date of manufacture.

Limited Warranty

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at

1-800-233-5921 or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.

For consumers' transactions in Australia, the limited warranty terms contained in the above statements, except to the extent lawfully permitted, do not exclude, restrict, or modify but are in addition to any mandatory statutory rights. For Australian consumers, our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This page is intentionally blank.

Avertissements 15

Illustration of a woman holding a baby with a medical device, no text or symbols present

Illustration of a woman holding a baby, no text or symbols present

Illustration of a person's wrist with a belt and finger, showing a finger placement (no text or symbols)

Medical illustration showing a woman adjusting a device with labeled parts D and E

Illustration of a woman holding a baby in a wheelchair, with no visible text or symbols

Technical diagram showing three-step assembly steps of a mechanical clamp or bracket, labeled A and B with directional arrows indicating movement.

Medical illustration showing hands performing a procedure with labeled parts A and C, likely for surgical or diagnostic purposes.

Medical illustration showing a baby being adjusted to a child's seatbelt, with labeled point A and medical device symbol.

Illustration of a woman carrying a baby in a chair, no text or symbols present

S'asseoir.

Medical illustration showing a procedure with a hand holding a syringe and a baby, labeled 'A' (no text or symbols beyond label)

Illustration of a woman in a sling bag holding a baby, with a numbered label B (no text or symbols on the diagram itself)

Illustration of a woman holding a baby while seated on a chair (no text or symbols)

S'asseoir.

Medical illustration showing a woman holding a baby with labeled points D and C indicating specific anatomical or pathological features.

Medical illustration showing a hand holding a surgical instrument labeled 'C' with visible internal components and text.

Line drawing of a person wearing a seatbelt and carrying a belt, with no visible text or symbols

Illustration of a person adjusting a chest with a labeled point D (no text or symbols beyond the label)

Line drawing of a person wearing a full-body safety harness and vest, with no visible text or symbols

Illustration of a woman carrying a baby in a bager, labeled with points C and E pointing to the child's back.

Illustration of a woman holding a baby in a gait, no text or symbols present

Illustration of a woman holding a baby, no text or symbols present

Medical illustration showing a person adjusting a device with labeled parts D and E

Illustration of hands performing a medical procedure on a patient's abdomen, with an arrow indicating direction (no text or symbols present)

Illustration of a woman holding a baby in a chair, with a baby being held and a medical device labeled 'A' (no text or symbols on the diagram itself)

Technical diagram showing three-step assembly steps of a mechanical clamp or clamp device, labeled A and B with directional arrows indicating movement.

Illustration of a woman carrying a baby in a chair (no text or symbols)

Medical illustration showing a hand holding a device to a baby's ear, with no visible text or symbols

Illustration of a woman carrying a baby in a chair, no text or symbols present

Illustration of a woman holding a baby while seated on a chair (no text or symbols)

Siéntese.

Medical illustration showing a woman carrying a baby with labeled points D and C indicating specific anatomical or pathological features.

Illustration of a hand holding a small mechanical component with a labeled point C (no text or symbols present)

Line drawing of a person wearing a vest and holding a small object, with no visible text or symbols

Illustration of a person adjusting a chest with a numbered label (D), no text or symbols present

Line drawing of a person wearing a full-body safety harness and vest (no text or symbols)

Illustration of a woman carrying a baby in a bager (no text or symbols present)

answers. advice. affirmation."

- www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.

- Canada: 1-937-773-3971 • México: 01-800-706-12-00
