USER MANUAL Pilot Cangaroo

MADE FOR MONI

Importer: Moni Trade Ltd

Address: Stopanski dvor – Trebich,

Sofia, Bulgaria

Phone:[phone]

Instruction manual for baby car seat PILOT

Item No. 916

Please, read this instruction carefully before using the product in order to ensure the correct use of the stroller and keep it for future reference.

Warning: Do not place on seat with air bag in forward-facing position. This could lead to serious injuries or fatalities.

Illustration of a blue safety harness being adjusted for a seatbelt, showing step-by-step instructions (no text or symbols present)

ВАЖНО!

Illustration of a car seatbelt with blue straps and a label 'KA' (no text or symbols on the diagram itself)

Diagram of a car interior with directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Illustration of a human heart with pink shading on the hypnea and surrounding soft tissue (no text or symbols)

Illustration of hands holding a dark object with a curved line, no text or symbols present

Illustration of a hand using a small object to interact with a car seat (no text or symbols visible)

Vier Klappositionen:

① first level

② second level

③ third level

④ lying level

Illustration of hands holding a rectangular object with a curved line, no text or symbols present

Illustration of a hand inserting a small object into a car seat (no text or symbols)

Illustration of a blender with three labeled buttons (✓, ×, ×) indicating selection or cancellation options (no text or symbols on the blender itself)

Illustration of a shoe sole with pink highlighted areas indicating specific zones (no text or symbols present)

WICHTIG!

Illustration of a person sitting in a car seat with a blue belt and 'KA' label (no text or symbols on the diagram itself)

Illustration of a car seatbelt with yellow directional arrows indicating movement or force (no text or symbols)

Illustration of a baby car seat with a red safety belt, no text or symbols present

Illustration of a car seat with a red belt and yellow directional arrows indicating movement or force (no text or symbols)

DE

CAUTION! If your child attempts to open the safety buttons of the harness buckle, make sure you stop at the earliest opportunity. Check that the child safety is correctly attached and makes sure that your child is properly secured. Tea chyourchild about the dangers involved.

WARRANTY

The warranty period starts from the date of purchase and is valid for period of 24 months. The warranty is only applicable to material and production defects. The date of purchase can only be proven with the original salereceipt.

This warranty is only applicable to the original owner and is not transferable. The warranty is only applicable to products that have not been adapted by the user. In the case of any defects, the owner is required to return the product to the retailer.

CAREANDMAINTENANCE

Periodically inspect your child seat for worn or damaged parts. If damaged parts are found, replace the child seat. Keep the child seat clean. Do lubricate any parts of the childseat.

Toprolongthelifefoyournurseryproduct,keepitcleananddononotleaveitindirect sunlight for extended periods of time. Removable fabrics cover and trims may be cleanedusingwarmwaterwithahouseholdsoaporamilddetergent.Allowittodry fully, preferably away from direct sunlight.

CLEANINGTHEBUCKLE

Food, drinks or other debris may collect inside the harness buckle which can affect proper functioning. Wash in warm water until it is clean. Be sure that you can hear an audible clicktomakesurethebuckleisworkingproperly.

CLEANINGTHEHARNESSANDSHELL

Sponge clean using warm water and mild soap; do not use any other cleaning agents.

STORAGE

Store in a safe, dry place and away from heat and direct sunlight. Avoid placing heavy objectsontopoftheseat.

MAINTECHNICALPARAMETERS

Two views of a car seat assembly, showing front and side views with measurement labels (438mm and 450mm respectively)

650mm-820mm

MADEFORMONI

Importer: MoniTradeLtd

Address:Stopanskidvor-Trebich,

Sofia,Bulgaria

Phone: [phone]

ВНИМАНИЕ!

ПРОИЗВЕДЕНО ЗА МОНИ

Installed in the forward facing position with vehicle seatbelt.

NOTE: When you use this safety car seat in group 2, 3 please remove the 5 -point harness, sleeping pads and the triangle pads.

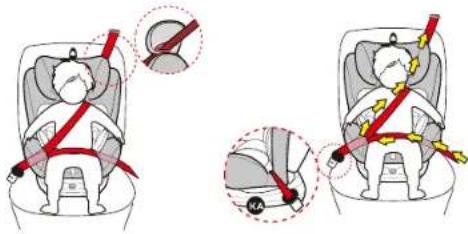

Guide the diagonal seatbelt section into the light red belt guidance of the headrest until it lies completely in the belt guidance and is not twisted.

NOTE: Make sure that the diagonal seatbelt section runs over your child's shoulder done, and not in front of his/her neck.

Place the dia gonal and lap sections of the vehicle's seatbelt through the belt guide indicated on the child safety car seat. Lock the tip of the buckle into the vehicle seat buckle with a CLICK noise.

CAUTION! The diagonal seat belt section must run diagonally backward. You can adjust the course of the belt with your vehicle's adjustable belt deflector on both sides.

Shake the child safety car seat to make sure it is securely attached.

Place the lap belt section on the other side of the child seat in the light red belt guide.

CAUTION! The lap belt section must lie as low as possible over your child's hips on both sides.

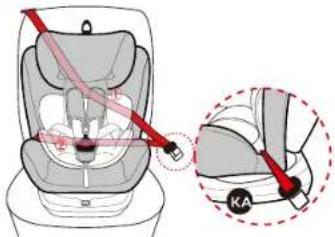

Guide the diagonal seat belt section into the red belt holder of the headrest until it lies completely in the belt holder and is not twisted.

TIPS! If the backrest conceals the belt holder, you can adjust the headrest upwards. The diagonal seatbelt section can then easily be inserted. Now return the headrest to the proper height.

Make sure that the diagonal seat belt section runs over your child's shoulder bone, and not in front of his/her neck.

TIPS! You can adjust the height of the headrest again in the vehicle.

CAUTION! The diagonal seat belt section must run diagonally backward. You adjust the course of the belt with your vehicle's adjustable belts deflector.

CAUTION! The diagonal seat belt section must never lead forward to the vehicle's belt deflector.

In this case, only use the child seat on the rear seat.

For the safety of your child, before every journey in the car check that:

The child safety seat is securely fastened;

• The lap belt section runs though the light red belt guides on both sides of the seat cushion;
• The diagonal seatbelt section also runs through the red belt holder of the headrest;
• The diagonal seatbelt sections also runs through the red Instruction guide;
• The diagonal seatbelt section sections runs diagonally backward;
  The harness is tight and not twisted.

EN

NOTICE:

When using as Universal category (group 0+1,2,3), please notice below information:

This is a Universal child restraint. It is approved to Regulation No 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats.

A correct fit is likely if the vehicle manufacture has declared in the vehicle handbook that the vehicle is capable of accepting a Universal child restrain for this age group.

This child restraint has been classified as Universal under more stringent conditionsthan those which applied to earlier designs which do not carry this notice.

If in doubt, consult either the child restraint manufacturer or the retailer.

Only suitable if the approved vehicle are fitted with lap/3 point/static/with retractor safety-belt, approved to UN-ECE Regulation No 16 or other equivalent standards.

Notice regarding IZOFIX child restraint system (in Group 0+)

1. This is an IZOFIX CHILD RESTRAINT SYSTEM. It is approved to Regulation No 44, 04 series of amendments, for general use in vehicles fitted with IZOFIX anchorages system.

2. It will fit vehicles with positions approved as IZOFIX positions (as detailed in the vehiclehandbook), depending on the category of the child seat and of the fixture.

3. ThemassgroupandtheIZOFIXsizeclassforwhichthisdeviceisintendedis:IZOFIXsize classEforGroup0+inrearwardfacing.

When using as Semi-universal category (Group 0+, 1), Please notice below information:

This child restraint is classified for (Restricted/Semi-universal) use and is suitable for fixing into the seat positions of the following cars:

CAR	FRONT		REAR
(Model)	Outer	Centre	Outer	Centre
	Yes-/No	Yes-/No	Yes-/No-	Yes-/No

Seat positions in other cars may also be suitable to accept this child restraint. Please refer to the information documents or the retailer's website for the suitable car model list. If in doubt, consult either the child restraint manufacturer or the retailer any time.

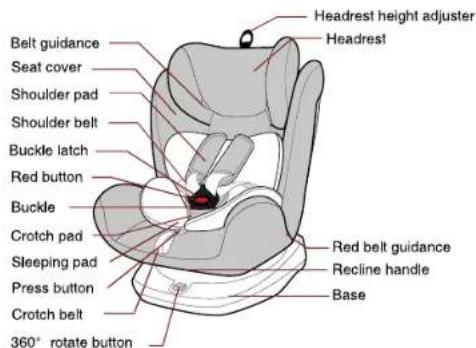

Car Seat Parts

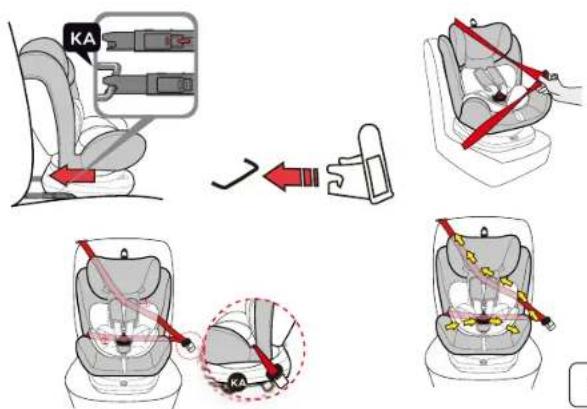

Installed in the forward facing position with IZOFIX system and 5-point harness.

With the cut-out facing upwards onto the two IZOFIX attachment points of your vehicle. NOTE: The IZOFIX attachment points are locked between the surface and the backrest of the vehicle seat.

Press the IZOFIX adjuster to pull out both locking arms, from the under of base pull the locking arm to and for until you hear an audible CLICK which indicates they are fully engaged. And on both sides of the locking arms, the button turn into green safetycolor. Pull out all of the safety belt from the lap machine slowly, diagonal section should through between the headrest and backrest. Place the lap belt section in the light red beltguidance.

Pull out the safety belt from the back to the side, lap belt section respectively from the redguidanceofthebase. Onesideofthediagonalbeltthroughthebackrestandthered guidance,anothersidealongtheupperinside.

NOTE: Please this two safety belt behind the sleeping pads, between the backrest and the sleeping pads.

Using your knee to press down on the child seat, tighten the vehicle seat belt as follows: Pullonthelowerpartofthediagonalseatbeltsectionnearthevehicleseatbuckleto tightenthelapbeltsection.

NOTE: This step is for tightening the safety belt, more stable for children's safety.

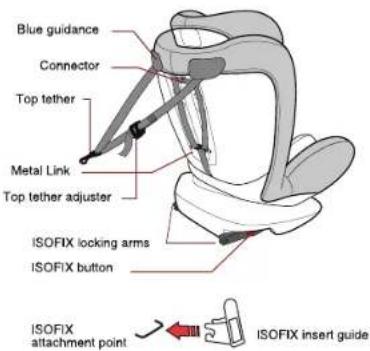

Car Seat Parts

WARNING!

IMPORTANT! Please carefully read and make sure you understand all instructions in this manual and in the vehicle owner's manual related to child safety seats. Install and use the child safety seat as described in the instruction manual. Failure to do this could result in serious injury or death of your child. Keep the instructions together with the childrestraintforfuturereference.

IMPORTANT! Because of potential medical issues inherent to low birth weight and premature infants, always have a trained professional doctor or hospital staff member assess the suitability of the child restraint prior to leaving the hospital or using the child restraint.

DO NOT modify or attempt to modify the child safety seat in any way.

DO NOT take apart or attempt to take apart this child safety seat except as instructed in this manual.

DO NOT use a child safety seat with damaged or missing parts.

DONOTusedamagedorfrayedharnessstrapsorvehiclebelt.

NEVERusethischildsafetyseatwithoutthecarseatcove r.

DO NOT replace the child seat cover or harness with any other than the ones we recommend as these parts are integral to the child safety seat's performance.

NEVER use the child restraint with any other base except ones that the manufactures permits.

DO NOT use a child safety seat that has been in a crash. A crash can cause damage to the child'safetyseatthatyoucannotsee.

DO NOT use a second-hand child seat or child seat whose history you do not know.

ALWAYS check the tightness of the restraint and the harness before each use.

ALWAYS make sure no vehicle belts or harness straps are twisted before each use.

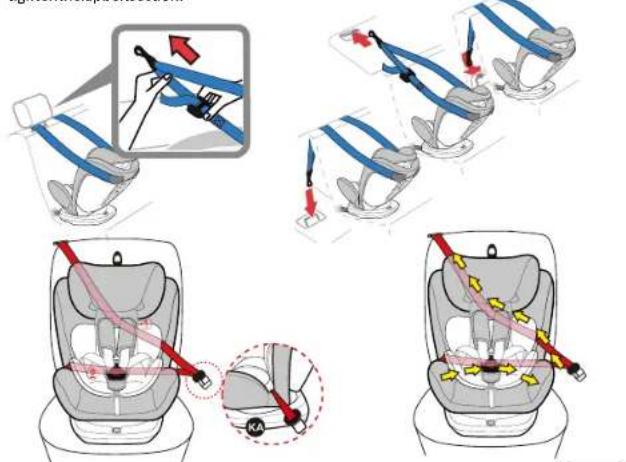

Pulloutthetoptether, and press there lease button, pulthetoptether longenoughtohangthelatchonthe backofthecarseat.

Fixed the latch on the fixed point, and the position of the fixed pointareshowninthepicture(oneofthe three position). Make sure the hook is tightened up.

Group1(9-18kg)Position1-3

Installed in the forward facing position with vehicle seatbelt of IZOFIX system.

Installed in the forward facing position with vehicle seatbelt and 5-point harness.

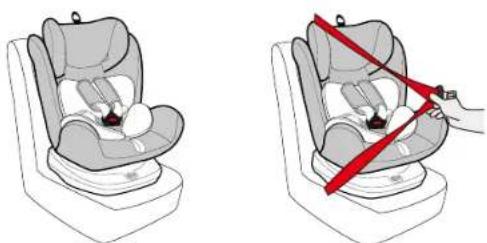

Place the child sear forward on the vehicle seat (in the direction of travel).

Pull the diagonal belt section through between the headrest and backrest. Place the lap beltsectioninthelightredbeltguidance.

Pull out safety belt from the back to the side, lap belt section respectively from the red guidanceofthebase. Onesideofthediagonalbeltthroughthebackrestandthered guidance,anothersidealongtheupperinside.

Usingyourkneetopressdownon

thechildseat,tightenthevehicleseatbeltas

follows:

Pull on the lower part of the diagonal seat belt section near the vehicle seat buckle to tightenthelapbeltsection.

NEVER leave the child in the seat when the harness straps are loose or undone.

NEVER leave your child unattended even for a short time.

DO NOT! Leave your child in this restraint for an extended period of time.

IMPORTANT-NOT TO USE REARWARD-FACING IN SEATING POSITIONS WHERE AN ACTIVE FRONTAL AIRBAG IS INSTALLED,DEATH OR SERIOUS INJURY CAN OCCUR.

DO NOT ! Use on vehicle seats that face the sides or rear of the vehicle. Use the child safety seat only on forward-facing vehicle seat. According to accident statistics, children are safer when properly restrained in rear seats than in front seats.

A Car Safety Belt—Diagonal Belt

Correct/ Proper
Wrong/Improper
B Car Safety Belt—Lap Belt

DO NOT use in any configuration not shown in the instructions.

NEVERus e this child safety seat with 2point vehicle belts.

DO NOT use alternative routings not shown in this instructions.

MAKE sure that the child safety seat does not become trapped by a folding or moveable passenger seat or it the door of your car.

MAKEsureallfoldingpassengerseatsareproperlylatched.

DO make sure any loose objects such as luggage or books in your car are properly secured as they may cause injuries in the event of an accident.

Thischildrestrainshouldbesecurelybeltedinthevehicleevenwhennotinuse.In

a crash or sudden stop, an unsecured child safety seat may injure other occupants.

ALL occupants of the vehicle should be correctly restrained. Unrestrained passengers may bethrown against other passengers and causes serious injury or death in acrash.

DO NOT allow children to play with or adjust the child safety seat.

NEVER take a child out of the child safety seat when the vehicle is moving.

NOTI Cover the child safety seat when left in direct sunlight. Parts of a child safety seat may become too hot for the child's skin. Always checks surfaces before replacing achildintheseat. Seat cover my fade indirect sunlight.

MAKE SURE the lap strap of the harness is worn low down, so that the infant is firmly engaged.

Have your child sit down in the child seat and check the height. Repeat this process until the headrest is at optimal height, if in the lowest position the headrest is still to high, additional adjustments can be made using the shoulder strap height adjuster, as explained in section ADJUSTTHEHEIGHT OF THE HARNESS.

Illustration of a foot wearing a white sneaker with pink shaded areas indicating muscle or muscle regions (no text or symbols)

Group0+(0-13kg)Position4

Installed in the regarding facing position with vehicle seatbelt or IZOFIX system.

Also installed in the rearward facing position with vehicle seatbelt and 5-pointharness.

Pullthevehicleseatbeltandpassthelapbeltsectionthroughtheredbeltguidance andunderthesleepingcushion.

Pass the diagonal seat belt section through the blue guidance on the back of the child seat.

Fasten the seat belt and pull it tight, ensuring that the sear belt it is not twisted.

NOTE:

For children of this size, the child seat must only be installed in the rearward facing position and at a maximum angle of inclination (lying level). To make sure that the car seathasbeeninstalledcorrect ly,pleaseshakeitbeforeuse.

Ensure that the buckle tongues are properly locked into the vehicle seat buckle – you willhearanaudibleCLICK!

Installed in the rearward facing position with IZOFIX system

With the cut-out facing upwards onto the two IZOFIX attachment points of your vehicle.

NOTE: The IZOFIX attachment points are located between the surface and the backrest of the vehicle seat.

PressthelIZOFIXadjustertopulloutbothlockingarms,fromtheunderofbasepullthe locking arm to and for until you hear an audible CLICK which indicates they are fully engaged. And on both sides of the locking arms, the button into green safety color.

HOW TO USE THE HARNESS BUCKLE

Holdthetwobucklelatchestogether. Makesurethattherightsideisup. Engagethembeforeputtingthem intotheharnessbuckle,whichshould makeaCLICKnoise. Pullshoulderstrapstoremoveall slackfromthelapsectionsensuring thattheharnessislyingflatandthe harnessbuckleislocked.Openthe harnessbucklebypassingthered button.

1

2

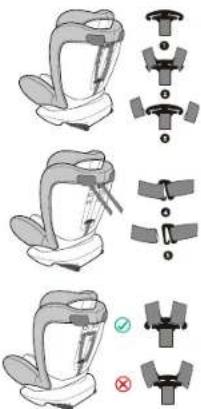

REMOVE 5-POINT HARNESS

Loosenthe5-pointharnessofthechildseatasmuchaspossiblebypassingthe button on the crotch belt. Loosen the shoulder strops in order to access the metal link and connector at the back of the child seat, remove the belt from the connector, thenremovetheshoulderstrapfromthemetallink. Followsteps1/2/3/4/5below:

Followsteps1/2/3/4/5below:

Followsteps1/2/3/4/5below:

Followsteps1/2/3/4/5below:

Followsteps1/2/3/4/5below:

Followsteps1/2/3/4/5below:

Then from the front of the child seat, pull out shoulder straps through the slots. Pullboththeshoulderpadsandthebeltsforwardthroughtheslots(onthef rontside ofthechildseat).Removetheshoulderpadsfromtheshoulderstrapsandputthem inthestoragebags. Rolltheshoulderstrapsseparatelyonthebothsidesandplace themintheslotsofthefabriccover.Graspthemetalplatefromunderneath,turnit into a vertical position. Push upwards, and slide the metal plate through the slot. Remove the harness buckle with the crotch pad and store it in the storage bag.

ADJUST THE HEIGHT OF THE HARNESS

Tocorrectlyadjustedharnesswillensurethatthe diagonal seat belt section is optimally positioned, and will give your child optimal protection.

Theharnessmustbeadjustedsothatthereisaspace: two fingers wide between the harness and your child's body.

Adjusttheheightoftheharnesstofityourchild: Loosentheshoulderstrapslnordertoaccessthe metal link and connector at the back of the child. Removethestrapsfromconnector,thenremovethe shoulderstrapsfromthemetallink,followstep. Fromthefrontofthechildseat,againthreadthe shoulderstr apsthroughthedesiredslots.Makesure bothofthestrapsgothroughtheslotsatthesame height.

Connectbothshoulderstrapstothecconnectorand metallinkagain.

ADJUST THE HEADREST IN 5-POINT HARNESS INSTALLATION

To correctly adjusted harness will ensure optimal protection for your child in the safetyseat:

Theheadrestmustbeadjustedsothattheshoulderstrapsarethesamelevelasyour child'sshoulders.

too lower

too higher

CAUTION! Theshoulderstrapsmustnotrun behindthechild'sback,atearheightorabovethe ears.Theshoulderstrapsareadjustedasfollows: Loosentheshoulderstrapsofthechildseatas muchaspossible.

Pulltheheadrestheightadjusterandheadrestat thesametime,selectthecorrectheightofthe shoulderstrapsandengageitinthepositionthat fits your child by releasing the adjuster.

A correctly adjusted headrest ensures that the diagonal seat belt section is optimally positioned, and gives your child optimal protection. The headrest must be adjusted so that there is a space two fingers wide between the headrest and your child's shoulders.

Adjust the height of the headrest to fit your child. Pull the headrest height adjuster and headrest at the same time. This unlocks the headrest. You can now move the unlocked headrest to the desired height. As soon as you release the adjuster, the headrest will lockintoplace.Piacethechildseatonthevehicleseat.

REMOVE THE FABRIC COVER

1. Removethe5-pointharness.
2. Takeoff thecoverfromthebackrest andbase.
   3.Movetheheadrestofthechildseat uptothehighestposition.
3. Firsttakethecoveroff thebaseoff theheadrest, thenremovethecover oftheheadrest.

Tore-fitthecover,simplyfollowthe

abovestepsinreverse.

CAUTION! Neverusethechildseat

without a correctly installed buckle. Make surethatthemetalplateiscorrectly attached.

CAUTION! Checkthattheharnessstraps arenottwistedandthattheyhavebeen correctlyinsertedinthe beltslotsofthe cover.

ADJUST THE RECLINE ANGLE OF THE SEAT

Thischildsafetycarseatcanbeadjustedto3positions.

Before fixing a child in the child restraint system, the seat must be set on the recline position for rear-facing use, lying level, 9-18kg, 15-36kg use second level. Rotation on the third level then change to lying level. To archieve this, use the recline handle located in front of the child restraint system between the seat and the base to adjust it to the desired position.

Illustration of a car seatbelt being adjusted for a hand using a tool (no text or symbols present)

Illustration of hands holding a rectangular object with a curved line, no text or symbols present

ADJUST THE ROTATION ANGEL OF THE SEAT

Press the rotation button, then rotate the safety car seat to 90 degree.

ACTION: Before every journey, rotation the seat in both clockwise and anticlockwise direction. Tomakesuretherotatingpartissafe.

Four levels of inclination are possible:

① first level

② second level

③ third level

④ lying level

ADJUST THE LENGTH OF THE HERNESS

To ensure your child's safety, after fixing him/her in the child restraintsystemandlockingthebuckle,tightentheharnessso that it fits snuggle and lies flat against the child's body. It should neverbetwistedorloose.

To tighten the harness, pull the shoulder strap upwards to removetheslackfromthelapsectionsoftheharnessandatthe same time pull the crotch adjuster belt coming towards you usingyourotherhand.

To lengthen the harness, press the button on the lock between the child's legs, then pull the two shoulders straps simultaneously towards you. While you are doing this, please make sure you are holding the harness, and not the harness

cover.

CAUTION! Check that the harness straps are not twisted and that they have been correctly inserted in the beltslotsofthecover.
