Product Type	Deep Fryer
Model Number	CDF-170
Brand	Cuisinart
Dimensions (W x D x H)	Approx. 10.5 x 10.5 x 8.5 inches
Weight	Approx. 5.5 lbs
Power Supply	120 V, 60 Hz, 1500 W
Oil Capacity	1.5 quarts (approx. 1.4 liters)
Basket Capacity	Up to 1 lb of food
Temperature Control	Adjustable thermostat (300°F - 375°F)
Key Functions	Deep frying with adjustable temperature, cool-touch handle, viewing window
Safety Features	Automatic shutoff, cool-touch exterior, non-skid feet
Construction Material	Stainless steel housing, non-stick interior, removable lid
Cleaning and Maintenance	Removable oil container and basket for easy cleaning; hand wash recommended
Spare Parts Availability	Replacement baskets, oil containers, and lids available from manufacturer
Repairability	Repairable by authorized service centers; some parts user-replaceable
Warranty	Limited 3-year warranty
Accessories Included	Deep fryer basket, lid, instruction manual

Frequently Asked Questions - CDF-170 CUISINART

What type of oil should I use in my Cuisinart CDF-170 deep fryer?

Use high smoke point oils like canola, peanut, or vegetable oil. Avoid olive oil as it may burn.

How much oil does the CDF-170 deep fryer require?

Fill the oil to the marked line inside the tank, which is approximately 1.5 quarts (1.4 liters). Do not overfill.

Can I fry frozen food directly?

Yes, but reduce the temperature slightly and increase cooking time. Shake off excess ice to minimize splatter. Always follow food safety guidelines.

How do I clean the deep fryer?

Unplug and let cool completely. Remove the oil container and basket. Wash all removable parts in warm soapy water. Wipe the exterior with a damp cloth. Do not immerse the base in water.

What is the maximum temperature setting?

The thermostat adjusts up to 375°F (190°C). For most foods, 350°F is recommended.

How often should I change the oil?

Change oil every 8-10 uses or when it becomes dark, smelly, or smoky. Strain after each use to extend life.

Does the CDF-170 have an automatic shutoff?

Yes, the deep fryer features automatic shutoff when the lid is raised or if it overheats, ensuring safety.

Can I use the deep fryer for other cooking methods?

The CDF-170 is designed specifically for deep frying. Do not use it for boiling, steaming, or dry heating.

What is the warranty period?

Cuisinart offers a limited 3-year warranty on the CDF-170. Register your product online for coverage details.

How do I prevent oil from smelling?

Use fresh oil, fry at proper temperatures, and clean the fryer regularly. A charcoal filter (if included) helps reduce odors.

USER MANUAL CDF-170 CUISINART

Exterior view of a Cuisinart stainless steel microwave oven (no signage or text on the device itself)

Cuisinart® 3.4-Quart Deep Fryer

CDF-170

CONTENTS

Important Safeguards....2

Important Safety Tips 3

Parts and Features 4

Operating Instructions......5

Changing the Timer Battery 6

Cleaning and Maintenance....6

Safety Features....6

Deep-Frying Guide 7

Tips and Hints 8

Frying Frozen Foods 8

Filtering and Changing the Oil 8

Recipes 9

Warranty....12

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.

1. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. Extreme caution must be used when moving an appliance containing hot oil or other liquids.

2. Do not touch hot surfaces. Use handles and knobs.

3. To protect against electric shock, do not immerse control panel, cord, plug or deep fryer in water or other liquids.

4. This appliance is not for use by children. Close supervision is necessary when any appliance is used near children or individuals with certain disabilities.

5. Never leave appliance unattended when it is connected to the power outlet.

6. Always attach breakaway cord to appliance first, then plug into wall outlet. To disconnect, turn the knob to Standby, then remove plug from wall outlet.

7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance

to the nearest Cuisinart Authorized Service Facility for examination, repair or adjustment.

1. The use of attachments not recommended or sold by the manufacturer may result in fire, electric shock or injury.

2. Do not use outdoors.

3. Do not let cord hang over edge of table or counter, or touch hot surfaces.

4. Do not place on or near a hot gas or electric burner, or in a heated oven.

5. Do not operate under cabinets.

6. The appliance will automatically shut off if operation exceeds 12 minutes without oil. If this occurs, resetting of the appliance is required.

7. If appliance still does not function after following reset instructions, please contact a Cuisinart Certified Consumer Service Center for assistance.

8. Be sure handles are properly attached to basket and locked in place. See detailed assembly instructions.

9. Do not use this appliance for other than its intended use.

10. Periodically check for looseness of screws or nuts and retighten them.

CAUTION: Overtightening can result in stripping of screws or nuts or cracking of handle or feet.

1. Do not exceed 60 minutes ON time within a period of 2 hours.

2. Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

IMPORTANT SAFETY TIPS

1. Always keep lid closed while deep fryer is cooking food. Use basket handle to raise and lower basket. After removing lid, always raise basket out of hot oil, rest on basket hook and allow food to drain for 10 to 20 seconds.
2. BEWARE OF STEAM WHEN OPENING LID.
3. Wet food should be dried first with paper towels. Remove loose ice from frozen foods. Close the lid when frying. Beware of oil splattering when food is put into the oil.
4. Keep appliance at least 4 inches away from walls or other objects during operation. Do not place any objects on top of appliance while it is operating.
5. Be sure oil container is filled to at least the minimum oil level. Do not fill above the maximum. Do not operate appliance without oil or with an insufficient amount of oil. Never pour oil into heated oil container.
6. Do not operate this appliance if the lid and the oil container are not completely dry.
7. Keep this fryer out of reach of children while in use and away from edges of countertops, where it could be pulled off or pushed over by children.
8. DO NOT use any solid/hydrogenated oil, olive oil, grapeseed oil, shortening or lard in this deep fryer. DO NOT MIX OILS as they may have different smoke points. USE GOOD QUALITY oil that has a smoke point of 420^ F or higher.

CAUTION: To prevent damage to countertop or tabletop finish, use a nonflammable, heat-resistant coaster or placemat between the appliance and the countertop or tabletop surface. Never place on carpet, furniture, or other combustible materials.

BREAKAWAY CORD AND POLARIZED PLUG

This appliance features a breakaway cord and polarized plug (one blade is wider than the other).

The breakaway cord is designed to quickly disconnect from the appliance when a pulling force is applied.

NOTE: The breakaway cord can fit into the appliance in only one direction. Please refer to printing on the cord connector that states “This Side Up.” To reduce the risk of electric shock, a polarized plug is featured. This plug is intended to fit only into a polarized outlet. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any manner.

Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to “off,” then remove plug from wall outlet.

SHORT CORD INSTRUCTIONS

CAUTION: A short power-supply cord is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a long cord.

EXTENSION CORD USE

An extension cord or longer detachable cord is not recommended for use with deep fryers.

ELECTRIC POWER

If the electrical circuit is overloaded with other appliances, your appliance may not operate. It should be operated on an electrical circuit that is free from other appliances. If you are not sure of the reason for overloading or cannot find a separate circuit, contact a qualified electrician.

This appliance is for 120 volts only and should not be used with a converter.

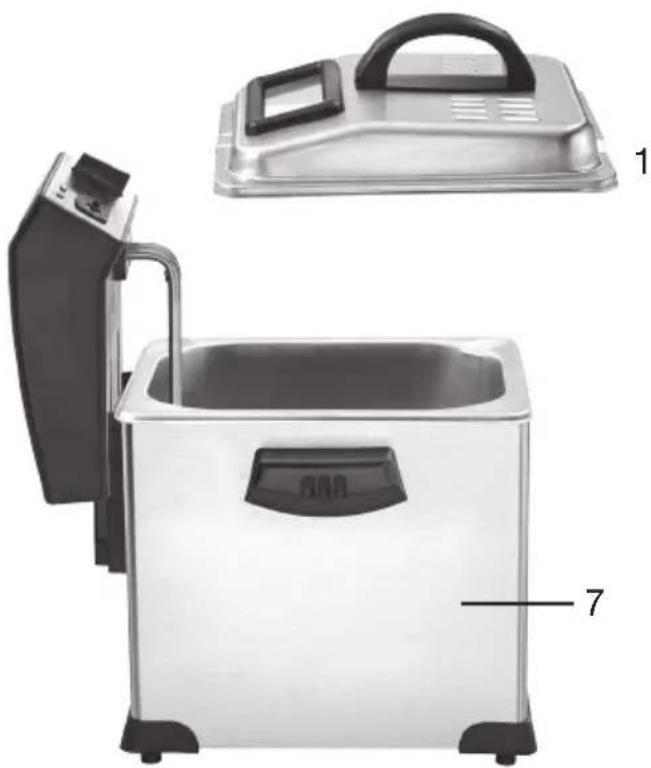

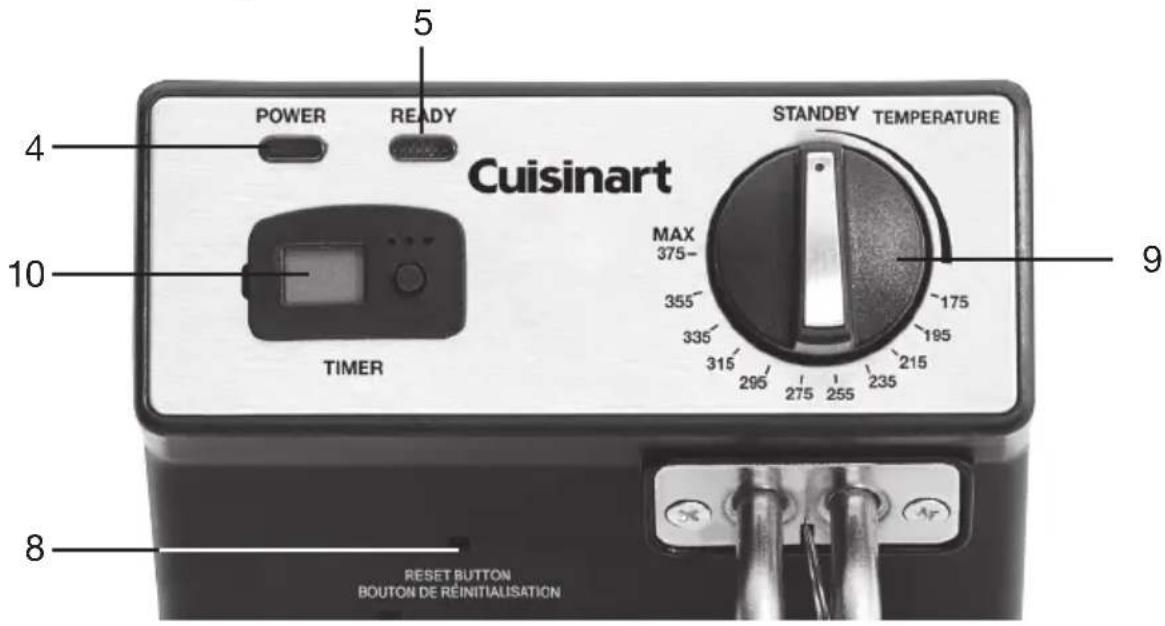

PARTS AND FEATURES

1.Lid

2.Basketwith

Collapsible Handle

1. Heating Element

4.PowerON

Indicator Light

5.OilReady

Indicator Light

6.OilContainer

1. Brushed Stainless

Steel Body

1. Reset Button

2. Temperature Control Knob

3. Digital Timer

Metallic kitchen grater with mesh basket and handle, labeled '2' (no text or symbols on the grater itself)

Exterior view of a stainless steel container (no text or symbols visible)

Mechanical component with a curved metallic rod and a black housing, labeled '3' (no text or symbols on the object itself)

Exterior view of a stainless steel coffee maker with open lid and labeled parts (1 and 7), no visible text or symbols beyond labels.

BEFORE THE FIRST USE

Remove all packaging materials and any promotional labels or stickers from your deep fryer. Be sure all parts (listed in Parts and Features) of your new appliance have been included before discarding any packaging materials. You may want to keep the box and packing materials for use at a later date.

Before using your Cuisinart® 3.4-Quart Deep Fryer for the first time, remove any dust from shipping by wiping the base with a moist cloth. Thoroughly clean the oil container, lid and basket. The oil container, lid and basket are dishwasher safe. Never immerse the appliance in water; water must not be allowed to penetrate the interior of the appliance.

OPERATING INSTRUCTIONS

1. Lift off lid covering oil container.
2. Remove basket from oil container. Attach handle to basket by squeezing posts and assembling as in diagram.

Close-up of a hand holding a wire or wire with arrows indicating direction, over a mesh surface (no text or symbols)

Close-up of a hand using a spatula to lift a stainless steel grater into a mesh basket (no text or symbols visible)

1. Insert the control panel into the stainless steel body as seen below.

NOTE: The immersion heating element will not heat up unless the control panel is correctly installed.

Exterior view of a modern stainless steel water heater with a black handle and side-mounted lid (no text or symbols visible)

1. Pour approximately 3.4 quart of good quality vegetable, corn, canola, soybean, or peanut oil into reservoir until it reaches a level between the MIN and MAX marks inside the container. DO NOT OVER- OR UNDER-FILL. DO NOT MIX OILS.
2. Put lid on deep fryer. Make sure the temperature control knob is on Standby.
3. Attach breakaway cord to the back of the appliance, then plug into outlet.
4. When unit is plugged in, power light will turn on.
5. Set the temperature control knob to the desired temperature. The Oil Ready light will turn green once the oil has reached the desired temperature.
6. Remove lid and put food into basket. Lower basket into oil and replace lid.

CAUTION: Oil is hot. Please use caution when placing food into hot oil.

1. To set timer, press until desired frying time appears. Time will flash twice and then go solid to start countdown process. Timer will count down in minutes. The timer will countdown in seconds for the last minute. When the time is reached, the fryer will beep several times and show 00 in the display. To cancel, press button and reprogram timing. Maximum frying time is 60 minutes.

CAUTION: The timer will not turn off when the programmed time is completed.

1. When recommended frying time has elapsed, raise the basket to see if the food has reached the desired golden color. If the food is done, carefully lift and hang basket on edge of the oil reservoir. Allow oil to drain 10 to 20 seconds. Remove basket, and place cooked food onto absorbent paper towels. NOTE: To preserve oil quality, do not add additional salt or spices to the food until after it has been removed from the fryer.
2. When cooking is finished, turn temperature control knob to Standby. Unplug the breakaway cord from the wall outlet before detaching from the appliance.

CHANGING THE TIMER BATTERY

1. Insert flat-head screw-driver or similar object into opening at left side of timer (located on the control panel) and push up to release the timer housing.
2. Once timer housing has been removed, turn upside down and remove battery cover. Replace with a L1154 button cell battery.
3. Place timer housing back into control panel.

CLEANING AND MAINTENANCE

1. Always unplug appliance, detach the breakaway cord and let the oil cool down to room temperature before cleaning.
2. Remove lid.
3. Lift out basket.
4. The control panel should never be immersed in water or other liquids. Before first use, clean the outer surface of the heating element with a damp cloth containing mild soap solution or clean water.
5. Once the oil has cooled, line a sieve with cheesecloth. Grasp each side of the removable oil container and lift upward. Pour the oil through the sieve and strain the used oil through it to remove food particles, crumbs and impurities. This process is safe to repeat 3 or 4 times without the oil deteriorating.
6. The frying basket should be hand-washed before first use and should be seasoned with oil before going into the dishwasher for the first time. Lid, oil container and frying basket are dishwasher safe. Dry parts thoroughly after cleaning.
7. The stainless steel body is submersible and should be washed by hand with warm, soapy water.
8. Ensure that both the lid and the oil container are completely dry after washing and before use.

9. After cleaning, reassemble oil container, heating element, basket and lid onto deep fryer. The heating element must be seated properly or appliance will not operate.

10. WARNING: When cleaning, use care – under-edge of deep fryer is sharp.

11. For storage, basket handle can be folded down to fit inside container.
12. Tip: For ease in cleaning, wipe control panel with damp microfiber cloth. Microfiber cloths are available in most kitchenware stores.

NOTE: Oil staining on the heating element and oil container can be easily cleaned with a plastic scrubbing pad.

1. NEVER PUT THE CONTROL PANEL IN WATER OR OTHER LIQUIDS TO CLEAN. Wipe it with a damp cloth or sponge. Do not use abrasive cleansers, which could scratch the surface.

Any other servicing should be performed by an Authorized Service Representative.

SAFETY FEATURES

The Cuisinart® 3.4-Quart Deep Fryer is equipped with the following features to ensure safety:

• Safety Interlock – The control panel/heating element must be properly seated or deep fryer will not operate.
• Breakaway Cord – The cord is designed to quickly disconnect from the appliance when a pulling force is applied.
• Thermostat Overload Protection – Your Cuisinart® 3.4-Quart Deep Fryer is equipped with thermostat overload protection. If the unit heats up beyond the recommended temperature level, the deep fryer will automatically turn off. To reset, unplug the unit from the wall outlet and allow it to cool down. Remove the control panel and heating element from the unit.

CAUTION: The heating element is extremely hot. Allow it to cool thoroughly before removing it.

- You will find a reset button on the front of the control panel below the controls. Using a toothpick or another long, thin object, push the reset button and replace the control panel.

NOTE: The unit will not work if the control panel is not properly mounted. Plug the unit back in, turn on and continue use. If the unit still does not operate, repeat the steps above or call a Cuisinart Certified Customer Service Center for assistance.

DEEP-FRYING GUIDE: Fresh or Uncooked Foods

Fresh indicates food prepared from a recipe or purchased fresh, not precooked. Read package label to determine if prepared, packaged foods are NOT precooked. If frozen, do not thaw; place foods directly from package into preheated oil. If there are ice granules around prepared foods, set pieces on a paper towel and pat dry. Moist vegetables will cause the oil to splatter.

Frying times may vary because of food temperature, quantity and size of pieces. Best results are obtained when food is cooked in small batches and the size of pieces is uniform. Check deep-fried foods at the shortest times given; deep-fry until fully cooked.

Low heat 325°F

Turkey thighs, bone-in, skin-on .... 20–22 min.

Turkey breast, bone up, skin down .... 30–35 min.

Breaded eggplant....5–6 min.

Breaded portobello mushrooms.... 4½-5 min.

Medium heat 350°F

Frozen chicken nuggets .... 5½–6 min.

Breaded chicken tenders....3½–4½ min.

Breaded, boneless chicken breasts. 5½–6 min.

Breaded bone-in pork chops....7½–8 min.

Egg rolls 5 min.

Chimichangas....7-7½ min.

Large shrimp....1-2 min.

High heat 375°F

Red potato chips ....2–3 min.

Yam potato chips 2-212 min.

American fries....5–6 min.

Thin french fries 3–3½ min.

Thick french fries 312-4 min.

Curly french fries. 4½–5 min.

DEEP-FRYING GUIDE: Precooked Foods

Foods listed in this chart are breaded and cooked prior to packaging. If frozen, do not thaw; place foods directly from package into preheated oil. If there are frozen ice granules around precooked foods, set pieces on a paper towel and pat dry.

Use this chart as a guide to deep-frying times. Best results are obtained when food is cooked in small batches and the size of pieces is uniform. Check deep-fried foods at the shortest times given; deep-fry until heated through.

Low heat 325°F

Onion rings .... 5–6 min.

Medium heat 350°F

Chicken tenders .... 5½–6 min.

Chicken nuggets....3–4 min.

Chicken pieces....7–8 min.

Small mushrooms.... 2 ^1/2 –3 min.

Medium shrimp.... 2-2½ min.

Small shrimp pops .... 1–2 min.

High heat 375°F

Large or fantail shrimp .... 1–2 min.

Mozzarella sticks 2–3 min.

Halibut fish fillets....3-3½ min.

Halibut fish balls 2–3 min.

TIPS AND HINTS

• When cooking foods dipped in fresh batter, first lower basket. Using tongs, add food directly to oil. Use basket to lift out food when finished cooking.
• Sort or cut food into pieces of uniform size. All the food will then be cooked in the same amount of time. To reduce splattering, remove excess moisture or ice from food.
• The oil does not need to be changed after each use. In general, the oil will be tainted rather quickly when frying food containing a lot of protein (such as poultry, meat or fish). When oil is mainly used to fry potatoes and it is filtered after each use, it can be used an additional 4 to 6 times. However, do not use the oil for longer than 6 months.
• Once the oil has cooled, line a sieve with cheesecloth. Grasp each side of the removable oil container and lift upward. Pour the oil through the sieve and strain the used oil through it to remove food particles, crumbs and impurities. This process is safe to repeat 3 or 4 times without the oil deteriorating.
• It is important to follow the temperature recommendation for every recipe. If the temperature is too low, the fried food absorbs oil. If the temperature is too high, a crust quickly forms on the outside while the inside remains uncooked.
• For best results, drop freshly sliced food into basket one piece at a time.

FRYING FROZEN FOODS

• Due to their extremely low temperature, frozen foods inevitably lower the temperature of the oil. For best results, do not overload the basket with frozen foods.
• Follow the instructions on the frozen food package for cooking time and temperature.
• Frozen foods are frequently covered with a coating of ice crystals, which should be removed before frying. Lower the basket very slowly into the oil in order to ensure that oil does not boil over.

FILTERING AND CHANGING THE OIL

• WARNING: Always remove the plug from wall socket before cleaning. Allow the Cuisinart®
  3.4-Quart Deep Fryer and the oil to cool completely (approximately 2 hours) before cleaning or storing. Never immerse the deep-fryer body control panel, cord or plug in water or any other liquids.
• The oil does not need to be changed after each use. In general, the oil will be tainted rather quickly when frying food containing a lot of protein (such as poultry, meat or fish).
  When oil is mainly used to fry potatoes and it is filtered after each use, it can be used an additional 4 to 6 times.
• Once the oil has cooled, line a sieve with cheesecloth. Grasp each side of the removable oil container and lift upward. Pour the oil through the sieve and strain the used oil through it to remove food particles, crumbs and impurities. This process is safe to repeat after 3 or 4 times without the oil deteriorating.
• Used oil can be successfully stored in a cool, dark place for up to a month in a clean, airtight container. Refrigeration or freezing increases the oil's lifespan by several months. However, do not use the oil for longer than 6 months. DO NOT STORE THE OIL IN THE DEEP FRYER. Add a little fresh oil each time you reuse the oil.

Any other servicing should be performed by a Certified Customer Service Representative.

TIPS FOR FRYING

Heat oil to 375^ F unless recipe specifies otherwise. A cube of bread should brown in approximately 60 seconds. Correct temperature is extremely important. If the temperature is too high, breads will brown before the insides have cooked; if it is too low, the bread will absorb the fat and become soggy and greasy.

Cook only as much as will float easily in the oil. Too much added to the Cuisinart ^® 3.4-Quart Deep Fryer will cause the temperature to drop, and the food will be difficult to turn. Turn bread when it rises to the top of the oil, taking care not to pierce it. Lift cooked breads from the fryer; allow them to drain in the basket for a moment, then place on paper towels to drain.

RECIPES

Applesauce Spice Doughnuts....9

Hush Puppies.... 10

Spicy Buffalo Wings 10

Blue Cheese Dressing 10

Fried Calamari 10

Herbed Beer-Batter Onion Rings ..... 11

Better than Fast-Food French Fries ..... 11

Crispy Chicken Fingers 12

Honey Mustard Sauce 12

Applesauce Spice Doughnuts

Makes about 16 doughnuts

2½ cups unbleached, all-purpose flour, divided

2 teaspoons baking powder

1 / 4 teaspoon salt

12 teaspoon cinnamon

1 / 8 teaspoon ground allspice

Pinch freshly grated/ground nutmeg

12 cup granulated sugar

1 tablespoon, plus 1 teaspoon vegetable shortening

^2/_3 cup applesauce

1 large egg Vegetable oil for frying

Flour for dusting

Powdered or granulated sugar for dusting

Using a whisk, blend together the flour, baking powder, salt and spices in a medium bowl; reserve. Put the sugar and shortening in a large bowl. With an electric mixer on low speed, beat to blend and break up the shortening. Add the applesauce and egg; beat until smooth. Add the flour mixture in two additions and blend on medium speed until mixed. Cover dough and chill for at least 1 hour.

Divide dough into two equal portions. Place one portion of dough on a generously floured surface and dust with flour. Roll out to 12 -inch thickness. Cut dough with a floured doughnut cutter and place doughnuts on a waxed-paper-lined baking sheet or tray. Repeat with remaining dough. Re-roll scraps and repeat.

Heat vegetable oil in Cuisinart® 3.4-Quart Deep Fryer until it reaches 375°F. Carefully lower 3 doughnuts into the hot oil – do not overcrowd! Fry on each side, about 1½ to 2 minutes, turning with a slotted spoon or wire skimmer. Remove and drain on layered paper towels. Pat gently to remove any excess oil and sprinkle with desired amount of sugar.

Hush Puppies

Makes about 12 to 20 pieces

Oil for frying

1 cup cornmeal
1 / 4 teaspoon salt
18 teaspoon baking soda
2 tablespoons finely chopped white or green onion
2 tablespoons, plus 2 teaspoons buttermilk
3 tablespoons, plus 2 teaspoons water

Heat oil in the Cuisinart® 3.4-Quart Deep Fryer until it reaches 375^ . While the oil is heating, make the Hush Puppy batter.

Combine cornmeal, salt and baking soda in a medium bowl. Stir in onion. Add buttermilk and water – stir just to moisten the dry ingredients. Form into rounded tablespoonfuls, drop carefully into the hot oil and fry until golden brown, turning once with a slotted spoon or wire skimmer. Remove from the oil. Drain on layers of paper towels. Serve immediately.

Spicy Buffalo Wings

Makes 16 pieces

8 chicken wings

13 cup unsalted butter, melted

3 to 6 tablespoons "Louisiana-style" hot sauce

2 teaspoons cider vinegar Oil for frying

Blue Cheese Dressing and celery sticks, carrot sticks, Zucchini sticks

Cut wing tips from wings and discard or reserve for making chicken stock. Split each wing at the joint and cut through so there are 2 pieces from each wing. Rinse and dry completely. In a large bowl, combine the melted butter, hot sauce and cider vinegar and stir until completely blended.

Heat oil until it is 375^ F. Put half the wings into the Cuisinart ^® 3.4-Quart Deep Fryer and cook until browned and crispy, about 12 to 15 minutes. Remove wings; drain briefly on layered paper towels. Then stir hot, crispy wings into the hot sauce mixture. Repeat with remaining wings. Serve hot with cold vegetable sticks and Blue Cheese Dressing.

Note: If you have some guests who do not appreciate hot and spicy, fry the wings as instructed and toss with your favorite BBQ sauce or honey mustard sauce. For "super-hot" strength wings, add additional hot sauce along with the Louisiana-style hot sauce.

Blue Cheese Dressing

12 cup mayonnaise (regular or lowfat)
12 cup sour cream (regular or lowfat)
12 cup crumbled blue cheese
1 teaspoon finely chopped garlic
14 cup finely chopped parsley
1 to 2 tablespoons finely chopped onion
1 tablespoon fresh lemon juice

Put all ingredients in a bowl and stir well to blend. Cover and refrigerate for at least 30 minutes before serving to allow flavors to blend.

Fried Calamari

Makes about 3 servings

1 12 pounds cleaned calamari, including some tentacles

Vegetable oil for frying

1½ cups unbleached, all-purpose flour

2 teaspoons finely chopped parsley

^3/_4 teaspoon granulated garlic powder

^3/4 teaspoon each: kosher salt and freshly ground pepper

Marinara sauce for dipping

Fresh lemon wedges for garnish

Rinse and drain the calamari; place on thick layers of paper towels, pressing and blotting them completely dry with another layer of paper towels on top. Cut the bodies into 12 -inch rings, and cut tentacles into halves or quarters if large. Heat oil to 360^ F in the Cuisinart ^ 3.4-Quart Deep Fryer. Preheat the oven to 500^ F. Line two cookie sheets with parchment paper.

Put the flour, parsley, granulated garlic, salt and pepper into a jumbo, resealable food storage bag. Working with about a quarter of the calamari at a time, drop calamari into the bag, seal and shake. Squeeze the sides of the bag to completely coat the calamari. Take care that the pieces are individually coated and not stuck together. Remove from the bag and place on a baking sheet lined with plastic wrap. Repeat until all the calamari have been coated evenly with flour mixture.

Gently add calamari to hot oil, about 1 to 1½ cups at a time, trying to let all the pieces drop in separately. Do not crowd the calamari, because crowding will drop the temperature of the oil. The calamari will be pale golden and just cooked in about 40 to 60 seconds. Do not overcook – they will become tough. Lift the calamari out, using a slotted spoon or metal skimmer, and drain in a single layer on prepared cookie sheets. Repeat with the remaining calamari. When all the calamari have been fried, reheat them in the 500°F oven for several minutes. Sprinkle lightly with a little more salt, and serve with warm marinara sauce for dipping.

Herbed Beer-Batter Onion Rings

Makes 2 to 4 servings

^3/_4 cup, plus 2 tablespoons lager or ale

1 cup unbleached, all-purpose flour

12 cup chopped fresh parsley

1 tablespoon chopped fresh thyme

1 teaspoon finely chopped fresh garlic

^3/_4 teaspoon kosher salt

1 to 2 onions (about 1 pound total)

Flour for dusting

Vegetable oil for frying

Kosher salt for sprinkling

In a medium bowl, whisk the beer into the flour until smooth. Stir in the parsley, thyme and garlic. Let batter stand 30 minutes. Stir in salt. Cut onion crosswise into 12 -inch thick slices. Remove and discard skin, stem and root ends. Separate slices into rings. Toss lightly with flour.

Heat the vegetable oil in the Cuisinart® 3.4-Quart Deep Fryer until it reaches 375^ . Working with about 4 or 5 rings at a time, dip each ring into batter, and allow excess to drip off. Carefully lower coated onion rings into deep fryer, one at a time. Fry until golden, turning as needed, about 1 to 2 minutes. Lift out with tongs and place on layered paper towels to drain. Sprinkle with kosher salt while hot, and serve.

Better than Fast-Food French Fries

Makes about 6 servings

Peanut or vegetable oil for frying

2 russet potatoes

Kosher salt and freshly ground pepper to taste

Heat the oil in the Cuisinart® 3.4-Quart Deep Fryer to 325^ .

Cut potatoes into french fry-cut uniform sticks (about 6mm x 6mm) or into slices 14 inch or less thick. As you cut, put the potatoes in a bowl of ice water to keep them from turning brown.

Drain and dry the potato strips completely and thoroughly. They cannot be at all wet, or the oil will spatter and spit. Fry the potatoes in small batches. Cook for about 3 minutes, remove and drain on layers of paper towels.

Increase temperature of oil to 375^ F. In small batches again, fry the potatoes for a second time, this time about 4 minutes, until golden and crispy. Drain on fresh layers of paper towels. Season to taste and serve immediately.

Seasoning suggestions: herb blends, Cajun or Creole seasonings, and chili powder.

Crispy Chicken Fingers

Makes 6 servings

3 tablespoons kosher salt

3 tablespoons brown sugar

1 cup boiling water

12 ice cubes

4 skinless, boneless chicken breast halves

1 cup unbleached, all-purpose flour

1 / 2 teaspoon kosher salt

14 teaspoon freshly ground pepper

^1/_4 teaspoon paprika

14 teaspoon granulated garlic powder Oil for frying

^3/_4 cup buttermilk or regular milk

Combine salt, sugar and boiling water in a medium-large, heatproof bowl. Stir until sugar and salt are completely dissolved. Add ice. Cut chicken into 12 x 2-inch strips. Place cut chicken in the chilled brine mixture and refrigerate for 30 to 60 minutes.

Combine the flour with the salt, pepper, paprika and granulated garlic in a shallow bowl; reserve.

When ready to cook, drain chicken and pat completely dry. Heat oil in Cuisinart® 3.4-Quart Deep Fryer to 375^ . Dip the drained and dried chicken strips in buttermilk and roll in flour mixture to coat well. Place the strips on a plate. Carefully place the chicken strips in the hot oil in batches. Cook, turning once, for about 3 to 4 minutes per side. Drain on layers of paper towels and serve with Honey Mustard Sauce.

Honey Mustard Sauce

1 / 2 cup honey

14 cup Dijon mustard (regular or grainy)

Blend honey and mustard to make honey mustard sauce.

LIMITED THREE-YEAR WARRANTY (U.S. and Canada ONLY)

This warranty is available to consumers only. You are a consumer if you own a Cuisinart® 3.4-Quart Deep Fryer that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.

We warrant that your Cuisinart ^® 3.4-Quart Deep Fryer will be free of defects in materials and workmanship under normal home use for 3 years from the date of original purchase. We recommend that you visit our website, www.cuisinart.com for a fast, efficient way to complete your product registration. However, product registration does not eliminate the need for the consumer to maintain the original proof of purchase in order to obtain the warranty benefits. In the event that you do not have proof of purchase date, the purchase date for purposes of this warranty will be the date of manufacture.

If your Cuisinart ^® 3.4-Quart Deep Fryer should prove to be defective within the warranty period, we will repair it, or if we think necessary, replace it. To obtain warranty service, simply call our toll-free number 1-800-726-0190 for additional information from our Consumer Service Representatives, or send the defective product to Consumer Service at Cuisinart, 7475 North Glen Harbor Blvd., Glendale, AZ 85307.

To facilitate the speed and accuracy of your return, please enclose \$10.00 for shipping and handling of the product.

Please pay by check or money order made payable to Cuisinart (California residents need only supply proof of purchase and should call 1-800-726-0190 for shipping instructions).

NOTE: For added protection and secure handling of any Cuisinart product that is being returned, we recommend you use a traceable, insured delivery service. Cuisinart cannot be held responsible for in-transit damage or for packages that are not delivered to us. Lost and/or damaged products are not covered under warranty. Please be sure to include your return address, daytime phone number, description of the product defect, product model number (located on bottom of product), original date of

purchase, and any other information pertinent to the product's return.

CALIFORNIA RESIDENTS ONLY

California law provides that for In-Warranty Service, California residents have the option of returning a nonconforming product (A) to the store where it was purchased or (B) to another retail store that sells Cuisinart products of the same type.

The retail store shall then, at its discretion, either repair the product, refer the consumer to an independent repair facility, replace the product, or refund the purchase price less the amount directly attributable to the consumer's prior usage of the product. If the above two options do not result in the appropriate relief to the consumer, the consumer may then take the product to an independent repair facility if service or repair can be economically accomplished. Cuisinart and not the consumer will be responsible for the reasonable cost of such service, repair, replacement, or refund for nonconforming products under warranty.

California residents may also, according to their preference, return nonconforming products directly to Cuisinart for repair, or if necessary, replacement, by calling our Consumer Service Center toll-free at 1-800-726-0190. Cuisinart will be responsible for the cost of the repair, replacement, and shipping and handling for such products under warranty.

BEFORE RETURNING YOUR CUISINART PRODUCT

If you are experiencing problems with your Cuisinart product, we suggest that you call our Cuisinart Service Center at 1-800-726-0190 before returning the product for service. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

Your Cuisinart® 3.4-Quart Deep Fryer has been manufactured to the strictest specifications and has been designed for use only in 120-volt outlets and only with authorized accessories and replacement parts. This warranty expressly excludes any defects or damages caused by attempted use of this unit with a converter, as well as by use with accessories, replacement parts or repair service other than those authorized by Cuisinart. This warranty does not cover any damage caused by accident, misuse, shipment or

other than ordinary household use. This warranty excludes all incidental or consequential damages. Some states do not allow the exclusion or limitation of these damages, so these exclusions may not apply to you. You may also have other rights, which vary from state to state.

Important: If the nonconforming product is to be serviced by someone other than Cuisinart's Authorized Service Center, please remind the servicer to call our Consumer Service Center at 1-800-726-0190 to ensure that the problem is properly diagnosed, the product is serviced with the correct parts, and the product is still under warranty.

NOTES:

NOTES:

©2016 Cuisinart

150 Milford Road

East Windsor, NJ 08520

Printed in China

16CE016447

Cuisinart®

Metallic kitchen grater with mesh basket and handle, labeled '2' (no text or symbols on the grater itself)

Exterior view of a stainless steel container (no text or symbols visible)

Mechanical component with a curved metallic rod and a black housing, labeled '3' (no text or symbols on the object itself)

Exterior view of a stainless steel coffee maker with open lid and labeled parts (1 and 7), no visible text or symbols beyond labels.

Close-up of a hand holding a wire or wire with arrows indicating direction, over a mesh surface (no text or symbols)

Close-up of a hand using a pipette to lift a metal wire mesh into a mesh container (no text or symbols visible)

Exterior view of a modern stainless steel water heater with open lid (no text or symbols visible)

East Windsor, NJ 08520

Impreso en China

16CE016447
