FC-40DD4HA - Freezer HISENSE - Free user manual and instructions

Product Type	Freezer
Brand	Hisense
Model	FC-40DD4HA
Freezer Type	Chest Freezer
Total Capacity	200 Liters
Dimensions (W x D x H)	945 x 635 x 845 mm
Net Weight	30 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	200 kWh/year
Energy Class	F
Noise Level	40 dB
Temperature Range	-18°C to -24°C
Control Type	Mechanical Thermostat
Defrost Type	Manual
Quick Freeze Function	Yes
Lock	Yes
Interior Light	No
Reversible Door	No
Refrigerant	R600a
Climate Class	SN-T
Recommended Ambient Temperature	10°C to 43°C
Cleaning	Clean condenser coils annually, defrost regularly
Safety	Do not store flammable substances, keep ventilation clear
Spare Parts Availability	Thermostat, door gasket, compressor available

Frequently Asked Questions - FC-40DD4HA HISENSE

How do I adjust the temperature on my Hisense FC-40DD4HA freezer?

Turn the thermostat dial located inside the freezer. Position 1 is warmest, position 5 is coldest. For normal use, set between 3 and 4.

How often should I defrost the freezer?

Defrost when frost thickness exceeds 5-7 mm. Turn off the unit, remove food, and let frost melt. Never use sharp tools to scrape ice.

Why is my freezer not freezing properly?

Check if the thermostat is set correctly, ensure ventilation grilles are not blocked, and the door seals are intact. Also allow 24 hours after first startup to reach temperature.

Can I store hot food in the freezer?

No, allow food to cool to room temperature before freezing. Placing hot food raises internal temperature and may spoil other items.

What is the energy consumption of this model?

The FC-40DD4HA consumes approximately 200 kWh per year, which corresponds to energy class F. Actual consumption depends on usage and ambient temperature.

How noisy is the Hisense FC-40DD4HA?

The noise level is 40 dB, which is comparable to a quiet conversation. Slight sounds from the compressor and refrigerant are normal.

What should I do if the freezer makes unusual noises?

Check if the freezer is level and not in contact with walls. If noise persists, it may indicate a problem with the compressor or fan. Consult a technician.

How do I clean the freezer?

Unplug the freezer. Remove all food and shelves. Wipe interior with a mixture of warm water and mild detergent. Rinse and dry thoroughly. Clean condenser coils annually with a vacuum.

Can I reverse the door opening direction?

No, the door of the FC-40DD4HA is non-reversible. The hinge is fixed on the left side.

What is the warranty for this Hisense freezer?

Hisense typically offers a 2-year warranty for domestic use. Check your purchase receipt for specific terms. The warranty covers manufacturing defects but not misuse.

USER MANUAL FC-40DD4HA HISENSE

SAFETY PRECAUTIONS 1

● Please thoroughly study these SAFETY PRECAUTIONS before operating the unit.
● The purpose of the SAFETY PRECAUTIONS in this manual is to :

1. ensure safe and proper use of the unit

2. prevent risks that could lead to serious injury to you or other

● The safety precautions are divided into WARNINGS and CAUTIONS. In both cases, improper handling of the unit could result in death or serious injuries. To ensure your safety and the safety of others, please adhere strictly to both.
● Possibly resulting in electrical shock or fire.

WARNING

Improper handling of the unit could lead to death or serious injury.

CAUTION

Improper handling of the unit could lead to serious results depending on the circumstances.

● Text set off by the exclamation mark! contains information that should be strictly adhered to.
● After reading the instruction manual, store it an easily accessible place where the user(s) of this product can easily find it.
◆ PRECAUTIONS FOR INSTALLATION

WARNING

Installation should be performed only by the dealer or a qualified expert. Attempting to install the unit yourself could result in water leakage, refrigerant leakage, electrical shock, or fire.

◆ PRECAUTIONS FOR USE

WARNING

DON'T TAMPER

All repairs, disassembly and modifications should be performed only by qualified technicians. Attempting to perform these yourself could result in a fire, malfunction, and injury.

ELECTRICAL SHOCK HAZARDS

Never splash water directly onto the product or wash with water as short-circuit and electrical leakage could result.

DANGER OF EXPLOSION

Never put flammable or volatile substances into the unit as explosion and fire could result.

PROHIBITED

Do not damage, modify, excessively bend, strain, twist or bundle up the power cord. Also, placing heavy objects the power cord or squeezing it in a tight place could damage it, resulting in electrical shock or fire.

PROHIBITED

Use a dedicated wall outlet. Do not use extension cords or convenience receptacles as this could lead to electrical shock, overheating and a fire.

FLAMMABLE

Never use flammable spray cans or leave flammable substances near the unit. Sparks from electrical switches could result in explosion and fire.

Cartoon illustration of a surprised cube with a hand waving next to a spray can (no text or symbols)

SAFETY PRECAUTIONS 2

⚠ WARNING

PROHIBITED

Do not store bottles and cans in the unit. The contents could freeze and containers would break and cause injury.

The unit is intended for storage of ice-cream and frozen foods. Storage of other items than the intended could have an adverse effect on the items stored in the unit.

Ice cream, frozen foods

PROHIBITED

For indoor use only. Using the unit in a location exposed to rain could result in electrical leakage and electrical shock.

PROHIBITED

Never place heavy objects or items containing water on top of the unit. Objects could fall down and cause injury, spilled water could deteriorate the insulation of electrical components and result in electrical leakage.

Install the unit in a location where the floor is sturdy enough to support the load of the unit. If the floor is not sturdy enough or installation is incorrectly performed, the unit could tip over or falling shelves and products could cause personal injury.

If you find gas leakage, please don't touch the chest freezer, close gas and open the door for ventilation. Gas leakage can cause explosion, fire, and fire injury.

GAS

Store the unit in a location where it is not exposed to rain. Using a unit that has been exposed to rain could result in electrical leakage and electrical shock.

Cartoon illustration of a smiling cube inside a house with raindrops falling (no text or symbols)

Store unit away from hot air sources Cooling performance is reduced if the unit is placed near heat sources such as hot plates and stoves and if exposed to direct sunlight.

Leave disassembly and disposal of the unit to qualified experts.

Cartoon illustration of a smiling delivery box with a waving hand (no text or symbols)

Should the unit need temporary storage, make sure to store the unit away from where children play and take Precautions that the door cannot be completely closed. This will minimize the risk that a child becomes trapped inside the compartment.

SAFETY PRECAUTIONS 3

CAUTION

WELL VENTILATED PLACE

Please keep a minimum of 4in space between Chest freezer and wall. If there are no space, cooling capacity can drop down.

more than10cm

If installation in a damp location is unavoidable, please install an electrical leakage circuit breaker. If no electrical leakage circuit breaker is installed, electrical shock could result.

Electrical leakage circuit breaker

Never hang from the door or climb onto the unit. The unit could tip over or fall and cause material damage or personal injury.

Cartoon illustration of a child running on top of a block with an angry face (no text or symbols)

Disconnect the power cord plug from the wall outlet before moving the unit and make sure that the power cord is not damaged during transport. A damaged power cord could result in electrical shock and/or fire.

Never touch the power cord plug, other electrical components, or operate the switch with wet hands. Electrical shock could result.

Cartoon illustration of a cube with angry faces and a water droplet emerging from its side, symbolizing stress or urgency (no text or symbols present)

Never use if the power cord or plug is damaged or if the plug cannot be firmly seated in the receptacle sockets as electrical shock, short-circuit and fire could result.

Cartoon illustration of a hand holding a block with an angry face and expressive arms (no text or symbols)

When disconnecting the power cord plug from the wall outlet, hold at the plug's main body. Do not pull the cord, which could cause wire breakage, possible resulting in overheating and fire.

Illustration of a hand holding an electrical socket next to an open electrical outlet (no text or symbols)

Make sure that the unit does not tip over or fall when it is moved. A falling unit could cause serious injury.

Cartoon illustration of a smiling cube with a hand holding the side, no text or symbols present

BEFORE USE

• Remove shipping packaging, tape, etc. and leave lids open for ventilation for a while.
  ●The unit is cleaned before shipment. However, clean the compartment interior again after delivery.
  ●Following installation, refrigeration will start about 10 minutes after operation is started.
  ●Operate for about 2 hours to cool the refrigerator compartment before placing items in the freezer.

WAIT 5 MINUTES OR MORE BEFORE RE-STARTING

- Restarting the unit immediately after it has been turned off may cause fuses to blow and activate the circuit-breaker, the compressor may be overloaded, and/or other damage may occur.

DEFROSTING

When 5mm frost forms in the freezer, please shave it and throw it away.

To defrost completely, please do it as follows.

① Remove all contents, and disconnect the power cord plug.
② When frost starts thawing, please shave it to reduce defrost time.
③ Drain water and wipe the inside with dry cloth, then replace the rubber cap on the drain bolt and inside drain.

WARNING

For defrosting chest freezer, don't use a hammer, knife, or bottle, which will damage the inside evaporator,

Line drawings of four different tools: a bottle, a hammer, a hammerhead, and a knife (no text or symbols present)

WARNING

To prevent any electrical shock hazards or injury by rotating circulation fan, always disconnect the power cord plug from the wall outlet before cleaning.

1 EXTERIOR AND COOLER COMPARTMENT

Wipe with a soft, dry cloth. If very soiled, wipe with a cloth that has been moistened with a mild detergent. Then wipe cleanly with damp cloth.

WARNING

WARNING: Do not splash water directly onto the cooler and do not wash with water. Short-circuit and electrical shock could result.

● Clean the cooler regularly to keep it clean at all times.
● Never use polishing powder, soap powder, benzine, oil or hot water as these will damage the exterior plastic components.

Scrub brush Cleanser Benzine Acetic acid Gasoline Thinner

2 DOOR

- Detach the door and wipe cleanly with a dry cloth.

IN CASE OF THE FOLLOWING

1 POWER FAILURE

• Sudden powder failure Keep opening and closing of the door to a minimum to prevent cold air from escaping. Covering exterior glass surfaces with a blanket, etc. Will further help to maintain a low temperature.
  ● Announced power suspension In case of a long power suspension, place dry ice in the freezer compartment.
• Keep opening and closing of the door to a minimum.
• Avoid placing new items in the cooler as this will raise the temperature inside the compartment.

2 WHEN NOT INTEND TO A LONG PERIOD

• Remove all items from the compartment and disconnect the power cord plug from the wall outlet.
• Clean the compartment interior and wipe away all water. To prevent mold formation and bad odor, leave the door open to dry the compartment completely.

3 WHEN NOT USED TEMPORARILY

• Please stick wood between door and chest so as not to close it up.
• Please do not put chest freezer near where children can play, to prevent children from trapping inside.

INSTRUCTION MANUAL

BEFORE REQUESTING SERVICE

Please check the following items if you encounter problems with the unit. If the problem continues after taking the proper remedial actions, disconnect the power cord plug from the wall outlet. Transfer the items stored in the cooler to a box or other container. Then contact the dealer from whom you purchased this unit and be ready to provide information as listed in "REQUIRED INFORMATION" below.

CAUTION

To prevent any electrical shock hazards, do not disconnect the power cord plug from the wall outlet with wet hands.

No refrigeration at all	●Is the power supply interrupted?●Is the power cord plug disconnected from the wall outlet?●Are the power fuses blown and/or the circuit breaker activated?●Is the temperature control dial turned to OFF?
Inadequate refrigeration	●Is the place of installation badly ventilated?●Is the freezer exposed to direct sunlight, placed near a heater or stove?●Are the lids opened and closed frequently?●Are items stocked beyond the load line?●Is the temperature control dial turned to MIN?●Much frost formed in the chest freezer?
Excessive noise	●Is the floor underneath the freezer sturdy enough?●Is the unit shaking and rattling?●Is the rear panel of the unit touching the wall, etc.?●A container or something is behind the chest freezer?The compressor will generate a rather loud sound for a while after operation is started. These noise is cease.
Condensation on cooler exterior	●Condensation may collect on the exterior and door during hot and humid days or depending on the place of installation. This occurs when the humidity is high and water particles in the air contact cold surfaces. This is normal. wipe away condensation with a dry cloth.
The circumference of chest freezer feels hot	●Especially in summer or initial operation, the circumference of chest freezer can Feel hot. Because chest freezer inside has a pipe for radiating and preventing condensation.The heat do not effect on inside goods.

Appliance sometimes stop running when thermostat turns off.

REQUIRED INFORMATION

① Nature of malfunction (as accurately as possible)
② Product number
③ Serial number
( inscribed on badge) .

④ Customer's name, address, phone number

⑤ Year and date of purchase

⑥ Desired date for service visit

WARNINGS

• Damaged supply cord must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• Damaged supply cords must be replaced by the manufacturer, service agent or similarly qualified person. To avoid a hazard.
• Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit(applicable only for appliances with refrigeration circuits which are accessible to the user).
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
  This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

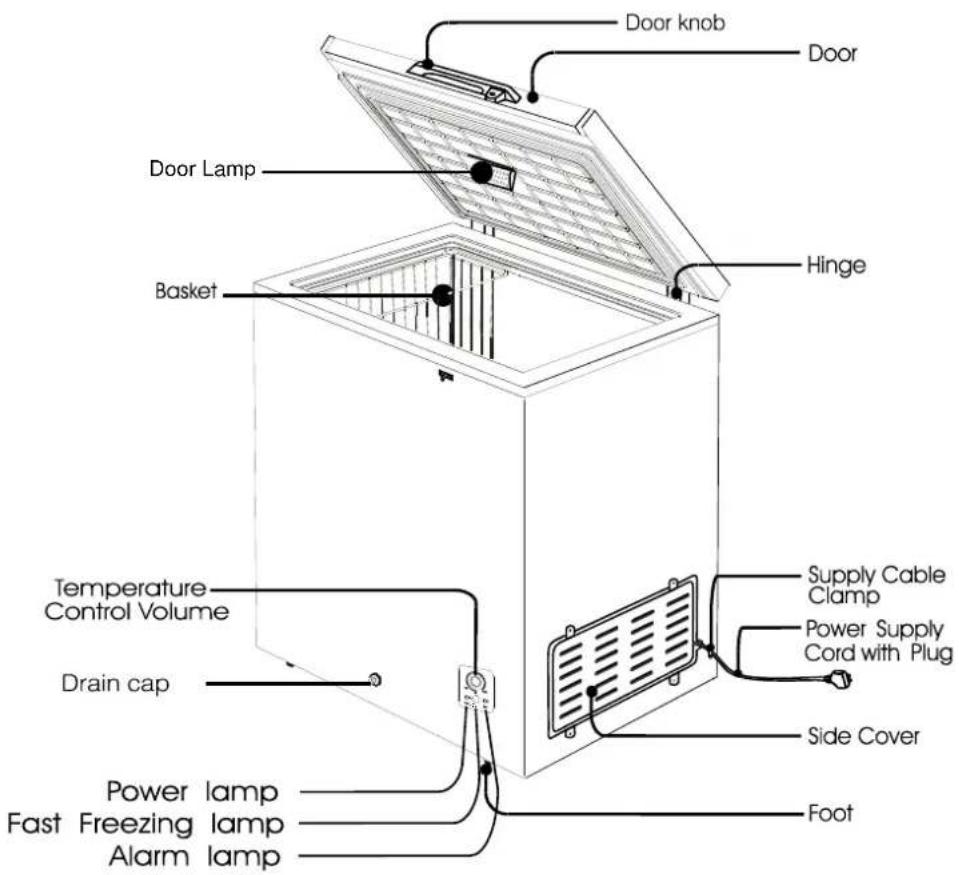

Model NO: FC-13DD4HA FC-13DD4SA FC-19DD4HA FC-19DD4SA FC-26DD4HA FC-26DD4SA FC-33DD4HA FC-33DD4SA

Door knob Door Door Lamp Hinge Basket Temperature Control Volume Drain cap Power lamp Fast Freezing lamp Alarm lamp Supply Cable Clamp Power Supply Cord with Plug Side Cover Foot

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frostbite.

The above image is for reference only, configuration is subject to actual product.

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frostbite.

TEMPERATURE ADJUSTMENT

• To adjust the temperature inside the freezer compartment, adjust the temperature control dial on front-bottom side of the chest freezer. Normally use chest freezer with temperature Mid.
• If the cooling performance is inadequate, turn the temperature control dial in the direction of Colder. If too cold, turn dial in direction of Cold.
• When you stop running temporally, please turn the temperature control dial in the direction of Off.

INSTRUCTIONMANUAL

Mid Cold Off Colder

SPECIFICATIONS

Product Name	Chest Freezer
Product No.	FC-13DD4HAFC-13DD4SA	FC-19DD4HAFC-19DD4SA	FC-26DD4HAFC-26DD4SA	FC-33DD4HAFC-33DD4SA
Outer Dimensions (mm)	WxDxH	WxDxH	WxDxH	WxDxH
	558x485x837	727x560x823	947x560x823	1110x635x836
Performance	Freezer compartment temperature: - 18 °C;Conditions: Ambient temperature ST/38 °C(T/43°C), unloaded state, not exposed to direct sunlight.
Accessories	Basket

The specifications may change, please refer to the circuit name plate on the back of your chest freezer.

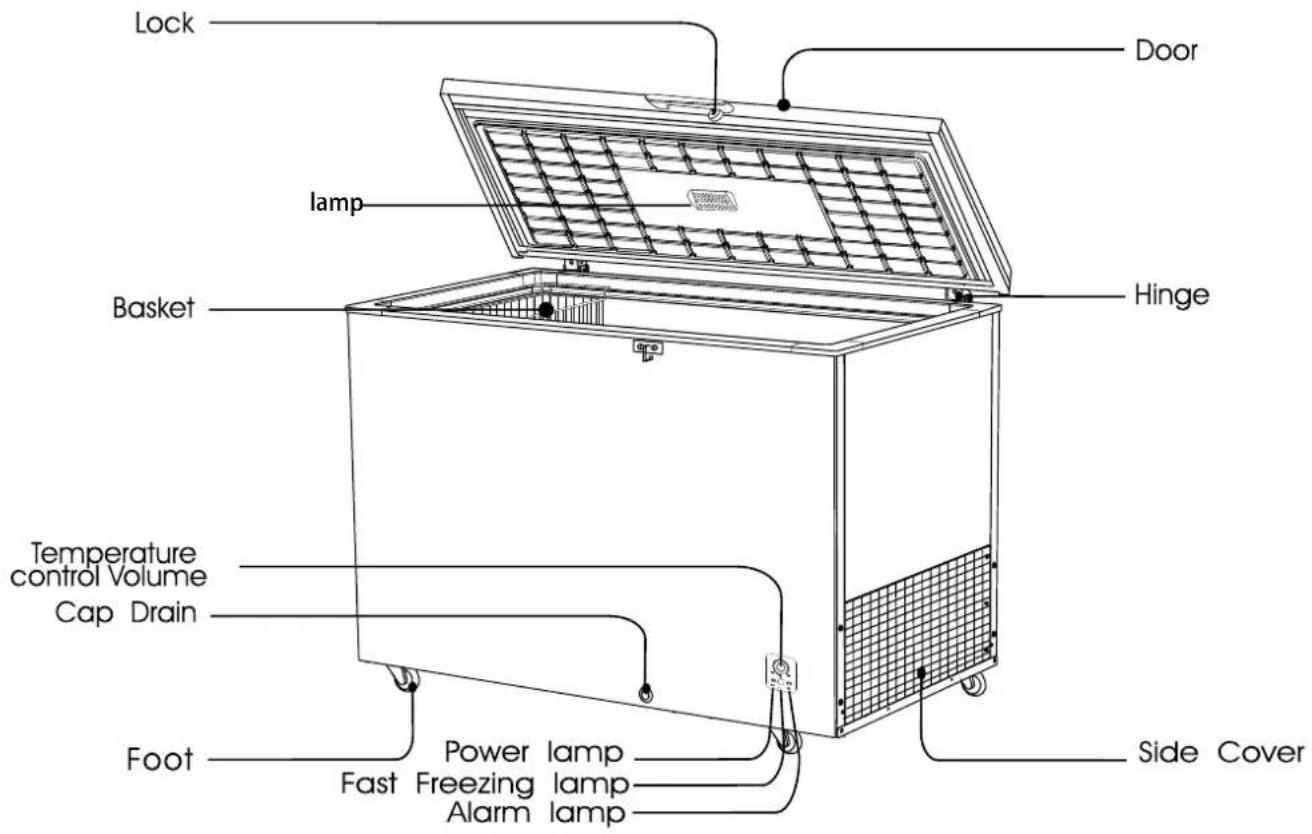

Model NO: FC-30DD4FIA53D08DDA48XA

Lock Door lamp Hinge Basket Temperature control Volume Cap Drain Foot Power lamp Fast Freezing lamp Alarm lamp Side Cover

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet handsas this could result in frostbite.

The above image is for reference only, configuration is subject to actual product.

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frostbite.

Keep the key out of reach of children and not in the vicinity of the freezer

TEMPERATURE ADJUSTMENT

• To adjust the temperature inside the freezer compartment, adjust the temperature control dial on front-bottom side of the chest freezer. Normally use chest freezer with temperature Mid.
• If the cooling performance is inadequate, turn the temperature control dial in the direction of Colder. If too cold, turn dial in direction of Cold.
• When you stop running temporally, please turn the temperature control dial in the direction of Off.

INSTRUCTIONMANUAL

Mid Cold Off Colder

SPECIFICATIONS

Product Name	Chest Freezer
Product No.	FC-40DD4HA/FC-40DD4SA/FC-53DD4HA/FC-53DD4SA
Outer Dimensions (mm)	Width	Depth	Height
	1125/1411	709/709	842/842
Performance	Freezer compartment temperature: -18 °C; Conditions: Ambient temperature ST/38 °C, unloaded state, not exposed to direct sunlight.
Accessories	Basket

The specifications may change, please refer to the circuit name plate on the back of your chest freezer.

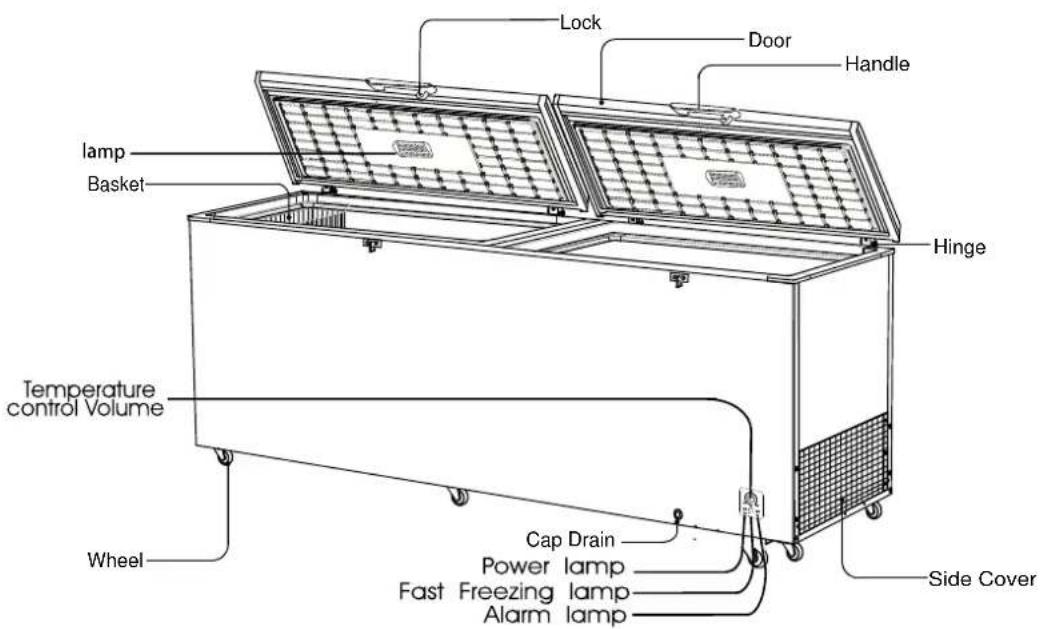

Model NO: FC-66DD4HA FC-66DD4SA

Lock Door Handle lamp Basket Hinge Temperature control Volume Wheel Cap Drain Power lamp Fast Freezing lamp Alarm lamp Side Cover

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet handsas this could result in frostbite.

The above image is for reference only, configuration is subject to actual product.

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frostbite.

TEMPERATURE ADJUSTMENT

• To adjust the temperature inside the freezer compartment, adjust the temperature control dial on front-bottom side of the chest freezer. Normally use chest freezer with temperature Mid.
• If the cooling performance is inadequate, turn the temperature control dial in the direction of Colder. If too cold, turn dial in direction of Cold.
• When you stop running temporally, please turn the temperature control dial in the direction of Off.

INSTRUCTIONMANUAL

Mid Cold Off Colder

SPECIFICATIONS

Product Name	Chest Freezer
Product No.	FC-66DD4HA/FC-66DD4SA
Outer Dimensions (mm)	Width	Depth	Height
	1702	709	842
Performance	Freezer compartment temperature: -18 °C; Conditions: Ambient temperature ST/38 °C (T/43 °C), unloaded state, not exposed to direct sunlight.
Accessories	Basket

The specifications may change, please refer to the circuit name plate on the back of your chest freezer.

Decorated Gasoline Acrylic soda Gasoline Thinner Scrub brushes

Illustration of three stylized tools: a bottle, a hammer, and a tool with a handle (no text or symbols)

Cartoon illustration of a smiling truck with a smiling face and waving hand (no text or symbols)
