USER MANUAL MUZ5580 HISENSE

How to use your new Freezer

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

Model MUZ5580

Fridgemaster®

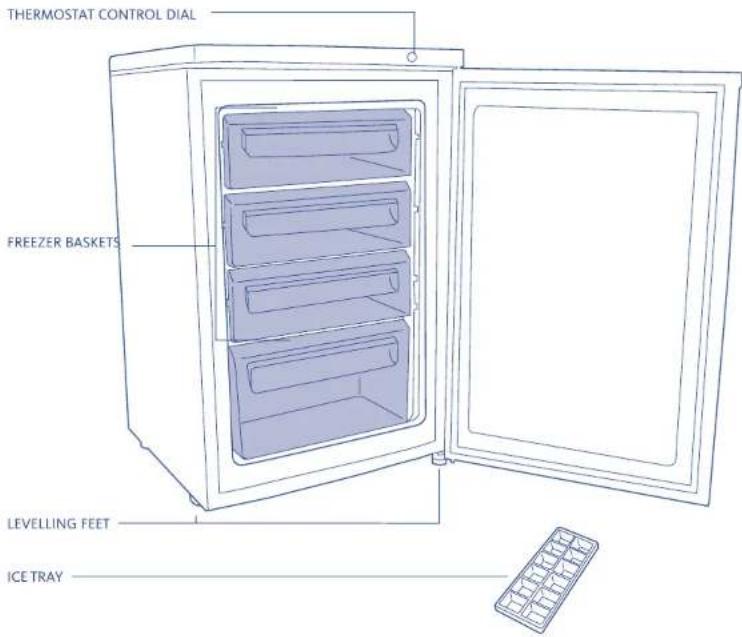

GETTING TO KNOW YOUR FREEZER

Before use

Please read these instructions carefully before using your new Fridgemaster Freezer. The Freezer is for indoor, domestic use only.

Please keep these instructions in a safe place for future reference.

THERMOSTAT CONTROL DIAL FREEZER BASKETS LEVELLING FEET ICE TRAY

INSTALLATION

Location

When selecting a position for your Freezer you should make sure the floor is flat and firm, Avoid locating your freezer near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight. When your Freezer is working, the sides may become warm. It must therefore be installed so there is at least 75mm (3") separating the back of the freezer to the wall, at least 100mm (3.9") of space on both sides, height over 100mm (3.9") from its top and clear space infront to allow the door to open 160°. The Freezer door can either open to the right or the left, depending on the location which suits you. See page 6 if you want to reverse the door swing. Do not drape the Freezer with any covering.

Levelling the Freezer

Once the Freezer is put in it's final location, make sure it is level. To do this use the two levelling feet at the front of the Freezer. If the Freezer is not level, the doors and magnetic seal alignment will be affected.

Cleaning before use

Wipe the inside of the Freezer with a weak solution of bicarbonate of soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and baskets. You could clean the Freezer externally with wax polish. If you require more information refer to CLEANING on page 7.

Before plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the Freezer. If not, see the section called ELECTRICAL CONNECTIONS on page 11.

USING YOUR FREEZER

Set the Thermostat Control Dial to NORMAL for everyday operation and check that the Freezer compartment is cold before placing food in the Freezer.

Is the Freezer cold enough?

If you are concerned that your Freezer is not being kept cold enough, and wish to check the temperature, you will need a special fridge / freezer thermometer available from most supermarkets and hardware shops.

Place the thermometer in the middle basket of the Freezer, where it can be read easily. Leave overnight, the temperature in the Freezer should be -18°C or lower.

FRIDGE/FREEZER THERMOMETER °C FRIEZEER FRIDGE 30° -20° -10° 0° +10° +20° +10° +40°

Adjusting the temperature

The internal temperature of your Freezer is controlled by the Thermostat Control Dial on the front of the Freezer. The MAX setting lowers the temperature inside the Freezer compartment. The NORMAL setting is for everyday operation.

NORMAL MIN MAX THERMOSTAT CONTROL DIAL

Noises inside the Freezer!

If you have not owned a fridge or freezer before, you may notice that it makes some rather unusual noises.

Most of these are perfectly normal, but you should be aware of them!

GURGLING, WHOOSHING

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your Freezer.

HUMMING, PURRING OR PULSATING

This is the compressor motor working, as it pumps the refrigerant around the system.

USING YOUR FREEZER

Shopping for frozen foods

Your Freezer is 4 star

When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating. This is usually the period stated as 'Best Before', on the front of the packaging.

Check the freezer temperature

Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18°C.

Choose packs carefully

Take a quick look at the frozen food package and make sure it is in perfect condition.

Purchase frozen food last

Always buy frozen products last on your shopping trip or visit to the supermarket.

Keep frozen foods together

When you are going around the supermarket and when you are travelling home, if you keep all the frozen foods together they will help to keep each other cold.

Store food straight away

Don't buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep frozen food cold for longer.

Thawing frozen food

For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.

To Thaw frozen foods

1 Cover food loosely.
2 Thaw at room temperature. Don't forget that thawing in a warm area encourages the growth of bacteria.
3 Always make sure there are no ice crystals in the food before cooking, particularly with meat. These crystals indicate that the food is not fully thawed. They result in lower temperatures when cooking. Lower cooking temperatures may not destroy dangerous bacteria.
4 Cook food as soon as possible after thawing.
5 Drain off and throw away any liquid lost during thawing.

Oven Thawing

Many microwaves and ovens have thaw settings. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Safety Tips

• Never re-freeze anything that has thawed out unless you cook it again, to kill off harmful bacteria
  • Never re-freeze thawed shellfish.

Useful Tip

- Re-seal packs properly after removing items. This prevents drying or 'freezer burn' and a build up of frost on any remaining food.

Freezing fresh foods

Useful tips

Use quality food and handle it as little as possible. Freeze food in small quantities, it freezes faster, takes less time to thaw and enables you to eat it in the quantity you need.

What not to freeze

Bananas, Pomegranates, Pears or Carbonated liquids.

NOTE: DO NOT STORE INFLAMMABLE GASES OR LIQUIDS.

USING YOUR FREEZER

Preparations for freezing

yletelpmoc looc ot doof dekooc evael.

elbissop fi grizeerf erofeb egdiri a ni doot

• Consider how you want to cook the food before fre
.tgnize
- Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
- Use special freezer bags available from supermarkets, freezer film, polythene bags, plastic containers, aluminium foil (heavy grade only if in doubt, double wrap). Don't use aluminium foil for acidic foods (such as citrus fruits). Don't use thin cling film or glass. Don't use used food containers (unless cleaned thoroughly first).
- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.
- Leave a small amount of 'air space' when liquids, to allow for expansion. You can use the space in the freezer most of you freeze liquids (or solids with liquids, such as stew) in square blocks. This is known as 'preforming'. Pour the liquid into a polyther bag which is inside a square sided container. Freeze it like this, then remove it from the container and seal the bag.

de. You could we air out gizeerf only if

Label everything

• Many foods look the same when frozen, so careful labelling will help avoid forgetting.
• what an item is. Storage times being exceeded could cause food poisoning.
• You can buy special freezer tape for use in low te .sepm This tape is available in white, so you can use it to write the items contents on. You can buy special freezer labels and pens. Labels come in different colours which can help you use your Freezer effectively. For instance you could colour code meat red and vegetables green. Using a different colour label for each quarter of the year will help you rotate your frozen food more efficiently
• Write the contents and date. If you are really organised add the weight and notes on cooking such as 'thaw first', or 'cook from frozen' and keep a separate 'log-book' of what is in each drawer. This will save opening the door and searching around unnecessarily.

Recommended storage periods

(when frozen from fresh)

Fruit Syrup or Sugar packed fruit	up to 12 months
Open Frozen or Puréed Fruit	up to 18 months
Fruit juices	up to 6 months

Beef	up to 10 months
Lamb	up to 10 months
Veal	up to 6 months
Pork	up to 6 months
Minced meat	up to 3 months
Cured meats	up to 2 months
Sausages	up to 3 months
Packed bacon	up to 3 months
Smoked bacon/chops/gammon steaks	up to 2 months
Unsmoked bacon/chops/gammon steaks	up to 1 month

Chicken	up to 8 months
Duck	up to 5 months
Goose	up to 5 months
Turkey	up to 6 months

White fish	up to 5 months
Oily fish including salmon	up to 2 months
Smoked salmon	up to 3 months
Caviar	do not freeze
Shellfish	up to 1 month

Butter	up to 6 months
Cheese	up to 6 months
Cream - double/whipping	up to 3 months
Eggs - only freeze separated	up to 10 months
Suet	up to 6 months
Milk	up to 1 month
Yogurt	up to 6 weeks

REVERSING THE DOOR SWING

• Ensure the Freezer is unplugged and empty
• We recommend you have someone to assist you.

Tools required

• Phillips style screwdriver

- Flat bladed screwdriver

- Small adjustable spanner

Before you start lay the Freezer on its back in order to gain access to the base. You should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the Freezer.

Illustration of a person carrying a large object with motion lines, no text or symbols present

Remove both adjustable feet and remove the bottom hinge bracket by unscrewing the bolts. Support the door to avoid damage.

Pure mechanical component diagram without any text, numbers, or symbols

Remove levelling foot from this point and relocate it into available point at opposite front corner.

Two identical mechanical components with holes and arrows indicating direction (no text or symbols)

Unscrew and remove the hinge pin and refit it into the adjacent hole. Refit the bracket fitting the hinge pin, spacers and washers into the bushing at the bottom of the door. Replace both adjustable feet.

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Stand the Freezer, use a flat bladed screw driver to remove the 2 screw covers at the rear of the Freezer lid.

Line drawing of a building facade with windows and a window frame (no text or symbols)

Unscrew and lift the lid of the Freezer from the rear and remove it. Put it in a safe place.

Diagram of a door with arrows indicating movement or force, no text or symbols present

Remove the top hinge bracket by unscrewing the three retaining nuts. DO NOT undo the nut holding the hinge pin. Support the door to avoid damage.

Two identical mechanical components with arrows indicating direction, no text or symbols present

Unscrew and remove the top hinge pin, turn the bracket over and replace it. Tighten securely.

Illustration of a hand holding a tool over a sheet of paper or paper (no text or symbols visible)

Remove the three screws and the plastic blanking plate and replace them on the opposite side of the cabinet.

Technical line drawing of a mechanical assembly with a tool inserted into a housing (no text or symbols)

Refit the top bracket fitting the hinge pin, spacers and washers into the bushing at the top of the door. Check the door is aligned correctly before tightening.

Illustration of a hand using a screwdriver to apply material on a flat surface (no text or symbols visible)

Replace the lid by fitting the front first and sliding into place, securing it with the two screws. Replace the screw covers.
11 Check that door is aligned horizontally and vertically. Re-adjust the levelling feet. See 'Levelling the Freezer' on page 2.

Simple line drawing of a rectangular container with side handles and bottom legs (no text or symbols)

CLEANINGDEFROSTING

Defrosting

After a period of time frost will build up in certain areas in the Freezer compartment. As a temporary measure, this frost should be scraped away using a plastic scraper. NEVER use a metal or sharp instrument. Remove existing foods and baskets, ideally the frozen food should be put into another freezer. Scrape off and remove the frost, then move your foods back in order to gain access to other sections of the Freezer.

Complete defrosting will however,

become necessary, approximately

once a year, or if the frost layer

exceeds 4mm to maintain the efficiency of the freezer. This should

be carried out if the frost build up

cannot be scraped away, or if it begins

to interfere with the food storage. Choose a time when the stock of frozen food is low and proceed as follows:

Take out the frozen food, turn the Freezer off at the mains supply and leave the doors open. Ideally the frozen food should be put into another freezer or freezer. If this is not possible wrap the food, firstly in several sheets of newspaper or large towels and then a thick rug or blanket and keep it in a cool place.
2 Scrape away as much frost build up as possible using the plastic scraper (scraper not included).
3 Thawing of the remaining frost can be speeded up by placing bowls of hot water inside the freezer compartment. As the solid frost loosens, prize it away with the ice scraper and remove.
4 When defrosting is completed, clean your freezer as described in CLEANING.

Cleaning inside the Freezer

After defrosting you should clean the Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe the Freezer dry before replacing the baskets and shelves.

Cleaning the outside of the Freezer

Use standard furniture polish to clean the Freezer exterior. Make sure that the doors are closed, to prevent polish getting on the magnetic door seal or inside.

The grille of the condenser at the back of the Freezer and the adjacent

components can be vacuumed using a soft brush attachment.

Cleaning tip

• Defrost when food stocks are low.

TROUBLESHOOTING

Power cut

If you have a Freezer thermometer, place it in the Freezer where you can get easy access to it to read when the power returns. If the internal temperature is -18°C or less when the power returns, your food is safe. The food in your Freezer will remain frozen for approx 16 hours with the door closed. Don't open the Freezer doors more than necessary.

The Freezer is not working

Check it is plugged in and switched on. Check that the fuse in the plug has not blown. Plug in another appliance, such as a lamp, to see if the socket is working.

Condensation appears on the outside of the Freezer

This may be due to a change in room temperature. Wipe off any residue of moisture. If the problem continues call your Customer Service Department.

Noises

You may hear some unusual noises from time to time. See 'Noises inside the Freezer' on page 3

If you are not able to identify and eliminate the faults according to the above recommendations, contact your Authorised Service Agent, advising of model number of the appliance which is shown on the back of the rating plate.

Do not attempt to repair your Freezer yourself as it might endanger you and others.

MAINTENANCE

Moving your Freezer

Location

Do not locate your Freezer near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight.

Levelling the Freezer

Make sure the Freezer is level. Use the rotating levelling feet at the front. If the Freezer is not level, the doors and magnetic seal alignments will be affected.

Do Not Turn on the Freezer for 2 Hours

After the Freezer is in place it needs to be left for 2 hours.

The coolant fluid needs time to settle.

Installation

Warning - do not cover or block the vents or grilles of your appliance.

Servicing

Repairs and maintenance should only be performed by a qualified, authorised service engineer

TECHNICAL SPECIFICATIONS

Model MUZ5580

Rated Voltage(V)

220- 240

Rated Frequency (Hz)

50

Energy Class

A +

Gross Volume (Litres)	88
(Cubic Feet)	3.1

Weight(Kg)

33

Product Dimension h/w/d (mm)

845/545/570

Star Rating

4 Star

Sound Decibel Rating (dB[A])

43

Refrigerant

R600a

The policy of Fridgemaster is one of continuously seeking new ways of improving its products. Therefore the Company reserves the right to change the specification of items illustrated and described, at any time.

SAFETY

WARNING IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OR REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRIC SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Locks

If your refrigerator is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old refrigerator, break off any old locks or latches as a safeguard.

The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

CE marking certifies that this appliance conforms to:

Low Voltage Equipment - 73/23/EEC & 93/68EEC

Electromagnetic Compatibility - 89/336/EEC, 92/31EEC & 93/68EEC

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. Please contribute to a better environment by disposing of the packaging materials in an environmentally friendly manner.

Observe local environmental standards when disposing of packaging material for recycling purposes.

Please ask your dealer or inquire at your local authority about current means of disposal.

Keep packaging materials out of the reach of children! It can become a choking or suffocation hazard.

Disposal of your old appliance

Old appliances are not worthless rubbish! Recycling old appliances can reclaim valuable raw materials.

This appliance has been identified in accordance with the European directive 2002/96/EC on Waste Electrical and Electronic Equipment – WEEE.

The directive requires that old household electronic appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers may take their old appliances to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your appliance and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. Up to date information concerning options for disposing of your old appliance and packaging from the new one can be obtained from your local council office.

Redundant appliances:

Cut off the mains plug and discard it. Refrigerators contain refrigerants and the insulation contains gases. Refrigerant and gases must be disposed of properly.

Ensure the tubing of the refrigerant circuit is not damaged prior to proper disposal.

SAFETY

Safety and warning information

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance. Keep all documentation for subsequent use or for the next owner.

Technical safety

This appliance contains a small quantity of environmentally friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigeration circuit is not damaged during transportation and installation. Leaking refrigerant may ignite.

If damage has occurred

• Keep naked flames and/or ignition sources away from the appliance.
• Pull out the mains plug.
• Thoroughly ventilate the room for several minutes.
• Notify customer services.

The more refrigerant an appliance contains, the larger the room must be. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1m^3 per 8 g of refrigerant.

The amount of refrigerant in your appliance is indicated on the rating label on your appliance.

Important information when using the appliance

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or experience or knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never use electrical appliances inside the refrigerator (e.g. heater, electric ice maker, etc.). Explosion hazard!
• Never use a steam cleaner to clean the appliance. The steam may penetrate electrical parts and cause a short circuit. Risk of electric shock!
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliances. Explosion hazard!
• Do not stand or support yourself on the base, drawers or doors, etc.
• Before defrosting and cleaning the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable.
  • Commercially frozen pre-packed food should be stored in accordance with the frozen food manufacturers instruction.
• Bottles containing a high percentage of alcohol must be sealed and stored in an upright position.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, the plastic and door seal will become porous.
• Never cover or block the ventilation openings for the appliance.
• Do not store bottled or canned drinks (especially carbonated drinks) in the ice compartment. Bottles and cans may explode!
• Never put frozen food, or ice cubes, straight from the ice compartment into your mouth. Risk of frost burns to the lips and tongue!
• Avoid prolonged touching of frozen food, ice or the inner freezer walls or tubing etc. Risk of frost burns to the skin.
• Do not scrape off frost or stuck frozen food with a knife or pointed object. You could damage the refrigerant tubing. Leaking refrigerant may ignite. Only use a plastic scraper.
• In the case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning to the appliance.

• When the appliance is unplugged please wait for 5 minutes before plugging it in again. Otherwise, the compressor will be overloaded.

• Do not use electrical appliances such as a hairdryer or heaters near your refrigerator.

• Do not store inflammable gases or liquids inside your refrigerator.

Children in the household

• Keep children away from the packaging and its parts. Danger of suffocation from folding cardboard and plastic film!
• Do not allow children to tamper with the controls or play with the appliance. It is not a toy. Under no circumstances should children be allowed to sit on the bins or hang from the door.
• If the appliance features a lock, keep the key out of the reach of children.

General requirements

• The appliance is designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store food products by adults only and according to the instruction manual.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly.

ELECTRICAL CONNECTIONS

THIS APPLIANCE MUST BE EARTHED.

i esu rof elbatius eb llv hawh

The wires in the mains lead, titted to this appliance are coloured in 3631 SB of gulp perth desur a huw dettir st ecnal lppa slh accordance, with the following code: ot steckos huw dettir sesuoh Ila n

current specifications.

If card plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a socket.

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown here.

CONNECT BLUE TO NEUTRAL (N)

CONNECT GREEN AND YELLOW TO EARTH (E) (Note: some appliances do not have earth wires.)

CONNECT BROWN TO LIVE (L)

MAKE SURE THE CABLE IS HELD BY THE CLAMP

If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and Yellow MUST be connected to the terminal which is marked with the letter E (Earth) or symbol 12 or coloured Green. The wire which is coloured Blue MUST be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown MUST be connected to the terminal which is marked with the letter L or coloured Red.

Before refitting the plug cover, check that there are no cut or stray strands of wire inside the plug.

Use a 13 Amp BS1962 fuse, only BSI or ASTA approved fuses should be used. If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.

Note: After replacing or changing a fuse on a moulded plug which has a fuse cover, the cover must be refitted to the plug, the appliance must not be used without a fuse cover. If lost, replacement fuse covers can be obtained from an electrical shop.

This appliance complies with the following EEC Directives: 73 / 23 EEC (Low Voltage Directive) 89 / 336 EEC (EMC Directive).

FRIDGEMASTER

Unit D, Global Avenue

Global Park Millshaw, Leeds LS11 8PR

Tel: [phone]

Fax: [phone]

For further information please contact

the Fridgemaster Technical Helpline on:

0845 0508536

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
