USER MANUAL MTTZ4430 HISENSE

How to use your new Freezer

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Model MTTZ4430

Fridgemaster®

SAFETY

WARNING IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OR REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRIC SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Locks

If your refrigerator is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old refrigerator, break off any old locks or latches as a safeguard.

The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

CE marking certifies that this appliance conforms to: Low Voltage Equipment - 73/23/EEC & 93/68EEC Electromagnetic Compatibility - 89/336/EEC, 92/31EEC & 93/68EEC

Information concerning disposal Disposal of packaging

The packaging protects your appliance from damage during transit. Please contribute to a better environment by disposing of the packaging materials in an environmentally friendly manner.

Observe local environmental standards when disposing of packaging material for recycling purposes.

Please ask your dealer or inquire at your local authority about current means of disposal.

Keep packaging materials out of the reach of children! It can become a choking or suffocation hazard.

Disposal of your old appliance

Old appliances are not worthless rubbish! Recycling old appliances can reclaim valuable raw materials.

This appliance has been identified in accordance with the European directive 2002/96/EC on Waste Electrical and Electronic Equipment - WEEE.

The directive requires that old household electronic appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers may take their old appliances to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your appliance and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. Up to date information concerning options for disposing of your old appliance and packaging from the new one can be obtained from your local council office.

Redundant appliances:

Cut off the mains plug and discard it. Refrigerators contain refrigerants and the insulation contains gases. Refrigerant and gases must be disposed of properly.

Ensure the tubing of the refrigerant circuit is not damaged prior to proper disposal.

SAFETY

Safety and warning information Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance. Keep all documentation for subsequent use or for the next owner.

Technical safety

This appliance contains a small quantity of environmentally friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigeration circuit is not damaged during transportation and installation. Leaking refrigerant may ignite.

If damage has occurred

• Keep naked flames and/or ignition sources away from the appliance.
• Pull out the mains plug.
• Thoroughly ventilate the room for several minutes.
• Notify customer services.

The more refrigerant an appliance contains, the larger the room must be. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1m ^3 per 8 g of refrigerant.

The amount of refrigerant in your appliance is indicated on the rating label on your appliance.

Important information when using the appliance

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or experience or knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never use electrical appliances inside the refrigerator (e.g. heater, electric ice maker, etc.). Explosion hazard!
• Never use a steam cleaner to clean the appliance. The steam may pen-
  etrate electrical parts and cause a short circuit. Risk of electric shock!
• Do not store products which contain flammable propellants (e.g. spray
  cans) or explosive substances in the appliances. Explosion hazard!
• Do not stand or support yourself on the base, drawers or doors, etc.
  • Before defrosting and cleaning the appliance, pull out the mains plug or
  switch off the fuse. Do not pull out the mains plug by tugging the cable.
  • Commercially frozen pre-packed food should be stored in accordance
  with the frozen food manufacturers instruction.
• Bottles containing a high percentage of alcohol must be sealed and stored in an upright position.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, the plastic and door seal will become porous.
• Never cover or block the ventilation openings for the appliance.
• Do not store bottled or canned drinks (especially carbonated drinks) in the ice compartment. Bottles and cans may explode!
• Never put frozen food, or ice cubes, straight from the ice compartment into your mouth. Risk of frost burns to the lips and tongue!
• Avoid prolonged touching of frozen food, ice or the inner freezer walls or tubing etc. Risk of frost burns to the skin.
• Do not scrape off frost or stuck frozen food with a knife or pointed object. You could damage the refrigerant tubing. Leaking refrigerant may ignite. Only use a plastic scraper.
• In the case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning to the appliance.

• When the appliance is unplugged please wait for 5 minutes before plugging it in again. Otherwise, the compressor will be overloaded.

• Do not use electrical appliances such as a hairdryer or heaters near your refrigerator.

• Do not store inflammable gases or liquids inside your refrigerator.

Children in the household

• Keep children away from the packaging and its parts. Danger of suffocation from folding cardboard and plastic film!
• Do not allow children to tamper with the controls or play with the appliance. It is not a toy. Under no circumstances should children be allowed to sit on the bins or hang from the door.
• If the appliance features a lock, keep the key out of the reach of children.

General requirements

• The appliance is designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store food products by adults only and according to the instruction manual.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly.

GETTING TO KNOW YOUR FREEZER INSTALLAT

Before use

Please read these instructions carefully before using your new Fridgemaster Freezer. The Freezer is for indoor, domestic use only. Please keep this instruction manual in a safe place for future reference.

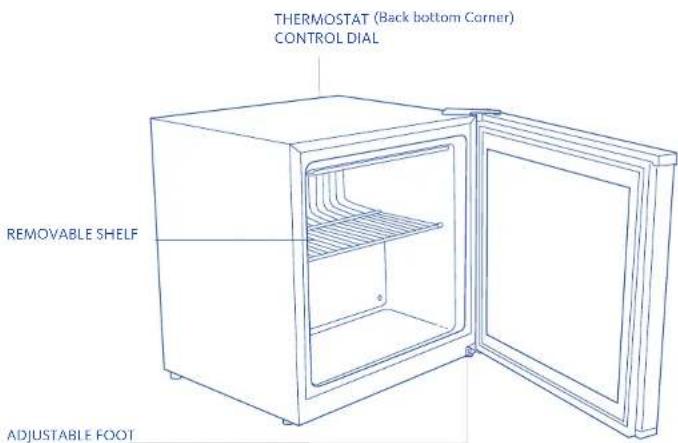

THERMOSTAT (Back bottom Corner) CONTROL DIAL REMOVABLE SHELF ADJUSTABLE FOOT

ICE CUBE TRAY

N

Location

When selecting a position to place your Freezer you should make sure that the surface is flat and firm, and the room is dry and well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your Freezer near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight. When your Freezer is working, the side panels may become hot and so to allow adequate ventilation there must be a space of at least 10cm between the sides and 7.5cm from the back of the Freezer and any adjacent wall or cupboard. A space of at least 10cm must be left between the top of the Freezer and any cupboard, work surface or low ceiling above it. Do not drape the Freezer with any covering.

Levelling the Freezer

Remove the packaging support from the Freezer. Check that the Freezer is placed on a level and stable surface. To make sure the Freezer is level adjust the Levelling Foot at the front. If the Freezer is not level, the doors and magnetic seal alignments will be affected.

Cleaning before use

Wipe the inside of the Freezer with a weak solution of bicarbonate of soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the baskets. You could clean the Freezer externally with wax polish. If you require more information refer to DEFROSTING & CLEANING the Freezer on page 8.

Before plugging in YOU MUST

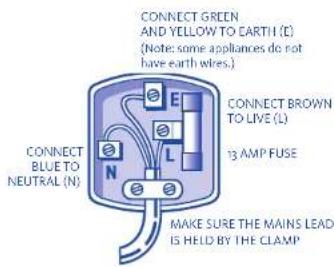

Check that you have a socket which is compatible with the plug supplied with the Freezer. If not, see the section called ELECTRICAL CONNECTIONS on page 10.

Before switching on!

DO NOT SWITCH ON UNTIL TWO HOURS AFTER MOVING THE FREEZER. The coolant fluid needs time to settle.

Before using your Freezer

Before placing frozen foods in your Freezer, switch on the Freezer and wait for 24 hours, to make sure it is working properly and to allow the Freezer to fall to the correct temperature. Your Freezer should not be overfilled.

USING YOUR FREEZER

Switching on your Freezer

1 Before connecting the Freezer to the mains supply make sure that the

Thermostat Control Dial, located at the rear the Freezer, is set between positions 2 and 3 but closer to 3, which is the correct setting for use in a room of average temperature.

Wait 24 hours before placing food into the cabinet to allow for the Freezer to fall to the correct temperature.

Adjusting the temperature

The internal tem rep ature of your Freezer is controlled by a thermostat. Position 5 makes the Freezer coldest. Position 1 makes it warmest. The temperature in the Freezer compartment should be maintained at -18 °C or lower. The Freezer may not operate at the correct temperature if it is in a particularly hot or particularly cold room or if you open the Freezer door very often.

Is the Freezer cold enough?

If you are concerned that your Freezer is not being kept cold enough, and wish to check the temperature, you will need a special freezer thermometer available from most supermarkets and hardware shops. Place the thermometer on the middle shelf of the Freezer, where it can be read easily. Leave overnight, the temperature in the Freezer should be -18°C or lower, when the Freezer is situated in a room where the temperature is between 16°C and 38°C.

Noises inside the Freezer!

If you have not owned a Freezer before, you may notice that it makes some rather unusual noises. Most of these are perfectly normal, but you should be aware of them!

GURGLING, WHOOSHING

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your Freezer.

HUMMING, PURRING OR PULSATING

This is the compressor motor working, as it pumps the refrigerant around the system.

Shopping for frozen foods

Your Freezer is 4 star ★★★★

When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating. This is usually the period stated as 'Best Before', on the front of the packaging.

Check the freezer temperature

Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18°C.

Choose packs carefully

Take a quick look at the frozen food package and make sure it is in perfect condition.

Purchase frozen food last

Always buy frozen products last on your shopping trip or visit to the supermarket.

Keep frozen foods together

When you are going around the supermarket and when you are travelling home, if you keep all the frozen foods together they will help to keep each other cold.

Store food straight away

Don't buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep frozen food cold for longer.

Thawing frozen food

For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.

To Thaw frozen foods

1 Cover food loosely.
2 Thaw at room temperature. Don't forget that thawing in a warm area encourages the growth of bacteria.
3 Always make sure there are no ice crystals in the food before cooking, particularly with meat. These crystals indicate that the food is not fully thawed. They result in lower temperatures when cooking. Lower cooking temperatures may not destroy dangerous bacteria.
4 Cook food as soon as possible after thawing.
5 Drain off and throw away any liquid lost during thawing.

Oven thawing frozen foods

Many microwaves and ovens have thaw settings. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Safety tips

• Never re-freeze anything that has thawed out unless you cook it again, to kill off harmful bacteria.
  • Never re-freeze thawed shellfish.

Useful tips

- Re-seal packs properly after removing items. This prevents drying or 'freezer burn' and a build up of frost on any remaining food.

USING YOUR FREEZER

Freezing fresh foods

Useful tips

Use quality food and handle it as little as possible. Freeze food in small quantities, it freezes faster, takes less time to thaw and enables you to eat it in the quantity you need.

What not to freeze

Bananas, Pomegranates, Pears or Carbonated liquids.

Preparations for freezing

• Leave cooked food to cool completely.
• Chill food in a Fridge before freezing if
• Consider how you want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the Freezer.
• Use special freezer bags available from supermarkets, freezer film, polythene bags, plastic containers, aluminium foil (heavy grade only, if in doubt, double wrap). Don't use aluminium foil for acidic foods (such as citrus fruits). Don't use thin cling film or glass. Don't use used food containers (unless cleaned thoroughly first).
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.
• Leave a small amount of 'air space' when freezing liquids, to allow for expansion.
• You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, such as stew) in square blocks.
  This is known as 'preforming'. Pour the liquid into a polythene bag which is inside a square sided container. Freeze it like this, then remove it from the container and seal the bag.

possible. ich h it

Label everything

• Many foods look the same when frozen, so careful labelling will help avoid forgetting what an item is. Storage times being exceeded could cause food poisoning.
• You can buy special freezer tape for use in low temperatures. This tape is available in white, so you can use it to write the items contents on. You can buy special freezer labels and pens. Labels come in different colours which can help you use your Freezer effectively. For instance you could colour code meat red and vegetables green. Using a different colour label for each quarter of the year will help you rotate your frozen food more efficiently.
• Write the contents and date. If you are really organised add the weight and notes on cooking such as 'thaw first', or 'cook from frozen' and keep a separate 'log-book' of what is in each drawer. This will save opening the door and searching around unnecessarily.

Recommended storage periods (when frozen from fresh)

Fruit Syrup or Sugar packed Fruit up to 12 months

Open Frozen or Puréed Fruit up to 18 months

Fruit juices up to 6 months

Beef up to 8 months

Lamb up to 6 months

Veal up to 6 months

Pork up to 6 months

Minced meat up to 3 months

Cured meats up to 2 months

Sausages up to 3 months

Packed bacon up to 3 months

Smoked bacon/ chops/ gammon steaks up to 2 months

Unsmoked bacon/ chops/ gammon steaks up to 1 month

Chicken up to 12 months

Duck up to 5 months

Goose up to 5 months

Turkey up to 6 months

White fish up to 3 months

Oily fish including salmon up to 2 months

Smoked salmon up to 3 months

Caviar don't freeze

Shellfish up to 1 month

Butter up to 6 months

Cheese up to 6 months

Cream - double/ whipping up to 3 months

Eggs - only freeze separated up to 10 months

Suet up to 6 months

Milk up to 1 month

Yogurt up to 6 weeks

REVERSING THE DOOR SWING

• Ensure the Refrigerator is empty, switch and off unplug the Refrigerator from the mains supply.
  • We recommend you have someone to assist you.
• You may find it useful to securely lean the Refrigerator back against a wall but be very careful not to damage the fragile refrigeration pipes.

Tools required

• Phillips style screwdriver
• Small adjustable spanner
• Small flat bladed screwdriver

Simple line drawing of a window corner with a trash bin and floor marker (no text or symbols)

Unscrew and remove the adjustable foot on the right hand side.

Line drawing of a hand using a tool to apply or install a component on a structural frame (no text or symbols)

With the flat blade screwdriver carefully remove the cover from the top hinge bracket.

Technical line drawing of a mechanical bracket with mounting holes and a separate plate (no text or symbols)

Unscrew the 2 retaining screws using the Phillips screwdriver. Support the door and remove the top bracket. Lift to remove the door and put it in a safe place.

Illustration of a refrigerator with an arrow indicating upward motion (no text or symbols)

Using the flat blade screwdriver remove and refit the plastic blanking plate to the opposite side of the cabinet.

Diagram of a device with a blue arrow pointing to a component, no text or symbols present

Remove and refit the blanking plate from the top edge of the door to the opposite site.

Illustration of a door with a screwdriver and plastic components, no text or symbols present

Unscrew the two retaining bolts and small front foot from the bottom bracket and to remove it, reflt onto the opposite side of the cabinet.

Line drawing of a 3D rectangular refrigerator with lid and front panel (no text or symbols)

Replace the adjustable foot to the right hand side and refit the door onto the bottom hinge pin, ensuring that the edge is in line with the edge of the Refrigerator compartment.

Pure technical line drawing of a mechanical bracket with no text or symbols

Hold the door in place and refit the top bracket.

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Replace the cover onto the top bracket.

10 Check the door is aligned horizontally and vertically and that the door seals are secure on all sides before finally

tightening.

Re-adjust the levelling foot. See Levelling the Refrigerator on page 2

DEFROSTING & CLEANING MAINTENANCE TROUBLESHOOTING

Defrosting

After a period of time frost will build up in certain areas in the Freezer.

As a temporary measure, this frost should be

scraped away using the plastic scraper.

NEVER use a metal or sharp instru Complete defrosting will however

become necessary if the frost layer exceeds 6mm

^(1/4) to maintain the efficiency of

the Freezer. This should be carried out if the frost build up cannot be scraped away, or if it begins to interfere with the food storage. Choose a time when the stock of frozen food is low and proceed as follows:

Take out the frozen food, switch the Freezer off and unplug from the the mains supply and leave the doors open. Ideally the frozen food should be put into another freezer or refrigerator. If this is not possible wrap the food, firstly in several sheets of newspaper or large towels and then a thick rug or blanket and keep it in a cool place.
2 Scrape away as much frost build up as possible using the plastic scraper. Thawing of the remainder can be speeded up by placing bowls of hot water inside the freezer cabinet and closing the door. As the solid frost loosens, prize it away with the plastic scraper and remove. Do not use an electrical appliance to aid defrosting for example a hairdryer or heater etc.

3 When defrosting is completed, clean your Freezer as described below

Cleaning inside the Freezer

You should clean the Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe the Freezer dry before replacing the baskets. Plug in and switch on the mains supply

Cleaning the outside of the Freezer

Use standard furniture polish to clean the Freezer exterior. Make sure that the door is closed, to prevent polish getting on the magnetic door seal or inside. The grille of the condenser at the back of the Freezer and the adjacent components can be vacuumed using a soft brush attachment. To avoid damage never use harsh cleaners or scouring pads to clean any part of the Freezer.

Cleaning tips

• Defrost when food stocks are low.

Moving your Freezer

Location

Do not locate your Freezer near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight.

Levelling the Freezer

Make sure the Freezer is level. Use the Levelling Foot at the front. If the Freezer is not level, the doors and magnetic seal alignments will be affected.

Do Not Turn on the Freezer for 2 hours

After the Freezer is in place it needs to be left for 2 hours. The coolant fluid needs time to settle.

Installation

Don't cover or block the vents or grilles of your appliance.

Servicing

Repairs and maintenance should only be performed by a qualified, authorised technician.

What not to freeze

It is not safe to store certain products.

Never place combustible or inflammable materials or alcohol in the Freezer.

Power cut

If you have a Freezer thermometer, place it in the Freezer where you can get easy access to it to read when the power returns. If the internal temperature is -18^ or less when the power returns, your food is safe. The food in your Freezer will remain frozen for approx 16 hours with the door closed. Don't open the door more than necessary.

The Freezer is particularly cold

You may have set the thermostat control dial too high.

The Freezer is particularly warm

The compressor may not be working. Turn the thermostat control dial to position 5. If there is no humming noise, it is not working. Call your retailer or Fridgemaster Customer Service Department.

The Freezer is not working

Check it is plugged in and switched on. Check that the fuse in the plug has not blown. Plug in another appliance, such as a lamp, to see if the socket is working.

Condensation appears on the outside of the Freezer

This may be de to a change in the room temperature. Wipe off any residue of moisture. If the problem continues call your Customer Service Department.

Noises

You may hear some unusual noises from time to time. See 'Noises inside the Freezer on page 3.

Calling for help

If you are not able to identify and eliminate the faults according to the above recommendations, contact your Customer Service Department, advising of model number of the appliance which is shown on the rating label.

Do not attempt to repair your Freezer yourself as it might endanger you and others.

TECHNICAL SPECIFICATIONS

Model MTTZ4430

A+

Energy Rating

Rated Voltage 220 - 240 (V)

Rated Frequency 50 (Hz)

Freezing Capacity 3 (Kg/24 Hours)

Star Rating 4 Star

Sound Decibel Rating 40 (dB[A])

Refrigerant R600a

The policy of Fridgemaster is one of continuously seeking new ways of improving its products. Therefore the Company reserves the right to change the specification of items illustrated and described, at any time.

ELECTRICAL CONNECTIONS

This appliance is fitted with a fused three pin plug which will be suitable for use in all houses fitted with sockets to current specifications. Make sure that the electricity supply voltage is the same as that indicated on the appliance rating label. If the socket outlets in your home are not suitable for the plug supplied with this appliance, the plug should be removed and an appropriate one fitted.

A cut off plug must have the fuse removed Immediately and not be re-used. It should be carefully disposed of as it can be dangerous if plugged into a socket by children

Fitting a new plug

If the plug supplied cannot be used, the flexible mains lead must be connected as shown here. The wires in the mains lead fitted tho this appliance are colored in accordance with the following code:

THIS APPLIANCE MUST BE EARTHED

CONNECT GREEN AND YELLOW TO CARTH (E) (Note: some appliances do not have earth wires.) CONNECT BROWN TO LIVE (L) 13 AMP FUSE MAKE SURE THE MAINS LEAD IS HELD BY THE CLAMP

If the colours of the wires in the mains lead of this appliance do not correspond with coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured Green and Yellow MUST be connected to the terminal which is marked with the letter E (Earth) or symbol or coloured Green. The wire which is coloured Blue MUST be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown MUST be connected to the terminal which is marked with the letter L or coloured Red.

Before refitting the plug cover check that there are no cut or stray strands of wire inside the plug and that the clamp has been secured firmly over the outer sheath of the mains lead.

Only fuses approved to B.S. 1362 A.S.T.A. should be used. The fuse value for this appliance is 13amp.

If you are in anyway unsure which plug or fuse to use, always refer to a qualified electrician.

This appliance conforms with the requirements of the EEC Safe Directives 73/23/EEC (LVD). 89/336/EEC (EMC).

NOTES

FRIDGEMASTER

Unit D, Global Avenue

Global Park Millshaw, Leeds LS11 8PR

Tel: [phone]

Fax: [phone]

For further information please contact

the Fridgemaster Technical Helpline on:

0845 0508536

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
