Product Type	Cordless Jigsaw
Brand	Hitachi
Model	CJ 10DL
Dimensions (L x W x H)	250 x 80 x 200 mm
Weight	1.5 kg (with battery)
Power Supply	Li-ion battery 10.8 V, 1.5 Ah
Cutting Capacity (wood)	65 mm (at 90°), 45 mm (at 45°)
Cutting Capacity (mild steel)	10 mm (at 90°)
Variable Speed	0 - 2,500 strokes/min
Blade Stroke	18 mm
Bevel	0° to 45° (left and right)
LED Light	Yes
Blade Fixing System	Tool-less (click)
Safety Lock	Yes
Dust Extraction Connection	Yes (adapter not included)
Maintenance and Cleaning	Clean blades after use, lubricate moving parts, clean housing with a damp cloth
Spare Parts and Repairability	Replacement blades, batteries, charger, blade support available
General Information	Hitachi CJ 10DL jigsaw, suitable for wood, metal, plastic. 2-year warranty.

Frequently Asked Questions - CJ 10DL HITACHI

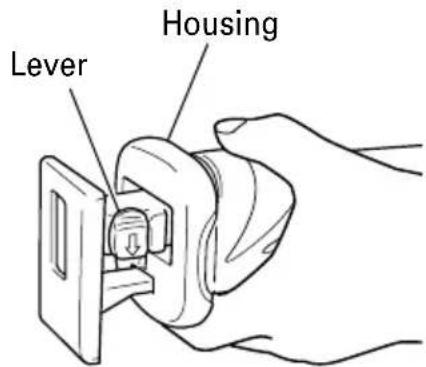

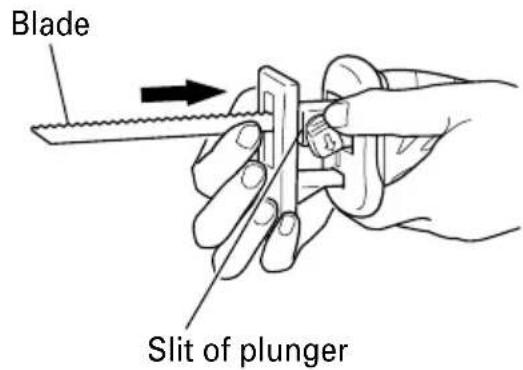

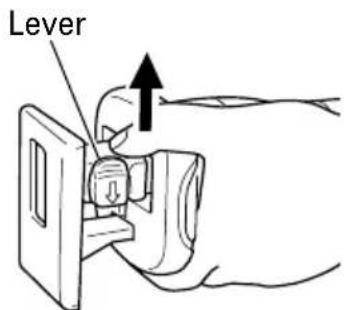

How to change the blade on the Hitachi CJ 10DL jigsaw?

To change the blade, make sure the saw is off and the battery removed. Turn the blade locking ring counterclockwise to release the old blade. Insert the new blade (teeth facing forward) and release the ring to lock it. Check that the blade is securely attached before use.

Which battery is compatible with the CJ 10DL?

The CJ 10DL uses a Hitachi lithium-ion battery of 10.8 V, model BCL1015 (1.5 Ah) or BCL1020 (2.0 Ah). Compatible chargers are models UC10SL or UC10SFL.

How to adjust the saw speed?

The speed is adjustable via a dial located on top of the saw. Turn the dial from 1 to 6 to increase speed. Use low speed for hard materials (metal) and high speed for wood.

How to make a bevel cut?

Unlock the bevel adjustment lever at the front of the saw. Tilt the base to the desired angle (from 0° to 45°) and retighten the lever. Use the bevel cutting guide for precise cuts.

Why does my saw stop during use?

This may be due to a discharged battery. Recharge it. If the problem persists, check that the blade is not jammed or that the motor has not overheated (let it cool). Consult the manual if the protection light blinks.

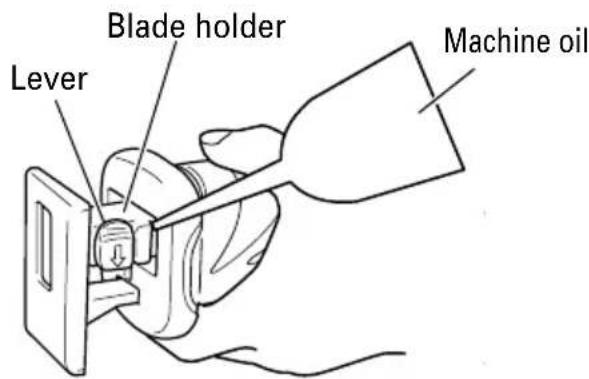

How to clean and maintain the CJ 10DL?

After use, remove the battery and clean the blade and external parts with a dry or slightly damp cloth. Do not immerse the tool in water. Periodically lubricate the blade guide with light oil.

What types of blades to use?

Use standard T-shank jigsaw blades (universal). For wood, use blades with large teeth (6-8 teeth/cm). For metal, blades with small teeth (14-18 teeth/cm). Ensure the blade is suitable for the material thickness.

How to use the parallel guide?

The parallel guide attaches to the saw base. Insert the guide rods into the corresponding holes and tighten the locking screws. Adjust the distance from the blade to achieve the desired cutting width.

How to activate the safety lock?

To prevent accidental start, the CJ 10DL is equipped with a lock button on top of the handle. Press this button before pulling the trigger. Release the trigger to stop.

Where to find spare parts for the CJ 10DL?

Spare parts (blades, batteries, charger, blade support) are available at authorized Hitachi dealers or online. Use the model number (CJ 10DL) to identify compatible parts.

USER MANUAL CJ 10DL HITACHI

Line drawing of a saw tool with metal hardware and a handle (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

REMOVAL AND INSTALLATION METHOD OF BATTERY 11

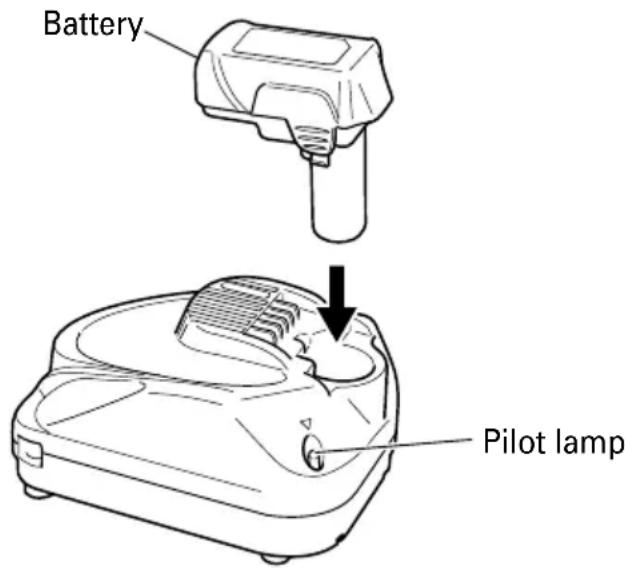

CHARGING METHOD 11

BEFORE USE 12

OPERATION 12

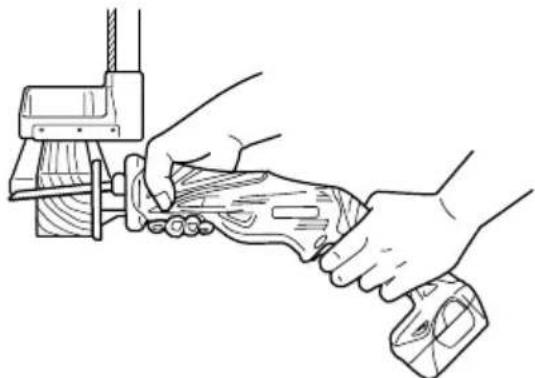

HOW TO USE THE CORDLESS MINI SAW 14

MAINTENANCE AND INSPECTION 17

ACCESSORIES 18

STANDARD ACCESSORIES 18

OPTIONAL ACCESSORIES .....sold separately ... 18

PARTS LIST 55

TABLE DES MATIERES

Français

Page

INFORMATIONS IMPORTANTES DE SÉCURITÉ ... 20

SIGNIFICATION DES MOTS D'AVERTISSEMENT ... 20

SÉCURITÉ 20

AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX CONCERNANT LES OUTILS ÉLECTRIQUES ..... 20

REGLES DE SÉCURITÉ SPÉCIFIQUES ET SYMBOLES ...... 22

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR LE CHARGEUR DE BATTERIE 23

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE ET DU CHARGEUR DE BATTERIE .... 24

PRÉCAUTIONS RELATIVES A LA BATTERIE AU LITHIUM ION 24

DESCRIPTION FONCTIONNELLE 26

NOM DES PARTIES 26

SPECIFICATIONS 27

Page

ASSEMBLAGE ET FONCTIONNEMENT ..... 28

UTILISATIONS 28

MÉTHODE DE RETRAIT ET D'INSTALLATION DE LA BATTERIE 28

MÉTHODE DE RECHARGE 28

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING:

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust of fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

● Lead from lead-based paints,
- Crystalline silica from bricks and cement and other masonry products, and
- Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
   Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

2. ALWAYS wear ear protectors when using the tool for extended periods.

Prolonged exposure to high intensity noise can cause hearing loss.

1. NEVERtouch the blade with bare hands after operation.

2. Because the cordless reciprocating saw operates by battery power, be aware of the fact that it can begin to operate at any time.

3. When working at elevated locations, clear the area of all other people and be aware of conditions below you.

4. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool's moving parts.

1. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. NEVER use a power tool for applications other than those specified.

NEVER use a power tool for applications other than those specified in the Instruction Manual.

1. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.

1. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. NEVER use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

1. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. ALWAYS

wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.

1. ALWAYS be careful with buried object such as an underground, wiring.

Touching these active wiring or electric cable with this tool, you may receive an electric shock.

Comfirm if there are any buried object such as electric cable within the wall, floor or ceiling where you are going to operate here after.

1. Definitions for symbols used on this tool

V ...... volts

=...... direct current

No ...... no load speed

---/min ..... revolutions or reciprocation per minute

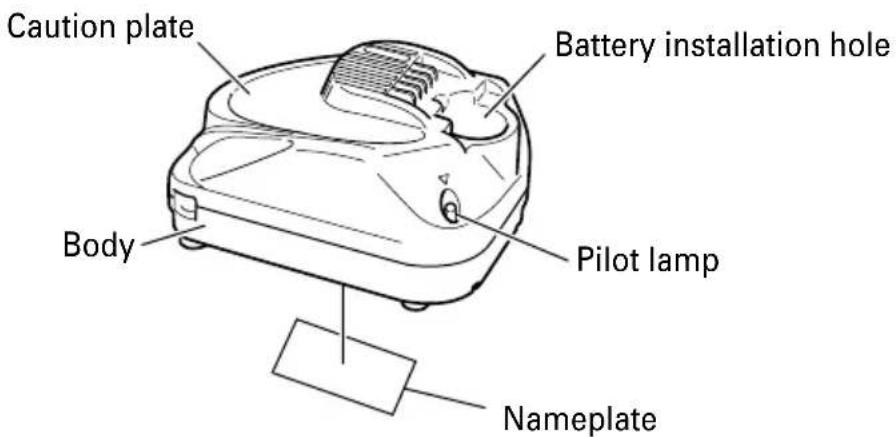

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING:

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC10SFL.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge HITACHI rechargeable battery type BCL1015. Other type of batteries may burst causing personal injury and damage.

4. Do not expose battery charger to rain or snow.

5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
   b. That extension cord is properly wired and in good electrical condition; and
   c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)
0	2	1	8	18 1
2	3	1	8	18 1
3	4	1	8	18 1

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating-for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC10SFL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

CAUTION:

USE ONLY HITACHI BATTERY TYPE BCL1015. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING:

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C). Charging the battery at temperatures outside the range of 32^ F – 104^ F ( 0^ C – 40^ C) may prevent proper charging and reduce battery life.
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.
11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).
12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.
   In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   ○ Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car cigarette lighter sockets.
6. Do not use the battery for a purpose other than those specified.
7. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
8. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
9. Keep away from fire immediately when leakage or foul odor are detected.
10. Do not use in a location where strong static electricity generates.
11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
12. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.
13. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately. There is a possibility that this can cause skin irritation.
14. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

CAUTION

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
☐ Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE:

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

NAME OF PARTS

1. Cordless Mini Saw (CJ10DL)

○ Battery (BCL1015)

Fig. 1

2. Battery Charger (UC10SFL)

Fig. 2

SPECIFICATIONS

1. Cordless Mini Saw (CJ10DL)

Motor DC motor
No-load speed 0 – 2,700 / min
Stroke 1/2" (13 mm)
Capacity Wood: Depth 2" (50 mm)		Mild Steel Plate: 5/32" (4 mm)
Battery	Model BCL1015
	Type Lithium - ion battery
	Voltage DC 10.8 V / 12 V Peak
	Charging & discharging frequency	About 1,000 times
Weight 2.6 lbs. (1.2 kg)

1. Battery Charger (UC10SFL)

Input power source Single phase: AC 120 V 60 Hz
Charging time	Approx. 40 min.(At a temperature of 68°F (20°C))
Charging voltage DC 10.8 V
Charging current DC 2.0 A
Weight 0.8 lbs. (0.35 kg)

NOTE: The charging time may vary according to temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

○ Cutting various lumber.
○ Cutting mild steel and aluminum.
○ Cutting synthetic resins, such as phenol resin and vinyl chloride.

REMOVAL AND INSTALLATION METHOD OF BATTERY

○ How to install the battery.

Align the battery with the groove in tool handle and slip it into place.

Always insert it all the way until it locks in place with a little click, If not, it may accidentally fall out of the tool, causing injury to you or someone around you (Fig. 3).

○ How to remove the battery.

Withdraw battery from the tool handle while pressing the latch (2 pcs) of the battery (Fig. 3).

Fig. 3

CHARGING METHOD

NOTE:

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING:

Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Insert the plug of battery charger into the receptacle.

WARNING:

Do not use the electrical cord if damaged. Have it repaired immediately.

1. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 4.

Fig. 4

3. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light on.

NOTE:

If the pilot lamp does not light, pull out the plug from the receptacle and check if the battery is properly mounted.

○ When the battery is fully charged, the pilot lamp will go out.

NOTE:

The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than four hour has passed after start of the charging, stop the charging and contact your HITACHI AUTHORIZED SERVICE CENTER.

○ Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 2

Rechargeable Temperatures at which the batteries battery can be recharged

BCL1015 32°F — 122°F (0°C — 50°C)

○ Regarding recharging time

Table 3 shows the recharging time required according to the type of battery.

Table 3 Recharging time (approx. min.) at 20°C

Battery capacity (Ah)
1.5 Ah
BCL1015 40 min.

NOTE:

The recharging time may vary according to the ambient temperature and the power supply voltage.

1. Disconnect battery charger from the receptacle.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

How to make the batteries perform longer.

○ Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

○ Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION:

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the

charging has been completed, give 15 minutes rest until the next charging.

- If the battery is recharged when it is warm due to battery use or exposure to sunlight, the pilot lamp may not light.

The battery will not be recharged. In such a case, let the battery cool before charging.

- If the battery charger does not work while the battery is mounted correctly, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

OPERATION

1. Mounting the blade

This unit employs a detachable mechanism that enables mounting and removal of saw blades without the use of a wrench or other tools.

(1) Turn on and off the switching trigger several times so that the lever can jump out of the housing completely. Thereafter, turn off the switch and remove the battery. (Fig. 5)

Fig. 5

CAUTION:

Be absolutely sure to keep the switch turned off and the battery removed to prevent any accident.

(2) Push the lever in the direction of the arrow mark shown in Fig. 6 marked on the lever. (Fig. 6)

Lever

Hand inserting a plug into a socket (no text or symbols visible)

Fig. 6

(3) Insert the saw blade all the way into the small slit of the plunger tip with the lever pushing. You can mount this blade either in the upward or downward direction. (Fig. 7, Fig. 8)

Fig. 7

Fig. 8

(4) When you release the lever, the spring force will return the lever to the correct position automatically. (Fig. 9)

Fig. 9

(5) Pull the back of the saw blade two or three times by hand and check that the blade is securely mounted. When pulling the blade, you will know it is properly mounted if it clicks and the lever moves slightly. (Fig. 10)

Fig. 10

CAUTION:

When pulling the saw blade, be absolutely sure to pull it from the back. Pulling other parts of the blade will result in an injury.

2. Dismounting the blade

(1) Turn on and off the switching trigger several times so that the lever can jump out of the front cover completely. Thereafter, turn off the switch and remove the battery. (Fig. 5)

CAUTION:

Be absolutely sure to keep the switch turned off and the battery removed to prevent any accident.

(2) After you have pushed the lever in the direction of the arrow mark shown in Fig. 6 and secured it, move the saw blade towards the lever and pull it out. (Fig. 11)

Fig. 11

CAUTION:

Never touch the saw blade immediately after use. The metal is hot and can easily burn your skin.

MAINTENANCE AND INSPECTION OF SAW BLADE MOUNT

(1) After use, blow away sawdust, earth, sand, moisture, etc., with air or brush them away with a brush, etc., to ensure that the blade mount can function smoothly.
(2) As shown in Fig. 12, carry out lubrication around the blade holder on a periodic basis by use of cutting fluid, etc.

Fig. 12

NOTE:

Continued use of the tool without cleaning and lubricating the area where the saw blade is installed can result in some slack movement of the lever due to accumulated sawdust and chips.

Under the circumstances, pull a rubber cap provided on the lever in the direction of an arrow mark as shown in Fig. 13 and remove the rubber cap from the lever. Then, clean up the inside of the blade holder with air and the like and carry out sufficient lubrication.

The rubber cap can be fitted on if it is pressed firmly onto the lever. At this time, make certain that there exists no clearance between the blade holder and the rubber cap, and furthermore ensure that the saw-blade-installed area can function smoothly.

Fig. 13

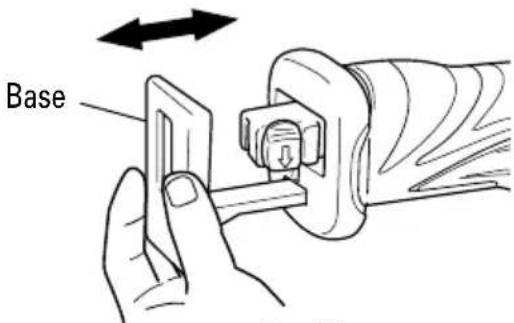

3. Adjusting the base

Loosen the hex socket bolt with an Allen wrench and move the base forward, as shown in Fig. 14, Fig. 15. Tighten the hex socket bolt slightly, ensure the base does not move back and forth, and firmly tighten the hex socket bolt. Ensure that the base does not contact the blade.

Fig. 14

Fig. 15

1. Confirm that the battery is mounted correctly.

HOW TO USE THE CORDLESS MINI SAW

CAUTION:

○ Avoid carrying it with your finger on the switch. A sudden startup can result in an unexpected injury.
○ Be careful not to let sawdust, earth, moisture, etc., enter the inside of the machine through the plunger section during operation. If sawdust and the like accumulate in the plunger section, always clean it before use.
During use, press the base against the material while cutting.

Vibration can damage the saw blade if the base is not pressed firmly against the workpiece.

Furthermore, a tip of the saw blade can sometimes contact the inner wall of the pipe, damaging the saw blade.

○ Select a saw blade of the most appropriate length. Ideally, the length protruding from the base of the saw blade after subtracting the stroke should be larger than the material (see Fig. 16).
If you cut a large block of wood, etc., that exceeds the cutting capacity of a blade; there is a risk that the blade may contact with the inner wall of wood, etc., resulting in damage. (Fig. 17)
To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

Illustration of a hand using a tool to lift a cylindrical object (no text or symbols visible)

Fig. 16 Fig. 17

1. Switch operation

(1) The tool is equipped with a lock-off button. To activate the trigger lock, move the button to the right position. Move the button to the left to operate the tool. (Fig. 18, Fig. 19)

Fig. 18

Fig. 19

CAUTION:

Always lock the switch when carrying or storing the tool eliminate unintentional starting.

(2) Trigger switch

This tool is equipped with a variable speed controlled trigger switch. The tool can be turned "ON" or "OFF" by squeezing or releasing the trigger. The blade plunger stroke rate can be adjusted from the minimum to maximum nameplate stroke rate by the pressure you apply to the trigger. Apply more pressure to increase the speed and release pressure to decrease speed.

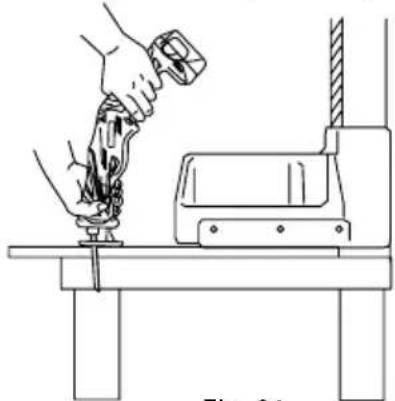

2. Cutting lumber

When cutting lumber, make sure that the workpiece is fastened firmly before beginning. (Fig. 20)

Line drawing of hands using a tool to cut or repair a wooden object (no text or symbols present)

Fig. 20

CAUTION:

Never apply any unreasonable force to the saw blade when cutting. Also remember to press the base against the lumber firmly.

Delay the feed speed when cutting the material into small circular arcs. An unreasonably fast feed may break the blade.

3. Cutting metallic materials

CAUTION:

○ Press the base firmly against the workpiece.

Never apply any unreasonable force to the saw blade when cutting. Doing so can easily break the blade.

The motor can be locked sometimes, depending on the combination of the material to be cut and the blade. Whenever the motor gets locked, switch it off immediately.

(1) Fasten a workpiece firmly before operation. (Fig. 21)

Line drawing of a hand using a tool to press or install a mechanical component on a workbench (no text or symbols)

Fig. 21

(2) When cutting metallic materials, use proper machine oil (turbine oil, etc.). When not using liquid machine oil, apply grease over the workpiece.

CAUTION:

The service life of the saw blade will be drastically shortened if you don't use machine oil.

4. Plunge cutting

With this tool, you can perform pocket cutting on plywood panels and thin board materials. You can carry out pocket cutting quite easily with the saw blade installed in reverse as illustrated in Fig. 23, Fig. 25, and Fig. 27. Use the saw blade that is as short and thick as possible. Be sure to use caution during the cutting operation and observe the following procedures.

(1) Press the lower part (or the upper part) of the base against the material. Pull the switch trigger while keeping the tip of the saw blade apart from the material. (Fig. 22, Fig. 23)

(2) Raise the handle slowly and cut in with the saw blade little by little. (Fig. 24, Fig. 25)

(3) Hold the body firmly until the saw blade completely cuts into the material. (Fig. 26, Fig. 27)

CAUTION:

○ Avoid plunge cutting for metallic materials. This can easily damage the blade.
Never pull the switch trigger while the tip of the saw blade is pressed against the material. If you do so, the blade can easily be damaged when it collides with the material.
○ Make absolutely sure that you cut slowly while holding the body firmly. If you apply any unreasonable force to the saw blade during the cutting operation, the blade can easily be damaged.

5. Using the light

Pull the trigger switch to light up the light. The light keeps on lighting while the trigger switch is being pulled. The light goes out after releasing the trigger switch. (Fig. 28)

Fig. 28

CAUTION:

Do not look directly into the light. Such actions could result in eye injury.

6. Battery level warning lamp

The battery level can be checked by pulling the trigger switch while the power tool is in a no-load state. The battery level warning lamp lights when the battery power is very low. If this happens, charge the battery. (Fig. 29)

Fig. 29

NOTE:

☐ The level at which the battery level warning lamp lights may vary due to the ambient temperature, characteristics of the battery, etc. and is intended only as a guide.
☐ The battery level warning lamp may light when the power tool is overloaded. This does not mean that the battery power is very low.
Be sure to check the battery level while the tool is in a no-load state.

MAINTENANCE AND INSPECTION

CAUTION: Pull out battery before doing any inspection or maintenance.

1. Inspecting the blade

Continued use of a dull or damaged blade will result in reduced cutting efficiency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION:

Using this power tool with loosened screws is extremely dangerous.

1. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Disposal of the exhausted battery

WARNING:

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

1. Service parts list

A: Item No.

B: Code No.

C: No. Used

D: Remarks

CAUTION:

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

ACCESSORIES

WARNING:

ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE: Accessories are subject to change without any obligation on the part of the HITACHI.

STANDARD ACCESSORIES

CJ10DL(NN)	1 Blade (No. 41) (Code No. 879357) ..... 12 Blade (No. 123X) (Code No. 322785) ..... 13 Allen wrench (Code No. 943277) ..... 1
CJ10DL(2LCSK)	1 Blade (No. 41) (Code No. 879357) ..... 12 Blade (No. 123X) (Code No. 322785) ..... 13 Allen wrench (Code No. 943277) ..... 14 Battery (BCL1015) ..... 25 Battery charger (UC10SFL) ..... 16 Plastic case (Code No. 329993) ..... 17 Battery cover (Code No. 331086) ..... 1

OPTIONAL ACCESSORIES.....sold separately

1. Battery (BCL1015)

Line drawing of a cylindrical battery with cooling fins and casing (no text or symbols)

1. Saw Blades

Material to be cut	Blade Material quality	No. 1 No. 1 (Long)	No. 11 No. 12 No. 15	No. 16 No. 21 No. 22	No. 41 No. 97 123X
		Thickness of material: inch (mm)
Lumber	General lumber	Below Bel 2 (50)	-2 Below 3/8 (10 - 50) 3/4 (20) (10)			-2 3/16 -50) (5)	-1-9/16 -40) (10)	3/8 -2 -50)
	Plywood		3/16-1-3/16 (5-30) 3/8 (10)		3/16-1-3/16 (5 -30) (3)	1/8-3/4 -20)
Iron plate	Mild steel plate			1/8-5/32 (3-4) 1/8	Below (3)			(2)
	Stainless steel plate							1/16-5/64 (1.5-2)
Nonferrous metal	Aluminium copper, brass			1/8-5/16 (3-8) 1/8	Below (3)			3/16 (5)
	Aluminium sash			Height up to 3/4 (20)				Height Height up to 3/4 (20)
Plastics	Phenol resin, melamin resin, etc.			3/16-19/32 (5-15) 1/4	Below (6) (5)	3/16-3/8 Below -10)	1/4 (6)	3/16 -3/8 (5-10)
	Vinyl chloride, acryl resin, etc.		3/16-3/4 (5-20) 3/8 (10) (5)	Below 3/16 -19/32 -15) 3/16	Below (5) (5)	3/16-3/4 -20) (3)	1/8-19/32 -15)
	Foamed polyethyl-ene, foamed styrol		3/8-2 (10-50) (3)	1/8-63/64 -25)	3/16-63/64 (5-25) (3)	1/8-63/64 -25) (10)	3/8-2 1/8 -50) (3)	-1-1/2 -40)
Pulp	Card board, corrugated paper		3/8-2 (10-50) (3)	1/8-63/64 -25)		3/8-2 1/8 (10-50) (3)	-1-1/2 -40)
	Hardboard				1/8-19/32 Below (3-15) 1/4 (6)			1/8 -19/32 (3 -15)
	Fiberboard					Below 1/4 (6)

NOTE:
☐ The minimum cutting radius of No. 1 (Long), No. 1 (Super Long), No. 21, No. 22 and No. 41 blades is 3-15/16" (100 mm). ☐ Usable blade thickness: 0.8 mm to 1.5 mm.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Line drawing of hands using a tool to cut or repair a piece of wood (no text or symbols present)

Fig. 20

PRECAUTION:

Line drawing of a hand using a tool to press or press a small object on a workbench, with no visible text or symbols.

Fig. 21

Line drawing of a hand using a tool to cut a cylindrical object on a flat surface (no text or symbols)

Fig. 22 Fig. 23

Line drawing of a hand holding a tool or device with a tool handle, no text or symbols present

Line drawing of a hand using a tool to lift or adjust a cylindrical object (no text or symbols present)

Fig. 24 Fig. 25

Hand holding a tool with a tool handle, no visible text or symbols

Simple line drawing of a hand using a tool to press or install a cylindrical object on a flat surface (no text or symbols)

Fig. 26 Fig. 27

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols)

PRECAUTION:

Line drawing of a cylindrical battery with cooling fins and casing (no text or symbols)

1. Lames

Matériau à couper

LameQualité du matériau

No. 1 No. 1(Long)

No. 1 (Super Long)

No. 11 No.

No. 12 No. 15

No. 16 No.

21 No. 22

No. 41 No.

97 123X

Epaisseur du matériau: pouces (mm)

Bois de charpente

Bois de charpente général

Moins Moins 3/82 (50) 2 (50)

-2 Moins 3/8(10–50) 3/4 (20) (10)

-2 3/16-50) (5)

-1-9/16-40) (10)

3/8 -2-50)

Contreplaqué

3/16–1-3/16(5–30) 3/8 (10)

Moins 3/16

-1-3/16-30) (3)

1/8–3/4-20)

Plaque en fer

Plaque en acier douz

1/8–5/32(3–4)

Moins1/8 (3)

5/64–1/8(2–3)

1/16–5/32(1.5–4)

Plaque en acier inoxydable

1/16–5/64(1.5–2)

Métal nonferreux

Auminium, cuivre, lation

1/8–5/16(3–8)

Moins1/8 (3)

Moins3/16 (5)

Chassis en aluminium

Hauteur allant jusqu'à3/4 (20)

Hauteur allant jusqu'à3/4 (20)

Hauteur allant jusqu'à3/4 (20)

Matières plastiques

Résine phénolique,ésine mélamine, etc.

3/16–19/32(5–15)

Moins1/4 (6)

3/16–3/8 Moins(5–10)

1/4 (6)

3/16 –3/8(5–10)

Chlorure de vinyl,résine acrylique, etc.

3/16–3/4(5–20)

Moins 3/16 3/8 (10)

-19/32(5–15) 3/1

Moins6 (5) (5)

3/16–3/4-20) (3)

1/8–19/32-15)

3/16–3/8(5–10)

Polyéthylène mousseux,styrène mousseux

3/8–2(10–50) (3)

1/8–63/64-25) (5)

3/16–63/64-25)

1/8–63/64(3–25) (10)

3/8–2 1/8-50) (3)

-1-1/2-40)

3/16–63/64(5–25)

Pulpe

Carton, papier ondulé

3/8–2(10–50) (3)

1/8–63/64-25)

3/8–2 1/8(10–50) (3)

-1-1/2-40)

Isorel

1/8–19/32(3–15)

Moins1/4 (6)

1/8–19/32(3–15)

Panneau fibreux

Moins1/4 (6)

Hand inserting a plug into a socket (no text or symbols visible)

Fig. 6

Line drawing of a hand inserting a plug into a socket, with an upward arrow indicating force (no text or symbols)

Fig. 9

Illustration of a hand using a tool to cut a wooden plank, no text or symbols present

Illustration of a hand using a tool to cut or tighten a wooden block, no text or symbols present

Fig. 16 Fig. 17

Anatomical illustration of a human hand and foot with an arrow pointing to the posterior area (no text or labels present)

Fig. 18
Bloqueo

Line drawing of hands using a tool to cut or repair a piece of wood (no text or symbols present)

Fig. 20

PRECAUCIÓN:

Line drawing of a hand using a tool to cut a tool on a workbench, with no visible text or symbols.

Fig. 21

Line drawing of a hand using a tool to cut a cylindrical object on a flat surface (no text or symbols)

Fig. 22 Fig. 23

Line drawing of a hand holding a tool with a tool handle, no text or symbols present

Line drawing of a hand using a tool to apply material, no text or symbols present

Fig. 24 Fig. 25

Line drawing of a hand holding a tool over a horizontal line (no text or symbols)

Line drawing of a hand holding a tool with a magnifying glass above a cylindrical object (no text or symbols)

Fig. 26 Fig. 27

Line drawing of a hand using a tool to press or install a piece of paper (no text or symbols present)

PRECAUCIÓN:

Line drawing of a cylindrical battery with internal components (no text or symbols)

54 2. Hojas

Material a cortar	Cuchilla Calidad de material	No. 1 No. 1 (Largo)	No. 11 No. 12 No. 15	No. 16 No. 21 No. 22	No. 41 No. 97 123X
		Grosor del material: pulgadas (mm)
Madera útil	Madera útil general	Menos Menos 2 (50)	3/8-2 -50) 3/4 (20) (10)	Menos 3/8	-2 3/16 -50) (5)	-1-9/16 -40) (10)	3/8 -2 -50)
	Madera contrachapada		3/16-1-3/16 (5-30) 3/8 (10)	Menos 3/16	-1-3/16 -30)	1/8 -3/4 (3-20)
Plancha de hierro	Place de acero pobre en carbono			1/8-5/32 (3-4)	Menos 1/8 (3)				5/64-1/8 (2-3)	1/16-5/32 (1.5-4)
	Chapa de acero inoxidable								1/16-5/64 (1.5-2)
Metal no férrico	Aluminio, cpbre, latón			1/8-5/16 (3-8)	Menos 1/8 (3)				Menos 3/16 (5)
	Vidriera corrediza de aluminio			Altura hasta 3/4 (20)					Altura Altura hasta 3/4 (20)	3/4 (20)
Plásticos	Resina de fenol, resina de melamina, etc.			3/16-19/32 (5-15) 1/4	Menos 6 (5)	3/16-3/8 Menos -10) 1/4 (6)	3/16 -3/8 Menos -10) 1/4 (6)	3/16 -3/8 Menos -10) 1/4 (6)	3/16 -3/8 Menos -10) 1/4 (6)	3/16 -3/8 Menos -10) 1/4 (6)
	Clorulo de vinilo, resina acrílica, etc.		3/16-3/4 (5-20) 3/8 (10) (5)	3/16-19/32 -15) 3/16	Menos 6 (5) (5)	3/16-3/4 -20)	1/8-19/32 (3-15)		3/16-3/8 (5-10)
	Polietileno espumoso, estirol espumoso		3/8-2 (10-50) (3)	1/8-63/64 -25)	3/16-63/64 (5-25) (3)	1/8-63/64 -25) (10)	3/8-2 1/8 -50) (3)	-1-1/2 -40)		3/16-63/64 (5-25)
Pasta de papel	Cartón, cartón ondulado		3/8-2 (10-50) (3)	1/8-63/64 -25)		3/8-2 1/8 (10-50) (3)	-1-1/2 -40)
	Fibra prensada dura			1/8-19/32 (3-15) 1/4	Menos (6)			(3)	1/8-19/32 -15)
	Fibra prensada				Menos 1/4 (6)

NOTA:
El radio mínimo de corte de las cuchillas, No. 1 (Largo), No. 1 (Extralarga), No. 21, No. 22 y No. 41 es de 3–15/16" (100 mm). Grosor útil de la cuchilla: 0.8 mm a 1.5 mm.

A	B	C	D
33	329972	1
34	949202	2	M3×6
35	329989	1
36	329970	1
37	329988	1	DC 10.8V
38	329991	1
39	329990	1
40	329992	1
41	329987	1
42	329986	1
43	959140	1
501	879357	1	NO. 41
502	——		1 123×
503	943277	1	3MM
504	329993	1
505	——		1 UC10SFL
506	331086	1

A	B	C	D
1	329981	1
2	313687	8	D3×16
3	——		1
4	329994	1
5	330719	1
6	321130	1
7	331754	1
8	331911	1
9	321132	1
10	322709	1	M4
11	318832	2	M3×12
12	329982	1
13	330729	2
14	329983	1	M4×10
15	——		1
16	330728	1
17	322134	1	M4
18	331910	1
19	321135	1
20	331753	1
21	331752	1
22	325241	1	M3×8
23	329978	1
24	329977	1
25	329976	1
26	322695	2	624VV
27	329980	1
28	331065	1	BCL1015
29	329971	1
30	329975	1
31	329974	1
32	329973	1

Please contact HITACHI KOKI U.S.A. LTD. at 1-800-59-TOOLS (toll free), or HITACHI AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter HITACHI KOKI U.S.A. LTD. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR HITACHI.

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

450 Export Blvd. Unit B,

Mississauga ON L5T 2A4
