Product Type	Solo Microwave
Brand	Fagor
Model	3MWB-25BTCGB
Capacity	25 Liters
Microwave Power	900 W
Control Type	Digital Touch + Rotary Knob
Display	LED Digital Display
Power Levels	10 Levels
Defrost Function	Yes, by Weight and Time
Clock/Timer	Yes, 24-hour Clock & Kitchen Timer
Interior Light	Yes
Turntable	Yes, Glass Turntable (315 mm diameter)
Child Safety Lock	Yes
Door Opening	Push Button Release
Body Color	Stainless Steel / Black Glass
Dimensions (W x H x D)	485 x 287 x 410 mm
Internal Dimensions (W x H x D)	325 x 205 x 370 mm
Weight	14.2 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	1350 W (Microwave), 1050 W (Grill) [if applicable]
Cleaning	Wipe with damp cloth; mild detergent
Accessories Included	Glass Turntable, Turntable Ring, User Manual
Repairability Index	7.5/10 (est.)
Certifications	CE, RoHS

Frequently Asked Questions - 3MWB-25BTCGB FAGOR

How do I set the clock on my Fagor microwave 3MWB-25BTCGB?

Press the Clock button. Use the numeric keypad to enter the current time (24-hour format). Press Clock again to confirm.

How can I defrost food using this microwave?

Press the Defrost button. Select weight defrost by entering the food weight using numeric keys, or time defrost by setting the time. Press Start to begin.

What is the child safety lock and how to activate it?

The child safety lock prevents accidental operation. Press and hold the Stop button for 3 seconds until a beep sounds. To unlock, repeat the same action.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage the microwave. Use only microwave-safe glass, ceramic, or plastic containers.

How do I clean the microwave interior?

Unplug the microwave. Wipe the interior with a soft damp cloth and mild detergent. Avoid abrasive cleaners. For stubborn stains, heat a bowl of water with lemon juice for 2 minutes to loosen residue.

Why does the turntable not rotate?

Ensure the turntable is properly seated on the drive hub. Check that the glass tray and roller ring are correctly placed. If still not rotating, the drive motor may be faulty.

What do the different power levels mean?

Power levels range from 1 (low) to 10 (high). Level 10 is full power (900W). Levels 1-3 for defrosting, 4-6 for simmering, 7-9 for reheating and cooking most foods.

How do I set the timer without cooking?

Press the Timer button. Use numeric keys to set the desired time. Press Start to begin the timer. The microwave will beep when time is up.

Can I adjust the sound volume of the beeps?

The sound volume is fixed and cannot be adjusted. However, you can mute beeps by pressing and holding the Stop button for 5 seconds until a long beep sounds.

What should I do if the microwave stops working?

Check the power cord and fuse. Ensure the door is closed properly. If the problem persists, contact Fagor customer service or an authorized repair center. Do not attempt to repair yourself.

USER MANUAL 3MWB-25BTCGB FAGOR

EN- Table of contents

PRECAUTIONS 46

SAFETY INSTRUCTIONS FOR USE 47

INSTALLING THE PROTECTIVE CIRCUIT 51

COOKWARE 52

MATERIALS THAT CANNOT BE USED IN A MICROWAVE OVEN 52

MATERIALS THAT CAN BE USED IN A MICROWAVE OVEN 53

DISPOSAL OF OLD APPLIANCE 55

INSTALLING THE APPLIANCE 56

OPERATION 57

TROUBLESHOOTING 62

CLEANING 62

WARRANTY AND AFTER SALES SERVICE 63

WARRANTY 63

VN - Mục lục

THÂN TRONG 65

HƯƠNG DÂN AN TOÀN 66

LẬP ĐẠT MACH BẢO VỆ 70

CÀC HỘP ĐỰNG 71

CÁC CHẤT LIÊU KHÔNG ĐƯỢC DÙNG TRONG LÒ VI SÓNG 71

CÁC CHẤT LIÊU CÓ THỂ SỬ DUNG TRONG LÒ VI SỐNG 72

THIÊT LÂP LÔ VÍ SÓNG 73

CÁC BÔ PHÂN VÀ PHU KIÊN CỦA LÒ 73

LẬP ĐẶT MÂM XOAY 73

THÁO BAO.BÌ 74

XỨ LÝ THIÊT BỊ CỦ 74

LAP ĐAT THIẾT BI 75

HUỘNG DÂN VĂN HÀNH 76

KHAC PHUC SƯ CỔ 81

INSTALLING THE APPLIANCE 94

OBSLUHA 95

ODSTRAŇOVÁNÍ PORUCH 100

ČISTĚNÍ 100

ZARUKA, POPRODEJNI SERVIS 101

ZÁRUKA 101

SK - Obsah

BEZPEČNOSTNÉ PROSTRIEDKY 103

BEZPEČNOSTNĚ POKYNY POUŽIVANIA 104

INSTALÁCIA OCHRANNÉHO VODIČA 108

RIAD 109

MATERIÁLY, KTORÉ NIE JE MOŽNÉ POUŽÍVAŤ V MIKROVLNNÉ RÚRE 109

MATERIÁLY, KTORÉ JE MOŽNÉ POUŽÍVAŤ V MIKROVLNNEJ RÚRE 110

NASTAVENIE RURY 111

NÁZVY ELEMENTOV VYBAVENÍ RÚRY 111

INSTALÁCIA OTOČNĚHO TANIERA 111

ROZBALENIE 112

DISPOSAL OF OLD APPLIANCE 112

INSTALÁCIA SPOTREBIČA 113

OBSLUHA 114

ODSTRAŇOVANIE PORÚCH 119

ČISTENIE 119

ZÁRUKA, POPREDAJNÝ SERVIS 120

ZÁRUKA 120

Estimado Cliente

Line drawing of a plug with two leads (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Simple 3D-rendered gray sphere with a rounded base, no text or symbols present

Line drawing of a plug with two leads (no text or symbols)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Simple 3D-rendered gray sphere with a rounded base, no text or symbols present

From now on, your daily housework will be easier than ever before. Your appliance is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

FAGOR

ELECTRODOMÉSTICO

PRECAUTIONS

• TO AVOID POSSIBLE OVER-EXPOSURE TO MICRO-WAVE ENERGY
- Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them.
- Do not place anything between the front surface of the oven and the door or allow dirt or detergent residue to gather on sealing surfaces.
- Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to:

1. Door (dents, cracks)

2. Hinges and locks (broken, cracked or loose)

3. Door seals and sealing surfaces

4. Any adjustments, maintenance or repairs should only be entrusted to the manufacturer's properly qualified service personnel. In particular, the work associated with removing the cover that protects the user against microwave radiation.

5. Keep the appliance and its power cord away from children under 8 years old.
6. Microwave oven should not be placed in a cabinet*
7. WARNING: The appliance and its accessible parts become hot during use. Avoid contact with hot parts. Children under the age of 8, should be kept away from the appliance, unless supervised by an adult person;
8. Do not clean the appliance with steam
9. Surfaces of the cabinet may become hot when the oven is operating;

SAFETY INSTRUCTIONS FOR USE

• READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• To reduce the risk of fire, injury to people or exposure to excessive microwave energy when using the appliance, please observe the following basic safety rules:
• Read the Operating Instructions before using the appliance.
• Close supervision is needed to reduce the risk of fire inside the oven chamber.
• Use this appliance only for its intended purpose as described in the manual. Do not use corrosive chemicals in the appliance. Oven is specifically designed for heating or cooking food. It is not intended for industrial or laboratory use.
• WARNING: When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision due to the high temperatures generated;
• WARNING: Liquids and other foodstuffs may not be heated in sealed containers as the containers could explode;
• WARNING: This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.
• Use only cookware that is suitable for use in microwave ovens;

• When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite;

• If you see smoke or fire, turn off the appliance or unplug it from power and keep the door closed until the flames are smothered;

• Microwave heating of beverages can cause delayed boiling, therefore care should be taken when handling the container;
• Cleaning instructions for door seals and adjacent parts may be found in an appropriate section of this operating instructions.
• The oven must be cleaned regularly. Remove any deposits of food and leftovers
• Neglecting to keep the oven clean can damage the surface, which may adversely affect the durability of the appliance and cause dangerous situations
• Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.
• Before using the oven, test heat the grill heater (smoke can be given off through ventilation grid):
• switch on the ventilation in the room or open a window,
• set the oven to heat the grill heater only for about 3 minutes without heating food.
• Oven must be placed on flat a surface.
• Turntable and rotating trolley unit should be in the oven during cooking. Carefully put cooked food on the turntable, and handle it carefully to avoid any breakage.
• Improper use of the browning plate may cause cracking of the turntable due to the high temperature.
• Only use bags for cooking in microwave ovens, which are correct size.
• Microwave oven has several in-built circuit breakers to prevent emission of radiation, while the door is open. Do not tamper with these circuit breakers.
• Do not operate the oven when empty. Operating the oven without food or dish with very low water content may result in fire, carbonization, arcing and damage to the internal chamber shell.
• Do not cook food directly on the turntable. Excessive local heating of turntable may cause its rupture.

- Do not heat baby bottles or baby food in the microwave. Uneven heating may occur and cause physical injury.

- Do not use narrow-necked containers such as bottles for syrups.

- Do not fry in deep fat in the microwave.

- Do not do home canning in a microwave oven because not always the entire contents of pot reaches boiling point.

- Do not use microwave oven for commercial purposes. This appliance is intended for use at home or in facilities, such as*: kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities*;

- In order to avoid delayed boiling of hot liquids and beverages and the risk of burns, stir the liquid before placing the container in the oven and again in the middle of cooking time. Then leave the container in the oven for a short time and stir again before removing from oven chamber.

- Do not forget that there is a dish in the microwave oven to avoid burning due to excessive cooking.

- When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision the high temperatures generated;

- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.

- Do not overcook dishes

- Do not use the oven for storage. Do not store flammable objects inside the microwave oven, such as bread, cookies, paper products, etc. If lightning hits the power line, the oven may switch on automatically.

- Remove the wire clamps and metal fixtures from containers / paper or plastic bags before placing them in the oven.

- Microwave oven must be grounded. Only connect to a

wall socket with the proper protective conductor. See “Installing the protective circuit.”

• Some products, such as whole eggs (boiled or fresh), water, oil or grease, sealed containers and closed glass jars may explode and therefore should not be heated in the oven.
• Operating the microwave oven should be done with adult supervision at all times. Do not allow children to play with the appliance or have access to the controls.
• Do not operate the oven when its terminal strip or plug is damaged, it is not working properly, or if it has been damaged or dropped.
• Do not cover or block the air vents on the oven.
• Do not store or use the oven outdoors.
• Do not use the microwave oven near water, near the kitchen sink, in a damp room or near a swimming pool.
• Do not immerse the power cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow the connection cord hanging over the edge of a table or counter.
• The appliance must be used with mounted decorative frame*
• The inner cavity surface is hot after use of the microwave oven.
• Regularly check the oven and its power cord for damage. If there is any damage, do not use the oven
• Metallic containers for food and beverages are not allowed during microwave cooking
• Care should be taken not to displace the turntable when removing containers from the appliance

Accessible surfaces may become hot during operation.

Warning symbol of steam inside a triangle (no text or numbers)

INSTALLING THE PROTECTIVE CIRCUIT

DANGER

Danger of electric shock when touched, some internal components may cause serious injury or death. Do not disassemble this appliance.

WARNING

Electric shock hazard. Improper use of earthing can cause electric shock. Do not insert the plug into the socket before the appliance is properly installed and grounded.

Line drawing of a plug with two leads and a socket (no text or symbols)

This appliance must be grounded. In the event of a short-circuit, earthing reduces the risk of electric shock. The appliance is equipped with earthing wire with an appropriate plug. The plug should be inserted into a properly installed and grounded outlet.

If you do not completely understand earthing instruction or you are unsure whether the appliance is properly grounded, please contact a qualified electrician or service technician. If you must use an extension cord, use only a three-wire extension with an earthing connector.

The manufacturer shall not be liable for damage or injury resulting from connecting the microwave oven to a power source without a protective circuit or with a malfunctioning protection circuit.

A short power cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

If you use the extension cord:

• Extension cord must be capable of withstanding nominal current required by the appliance.
• Extension cord must be 3-wire with earthing,
• Extension cord should be so arranged as not to be hung by the table top where it could be pulled by children, or caught inadvertently.

COOKWARE

WARNING

Risk of injury. Tightly closed containers may explode. Closed containers must be opened and plastic bags pierced before cooking.

Materials that can be used and materials to be avoided in the microwave oven.

The use of some non-metallic cookware may not be safe in the microwave oven. If in doubt, you can check the cookware following this procedure.

Checking the cookware:

1 Fill the microwave-safe cookware with 1 cup of cold water (250 ml), and do the same with the test cookware.
2 Operate the oven with the maximum power for 1 minute.
3 Carefully touch the test cookware. If the test cookware is hot, do not use it in the microwave oven.
4 Do not exceed 1 minute cooking time.

Materials that cannot be used in a microwave oven

Type of cookware Comments

Aluminium tray	May cause an electric arc. Transfer food to microwave-safe cookware.
Cardboard box with metal handle	May cause an electric arc. Transfer food to microwave-safe cookware.
Metal or cookware with metal frame	Metal shields the food from microwave energy.Metal frame can cause an electric arc.
Metal closure - tightened May cause an electric arc and fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid in it when exposed to high temperatures.
Wood	Wood dries out when it is heated in the microwave oven and can crack or break.

Materials that can be used in a microwave oven

Type of cookware Comments

Aluminium foil Only as shielding. Small and smooth pieces can be used for the coating of thin pieces of meat or poultry, to prevent excessive cooking. Arc discharge may occur if the foil is too close to the oven walls. Film must be at least at a distance of 2.5 cm from the oven walls.
Browning plate Observe the manufacturer's instructions. The bottom of the browning plate must be at least 5 mm above the turntable. Improper use may cause cracking of the turntable.
Dinner dishes	Suitable for microwave ovens only. Observe the manufacturer's instructions.Do not use cracked or chipped cookware.
Glass jars Always remove the lid. Use only for heating food to a suitable temperature. Most glass jars are not heat resistant and may explode.
Glassware Use only heat-resistant glassware in the microwave oven. Make sure that there are no metal frames. Do not use cracked or chipped cookware.
Bags for microwave cooking Observe the manufacturer's instructions. Do not seal with metal clamps.
Paper plates and cups Cut through to allow the steam to escape. Use only for short cooking / heating. Do not leave the oven unattended while cooking.
Paper towels Use to cover food to be heated to absorb fat.Use only for short cooking under constant surveillance.
Parchment paper Use as a cover to prevent splashing or as a container for evaporation.
Plastics Suitable for microwave ovens only. Should be labelled "for use in microwave ovens." Some plastic containers soften when the content is warmed up. Bags for microwave cooking and sealed plastic bags must be pierced or incised, or vented according to the directions on the package.
Plastic packaging Suitable for microwave ovens only. Use to cover food during cooking in order to maintain moisture. Do not let plastic packing touch the food.
Thermometers	Suitable for microwave ovens only. (Temperature probes for meat and sugar).
Wax paper	Used as a covering to prevent splashing and to keep moisture.

Cookware material	Microwave	Barbecue grill	Combi Mode
Heat-resistant glass	YES	YES	YES
Regular glass	NO	NO	NO
Heat-resistant ceramics	YES NO	NO
Microwave-safe plastic utensils	YES NO	NO
Kitchen paper	YES NO	NO
Metal container	NO YES	NO
Metal rack (provided for the oven)*	NO	YES	NO
Aluminium foil and foil containers NO YES	NO

Microwave oven accessories

Remove all packaging, both inside and outside the oven, before using the oven. The oven comes with the following accessories:

Turntable 1

Rotating trolley 1

Operating Instructions 1

Grilling rack 1*

A) Control Panel
B) System security lock - disconnects power to the oven when the door is opened during operation.
C) Rotating trolley
D) Turntable
E) Door inner protecting shield
F) Door

TURNTABLE INSTALLATION

1. Never compress or place the turntable upside down.
2. When cooking, always use turntable and rotating trolley.
3. For cooking or heating always put the food on the turntable.
4. If the turntable breaks, please contact the nearest authorized service centre.

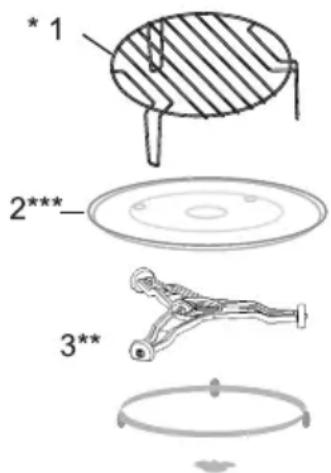

Individual fittings:

1. Grilling rack
2. Turntable
3. Rotating trolley

* Available on selected models Note: The grilling rack supplied with the appliance should only be used when the appliance is set to "GRILL". Place the rack on the turntable.
** Trolley is available in two versions, depending on the model. These are not interchangeable.
*** Some models not include turntable. You must prepare the food on Your own plate according to the cookware part in this user manual

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appli- ance are environmentally friendly; they are

100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

INSTALLING THE APPLIANCE

• Remove all packaging materials and components.
• Check the oven for damage such as dents or door misalignment or breakage.
• Remove any protective film from the surface of the cabinet.
• Do not install the oven if it is damaged.

Do not remove the light brown mica cover bolted into the recess in order to shield the microwave magnetron.

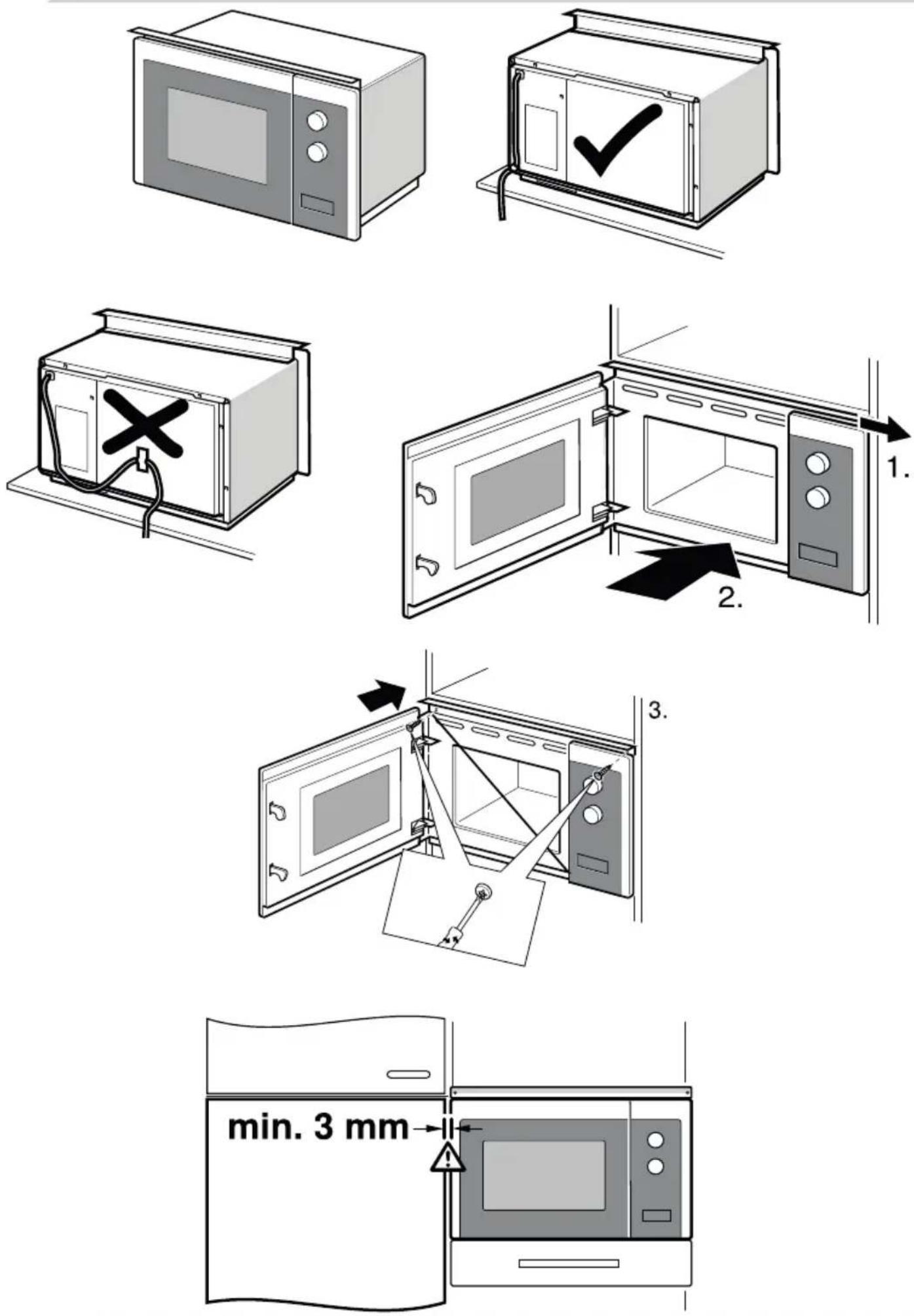

Installing

1. The appliance is designed for household use only.
2. The appliance can be used only after fitting in kitchen furniture.

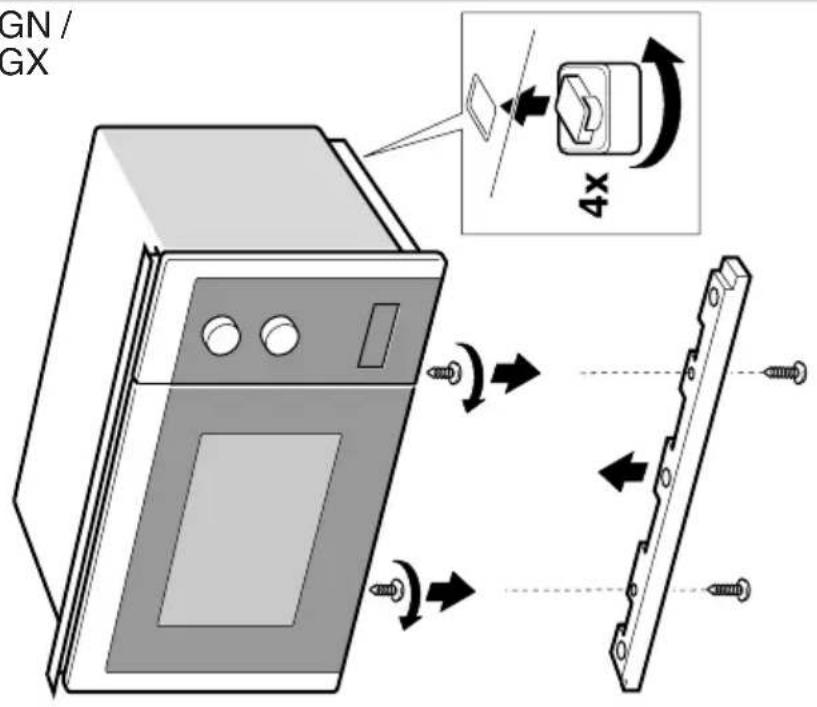

3. For fitting instructions, please refer to "Installation guide"*.

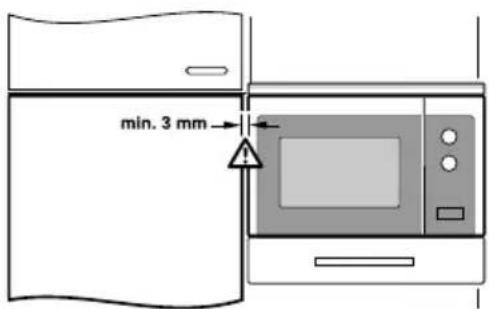

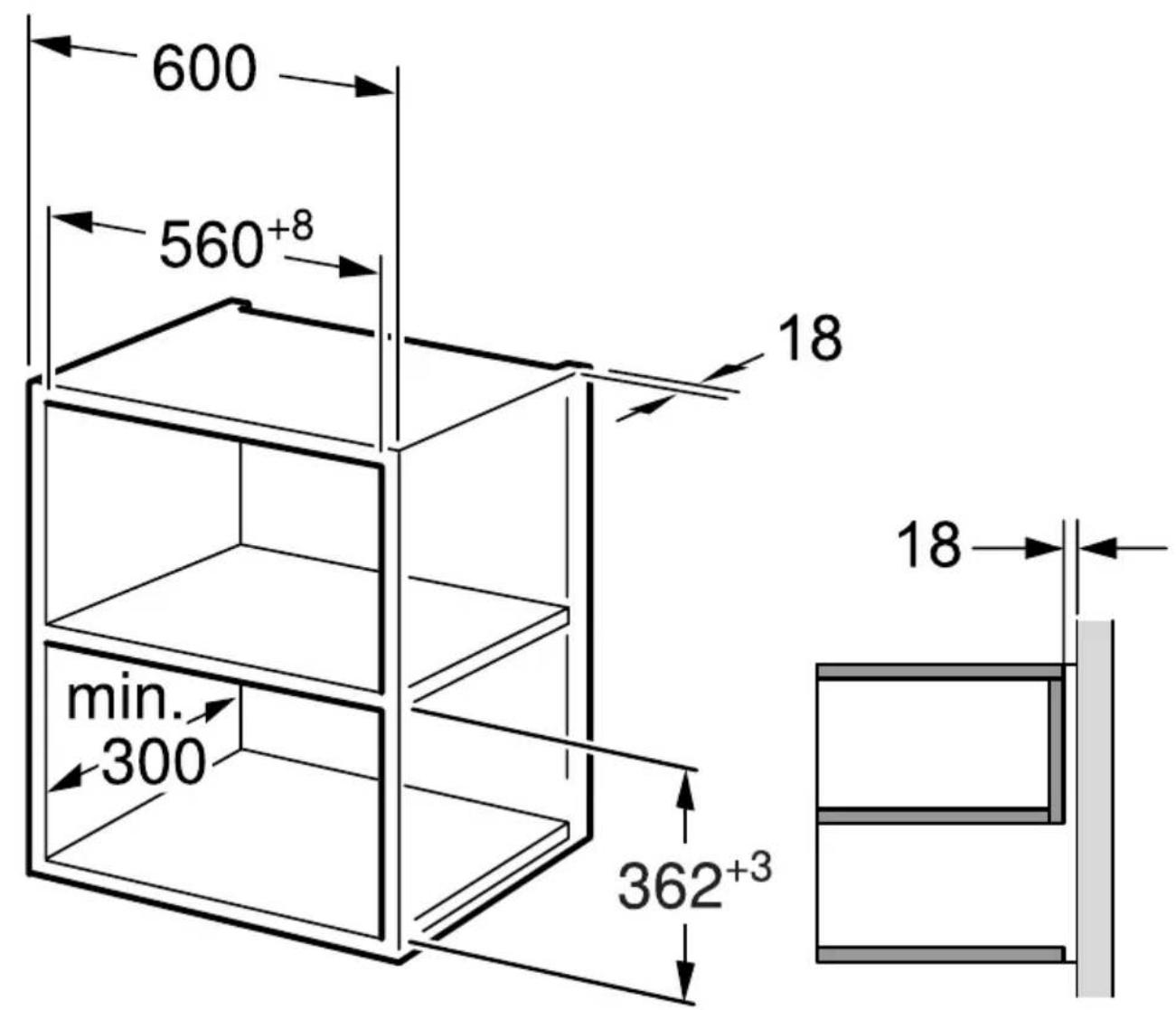

4. Microwave oven should be installed in a cabinet with a width of 60 cm and a height of 85 cm from the kitchen floor*.

Do not remove the legs located in the bottom of the appliance*.

Blocking the inlet and outlet openings may damage the microwave oven. Place the oven as far away from radio and television as possible. Operating microwave oven may cause interference to radio and television reception.

1. Insert the oven power plug into a standard household wall socket. Make sure beforehand whether voltage and frequency are the same as on the oven's rating plate.

WARNING: Do not install the oven on the gas hob or other heat producing appliance. In the event of such installation, the oven may be damaged and void the warranty.

OPERATION

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. The oven will enter to waiting state.

1) Press twice, the hour figures will flash;
2) Press +or to adjust the hour figures,the input time should be within 0--23.
3) Press ☒to confirm, the minute figures will flash.
4) Press +or to adjust the minute figures, the input time should be within 0--59.
5) Press ☒to finish clock setting. “:” will flash. The current time will display.

Note: If the clock is not set, it would not function when powered.

2. Microwave Cooking

1) Press the ⚡key once, and "P100" will display.
2) Press repeatedly or press or to-select the microwave power. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press ▷ to confirm setting.
4) Press +or to adjust the cooking time. (The maximum cooking time is 95 min).
5) Press ▷ to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0-1min : 5 seconds

1-5min : 10 seconds
5-10min : 30 seconds
10-30min : 1 minute
30-95min : 5 minutes

Microwave Power Chart

Microwave Power High	Med.High	Med. Med.Low	Low
Display P100 P80	P50	P30	P10

3. Grill or Combi

Cooking

• Press once, the screen will display "G", and press repeatedly or press +or to choose the power you want, and "G","C-1" or "C-2" will display.
• Press to confirm the power. Press or to set cooking time. (The maximum cooking time is 95 minutes)
• Press again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power (C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press once, the screen displays "G".
2) Continue to press until the screen displays "C-1".
3) Press ▷ to confirm.
4) Press +or to adjust the cooking time until the oven displays "10:00".
5) Press ▷to start cooking.

Combination Power

Program Display Microwave power Grill power
Grill G 0% 100%
Combi.1 C-1 55% 45%
Combi.2 C-2 36% 64%

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press ▶to continue cooking. If no operation, the oven will continue working.

4. Defrost By Weight

1) Press once, the screen will display "dEF1".
2) Press +or to select the food weight. The range of weight is 100-2000g.
3) Press ▷key to start defrosting.

5. Defrost By Time

1) Press *once, the screen will display "dEF2".
2) Press +or to select the cooking time. The maximum time is 95 minutes.
3) Press ▷key to start defrosting.

Note: If half the defrost time passes, the oven sounds twice, and this is normal. In order to have a better effect of defrosting, you should turn the food over, close the door, and then press ▶oven will continue working.

6. Multi-Stage Cooking

Can be set max two stages. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu and speedy cooking cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press *once, the screen will display "dEF2".
2) Press +or to adjust the defrost time of 5 minutes;
3) Press once, the screen will display "P100".
4) Press repeatedly to choose microwave power till "P80" displays;
5) Press ▷ to confirm.
5) Press +or to adjust the cooking time of 7 minutes;
7) Press ▷to start cooking.

7. Kitchen Timer

1) Press ☒once, the screen will display "00:00".
2) Press +or to enter the correct timer. (The maximum cooking time is 95 min.)
3) Press ▷ to confirm setting.
4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock has been set(24-hour system), the screen will display the current time.
Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.

8. Auto Menu

1) In waiting state, press +repeatedly to choose the menu.
2) Press ▷to confirm the menu you choose.
3) Press +or to choose the food weight.
4) Press ▷ to start cooking.

Auto-menu chart

Menu Weight Power
Pizza	200 g	C-2
	400 g
Meat	250 g	Micro - 100%350 g
	450 g
Vegetable	200 g	Micro - 100%300 g
	400 g
Pasta	50g(with 450g cold water)	Micro - 80%
	100g(with 800g cold water)
Potato	200 g	Micro - 100%
	400 g
	600 g
Fish	250 g	Micro - 80%
	350 g
	450 g
Beverage	1cup (about 120ml)	Micro - 100%2cups (about
	3cups (about 360ml)
Popcorn	50 g	Micro - 100%
	100 g

9. Speedy Cooking

1) In waiting state, press ▷key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave, grill, combination cooking and the defrost by time process, press ▷ to increase the cooking time.
3) Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing ▷.
4) In waiting state, press –to choose the cooking time. After adjusting the cooking time,

press ▷to start microwave cooking with 100% power lever .

10. Lock Function for Children

Lock: In waiting state, press || for 3 seconds to enter the children-lock state and the current time will display if the time has been set, otherwise, the screen will display||. Lock quitting: In locked state, press || for 3 seconds, the lock is released.

11. Inquiring Function

1) In cooking states of microwave or grill and combination. Press 📋 or 🌐, the current power will be displayed for 3 seconds.
2) If the clock has been set, during cooking state, press ☒ to check the current time. It will be displayed for 3 seconds.

12. Specification

1) If the door is opened in the process of cooking, close the door and then press ▷to continue cooking.
2) Once the cooking programme has been set, ▷is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
3) The buzzer sounds once by efficient press, inefficient press will be no response.

13. Opening the oven door\*

Press button, the oven door will open.

Note: Emergency opening of the door if no power*: Use suction handle added into the accessory bag. Stick it on the doors and pull it.

Simple 3D-rendered gray sphere with a rounded base, no text or symbols present

*only appliances with a sensor for door opening

TROUBLESHOOTING

Microwave oven interferes with the TV reception	Television and radio reception may be disrupted when the microwave oven is operating. The same applies to small household appliances such as a blender, vacuum cleaner and electric fan. This is normal.
Dimmed oven lighting.	When cooking with low microwave power, oven light may be dimmer.This is normal.
Condensation forms on the door, hot air comes out through vents.	When cooking, steam can be released from food. Most of the steam escapes through the vents.However some steam can collect in the form of condensation on cooler parts, such as oven door. This is normal.

Fault Possible cause How to correct

Oven does not start.	Power cord unplugged or not plugged properly into the socket	Pull the plug and put it back in after 10 seconds.
	Blown fuse or tripped circuit breaker.	Replace the fuse or turn on the circuit breaker (any repairs by producers service only)
	Problem with the power outlet	Check the outlet by plugging in other appliance.
The oven does not heat. The door is not closed properly. Close the door fully.
Turntable makes noise when oven operates	Rotating ring or bottom of the oven dirty.	See "Microwave oven maintenance"

CLEANING

Before cleaning, make sure the oven is disconnected from the power source.

a) After use, clean the inside of the microwave oven with a damp cloth.
b) Clean the accessories in the normal way in soapy water.
c) Dirty door frame, seal and adjacent elements should be cleaned gently with a damp cloth. When cleaning the surface of the oven door, use only mild soap or detergent applied with a sponge or soft cloth.

When cleaning glass door, do not use any abrasive cleaners or sharp metal washers, as this may cause scratches on the surface and damage the glass.

In order to clean the inner cavity: put half a lemon in a bowl, add 300 ml of water and turn on the microwave oven at 100% power for 10 minutes.

After cleaning, disconnect the microwave oven from the power and wipe the inside with a soft, dry cloth.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the C symbol and been issued with a declaration of compliance made available to market regulators.

Lời ngô,

Warning symbol of a triangle with steam rising (no text or numbers)

LẮP ĐẶT MẠCH BẢO VỆ

NGUY HIÊM

Line drawing of a plug with two leads and a socket (no text or symbols)

LẮP ĐẶT MÂM XOAY

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Simple 3D-rendered gray sphere with a rounded base, resembling a stylized letter or icon (no text or symbols)

Warning symbol of a steam inside a triangle (no text or numbers)

INSTALACE OCHRANNÉHO OBVODU

NEBEZPEČÍ

Line drawing of a plug with two pins and a socket (no text or symbols)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Simple 3D-rendered gray sphere with a rounded base, resembling a stylized letter or icon (no text or symbols)

Warning symbol of steam inside a triangle (no text or numbers)

INŠTALÁCIA OCHRANNÉHO VODIČA

NEBEZPEČENSTVO

Line drawing of a plug with two pins and a socket (no text or symbols)

INŠTALÁCIA OTOČNÉHO TANIERA

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

symbolom.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

INŠTALÁCIA SPOTREBIČA

2. Microwave Cooking

1) Press the key once, and "P100" will display.
2) Press repeatedly or press or to-select the microwave power. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press ▷ to confirm setting.
4) Press +or to adjust the cooking time. (The maximum cooking time is 95 min).
5) Press ▷ to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0-1min: 5 seconds

1-5min : 10 seconds
5-10min : 30 seconds
10-30min : 1 minute
30-95min : 5 minutes

Microwave Power Chart

Microwave Power High	Med.High	Med. Med.Low	Low
Display P100 P80	P50	P30	P10

Simple 3D-rendered gray sphere with a rounded base, no text or symbols present

ODSTRAŇOVANIE PORÚCH

3MWB-20BTCGN /

3MWB-20BTCGX

Illustration of a microwave oven, battery pack, and screw holder (no text or symbols)

3MWB-20BTCGN / 3MWB-20BTCGX

3MWB-20BTCGN /

3MWB-20BTCGX

FAGOR

ELECTRODOMÉSTICO

Abstract black circular logo with white horizontal stripes (no text or symbols)

www.fagorelectrodomestico.com
