Product Type	Blender
Brand	Panasonic
Model	MX-KM5080
Dimensions (H x W x D)	25.0 x 18.0 x 18.0 cm
Weight	2.5 kg
Power Consumption	700 W
Voltage	220-240 V ~ 50/60 Hz
Capacity (Jug)	1.5 L
Number of Speed Settings	2 + Pulse
Blade Material	Stainless Steel
Jug Material	Glass
Base Material	Plastic
Cord Length	1.0 m
Color	White / Silver
Safety Features	Overload protection, non-slip feet, locking lid
Functions	Blending, chopping, mixing, pureeing, ice crushing
Cleaning & Maintenance	Removable parts dishwasher safe; wipe base with damp cloth
Spare Parts Availability	Yes (jug, blade assembly, lid, seals)
Repairability Index	4.5/10 (estimated)
Warranty	2 years

Frequently Asked Questions - MX-KM5080 PANASONIC

How do I clean the blender jug?

Remove the jug from the base. Wash the jug, lid, and blade assembly in warm soapy water or place them on the top rack of the dishwasher. Do not immerse the motor base in water; wipe it with a damp cloth.

Can I crush ice with this blender?

Yes, the Panasonic MX-KM5080 is designed to crush ice. Use the Pulse function or the highest speed setting. Add ice cubes and a small amount of liquid for best results.

What should I do if the blender stops working during operation?

The blender has an overload protection feature. If it stops, unplug it and let it cool down for 15-20 minutes. Reduce the load and try again. Ensure the lid is properly locked.

Is the blender jug made of glass or plastic?

The jug is made of glass for durability and clarity. It is resistant to stains and odors but handle with care to avoid breakage.

What is the maximum capacity for hot liquids?

Do not blend hot liquids above 60°C (140°F) in the glass jug. Allow liquids to cool before blending to prevent pressure buildup and cracking.

How do I replace the blade assembly?

Unscrew the blade assembly from the jug. Install a new blade assembly (model MX-KM5080 replacement blade) and tighten securely. Ensure the silicone seal is in place to prevent leaks.

What is the warranty period?

The standard warranty is 2 years from the date of purchase. It covers manufacturing defects but not normal wear or misuse.

Can I use the blender continuously for long periods?

The blender is designed for intermittent use. Do not operate continuously for more than 1 minute at a time. Allow the motor to rest for 2 minutes between cycles.

The lid leaks during blending. What should I check?

Ensure the lid is correctly aligned and locked in place. Check the rubber gasket on the lid for damage; replace if necessary. Also, do not overfill the jug beyond the 1.5 L max line.

Where can I purchase spare parts?

Spare parts such as the jug, lid, blade assembly, and seals are available through Panasonic authorized service centers or online retailers. Use the model number MX-KM5080 to find compatible parts.

USER MANUAL MX-KM5080 PANASONIC

Operating Instructions

Blender (Household Use)

Line drawing of a Panasonic blender with three different kitchen utensils (no text or symbols)

TABLE OF CONTENTS

Safety Precautions EN2

Parts Identifi cation EN5

Before Use EN6

Guide of Menus and Functions ...... EN7

How to Use Blender....EN8

How to Use Dry Mill EN11

After Use EN12

Circuit Breaker Protection EN13

Troubleshooting EN13

Specifications EN14

INDICE

Thank you for purchasing this Panasonic product.

• Please read this Operating Instructions carefully in order to use this product correctly and safely.
• Before using this product, please give your special attention to the Safety Precautions.
• Please keep this Operating Instructions for future use.

- Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

This symbol on the product indicates "Make sure you read the Operating Instructions carefully before using".

Safety Precautions

Make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■The following indications indicate the degree of damage caused by incorrect operation.

WARNING

Indicates serious injury or death.

CAUTION

Indicates risk of injury or property damage.

■The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

To prevent electric shock, fi re caused by a short circuit, burning, injury or smoke.

- Do not damage the Cord or the Plug.

- Do not use the appliance if the Cord or the Plug is damaged or the Plug is loosely connected to the outlet.

- If the Cord is damaged, it must be replaced by the manufacturer, its Service Centre or similarly qualified persons in order to avoid a hazard.

- Do not plug or unplug with wet hands.

- Do not operate the appliance when the Cord is wound.

- Do not immerse the Motor Housing in water or splash water on it.

- Do not disassemble, repair or modify the appliance.

- Please contact your Service Centre for repairing.

- Do not insert any objects in the vent or the gap.

- Especially metal objects such as pins or wires.

- Do not try to remove the Blender Lid when the appliance is still operating.

- Do not use hot water (over 60 °C) to clean or place near a fire to dry the appliance.

- Do not place hot ingredients (over 60 °C) in the Blender Jug or the Mill Container.

EN2

! WARNING

• Do not operate without the Blender Jug Base and the Blender Jug in place correctly.
• Do not operate without the Mill Container Base and the Mill Container in place correctly.
• Do not insert fingers or utensils such as spoon or fork into the Blender Jug while the appliance is operating.
• Do not remove the Blender Jug when the motor is still rotating.
• Do not push the Safety Lock Pin and any Safety Levers with any instrument such as stick as the appliance may be switched on.
• Do not use the Mill Container if it is damaged or has visible cracks.

- Always operate the blender with the Blender Lid or the guard in position as indicated in the instructions. Never put the hand in jar when it is placed on the Motor Housing, if food needs to be pushed down use suitable tool e.g. Scraper.

- Make sure the voltage indicated on the label of the appliance is the same as your local supply.

- Also avoid plugging other devices into the same outlet to prevent electric overheating. However, if you are connecting a number of plugs, make sure the total wattage does not exceed the rated wattage of the outlet.

• This appliance shall not be used by children.

Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

• Insert the Plug firmly.
• Otherwise it may cause electric shock and fire caused by the heat that may generate around the Plug.
• Clean the Plug regularly.
• A soiled Plug may cause insufficient insulation due to the moisture, and may cause fire.

- Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal occurrences or breaking down:

• The Plug or the Cord becomes abnormally hot.
- The Cord is damaged or there has been a power failure.
- The Motor Housing is deformed, has visible damage or is abnormally hot.
→ Please unplug the appliance immediately and contact the Service Centre for advice or a repair.

- Be careful if hot liquid is poured into the Blender Jug as it can be ejected out of the appliance due to a sudden steaming.

CAUTION

To prevent electric shock, fi re caused by a short circuit, burning, injury or smoke.

- Do not replace any parts of the appliance with non-genuine spare parts.

• Do not leave the appliance unattended when it is in operation.
• When leaving the appliance unattended, turn the power Off.
• Do not use the appliance on following places:
• Any uneven surface, on non-heat resistant carpet, table cloth, etc.

• The place where it may be splashed with water or near a heat source.

• Do not blend more than 1.5 L working capacity marked on the Blender Jug.

• Do not place more than the maximum working capacity allowed for the Mill Container. Follow the recommended ingredient amount for processing.
• Do not operate without the Blender Lid and the Inner Lid in place correctly for the Blender Jug.

- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• Make sure to hold the Plug when unplugging. Never pull on the Cord.
- Ensure to operate and rest the appliance based on the table below:

Function	Operating Time (min)	Rest Time (min)
Blender 2 2
Dry Mill 1 2

• Unplug the appliance when not in use.

• When carrying the appliance, be sure to hold the Motor Housing with both hands.
• Switch off the appliance and disconnect from the power supply before changing accessories or approaching parts that move in use.
• Care shall be taken when handling the sharp Cutting Blades, emptying the Blender Jug or the Mill Container and during cleaning.

- Operate the appliance on a clean, fl at, hard and dry surface.

- If the Blender Cutting Blade gets stuck, switch off immediately and unplug. Do not insert fi nger into the Blender Jug. Use the Scraper to remove the ingredients that are blocking the Blender Cutting Blade.

• This product is intended for household use only.

- Ensure to clean the surfaces in contact with food after use. (See Page EN12 "After Use".)

Parts Identifi cation

* The shape of the Plug may vary according to regions or countries.
The Safety Lock mechanism has been designed to prevent the appliance from switching on when the appliance is not properly in place.

Note:

• Do not push the Safety Lock Pin and any Safety Levers with any instrument such as stick.
• Do not pour liquids or ingredients at the Safety Lock Pin and Control Panel area.
• Keep the Safety Lock Pin and Safety Lever area clean to avoid foreign particles accumulating in the area.

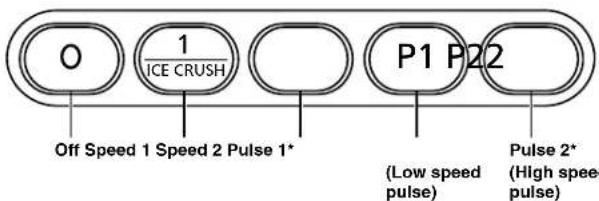

Control Panel

* Use this function for intermittent operation until the required blending texture is obtained.

Before Use

Wash each part except the Mill Container Base before using the appliance for the first time.

Note:

- Place your thumb on the Rib when assembling or disassembling the Blender Jug to its Base for easier turning.

Rib

To Disassemble

Blender

① Turn the Blender Jug Base clockwise to disassemble.
- Be careful with the Blender Cutting Blade.
② Pull up the Blender Jug to release from the Blender Jug Base.

Dry Mill

① Turn the Mill Container upside down and turn the Mill Container Base anticlockwise to disassemble.
- Be careful with the Mill Cutting Blade.

② Pull up the Mill Container Base to release it from the Mill Container.

To Assemble

Blender

① Place the Blender Gasket to the Blender Jug Base.

- If the Blender Gasket is not placed, it will cause leakage.

② Follow the assembly sequence in the direction of arrow as illustrated. Attach the Blender Jug to the Blender Jug Base and tighten the Blender Jug Base anticlockwise to assemble.

- Ensure that the Blender Gasket is set properly and the Blender Jug is tightened securely. Otherwise, it may cause leakage.

- Do not attach or remove the Blender Jug after the Blender Jug Base is placed on the Motor Housing. The liquid will leak or the motor will not operate.

Dry Mill

① Place the Mill Gasket to the Mill Container Base.

- If the Mill Gasket is not placed, it will cause leakage.

② Turn the Mill Container upside down.

③ Attach the Mill Container Base to the Mill Container and turn the Mill Container Base clockwise until a "click" sound is heard.

- Make sure that the Mill Gasket is fitted properly on the Mill Container Base. Otherwise, it may cause leakage.

①

Diagram showing a mechanical assembly with rotating components and a close-up view of a curved component (no text or symbols)

Note:

• Do not touch any of the Safety Lever on the Blender Jug Base during assembly.
• Do not assemble the Blender Jug under reverse condition.

(√)

(×)

Guide of Menus and Functions

Note:

Blender

• When placing medium-viscosity ingredients (such as boiled beans or garlic), do not exceed 1/3 of the Blender Jug capacity and do not operate using Speed 1.
• Add soft ingredients (fruits, vegetables) into the Blender Jug before adding in other ingredients. Cut them into small pieces (2-3 cm cubes).
• For Juice/Smoothie, follow the sequence of ingredients to be put into the Blender Jug: (i) Liquid (ii) Soft ingredients (iii) Solid ingredients (iv) Ice cubes.
• Before blending solid ingredients (such as carrot), cut it into small pieces (1-2 cm long).
• Do not blend food of 60 °C or higher.
• Do not operate exceeding the rated operation time (2 min ON, 2 min OFF).

Dry Mill

• When placing solid or granular spices, do not exceed 1/3 of the maximum level for dry ingredients.
• Do not operate exceeding the rated operation time (1 min ON, 2 min OFF).

Function	Menu Speed Quantity				Operating Time (approx.)	Remarks
[XXW] (Blender)	Baby Food	Boiled Spinach + water	1	300 - 400 g 1 - 2 min		For boiled spinach:- Recommended ratio of boiled spinach:water is 2:1.- Boil the spinach more than 5 min to soften it.For boiled carrot:- Place the same amount of water as the ingredients and blend.For all menus:- After blending the baby food, transfer it to another container and sterilise by heating.
		Boiled Carrot + water	1	250 - 800 g	30 s - 2 mln
	Ice Crush		1	Max 220 g(For a piece of ice cube size 20 g or less)	Blend until there is no sound.	- Only use 20 g ice cube or less which are made with a household refrigerator. Do not use commercial ice cubes.- If the crushed ice stick to the wall of the Blender Jug, turn off the appliance and remove the Blender Lid. Insert the Scraper to circulate.
	Soup		2	250 - 1 000 mL Max 2 min		-
	Juice/Smoothie		2	250 - 1 500 mL Max 2 min		For Smoothie:- Only use approximately 20 g ice cubes or less which are made with a household refrigerator. Do not use commercial ice cubes and ensure to add liquid or place ingredients with high water content.
	Cookie Crush P1			Max 150 g	Blend until a desired texture Is obtained(1 s ON, 1 s OFF)	- If the cookie is 5 cm or more, break it before inserting into the Blender Jug.- If the cookie stick to the wall of the Blender Jug, turn off the appliance and remove the Blender Lid. Insert the Scraper to circulate.
	Cleaning		P2	750 mL	3 - 10 times(1 s ON, 1 s OFF)	Operate with water only.
(Dry Mill)	Coffee Beans		2	Max 50 g 15 - 30 s		-
	Pepper		2	Max 20 g Max 1 mln
	Dried Chlll		2	Max 12 g Max 30 s		Remove the seeds.

How to Use Blender

Note:

• Working capacity: 1.5 L
- Do not operate with an empty Blender Jug.
- This Blender cannot be operated if the Blender Jug is not in place correctly.
- If the Blender Cutting Blade gets stuck, switch off immediately and unplug. Do not insert fingers into the Blender Jug. Use the Scraper to remove the ingredients that are blocking the Blender Cutting Blade.
- When removing the ingredients, be careful with the Blender Cutting Blade.
- Do not drop the appliance to avoid damaging it.
• Do not store liquid in the Blender Jug.
- It is prohibited to place the following kinds of ingredients in the Blender Jug: Meat, fish, hard ingredients (example: turmeric, dried soya beans, frozen ingredients, Cassia cinnamon), very sticky ingredients (example: peanut butter), ingredients with low water content (example: mashed potato) or commercial ice cubes.

① Place the ingredients in the Blender Jug.
② Close the Blender Lid.

• Make sure the Inner Lid is attached.

③ Make sure the switch is off. Place the Blender Jug according to the triangle marks on the Blender Jug Base and Motor Housing as A.

Rotate the Blender Jug (left and right) a few times when it does not fit properly to the Motor Housing.

④ Turn the Blender Jug Unit clockwise until a "click" sound is heard and make sure the marks are aligned as B.
⑤ Plug into the rated power supply.

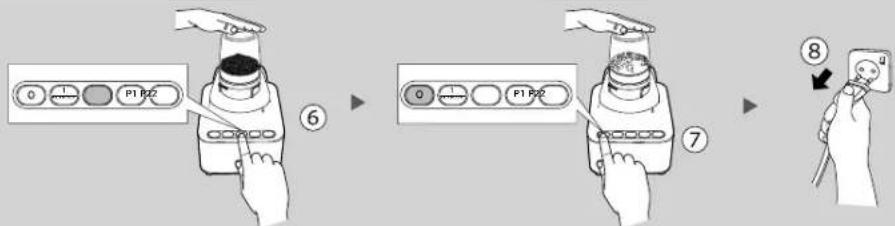

⑥ Turn on the Blender by pressing the required speed.

- Support the Blender Lid while in use to ensure that it is tightly closed.

⑦ After blending, switch off by pressing the button.
⑧ Unplug.
⑨ Turn the Blender Jug anticlockwise to remove it from the Motor Housing.
10 Remove the ingredients. Be careful when pouring the mixture from the Blender Jug as it may spill. - Avoid getting soiled with the ingredients.

How to Use Scraper

■ Use the Scraper when:

• The ingredients are hard to blend due to too little liquid. (For example: chilli, curry dishes)
• The ingredients stick to the side of the Blender Jug. (For example: garlic, leaves, crushed ice)
- The ingredients stick to the bottom of the Blender Cutting Blade. (For example: crushed ice)

Note:

• Use the Scraper during blending only through the Blender Lid opening.
• Do not use the Scraper from other models for this product
• Make sure the Inner Lid is attached when the Scraper is not used.

① Turn off the appliance and remove the Inner Lid carefully.
② Slowly insert the Scraper through the Blender Lid opening to perform operation. The Scraper can be inserted through the Blender Lid opening while blending without interfering with the Blender Cutting Blade.

Crushed ice removal

① Remove the crushed ice inside the Blender Jug.
② Disassemble the Blender Jug Base (page EN6).
③ Use the Scraper to remove any crushed ice beneath the Blender Cutting Blade. *Be careful with the Blender Cutting Blade.

How to Use Blender (Continued)

Recipes

Smoothie

Menu Ingredients	Quantity(Serving for 4)	Method
Strawberry Smoothie Orange juiceStrawberryBananaIce	200 mL200 g200 g200 g	1. Place the ingredients according to the order.2. Blend for 30 s to 1 min at Speed 2.
Mango Smoothie MilkMangoBananaIce	300 mL300 g100 g100 g	1. Place the ingredients according to the order.2. Blend for 20 to 30 s at Speed 2.
Banana Smoothie MilkBananaIce	300 mL300 g200 g	1. Place the ingredients according to the order.2. Blend for approximately 30 s at Speed 2.
Pineapple Smoothie PineappleIce	500 g300 g	1. Place the ingredients according to the order.2. Blend for 50 s to 1 min 30 s at Speed 2.- Use the Scraper if the mixture is uneven.

Sweets

Menu Ingredients Quantity Method
Brownie(21 × 21 cm size for 1 mold)	MilkFresh creamMelted ButterEggsSugarFlourBaking powderCocoa powder		60 mL3 tablespoons (45 mL)100 g2180 g100 g1/2 teaspoon (1.5 g)60 g	1. Place the ingredients according to the order.2. Blend for 30 s to 2 min at Speed 2. Use the Scraper while blending.3. Pour into a mold and bake for 40 to 45 min in a preheated oven at 170 °C.
Cheesecake(21 cm diameter for 1 mold)	A	Fresh creamEggsLemon juiceSugarCream cheeseFlour	300 mL345 mL120 g300 g40 g	1. Place the cookie in the Blender Jug and blend for 1 s ON and 1 s OFF at Speed P1 for 10 times.2. Transfer the crushed cookies to another container.Mix the melted butter and spread it on the bottom of a mold.3. Place the ingredients A in the Blender Jug according to the order. Blend for 30 s to 1 min 10 s at Speed 2.Use the Scraper while blending.4. Pour into a mold and bake in a preheated oven at 170 °C for 50 to 70 min.
	CookiesMelted Butter		150 g25 g

• Abbreviation used in this instructions: s = second(s); min = minute(s).
• Follow the quantity of liquid listed in the Recipes. It would make it hard to get your desired result especially if the quantity is reduced from the Recipes.

How to Use Dry Mill

This Dry Mill is designed for grinding dry ingredients such as coffee beans, dried pepper and spices.

Note:

• Working capacity: 50 g (coffee beans).
- Do not operate with an empty Dry Mill.
- Do not put liquid into the Mill Container.
- When removing the ingredients, be careful with the Mill Cutting Blade.
- Do not remove the Dry Mill from the Motor Housing until the rotation stops completely.
- Ensure that the Mill Cutting Blade stops completely before proceeding to the next P1 or P2 operation.
- Do not drop the appliance to avoid damaging it.
- It is prohibited to place following kinds of ingredients in the Mill Container: Meat, fish, hard ingredients (example: turmeric, dried soya beans, frozen ingredients, Cassia cinnamon), very sticky ingredients (example: peanut butter), oily ingredients (example: peanuts, walnuts), wet ingredients or any ice cubes.
- Remove the ingredients from the Mill Container and clean it immediately after blending.

① Turn the Mill Container upside down and fill in the ingredients.
② Place the Mill Container Base onto the Mill Container and turn it clockwise until a "click" sound is heard.
③ Place the Dry Mill onto the Motor Housing.
④ Turn the Dry Mill clockwise until a "click" sound is heard.
⑤ Plug into the rated power supply.

1

⑥ Turn on the Dry Mill by pressing the required speed.
- Support the Mill Container while in use to ensure that it is stable.
⑦ After blending, switch off by pressing the button.
⑧ Unplug.

⑨ Turn the Dry Mill anticlockwise and remove it from the Motor Housing.
⑩ Turn the Dry Mill upside down and turn the Mill Container Base anticlockwise to remove it from the Mill Container.
⑪ Remove the ingredients.

10

11

After Use

Cleaning

Note:

• During prewash, do not fill in the normal water more than the amount indicated. It may cause high vibration.
• After prewash, unplug the appliance before cleaning. Handle the Cutting Blades and glass parts carefully during cleaning.
• Do not use benzene, thinner, alcohol, bleach, polishing powder or metal brush to clean the appliance. The surface may be damaged.
• Do not place the appliance in the dishwasher or the dish dryer for cleaning.
• Some discolouration of the plastic parts may occur upon usage but it does not affect usage.
• Make sure to clean the appliance after every use.
• Do not use water or hand to clean the Mill Cutting Blade.

Prewash

- For Blender, fi II in 750 mL of normal water. Press P2 while holding the Blender Jug by hand and operate for 3 to 10 times for cleaning.

Wash

• Before cleaning, make sure to take out the Blender Gasket and the Mill Gasket.
• Wash with diluted dish soap (neutral) and a soft sponge. After washing, be sure to rinse and wipe dry thoroughly.

Exploded view diagram of a blender with labeled parts (no text or symbols)

Cleaning with a brush

• Clean the Mill Container Base and the Mill Cutting Blade with a brush. Do not use water or hand to clean the Cutting Blades.
  * Brush is not provided.

Wiping

- Wipe the Motor Housing with a damp cloth.

Storing

Note:

• Do not wrap the Cord around the Motor Housing.
• Mount the Blender Jug onto the Blender Jug Base and store it.
• Mount the Mill Container onto the Mill Container Base and store it.

EN12

Circuit Breaker Protection

When the Circuit Breaker automatically stops the motor due to overloading, follow the below steps:

1 Switch off to reset the Circuit Breaker.
2 Reduce the ingredients to less than 1/2 of the working capacity and/or remove hard ingredients.
3 Resume blending. If the Circuit Breaker still activates, repeat step 1 - 2. Do not repeatedly reset the Circuit Breaker.

Troubleshooting

Ensure to turn off the appliance and the power supply before taking the actions in the table below

Problems Causes Actions

The appliance does not turn on. The Plug is not inserted into an outlet. Insert the Plug into an outlet.
Even though the power is on, the appliance does not start blending.	The Blender Jug or the Mill Container is not placed correctly.	Place the Blender Jug or the Mill Container correctly.
	Overloaded with ingredients or prohibited ingredients are used.	Do not exceed the working capacity of the ingredients and ensure that prohibited ingredients are not used.
	The Safety Lever is stuck. Disassemble	the Blender Jug Base and follow the assembly sequence (page EN6).
The appliance stops during blending. The Circuit Breaker Protection is activated.• Too many ingredients or hard ingredients are used.		See "Circuit Breaker Protection".
The mixture in the Blender Jug is leaking.	The Blender Jug Base is attached loosely.	Tighten the Blender Jug Base firmly onto the Blender Jug.
	The Blender Gasket is not installed correctly.	Install the Blender Gasket correctly.
	The Blender Gasket is not installed. Install the Blender Gasket.
	The Safety Lever is stuck. Disassemble	the Blender Jug Base and follow the assembly sequence (page EN6).
There is abnormal noise or vibration.	Too many ingredients in the Blender Jug.	Turn off the appliance and reduce the ingredients.
	The Blender Jug Base is attached loosely.	Tighten the Blender Jug Base firmly onto the Blender Jug.
The Cutting Blades is spinning freely without cutting.	Ingredients are stuck to the wall of the Blender Jug.	Turn off the appliance and insert the Scraper to circulate.
	Quantity of the liquid is low.	Add liquid.

- A "kiiiiin" sound may be heard during operation. This is normal.

- Lubrication oil might be traced on the Lower Connector but it will not affect the performance. Please wipe it.

Specifications

Function	Blender Dry Mill
Power Supply	220 - 240 V ~ 50 - 60 Hz
Power Consumption	430 - 490 W
Switch	O (OFF), 1, 2, P1, P2
Operation Rating	2 min ON2 min OFF	1 min ON2 min OFF
Dimension (Approx.)W x L x H (mm)	188 x 210 x 416 170 x 210 x 263
Mass (Approx.) (kg)	3.6 2.2
Working Capacity(Approx.)	1.5 L 50 g (Coffee Beans)
Cutting Blades(Stainless steel)	4	2
Airborne AcousticalNoise	85.5 (dB (A) re. 1 pW) 87.1 (dB (A) re. 1 pW)

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Macinino

Montaggio

Frullatore

Macinino

Diagram showing a mechanical assembly with rotating components and a close-up view of a curved component (no text or symbols)

Nota:

Illustration of a hand pouring granular material into a bowl (no text or symbols)

Illustration of a blender being filled with liquid, showing a hand holding the cup and rotating the lid (no text or symbols)

Ricette
Frappè

Dopo l'uso

Pulizia

Nota:

Exploded view diagram of a blender with labeled parts (no text or symbols)

Panasonic Test and Development Kitchen

Panasonic Consumer Electronics U.K.

A Division of Panasonic U.K. Ltd

Willoughby Road, Bracknell, Berks, RG12 8FP

Web Site: www.panasonic.co.uk

Representative in EU :

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Manufacturing Malaysia Berhad (196501000304)

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site, 40200 Shah Alam, Selangor Darul Ehsan, Malaysia

http://www.panasonic.com

Printed in Malaysia © Panasonic Manufacturing Malaysia Berhad 2020

VZ50G3051

F0720Y10520
