About this Manual

This Manual is applicable to Network Video Recorder (NVR).

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/cn/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

HIKVISION and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive

2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into "Warnings" and "Cautions"

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cautions: Injury or equipment damage may occur if any of the cautions are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cautions Follow these precautions to prevent potential injury or material damage.

Warnings

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
• In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 100\~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
• Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard.
• Please make sure that the plug is firmly connected to the power socket.

If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

• Ensure unit is installed in a well-ventilated, dust-free environment.
• Unit is designed for indoor use only.
• Keep all liquids away from the device.
• Ensure environmental conditions meet factory specifications.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause damage to the sensitive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
  • Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the manufacturer.

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

The figures in the manual are for reference only.

This manual is applicable to the models listed in the following table.

Series	Models
DS-7100NI-SL series	DS-7104NI-SL, DS-7108NI-SL
	DS-7104NI-SL/W
DS-7100NI-SN series	DS-7104NI-SN, DS-7108NI-SN, DS-7116NI-SN
	DS-7104NI-SN/N, DS-7108NI-SN/N, DS-7116NI-SN/N
	DS-7104NI-SN/P, DS-7108NI-SN/P, DS-7116NI-SN/P
DS-7600NI-SN series	DS-7604NI-SN, DS-7608NI-SN, DS-7616NI-SN
	DS-7604NI-SN/N, DS-7608NI-SN/N, DS-7616NI-SN/N
	DS-7604NI-SN/P, DS-7608NI-SN/P, DS-7616NI-SN/P
DS-7600NI-SE series	DS-7604NI-SE, DS-7608NI-SE, DS-7616NI-SE
	DS-7604NI-SE/N, DS-7608NI-SE/N, DS-7616NI-SE/N
	DS-7604NI-SE/P, DS-7608NI-SE/P, DS-7616NI-SE/P
DS-7600NI-V(P) series	DS-7604NI-V, DS-7608NI-V, DS-7616NI-V
	DS-7604NI-VP, DS-7608NI-VP, DS-7616NI-VP

Product Key Features

General

• Connectable to network cameras, network dome and encoders.
• Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO, and cameras that adopt ONVIF or PSIA protocol.
• Connectable to the smart IP cameras.
  ● PAL/NTSC adaptive video inputs.
  ● Each channel supports dual-stream.
• 16 network cameras can be connected.
  ● Independent configuration for each channel, including resolution, frame rate, bit rate, image quality, etc.
  ● The quality of the input and output record is configurable.

Local Monitoring

• Simultaneous HDMI ^TM and VGA outputs.
• HDMI ^TM and VGA outputs at up to 1920× 1080 resolution.
  ● Multiple screen display in live view is supported, and the display sequence of channels is adjustable.
• Live view screen can be switched in group, and manual switch and automatic cycle live view are also provided, and the interval of automatic cycle can be adjusted.
• Quick setting menu is provided for live view.
• Motion detection, video tampering, VCA (Video Content Analysis) alarm, video exception alert and video loss alert functions.
• Privacy mask.
  ● Multiple PTZ protocols supported; PTZ preset, patrol and pattern.
• Zooming in by clicking the mouse and PTZ tracing by dragging mouse.

The PTZ control is supported by the DS-7600NI-SE series NVR only.

HDD Management

• For DS-7100NI series, 1 SATA hard disk can be connected;
  For DS-7600NI-SN, DS-7600NI-SE and DS-7600NI-V(P) series, up to 2 SATA hard disks can be connected.
  ● Each disk with a maximum of 4TB storage capacity.
• 8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.
  ● Support S.M.A.R.T. and bad sector detection.
• HDD group management.
  ● Support HDD standby function.
• HDD property: redundancy, read-only, read/write (R/W).
• HDD quota management; different capacity can be assigned to different channel.

Recording and Playback

• Holiday recording schedule configuration.
  ● Continuous and event video recording parameters.
  ● Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm, and VCA.
  ● 8 recording time periods with separated recording types each day.
  ● Pre-record and post-record for alarm, motion detection for recording, and pre-record time for schedule and

manual recording.

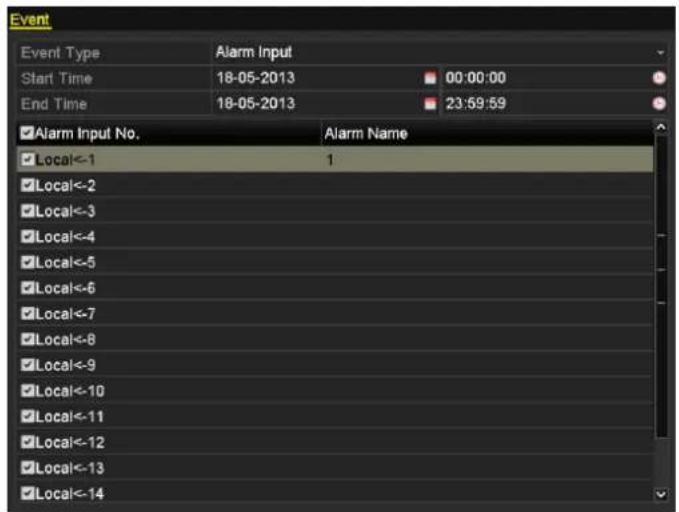

• Searching record files by events (alarm input/motion detection/VCA).
• Tag adding for record files, searching and playing back by tags.
• Locking and unlocking record files.
• Local redundant recording.
• Provide new playback interface with easy and flexible operation.
• Searching and playing back record files by camera No., recording type, start time, end time, etc.
  ● Smart search for the selected area in the video.
• Zooming in when playback.
• Reverse playback of multi-channel.
  ● Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when playback, and locating by dragging the mouse.
  ● Up to 4/816-ch synchronous playback.

Backup

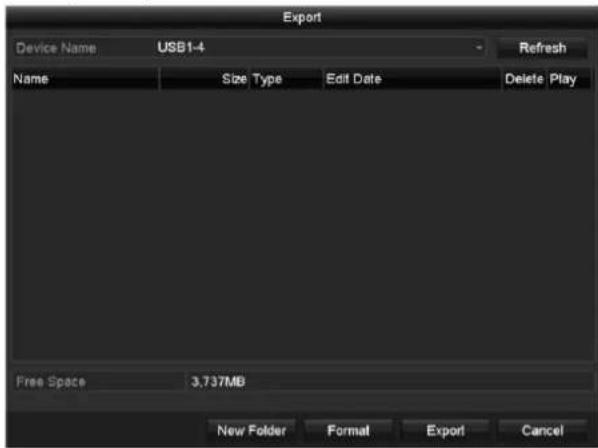

● Export video data by USB or SATA device.
- Export video clips when playback.
● Management and maintenance of backup devices.

Alarm and Exception

• Configurable arming time of alarm input/output.
• Alarm for video loss, motion detection, VCA, video tampering, HDD full, HDD error, network disconnected, IP confliction, illegal login, abnormal record, and PoE power overload (for the models support PoE interfaces only), etc.
• Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and alarm output.
  ● Automatic restore when system is abnormal.

Other Local Functions

• Operable by front panel (depends on model), mouse, and remote control.
• Three-level user management; admin user is allowed to create many operating accounts and define their operating permission, which includes the limit to access any channel.
  ● Operation, alarm, exceptions and log recording and searching.
  ● Manually triggering and clearing alarms.
• Import and export of device configuration information.

Network Functions

• One 10 /100 Mbps self-adaptive Ethernet interface for DS-7604/7608NI, DS-7104/7108NI and DS-7100NI-SL series NVR; and one 10 /100/1000 Mbps self-adaptive Ethernet interface for other models.
  ● 1 self-adaptive 10M/100M/1000M network interfaces are provided for other models.
• Up to 8 independent PoE network interfaces are provided for DS-7600NI-SN/P series.
• Up to 8 independent built-in switch network interfaces are provided for DS-7600NI-SN/N series;
• IPv6 is supported.
• TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are supported.
  ● TCP, UDP and RTP for unicast.

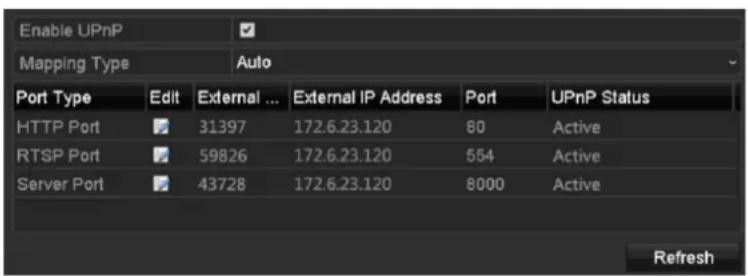

  ● Auto/Manual port mapping by UPnP ^TM .
  ● Extranet access by HiDDNS.
  ● Support access by EZVIZ Cloud P2P.
• Remote reverse playback via RTSP.

● Support accessing by the platform via ONVIF.
- Remote parameters setup; remote import/export of device parameters.
- Remote viewing of the device status, system logs and alarm status.
- Remote keyboard operation.
- Remote locking and unlocking of control panel and mouse.
- Remote HDD formatting and program upgrading.
- Remote system restart and shutdown.
● RS-232, RS-485 transparent channel transmission (depending on models).
● Alarm and exception information can be sent to the remote host
- Remotely start/stop recording.
- Remotely start/stop alarm output.
- Remote PTZ control (depending on models).
- Remote JPEG capture.
- Two-way audio and voice broadcasting.
- Embedded WEB server.

- Remote search, playback, download, locking and unlocking of the record files, and the breakpoint resume is supported for downloading files.

Development Scalability:

• SDK for Windows and Linux system.
  ● Source code of application software for demo.
  ● Development support and training for application system.

TABLE OF CONTENTS

Product Key Features 6

Chapter 1 Introduction....13

1.1 Front Panel 14

DS-7600NI-V and DS-7600NI-VP 14

DS-7600NI-SN Series....14

DS-7100NI Series 15

1.2 IR Remote Control Operations....16

1.3 USB Mouse Operation 19

1.4 Input Method Description....20

1.5 Rear Panel 21

DS-7600NI-SN, DS-7604NI-SN/N, DS-7608 & 7616NI-SN/N....21

DS-7600NI-SN/P 22

DS-7600NI-SE and DS-7600NI-SE/N 22

DS-7600NI-SE/P 23

DS-7600NI-V and DS-7600NI-VP 24

DS-7100NI-SL, DS-7100NI-SN and DS-7100NI-SL/W 25

DS-7100NI-SN/N and DS-7100NI-SN/P 25

Chapter 2 Getting Started 27

2.1 Starting Up and Shutting Down the NVR.... 28

2.2 Setting Admin Password....30

2.3 Using the Wizard for Basic Configuration.... 31

2.4 Login and Logout 35

2.4.1 User Login 35

2.4.2 User Logout....35

2.5 Adding and Connecting the IP Cameras....37

2.5.1 Activating the IP Camera 37

2.5.2 Adding the Online IP Cameras 38

2.5.3 Editing the Connected IP Cameras and Configuring Customized Protocols......42

2.5.4 Editing IP Cameras Connected to the PoE or the Built-in Switch Interfaces 44

2.5.5 Checking the PoE Information....46

Chapter 3 Live View....47

3.1 Introduction of Live View 48

3.2 Operations in Live View Mode....49

3.2.1 Using the Mouse in Live View 49

3.2.2 Quick Setting Toolbar in Live View Mode 50

3.3 Adjusting Live View Settings....53

3.4 User Logout....55

Chapter 4 PTZ Controls....56

4.1 Configuring PTZ Settings....57

4.2 Setting PTZ Presets, Patrols & Patterns....59

4.2.1 Customizing Presets....59

4.2.2 Calling Presets....59

4.2.3 Customizing Patrols....60
4.2.4 Calling Patrols 61
4.2.5 Customizing Patterns 62
4.2.6 Calling Patterns....62
4.2.7 Customizing Linear Scan Limit 63
4.2.8 Calling Linear Scan 64
4.2.9 One-touch Park 64

4.3 PTZ Control Panel....66

Chapter 5 Recording Settings....67

5.1 Configuring Parameters....68
5.2 Configuring Recording Schedule 70
5.3 Configuring Motion Detection Recording....73
5.4 Configuring Alarm Triggered Recording....75
5.5 Configuring VCA Triggered Recording....77
5.6 Manual Recording....78
5.7 Configuring Holiday Recording....79
5.8 Configuring Redundant Recording....80
5.9 Configuring HDD Group for Recording....82
5.10 Files Protection....83

Chapter 6 Playback....86

6.1 Playing Back Record Files 87

6.1.1 Playing Back by Channel....87
6.1.2 Playing Back by Time....89
6.1.3 Playing Back by Event Search....91
6.1.4 Playing Back by Tag 93
6.1.5 Smart Playback....96
6.1.6 Playing Back by System Logs 98
6.1.7 Playing Back External File 100

6.2 Auxiliary Functions of Playback 101

6.2.1 Playing Back Frame by Frame....101
6.2.2 Digital Zoom....101
6.2.3 Reverse Playback of Multi-channel....101

Chapter 7 Backup 103

7.1 Backing up Record Files 104

7.1.1 Quick Export.... 104
7.1.2 Backing up by Normal Video Search.... 105
7.1.3 Backing up by Event Search.... 109
7.1.4 Backing up Video Clips 111

7.2 Managing Backup Devices....113

Chapter 8 Alarm Settings....116

8.1 Setting Motion Detection Alarm.... 117
8.2 Setting Sensor Alarms 119
8.3 Detecting Video Loss Alarm....122
8.4 Detecting Video Tampering Alarm 123

8.5 Detecting VCA Alarm 125
8.6 Handling Exceptions Alarm....127
8.7 Setting Alarm Response Actions 128
8.8 Triggering or Clearing Alarm Output Manually 131

Chapter 9 Network Settings....132

9.1 Configuring General Settings.... 133
9.2 Configuring Advanced Settings....135

9.2.1 Configuring EZVIZ Cloud P2P 135
9.2.2 Configuring DDNS....136
9.2.3 Configuring PPPoE Settings....140
9.2.4 Configuring NTP Server....141
9.2.5 Configuring SNMP....141
9.2.6 Configuring Remote Alarm Host....142
9.2.7 Configuring Multicast....143
9.2.8 Configuring RTSP 143
9.2.9 Configuring Server and HTTP Ports....143
9.2.10 Configuring Email 144
9.2.11 Configuring NAT 146

9.3 Checking Network Traffic 148

9.4 Configuring Network Detection 150

9.4.1 Testing Network Delay and Packet Loss.... 150
9.4.2 Exporting Network Packet....150
9.4.3 Checking the Network Status....151
9.4.4 Checking Network Statistics....152

Chapter 10 HDD Management....154

10.1 Initializing HDDs 155
10.2 Managing Network HDD 157
10.3 Managing HDD Group.... 160

10.3.1 Setting HDD Groups.... 160
10.3.2 Setting HDD Property.... 161

10.4 Configuring Quota Mode.... 163
10.5 Checking HDD Status 165
10.6 HDD Detection.... 166
10.7 Configuring HDD Error Alarms.... 168

Chapter 11 Camera Settings ....169

11.1 Configuring OSD Settings.... 170
11.2 Configuring Privacy Mask.... 171
11.3 Configuring Video Parameters 172

Chapter 12 NVR Management and Maintenance ....173

12.1 Viewing System Information.... 174
12.1.1 Viewing Device Information.... 174
12.2 Searching & Export Log Files.... 175
12.3 Importing/Exporting IP Camera Info....179
12.4 Importing/Exporting Configuration Files 180

12.5 Upgrading System.... 181

12.5.1 Upgrading by Local Backup Device.... 181
12.5.2 Upgrading by FTP 181

12.6 Restoring Default Settings.... 183

Chapter 13 Others....184

13.1 Configuring RS-232 Serial Port....185
13.2 Configuring General Settings.... 186
13.3 Configuring DST Settings 187
13.4 Configuring More Settings for Device Parameters.... 188
13.5 Managing User Accounts.... 189

13.5.1 Adding a User....189
13.5.2 Deleting a User 191
13.5.3 Editing a User....192

Appendix....194

Glossary 195

Troubleshooting....196

Summary of Changes....202

List of Compatible IP Cameras 203

List of Hikvision IP Cameras 203

List of Third-party IP Cameras 210

Chapter 1 Introduction

1.1 Front Panel

DS-7600NI-V and DS-7600NI-VP

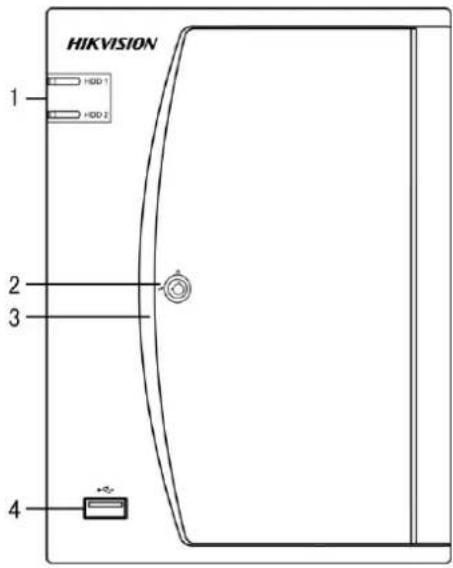

HIKVISION 1 HDD 1 HDD 2 2 3 4

Figure 1.1 DS-7600NI-V and DS-7600NI-VP

Table 1.1 Description of Control Panel Buttons

No.	Name	Description
1	HDD1/HDD2	Blinks red when data is being read from or written to HDD.
2	Panel Lock	Lock/unlock the front panel.
3	Running StatusIndicator	Indicator turns yellow when system is running.
4	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

DS-7600NI-SN Series

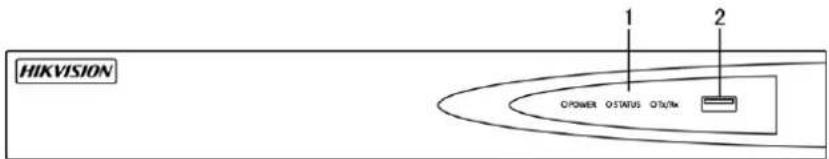

HIKVISION 1 2 CPOWER O-STATUS OTs/Tm

Figure 1.2 DS-7600NI-SN Series

Table 1.2 Description of Control Panel Buttons

No.	Name		Description
1	Status Indicator	Power	Power indicator turns yellow when system is running.
		Status	Status indicator blinks red when data is being read from or written to HDD.
		Tx/Rx	Tx/Rx indicator blinks yellow when network connection is functioning properly.
2	USB Interface		Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

DS-7100NI Series

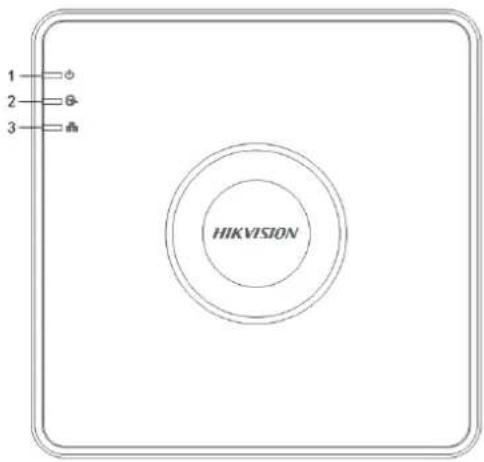

1 2 3 HIKVISION

Figure 1.3 DS-7100NI Series

Table 1.3 Description of Control Panel Buttons

No.	Icon	Description
1		Indicator turns red when DVR is powered up.
2		Indicator lights in red when data is being read from or written to HDD.
3		Indicator blinks blue when network connection is functioning properly.

1.2 IR Remote Control Operations

The NVR may also be controlled with the included IR remote control, shown in Figure 1.4.

Batteries (2× AAA) must be installed before operation.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 ABC DEF GHI JKL MND 4 PQRS TUV WXYZ 7 EDIT 0 ABC 2 ABC 2 JKL 5 TUV 8 WXYZ 9 A REC INFO PLAY MENU VOIP/MON PREV ENTER PTZ ESC F1 F2

Figure 1.4 Remote Control

The keys on the remote control closely resemble the ones on the front panel. See Table 1.6.

Table 1.4 Description of the Soft Keyboard Icons

No.	Name	Description
1	POWER	Power on/off the device.
2	DEV	Enables/Disables Remote Control.
3	Alphanumeric Buttons	Switch to the corresponding channel in Live view or PTZ Control mode.
		Input numbers and characters in Edit mode.
		Switch between different channels in the Playback mode.
4	EDIT Button	Edit text fields. When editing text fields, it will also function as a Backspace button to delete the character in front of the cursor.On checkbox fields, pressing the button will check the checkbox.
		In PTZ Control mode, the button adjusts the iris of the camera.
		In Playback mode, it can be used to generate video clips for backup.
		Enter/exit the folder of USB device.
5	A Button	Adjust focus in the PTZ Control menu.
		It is also used to switch between input methods (upper and lowercase alphabet, symbols and numeric input).
6	REC Button	Enter the Manual Record setting menu.
		In PTZ control settings, press the button and then you can call a PTZ preset by pressing Numeric button.
		It is also used to turn audio on/off in the Playback mode.
7	PLAY Button	The button is used to enter the All-day Playback mode.
		It is also used to auto scan in the PTZ Control menu.
8	INFO Button	Reserved.
9	VOIP Button	Switch between main and spot output.
		In PTZ Control mode, it can be used to zoom out the image.
10	MENU Button	Press the button will help you return to the Main menu (after successful login).
		Press and hold the button for 5 seconds will turn off audible key beep.
		In PTZ Control mode, the MENU button will start wiper (if applicable).
		In Playback mode, it is used to show/hide the control interface.
11	PREV Button	Switch between single screen and multi-screen mode.
		In PTZ Control mode, it is used to adjust the focus in conjunction with the A/FOCUS+ button.
12	DIRECTION Button	Navigate between different fields and items in menus.
		In the Playback mode, the Up and Down button is used to speed up and slow down recorded video. The Left and Right button will select the next and previous record files.
		In Live View mode, these buttons can be used to cycle through channels.
		In PTZ control mode, it can control the movement of the PTZ camera.
	ENTER Button	Confirm selection in any of the menu modes.
		It can also be used to tick checkbox fields.
		In Playback mode, it can be used to play or pause the video.
		In single-frame Playback mode, pressing the button will advance the video by a single frame.
13	PTZ Button	In Auto-switch mode, it can be used to stop /start auto switch.
14	ESC Button	Back to the previous menu.
		Press for Arming/disarming the device in Live View mode.
15	RESERVED	Reserved for future usage.
16	F1 Button	Select all items on the list when used in a list field.
		In PTZ Control mode, it will turn on/off PTZ light (if applicable).
		In Playback mode, it is used to switch between play and reverse play.
17	PTZ Control Buttons	Buttons to adjust the iris, focus and zoom of a PTZ camera.
18	F2 Button	Cycle through tab pages.
		In synchronous playback mode, it is used to switch between channels.

Troubleshooting Remote Control:

Make sure you have installed batteries properly in the remote control. And you have to aim the remote control at the IR receiver in the front panel.

If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.

Steps:

1. Go to Menu > Settings > General > More Settings by operating the front control panel or the mouse.
2. Check and remember NVR ID#. The default ID# is 255. This ID# is valid for all the IR remote controls.
3. Press the DEV button on the remote control.
4. Enter the NVR ID# you set in step 2.
5. Press the ENTER button on the remote.

If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status indicator does not turn blue and there is still no response from the remote, please check the following:

1. Batteries are installed correctly and the polarities of the batteries are not reversed.
2. Batteries are fresh and not out of charge.
3. IR receiver is not obstructed.

If the remote still can't function properly, please change a remote and try again, or contact the device provider.

1.3 USB Mouse Operation

A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this NVR. To use a USB mouse:

1. Plug USB mouse into one of the USB interfaces on the front panel of the NVR.
2. The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible reason may be that the two devices are not compatible, please refer to the recommended the device list from your provider.

The operation of the mouse:

Table 1.5 Description of the Mouse Control

Name	Action	Description
Left-Click	Single-Click	Live view: Select channel and show the quick set menu.Menu: Select and enter.
	Double-Click	Live view: Switch between single-screen and multi-screen.
	Click and Drag	PTZ control: pan, tilt and zoom.Video tampering, privacy mask and motion detection: Select target area.Digital zoom-in: Drag and select target area.Live view: Drag channel/time bar.
Right-Click	Single-Click	Live view: Show menu.Menu: Exit current menu to upper level menu.
Scroll-Wheel	Scrolling up	Live view: Previous screen.Menu: Previous item.
	Scrolling down	Live view: Next screen.Menu: Next item.

1.4 Input Method Description

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L m Z X C V B N M a → Enter ESC

Figure 1.5 Soft Keyboard

Description of the buttons on the soft keyboard:

Table 1.6 Description of the Soft Keyboard Icons

Icon	Description	Icon	Description
En	English	A	Capital English
123	Numbers		Symbols
	Lowercase/Uppercase		Backspace
	Space	Enter	Enter
ESC	Exit

1.5 Rear Panel

The rear panel vaires according to different models.

DS-7600NI-SN, DS-7604NI-SN/N, DS-7608 & 7616NI-SN/N

2 AUDIO IN AUDIO OUT 5 6 7 4 USB 1 9 POWER 8

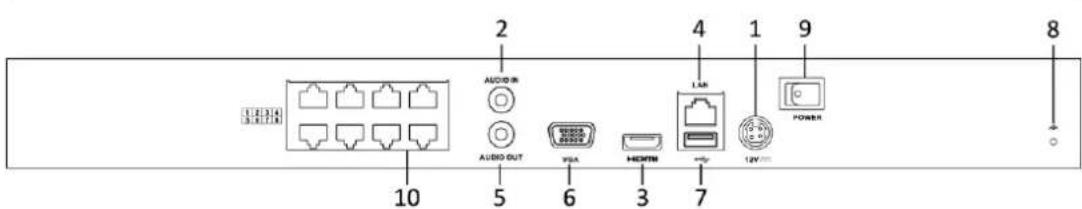

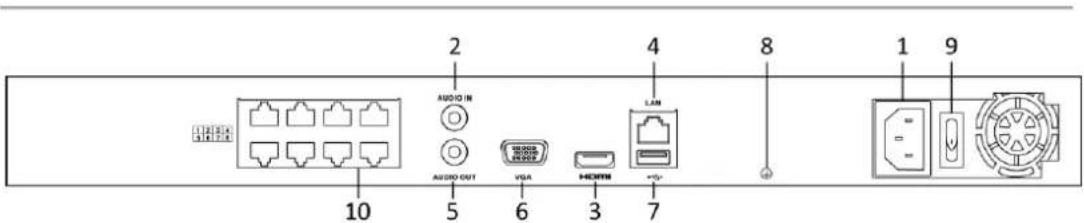

Figure 1.6 DS-7600NI-SN

1 2 3 4 AUDIO-IN AUTO-OUT VISA HORN LAN LUV POWER 10 5 6 3 7 8

Figure 1.7 DS-7604NI-SN/N

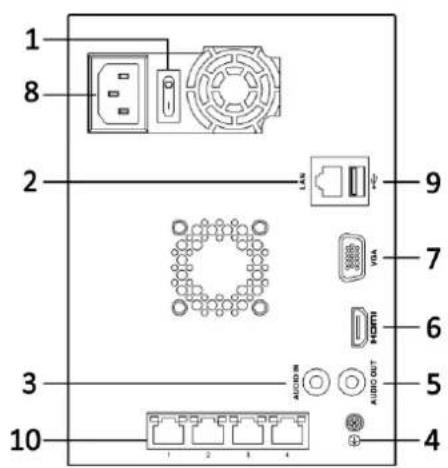

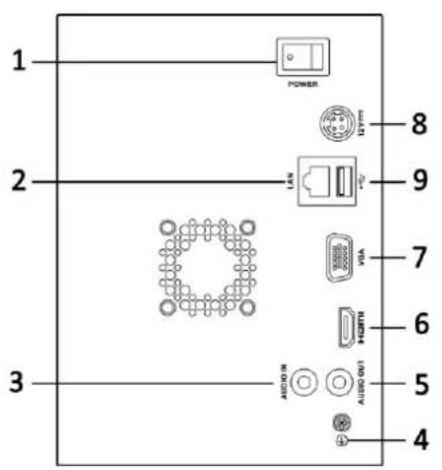

2 AUDIO AUDIO OUT 10 5 6 HEATM 3 7 4 LAB 12V 9 POWER 8

Figure 1. 8 DS-7608 & 7616NI-SN/N

Table 1.7 Description of Rear Panel Interfaces

No.	Item	Description
1	Power Supply	12V DC power supply.
2	Audio In	RCA connector for audio input.
3	HDMI ^TM Interface	HDMI ^TM video output connector.
4	LAN Network Interface	1 10 /100 /1000 Mbps self-adaptive Ethernet interface
5	Audio Out	RCA connector for audio output.
6	VGA Interface	DB9 connector for VGA output. Display local video output and menu.
7	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
8	Ground	Ground (needs to be connected when NVR starts up).
9	Power Switch	Switch for turning on/off the device.
10	Network Interfaces with built-in switch function	Built-in switch network interfaces for the cameras. (Supported by DS-7600NI-SN/N).

DS-7600NI-SN/P

1 2 3 4 AUDIO AUDIO OUT VOA HDMI LAN 4 1 9 POWER 8 10 5 6 3 7 45V

Figure 1.9 DS-7604NI-SN/P

1234 10 AUDIO IN AUDIO OUT VGA HDMI LAN 2 4 8 1 9

Figure 1. 10 DS-7608 & 7616NI-SN/P

Table 1.8 Description of Rear Panel Interfaces

No.	Item	Description
1	Power Supply	DC 48V power supply for DS-7604NI-SN/P and 100~240V AC for DS-7608&7608NI-SN/P.
2	Audio In	RCA connector for audio input.
3	HDMI ^TM Interface	HDMI ^TM video output connector.
4	LAN Network Interface	1 10 /100 /1000 Mbps self-adaptive Ethernet interface
5	Audio Out	RCA connector for audio output.
6	VGA Interface	DB9 connector for VGA output. Display local video output and menu.
7	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
8	Ground	Ground (needs to be connected when NVR starts up).
9	Power Switch	Switch for turning on/off the device.
10	Network Interfaces with PoE function	Network interfaces for the cameras and to provide power over Ethernet.

DS-7600NI-SE and DS-7600NI-SE/N

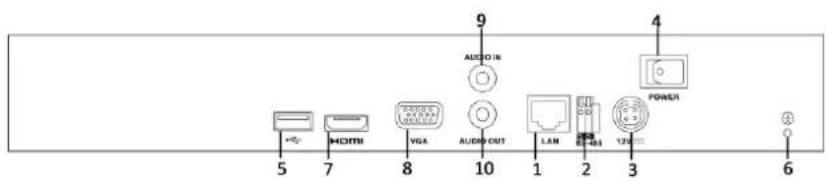

5 7 8 VGA AUDIO IN AUDIO OUT 10 1 2 3 4 POWER 12# 6

Figure 1. 11 DS-7604&7608&7616NI-SE

11 5 7 8 9 AUDIO IN VISA 10 1 2 3 4 POWER 6

Figure 1. 12 DS-7600NI-SE/N

Table 1.9 Description of Rear Panel Interfaces

No.	Item	Description
1	LAN Network Interface	Connector for LAN (Local Area Network).
2	RS-485 Interface	Connects to RS-485 devices.
3	Power Supply	12VDC power supply
4	Power Switch	Switch for turning on/off the device.
5	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
6	GND	Ground (needs to be connected when NVR starts up).
7	HDMI Interface	HDMI video output connector.
8	VGA Output	DB9 connector for VGA output. Display local video output and menu.
9	Audio In	RCA connector for voice talk input
10	Audio Out	RCA connector for audio output
11	Network Interfaces with switch function (for DS-7600NI-SE/N)	Network interface for the cameras.

DS-7600NI-SE/P

1 2 3 4 5 7 8 9 AUDIO IN NDA AUDIO OUT LAN 2 6 3 4

Figure 1. 13 DS-7604&7608NI-SE/P

11 5 7 8 10 1 2 6 3 4 AUDIO IN AUDIO OUT LAM

Figure 1. 14 DS-7616NI-SE/P

Table 1. 10 Description of Rear Panel Interfaces

No.	Item	Description
1	LAN Network Interface	Connector for LAN (Local Area Network).
2	RS-485 Interface	Connects to RS-485 devices.
3	Power Supply	100~240VAC power supply
4	Power Switch	Switch for turning on/off the device.
5	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
6	GND	Ground (needs to be connected when NVR starts up).
7	HDMI Interface	HDMI video output connector.
8	VGA Output	DB9 connector for VGA output. Display local video output and menu.
9	Audio In	RCA connector for voice talk input
10	Audio Out	RCA connector for audio output
11	Network Interfaces with PoE function	Network interface for the cameras and to provide power over Ethernet.

DS-7600NI-V and DS-7600NI-VP

1 POWER 2 USB 3 ASIKIN 4 ALUM OUT 5 6 7 8 9 10 11 12

1 8 2 LAN 9 7 6 3 AUDIO IN 5 4 10 1 2 3 4 HDMI AUDIO OUT

Figure 1.15 DS-7600NI-V and DS-7600NI-VP

Table 1. 11 Description of Rear Panel Interfaces

No.	Item	Description
1	Power Switch	Switch for turning on/off the device.
2	LAN Network Interface	Connector for LAN (Local Area Network).
3	Audio In	RCA connector for voice talk input
4	GND	Ground (needs to be connected when NVR starts up).
5	Audio Out	RCA connector for audio output
6	HDMI Interface	HDMI video output connector.
7	VGA Output	DB9 connector for VGA output. Display local video output and menu.
8	Power Supply	100~240VAC power supply
9	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
10	Network Interfaces with PoE function (for DS-7600NI-VP)	Network interface for the cameras and to provide power over Ethernet.

DS-7100NI-SL, DS-7100NI-SN and DS-7100NI-SL/W

AUDIO IN 16V AUDIO OUT VGA H2 LANUSB 2 6 4 3 7 8

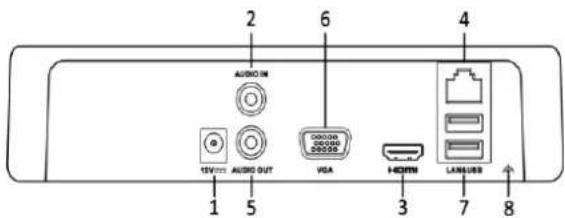

Figure 1. 16 DS-7100NI-SL and DS-7100NI-SN

1 2 AUDIO IN 12V 155 AUDIO OUT VGA 6 3 4 HOTM LAN/USB 9 8

Figure 1. 17 DS-7100NI-SL/W

Table 1. 12 Description of Rear Panel Interfaces

No.	Item	Description
1	Power Supply	12VDC power supply.
2	Audio In	RCA connector for two-way audio input.
3	HDMI Interface	HDMI video output connector.
4	Network Interface	Connector for LAN (Local Area Network).
5	Audio Out	RCA connector for audio output.
6	VGA Output	DB9 connector for VGA output. Display local video output and menu.
7	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
8	Ground	Ground (needs to be connected when NVR starts up).
9	Antenna Interface (for DS-7100NI-SL/W only)	Needs to be connected with antenna if you want to configure and get connection via WLAN.

DS-7100NI-SN/N and DS-7100NI-SN/P

1 2 AUDIO IN 12V AUDIO OUT VGA HDMI LAN/USB 4 9 8 5 6 3 7

Figure 1. 18 DS-7104NI-SN/N, DS-7104NI-SN/P

1 2 AUDIO IN 12V/155 AUDIO OUT VGA HDMI LANA/USB 4 9 1 2 3 4 5 6 3 7 8

Figure 1. 19 DS-7108 & 7116NI-SN/N, DS-7108 & 7116NI-SN/P

Table 1. 13 Description of Rear Panel Interfaces

No.	Item	Description
1	Power Supply	12VDC power supply.
2	Audio In	RCA connector for two-way audio input.
3	HDMI Interface	HDMI video output connector.
4	Network Interface	Connector for LAN (Local Area Network).
5	Audio Out	RCA connector for audio output.
6	VGA Output	DB9 connector for VGA output. Display local video output and menu.
7	USB Interface	Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
8	Ground	Ground (needs to be connected when NVR starts up).
9	Network Interfaces with switch function (for DS-7100NI-SN/N)	Network interface for the cameras.
	Network Interfaces with PoE function (for DS-7100NI-SN/P)	Network interface for the cameras and to provide power over Ethernet.

Chapter 2 Getting Started

2.1 Starting Up and Shutting Down the NVR

Purpose:

Proper startup and shutdown procedures are crucial to expanding the life of the NVR.

Before you start:

Check that the voltage of the extra power supply is the same with the NVR's requirement, and the ground connection is working properly.

Starting up the NVR:

Steps:

1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Power indicator LED on the front panel should be red, indicating the device gets the power supply.
2. Turn on the power switch on the rear panel if the device starts up for the first time, or press the ⏻ button on the front panel. The Power indicator LED should turn blue indicating that the unit begins to start up.
3. After startup, the Power indicator LED remains blue. A splash screen with the status of the HDD appears on the monitor. The row of icons at the bottom of the screen shows the HDD status. 'X' means that the HDD is not installed or cannot be detected.

Shutting down the NVR

There are two proper ways to shut down the NVR.

- OPTION 1: By Standard shutdown

Steps:

1. Enter the Shutdown menu.

Menu > Shutdown

Shutdown Logout Shutdown Reboot Cancel

Figure 2.1 Shutdown Menu

1. Click the Shutdown button.
2. Click the Yes button.
3. (For the DS-7600NI series) Turn off the power switch on the rear panel when the attention pops up.

Please power off!

Figure 2.2 Shutdown Attention

Rebooting the NVR

In the Shutdown menu, you can also reboot the NVR.

Steps:

1. Enter the Shutdown menu by clicking Menu > Shutdown.
2. Click the Logout button to lock the NVR or the Reboot button to reboot the NVR.

2.2 Setting Admin Password

Purpose:

For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation.

Steps:

1. Input the same password in the text field of Create New Password and Confirm New Password.

Activation User Name admin Create New P... ***** Confirm New P... ***** ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

Figure 2.3 Settings Admin Password

STRONG PASSWORD RECOMMENDED- We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Click OK to save the password and activate the device.

For the old version device, if you update it to the new version, the following dialog box will pop up once the device starts up. You can click YES and follow the wizard to set a strong password.

Warning Admin password is weak. Please use a strong password to ensure your information security. Continue? YES NO

Figure 2.4 Warning

2.3 Using the Wizard for Basic Configuration

Purpose:

After admin password is set, the setup wizard pops up automatically. It can walk you through some basic settings of the NVR.

Wizard ✓ Start wizard when device starts? Next Exit

Figure 2.5 Start Wizard Interface

Steps:

1. If you don't want to use the setup wizard at that moment, click the Exit button. You can also choose to use the Setup Wizard next time by leaving the "Start wizard when the device starts?" checkbox checked.
2. Click the Next button to enter the Date and Time Settings interface.

Wizard Time Zone (GMT+08:00) Beijing, Urumql, Singapore Date Format MM-DD-YYYY System Date 05-08-2013 System Time 15:22:59 Previous Next Exit

Figure 2.6 Date and Time Settings

1. After the time settings, click Next button which takes you back to the Basic Network Setup Wizard interface.

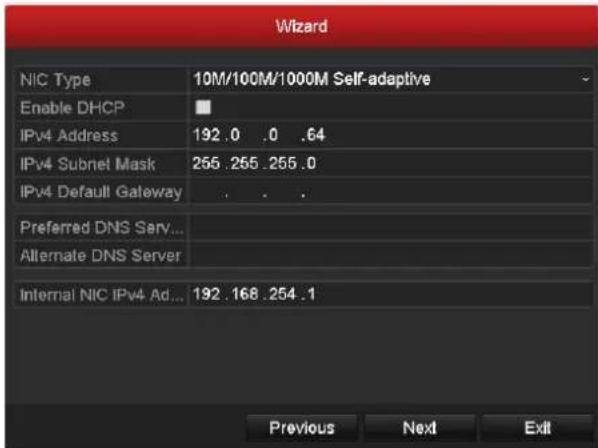

Wizard NIC Type 10M/100M/1000M Self-adaptive Enable DHCP IPv4 Address 192.0 .0 .64 IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway . . . Preferred DNS Serv... Alternate DNS Server Internal NIC IPv4 Ad... 192.168.254.1 Previous Next Exit

Figure 2.7 Network Configuration

• A 10 /100 Mbps self-adaptive Ethernet interface for DS-7604/7608NI, DS-7104/7108NI and DS-7100NI-SL series NVR; and a 10 /100/1000 Mbps self-adaptive Ethernet interface for other models.

• For the DS-7600NI-SE/N(P) series NVR which has the PoE or built-in switch network interfaces, the internal NIC IPv4 address should be configured for the cameras connecting to the PoE or built-in switch network interface of the NVR.

• Click Next button to enter the Advanced Network Parameter interface. You can enable UPnP, enable DDNS and set other ports according to your need.

Wizard Server Port 8000 HTTP Port 80 RTSP Port 554 Enable UPnP ✓ Enable DDNS ■ DDNS Type HIDDNS Area/Country Custom ✓ Server Address www.hik-online.com Device Domain Name Status Offline User Name Password Previous Next Exit

Figure 2.8 Advanced Network Parameters

1. Click Next button after you configured the advanced network parameters. Then you will enter the EZVIZ Cloud P2P interface. Configure the EZVIZ Cloud P2P according to your need.

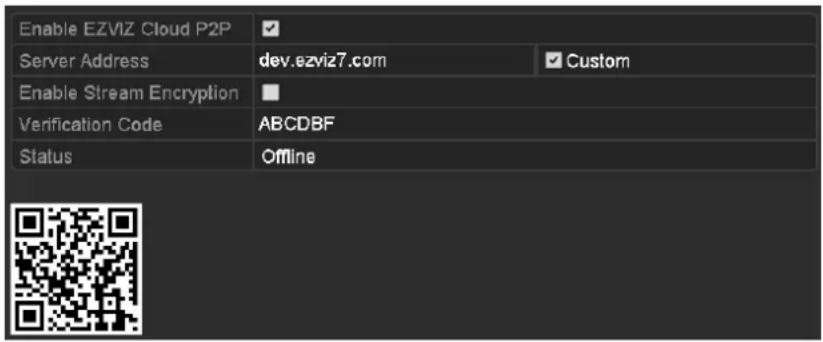

Wizard Enable EZVIZ Clou... Server Address dev.ezviz7.com Custom Enable Stream Encr... Verification Code Status Offline Previous Next Exit

Figure 2.9 Advanced Network Parameters

1. After configuration finishes, click Next button to enter HDD Management interface.

Wizard L... Capacity Status Property Type Free Space 1 465.76GB Normal RAW Local 312GB Init Previous Next Exit

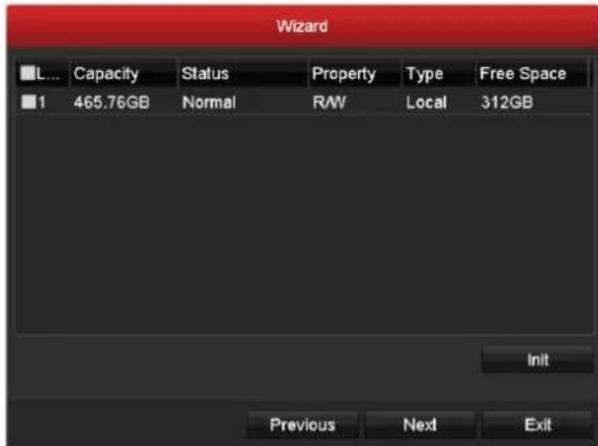

Figure 2. 10 HDD Management

1. To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.
2. Click Next button to enter the IP Camera Management interface.
3. Click Search to search the online IP Camera and the Security status shows whether it is active or inactive. Before adding the camera, make sure the IP camera to be added is in active status.

If the camera is in inactive status, you can click the inactive icon of the camera to set the password to activate it. You can also select multiple cameras from the list and click the One-touch Activate to activate the cameras in batch.

Click the Add to add the camera.

Wizard No. IP Address Security Amount of... Device M... Protocol 1 10.16.1.216 Active 1 DS-2DF7... HIKVISION 2 10.16.1.205 Active 1 DS-2ZMN... HIKVISION 3 10.16.1.228 Active 1 IDS-2CD9... HIKVISION 4 10.16.1.106 Active 0 IPC HIKVISION One-touch A... Add Search Previous Next Exit

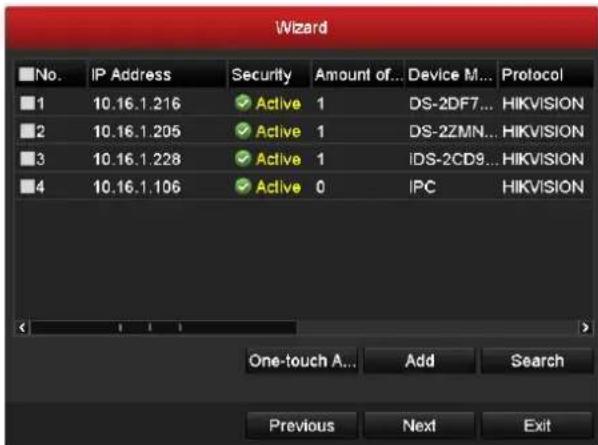

Figure 2. 11 IP Camera Management

1. Click Next button. Configure the recording for the searched IP Cameras.

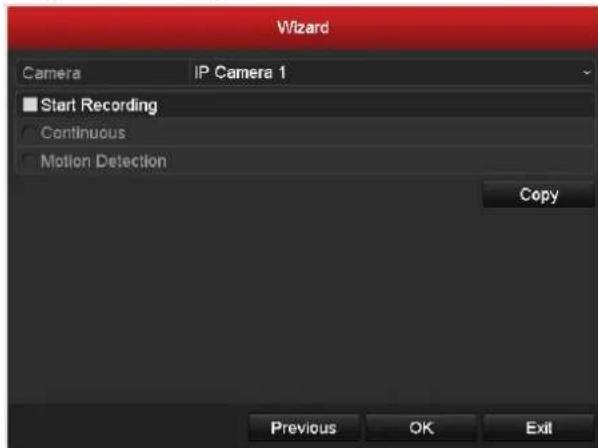

Wizard Camera IP Camera 1 ■ Start Recording ○ Continuous ○ Motion Detection Copy Previous OK Exit

Figure 2. 12 Record Settings

1. Click OK to complete the startup Setup Wizard.

2.4 Login and Logout

2.4.1 User Login

Purpose:

If NVR has logged out, you must login the device before operating the menu and other functions.

Steps:

1. Select the User Name in the dropdown list.

Login User Name admin Password OK Cancel

Figure 2.13 Login Interface

1. Input Password.
2. Click OK to log in.

The device gets locked for 60 seconds if the admin user performs 7 failed password attempts (5 attempts for the guest/operator).

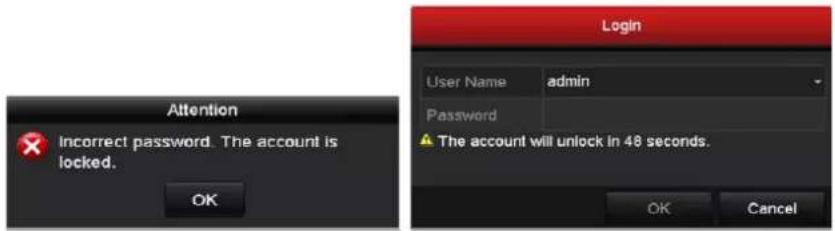

Attention Incorrect password. The account is locked. OK Login User Name admin Password The account will unlock in 48 seconds. OK Cancel

Figure 2. 14 User Account Protection

2.4.2 User Logout

Purpose:

After logging out, the monitor turns to the live view mode and if you want to do some operation, you need to enter user name and password tog in again.

Steps:

1. Enter the Shutdown menu.

Menu>Shutdown

Shutdown Logout Shutdown Reboot Cancel

Figure 2.15 Logout

2. Click Logout.

After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name and password to unlock the system.

2.5 Adding and Connecting the IP Cameras

2.5.1 Activating the IP Camera

Purpose:

Before adding the camera, make sure the IP camera to be added is in active status.

Steps:

1. Enter the IP Camera management interface.

Menu > Camera > Camera

For the IP camera detected online in the same network segment, the Security status shows whether it is active or inactive.

IP Camera IP Camera Import/Export Cam... Add/De... Status Security IP Camera A... Edit Up... Camera Name P D1 Risk Passwo... 10.16.1.93 IPCamera 01 D2 Strong Pass... 10.16.1.205 IPCamera 02 Active 10.16.1.14 Active 10.16.1.216 Inactive 192.168.1.64 Refresh One-touch A... Upgrade Delete One-touch A... Custom Add... Net Receive Idle Bandwidth: 40 Mbps Back

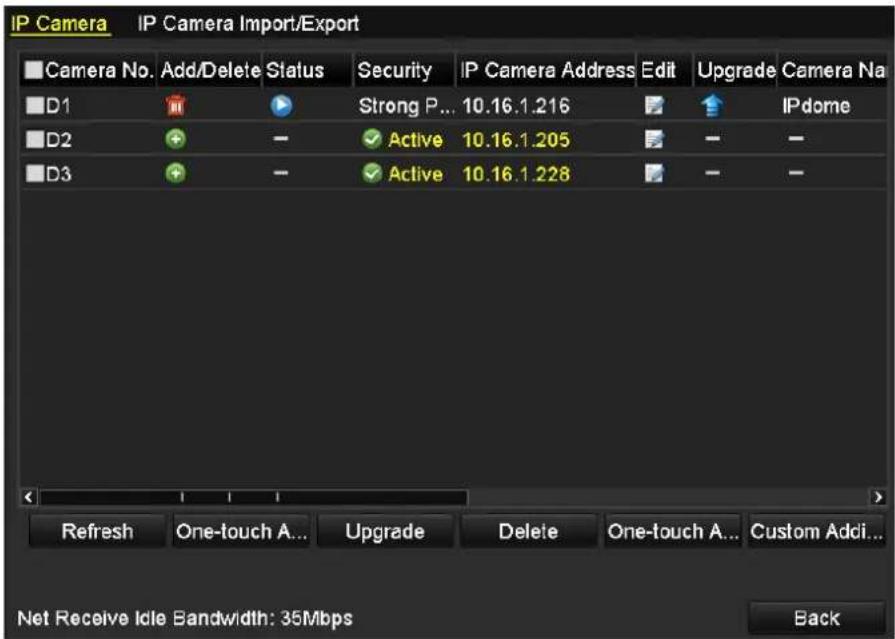

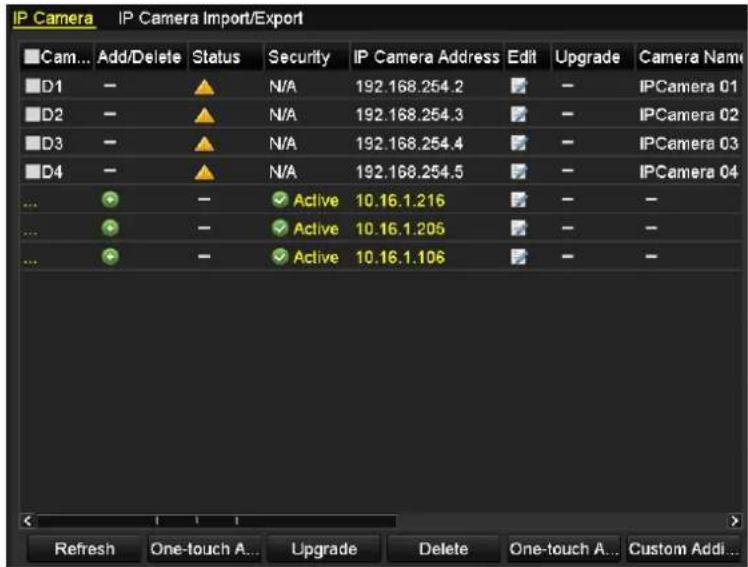

Figure 2. 16 IP Camera Management Interface

1. Click the inactive icon of the camera to enter the following interface to activate it. You can also select multiple cameras from the list and click the One-touch Activate to activate the cameras in batch.

Activation Use Admin Password Create New P... Confirm New P... ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

One-touch Activate ■ Use Admin Password Create New P... Confirm New P... ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

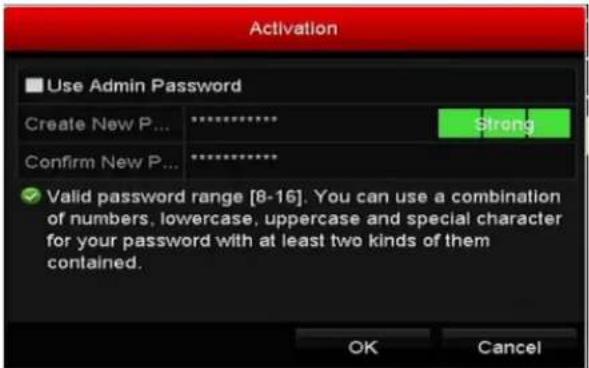

Figure 2.17 Activate the Camera

1. Set the password of the camera to activate it.

Use Admin Password: when you check the checkbox, the camera (s) will be configured with the same

admin password of the operating NVR.

Activation ■ Use Admin Password Create New P... ...... Confirm New P... ...... ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

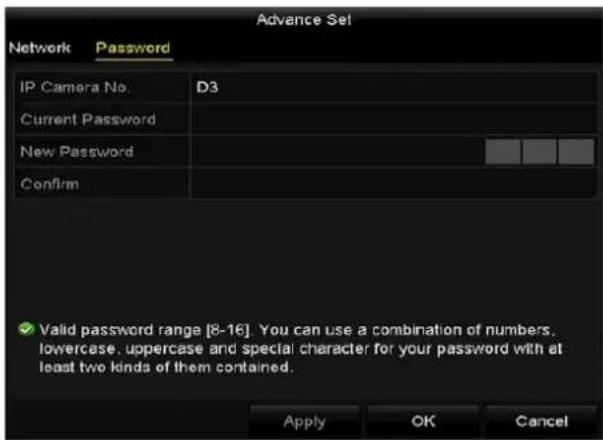

Figure 2.18 Set New Password

Create New Password: If the admin password is not used, you must create the new password for the camera and confirm it.

STRONG PASSWORD RECOMMENDED- We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Click OK to finish the acitating of the IP camera. And the security status of camera will be changed to Active.

2.5.2 Adding the Online IP Cameras

Purpose:

The main function of the NVR is to connect the network cameras and record the video got from it. So before you can get a live view or record of the video, you should add the network cameras to the connection list of the device.

Before you start:

Ensure the network connection is valid and correct. For detailed checking and configuring of the network, please see Chapter 9.3 Checking Network Traffic and Chapter 9.4 Configuring Network Detection.

- OPTION 1:

Steps:

1. Right-click the mouse when you in the live view mode to show the right-click menu.

Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback PTZ Control Output Mode

Figure 2.19 Right-click Menu

1. Positioning the cursor to the Add IP Camera and click to select Manual in the pop-up menu to enter the IP Camera Management interface.

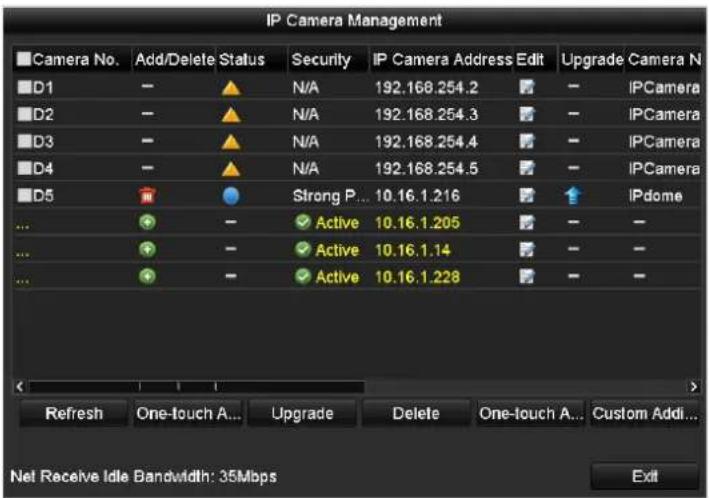

IP Camera Management Camera No. Add/Delete Status Security IP Camera Address Edit Upgrade Camera N D1 - ▲ N/A 192.168.254.2 - IPCamera D2 - ▲ N/A 192.168.254.3 - IPCamera D3 - ▲ N/A 192.168.254.4 - IPCamera D4 - ▲ N/A 192.168.254.5 - IPCamera D5 - ● Strong P... 10.16.1.216 ↑ IPdome ... - ✓ Active 10.16.1.205 - - ... - ✓ Active 10.16.1.14 - - ... - ✓ Active 10.16.1.228 - - Refresh One-touch A... Upgrade Delete One-touch A... Custom Addi... Net Receive Idle Bandwidth: 35Mbps Exit

Figure 2. 20 Adding IP Camera Interface

1. Select the IP camera from the list and click the button to add the camera (with the same admin password of the NVR). Or you can click the One-touch Adding button to add all cameras (with the same admin password) from the list.

Make sure the camera to add has already been activated by setting the admin password, and the admin password of the camera is the same with the NVR.

Table 2.1 Explanation of the icons

Icon	Explanation	Icon	Explanation
[0238]	Edit basic parameters of the camera		Add the detected IP camera.
[H442]	The camera is connected.		The camera is disconnected; you can click the icon to get the exception information of camera.
[0547]	Advanced settings of the camera.		Delete the IP camera
	Upgrade the connected IP camera.	Security	Show the security status of the camera to be active/inactive or the password strength (strong/medium/weak/risk)

1. To add other IP cameras:

1) Click the Custom Adding button to pop up the Add IP Camera (Custom) interface.

Add IP Camera (Custom) No. IP Address Amount of Channels Device Model 1 10.16.1.205 1 DS-2ZMN3006(YF) 2 10.16.1.14 1 DS-2CD2212-I5 3 10.16.1.226 1 IDS-2CD9361-KS IP Camera Address 10.16.1.205 Protocol HIKVISION Management Port 8000 User Name hemin Admin Password Protocol Search Add Back

Figure 2. 21 Custom Adding IP Camera Interface

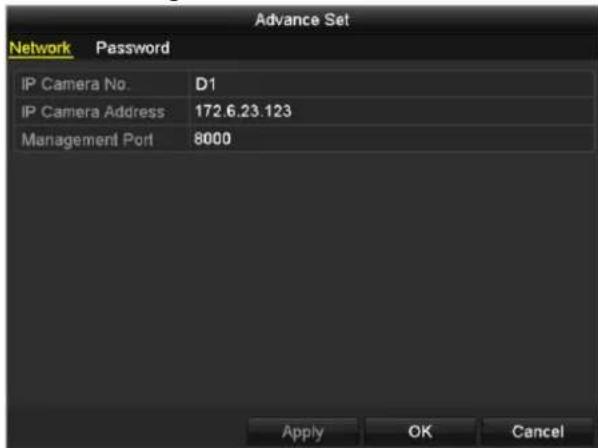

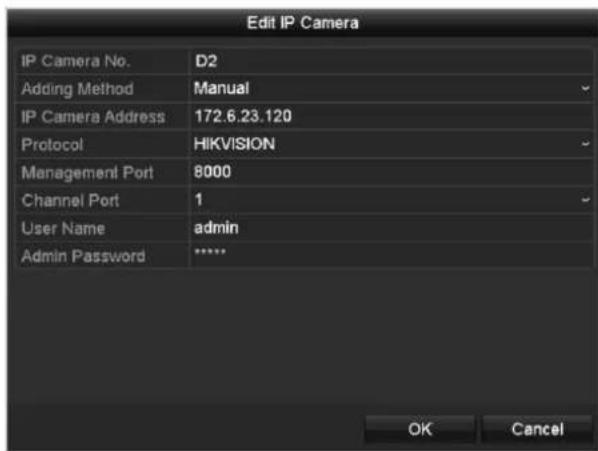

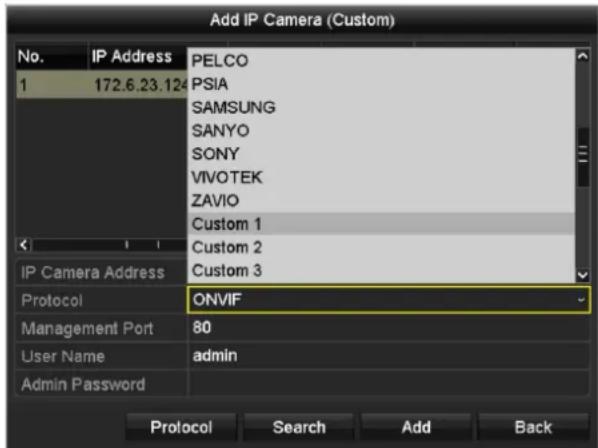

2) You can edit the IP address, protocol, management port, and other information of the IP camera to be added.
3) Click Add to add the camera.

• OPTION 2:

Steps:

1. Enter the Camera Management interface.

Menu > Camera > Camera

Menu Playback Export Manui HDD Rearct Camera Configuration Maintenance Shutdown Camera OSD, event, PTZ settings, etc. Exit

Figure 2. 22 Main Menu

1. Repeat the step 3 and 4 of OPTION 1 to add the camera.

IP Camera IP Camera Import/Export Camera No. Add/Delete Status Security IP Camera Address Edit Upgrade Camera Na D1 Strong P... 10.16.1.216 IPdome D2 Active 10.16.1.205 D3 Active 10.16.1.228 Refresh One-touch A... Upgrade Delete One-touch A... Custom Addi... Net Receive Idle Bandwidth: 35Mbps Back

Figure 2. 23 IP Camera Management Interface

Table 2.2 Explanation of the icons

Icon	Explanation	Icon	Explanation
	Edit basic parameters of the camera		Add the detected IP camera.
[0X77]	The camera is connected; you can click the icon to get the live view of the camera.		The camera is disconnected; you can click the icon to get the exception information of camera.
[7408]	Advanced settings of the camera.		Delete the IP camera
	Upgrade the connected IP camera.	Security	Show the security status of the camera to be active/inactive or the password strength (strong/weak/risk)

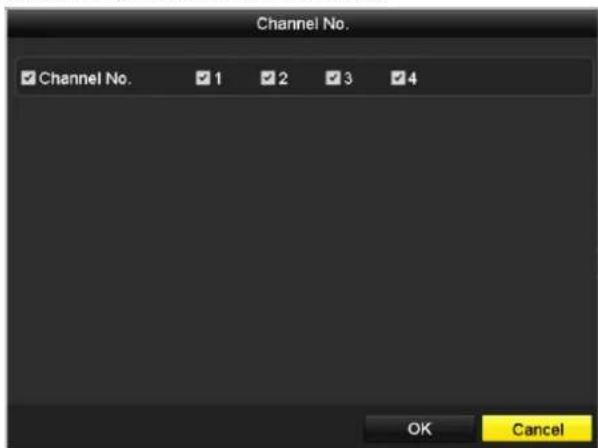

1. (For the encoders with multiple channels only) check the checkbox of Channel No. in the pop-up window, as shown in the following figure, and click OK to finish adding.

Channel No. ✓ Channel No. ✓ 1 ✓ 2 ✓ 3 ✓ 4 OK Cancel

Figure 2. 24 Selecting Multiple Channels

2.5.3 Editing the Connected IP Cameras and Configuring Customized Protocols

After the adding of the IP cameras, the basic information of the camera lists in the page, you can configure the basic setting of the IP cameras.

Steps:

1. Click the icon to edit the parameters; you can edit the IP address, protocol and other parameters.

Edit IP Camera IP Camera No. D1 IP Camera Address 172.6.23.124 Protocol HIKVISION Manage Port 8000 Channel No. 1 User Name adults Admin Password OK Cancel

Figure 2. 25 Edit the Parameters

1. Click OK to save the settings and exit the editing interface.

To edit advanced parameters:

Steps:

1. Drag the horizontal scroll bar to the right side and click the icon.

Advance Set Network Password IP Camera No. D1 IP Camera Address 172.6.23.123 Management Port 8000 Apply OK Cancel

Figure 2. 26 Network Configuration of the Camera

1. You can edit the network information and the password of the camera.

Advance Set Network Password IP Camera No. D3 Current Password New Password Confirm ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Apply OK Cancel

Figure 2. 27 Password Configuration of the Camera

1. Click Apply to save the settings and click OK to exit the interface.

Configuring the customized protocols

Purpose:

To connect the network cameras which are not configured with the standard protocols, you can configure the customized protocols for them.

Steps:

1. Click the Protocol button in the custom adding IP camera interface to enter the protocol management interface.

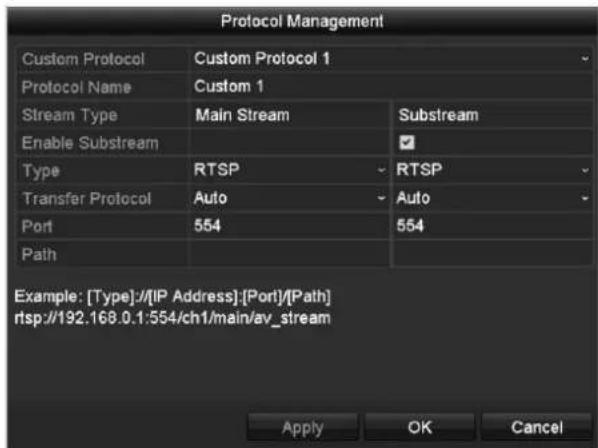

Protocol Management Custom Protocol Custom Protocol 1 Protocol Name Custom 1 Stream Type Main Stream Substream Enable Substream Type RTSP RTSP Transfer Protocol Auto Auto Port 554 554 Path Example: [Type]://[IP Address]:[Port]/[Path] rtsp://192.168.0.1:554/ch1/main/av_stream Apply OK Cancel

Figure 2. 28 Protocol Management Interface

There are 16 customized protocols provided in the system, you can edit the protocol name; and choose whether to enable the sub-stream.

1. Choose the protocol type of transmission and choose the transfer protocols.

Before customizing the protocol for the network camera, you have to contact the manufacturer of the network camera to consult the URL (uniform resource locator) for getting main stream and sub-stream.

The format of the URL is: [Type]://[IP Address of the network camera]:[Port]/[Path].

Example: rtsp://192.168.1.55:554/ch1/main/av_stream.

• Protocol Name: Edit the name for the custom protocol.
• Enable Substream: If the network camera does not support sub-stream or the sub-stream is not needed leave the checkbox empty.
• Type: The network camera adopting custom protocol must support getting stream through standard RTSP.
• Transfer Protocol: Select the transfer protocol for the custom protocol.
  • Port: Set the port No. for the custom protocol.
• Path: Set the resource path for the custom protocol. E.g., ch1/main/av_stream.

The protocol type and the transfer protocols must be supported by the connected network camera.

After adding the customized protocols, you can see the protocol name is listed in the dropdown list, please refer to Figure 2.29.

Add IP Camera (Custom) No. IP Address PELCO 1 172.6.23.124 PSIA SAMSUNG SANYO SONY VIVOTEK ZAVIO Custom 1 < Custom 2 IP Camera Address Custom 3 Protocol ONVIF Management Port 80 User Name adults Admin Password Protocol Search Add Back

Figure 2. 29 Protocol Setting

1. Choose the protocols you just added to validate the connection of the network camera.

2.5.4 Editing IP Cameras Connected to the PoE or the Built-in Switch Interfaces

● This section is applicable to DS-7600NI-SE/N(P) models only.
- As the adding camera steps for the built-in switch are the same with the ones for the PoE interfaces, we take the instruction of connecting to the network cameras via the PoE interface as an example.

The PoE interfaces enable the NVR system to pass electrical power safely, along with data, on Ethernet cabling to the connected network cameras.

For the NVR which supports the PoE function, it can connect to the network cameras directly via the PoE interfaces. And if you disable the PoE interface, you can also connect to the online network cameras.

Example:

As for DS-7608NI-SE/P NVR, when you want to connect 2 online cameras and connect 6 network cameras via PoE interfaces, you must disable 2 PoE interfaces in the Edit IP Camera menu.

Add Cameras for NVR Supporting PoE Function:

Before you start:

Connect the network cameras via the PoE interfaces.

Steps:

1. Enter the Camera Management interface.

Menu > Camera > Camera

IP Camera IP Camera Import/Export Cam... Add/Delete Status Security IP Camera Address Edit Upgrade Camera Name D1 - ▲ N/A 192.168.254.2 - IPCamera 01 D2 - ▲ N/A 192.168.254.3 - IPCamera 02 D3 - ▲ N/A 192.168.254.4 - IPCamera 03 D4 - ▲ N/A 192.168.254.5 - IPCamera 04 ... - ✓ Active 10.16.1.216 - - ... - ✓ Active 10.16.1.205 - - ... - ✓ Active 10.16.1.106 - - - Refresh One-touch A... Upgrade Delete One-touch A... Custom Addi...

Figure 2. 30 List of Connected Cameras

The cameras connecting to the PoE interface cannot be deleted in this menu.

1. Click the button, and select the Adding Method in the drop-down list.

- Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case, the parameters of the camera cannot be edited. The IP address of the camera can only be edited in the Network Configuration interface, see Chapter 9.1 Configuring General Settings for detailed information.

Edit IP Camera IP Camera No. D3 Adding Method Plug-and-Play IP Camera Address 192.168 254.4 Protocol HIKVISION Management Port 8000 Channel Port 1 User Name adults Admin Password OK Cancel

Figure 2.31 Edit IP Camera Interface - Plug-and-Play

- Manual: You can disable the PoE interface by selecting the manual while the current channel can be used as a normal channel and the parameters can also be edited.

Input the IP address, the user name and password of administrator manually, and click OK to add the IP camera.

Edit IP Camera IP Camera No. D2 Adding Method Manual IP Camera Address 172.6.23.120 Protocol HIKVISION Management Port 8000 Channel Port 1 User Name adults Admin Password **** OK Cancel

Figure 2. 32 Edit IP Camera Interface - Manual

2.5.5 Checking the PoE Information

This section is only applicable to DS-7600NI-SE/P models.

Steps:

1. Enter the Camera Management interface.

Menu > Camera > Camera

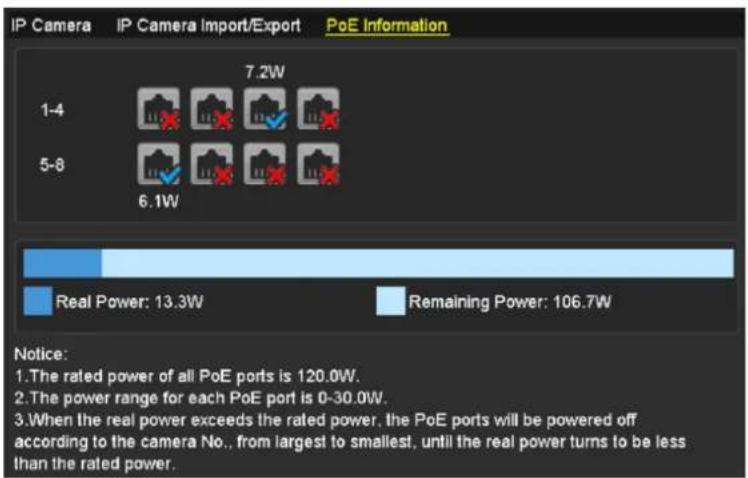

1. Click the PoE Information tab to view the PoE status.

Figure 2. 33 PoE Information Interface

1. You can see the PoE connection status: the connected PoE port is displayed as 📄, and the disconnected one is displayed as 🌐. Besides, the power consumption of each port and all ports are also be clearly displayed.

Chapter 3 Live View

3.1 Introduction of Live View

Live view shows you the video image getting from each camera in real time. The NVR automatically enters Live View mode when powered on. It is also at the very top of the menu hierarchy, thus pressing the ESC many times (depending on which menu you're on) brings you to the Live View mode.

Live View Icons

In the live view mode, there are icons at the upper-right of the screen for each channel, showing the status of the record and alarm in the channel, so that you can know whether the channel is recorded, or whether there are alarms occur as soon as possible.

Table 3.1 Description of Live View Icons

Icons	Description
[ZX4]	Alarm (video loss, video tampering, motion detection, sensor alarm or VCA alarm)
[AGAV]	Record (manual record, continuous record, motion detection , sensor alarm or VCA alarm triggered record)
[VSAT]	Alarm & Record
	Event/Exception (motion detection, sensor alarm, VCA alarm or exception information, appears at the lower-left corner of the screen. Please refer to Chapter 8.7 Setting Alarm Response Actions for details.)

3.2 Operations in Live View Mode

In live view mode, there are many functions provided. The functions are listed below.

• Single Screen: showing only one screen on the monitor.
• Multi-screen: showing multiple screens on the monitor simultaneously.
- Auto-switch: the screen is auto switched to the next one. And you must set the dwell time for each screen on the configuration menu before enabling the auto-switch.
Menu>Configuration>Live View>Dwell Time.
• Start Recording: continuous record and motion detection record are supported.
• Output Mode: select the output mode to Standard, Bright, Gentle or Vivid.
- Add IP Camera: the shortcut to the IP camera management interface.
• Playback: playback the recorded videos for current day.

3.2.1 Using the Mouse in Live View

Table 3.2 Mouse Operation in Live View

Name	Description
Menu	Enter the main menu of the system by right clicking the mouse.
Single Screen	Switch to the single full screen by choosing channel number from the dropdown list.
Multi-screen	Adjust the screen layout by choosing from the dropdown list.
Previous Screen	Switch to the previous screen.
Next Screen	Switch to the next screen.
Start/Stop Auto-switch	Enable/disable the auto-switch of the screens.
Start Recording	Start continuous recording or motion detection recording of all channels.
Add IP Camera	Enter the IP Camera Management interface, and manage the cameras.
Playback	Enter the playback interface and start playing back the video of the selected channel immediately.
Output Mode	Four modes of output supported, including Standard, Bright, Gentle and Vivid.

• The dwell time of the live view configuration must be set before using Start Auto-switch.
• If the corresponding camera supports intelligent function, the Reboot Intelligence option is included when right-clicking mouse on this camera.

Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback Output Mode

Figure 3.1 Right-click Menu

3.2.2 Quick Setting Toolbar in Live View Mode

On the screen of each channel, there is a quick setting toolbar which shows when you single click the mouse in the corresponding screen.

Figure 3.2 Quick Setting Toolbar

Table 3. 3 Description of Quick Setting Toolbar Icons

Icon	Description	Icon	Description	Icon	Description
	Enable/Disable Manual Record		Instant Playback		Mutc/Audio on
	PTZ Control		Digital Zoom		Image Settings
	Live View Strategy		Close

The PTZ control is supported by DS-7600NI-SE series NVR only.

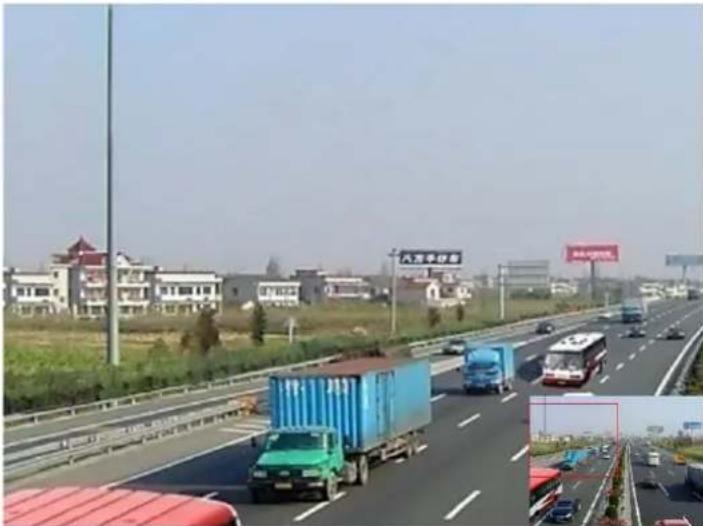

Digital Zoom can zoom in the selected area to the full screen. You can left-click and draw to select the area to zoom in, as shown in Figure 3. 3.

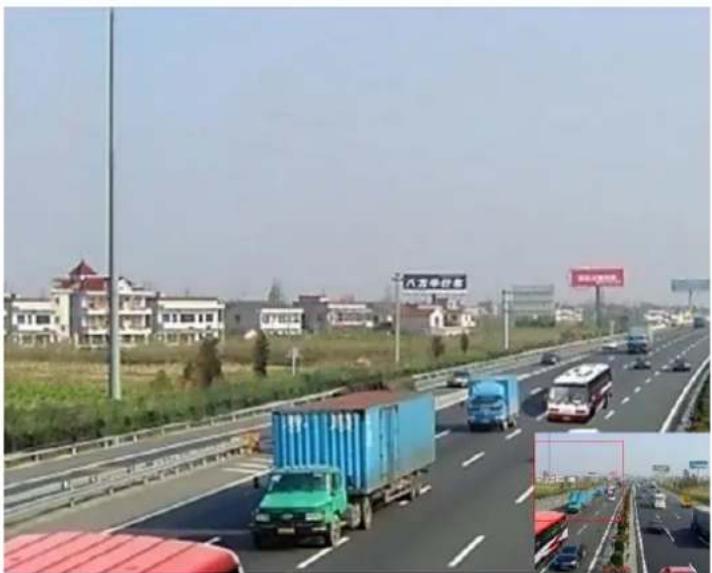

Highway scene with trucks, shipping containers, and residential buildings in the background (no visible text or symbols)

Figure 3.3 Digital Zoom

Image Settings icon can be selected to enter the Image Settings menu.

Image Settings Mode Custom 128 °C 128 °C 128 °C 128 °C OK

Figure 3.4 Image Settings- Preset

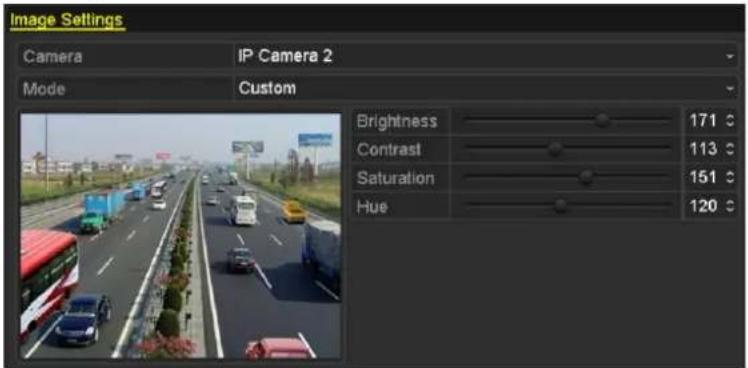

You can set the image parameters like brightness, contrast, saturation and hue.

Image Settings Mode Custom 172 °C 114 °C 151 °C 117 °C OK

Figure 3.5 Image Settings- Customize

Live View Strategy can be selected to set strategy, including Real-time, Balanced, Fluency.

Live View Strategy Real-time Balanced Fluency OK Cancel

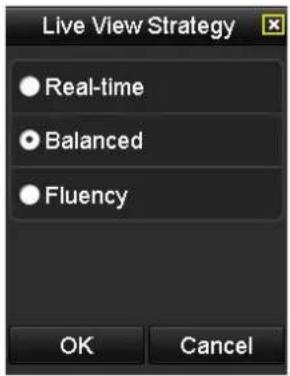

Figure 3.6 Live View Strategy

3.3 Adjusting Live View Settings

Purpose:

Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.

Steps:

1. Enter the Live View Settings interface.

Menu> Configuration> Live View

General View Video Output Interface VGA/HDMI Live View Mode 4 * 4 Dwell Time No Switch Enable Audio Output ■ Event Output VGA/HDMI Full Screen Monitoring D... 10s

Figure 3.7 Live View-General

The settings available in this menu include:

• Video Output Interface: Designates the output to configure the settings for, and only VGA/ HDMI ^TM is selectable by default.
  • Live View Mode: Designates the display mode to be used for Live View.
• Dwell Time: The time in seconds to dwell between switching of channels when enabling auto-switch in Live View.

• Enable Audio Output: Enables/disables audio output for the selected video output.
  • Event Output: Designates the output to show event video.
  • Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.

• Setting Cameras Order

General View Video Output Interface VGA/HDMI Came ... Camera Name D1 Camera 01 D2 IPCamera 02 D3 IPCamera 03 D4 IPCamera 04 D5 IPCamera 05 D6 IPCamera 06 D7 IPCamera 07 D8 IPCamera 08 D9 IPCamera 09 D... IPCamera 10 D... IPCamera 11 D... IPCamera 12 D... IPCamera 13 D... IPCamera 14 D... IPCamera 15 1 2 D13 3 D3 4 5 6 D4 D9 D6 P: 1/6

Figure 3.8 Live View- Camera Order

1) Select a View mode in

2) Select the small window, and double-click on the channel number to display the channel on the window.

If you do not want the camera to be displayed on the live view interface, click the corresponding to stop it.

You can also click button to start live view for all the channels and click to stop all the live view.

3) Click the Apply button to save the setting.

3.4 User Logout

Purpose:

After logging out, the monitor turns to the live view mode and if you want to do some operation, you need to enter user name and password tog in again.

Steps:

3. Enter the Shutdown menu.

Menu>Shutdown

Shutdown Logout Shutdown Reboot Cancel

Figure 3.9 Shutdown

4. Click Logout.

After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name and password to unlock the system.

Chapter 4 PTZ Controls

The PTZ control is supported by the DS-7600NI-SE series NVR only.

4.1 Configuring PTZ Settings

Purpose:

Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before you control the PTZ camera.

Steps:

1. Enter the PTZ Settings interface.

Menu >Camera> PTZ

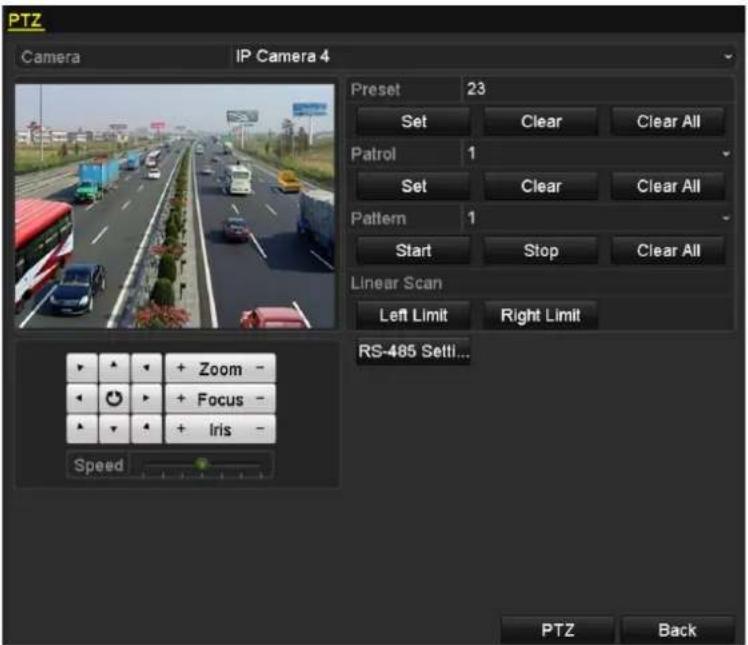

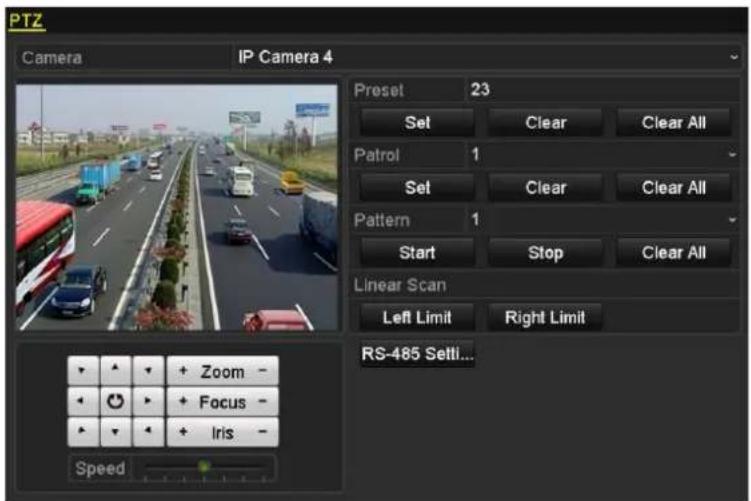

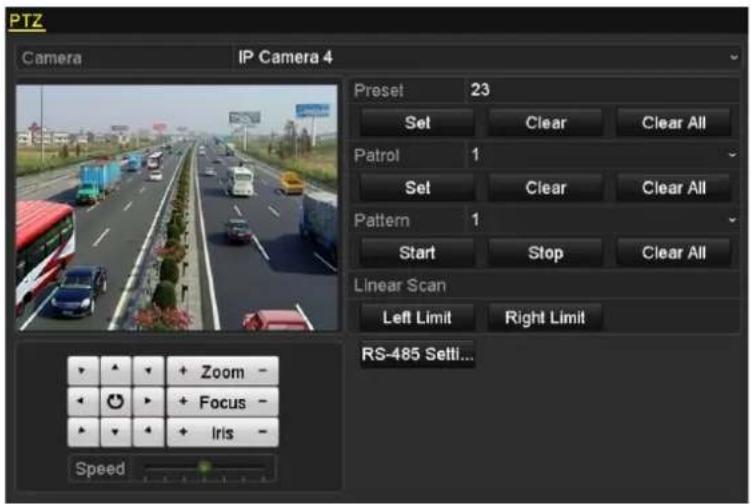

PTZ Camera IP Camera 4 Preset 23 Set Clear Clear All Patrol 1 Set Clear Clear All Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit RS-485 Settl... Zoom - Focus - Iris - Speed PTZ Back

Figure 4.1 PTZ Settings

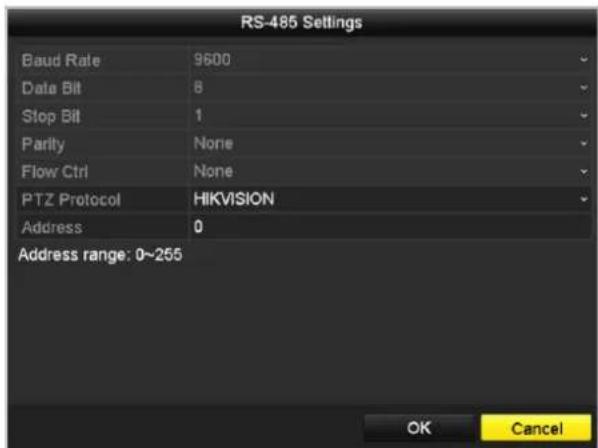

2. Click the RS-485 Settings button to set the RS-485 parameters.

RS-485 Settings Baud Rate 9600 Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None PTZ Protocol HIKVISION Address 0 Address range: 0~255 OK Cancel

Figure 4.2 PTZ-General

1. Choose the camera for PTZ setting in the Camera dropdown list.
2. Enter the parameters of the PTZ camera.

All the parameters should be exactly the same as the PTZ camera parameters.

1. Click Apply button to save the settings.

4.2 Setting PTZ Presets, Patrols & Patterns

Before you start:

Please make sure that the presets, patrols and patterns should be supported by PTZ protocols.

4.2.1 Customizing Presets

Purpose:

Follow the steps to set the Preset location which you want the PTZ camera to point to when an event takes place.

Steps:

1. Enter the PTZ Control interface.

Menu>Camera>PTZ

PTZ Camera IP Camera 4 Preset 23 Set Clear Clear All Patrol 1 Set Clear Clear All Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit RS-485 Settl... + Zoom - + Focus - + Iris - Speed

Figure 4.3 PTZ Settings

1. Use the directional button to wheel the camera to the location where you want to set preset; and the zoom and focus operations can be recorded in the preset as well.
2. Enter the preset No. (1\~255) in the preset text field, and click the Set button to link the location to the preset. Repeat the steps2-3 to save more presets.

You can click the Clear button to clear the location information of the preset, or click the Clear All button to clear the location information of all the presets.

4.2.2 Calling Presets

Purpose:

This feature enables the camera to point to a specified position such as a window when an event takes place.

Steps:

1. Click the button PTZ in the lower-right corner of the PTZ setting interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar, or

select the PTZ option in the right-click menu to show the PTZ control panel.

1. Choose Camera in the dropdown list.

2. Click the ▶ button to show the general settings of the PTZ control.

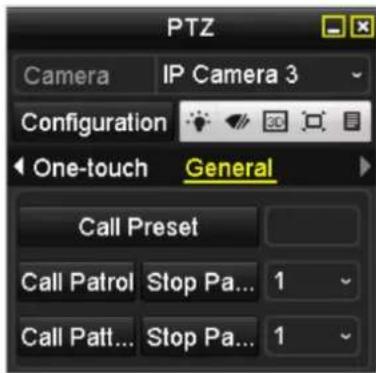

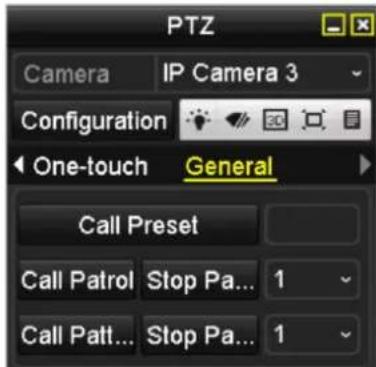

PTZ Camera IP Camera 3 Configuration One-touch General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

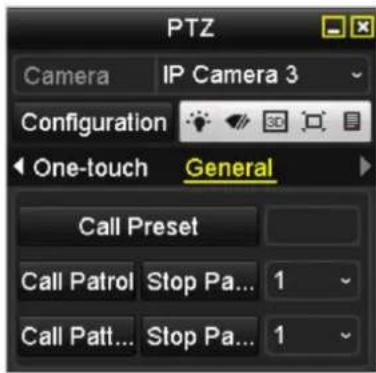

Figure 4. 4 PTZ Panel - General

1. Click to enter the preset No. in the corresponding text field.

2. Click the Call Preset button to call it.

4.2.3 Customizing Patrols

Purpose:

Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving on to the next key point. The key points are corresponding to the presets. The presets can be set following the steps above in Customizing Presets.

Steps:

1. Enter the PTZ Control interface.

Menu>Camera>PTZ

PTZ Camera IP Camera 4 Preset 23 Set Clear Clear All Patrol 1 Set Clear Clear All Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit RS-485 Setti... + Zoom - + Focus - + Iris - Speed

Figure 4.5 PTZ Settings

1. Select patrol No. in the drop-down list of patrol.
2. Click the Set button to add key points for the patrol.

KeyPoint KeyPoint: 1 Preset 1 Duration 0 Speed 1 Add OK Cancel

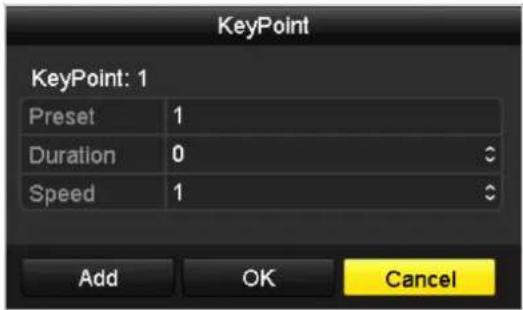

Figure 4.6 Key point Configuration

1. Configure key point parameters, such as the key point No., duration of staying for one key point and speed of patrol. The key point is corresponding to the preset. The Key Point No. determines the order at which the PTZ will follow while cycling through the patrol. The Duration refers to the time span to stay at the corresponding key point. The Speed defines the speed at which the PTZ will move from one key point to the next.
2. Click the Add button to add the next key point to the patrol, and you can click the OK button to save the key point to the patrol.

You can delete all the key points by clicking the Clear button for the selected patrol, or click the Clear All button to delete all the key pints for all patrols.

4.2.4 Calling Patrols

Purpose:

Calling a patrol makes the PTZ to move according the predefined patrol path.

Steps:

1. Click the button PTZ in the lower-right corner of the PTZ setting interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.

1. Click the ▶ button to show the general settings of the PTZ control.

PTZ Camera IP Camera 3 Configuration One-touch General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

Figure 4.7 PTZ Panel - General

1. Select a patrol in the dropdown list and click the Call Patrol button to call it.
2. You can click the Stop Patrol button to stop calling it.

4.2.5 Customizing Patterns

Purpose:

Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement according to the predefined path.

Steps:

1. Enter the PTZ Control interface.

Menu > Camera > PTZ

PTZ Camera IP Camera 4 Preset 23 Set Clear Clear All Patrol 1 Set Clear Clear All Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit RS-485 Settl... Zoom - Focus - Iris - Speed

Figure 4.8 PTZ Settings

1. Choose pattern number in the dropdown list.
2. Click the Start button and click corresponding buttons in the control panel to move the PTZ camera, and click the Stop button to stop it.

The movement of the PTZ is recorded as the pattern.

4.2.6 Calling Patterns

Purpose:

Follow the procedure to move the PTZ camera according to the predefined patterns.

Steps:

1. Click the button PTZ in the lower-right corner of the PTZ setting interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.

1. Click the ▶ button to show the general settings of the PTZ control.

PTZ Camera IP Camera 3 Configuration One-touch General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

Figure 4.9 PTZ Panel - General

1. Click the Call Pattern button to call it.
2. Click the Stop Pattern button to stop calling it.

4.2.7 Customizing Linear Scan Limit

Purpose:

The Linear Scan can be enabled to trigger the scan in the horizontal direction in the predefined range.

This function is supported by some certain models.

Steps:

1. Enter the PTZ Control interface.

Menu > Camera > PTZ

PTZ Camera IP Camera 4 Preset 23 Set Clear Clear All Patrol 1 Set Clear Clear All Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit RS-485 Settl... + Zoom - + Focus - + Iris - Speed

Figure 4. 10 PTZ Settings

1. Use the directional button to wheel the camera to the location where you want to set the limit, and click the Left Limit or Right Limit button to link the location to the corresponding limit.

The speed dome starts linear scan from the left limit to the right limit, and you must set the left limit on the left side of the right limit, as well the angle from the left limit to the right limit should be no more than 180^ .

4.2.8 Calling Linear Scan

Purpose:

Follow the procedure to call the linear scan in the predefined scan range.

Steps:

1. Click the button PTZ in the lower-right corner of the PTZ setting interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu in live view mode.

1. Click the ▶ button to show the one-touch function of the PTZ control.

PTZ Camera IP Camera 4 Configuration PTZ Control One-touch Park(Quick Patrol) Park(Patrol 1) Park(Preset 1) Linear Scan Restore

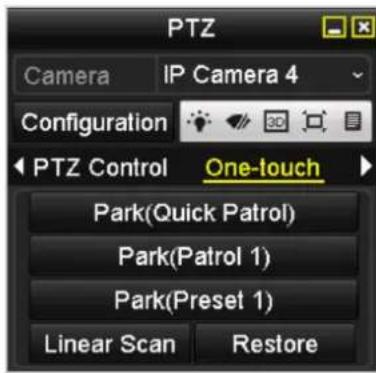

Figure 4.11 PTZ Panel - One-touch

1. Click Linear Scan button to start the linear scan and click the Linear Scan button again to stop it.

You can click the Restore button to clear the defined left limit and right limit data and the dome needs to reboot to make settings take effect.

4.2.9 One-touch Park

Purpose:

For some certain model of the speed dome, it can be configured to start a predefined park action (scan, preset, patrol and etc.) automatically after a period of inactivity (park time).

Steps:

1. Click the button PTZ in the lower-right corner of the PTZ setting interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu in live view mode.

1. Click the ▶ button to show the one-touch function of the PTZ control.

PTZ Camera IP Camera 4 Configuration PTZ Control One-touch Park(Quick Patrol) Park(Patrol 1) Park(Preset 1) Linear Scan Restore

Figure 4. 12 PTZ Panel - One-touch

1. There are 3 one-touch park types selectable, click the corresponding button to activate the park action.

Park (Quick Patrol): The dome starts patrol from the predefined preset 1 to preset 32 in order after the park time. The undefined preset will be skipped.

Park (Patrol 1): The dome starts move according to the predefined patrol 1 path after the park time.

Park (Preset 1): The dome moves to the predefined preset 1 location after the park time.

The park time can only be set through the speed dome configuration interface, by default the value is 5s.

1. Click the button again to inactivate it.

4.3 PTZ Control Panel

To enter the PTZ control panel, there are two ways supported.

OPTION 1:

In the PTZ settings interface, click the PTZ button on the lower-right corner which is next to the Back button.

OPTION 2:

In the Live View mode, you can press the PTZ Control button on the front panel or on the remote control, or choose the PTZ Control icon 📄 to select the PTZ option in the right-click menu.

Click the Configuration button on the control panel, and you can enter the PTZ Settings interface.

In PTZ control mode, the PTZ panel will be displayed when a mouse is connected with the device. If no mouse is connected, the PTZ icon appears in the lower-left corner of the window, indicating that this camera is in PTZ control mode.

PTZ Camera IP Camera 3 Configuration PTZ Control One-touch Zoom - Focus - Iris - Speed

PTZ Camera IP Camera 4 Configuration PTZ Control One-touch Park(Quick Patrol) Park(Patrol 1) Park(Preset 1) Linear Scan Restore

PTZ Camera IP Camera 7 Configuration One-touch General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

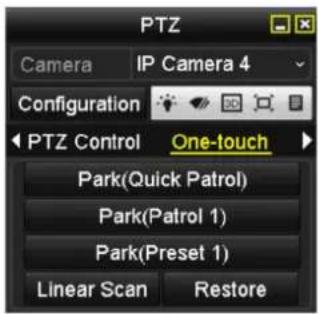

Figure 4. 13 PTZ Panel
Table 4.1 Description of the PTZ panel icons

Icon	Description	Icon	Description	Icon	Description
	Direction button and the auto-cycle button		Zoom+, Focus+, Iris+		Zoom-, Focus-, Iris-
	The speed of the PTZ movement		Light on/off		Wiper on/off
	3D-Zoom		Image Centralization		Menu
	Switch to the PTZ control interface		Switch to the one-touch control interface		Switch to the general settings interface
	Previous item		Next item		Start pattern / patrol
	Stop the patrol / pattern movement		Exit		Minimize windows

Chapter 5 Recording Settings

5.1 Configuring Parameters

Purpose:

By configuring the parameters you can define the parameters which affect the image quality, such as the transmission stream type, the resolution and so on.

Before you start:

1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. (Menu>HDD>General)

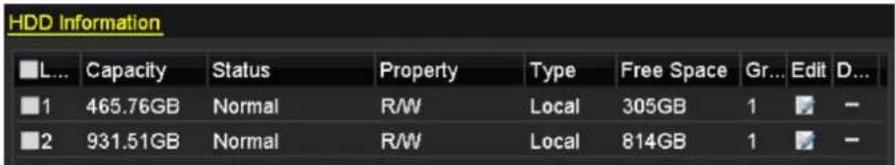

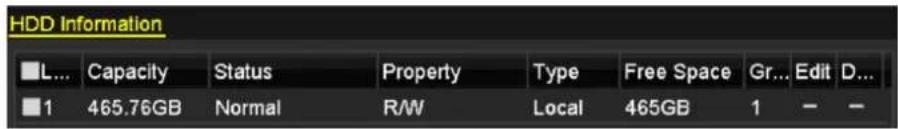

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 305GB 1 - 2 931.51GB Normal R/W Local 814GB 1 -

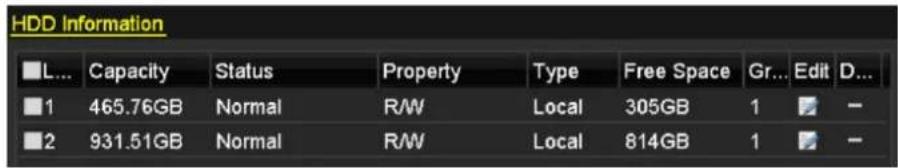

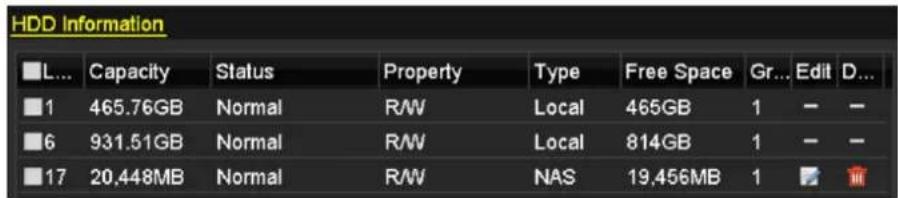

Figure 5.1 HDD-General

1. Check the storage mode of the HDD.

1) Click Advanced to check the storage mode of the HDD.

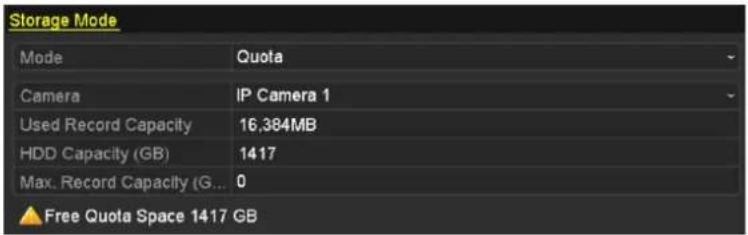

2) If the HDD mode is Quota, please set the maximum record capacity. For detailed information, see Chapter Configuring Quota Mode.
3) If the HDD mode is Group, you should set the HDD group. For detailed information, see Chapter Configuring HDD Group for Recording.

Storage Mode Mode Group Record on HDD Group Quota Group IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16

Figure 5.2 HDD- Advanced

Steps:

1. Enter the Record settings interface to configure the recording parameters:

Menu>Record>Parameters

Record Substream Camera IP Camera 1 Encoding Parameters Main Stream(Continuous) Main Stream(Event) Stream Type Video & Audio - Video & Audio Resolution 1280'720(HD720P) - 1280'720(HD720P) Bitrate Type Variable - Variable Video Quality Medium - Medium Frame Rate Full Frame - Full Frame Max. Bitrate Mode General - General Max. Bitrate(Kbps) 3072 - 3072 Max. Bitrate Range Reco... 2304~3840(Kbps) 2304~3840(Kbps) Pre-record 5s Post-record 5s Expired Time (day) 0 Redundant Record ■ Record Audio ✓ Video Stream Main Stream

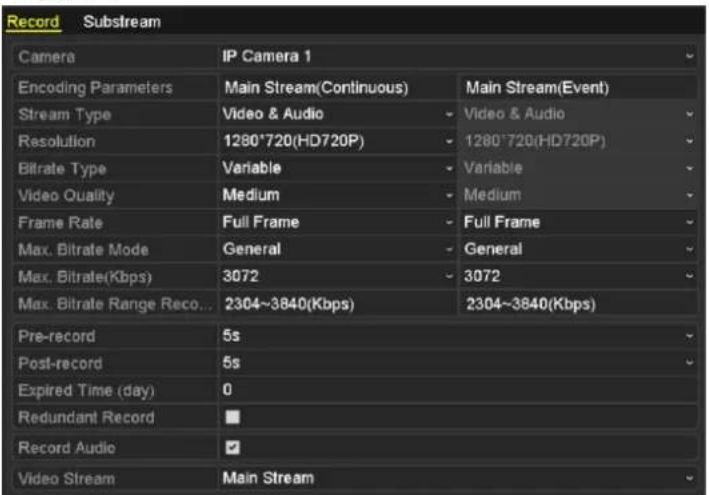

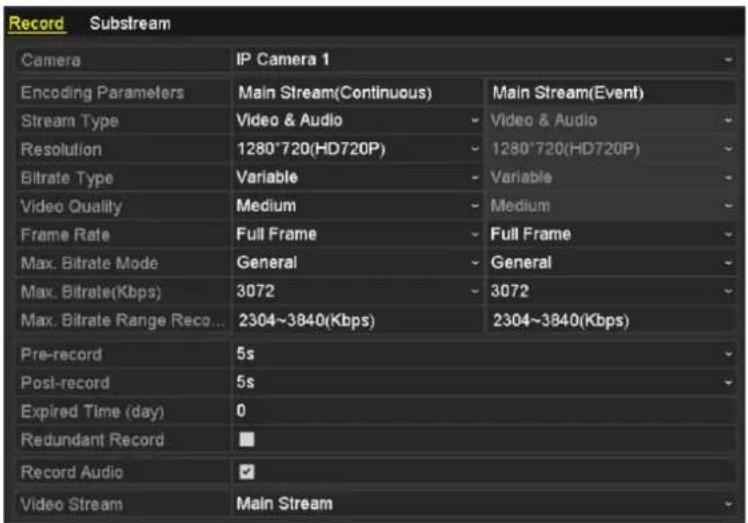

Figure 5.3 Recording Parameters

2. Parameters Setting for Recording

1) Select Record tab page to configure. You can configure the stream type, the resolution, and other parameters on your demand.

• Pre-record: The time you set to record before the scheduled time or event. For example, when an alarm triggered the recording at 10:00, if you set the pre-record time as 5 seconds, the camera records it at 9:59:55.
• Post-record: The time you set to record after the event or the scheduled time. For example, when an alarm triggered the recording ends at 11:00, if you set the post-record time as 5 seconds, it records till 11:00:05.
• Expired Time: The expired time is the longest time for a record file to be kept in the HDD, if the deadline is reached, the file will be deleted. You can set the expired time to 0, and then the file will not be deleted. The actual keeping time for the file should be determined by the capacity of the HDD.
• Redundant Record: Enabling redundant record means you save the recording files in the redundant HDD. See Chapter Configuring Redundant Recording.
• Record Audio: Check the checkbox to enable or disable audio recording.
• Video Stream: Main stream and sub-stream are selectable for recording. When you select sub-stream, you can record for a longer time with the same storage space.

2) Click Apply to save the settings.

• The redundant record is to decide whether you want the camera to save the recording files in the redundant HDD. You must configure the redundant HDD in HDD settings. For detailed information, see Chapter 10.3.2.
• The parameters of Main Stream (Event) are read-only.

3. Parameters Settings for Sub-stream

1) Enter the Sub-stream tab page.

Record Substream
Camera	IP Camera 1
Stream Type	Video & Audio
Resolution	352*288(CIF)
Bitrate Type	Variable
Video Quality	Medium
Frame Rate	12fps
Max. Bitrate Mode	General
Max. Bitrate(Kbps)	512
Max. Bitrate Range Reco...	153~255(Kbps)

Figure 5.4 Sub-stream Parameters

2) Configure the parameters of the camera.
3) Click Apply to save the settings.

5.2 Configuring Recording Schedule

Purpose:

Set the recording schedule, and then the camera automatically starts/stops recording according to the configured schedule.

Steps:

1. Enter the Record Schedule interface.

Menu>Record>Schedule

1. Configure Record Schedule

1) Select Record Schedule.

Record Camera IP Camera 1 Enable Schedule 0 2 4 6 8 10 12 14 16 18 20 22 24 Mon Tue Wed Thu Fri Sat Sun Edit Continuous Event Motion Alarm M | A M & A VCA None

Figure 5.5 Record Schedule

The Alarm, Motion & Alarm, Motion | Alarm recording types are not supported by the DS-7100NI-SL(/W) series NVR.

2) Choose the camera you want to configure.

3) Select the check box after the Enable Schedule item.

4) Click Edit button or click on the color icon under the edit button and draw the schedule line on the panel.

Edit the schedule:

I. In the message box, you can choose the day to which you want to set schedule.

Edit Schedule Mon All Day ■ Type Continuous Start/End Time 00:00-00:00 ● Type Continuous Start/End Time 00:00-00:00 ● Type Continuous Start/End Time 00:00-00:00 ● Type Continuous Start/End Time 00:00-00:00 ● Type Continuous Start/End Time 00:00-00:00 ● Type Continuous Start/End Time 00:00-00:00 ○ Type Continuous Start/End Time 00:00-00:00 ● Type Continuous Start/End Time 00:00-00:00 ● Type Continuous Copy Apply OK Cancel

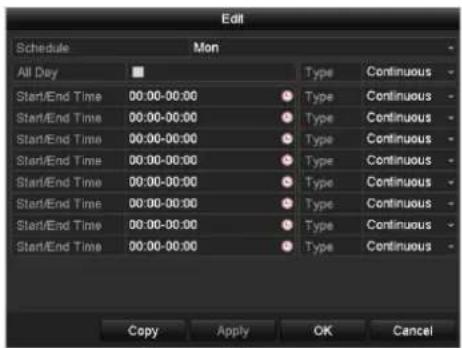

Figure 5.6 Recording Schedule Interface

You can click the button to set the accurate time of the schedule.

II. To schedule an all-day recording, check the checkbox after the All Day item.

All Day Start/End Time 00:00-00:00 Start/End Time 00 : 00 : 00 : 00 Start/End Time 00:00-00:00 Type Continuous Type Continuous Type Continuous Type Continuous

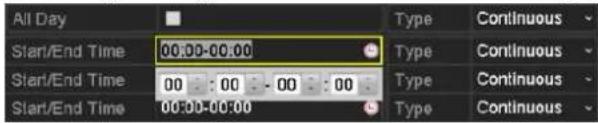

Figure 5.7 Edit Schedule

III. To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.

Up to 8 periods can be configured for each day. And the time periods cannot be overlapped each other.

IV. Select the record type in the dropdown list.

- To enable Motion, Alarm, M | A (motion or alarm), M & A (motion and alarm) and VCA (Video Content Analysis) triggered recording and capture, you must configure the motion detection settings, alarm input settings or VCA settings as well. For detailed information, refer to Chapter 8.1, Chapter 8.2 and Chapter 8.5.

● The VCA settings are only available to the smart IP cameras.

Repeat the above edit schedule steps to schedule recording for other days in the week. You can click Copy to enter the Copy to interface to copy the schedule settings to other days

V. Click Apply in the Record Schedule interface to save the settings.

Draw the schedule:

I. Click on the color icons, you can choose the schedule type as continuous or event.

Figure 5.8 Draw the Schedule

Descriptions of the color icons are shown in the figure below.

Normal recording Continuous Event Motion Recording triggered by motion Recording triggered by alarm Recording triggered by either motion or alarm Recording triggered by VCA Recording triggered by both motion and alarm Recording triggered by VCA None Delete the set schedule

Figure 5.9 Descriptions of the color icons

II. Click the Apply button to validate the settings.

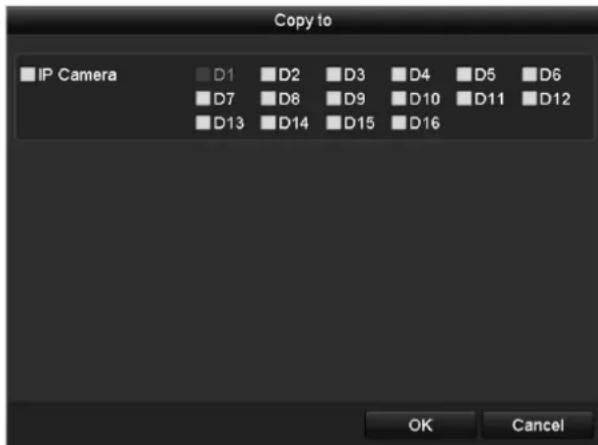

1. (Optional) If the settings can also be used to other channels, click Copy, and then choose the channel to which you want to copy.
2. Click Apply to save the settings.

5.3 Configuring Motion Detection Recording

Purpose:

Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the NVR can analyze it and do many actions to handle it. Enabling motion detection function can trigger certain channels to start recording, or trigger full screen monitoring, audio warning, notify the surveillance center and so on. In this chapter, you can follow the steps to schedule a record which triggered by the detected motion.

Steps:

1. Enter the Motion Detection interface.

Menu>Camera>Motion

1. Configure Motion Detection

1) Choose camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion detection for all the area shot by the camera, click Full Screen. To clear the motion detection area, click Clear.

Motion Detection Camera IP Camera 4 Enable Motion Detection Settings Sensitivity Full Screen Clear

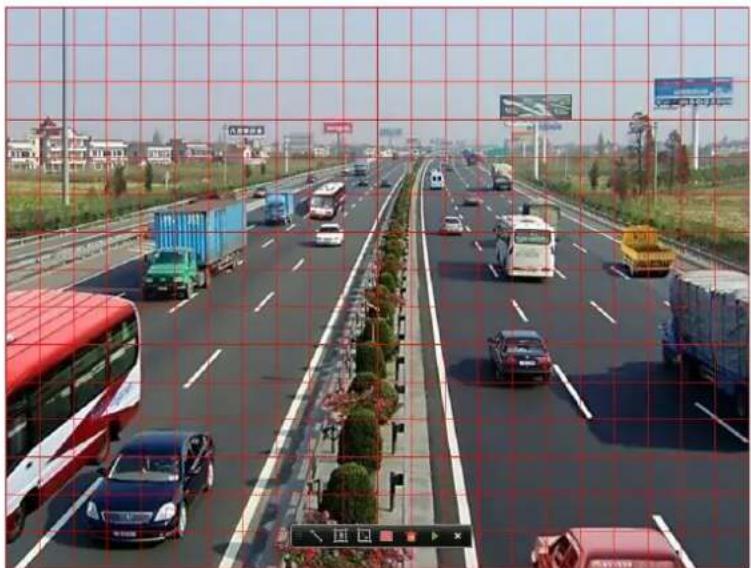

Figure 5. 10 Motion Detection-Mask

4) Click Settings, and the message box for channel information pop up.

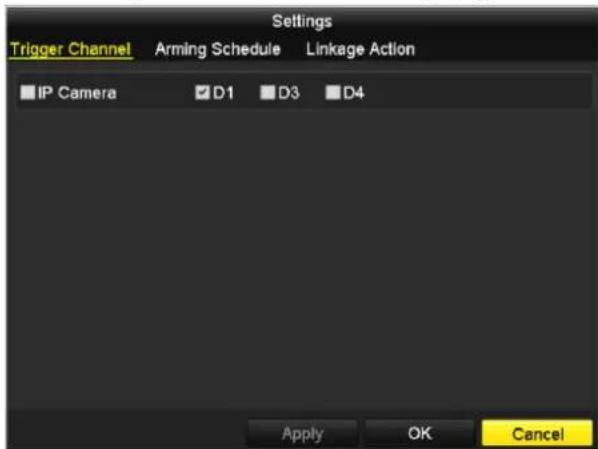

Settings Trigger Channel Arming Schedule Linkage Action IP Camera D1 D3 D4 Apply OK Cancel

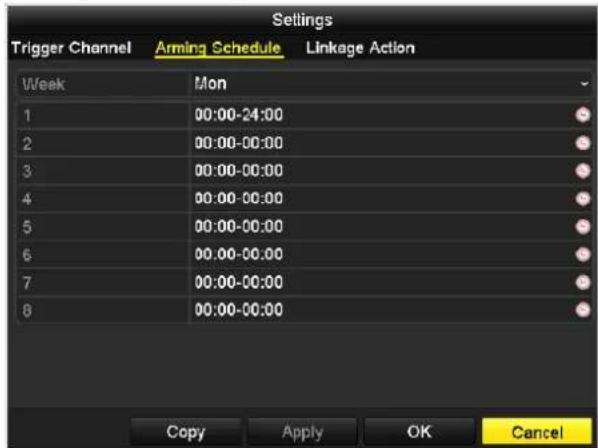

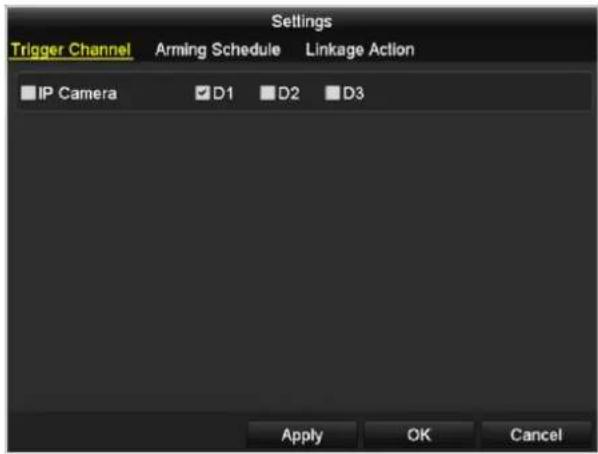

Figure 5.11 Motion Detection Handling

5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.

7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.

1. Edit the Motion Detection Record Schedule. For the detailed information of schedule configuration, see Chapter Configuring Recording Schedule.

5.4 Configuring Alarm Triggered Recording

The alarm triggered recording is not supported by the DS-7100NI-SL(/W) series NVR.

Purpose:

Follow the procedure to configure alarm triggered recording.

Steps:

1. Enter the Alarm setting interface.

Menu> Configuration> Alarm

Alarm Status Alarm Input Alarm Output Alarm Input List Alarm Input No. Alarm Name Alarm Type Local<-1 N.O Local<-2 N.O Local<-3 N.O Local<-4 N.O Local<-5 N.O Local<-6 N.O Local<-7 N.O Alarm Output List Alarm Output No. Alarm Name Dwell Time Local->1 Manually Clear Local->2 Manually Clear Local->3 Manually Clear Local->4 Manually Clear 172.6.23.105:8000->1 5s

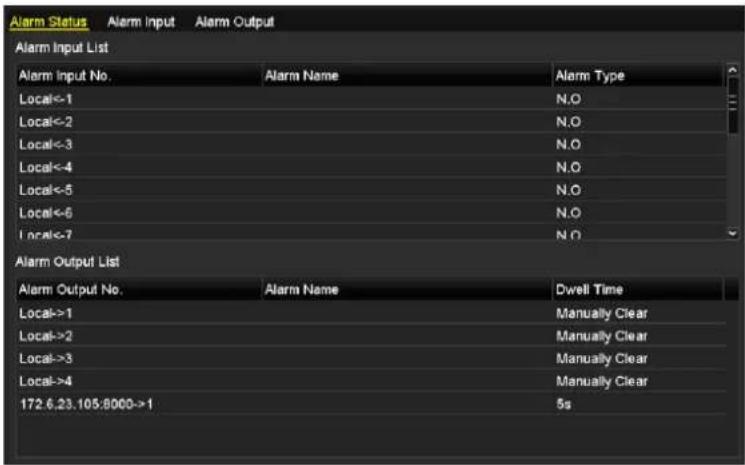

Figure 5.12 Alarm Settings

2. Click Alarm Input tab and set the alarm parameters.

Alarm Status Alarm Input Alarm Output Alarm Input No. Local<-1 Alarm Name Type N.O Enable Settings

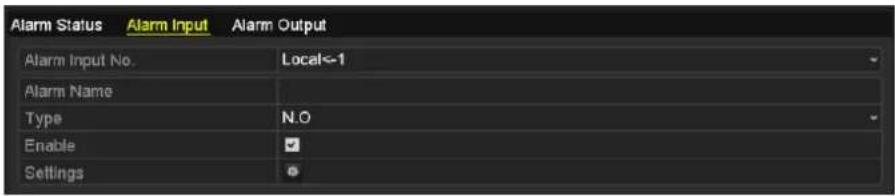

Figure 5.13 Alarm Settings- Alarm Input

1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox for Enable.
4) Click Settings.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking IP Camera D1 D2 Apply OK Cancel

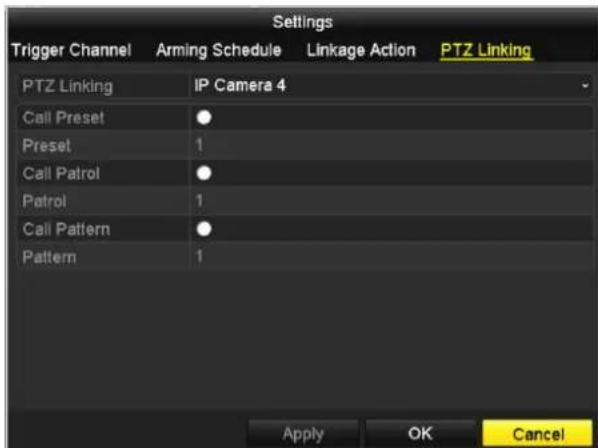

Figure 5.14 Alarm Settings

5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.

Repeat the above steps to configure other alarm input parameters.

If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input number.

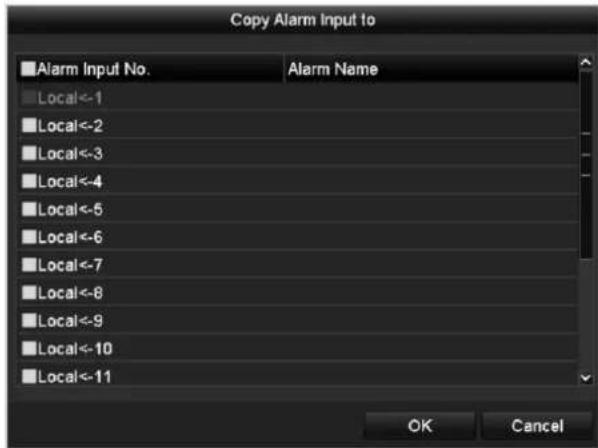

Copy Alarm Input to Alarm Input No. Alarm Name Local<-1 Local<-2 Local<-3 Local<-4 Local<-5 Local<-6 Local<-7 Local<-8 Local<-9 Local<-10 Local<-11 OK Cancel

Figure 5. 15 Copy Alarm Input

1. Edit the Alarm triggered record in the Record Schedule setting interface. For the detailed information of schedule configuration, see Chapter Configuring Recording Schedule.

5.5 Configuring VCA Triggered Recording

Purpose:

Perform the following steps to set the VCA alarm and trigger recording of related cameras.

Steps:

1. Enter VCA Alarm interface of Camera Management and select a camera you want to detect VCA alarm. Menu> Camera> VCA

The selected camera must support the VCA function.

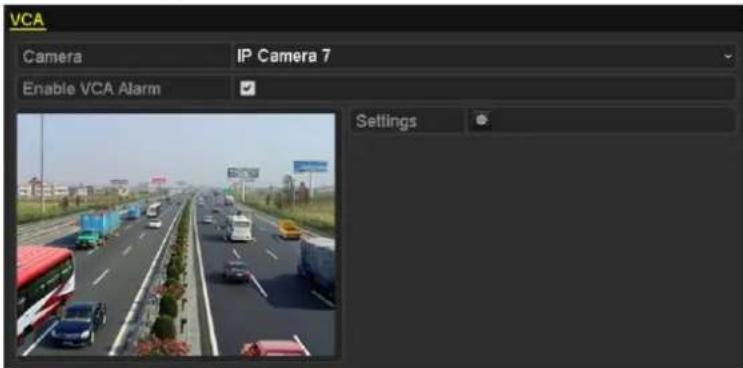

VCA Camera IP Camera 7 Enable VCA Alarm Settings

Figure 5. 16 VCA Alarm Setting Interface

1. Check the Enable VCA Alarm checkbox and click Settings button to set up its alarm response actions.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking IP Camera D1 D2 Apply OK Cancel

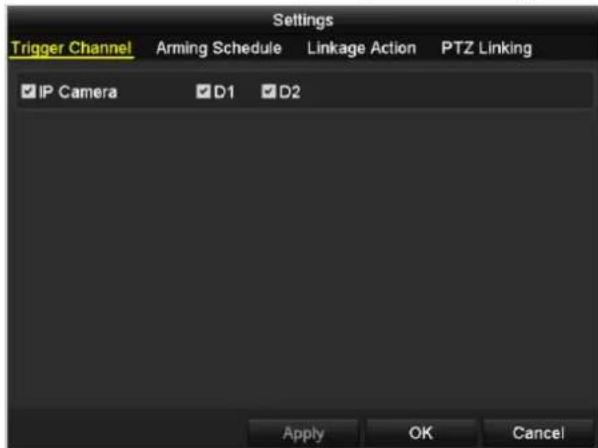

Figure 5. 17 VCA Alarm Handling

1. Select the channels which you want the motion detection event to trigger recording.
2. Click Apply to save the settings.
3. Edit the VCA Alarm Record Schedule. For the detailed information of schedule configuration, see Chapter Configuring Recording Schedule.

5.6 Manual Recording

Purpose:

Follow the steps to set parameters for the manual record. Using manual record, you need to manually cancel the record. The manual recording is prior to the scheduled recording.

Steps:

1. Enter the Manual settings interface.

Menu> Manual

Or press the REC/SHOT button on the front panel.

Record IP Camera ON D1 ON D2 D3 ON Recording by schedule ON Recording by manual operation Continuous Motion Detection

Figure 5.18 Manual Record

1. Enable the Manual Record.

1) Select Record on the left bar.

2) Click the status button before camera number to change

1. Disable manual record.

Click the status button to change

Green icon ON means that the channel is configured the record schedule. After rebooting, all the manual records enabled will be canceled.

5.7 Configuring Holiday Recording

Purpose:

Follow the steps to configure the record schedule on holiday for that year. You may want to have different plan for recording on holiday.

Steps:

1. Enter the Record setting interface.

Menu > Record > Holiday

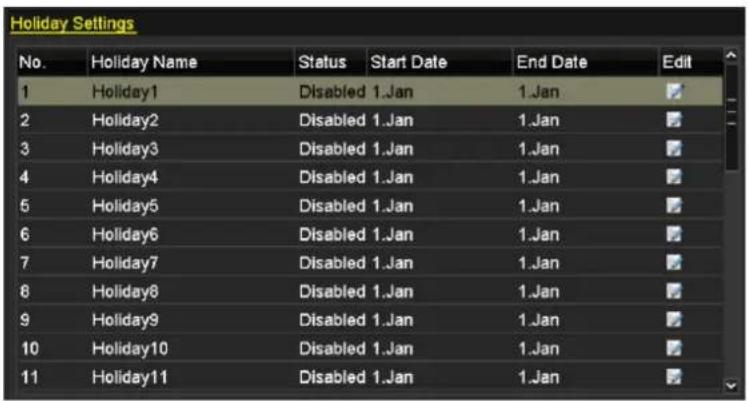

Holiday Settings No. Holiday Name Status Start Date End Date Edit 1 Holiday1 Disabled 1.Jan 1.Jan 2 Holiday2 Disabled 1.Jan 1.Jan 3 Holiday3 Disabled 1.Jan 1.Jan 4 Holiday4 Disabled 1.Jan 1.Jan 5 Holiday5 Disabled 1.Jan 1.Jan 6 Holiday6 Disabled 1.Jan 1.Jan 7 Holiday7 Disabled 1.Jan 1.Jan 8 Holiday8 Disabled 1.Jan 1.Jan 9 Holiday9 Disabled 1.Jan 1.Jan 10 Holiday10 Disabled 1.Jan 1.Jan 11 Holiday11 Disabled 1.Jan 1.Jan

Figure 5.19 Holiday Settings

1. Enable Edit Holiday schedule.

1) Click to enter the Edit interface.

Edit Holiday Name Holiday1 Enable Mode By Week Start Date Jan 1st Sun End Date Jan 1st Sun Apply OK Cancel

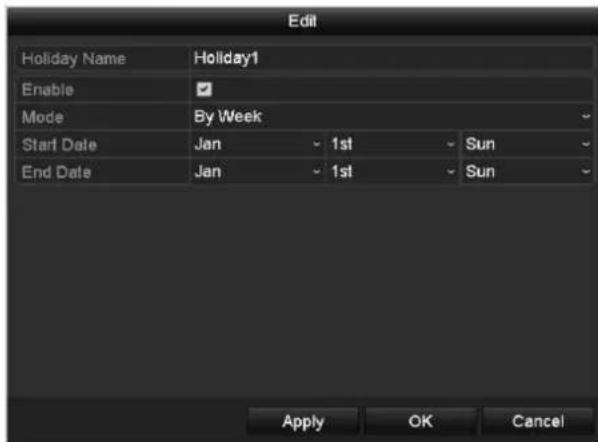

Figure 5. 20 Edit Holiday Settings

2) Check the checkbox after Enable Holiday.
3) Select Mode from the dropdown list.
There are three different modes for the date format to configure holiday schedule.
4) Set the start and end date.
5) Click Apply to save settings.
6) Click OK to exit the Edit interface.

1. Enter Record Schedule settings interface to edit the holiday recording schedule. See Chapter 6.2 Configuring Recording Schedule.

5.8 Configuring Redundant Recording

Purpose:

Enabling redundant recording, which means saving the recording files not only in the R/W HDD but also in the redundant HDD, will effectively enhance the data safety and reliability.

Steps:

1. Enter HDD Information interface.

Menu> HDD

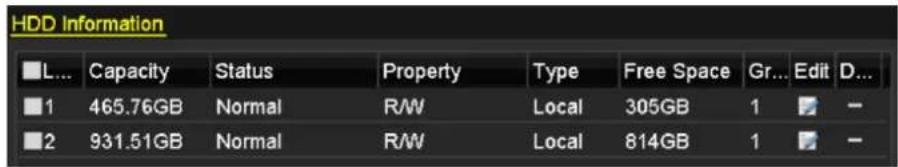

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 305GB 1 2 931.51GB Normal R/W Local 814GB 1

Figure 5.21 HDD General

1. Select the HDD and click to enter the Local HDD Settings interface.

1) Set the HDD property to Redundancy.

Local HDD Settings HDD No. 1 HDD Property ● RAW ● Read-only ● Redundancy Group 1 2 3 4 5 6 7 8 ● 9 10 11 12 13 14 15 16 HDD Capacity 465.76GB Apply OK Cancel

Figure 5. 22 HDD General-Editing

2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.

You must set the Storage mode in the HDD advanced settings to Group before you set the HDD property to Redundant. For detailed information, please refer to Chapter 10.3.1 Setting HDD Property. There should be at least another HDD which is in Read/Write status.

1. Enter the Record setting interface.

Menu> Record> Parameters

1) Select Record tab.

Record Substream Camera IP Camera 1 Encoding Parameters Main Stream(Continuous) Main Stream(Event) Stream Type Video & Audio - Video & Audio - Resolution 1280~720(HD720P) - 1280~720(HD720P) Biterate Type Variable - Variable - Video Quality Medium - Medium - Frame Rate Full Frame - Full Frame - Max. Bitrate Mode General - General - Max. Bitrate(Kbps) 3072 - 3072 - Max. Bitrate Range Reco... 2304~3840(Kbps) 2304~3840(Kbps) Pre-record 5s Post-record 5s Expired Time (day) 0 Redundant Record ■ Record Audio ✓ Video Stream Main Stream

Figure 5. 23 Record Parameters

2) Select Camera you want to configure in the drop-down list.
3) Check the checkbox of Redundant Record.
4) Click OK to save settings and back to the upper level menu.

Repeat the above steps for configuring other channels.

5.9 Configuring HDD Group for Recording

Purpose:

You can group the HDDs and save the record files in certain HDD group.

Steps:

1. Enter HDD setting interface.

Menu>HDD

L...	Capacity	Status	Property	Type	Free Space	Gr...	Edit	D...
1	465.76GB	Normal	R/W	Local	305GB	1		-
2	931.51GB	Normal	R/W	Local	814GB	1		-

Figure 5. 24 HDD General

1. Select Advanced on the left side menu.

Storage Mode Mode Group Record on HDD Group 1 IP Camera ✓D1 ✓D2 ✓D3 ✓D4 ✓D5 ✓D6 ✓D7 ✓D8 ✓D9 ✓D10 ✓D11 ✓D12 ✓D13 ✓D14 ■D15 ■D16

Figure 5. 25 Storage Mode

Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed information, please refer to Chapter 11.4 Managing HDD Group.

1. Select General in the left side menu.
2. Click to enter editing interface.
3. Configuring HDD group.

1) Choose a group number for the HDD group.

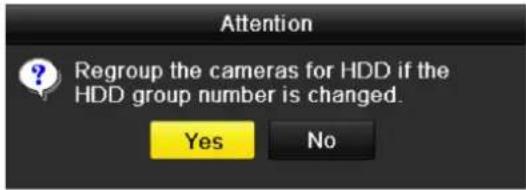

2) Click Apply and then in the pop-up message box, click Yes to save your settings.
3) Click OK to back to the upper level menu.

Repeat the above steps to configure more HDD groups.

1. Choose the Channels which you want to save the record files in the HDD group.

1) Select Advanced on the left bar.
2) Choose Group number in the dropdown list of Record on HDD Group
3) Check the channels you want to save in this group.
4) Click Apply to save settings.

After having configured the HDD groups, you can configure the Recording settings following the procedure provided in Chapter 5.2-5.7.

5.10 Files Protection

Purpose:

You can lock the recorded files or set the HDD property to Read-only to protect the record files from being overwritten.

Protect file by locking the record files:

Steps:

1. Enter Export setting interface.

Menu> Export

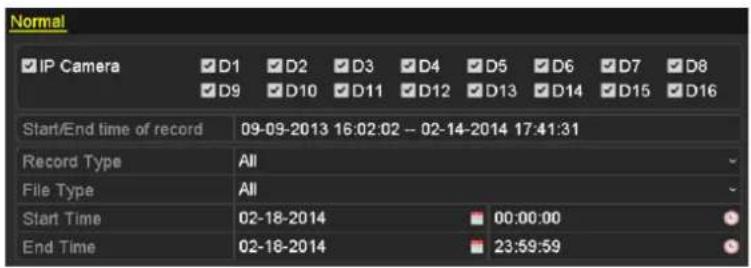

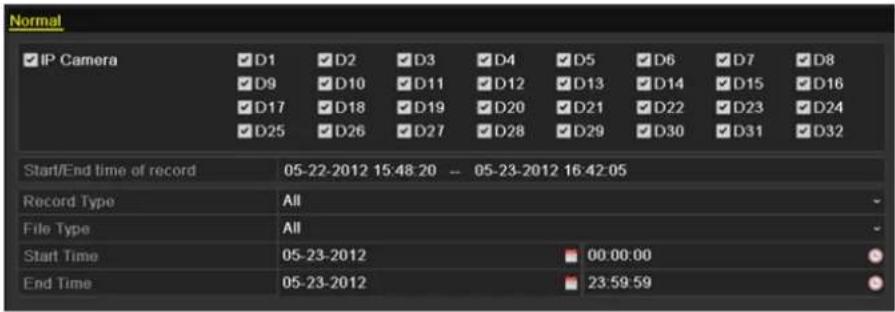

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 Start/End time of record 06-27-2013 08:53:36 -- 06-27-2013 16:41:08 Record Type All File Type All Start Time 06-27-2013 00:00:00 End Time 06-27-2013 23:59:59

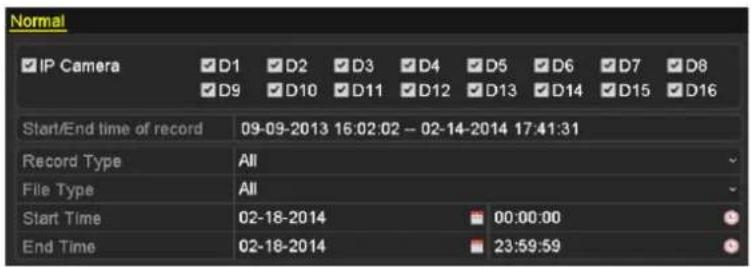

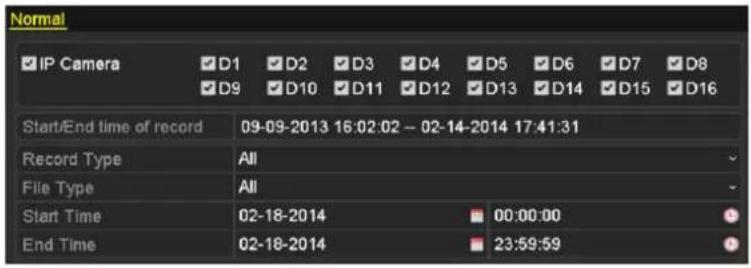

Figure 5.26 Export

1. Select the channels you want to investigate by checking the checkbox to √.
2. Configure the record type, file type start/end time.
3. Click Search to show the results.

Search result Ca... Starl/End Time Size Play Lock D1 06-27-2013 08:58:59-12:50:57 625.256KB D1 06-27-2013 13:51:09-16:28:44 414.995KB D1 06-27-2013 16:28:44-16:42:43 44.122KB D2 06-27-2013 08:53:36-09:22:30 19.059KB D2 06-27-2013 09:22:32-12:50:31 136.173KB D2 06-27-2013 13:51:09-16:43:08 112.518KB Total: 6 P: 1/1 HDD: 4 Start time: 06-27-2013 08:58:59 End time: 06-27-2013 12:50:57 Total size: 0MB Export All Export Cancel

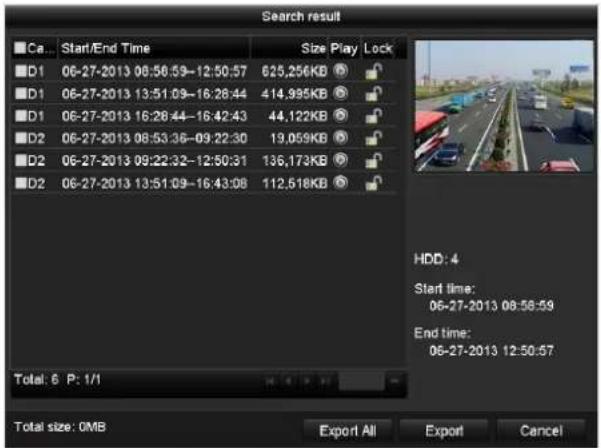

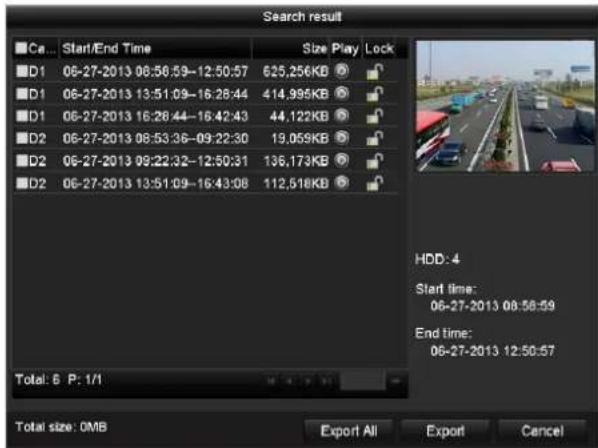

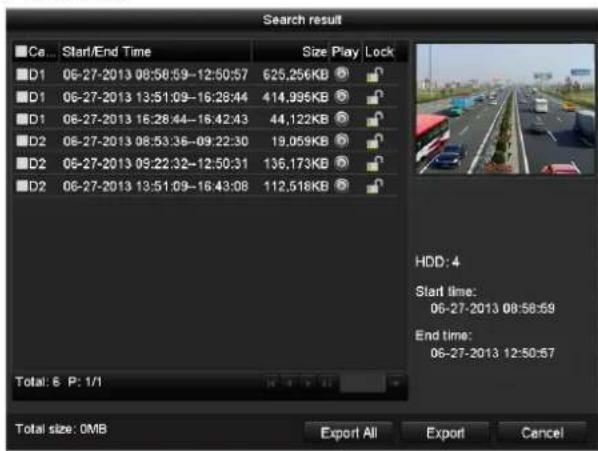

Figure 5. 27 Export- Search Result

1. Protect the record files.

1) Find the record files you want to protect, and then click the icon which will turn to indicating that the file is locked.

The record files of which the recording is still not completed cannot be locked.

2) Click 🔍 to change it to 🔍 to unlock the file and the file is not protected.

Attention Record file may be overwritten after unlocking. Continue? Yes No

Figure 5. 28 Unlocking Attention

Protect file by setting HDD property to Read-only

Steps:

1. Enter HDD setting interface.

Menu> HDD

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 305GB 1 - 2 931.51GB Normal R/W Local 814GB 1 -

Figure 5. 29 HDD General

1. Click to edit the HDD you want to protect.

Local HDD Settings HDD No. 5 HDD Property ● R/W ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 931.51GB Apply OK Cancel

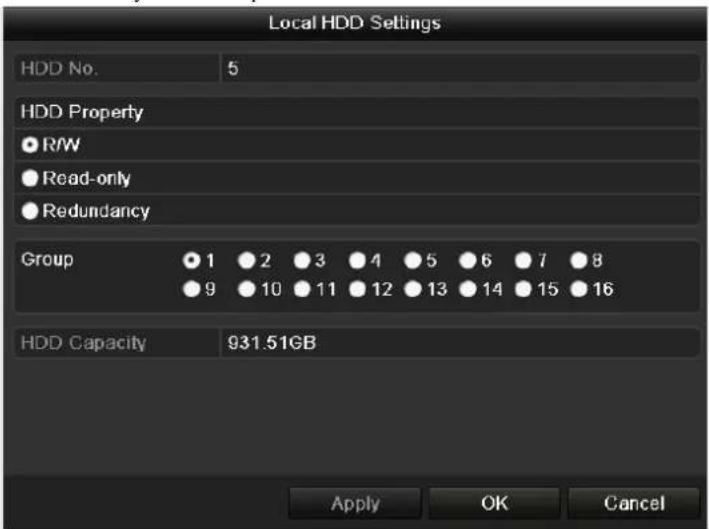

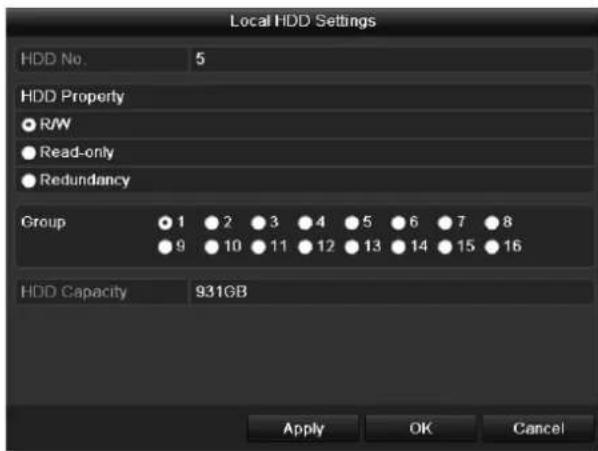

Figure 5. 30 HDD General- Editing

To edit HDD property, you need to set the storage mode of the HDD to Group. See Chapter Managing HDD Group.

1. Set the HDD property to Read-only.
2. Click OK to save settings and back to the upper level menu.

• You cannot save any files in a Read-only HDD. If you want to save files in the HDD, change the property to R/W.
• If there is only one HDD and is set to Read-only, the NVR can't record any files. Only live view mode is

available.

- If you set the HDD to Read-only when the NVR is saving files in it, then the file will be saved in next R/W HDD. If there is only one HDD, the recording will be stopped.

Chapter 6 Playback

6.1 Playing Back Record Files

The reverse playback is not supported by DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN series NVR.

6.1.1 Playing Back by Channel

Purpose:

Play back the recorded video files of a specific channel in the live view mode. Channel switch is supported.

Instant playback by channel

Steps:

Choose a channel in live view mode using the mouse and click the

button in the quick setting toolbar.

In the instant playback mode, only record files recorded during the last five minutes on this channel will be played back.

Four-panel composite image showing a multi-lane highway with vehicles and traffic, no visible text or symbols.

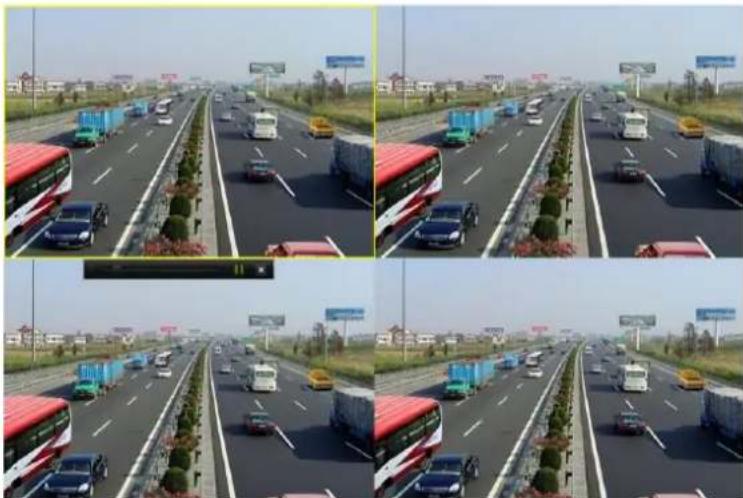

Figure 6.1 Instant Playback Interface

Playback by channel

1. Enter the Playback interface.

Mouse: right click a channel in live view mode and select Playback from the menu, as shown in Figure 6.2.

Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback Output Mode

Figure 6. 2 Right-click Menu under Live View

Front Panel: press PLAY button to play back record files of the channel under single-screen live view mode.

Pressing numerical buttons will switch playback to the corresponding channels during playback process.

2. Playback management.

The toolbar in the bottom part of Playback interface can be used to control playing progress, as shown in Figure 6.3.

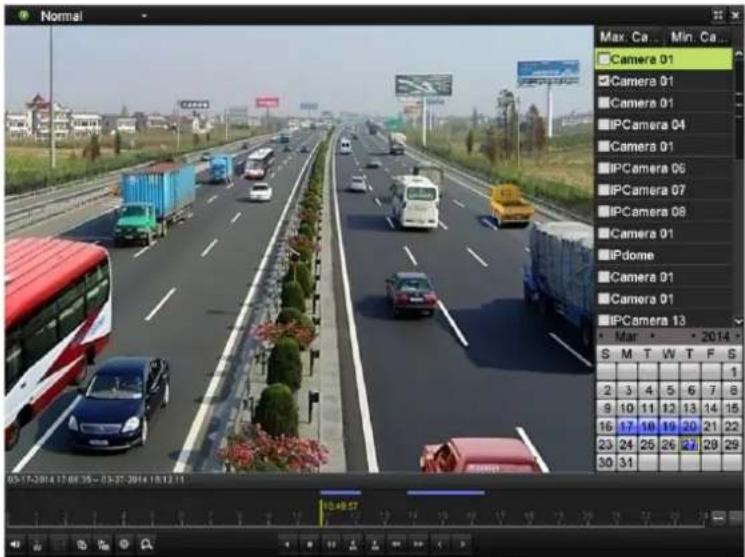

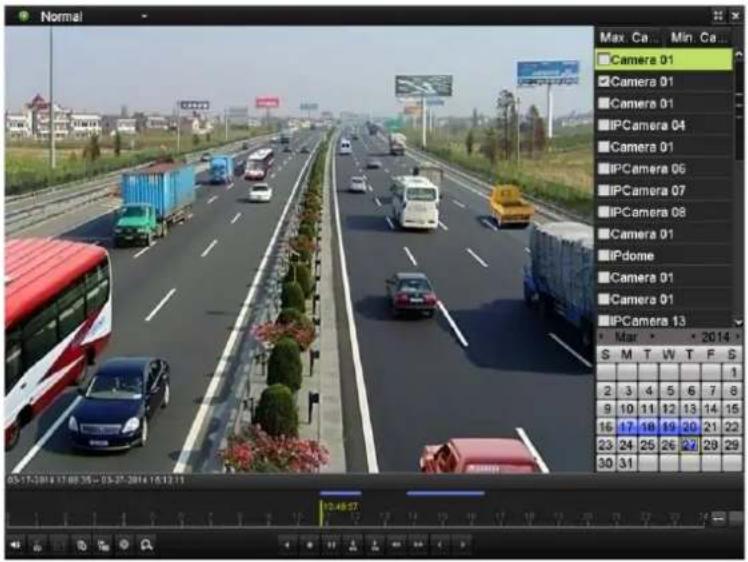

Normal Max: Ca... Min: Ca... Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 06 IPCamera 07 IPCamera 08 Camera 01 IPdome Camera 01 Camera 01 IPCamera 13 Mar 2014 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 05-17-2014 12:00:35 - 03:27-2014 18:32:11 10.48.57

Figure 6.3 Playback Interface

Click the channel(s) to execute simultaneous playback of multiple channels.

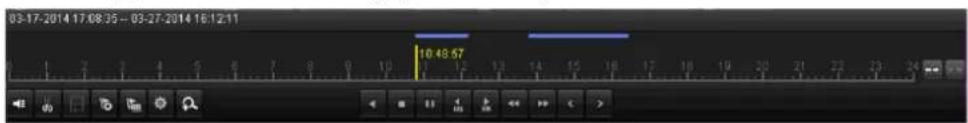

03-17-2014 17:08:35 -- 03-27-2014 16:12:11 10:48:57

Figure 6.4 Toolbar of Playback

The

03.17.2014.17.08:25 63.27.2014.16.12:11 indicates the start/end time of the record.

Table 6.1 Detailed Explanation of Playback Toolbar

Button	Operation	Button	Operation	Button	Operation
	Audio on/ Mute		Start/Stop clipping		30s forward
	30s reverse	[04ZH]	Add default tag	[27CK]	Add customized tag
[0YBH]	Tag management	[AYZA]	Speed down	[26AA6]	Pause reverse play/Reverse play/Single-framereverse play
[7YBH]	Pause play/ Play/Single-frame play	[TZA5]	Scaling up/down the time line	[X8B7]	Speed up
[SXKD]	Previous day	[W8AT]	Next day	[0GDH7]	Full Screen
[0SHW]	Exit		Stop	[BYK2]	Digital Zoom
	Save the clips	[WZW0]	Process bar	[6ZX8]	Video type

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate special frames.

6.1.2 Playing Back by Time

Purpose:

Play back video files recorded in specified time duration. Multi-channel simultaneous playback and channel switch are supported.

Steps:

1. Enter playback interface.

Menu>Playback

1. Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.

Nov S M T W T F S 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 2012

Figure 6.5 Playback Calendar

If there are record files for that camera in that day, in the calendar, the icon for that day is displayed as

Otherwise it is displayed as .9

In the Playback interface:

The toolbar in the bottom part of Playback interface can be used to control playing process, as shown in Figure 6. 6.

Normal Max. Ca... Min. Ca... Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 06 IPCamera 07 IPCamera 08 Camera 01 IPdome Camera 01 Camera 01 IPCamera 13 May 2014 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 05:15:2014 12:00:55 - 03:27:2014 18:32:11

Figure 6. 6 Interface of Playback by Time

03-17-2014 17:08:35 - 03-27-2014 16:12:11 10:46:57

Figure 6.7 Toolbar of Playback by Time

The

Table 6.2 Detailed Explanation of Playback-by-time Interface

Button	Operation	Button	Operation	Button	Operation
	Audio on/ Mute		Start/Stop clipping		30s forward
	30s reverse		Add default tag		Add customized tag
	Tag management		Speed down		Pause reverse play/Reverse play/Single-frame reverse play
	Pause play/ Play/Single-frame play		Scaling up/down the time line		Speed up
	Previous day		Next day		Full Screen
	Exit		Stop		Digital Zoom
	Save the clips		Process bar		Video type

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate specific frames.

6.1.3 Playing Back by Event Search

Purpose:

Play back record files on one or several channels searched out by restricting event type (e.g. alarm input and motion detection).

Steps:

1. Enter the Playback interface.

Menu>Playback

1. Select the Event in the drop-down list on the top-left side.

2. Select Alarm Input, Motion or VCA as the event type, edit the Start time and End time.

Here we take playback by motion as the example.

Event Major Ty... Motion Camera Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 06 IPCamera 07 IPCamera 08 Camera 01 Start Time 03-27-2014 00:00:00 End Time 03-27-2014 23:59:59 Search

Figure 6.8 Motion Search Interface

1. Click Search button to get the search result information. You may refer to the right-side bar for the result.

Sour... Start Time Play D2 10:49:21 D2 10:49:47 D2 10:50:31 D2 10:52:18 D2 10:53:58 D2 10:54:49 D2 10:55:25 D2 10:56:07 D2 10:57:58 D2 10:58:24 D2 10:59:19 D2 11:01:12 D2 11:04:22 Total: 180 P: 1/2 Pre-play 30s Post-play 30s Back

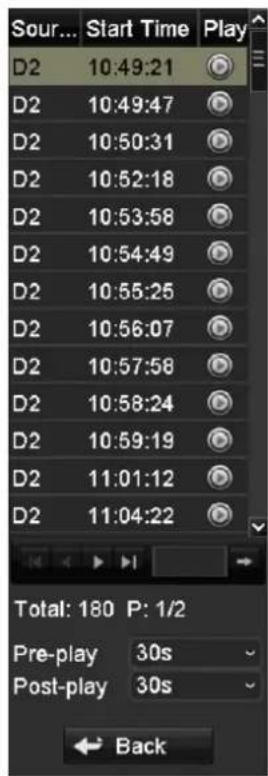

Figure 6.9 Search Result Bar

1. Click 🎨 button to play back the file.

You can click the Back button to back to the search interface.

Pre-play and post-play can be configured.

1. Playback interface.

The toolbar in the bottom part of Playback interface can be used to control playing process.

Event D2 10:49:21 D2 10:49:47 D2 10:50:31 D2 10:52:18 D2 10:53:58 D2 10:54:49 D2 10:55:25 D2 10:56:07 D2 10:57:58 D2 10:58:24 D2 10:59:19 D2 11:01:12 D2 11:04:22 Total: 160 P: 1/2 Pre-play 300s Post-play 60s Back

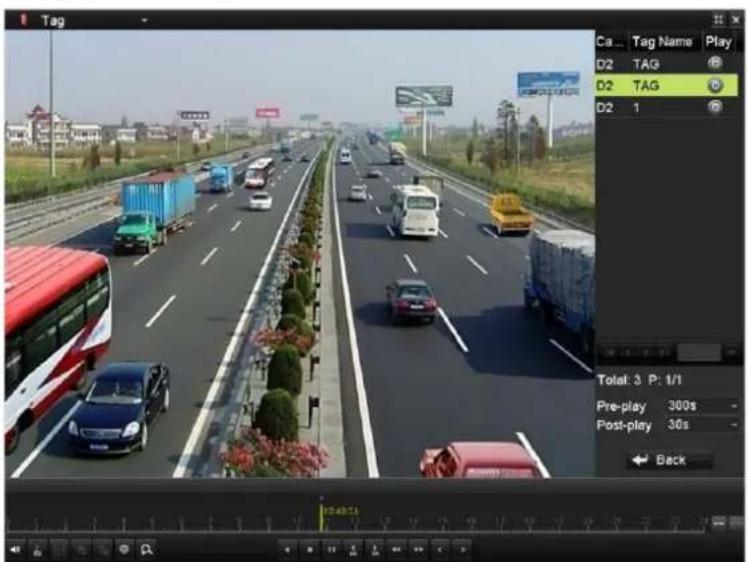

Figure 6. 10 Interface of Playback by Event

10:48:54

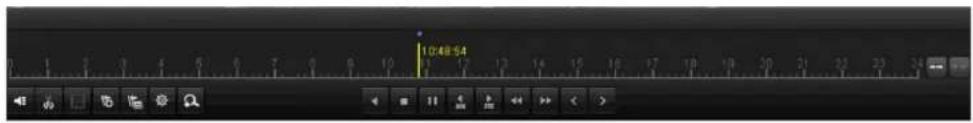

Figure 6.11 Toolbar of Playback by Event

Table 6. 3 Detailed Explanation of Playback-by-event Toolbar

Button		Operation	Button	Operation	Button	Operation
		Audio on/ Mute		Start/Stop clipping		30s forward
	[system]	30s reverse		Add default tag		Add customized tag
	[system]	Tag management		Speed down		Pause reverse play/Reverse play/Single-framereverse play
	[system]	Pause play/ Play/Single-frame play		Scaling up/down the time line		Speed up
	[system]	Previous day		Next day		Full Screen
	[system]	Exit		Stop		Digital Zoom
	[system]	Save the clips		Process bar		Video type

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate specific frames.

6.1.4 Playing Back by Tag

Purpose:

Video tag allows you to record related information like people and location of a certain time point during playback. You are also allowed to use video tag(s) to search for record files and position time point.

Before playing back by tag:

1. Enter Playback interface.

Menu>Playback

1. Search and play back the record file(s). Refer to Chapter 6.1.1 for the detailed information about searching and playback of the record files.

Normal Max Ca Min Ca Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 05 IPCamera 07 IPCamera 08 Camera 01 iPdome Camera 01 Camera 01 IPCamera 13 Max S M T W T F S 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 05:17-2014 17:00:35 - 05:27-2014 15:12:11 10:48:57

Figure 6. 12 Interface of Playback by Time

Click button to add default tag.

Click button to add customized tag and input tag name.

Max. 64 tags can be added to a single video file.

1. Tag management.

Click Button to check, edit and delete tag(s).

Tag managementl Cam... Tag Name Time Edit Del... D2 TAG 03-27-2014 10:53:04 D2 1 03-27-2014 10:53:06 D2 TAG 03-27-2014 10:51:09 Total: 3 P: 1/1 Cancel

Figure 6. 13 Tag Management Interface

Steps:

1. Select the Tag from the drop-down list in the Playback interface.
2. Choose channels, edit start time and end time, and then click Search to enter Search Result interface.

You can enter keyword in the textbox to search the tag on your command.

Tag Camera Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 06 IPCamera 07 IPCamera 08 Camera 01 IPoma Keyword Start Time 03-27-2014 00:00:00 End Time 03-27-2014 23:59:59 Search

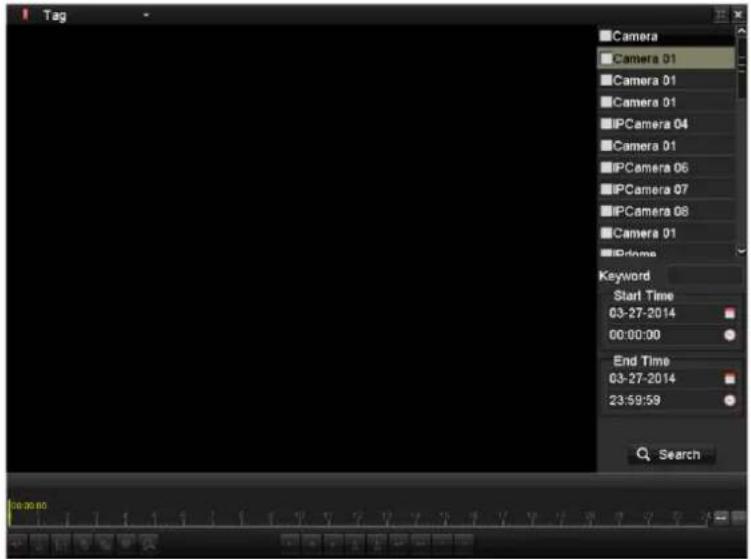

Figure 6. 14 Video Search by Tag

3. Click button to play back the file.

You can click the Back button to back to the search interface.

Pre-play and post-play can be configured.

Tag Ca Tag Name Play D2 TAG D2 TAG D2 1 Total: 3 P: 1/1 Pre-play 300s Post-play 30s Back

Figure 6. 15 Interface of Playback by Tag

10:48:53

Figure 6. 16 Toolbar of Playback by Tag

Table 6. 4 Detailed Explanation of Playback-by-tag Toolbar

Button	Operation	Button	Operation	Button	Operation
	Audio on/ Mute		Start/Stop clipping		30s forward
	30s reverse		Add default tag		Add customized tag
	Tag management		Speed down		Pause reverse play/Reverse play/Single-framereverse play
	Pause play/ Play/Single-frame play		Scaling up/down the time line		Speed up
	Previous day		Next day		Full Screen
	Exit		Stop		Digital Zoom
	Save the clips		Process bar		Video type

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate special frames.

6.1.5 Smart Playback

Purpose:

The smart playback function provides an easy way to get through the less effective information. When you select the smart playback mode, the system will analyze the video containing the motion or VCA information, mark it with green color and play it in the normal speed while the video without motion will be played in the 16-time speed. The smart playback rules and areas are configurable.

Before you start:

To get the smart search result, the corresponding event type must be enabled and configured on the IP camera. Here we take the intrusion detection as an example.

1. Log in the IP camera by the web browser, and enable the intrusion detection by checking the checkbox of it. You may enter the motion detection configuration interface by Configuration> Advanced Configuration> Events> Intrusion Detection.

Motion Detection Video Tampering Alarm Input Alarm Output Exception Face Detection Audio Exception Detection Intrusion Detection Defocus Detection Scene Change Detection Enable Intrusion Detection

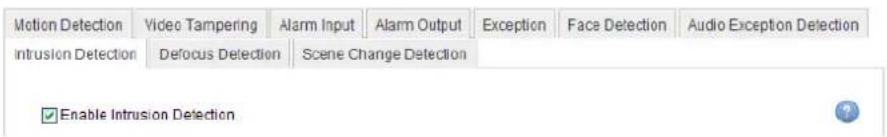

Figure 6.17 Setting Intrusion Detection on IP Camera

1. Configure the required parameters of intrusion detection, including area, arming schedule and linkage methods. Refer to the user manual of smart IP camera for detailed instructions.

Steps:

1. Enter Playback interface.

Menu>Playback

1. Select the Smart in the drop-down list on the top-left side.

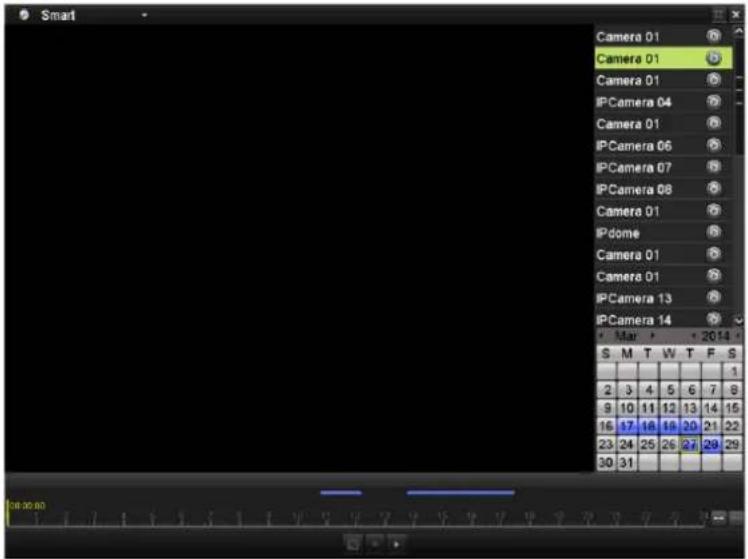

Smart Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 06 IPCamera 07 IPCamera 08 Camera 01 Ip dome Camera 01 Camera 01 IPCamera 13 IPCamera 14 2014 S M T W T F S 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Figure 6. 18 Smart Playback Interface

Table 6. 5 Detailed Explanation of Smart Playback

Button	Operation	Button	Operation	Button	Operation
[840X]	Smart search	[843K]	Stop	— —	Pause play / Play
	Process bar		Scaling up/down the time line		Playback type

1. Select a camera in the camera list and select a date in the calendar.
2. Edit the smart search areas and rules.

1) Click the button to enter the search area editing interface; the smart search area is set as full screen by default.

Highway scene with multiple vehicles and traffic, overlaid with a red grid overlay (no visible text or symbols)

Figure 6.19 Draw Area of Smart Search

2) Set the rules and areas.

Intrusion Detection

Click the button, and then specify 4 points to set a quadrilateral region for intrusion detection.

Only one region can be set.

Motion Detection

i. Click the 📋 to set the search area manually.

ii. Click and drag the mouse to draw target searching area(s), or click the button to set the full screen as the area.

3) Click the ▶ to search, and then the result will be displayed as ■ in the progress bar of the Smart Playback interface.

Or you can click the button to clear all the set areas.

1. Click the button to play.

Smart Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 06 IPCamera 07 IPCamera 08 Camera 01 IPdome Camera 01 Camera 01 IPCamera 13 IPCamera 14 Mar 2014 S M T W T F S 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Figure 6. 20 Smart Search Result

Playback progress bar: use the mouse to click any point of the progress bar to locate specific frames.

6.1.6 Playing Back by System Logs

Purpose:

Play back record file(s) associated with channels after searching system logs.

Steps:

1. Enter Log Information interface.

Menu>Maintenance>Log Information

1. Click Log Search tab to enter Playback by System Logs.

Set search time and type and click Search button.

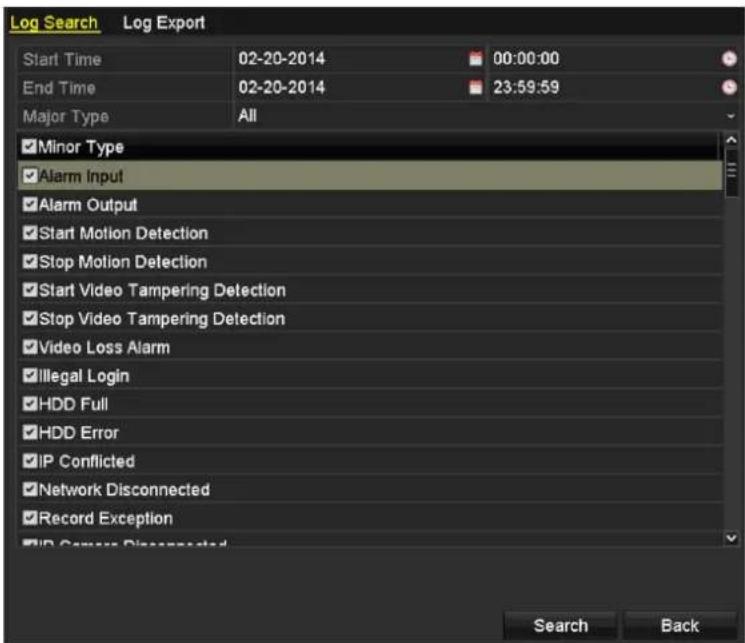

Log Search Log Export Start Time 02-20-2014 00:00:00 End Time 02-20-2014 23:59:59 Major Type All Minor Type Alarm Input Alarm Output Start Motion Detection Stop Motion Detection Start Video Tampering Detection Stop Video Tampering Detection Video Loss Alarm Illegal Login HDD Full HDD Error IP Conflicted Network Disconnected Record Exception IP Camera Disconnected Search Back

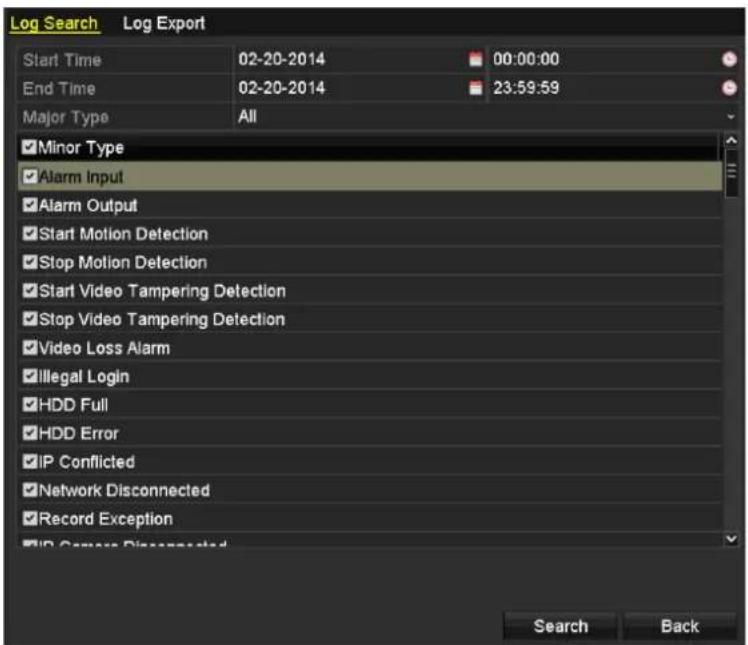

System Log Search Interface

1. Choose a log with record file and click 📋 button to enter Playback interface.

If there is no record file at the time point of the log, the message box "No result found" will pop up.

Search Result No. Major Type Time Minor Type Parameter Play Details 187 Alarm 12-26-2013 11:25:54 Video Tamperin... N/A ✓ 188 Alarm 12-26-2013 11:26:01 Video Tamperin... N/A ✓ 189 Alarm 12-26-2013 11:26:12 Video Tamperin... N/A ✓ 190 Alarm 12-26-2013 11:26:17 Video Tamperin... N/A ✓ 191 Alarm 12-26-2013 11:26:23 Video Tamperin... N/A ✓ 192 Information 12-26-2013 11:26:51 System Running... N/A - ✓ 193 Information 12-26-2013 11:27:02 System Running... N/A - ✓ 194 Operation 12-26-2013 11:27:12 Remote Operati... IP Camera - ✓ 195 Operation 12-26-2013 11:27:12 Remote Operati... N/A - ✓ 196 Operation 12-26-2013 11:27:12 Remote Operati... Device - ✓ 197 Operation 12-26-2013 11:30:12 Remote Operati... IP Camera - ✓ 198 Operation 12-26-2013 11:30:12 Remote Operati... N/A - ✓ 199 Operation 12-26-2013 11:30:12 Remote Operati... Device - ✓ 200 Operation 12-26-2013 11:33:11 Remote Operati... IP Camera - ✓ Total: 1067 P: 2/11 Export Back

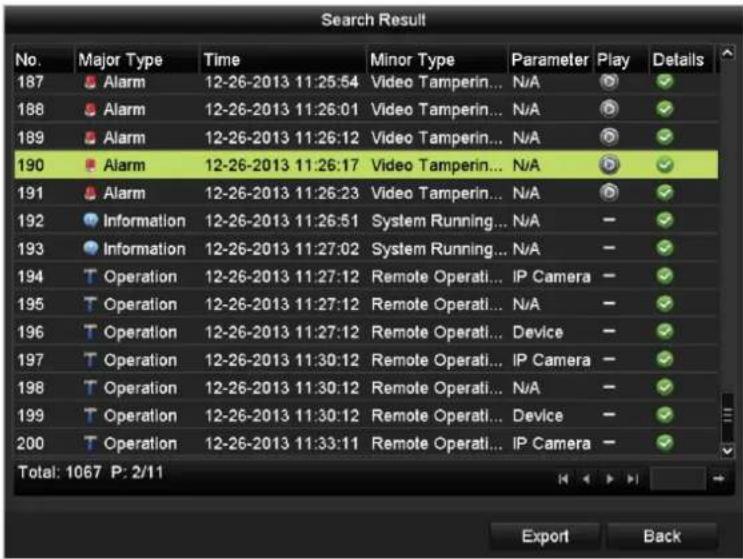

Result of System Log Search

1. Playback interface.

The toolbar in the bottom part of Playback interface can be used to control playing process.

Highway scene with multiple vehicles and a red double-decker bus, no visible text or symbols on the road or vehicles.

Interface of Playback by Log

6.1.7 Playing Back External File

Purpose:

Perform the following steps to look up and play back files in the external devices.

Steps:

1. Enter Tag Search interface.

Menu>Playback

1. Select the External File in the drop-down list on the top-left side.

The files are listed in the right-side list.

You can click the Refresh refresh the file list.

1. Select and click the button to play back it. And you can adjust the playback speed by clicking and

External File Device N... USB1-4 Name Play ch02_201304... ch02_201304... player.exe Refresh

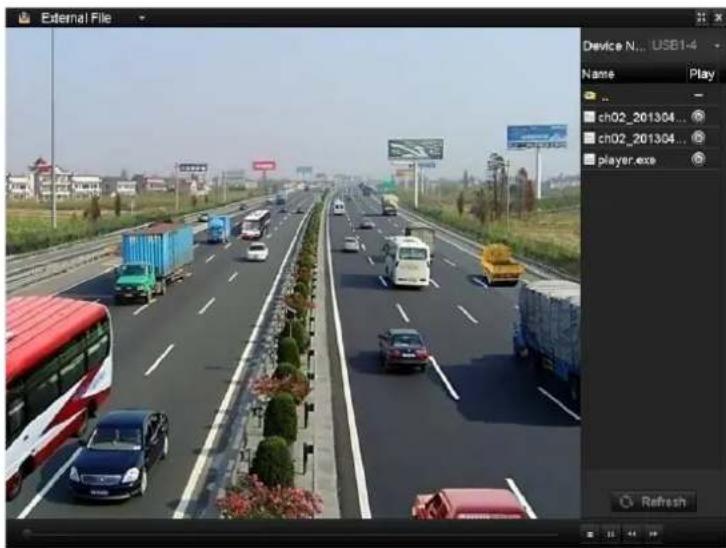

Figure 6. 21 Interface of External File Playback

6.2 Auxiliary Functions of Playback

6.2.1 Playing Back Frame by Frame

Purpose:

Play video files frame by frame, in case of checking image details of the video when abnormal events happen.

Steps:

Go to Playback interface.

If you choose playback of the record file: click button 📄 until the speed changes to Single frame and one click on the playback screen represents playback of one frame.

If you choose reverse playback of the record file: click button 📋 until the speed changes to Single frame and one click on the playback screen represents reverse playback of one frame. It is also feasible to use button in toolbar.

6.2.2 Digital Zoom

Steps:

1. Click the button on the playback control bar to enter Digital Zoom interface.

2. Use the mouse to draw a red rectangle and the image within it will be enlarged up to 16 times.

Highway scene with vehicles and shipping containers, residential buildings in background (no visible text or symbols)

Figure 6. 22 Draw Area for Digital Zoom

1. Right-click the image to exit the digital zoom interface.

6.2.3 Reverse Playback of Multi-channel

The reverse playback is not supported by DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN series NVR.

Purpose:

You can play back record files of multi-channel reversely. Up to 16-ch (with 1280*720 resolution) simultaneous reverse playback is supported; up to 4-ch (with 1920*1080P resolution) simultaneous reverse playback is supported and up to 1-ch (with 2560*1920 resolution) reverse playback is supported.

Steps:

1. Enter Playback interface.
   Menu>Playback

2. Check more than one checkboxes to select multiple channels and click to select a date on the calendar.

Normal Max: Ca... Min: Ca... Camera 01 Camera 01 Camera 01 IPCamera 04 Camera 01 IPCamera 05 IPCamera 07 IPCamera 08 Camera 01 IPdome Camera 01 Camera 01 IPCamera 13 Mar 2014 S M T W T F S 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Figure 6. 23 4-ch Synchronous Playback Interface

1. Click ▼ to play back the record files reversely.

Chapter 7 Backup

7.1 Backing up Record Files

7.1.1 Quick Export

Purpose:

Export record files to backup device(s) quickly.

Steps:

1. Enter Video Export interface.

Menu>Export>Normal

Choose the channel(s) you want to back up and click Quick Export button.

The time duration of record files on a specified channel cannot exceed one day. Otherwise, the message box "Max. 24 hours are allowed for quick export." will pop up.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 Start/End time of record 09-09-2013 16:02:02 -- 02-14-2014 17:41:31 Record Type All File Type All Start Time 02-18-2014 00:00:00 End Time 02-18-2014 23:59:59

Figure 7.1 Quick Export Interface

1. Click on the Export button to start exporting.

Here we use USB Flash Drive and please refer to the next section Normal Backup for more backup devices supported by the NVR.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play Free Space 3.737MB New Folder Format Export Cancel

Figure 7.2 Quick Export using USB1-1

Stay in the Exporting interface until all record files are exported.

1. Check backup result.

Choose the record file in Export interface and click button to check it.

The Player player.exe will be exported automatically during record file export.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play ch01_2014021813... 65.88KB File 02-18-2014 14:08:08 ch02_2014021813... 55.176KB File 02-18-2014 14:08:43 player.exe 784KB File 02-18-2014 14:07:39 Free Space 3.618MB New Folder Format Export Cancel

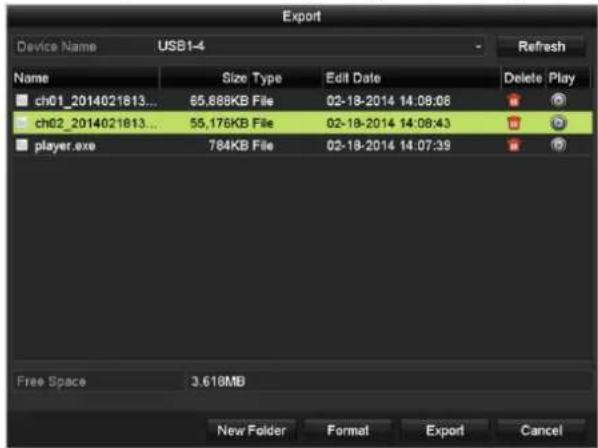

Figure 7.3 Checkup of Quick Export Result Using USB1-1

7.1.2 Backing up by Normal Video Search

Purpose:

The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs, USB writer) and SATA writer.

Backup using USB flash drives and USB HDDs

Steps:

1. Enter Export interface.

Menu>Export>Normal

1. Set search condition and click Search button to enter the search result interface.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 Start/End time of record 09-09-2013 16:02:02 -- 02-14-2014 17:41:31 Record Type All File Type All Start Time 02-18-2014 00:00:00 End Time 02-18-2014 23:59:59

Figure 7.4 Normal Video Search for Backup

1. Select record files you want to back up.

Click to play the record file if you want to check it.

Check the checkbox before the record files you want to back up.

The size of the currently selected files is displayed in the lower-left corner of the window.

Search result Ca... Start/End Time Size Play Lock D1 06-27-2013 08:58:59-12:50:57 625,256KB D1 06-27-2013 13:51:09-16:28:44 414,995KB D1 06-27-2013 16:26:44-16:42:43 44,122KB D2 06-27-2013 08:53:36-09:22:30 19,059KB D2 06-27-2013 09:22:32-12:50:31 136,173KB D2 06-27-2013 13:51:09-16:43:08 112,518KB Total: 6 P: 1/1 HDD: 4 Start time: 06-27-2013 08:58:59 End time: 06-27-2013 12:50:57 Total size: OMB Export All Export Cancel

Figure 7.5 Result of Normal Video Search for Backup

4. Export.

Click Export All button to export all the recording files.

Or you can select recording files you want to back up, and click Export button to enter Export interface.

If the inserted USB device is not recognized:

• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.

You can also format USB flash drives or USB HDDs via the device.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play Free Space 3.737MB New Folder Format Export Cancel

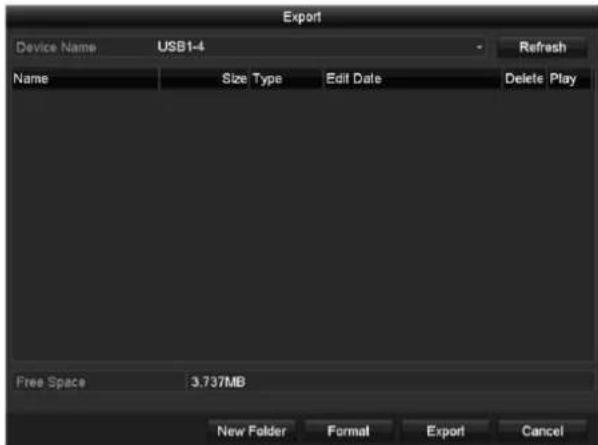

Figure 7.6 Export by Normal Video Search using USB Flash Drive

Stay in the Exporting interface until all record files are exported with pop-up message box "Export finished".

5. Check backup result.

Choose the record file in Export interface and click button to check it.

The Player player.exe will be exported automatically during record file export.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play ch01_2014021613... 55.88KB File 02-18-2014 14:08:06 ch02_2014021613... 55.176KB File 02-18-2014 14:08:43 player.exe 784KB File 02-18-2014 14:07:39 Free Space 3.618MB New Folder Format Export Cancel

Figure 7. 7 Checkup of Export Result using USB Flash Drive

Backup using USB writer and SATA writer

Steps:

1. Enter Export interface.

Menu>Export>Normal

1. Set search condition and click Search button to enter the search result interface.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Start/End time of record 05-22-2012 15:48:20 -- 05-23-2012 16:42:05 Record Type All File Type All Start Time 05-23-2012 00:00:00 End Time 05-23-2012 23:59:59

Figure 7.8 Normal Video Search for Backup

1. Select record files you want to back up.

Click button to play the record file if you want to check it.

Check the checkbox before the record files you want to back up.

The size of the currently selected files is displayed in the lower-left corner of the window.

Search result Ca... Start/End Time Size Play Lock D1 06-27-2013 08:58:59-12:50:57 625,256KB D1 06-27-2013 13:51:09-16:28:44 414,995KB D1 06-27-2013 16:26:44-16:42:43 44,122KB D2 06-27-2013 08:53:36-09:22:30 19,059KB D2 06-27-2013 09:22:32-12:50:31 136,173KB D2 06-27-2013 13:51:09-16:43:08 112,518KB Total: 6 P: 1/1 HDD: 4 Start time: 06-27-2013 08:58:59 End time: 06-27-2013 12:50:57 Total size: OMB Export All Export Cancel

Figure 7.9 Result of Normal Video Search for Backup

4. Export.

Click Export button and start backup.

If the inserted USB writer or SATA writer is not recognized:

• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.

Export Device Name USB CD/DVD-RW Refresh Name Size Type Edit Date Delete Play Free Space OKB Erase Export Cancel

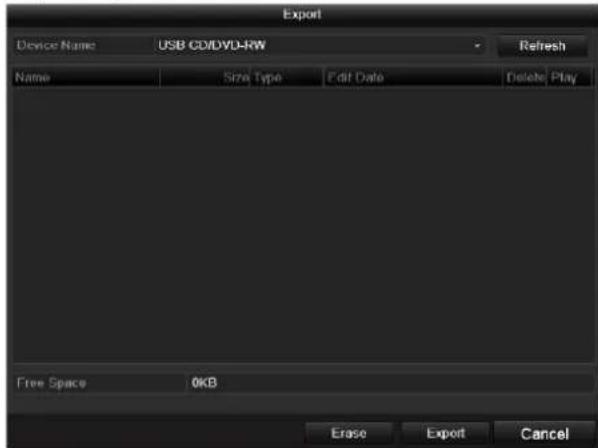

Figure 7. 10 Export by Normal Video Search using USB Writer

Stay in the Exporting interface until all record files are exported with pop-up message box "Export finished".

5. Check backup result.

Choose the record file in Export interface and click button to check it.

The Player player.exe will be exported automatically during record file export.

Export Device Name USB CD/DVD-RW Refresh Name Size Type Edit Date Deliver Plus 11 Folder 06-23-2011 20:07:22 Backup Folder 06-23-2011 20:07:28 Export record files to ms 0KB File 06-23-2011 20:07:58 Welcome to use backup 0KB File 06-23-2011 20:07:36 ch03_2011062300600 267MB File 06-23-2011 20:15:02 ch03_20110623042932 280MB File 06-23-2011 20:11:14 ch03_20110623091403 4.423KB File 06-23-2011 20:11:20 ch03_20110623092323 127MB File 06-23-2011 20:12:12 ch03_20110623113325 110MB File 06-23-2011 20:12:54 ch03_2011062313280 18.367KB File 06-23-2011 20:13:02 ch03_20110623134743 37.305KB File 06-23-2011 20:13:12 player.exe 608KB File 06-23-2011 20:09:40 Free Space 150MB Erase Export Cancel

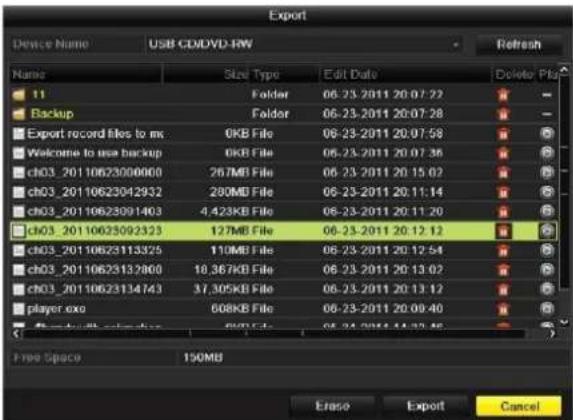

Figure 7.11 Checkup of Export Result using USB Writer

7.1.3 Backing up by Event Search

Purpose:

Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer) and SATA writer. Quick Backup and Normal Backup are supported.

Steps:

1. Enter Export interface.

Menu>Export>Event

1) Select "Alarm Input" from the dropdown list of Event Type.
2) Select the alarm input No. and time.
3) Click Search button to enter the Search Result interface.

• Event types contain Alarm Input, Motion and VCA.
- The Alarm Input type is not supported by the DS-7100NI-SL(/W) series NVR.

Event Event Type Alarm Input Start Time 18-05-2013 00:00:00 End Time 18-05-2013 23:59:59 ✓ Alarm Input No. Alarm Name ✓ Local<-1 1 ✓ Local<-2 ✓ Local<-3 ✓ Local<-4 ✓ Local<-5 ✓ Local<-6 ✓ Local<-7 ✓ Local<-8 ✓ Local<-9 ✓ Local<-10 ✓ Local<-11 ✓ Local<-12 ✓ Local<-13 ✓ Local<-14

Figure 7. 12 Event Search for Backup

2. Select record files to export.

1) Clicking Quick Export button will export record files of all channels triggered by the selected alarm input.

Alarm Input Source Start Time End Time Local<-1 16-05-2013 19:23:22 16-05-2013 19:23:22 Local<-1 17-05-2013 08:43:03 17-05-2013 08:43:03 Local<-1 18-05-2013 11:09:13 18-05-2013 11:09:13 Total: 3 P: 1/1 Pre-play 30s Post-play 30s Quick Export Details Cancel

Figure 7. 13 Result of Event Search

2) Click Details button to view detailed information of the record file, e.g. start time, end time, file size, etc.

Event Details Source C... Record Time Size Play Local<-1 D1 08-01-2013 08:35:28... 807KB Local<-1 D2 08-01-2013 08:35:28... 811KB Local<-1 D3 08-01-2013 08:35:28... 789KB Local<-1 D4 08-01-2013 08:35:28... 775KB Local<-1 D5 08-01-2013 08:35:29... 772KB Local<-1 D6 08-01-2013 08:35:29... 791KB Local<-1 D7 08-01-2013 08:35:29... 788KB Local<-1 D8 08-01-2013 08:35:29... 780KB Local<-3 D1 08-02-2013 09:25:26... 814KB Local<-3 D2 08-02-2013 09:25:26... 819KB Local<-3 D3 08-02-2013 09:25:26... 810KB Local<-3 D4 08-02-2013 09:25:26... 786KB Local<-3 D5 08-02-2013 09:25:27... 800KB Local<-3 D6 08-02-2013 09:25:27... 800KB Total: 16 P: 1/1 HDD: 4 Start time: 08-01-2013 08:35:28 End time: 08-01-2013 08:35:59 Total size: OMB Export All Export Cancel

Figure 7. 14 Event Details Interface

3. Export.

Click Export All button to export all the recording files.

Or you can select recording files you want to back up, and click Export button to enter Export interface.

If the inserted USB device is not recognized:

• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.

You can also format USB flash drive or USB HDDs via the device.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play Free Space 3.737MB New Folder Format Export Cancel

Figure 7. 15 Export by Event Using USB Flash Drive

Stay in the Exporting interface until all record files are exported with pop-up message "Export finished".

Export Export finished. OK

Figure 7. 16 Export Finished

1. Check backup result.

The Player player.exe will be exported automatically during record file export.

7.1.4 Backing up Video Clips

Purpose:

You may also select video clips to export directly during Playback, using USB devices (USB flash drives, USB HDDs, USB writer) or SATA writer.

Steps:

1. Enter Playback interface.

Please refer to Chapter 6.1 Playing Back Record Files.

1. During playback, use buttons and in the playback toolbar to start or stop clipping record file(s).

2. Click the 📄 to save the video clips. Or the prompt of saving clips will pop up when you quit the playback interface.

A maximum of 30 clips can be selected for each channel.

Clips Export Camera No. Start/End Time Size D1 06-27-2013 10:43:35-10:43:38 232KB D1 06-27-2013 10:43:41-10:43:42 174KB Camera with clip recording: 1 Start time: 06-27-2013 10:43:36 End time: 06-27-2013 10:43:38 Selected clips: 2 Total size: 407KB Export Cancel

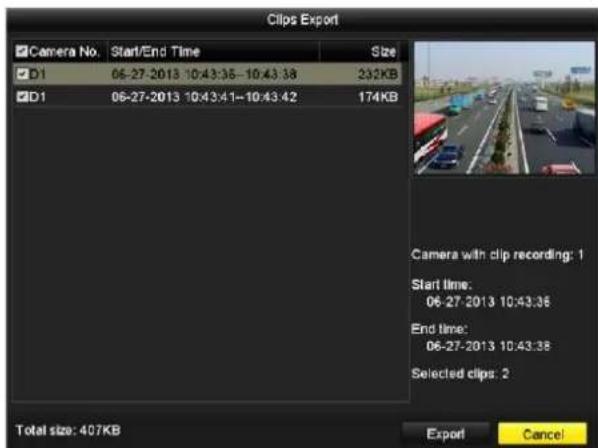

Figure 7.17 Clips Export Interface

4. Export.

Click Export button and start backup.

If the inserted USB device is not recognized:

• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.

You can also format USB flash drive or USB HDDs via the device.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play ... Folder 01-01-1970 00:00:00 - - ch02_20130423093... 36.959KB File 04-23-2013 10:27:18 - - ch02_20130423093... 3KB File 04-23-2013 10:27:18 - - player.exe 776KB File 04-23-2013 10:27:00 - - Free Space 1,857MB New Folder Format Export Cancel

Figure 7. 18 Export Video Clips Using USB Flash Drive

Stay in the Exporting interface until all record files are exported with pop-up message "Export finished".

1. Check backup result.

The Player player.exe will be exported automatically during record file export.

7.2 Managing Backup Devices

Management of USB flash drives and USB HDDs

Steps:

1. Enter Search Result interface of record files.

Menu>Export>Normal

Set search condition and click Search button to enter Search Result interface.

At least one channel shall be selected.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 Start/End time of record 09-09-2013 16:02:02 -- 02-14-2014 17:41:31 Record Type All File Type All Start Time 02-18-2014 00:00:00 End Time 02-18-2014 23:59:59

Figure 7. 19 Normal Video Search for Backup

1. Click Export All button to export all the recording files.

Or you can select recording files you want to back up, and click Export button to enter Export interface.

At least one record file shall be selected.

Search result Ca... Start/End Time Size Play Lock D1 06-27-2013 08:56:59-12:50:57 625,256KB D1 06-27-2013 13:51:09-16:28:44 414,995KB D1 06-27-2013 16:26:44-16:42:43 44,122KB D2 06-27-2013 08:53:36-09:22:30 19,059KB D2 06-27-2013 09:22:32-12:50:31 136,173KB D2 06-27-2013 13:51:09-16:43:08 112,518KB Total: 6 P: 1/1 HDD: 4 Start time: 06-27-2013 08:56:59 End time: 06-27-2013 12:50:57 Total size: 0MB Export All Export Cancel

Figure 7. 20 Result of Normal Video Search for Backup

1. Backup device management.

Click New Folder button if you want to create a new folder in the backup device.

Select a record file or folder in the backup device and click button if you want to delete it.

Select a record file in the backup device and click button to play it.

Click Format button to format the backup device.

If the inserted USB device is not recognized:

• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play Free Space 3.737MB New Folder Format Export Cancel

Figure 7.21 USB Flash Drive Management

Management of USB writers and DVD-R/W

The DVD-R/W is not supported by DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN series NVR.

1. Enter Search Result interface of record files.

Menu>Export>Normal

Set search condition and click Search button to enter Search Result interface.

At least one channel shall be selected.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 Start/End time of record 09-09-2013 16:02:02 -- 02-14-2014 17:41:31 Record Type All File Type All Start Time 02-18-2014 00:00:00 End Time 02-18-2014 23:59:59

Figure 7.22 Normal Video Search for Backup

1. Select record files you want to back up.

Click Export All button to export all the recording files.

Or you can select recording files you want to back up, and click Export button to enter Export interface.

At least one recording file shall be selected.

Search result Ca... Start/End Time Size Play Lock D1 06-27-2013 08:56:59-12:50:57 625.256KB D1 06-27-2013 13:51:09-16:28:44 414.995KB D1 06-27-2013 16:28:44-16:42:43 44.122KB D2 06-27-2013 08:53:36-09:22:30 19.059KB D2 06-27-2013 09:22:32-12:50:31 136.173KB D2 06-27-2013 13:51:09-16:43:08 112.518KB Total: 6 P: 1/1 HDD: 4 Start time: 06-27-2013 08:56:59 End time: 06-27-2013 12:50:57 Total size: OMB Export All Export Cancel

Figure 7.23 Result of Normal Video Search for Backup

3. Backup device management.

Click Erase button if you want to erase the files from a re-writable CD/DVD.

• There must be a re-writable CD/DVD when you make this operation.

• If the inserted USB writer or DVD-R/W is not recognized:

• Click the Refresh button.

• Reconnect device.
• Check for compatibility from vendor.

Export Device Name USB CD/DVD-RW Refresh Name Size Type Edit Date Delete Play Free Space 3.737MB Erase Export Cancel

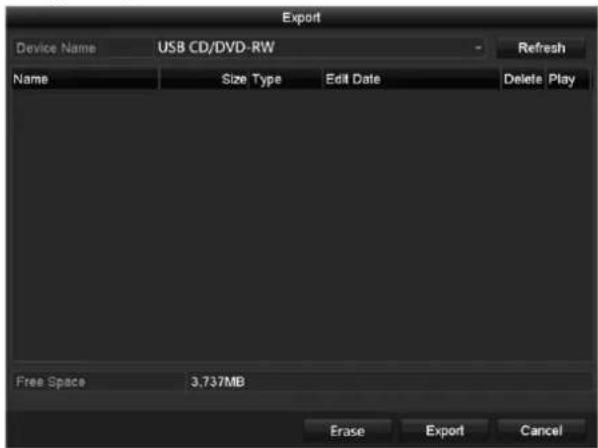

Figure 7.24 USB Writer Management

Chapter 8 Alarm Settings

8.1 Setting Motion Detection Alarm

Steps:

1. Enter Motion Detection interface of Camera Management and choose a camera you want to set up motion detection.

Menu> Camera> Motion

1. Set up detection area and sensitivity.

Tick Enable Motion Detection, and use the mouse to draw detection area(s) and drag the sensitivity bar to set sensitivity.

By default, the motion detection is enabled and configured in full screen.

Click Button and set alarm response actions.

Motion Detection Camera IP Camera 4 Enable Motion Detection Settings Sensitivity Full Screen Clear

Figure 8.1 Motion Detection Setup Interface

1. Click Trigger Channel tab and select one or more channels which will start to record or become full-screen monitoring when motion alarm is triggered, and click Apply to save the settings.

Settings Trigger Channel Arming Schedule Linkage Action IP Camera D1 D2 D3 Apply OK Cancel

Figure 8.2 Set Trigger Camera of Motion Detection

1. Set up arming schedule of the channel.

1) Select Arming Schedule tab to set the arming schedule of handling actions for the motion detection.

2) Choose one day of a week and up to eight time periods can be set within each day.

3) Click Apply to save the settings

Time periods shall not be repeated or overlapped.

Settings Trigger Channel Arming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

Figure 8.3 Set Arming Schedule of Motion Detection

1. Click Handling tab to set up alarm response actions of motion alarm (please refer to Chapter Setting Alarm Response Actions).
2. If you want to set motion detection for another channel, repeat the above steps or just click Copy in the Motion Detection interface to copy the above settings to it.

8.2 Setting Sensor Alarms

The sensor alarm is not supported by the DS-7100NI-SL(/W) series NVR.

Purpose:

Set the handling action of an external sensor alarm.

Steps:

1. Enter Alarm Settings of System Configuration and select an alarm input.

Menu> Configuration> Alarm

Select Alarm Input tab to enter Alarm Input Settings interface.

Alarm Status Alarm Input Alarm Output Alarm Input List Alarm Input No. Local<-1 Local<-2 Local<-3 Local<-4 Local<-5 Local<-6 Local<-7 Alarm Output List Alarm Output No. Local->1 Local->2 Local->3 Local->4 172.6.23.105:8000->1 Alarm Name N.O N.O N.O N.O N.O Dwell Time Manually Clear Manually Clear Manually Clear 5s

Figure 8.4 Alarm Status Interface of System Configuration

1. Set up the handling action of the selected alarm input.

Check the Enable checkbox and click Settings button to set up its alarm response actions.

Alarm Status Alarm Input Alarm Output Alarm Input No. Local<-1 Alarm Name Type N.O Enable Settings

Figure 8.5 Alarm Input Setup Interface

1. Select Trigger Channel tab and select one or more channels which will start to record or become full-screen monitoring when an external alarm is input, and click Apply to save the settings.
2. Select Arming Schedule tab to set the arming schedule of handling actions.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

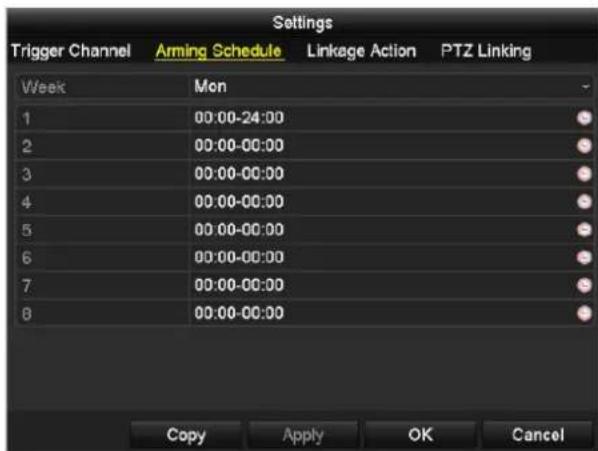

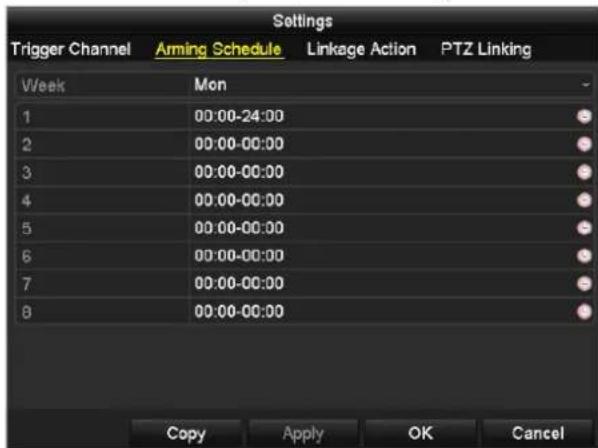

Figure 8.6 Set Arming Schedule of Alarm Input

Choose one day of a week and Max. eight time periods can be set within each day, and click Apply to save the settings.

Time periods shall not be repeated or overlapped.

Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days.

1. Select Linkage Action tab to set up alarm response actions of the alarm input (please refer to Chapter Setting Alarm Response Actions).
2. If necessary, select PTZ Linking tab and set PTZ linkage of the alarm input. Set PTZ linking parameters and click OK to complete the settings of the alarm input.

Please check whether the PTZ or speed dome supports PTZ linkage.

One alarm input can trigger presets, patrol or pattern of more than one channel. But presets, patrols and patterns are exclusive.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking PTZ Linking IP Camera 4 Call Preset ● Preset 1 Call Patrol ● Patrol 1 Call Pattern ● Pattern 1 Apply OK Cancel

Figure 8.7 Set PTZ Linking of Alarm Input

1. If you want to set handling action of another alarm input, repeat the above steps. Or you can click the Copy button on the Alarm Input Setup interface and check the checkbox of alarm

inputs to copy the settings to them.

Copy Alarm Input to Alarm Input No. Alarm Name Local<-1 Local<-2 Local<-3 Local<-4 Local<-5 Local<-6 Local<-7 Local<-8 Local<-9 Local<-10 Local<-11 OK Cancel

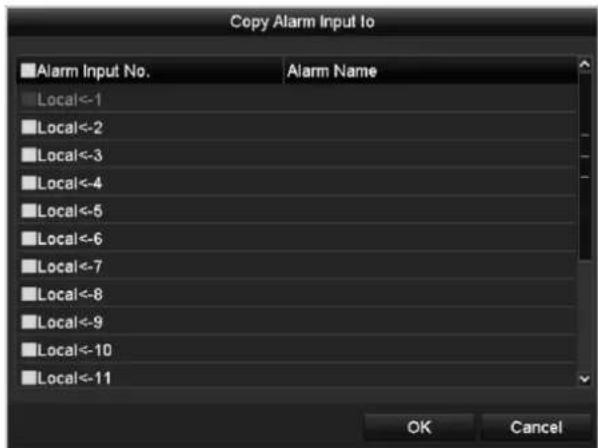

Figure 8.8 Copy Settings of Alarm Input

8.3 Detecting Video Loss Alarm

Purpose:

Detect video loss of a channel and take alarm response action(s).

Steps:

1. Enter Video Loss interface of Camera Management and select a channel you want to detect. Menu> Camera> Video Loss

Video Loss Camera IP Camera 4 Enable Video Loss Alarm Settings

Figure 8.9 Video Loss Setup Interface

1. Set up handling action of video loss.

Check the checkbox of "Enable Video Loss Alarm", and click button to set up handling action of video loss.

1. Set up arming schedule of the handling actions.

1) Select Arming Schedule tab to set the channel's arming schedule.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply button to save the settings.

Time periods shall not be repeated or overlapped.

Settings Arming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

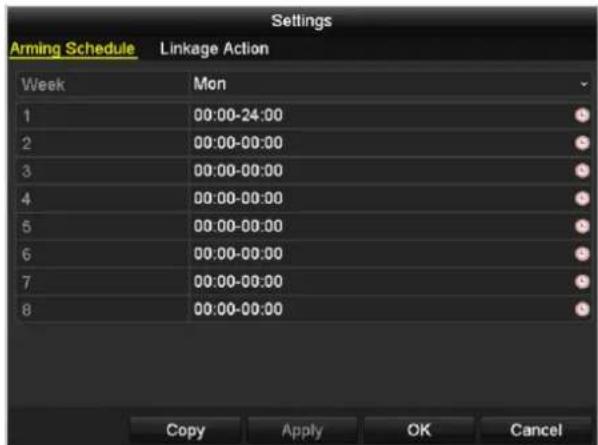

Figure 8. 10 Set Arming Schedule of Video Loss

1. Select Linkage Action tab to set up alarm response action of video loss (please refer to Chapter Setting Alarm Response Actions).
2. Click the OK button to complete the video loss settings of the channel.

8.4 Detecting Video Tampering Alarm

Purpose:

Trigger alarm when the lens is covered and take alarm response action(s).

Steps:

1. Enter Video Tampering interface of Camera Management and select a channel you want to detect video tampering.

Menu> Camera> Video Tampering

Video Tampering Detection Settings Camera IP Camera 1 Enable Video Tampering ... Settings Sensitivity Clear

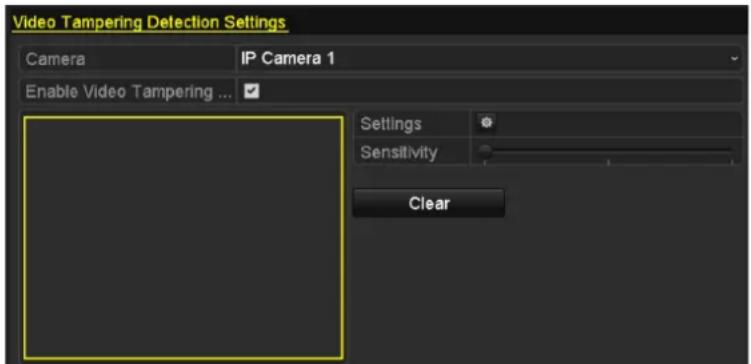

Figure 8.11 Video Tampering Setup Interface

1. Set the video tampering handling action of the channel.

Check the checkbox of Enable Video Tampering Detection.

Drag the sensitivity bar to set a proper sensitivity level. Use the mouse to draw an area you want to detect video tampering.

Click a button to set up handling action of video tampering.

1. Set arming schedule and alarm response actions of the channel.

1) Click Arming Schedule tab to set the arming schedule of handling actions.
2) Choose one day of a week and max. eight time periods can be set within each day.
3) Click Apply button to save the settings.

Time periods shall not be repeated or overlapped.

Settings Arming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

Figure 8. 12 Set Arming Schedule of Video Tampering

1. Select Linkage Action tab to set up alarm response actions of video tampering alarm (please refer to Chapter Setting Alarm Response Actions).
2. Click the OK button to complete the video tampering settings of the channel.

8.5 Detecting VCA Alarm

Purpose:

The NVR can receive the VCA alarm sent by IP camera, and the VCA detection must be enabled and configured on the IP camera settings interface first. Refer to the user manual of IP camera for detailed instructions to set the VCA rules.

Steps:

1. Enter VCA Alarm interface of Camera Management and select a camera you want to detect VCA alarm. Menu> Camera> VCA

The selected camera must support the VCA function.

VCA Camera IP Camera 7 Enable VCA Alarm Settings

Figure 8.13 VCA Alarm Setting Interface

1. Check the Enable VCA Alarm checkbox and click Settings button to set up its alarm response actions.
2. Select Trigger Channel tab and select one or more channels which will start to record or become full-screen monitoring when a VCA alarm is triggered, and click Apply to save the settings.
3. Select Arming Schedule tab to set the arming schedule of handling actions.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

Figure 8. 14 Set Arming Schedule of VCA Alarm

Choose one day of a week and Max. eight time periods can be set within each day, and click Apply to save the settings.

Time periods shall not be repeated or overlapped.

Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days.

1. Select Linkage Action tab to set up alarm response actions of the alarm input (please refer to Chapter 8.7)

Setting Alarm Response Actions).

1. If necessary, select PTZ Linking tab and set PTZ linkage of the VCA alarm, refer to step 6 of Chapter 8.2

Setting Sensor Alarms.

1. Click the OK button to complete the VCA alarm settings of the channel.

8.6 Handling Exceptions Alarm

Purpose:

Exception settings refer to the handling action of various exceptions, e.g.

• HDD Full: The HDD is full.
• HDD Error: Writing HDD error or unformatted HDD.
• Network Disconnected: Disconnected network cable.
• IP Conflicted: Duplicated IP address.
- Illegal Login: Incorrect user ID or password.
• Record Exception: No space for saving recorded files.
- PoE Power Overload: The power consumption of the connected cameras via the PoE interface exceeds the maximum PoE power.

PoE Power Overload is only supported by DS-7600NI-SE/P series NVR.

Steps:

Enter Exception interface of System Configuration and handle various exceptions.

Menu> Configuration> Exceptions

Please refer to Chapter Setting Alarm Response Actions for detailed alarm response actions.

Exception Enable Event Hint ✓ Event Hint Settings ❄ Exception Type HDD Full Audible Warning Notify Surveillance Center Send Email Trigger Alarm Output

Figure 8. 15 Exceptions Setup Interface

8.7 Setting Alarm Response Actions

Purpose:

Alarm response actions will be activated when an alarm or exception occurs, including Event Hint Display, Full Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Upload Picture to FTP, Trigger Alarm Output and Send Email.

Event Hint Display

When an event or exception happens, a hint can be displayed on the lower-left corner of live view image. And you can click the hint icon to check the details. Besides, the event to be displayed is configurable.

Steps:

1. Enter the Exception settings interface.

Menu > Configuration > Exceptions

1. Check the checkbox of Enable Event Hint.

Enable Event Hint Event Hint Settings

Figure 8. 16 Event Hint Settings Interface

1. Click the 🙏 to set the type of event to be displayed on the image.

Event Hint Settings All HDD Full HDD Error Network Disconnected IP Conflicted Illegal Login Video Signal Loss Alarm Input Triggered Video Tamper Detected Motion Detection Record Exception IP Camera Conflicted OK Cancel

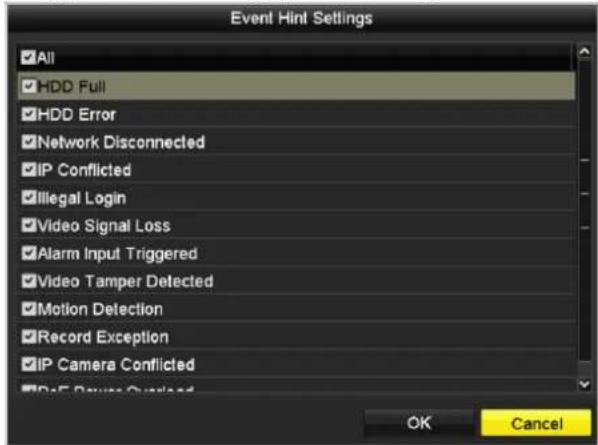

Figure 8. 17 Event Hint Settings Interface

1. Click the OK button to finish settings.

Full Screen Monitoring

When an alarm is triggered, the local monitor (VGA and HDMI ^TM monitor) display in full screen the video image from the alarming channel configured for full screen monitoring.

If alarms are triggered simultaneously in several channels, their full-screen images will be switched at an interval of 10 seconds (default dwell time). A different dwell time can be set by going to Menu >Configuration>Live View >Full Screen Monitoring Dwell Time.

Auto-switch will terminate once the alarm stops and you will be taken back to the Live View interface.

You must select during "Trigger Channel" settings the channel(s) you want to make full screen monitoring.

Audible Warning

Trigger an audible beep when an alarm is detected.

Notify Surveillance Center

Sends an exception or alarm signal to remote alarm host when an event occurs. The alarm host refers to the PC installed with Remote Client.

The alarm signal will be transmitted automatically at detection mode when remote alarm host is configured. Please refer to Chapter Configuring Remote Alarm Host for details of alarm host configuration.

Email Linkage

Send an email with alarm information to a user or users when an alarm is detected.

Please refer to Chapter 9.2.10 for details of Email configuration.

Trigger Alarm Output

Trigger an alarm output when an alarm is triggered.

1. Enter Alarm Output interface.

Menu> Configuration> Alarm> Alarm Output

Select an alarm output and set alarm name and dwell time. Click Schedule button to set the arming schedule of alarm output.

If "Manually Clear" is selected in the dropdown list of Dwell Time, you can clear it only by going to Menu> Manual> Alarm.

Alarm Status Alarm Input Alarm Output Alarm Output No. Local->1 Alarm Name Dwell Time 5s Settings

Figure 8.18 Alarm Output Setup Interface

1. Set up arming schedule of the alarm output.

Choose one day of a week and up to 8 time periods can be set within each day.

Time periods shall not be repeated or overlapped.

Settings Arming Schedule Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

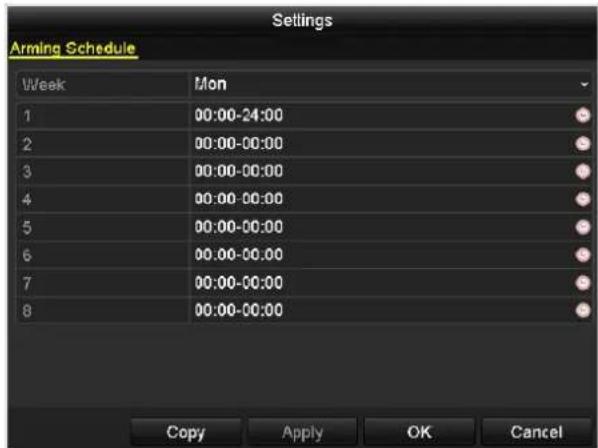

Figure 8. 19 Set Arming Schedule of Alarm Output

1. Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days.

Click the OK button to complete the video tampering settings of the alarm output No.

1. You can also copy the above settings to another channel.

Copy Alarm Output to Alarm Output No. Alarm Name Local->1 Local->2 Local->3 Local->4 172.6.23.105:8000->1 OK Cancel

Figure 8. 20 Copy Settings of Alarm Output

8.8 Triggering or Clearing Alarm Output Manually

The sensor alarm is not supported by the DS-7100NI-SL(/W) series NVR.

Purpose:

Sensor alarm can be triggered or cleared manually. If "Manually Clear" is selected in the dropdown list of dwell time of an alarm output, the alarm can be cleared only by clicking Clear button in the following interface.

Steps:

Select the alarm output you want to trigger or clear and make related operations.

Menu> Manual> Alarm

Click Trigger/Clear button if you want to trigger or clear an alarm output.

Click Trigger All button if you want to trigger all alarm outputs.

Click Clear All button if you want to clear all alarm output.

Alarm Output No.	Alarm Name	Trigger
Local->1		No
Local->2		No
Local->3		No
Local->4		No
172.6.23.105:8000->1		No

Figure 8.21 Clear or Trigger Alarm Output Manually

Chapter 9 Network Settings

9.1 Configuring General Settings

Purpose:

Network settings must be properly configured before you operate NVR over network.

Steps:

1. Enter the Network Settings interface.

Menu > Configuration > Network

1. Select the General tab.

NIC Type 10M/100M/1000M Self-adaptive Enable DHCP IPv4 Address 172.6 .23 .190 IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 172.6 .23 .1 IPv6 Address 1 fe80::212:42ff:efd:ec46/64 IPv6 Address 2 IPv6 Default Gateway MAC Address 00:12:42:fd:ec:46 MTU(Bytes) 1500 Preferred DNS Server Alternate DNS Server

DS-7600NI-SN

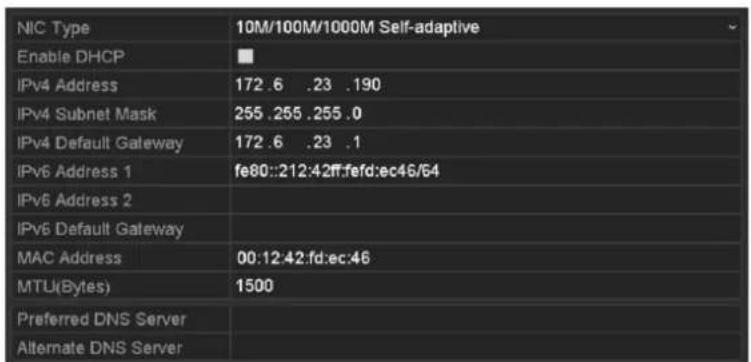

NIC Type 10M/100M/1000M Self-adaptive Enable DHCP ■ IPv4 Address 172.6 .23 .190 IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 172.6 .23 .1 IPv6 Address 1 fe80::212:42ff:efd:ec46/64 IPv6 Address 2 IPv6 Default Gateway MAC Address 00:12:42:fd:ec:46 MTU(Bytes) 1500 Preferred DNS Server Alternate DNS Server Internal NIC IPv4 Address 192.168.254.1

Other Models
Figure 9.1 Network Settings Interface

• The DS-7104NI-SL/W model provides LAN and WLAN for selection on the network settings interface.

• A 10 /100 Mbps self-adaptive Ethernet interface for DS-7604/7608NI, DS-7104/7108NI and DS-7100NI-SL series NVR; and a 10 /100/1000 Mbps self-adaptive Ethernet interface for other models.

• In the General Settings interface, you can configure the following settings: Working Mode, NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server.

If the DHCP server is available, you can click the checkbox of DHCP to automatically obtain an IP address and other network settings from that server.

- For the DS-7600NI-SE/N(P) series NVR which has the PoE or built-in switch network interfaces, the internal NIC IPv4 address should be configured for the cameras connecting to the PoE or built-in

switch network interface of the NVR.

● The valid value range of MTU is 500 \~ 9676.

1. After having configured the general settings, click Apply button to save the settings.

9.2 Configuring Advanced Settings

9.2.1 Configuring EZVIZ Cloud P2P

Purpose:

EZVIZ Cloud P2P provides the mobile phone application and as well the service platform page to access and manage your connected NVR, which enables you to get a convenient remote access to the surveillance system.

• If PPPoE function is disabled, enabling the EZVIZ cloud P2P will lead the UPnP function to be enabled.
• Among EZVIZ cloud P2P and DDNS, only one can be enabled.

Steps:

1. Enter the Network Settings interface. Menu > Configuration > Network
2. Select the Platform Access tab to enter the EZVIZ Cloud P2P Settings interface.
3. Check the Enable EZVIZ Cloud P2P checkbox to activate this feature.
4. If required, select the checkbox of Custom and input the Server Address.

The default server address is dev.ezviz7.com.

1. To turn the Enable Stream Encryption on, you can select its checkbox.
2. Enter the verification code of the device.

The verification code consists of 6 capital letters and is located at the bottom of the DVR. You can also use the scanning tool of your phone to quickly get the code by scanning the QR code below.

Enable EZVIZ Cloud P2P Server Address dev.ezviz7.com ✓ Custom Enable Stream Encryption Verification Code ABCDBF Status Offline

Figure 9.2 EZVIZ Cloud P2P Settings Interface

1. Click the Apply button to save and exit the interface.

After configuration, you can access and manage the NVR by your mobile phone on which the EZVIZ Cloud P2P application is installed or by the EZVIZ website (www.ezviz7.com).

For more operation instructions, please refer to the help file on the EZVIZ official website (www.ezviz7.com).

9.2.2 Configuring DDNS

Purpose:

If your NVR is set to use PPPoE as its default network connection, you may set Dynamic DNS (DDNS) to be used for network access.

Prior registration with your ISP is required before configuring the system to use DDNS.

Steps:

1. Enter the Network Settings interface.

Menu > Configuration > Network

1. Select the DDNS tab to enter the DDNS Settings interface, as shown in Figure 9.3.

Enable DDNS
DDNS Type	HIDDNS
Area/Country	Custom
Server Address	www.hik-online.com
Device Domain Name
Status	Offline
User Name
Password
Confirm

Figure 9. 3 DDNS Settings Interface

1. Check the DDNS checkbox to enable this feature.
2. Select DDNS Type. Five different DDNS types are selectable: IPServer, DynDNS, PeanutHull, NO-IP and HiDDNS.

- IPServer: Enter Server Address for IPServer.

Enable DDNS DDNS Type IPServer Area/Country Custom Server Address Device Domain Name Status Offline User Name Password Confirm

Figure 9.4 IPServer Settings Interface

- DynDNS:

1) Enter Server Address for DynDNS (i.e. members.dyndns.org).
2) In the NVR Domain Name text field, enter the domain obtained from the DynDNS website.
3) Enter the User Name and Password registered in the DynDNS website.

Enable DDNS DDNS Type DynDNS Area/Country Custom Server Address Device Domain Name Status Offline User Name Password Confirm

Figure 9.5 DynDNS Settings Interface

- PeanutHull: Enter the User Name and Password obtained from the PeanutHull website.

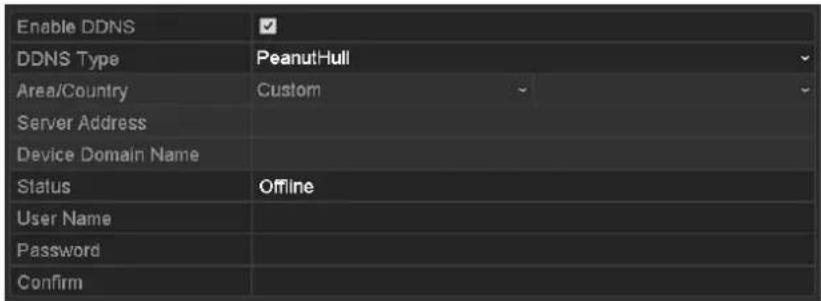

Enable DDNS DDNS Type Area/Country Server Address Device Domain Name Status User Name Password Confirm PeanutHull Custom Offline

Figure 9.6 PeanutHull Settings Interface

- NO-IP:

Enter the account information in the corresponding fields. Refer to the DynDNS settings.

1) Enter Server Address for NO-IP.
2) In the NVR Domain Name text field, enter the domain obtained from the NO-IP website (www.no-ip.com).
3) Enter the User Name and Password registered in the NO-IP website.

Enable DDNS DDNS Type NO-IP Area/Country Custom Server Address Device Domain Name Status Offline User Name Password Confirm

Figure 9.7 NO-IP Settings Interface

- HiDDNS:

1) Select the continent/country of the server on which the device is registered.
2) The Server Address of the HiDDNS server appears by default: www.hik-online.com.
3) Enter the Device Domain Name. You can use the alias you registered in the HiDDNS server or define a new device domain name. If a new alias of the device domain name is defined in the NVR, it will replace the old one registered on the server. You can register the alias of the device domain name in the HiDDNS server first and then enter the alias to the Device Domain Name in the NVR; you can also enter the domain name directly on the NVR to create a new one.

Enable DDNS DDNS Type HIDDNS Area/Country Custom Server Address www.hik-online.com Device Domain Name Status Offline User Name Password Confirm

Figure 9. 8 HiDDNS Settings Interface

Register the device on the HiDDNS server.

1) Go to the HiDDNS website: www.hik-online.com.

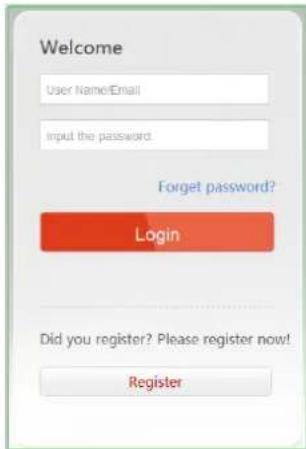

Welcome User Name/Email Input the password. Forget password? Login Did you register? Please register now! Register

Figure 9.9 Register an Account

2) Click Register to register an account if you do not have one and use the account to log in.

Register new user Add User * User Name: Only Character name or English letter under the user code (user are shown in Length Range 5-16). * Password: The password must contain at least one of the required character types: uppercase letter, lowercase letters, special characters, and numeric. Length Range 3-16. * Confirm Password: The password must contain at least one of the required character types: uppercase letter, lowercase letters, special characters, and numeric. Length Range 3-16. * Code: TYPE Username: Length Range 2-44. * Country: The security cannot be changed without any particular effects. Telephone: Length Range 2-30 * Email: Keros:

have read and agree to the (Name)

Register:

Figure 9. 10 Register an Account

3) In the Device Management interface, click Add to register the device.

Add Device • Device Serial No.: • Device Domain: Only numeric, lower case letters and '-' are supported, and the string cannot be ended with '-' or space. The length range [1-64] • HTTP Port: 0 Normally please do not change the default port value '0' . unless NAT function is enabled on the router and the external http port is of different value from the internal. In that case, please input the value of external port here. OK Cancel

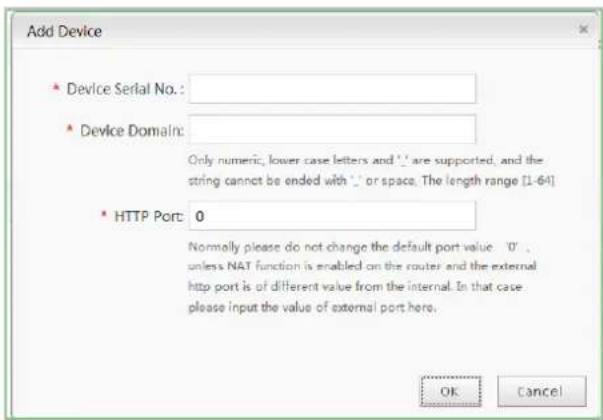

Figure 9.11 Register the Device

4) Input Device Serial No., Device Domain (Device Name) and HTTP Port. And click OK to add the device.

➢ Access the Device via Web Browser or Client Software

After having successfully registered the device on the HiDDNS server, you can access your device via web browser or Client Software with the Device Domain Name (Device Name).

● OPTION 1: Access the Device via Web Browser

Open a web browser, and enter http://www.hik-online.com/alias in the address bar. Alias refers to the Device Domain Name on the device or the Device Name on the HiDDNS server.

Example: http://www.hik-online.com/nvr

If you mapped the HTTP port on your router and changed it to port No. except 80, you have to enter http://www.hik-online.com/alias:HTTP port in the address bar to access the device. You can refer to Chapter 9.2.11 for the mapped HTTP port No.

- OPTION 2: Access the devices via iVMS-4200

For iVMS-4200, in the Add Device window, select and then edit the device information.

Nickname: Edit a name for the device as you want.

Server Address: www.hik-online.com

Device Domain Name: It refers to the Device Domain Name on the device or the Device Name on the HiDDNS server you created.

User Name: Enter the user name of the device.

Password: Enter the password of the device.

Add Adding Mode: IPIDomain IP Segment HIDONS Nickname: Server Address: www.hit-online.com Device Domain Name: User Name: Password: Group: Default Group Add Cancel

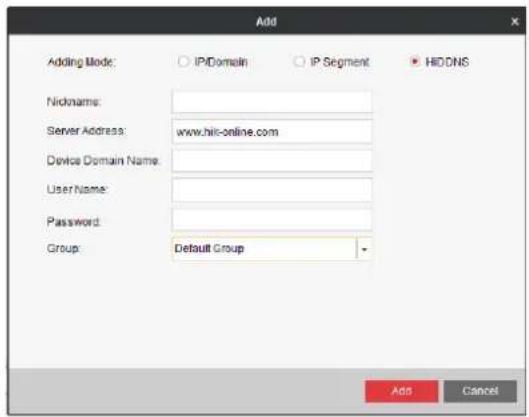

Figure 9. 12 Access Device via iVMS-4200

1. Click the Apply button to save the settings.

After setting all the required parameters for the DDNS, you can view the connecting status of the device by checking the Status information.

9.2.3 Configuring PPPoE Settings

Purpose:

Your NVR also allows access by Point-to-Point Protocol over Ethernet (PPPoE).

Steps:

1. Enter the Network Settings interface.

Menu >Configuration> Network

1. Select the PPPoE tab to enter the PPPoE Settings interface, as shown in Figure 9. 13.

Enable PPPOE User Name Password

Figure 9. 13 PPPoE Settings Interface

1. Check the PPPoE checkbox to enable this feature.
2. Enter User Name, and Password for PPPoE access.

The User Name and Password should be assigned by your ISP.

1. Click the Apply button to save and exit the interface.
2. After successful settings, the system asks you to reboot the device to enable the new settings, and the PPPoE dial-up is automatically connected after reboot.

You can go to Menu >Maintenance>System Info >Network interface to view the status of PPPoE connection.

Please refer to Chapter Viewing System Information for PPPoE status.

9.2.4 Configuring NTP Server

Purpose:

Ensure the network connection of the PC (running FTP server) and the device is valid and correct. Run the FTP server on the PC and copy the firmware into the corresponding directory of your PC.

Refer to the user manual of the FTP server to set the FTP server on your PC and put the firmware file into the directory as required.

Steps:

1. Enter the Network Settings interface.

Menu >Configuration> Network

1. Select the NTP tab to enter the NTP Settings interface, as shown in Figure 9. 14.

Extranet Access General PPPOE NTP Email SNMP NAT More Settings Enable NTP ✓ Interval (min) 60 NTP Server 129.6.15.28 NTP Port 123

Figure 9. 14 NTP Settings Interface

1. Check the Enable NTP checkbox to enable this feature.

2. Configure the following NTP settings:

3. Interval: Time interval between the two synchronizing actions with NTP server. The unit is minute.
   • NTP Server: IP address of NTP server.
   • NTP Port: Port of NTP server.

4. Click the Apply button to save and exit the interface.

The time synchronization interval can be set from 1 to 10080min, and the default value is 60min. If the NVR is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the NVR is setup in a more customized network, NTP software can be used to establish a NTP server used for time synchronization.

9.2.5 Configuring SNMP

Purpose:

You can use SNMP protocol to get device status and parameters related information.

The SNMP is not supported by DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN series NVR.

Steps:

1. Enter the Network Settings interface.

Menu >Configuration> Network

1. Select the SNMP tab to enter the SNMP Settings interface, as shown in Figure 9. 15.

Enable SNMP SNMP Version V2 SNMP Port 161 Read Community public Write Community private Trap Address Trap Port 162

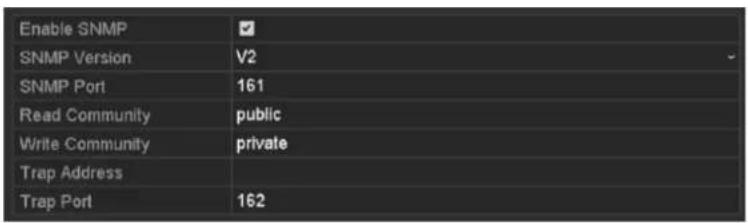

Figure 9. 15 SNMP Settings Interface

1. Check the SNMP checkbox to enable this feature.

2. Configure the following SNMP settings:

3. Trap Address: IP Address of SNMP host.

4. Trap Port: Port of SNMP host.

5. Click the Apply button to save and exit the interface.

Before setting the SNMP, please download the SNMP software and manage to receive the device information via SNMP port. By setting the Trap Address, the NVR is allowed to send the alarm event and exception message to the surveillance center.

9.2.6 Configuring Remote Alarm Host

Purpose:

With a remote alarm host configured, the NVR will send the alarm event or exception message to the host when an alarm is triggered. The remote alarm host must have the Network Video Surveillance software installed.

Steps:

1. Enter the Network Settings interface.

Menu >Configuration> Network

1. Select the More Settings tab to enter the More Settings interface, as shown in Figure 9.16.

Alarm Host IP
Alarm Host Port	0
Server Port	8000
HTTP Port	80
Multicast IP
RTSP Port	554
Enable High-speed Dow...

Figure 9. 16 More Settings Interface

1. Enter Alarm Host IP and Alarm Host Port in the text fields.

The Alarm Host IP refers to the IP address of the remote PC on which the Network Video Surveillance Software (e.g., iVMS-4200) is installed, and the Alarm Host Port must be the same as the alarm monitoring port configured in the software.

1. Click the Apply button to save and exit the interface.

9.2.7 Configuring Multicast

Purpose:

The multicast can be configured to realize live view for more than 128 connections through network for the device. A multicast address spans the Class-D IP range of 224.0.0.0 to 239.255.255.255. It is recommended to use the IP address ranging from 239.252.0.0 to 239.255.255.255.

Steps:

1. Enter the Network Settings interface.

Menu >Configuration> Network

1. Select the More Settings tab to enter the More Settings interface, as shown in Figure 9. 16.
2. Set Multicast IP, as shown in Figure 9. 17. When adding a device to the Network Video Surveillance Software, the multicast address must be the same as the NVR's multicast IP.

Server Port	8000
HTTP Port	80
Multicast IP	239.221.2.78

Figure 9. 17 Configure Multicast

1. Click the Apply button to save and exit the interface.

The multicast function should be supported by the network switch to which the NVR is connected.

9.2.8 Configuring RTSP

Purpose:

The RTSP (Real Time Streaming Protocol) is a network control protocol designed for use in communication systems to control streaming media servers.

Steps:

1. Enter the Network Settings menu Menu >Configuration> Network

2. Select the More Settings tab to enter the More Settings menu, as shown in Figure 9. 16.

RTSP Port 554

Figure 9. 18 RTSP Settings Interface

1. Enter the RTSP port in the text field of RTSP Service Port. The default RTSP port is 554, and you can change it according to different requirements.
2. Click the Apply button to save and exit the menu.

9.2.9 Configuring Server and HTTP Ports

Purpose:

You can change the server and HTTP ports in the Network Settings menu. The default server port is 8000 and the default HTTP port is 80.

Steps:

1. Enter the Network Settings interface.
   Menu >Configuration> Network
2. Select the More Settings tab to enter the More Settings interface, as shown in Figure 9. 16.
3. Enter new Server Port and HTTP Port.

Server Port	80001
HTTP Port	80
Multicast IP	239.221.2.78

Figure 9.19 Host/Others Settings Menu

1. Enter the Server Port and HTTP Port in the text fields. The default Server Port is 8000 and the HTTP Port is 80, and you can change them according to different requirements.
2. Click the Apply button to save and exit the interface.

The Server Port should be set to the range of 2000-65535 and it is used for remote client software access. The HTTP port is used for remote web browser access.

9.2.10 Configuring Email

Purpose:

The system can be configured to send an Email notification to all designated users if an alarm event is detected, etc., an alarm or motion event is detected or the administrator password is changed.

Before configuring the Email settings, the NVR must be connected to a local area network (LAN) that maintains an SMTP mail server. The network must also be connected to either an intranet or the Internet depending on the location of the e-mail accounts to which you want to send notification.

Steps:

1. Enter the Network Settings interface.

Menu >Configuration> Network

1. Set the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the Preferred DNS Server in the Network Settings menu, as shown in Figure 9. 20.

NIC Type	10M/100M/1000M Self-adaptive
Enable DHCP
IPv4 Address	172.6 .23 .190
IPv4 Subnet Mask	255.255.255.0
IPv4 Default Gateway	172.6 .23 .1
IPv6 Address 1	fe80::212:42ff:fed:ec46/64
IPv6 Address 2
IPv6 Default Gateway
MAC Address	00:12:42:fd:ec:46
MTU(Bytes)	1500
Preferred DNS Server
Alternate DNS Server
Internal NIC IPv4 Address	192.168.254.1

Figure 9. 20 Network Settings Interface

1. Click Apply to save the settings.
2. Select the Email tab to enter the Email Settings interface.

Enable Server Authentic... User Name user1 Password ******** SMTP Server xxxsmtp.com SMTP Port 25 Enable SSL Sender name1 Sender's Address [e-mail] Select Receivers Receiver 1 Receiver name2 Receiver's Address [e-mail] Enable Attached Picture Interval 2s

Figure 9.21 Email Settings Interface

1. Configure the following Email settings:

Enable Server Authentication (optional): Check the checkbox to enable the server authentication feature.

User Name: The user account of sender's Email for SMTP server authentication.

Password: The password of sender's Email for SMTP server authentication.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port No.: The SMTP port. The default TCP/IP port used for SMTP is 25.

Enable SSL (optional): Click the checkbox to enable SSL if required by the SMTP server.

Sender: The name of sender.

Sender's Address: The Email address of sender.

Select Receivers: Select the receiver. Up to 3 receivers can be configured.

Receiver: The name of user to be notified.

Receiver's Address: The Email address of user to be notified.

Enable Attached Pictures: Check the checkbox of Enable Attached Picture if you want to send email with attached alarm images. The interval is the time of two adjacent alarm images. You can also set SMTP port and enable SSL here.

Interval: The interval refers to the time between two actions of sending attached pictures.

E-mail Test: Sends a test message to verify that the SMTP server can be reached.

1. Click Apply button to save the Email settings.
2. You can click Test button to test whether your Email settings work. The corresponding Attention message box will pop up. Refer to Figure 9. 22.

Attention Email test succeeded. OK Attention Failed to send test email, please check the parameters or network status. OK

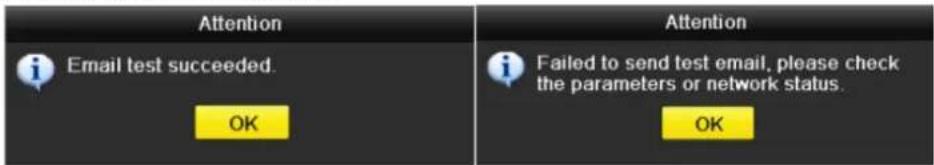

Figure 9. 22 Email Testing Attention

9.2.11 Configuring NAT

Purpose:

Two ways are provided for port mapping to realize the remote access via the cross-segment network, UPnP ^™ and manual mapping.

• UPnP TM

Universal Plug and Play (UPnPTM) can permit the device seamlessly discover the presence of other network devices on the network and establish functional network services for data sharing, communications, etc. You can use the UPnPTM function to enable the fast connection of the device to the WAN via a router without port mapping.

Before you start:

If you want to enable the UPnP ^TM function of the device, you must enable the UPnP ^TM function of the router to which your device is connected. When the network working mode of the device is set as multi-address, the Default Route of the device should be in the same network segment as that of the LAN IP address of the router.

Steps:

1. Enter the Network Settings interface.

Menu > Configuration > Network

1. Select the NAT tab to enter the port mapping interface.

Enable UPnP Mapping Type Manual Port Type Edit External ... External IP Address Port UPnP Status HTTP Port 80 0.0.0.0 80 Inactive RTSP Port 554 0.0.0.0 554 Inactive Server Port 8000 0.0.0.0 8000 Inactive Refresh

Figure 9. 23 UPnP ^TM Settings Interface

1. Check ☑ checkbox to enable UPnPTM.
2. Select the Mapping Type as Manual or Auto in the drop-down list.

OPTION 1: Auto

If you select Auto, the Port Mapping items are read-only, and the external ports are set by the router automatically.

Steps:

1) Select Auto in the drop-down list of Mapping Type.
2) Click Apply button to save the settings.

3) You can click Refresh button to get the latest status of the port mapping.

Enable UPnP Mapping Type Auto Port Type Edit External ... External IP Address Port UPnP Status HTTP Port 31397 172.6.23.120 80 Active RTSP Port 59826 172.6.23.120 554 Active Server Port 43728 172.6.23.120 8000 Active Refresh

Figure 9. 24 UPnPTM Settings Finished-Auto

OPTION 2: Manual

If you select Manual as the mapping type, you can edit the external port on your demand by clicking activate the External Port Settings dialog box.

to

Steps:

1) Select Manual in the drop-down list of Mapping Type.
2) Click ☑ to activate the External Port Settings dialog box. Configure the external port No. for server port, http port, RTSP port and https port respectively.

• You can use the default port No., or change it according to actual requirements.
  ● External Port indicates the port No. for port mapping in the router.
• The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the other ports should be between 1 and 65535 and the value must be different from each other. If multiple devices are configured for the UPnP™ settings under the same router, the value of the port No. for each device should be unique.

External Port Settings Port Type Server Port External Port 8001 OK Cancel

Figure 9. 25 External Port Settings Dialog Box

3) Click Apply button to save the settings.
4) You can click Refresh button to get the latest status of the port mapping.

Enable UPnP Mapping Type Manual Port Type Edit External ... External IP Address Port UPnP Status HTTP Port 82 172.6.23.120 80 Active RTSP Port 1554 172.6.23.120 554 Active Server Port 8001 172.6.23.120 8000 Active Refresh

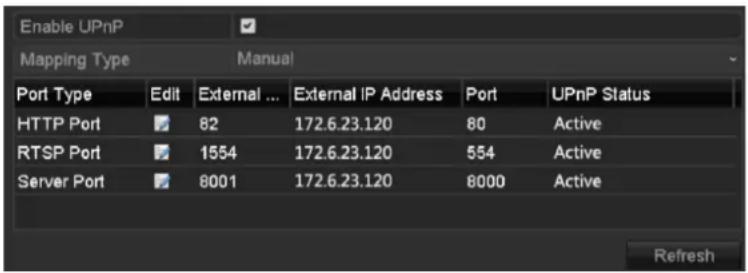

Figure 9. 26 UPnPTM Settings Finished-Manual

- Manual Mapping

If your router does not support the UPnP ^TM function, perform the following steps to map the port manually in an easy way.

Before you start:

Make sure the router support the configuration of internal port and external port in the interface of Forwarding.

Steps:

1. Enter the Network Settings interface.

Menu > Configuration > Network

1. Select the NAT tab to enter the port mapping interface.

2. Leave the Enable UPnP checkbox unchecked.

3. Click ☐ to activate the External Port Settings dialog box. Configure the external port No. for server port, http port, RTSP port and https port respectively.

The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the other ports should be between 1 and 65535 and the value must be different from each other. If multiple devices are configured for the UPnP ^TM settings under the same router, the value of the port No. for each device should be unique.

External Port Settings Port Type HTTP Port External Port 81 OK Cancel

Figure 9. 27 External Port Settings Dialog Box

1. Click OK to save the setting for the current port and return to the upper-level menu.

2. Click Apply button to save the settings.

3. Enter the virtual server setting page of router; fill in the blank of Internal Source Port with the internal port value, the blank of External Source Port with the external port value, and other required contents.

Each item should be corresponding with the device port, including server port, http port, RTSP port and https port.

External Delete Source Port Protocol Internal Source IP Internal Source Port Application 81 TCP 192.168.251.101 80 HTTP

Figure 9. 28 Setting Virtual Server Item

The above virtual server setting interface is for reference only, it may be different due to different router manufactures. Please contact the manufacture of router if you have any problems with setting virtual server.

9.3 Checking Network Traffic

Purpose:

You can check the network traffic to obtain real-time information of NVR such as linking status, MTU, sending/receiving rate, etc.

Steps:

1. Enter the Network Traffic interface. Menu > Maintenance > Net Detect

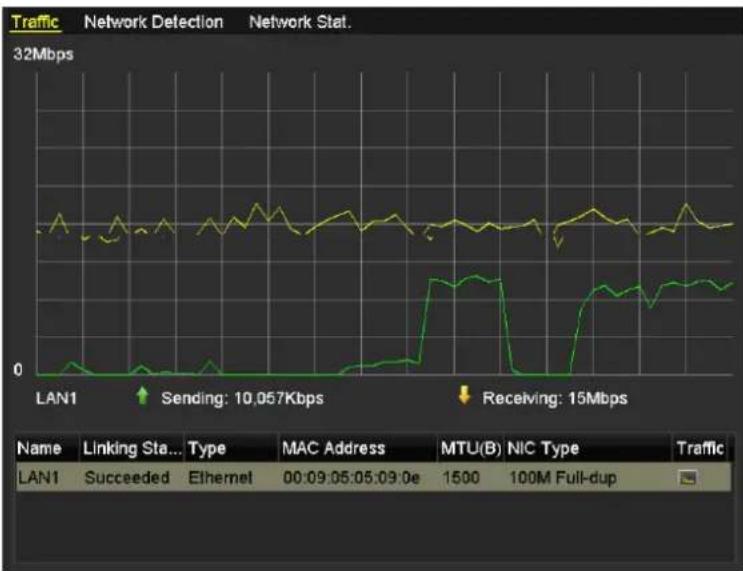

Figure 9. 29 Network Traffic Interface

1. You can view the sending rate and receiving rate information on the interface. The traffic data is refreshed every 1 second.

9.4 Configuring Network Detection

Purpose:

You can obtain network connecting status of NVR through the network detection function, including network delay, packet loss, etc.

9.4.1 Testing Network Delay and Packet Loss

Steps:

1. Enter the Network Traffic interface.

Menu >Maintenance>Net Detect

1. Click the Network Detection tab to enter the Network Detection menu, as shown in Figure 9. 30.

Traffic Network Detection Network Stat. Network Delay, Packet Loss Test Select NIC LAN1 Destination Address 172.6.23.129 Test Network Packet Export Device Name USB1-4 LAN1 172.6.23.172 15Mbps Refresh Export

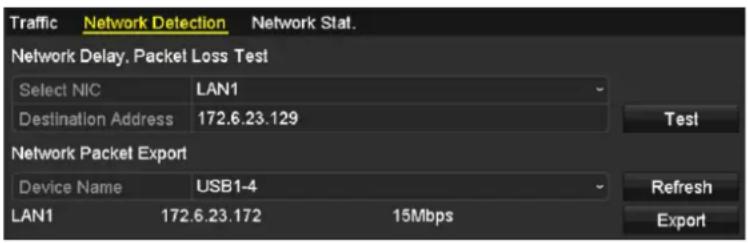

Figure 9. 30 Network Detection Interface

1. Enter the destination address in the text field of Destination Address.
2. Click Test button to start testing network delay and packet loss. The testing result pops up on the window. If the testing is failed, the error message box will pop up as well. Refer to Figure 9. 31.

Result Average delay: 63 ms Packet loss rate: 0% OK

Attention The destination is unreachable. OK

Figure 9. 31 Testing Result of Network Delay and Packet Loss

9.4.2 Exporting Network Packet

Purpose:

By connecting the NVR to network, the captured network data packet can be exported to USB-flash disk, SATA, DVD-R/W and other local backup devices.

Steps:

1. Enter the Network Traffic interface.

Menu >Maintenance>Net Detect

1. Click the Network Detection tab to enter the Network Detection interface.
2. Select the backup device from the dropdown list of Device Name, as shown in Figure 9. 32.

Click Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup device, please check whether it is compatible with the NVR. You can format the backup device if the format is incorrect.

Traffic Network Detection Network Stat. Network Delay, Packet Loss Test Select NIC LAN1 Destination Address 172.6.23.129 Test Network Packet Export Device Name USB1-4 - Refresh LAN1 172.6.23.172 15Mbps Export

Figure 9. 32 Export Network Packet

1. Click Export button to start exporting.
2. After the exporting is complete, click OK to finish the packet export, as shown in Figure 9.33.

Packet exporting Cancel

Attention Packet export succeeded OK

Figure 9. 33 Packet Export Attention

Up to 1M data can be exported each time.

9.4.3 Checking the Network Status

Purpose:

You can also check the network status and quick set the network parameters in this interface.

Steps:

Click the Status button on the lower-right corner of the page.

Traffic Network Detection Network Stat. Network Delay, Packet Loss Test Select NIC LAN1 Destination Address 172.6.23.129 Test Network Packet Export Device Name USB1-4 LAN1 172.6.23.172 18Mbps Refresh Export Status Network Back

Figure 9.34 Network Status Checking

If the network is normal the following message box pops out.

Result Network status is normal. OK

Figure 9. 35 Network status checking result

If the message box pops out with other information instead of this one, you can click Network button to show the quick setting interface of the network parameters.

9.4.4 Checking Network Statistics

Purpose:

You can check the network status to obtain the real-time information of NVR.

Steps:

1. Enter the Network Detection interface.
   Menu>Maintenance>Net Detect
2. Choose the Network Stat. tab.

Traffic Network Detection Network Stat. Type Bandwidth IP Camera 11Mbps Remote Live View 10Mbps Remote Playback 0bps Net Receive Idle 189Mbps Net Send Idle 70Mbps Refresh

Figure 9. 36 Network Stat. Interface

1. Check the bandwidth of IP Camera, bandwidth of Remote Live View, bandwidth of Remote Playback, bandwidth of Net Receive Idle and bandwidth of Net Send Idle.
2. You can click Refresh to get the newest status.

Chapter 10 HDD Management

10.1 Initializing HDDs

Purpose:

A newly installed hard disk drive (HDD) must be initialized before it can be used with your NVR.

A message box pops up when the NVR starts up if there exits any uninitialized HDD.

Attention ? Not all hard disks are initialized. Initialization will erase all data on the disk. Do you want to initialize the disk(s)? Yes No

Figure 10.1 Message Box of Uninitialized HDD

Click Yes button to initialize it immediately or you can perform the following steps to initialize the HDD.

Steps:

1. Enter the HDD Information interface.

Menu > HDD> General

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 305GB 1 -

Figure 10.2 HDD Information Interface

1. Select HDD to be initialized.
2. Click the Init button.

Initialize Initialization will erase all data on the HDD. Continue? OK Cancel

Figure 10.3 Confirm Initialization

1. Select the OK button to start initialization.

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Initializing 20% RAW Local 0MB 1 - -

Figure 10.4 Status changes to Initializing

1. After the HDD has been initialized, the status of the HDD will change from Uninitialized to Normal.

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 465GB 1 - -

Figure 10. 5 HDD Status Changes to Normal

Initializing the HDD will erase all data on it.

10.2 Managing Network HDD

Purpose:

You can add the allocated NAS or disk of IP SAN to NVR, and use it as network HDD.

The network HDD is not supported by DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN series NVR.

Steps:

1. Enter the HDD Information interface.

Menu > HDD>General

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 305GB 1 - 2 931.51GB Normal R/W Local 814GB 1 -

Figure 10.6 HDD Information Interface

1. Click the Add button to enter the Add NetHDD interface, as shown in Figure 10.7.

Add NetHDD NetHDD NetHDD 1 Type NAS NetHDD IP Address . . . NetHDD Directory OK Cancel

Figure 10.7 HDD Information Interface

1. Add the allocated NetHDD.
2. Select the type to NAS or IP SAN.
3. Configure the NAS or IP SAN settings.

- Add NAS disk:

1) Enter the NetHDD IP address in the text field.
2) Click the Search button to search the available NAS disks.
3) Select the NAS disk from the list shown below.

Or you can just manually enter the directory in the text field of NetHDD Directory.

4) Click the OK button to add the configured NAS disk.

Up to 8 NAS disks can be added.

Add NetHDD NetHDD NetHDD 1 Type NAS NetHDD IP Address 172.6 24 .201 NetHDD Directory /dvr/dvr_3 No Directory 1 /dvr/dvr_3 2 /dvr/dvr_1 3 /mnt/backup/indexbackup 4 /dvr/dvr_8 5 /dvr/llu_0 6 /dvr/dvr_2 Search OK Cancel

Figure 10.8 Add NAS Disk

- Add IP SAN:

1) Enter the NetHDD IP address in the text field.
2) Click the Search button to search the available IP SAN disks.
3) Select the IP SAN disk from the list shown below.
4) Click the OK button to add the selected IP SAN disk.

Up to 1 IP SAN disk can be added.

Add NetHDD NetHDD NetHDD 1 Type IP SAN NetHDD IP Address 172 .9 .2 .210 NetHDD Directory ign.2004-05.storos.t-8 No. Directory 1 ign.2004-05.storos.t-8 2 ign.2004-05.storos.t-41 3 ign.2004-05.storos.t-1000 Search OK Cancel

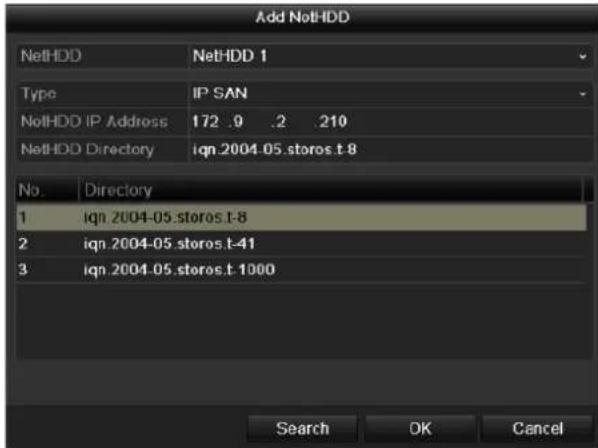

Figure 10.9 Add IP SAN Disk

1. After having successfully added the NAS or IP SAN disk, return to the HDD Information menu. The added NetHDD will be displayed in the list.

If the added NetHDD is uninitialized, please select it and click the Init button for initialization.

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 465GB 1 - - 6 931.51GB Normal R/W Local 814GB 1 - - 17 20,448MB Normal R/W NAS 19,456MB 1

Figure 10. 10 Initialize Added NetHDD

10.3 Managing HDD Group

10.3.1 Setting HDD Groups

Purpose:

Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings.

Steps:

1. Enter the Storage Mode interface.

Menu > HDD > Advanced

1. Set the Mode to Group, as shown in Figure 10. 11.

Storage Mode Mode Group Record on HDD Group 1 IP Camera D1 D2 D3 D4 D5 D6 D7 D8

Figure 10.11 Storage Mode Interface

1. Click the Apply button and the following Attention box will pop up.

Attention Reboot to take effect of the changing of the storage mode. Continue? Yes No

Figure 10. 12 Attention for Reboot

1. Click the Yes button to reboot the device to activate the changes.
2. After reboot of device, enter the HDD Information interface.

Menu > HDD> General

1. Select HDD from the list and click 10.13.

icon to enter the Local HDD Settings interface, as shown in Figure

Local HDD Settings HDD No. 5 HDD Property ● R/W ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 931GB Apply OK Cancel

Figure 10. 13 Local HDD Settings Interface

1. Select the Group number for the current HDD.

The default group No. for each HDD is 1.

1. Click the OK button to confirm the settings.

Attention Regroup the cameras for HDD if the HDD group number is changed. Yes No

Figure 10. 14 Confirm HDD Group Settings

1. In the pop-up Attention box, click the Yes button to finish the settings.

10.3.2 Setting HDD Property

Purpose:

The HDD property can be set to redundancy, read-only or read/write (R/W). Before setting the HDD property, please set the storage mode to Group (refer to step1-4 of Chapter Setting HDD Groups).

A HDD can be set to read-only to prevent important recorded files from being overwritten when the HDD becomes full in overwrite recording mode.

When the HDD property is set to redundancy, the video can be recorded both onto the redundancy HDD and the R/W HDD simultaneously so as to ensure high security and reliability of video data.

Steps:

1. Enter the HDD Information interface.

Menu > HDD> General

1. Select HDD from the list and click the icon to enter the Local HDD Settings interface, as shown in Figure 10.15.

Local HDD Settings HDD No. 5 HDD Property ● R/W ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 931GB Apply OK Cancel

Figure 10. 15 Set HDD Property

1. Set the HDD property to R/W, Read-only or Redundancy.
2. Click the OK button to save the settings and exit the interface.
3. In the HDD Information menu, the HDD property will be displayed in the list.

At least 2 hard disks must be installed on your NVR when you want to set a HDD to Redundancy, and there is one HDD with R/W property.

10.4 Configuring Quota Mode

Purpose:

Each camera can be configured with allocated quota for the storage of recorded files.

Steps:

1. Enter the Storage Mode interface.
   Menu > HDD > Advanced
2. Set the Mode to Quota, as shown in Figure 10. 16.

The NVR must be rebooted to enable the changes to take effect.

Storage Mode Mode Quota Camera.IP Camera 1 Used Record Capacity 16.384MB HDD Capacity (GB) 1417 Max. Record Capacity (G... 0 ▲ Free Quota Space 1417 GB

Figure 10. 16 Storage Mode Settings Interface

1. Select a camera for which you want to configure quota.
2. Enter the storage capacity in the text fields of Max. Record Capacity (GB), as shown in Figure 10. 17.

Storage Mode Mode Quota Camera IP Camera 1 Used Record Capacity 16,384MB HDD Capacity (GB) 1417 Max. Record Capacity (G... 100l ▲ Free Quota Space 1317 1 2 3 4 5 6 7 8 9 0 Enter ESC

Figure 10.17 Configure Record Quota

1. You can copy the quota settings of the current camera to other cameras if required. Click the Copy button to enter the Copy Camera menu, as shown in Figure 10. 18.

Copy to IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 OK Cancel

Figure 10. 18 Copy Settings to Other Camera(s)

1. Select the camera (s) to be configured with the same quota settings. You can also click the checkbox of IP Camera to select all cameras.
2. Click the OK button to finish the Copy settings and back to the Storage Mode interface.
3. Click the Apply button to apply the settings.

If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record.

10.5 Checking HDD Status

Purpose:

You may check the status of the installed HDDs on NVR so as to take immediate check and maintenance in case of HDD failure.

Checking HDD Status in HDD Information Interface

Steps:

1. Enter the HDD Information interface.

Menu > HDD>General

1. Check the status of each HDD which is displayed on the list, as shown in Figure 10. 19.

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 1 465.76GB Normal R/W Local 465GB 1 - - - 6 931.51GB Normal R/W Local 814GB 1 - - - 17 20,448MB Normal R/W NAS 19,456MB 1

Figure 10.19 View HDD Status (1)

If the status of HDD is Normal or Sleeping, it works normally. If the status is Uninitialized or Abnormal, please initialize the HDD before use. And if the HDD initialization is failed, please replace it with a new one.

Checking HDD Status in HDD Information Interface

Steps:

1. Enter the System Information interface.

Menu >Maintenance > System Info

1. Click the HDD tab to view the status of each HDD displayed on the list, as shown in Figure 10. 20.

Device Info	Camera	Record	Alarm	Network	HDD
Label	Status	Capacity	Free Space		Property	Type	Group
1	Normal	465.76GB	465GB		R/W	Local	1
6	Normal	931.51GB	814GB		R/W	Local	1
17	Normal	20,448MB	19,456MB		R/W	NAS	1
Total Capacity		1,417GB
Free Space		1,298GB

Figure 10. 20 View HDD Status (2)

10.6 HDD Detection

Purpose:

The device provides the HDD detection function such as the adopting of the S.M.A.R.T. and the Bad Sector Detection technique. The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures.

S.M.A.R.T. Settings

Steps:

1. Enter the S.M.A.R.T Settings interface.

Menu > Maintenance > HDD Detect

1. Select the HDD to view its S.M.A.R.T information list, as shown in Figure 10. 21.

S.M.A.R.T. Settings Bad Sector Detection
■ Continue to use this disk when self-evaluation is failed.
HDD	1
Self-test Status	Not tested
Self-test Type	Short Test
S.M.A.R.T.	#
Temperature (℃)	46
Power On (days)	146
Self-evaluation	Pass
All-evaluation	Functional
S.M.A.R.T. Information
ID	Attribute Name	Status	Flags	Thresh...	Value	Worst	Raw Value
0x1	Raw Read Error Rate	OK	f	51	200	200	0
0x3	Spin Up Time	OK	3	21	231	223	5450
0x4	Start/Stop Count	OK	32	0	98	98	2371
0x5	Reallocated Sector Co... OK		33	140	199	199	1
0x7	Seek Error Rate OK f 51 100 253 0
0x9	Power-on Hours Count OK 32 0 96 96 3514

Figure 10. 21 S.M.A.R.T Settings Interface

The related information of the S.M.A.R.T. is shown on the interface.

You can choose the self-test types as Short Test, Expanded Test or the Conveyance Test.

Click the start button to start the S.M.A.R.T. HDD self-evaluation.

If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the checkbox of the

Continue to use the disk when self-evaluation is failed item.

Bad Sector Detection

Steps:

1. Click the Bad Sector Detection tab.
2. Select the HDD No. in the dropdown list you want to configure, and choose All Detection or Key Area Detection as the detection type.
3. Click the Detect button to start the detection.

S.M.A.R.T. Settings Bad Sector Detection HDD No. 1 Key Area Detection Detect HDD Capac... 465.76GB Block Capa... 116MB Status Testing... 63% Error Count 0 Error info Pause Cancel Normal Damaged Shield

Figure 10.22 Bad Sector Detection

And you can click Error info button to see the detailed damage information. And you can also pause/resume or cancel the detection.

10.7 Configuring HDD Error Alarms

Purpose:

You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal.

Steps:

1. Enter the Exception interface.
   Menu > Configuration > Exceptions
2. Select the Exception Type to HDD Error from the dropdown list.
3. Click the checkbox(s) below to select the HDD error alarm type (s), as shown in Figure 10. 23.

The alarm type can be selected to: Audible Warning, Notify Surveillance Center, Send Email and Trigger Alarm Output. Please refer to Chapter Setting Alarm Response Actions.

Exception Type HDD Error Audible Warning Notify Surveillance Center Send Email Trigger Alarm Output ■Alarm Output No. ■Local->1 ■Local->2 ■Local->3 ■Local->4 ✓172.6.23.105:8000->1 Alarm Name

Figure 10. 23 Configure HDD Error Alarm

1. When the Trigger Alarm Output is selected, you can also select the alarm output to be triggered from the list below.
2. Click the Apply button to save the settings

Chapter 11 Camera Settings

11.1 Configuring OSD Settings

Purpose:

You can configure the OSD (On-screen Display) settings for the camera, including date /time, camera name, etc.

Steps:

1. Enter the OSD Configuration interface.
   Menu > Camera > OSD
2. Select the camera to configure OSD settings.
3. Edit the Camera Name in the text field.
4. Configure the Display Name, Display Date and Display Week by clicking the checkbox.
5. Select the Date Format, Time Format and Display Mode.

OSD Configuration Camera IP Camera 3 Camera Name Camera 01 01-01-2010 Pa 11:55:19 Display Name Display Date Display Week Date Format MM-DD-YYYY Time Format 24-hour Display Mode Non-Transparent & Not Flashing

Figure 11.1 OSD Configuration Interface

1. You can use the mouse to click and drag the text frame on the preview window to adjust the OSD position.
2. Click the Apply button to apply the settings.

11.2 Configuring Privacy Mask

Purpose:

You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the operator. The privacy mask can prevent certain surveillance areas to be viewed or recorded.

Steps:

1. Enter the Privacy Mask Settings interface.
   Menu > Camera > Privacy Mask
2. Select the camera to set privacy mask.
3. Click the checkbox of Enable Privacy Mask to enable this feature.

Privacy Mask Settings Camera IP Camera 2 Enable Privacy Mask Clear All Clear Zone 1 Clear Zone 2 Clear Zone 3 Clear Zone 4

Figure 11.2 Privacy Mask Settings Interface

1. Use the mouse to draw a zone on the window. The zones will be marked with different frame colors.

Up to 4 privacy masks zones can be configured and the size of each area can be adjusted.

1. The configured privacy mask zones on the window can be cleared by clicking the corresponding Clear Zone1-4 icons on the right side of the window, or click Clear All to clear all zones.

Privacy Mask Settings Camera IP Camera 2 Enable Privacy Mask Clear All Clear Zone 1 Clear Zone 2 Clear Zone 3 Clear Zone 4

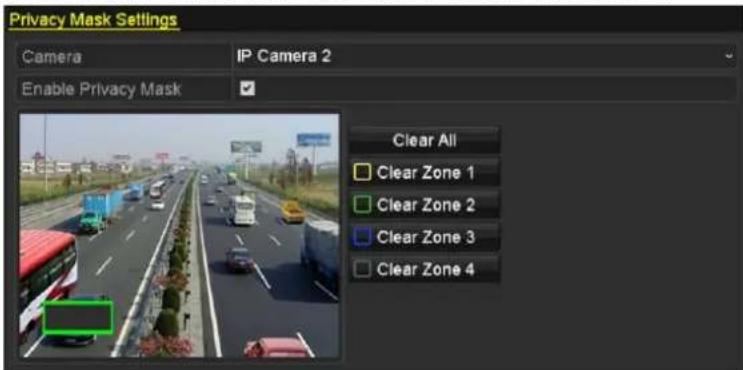

Figure 11. 3 Set Privacy Mask Area

1. Click the Apply button to save the settings.

11.3 Configuring Video Parameters

Steps:

1. Enter the Image Settings interface.

Menu > Camera > Image

Image Settings Camera IP Camera 2 Mode Custom Brightness 171 ° Contrast 113 ° Saturation 151 ° Hue 120 °

Figure 11.4 Image Settings Interface

1. Select the camera to set image parameters.
2. You can click on the arrow to change the value of each parameter.
3. Click the Apply button to save the settings.

Chapter 12 NVR Management and Maintenance

12.1 Viewing System Information

12.1.1 Viewing Device Information

Steps:

1. Enter the System Information interface. Menu > Maintenance > System Info
2. You can click the Device Info, Camera, Record, Alarm, Network and HDD tabs to view the system information of the device.

Device Info	Camera	Record	Alarm	Network	HDD
Device Name		Network Video Recorder
Model		XXXXXXXXXXXXXX
Serial No.		XXXXXXXXXXXXXX
Firmware Version		XXXXXXXXXXXXXX

Figure 12.1 Device Information Interface

The Alarm is not available for the DS-7100NI-SL(/W) series NVR.

12.2 Searching & Export Log Files

Purpose:

The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and exported at any time.

Steps:

1. Enter the Log Search interface.

Menu > Maintenance > Log Information

Log Search Log Export Start Time 02-20-2014 00:00:00 End Time 02-20-2014 23:59:59 Major Type All Minor Type Alarm Input Alarm Output Start Motion Detection Stop Motion Detection Start Video Tampering Detection Stop Video Tampering Detection Video Loss Alarm Illegal Login HDD Full HDD Error IP Conflicted Network Disconnected Record Exception IP Camera Disconnected Search Back

Figure 12.2 Log Search Interface

1. Set the log search conditions to refine your search, including the Start Time, End Time, Major Type and Minor Type.
2. Click the Search button to start search log files.
3. The matched log files will be displayed on the list shown below.

Search Result No. Major Type Time Minor Type Parameter Play Details 187 Alarm 12-26-2013 11:25:54 Video Tamperin... N/A 188 Alarm 12-26-2013 11:26:01 Video Tamperin... N/A 189 Alarm 12-26-2013 11:26:12 Video Tamperin... N/A 190 Alarm 12-26-2013 11:26:17 Video Tamperin... N/A 191 Alarm 12-26-2013 11:26:23 Video Tamperin... N/A 192 Information 12-26-2013 11:26:51 System Running... N/A 193 Information 12-26-2013 11:27:02 System Running... N/A 194 Operation 12-26-2013 11:27:12 Remote Operati... IP Camera 195 Operation 12-26-2013 11:27:12 Remote Operati... N/A 196 Operation 12-26-2013 11:27:12 Remote Operati... Device 197 Operation 12-26-2013 11:30:12 Remote Operati... IP Camera 198 Operation 12-26-2013 11:30:12 Remote Operati... N/A 199 Operation 12-26-2013 11:30:12 Remote Operati... Device 200 Operation 12-26-2013 11:33:11 Remote Operati... IP Camera Total: 1067 P: 2/11 Export Back

Figure 12. 3 Log Search Results

Up to 2000 log files can be displayed each time.

1. You can click the button of each log or double click it to view its detailed information, as shown in Figure 12.4. And you can also click the button to view the related video files if available.

Log Information Time 02-21-2014 08:42:14 Type Exception-IP Camera Disconnected Local User N/A Host IP Address N/A Parameter Type N/A Camera No.D8 Description: Camera No.: D8 IP address: 192.168.254.9 Domain name: Protocol: HIKVISION Management port: 8000 Channel port: 1 Previous Next OK

Figure 12.4 Log Details

1. If you want to export the log files, click the Export button to enter the Export menu, as shown in Figure 12. 5.

Export Device Name USB1-4 Refresh Name Size Type Edit Date Delete Play Free Space 3.737MB New Folder Format Export Cancel

Figure 12.5 Export Log Files

1. Select the backup device from the dropdown list of Device Name.
2. Click the Export to export the log files to the selected backup device.

You can click the New Folder button to create new folder in the backup device, or click the Format button to format the backup device before log export.

• Please connect the backup device to NVR before operating log export.
• The log files exported to the backup device are named by exporting time, e.g., 20110514124841logBack.txt.

To export all the log files:

Steps:

1. Enter the Log Information interface.

Menu> Maintenance> Log Information> Log Export

1. Click the Log Export tab.

Log Search Log Export L... Capacity Status Property Type Free Space Gr... 1 465.76GB Sleeping R/W Local 465GB 1 ✓6 931.51GB Normal R/W Local 814GB 1 17 20,448MB Normal R/W NAS 19,456MB 1 Export Back

Figure 12.6 Log Export Interface

1. You can check the checkbox of the HDD.
2. Click the Export button to export all the log files stored in the HDD.

12.3 Importing/Exporting IP Camera Info

Purpose:

The information of added IP camera can be generated into an excel file and exported to the local device for backup, including the IP address, manage port, password of admin, etc.. And the exported file can be edited on your PC, like adding or deleting the content, and copy the setting to other devices by importing the excel file to it.

Steps:

1. Enter the camera management interface.

Menu > Camera > IP Camera Import/Export

1. Click the IP Camera Import/Export tab, the content of detected plugged external device appears.
2. Click the Export button to export configuration files to the selected local backup device.
3. To import a configuration file, select the file from the selected backup device and click the Import button.

After the importing process is completed, you must reboot the NVR.

The importing/exporting IP camera information is not available for the DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN series NVR.

12.4 Importing/Exporting Configuration Files

Purpose:

The configuration files of the NVR can be exported to local device for backup; and the configuration files of one NVR can be imported to multiple NVR devices if they are to be configured with the same parameters.

Steps:

1. Enter the Import/Export Configuration File interface.

Menu > Maintenance > Import/Export

Import/Export Config File Device Name USB1-4 Refresh Name Size Type Edit Date Del... Play LAN1_20140221... 7KB File 02-21-2014 09:52:18 ch01_201402181... 65,888KB File 02-18-2014 14:08:08 ch02_201402181... 55,176KB File 02-18-2014 14:08:42 player.exe 784KB File 02-18-2014 14:07:38 Free Space 3,618MB New Folder Import Export Back

Figure 12.7 Import/Export Config File

1. Click the Export button to export configuration files to the selected local backup device.

2. To import a configuration file, select the file from the selected backup device and click the Import button. After the import process is completed, you must reboot the NVR.

After having finished the import of configuration files, the device will reboot automatically.

12.5 Upgrading System

Purpose:

The firmware on your NVR can be upgraded by local backup device or remote FTP server.

12.5.1 Upgrading by Local Backup Device

Steps:

1. Connect your NVR with a local backup device where the update firmware file is located.
2. Enter the Upgrade interface.

Menu >Maintenance>Upgrade

1. Click the Local Upgrade tab to enter the local upgrade menu, as shown in Figure 12.8.

Local Upgrade FTP Device Name USB1-4 Refresh Name Size Type Edit Date Del... Play LAN1_20140221... 7KB File 02-21-2014 09:52:18 ch01_201402181... 65,888KB File 02-18-2014 14:08:08 ch02_201402181... 55,176KB File 02-18-2014 14:08:42 devCfg_0109905... 3,710KB File 02-21-2014 11:38:54 player.exe 784KB File 02-18-2014 14:07:38 Upgrade Back

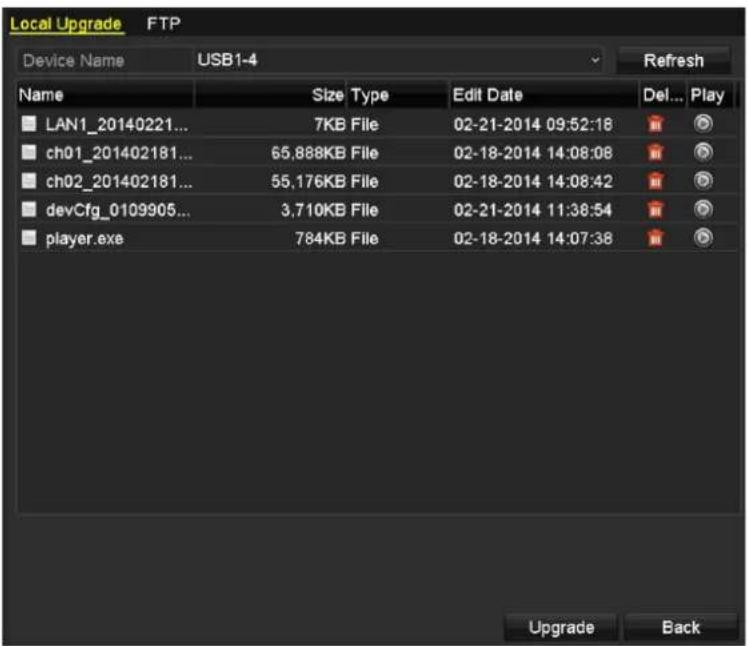

Figure 12.8 Local Upgrade Interface

1. Select the update file from the backup device.
2. Click the Upgrade button to start upgrading.
3. After the upgrading is complete, reboot the NVR to activate the new firmware.

12.5.2 Upgrading by FTP

The FTP server is not supported by the DS-7100NI-SL(/W), DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN series NVR.

Purpose:

Ensure the network connection of the PC (running FTP server) and the device is valid and correct. Run the FTP server on the PC and copy the firmware into the corresponding directory of your PC.

Refer to the user manual of the FTP server to set the FTP server on your PC and put the firmware file into the directory as required.

Steps:

1. Enter the Upgrade interface.

Menu >Maintenance>Upgrade

1. Click the FTP tab to enter the local upgrade interface, as shown in Figure 12.9.

Local Upgrade FTP FTP Server Address . . .

Figure 12.9 FTP Upgrade Interface

1. Enter the FTP Server Address in the text field.
2. Click the Upgrade button to start upgrading.
3. After the upgrading is complete, reboot the NVR to activate the new firmware.

12.6 Restoring Default Settings

Steps:

1. Enter the Default interface.

Menu > Maintenance > Default

Default Restore Defaults Simply restore the settings. Factory Defaults Restore all parameters to default settings. Restore to Inactive Restore the device to inactive status.

Figure 12. 10 Restore Defaults

1. Select the restoring type from the following three options.

Restore Defaults: Restore all parameters, except the network (including IP address, subnet mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account parameters, to the factory default settings.

Factory Defaults: Restore all parameters to the factory default settings.

Restore to Inactive: Restore the device to the inactive status.

1. Click the OK button to restore the default settings.

The device will reboot automatically after restoring to the default settings.

Chapter 13 Others

13.1 Configuring RS-232 Serial Port

Purpose:

The RS-232 port can be used in two ways:

• Parameters Configuration: Connect a PC to the NVR through the PC serial port. Device parameters can be configured by using software such as HyperTerminal. The serial port parameters must be the same as the NVR's when connecting with the PC serial port.
• Transparent Channel: Connect a serial device directly to the NVR. The serial device will be controlled remotely by the PC through the network and the protocol of the serial device.

Steps:

1. Enter the RS-232 Settings interface.

Menu >Configuration> RS-232

RS-232 Settings
Baud Rate	115200
Data Bit	8
Stop Bit	1
Parity	None
Flow Ctrl	None
Usage	Console

Figure 13.1 RS-232 Settings Interface

1. Configure RS-232 parameters, including baud rate, data bit, stop bit, parity, flow control and usage.
2. Click the Apply button to save the settings.

13.2 Configuring General Settings

Purpose:

You can configure the BNC output standard, VGA output resolution, mouse pointer speed through the Menu >Configuration >General interface.

Steps:

1. Enter the General Settings interface. Menu >Configuration> General

2. Select the General tab.

General DST Settings More Settings Language English Resolution 1024*768/60HZ Time Zone (GMT+08:00) Beijing, Urumqi, Singapore Date Format MM-DD-YYYY System Date 02-21-2014 System Time 13:48:59 Mouse Pointer Speed Enable Wizard Enable Password

Figure 13.2 General Settings Interface

1. Configure the following settings:

• Language: The default language used is English.
- Resolution: Select the resolution for the video output, which must be the same with the resolution of the monitor screen.
• Time Zone: Select the time zone.
- Date Format: Select the date format.
• System Date: Select the system date.
- System Time: Select the system time.
- Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
- Enable Wizard: Enable/disable the Wizard when the device starts up.
- Enable Password: Enable/disable the use of the login password.

1. Click the Apply button to save the settings.

13.3 Configuring DST Settings

Steps:

1. Enter the General Settings interface.
   Menu >Configuration>General

2. Choose DST Settings tab.

General DST Settings More Settings ✓ Auto DST Adjustment Enable DST From Apr 1st Sun 2 : 00 To Oct last Sun 2 : 00 DST Bias 60 Minutes

Figure 13. 3 DST Settings Interface

You can check the checkbox before the Auto DST Adjustment item.

Or you can manually check the Enable DST checkbox, and then you choose the date of the DST period.

13.4 Configuring More Settings for Device Parameters

Steps:

1. Enter the General Settings interface.

Menu >Configuration>General

1. Click the More Settings tab to enter the More Settings interface, as shown in Figure 13.4.

General DST Settings More Settings
Device Name	Network Video Recorder
Device No.	255
Auto Logout	Never
Menu Output Mode	HDMI/VGA

Figure 13.4 More Settings Interface

1. Configure the following settings:

• Device Name: Edit the name of NVR.
- Device No.: Edit the serial number of NVR. The Device No. can be set in the range of 1\~255, and the default No. is 255. The number is used for the remote and keyboard control.
- Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5 Minutes, then the system will exit from the current operation menu to live view screen after 5 minutes of menu inactivity.
- Menu Output Mode: You can choose the menu display on different video output. By default, only HDMI™/VGA is selectable.

1. Click the Apply button to save the settings.

13.5 Managing User Accounts

Purpose:

There is a default account in the NVR: Administrator. The Administrator user name is admin and the password is set when you start the device for the first time. The Administrator has the permission to add and delete user and configure user parameters.

13.5.1 Adding a User

Steps:

1. Enter the User Management interface.

Menu >Configuration>User

User Management No User Name Security Level User's MAC Address Pe... Edit Del... 1 admin Strong P... Admin 00:00:00:00:00:00 Add Back

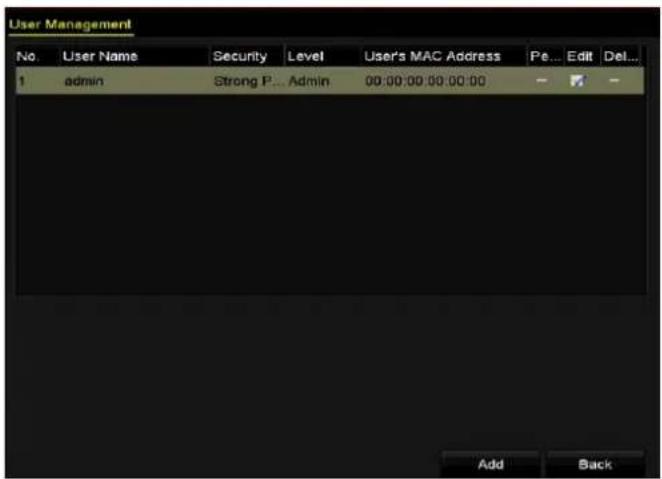

Figure 13.5 User Management Interface

1. Click the Add button to enter the Add User interface.

Add User User Name example1 Password ******** Strong Confirm ******** Level Operator User's MAC Address 00 :00 :00 :00 :00 :00 ✓ Valid password range [9-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

Figure 13.6 Add User Menu

1. Enter the information for new user, including User Name, Password, Confirm, Level and User's MAC

Address.

Password: Set the password for the user account.

STRONG PASSWORD RECOMMENDED- We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Level: Set the user level to Operator or Guest. Different user levels have different operating permission.

• Operator: The Operator user level has permission of Two-way Audio in Remote Configuration and all operating permission in Camera Configuration by default.
• Guest: The Guest user has no permission of Two-way Audio in Remote Configuration and only has the local/remote playback in the Camera Configuration by default.

User's MAC Address: The MAC address of the remote PC which logs onto the NVR. If it is configured and enabled, it only allows the remote user with this MAC address to access the NVR.

1. Click the OK button to save the settings and go back to the User Management interface. The added new user will be displayed on the list, as shown in Figure 13.7.

User Management No: User Name Level User's MAC Address Pe... Edit Del... 1 admin Admin 00:00:00:00:00:00 - 2 01 Operator 00:00:00:00:00:00 ✓ ✓

Figure 13.7 Added User Listed in User Management Interface

1. Select the user from the list and then click the button to enter the Permission settings interface, as shown in Figure 13.8.

Permission Local Configuration Remote Configuration Camera Configuration ✓ Local Log Search ■ Local Parameters Settings ■ Local Camera Management ■ Local Advanced Operation ■ Local Shutdown / Reboot Apply OK Cancel

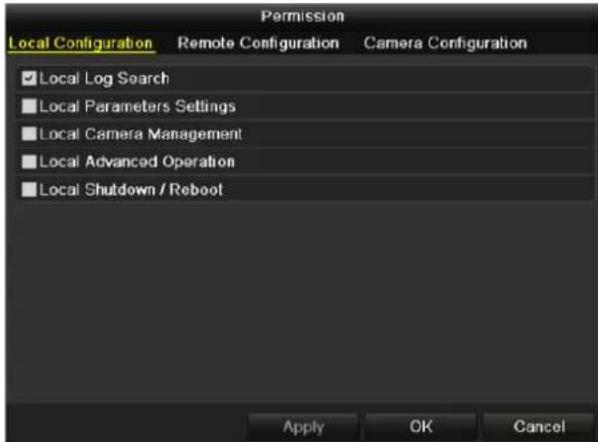

Figure 13.8 User Permission Settings Interface

1. Set the operating permission of Local Configuration, Remote Configuration and Camera Configuration for the user.

Local Configuration

• Local Log Search: Searching and viewing logs and system information of NVR.
• Local Parameters Settings: Configuring parameters, restoring factory default parameters and importing/exporting configuration files.
• Local Camera Management: The adding, deleting and editing of IP cameras.
• Local Advanced Operation: Operating HDD management (initializing HDD, setting HDD property), upgrading system firmware, clearing I/O alarm output.
• Local Shutdown Reboot: Shutting down or rebooting the NVR.

Remote Configuration

• Remote Log Search: Remotely viewing logs that are saved on the NVR.
• Remote Parameters Settings: Remotely configuring parameters, restoring factory default parameters and importing/exporting configuration files.
• Remote Camera Management: Remote adding, deleting and editing of the IP cameras.
• Remote Serial Port Control: Configuring settings for RS-232 and RS-485 ports.
• Remote Video Output Control: Sending remote button control signal.
• Two-Way Audio: Realizing two-way radio between the remote client and the NVR.
• Remote Alarm Control: Remotely arming (notify alarm and exception message to the remote client) and controlling the alarm output.
• Remote Advanced Operation: Remotely operating HDD management (initializing HDD, setting HDD property), upgrading system firmware, clearing I/O alarm output.
• Remote Shutdown/Reboot: Remotely shutting down or rebooting the NVR.

Camera Configuration

• Remote Live View: Remotely viewing live video of the selected camera (s).
• Local Manual Operation: Locally starting/stopping manual recording and alarm output of the selected camera (s).
• Remote Manual Operation: Remotely starting/stopping manual recording and alarm output of the selected camera (s).
• Local Playback: Locally playing back recorded files of the selected camera (s).
• Remote Playback: Remotely playing back recorded files of the selected camera (s).
• Local PTZ Control: Locally controlling PTZ movement of the selected camera (s).
• Remote PTZ Control: Remotely controlling PTZ movement of the selected camera (s).

• Local Video Export: Locally exporting recorded files of the selected camera (s).

• Click the OK button to save the settings and exit interface.

Only the admin user account has the permission of restoring factory default parameters.

13.5.2 Deleting a User

Steps:

1. Enter the User Management interface.
   Menu >Configuration>User
2. Select the user to be deleted from the list, as shown in Figure 13.9.

User Management No. User Name Level User's MAC Address Po... Edit Del... 1 admin Admin 00:00:00:00:00:00 - 2 01 Operator 00:00:00:00:00:00 ✓

Figure 13.9 User List

1. Click the 📄 icon to delete the selected user account.

13.5.3 Editing a User

For the added user accounts, you can edit the parameters.

Steps:

1. Enter the User Management interface.

Menu >Configuration>User

1. Select the user to be edited from the list, as shown in Figure 13.9.
2. Click the icon to enter the Edit User interface, as shown in Figure 13. 10.

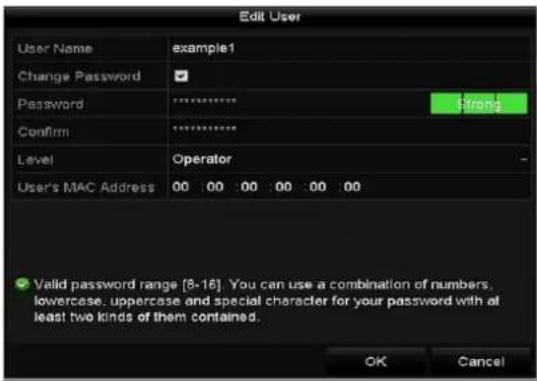

Edit User User Name example1 Change Password Password ****** Confirm ****** Level Operator User's MAC Address 00 00 00 00 00 00 ✓ Valid password range (8-16). You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

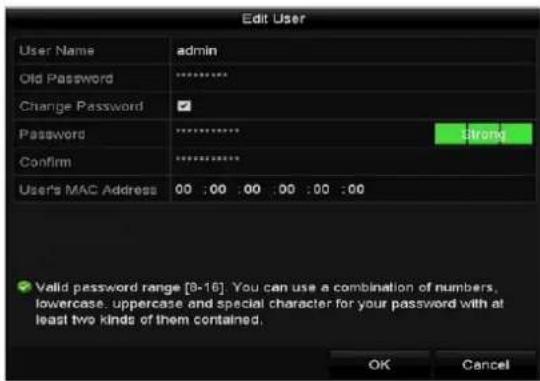

Edit User User Name admin Old Password ********** Change Password ✓ Password ********* Strong Confirm ********** User's MAC Address 00 :00 :00 :00 :00 :00 ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase. uppercase and special character for your password with at least two kinds of them contained. OK Cancel

Figure 13. 10 Edit User Interface

1. Edit the corresponding parameters.

- Operator and Guest

You can edit the user information, including user name, password, permission level and MAC address. Check the checkbox of Change Password if you want to change the password, and input the new password in the text field of Password and Confirm. A strong password is recommended.

- Admin

You are only allowed to edit the password and MAC address. Check the checkbox of Change Password if you want to change the password, and the input the correct old password, and the new password in the text field of Password and Confirm.

STRONG PASSWORD RECOMMENDED- We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Click the OK button to save the settings and exit the menu.

2. For the Operator or Guest user account, you can also click the button on the user management interface to edit the permission.

Appendix

Glossary

• Dual Stream: Dual stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 4CIF and the sub-stream having a maximum resolution of CIF.
• HDD: Acronym for Hard Disk Drive. A storage medium which stores digitally encoded data on platters with magnetic surfaces.
• DHCP: Dynamic Host Configuration Protocol (DHCP) is a network application protocol used by devices (DHCP clients) to obtain configuration information for operation in an Internet Protocol network.
• HTTP: Acronym for Hypertext Transfer Protocol. A protocol to transfer hypertext request and information between servers and browsers over a network
• PPPoE: PPPoE, Point-to-Point Protocol over Ethernet, is a network protocol for encapsulating Point-to-Point Protocol (PPP) frames inside Ethernet frames. It is used mainly with ADSL services where individual users connect to the ADSL transceiver (modem) over Ethernet and in plain Metro Ethernet networks.
• DDNS: Dynamic DNS is a method, protocol, or network service that provides the capability for a networked device, such as a router or computer system using the Internet Protocol Suite, to notify a domain name server to change, in real time (ad-hoc) the active DNS configuration of its configured hostnames, addresses or other information stored in DNS.
  • Hybrid DVR: A hybrid DVR is a combination of a DVR and NVR.
• NTP: Acronym for Network Time Protocol. A protocol designed to synchronize the clocks of computers over a network.
• NTSC: Acronym for National Television System Committee. NTSC is an analog television standard used in such countries as the United States and Japan. Each frame of anNTSC signal contains 525 scan lines at 60Hz.
• NVR: Acronym for Network Video Recorder. An NVR can be a PC-based or embedded system used for centralized management and storage for IP cameras, IP Domes and other DVRs.
• PAL: Acronym for Phase Alternating Line. PAL is also another video standard used in broadcast televisions systems in large parts of the world. PAL signal contains 625 scan lines at 50Hz.
• PTZ: Acronym for Pan, Tilt, Zoom. PTZ cameras are motor driven systems that allow the camera to pan left and right, tilt up and down and zoom in and out.
• USB: Acronym for Universal Serial Bus. USB is a plug-and-play serial bus standard to interface devices to a host computer.

Troubleshooting

- No image displayed on the monitor after starting up normally.

Possible Reasons

a) No VGA or HDMI TM connections.
b) Connection cable is damaged.
c) Input mode of the monitor is incorrect.

Steps

1. Verify the device is connected with the monitor via HDMI ^TM or VGA cable.
   If not, please connect the device with the monitor and reboot.
2. Verify the connection cable is good.
   If there is still no image display on the monitor after rebooting, please check if the connection cable is good, and change a cable to connect again.
3. Verify Input mode of the monitor is correct.
   Please check the input mode of the monitor matches with the output mode of the device (e.g. if the output mode of NVR is HDMI ^TM output, then the input mode of monitor must be the HDMI ^TM input). And if not, please modify the input mode of monitor.
4. Check if the fault is solved by the step 1 to step 3.
   If it is solved, finish the process.
   If not, please contact the engineer from our company to do the further process.

- There is an audible warning sound “Di-Di-Di-DiDi” after a new bought NVR starts up.

Possible Reasons

a) No HDD is installed in the device.
b) The installed HDD has not been initialized.
c) The installed HDD is not compatible with the NVR or is broken-down.

Steps

1. Verify at least one HDD is installed in the NVR.

1) If not, please install the compatible HDD.

Please refer to the "Quick Operation Guide" for the HDD installation steps.

2) If you don't want to install a HDD, select "Menu>Configuration > Exceptions", and uncheck the Audible Warning checkbox of "HDD Error".

1. Verify the HDD is initialized.

1) Select "Menu>HDD>General".
2) If the status of the HDD is "Uninitialized", please check the checkbox of corresponding HDD and click the "Init" button.

1. Verify the HDD is detected or is in good condition.

1) Select "Menu>HDD>General".
2) If the HDD is not detected or the status is "Abnormal", please replace the dedicated HDD according to the requirement.

1. Check if the fault is solved by the step 1 to step 3.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- The status of the added IP camera displays as “Disconnected” when it is connected through Private Protocol. Select “Menu>Camera>Camera>IP Camera” to get the camera status.

Possible Reasons

a) Network failure, and the NVR and IP camera lost connections.
b) The configured parameters are incorrect when adding the IP camera.
c) Insufficient bandwidth.

Steps

1. Verify the network is connected.

1) Connect the NVR and PC with the RS-232 cable.
2) Open the Super Terminal software, and execute the ping command. Input "ping IP" (e.g. ping 172.6.22.131).

Simultaneously press Ctrl and C to exit the ping command.

If there exists return information and the time value is little, the network is normal.

1. Verify the configuration parameters are correct.

1) Select "Menu>Camera>Camera>IP Camera".
2) Verify the following parameters are the same with those of the connected IP devices, including IP address, protocol, management port, user name and password.

1. Verify the whether the bandwidth is enough.

1) Select "Menu >Maintenance >Net Detect >Network Stat.".
2) Check the usage of the access bandwidth, and see if the total bandwidth has reached its limit.

1. Check if the fault is solved by the step 1 to step 3.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- The IP camera frequently goes online and offline and the status of it displays as "Disconnected".

Possible Reasons

a) The IP camera and the NVR versions are not compatible.
b) Unstable power supply of IP camera.
c) Unstable network between IP camera and NVR.
d) Limited flow by the switch connected with IP camera and NVR.

Steps

1. Verify the IP camera and the NVR versions are compatible.

1) Enter the IP camera Management interface "Menu > Camera > Camera>IP Camera", and view the firmware version of connected IP camera.
2) Enter the System Info interface "Menu>Maintenance>System Info>Device Info", and view the firmware version of NVR.

1. Verify power supply of IP camera is stable.

1) Verify the power indicator is normal.
2) When the IP camera is offline, please try the ping command on PC to check if the PC connects with the IP camera.

1. Verify the network between IP camera and NVR is stable.

1) When the IP camera is offline, connect PC and NVR with the RS-232 cable.
2) Open the Super Terminal, use the ping command and keep sending large data packages to the connected IP camera, and check if there exists packet loss.

Simultaneously press Ctrl and C to exit the ping command.

Example: Input ping 172.6.22.131 -I 1472 -f.

1. Verify the switch is not flow control.

Check the brand, model of the switch connecting IP camera and NVR, and contact with the manufacturer of the switch to check if it has the function of flow control. If so, please turn it down.

1. Check if the fault is solved by the step 1 to step 4.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- No monitor connected with the NVR locally and when you manage the IP camera to connect with the device by web browser remotely, of which the status displays as Connected. And then you connect the device with the monitor via VGA or HDMI™ interface and reboot the device, there is black screen with the mouse cursor.

Connect the NVR with the monitor before startup via VGA or HDMI ^TM interface, and manage the IP camera to connect with the device locally or remotely, the status of IP camera displays as Connect.

Possible Reasons:

After connecting the IP camera to the NVR, the image is output via the main spot interface by default.

Steps:

1. Enable the output channel.
2. Select "Menu > Configuration > Live View > View", and select video output interface in the drop-down list and configure the window you want to view.

● The view settings can only be configured by the local operation of NVR.
- Different camera orders and window-division modes can be set for different output interfaces separately, and digits like “D1” and “D2” stands for the channel number, and “X” means the selected window has no image output.

1. Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

• Live view stuck when video output locally.

Possible Reasons:

a) Poor network between NVR and IP camera, and there exists packet loss during the transmission.
b) The frame rate has not reached the real-time frame rate.

Steps:

1. Verify the network between NVR and IP camera is connected.

1) When image is stuck, connect the RS-232 ports on PC and the rear panel of NVR with the RS-232 cable.
2) Open the Super Terminal, and execute the command of "ping 192.168.0.0 -1 1472 -f" (the IP address may change according to the real condition), and check if there exists packet loss.

Simultaneously press Ctrl and C to exit the ping command.

1. Verify the frame rate is real-time frame rate.

Select "Menu > Record > Parameters > Record", and set the Frame rate to Full Frame.

1. Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

• Live view stuck when video output remotely via the Internet Explorer or platform software.

Possible Reasons:

a) Poor network between NVR and IP camera, and there exists packet loss during the transmission.

b) Poor network between NVR and PC, and there exists packet loss during the transmission.

c) The performances of hardware are not good enough, including CPU, memory, etc.

Steps:

1. Verify the network between NVR and IP camera is connected.

1) When image is stuck, connect the RS-232 ports on PC and the rear panel of NVR with the RS-232 cable.
2) Open the Super Terminal, and execute the command of "ping 192.168.0.0 -1 1472 -f" (the IP address may change according to the real condition), and check if there exists packet loss.

Simultaneously press Ctrl and C to exit the ping command.

1. Verify the network between NVR and PC is connected.

1) Open the cmd window in the Start menu, or you can press "windows+R" shortcut key to open it.
2) Use the ping command to send large packet to the NVR, execute the command of "ping 192.168.0.0 -l 1472 -f" (the IP address may change according to the real condition), and check if there exists packet loss.

Simultaneously press Ctrl and C to exit the ping command.

1. Verify the hardware of the PC is good enough.

Simultaneously press Ctrl, Alt and Delete to enter the windows task management interface, as shown in the following figure.

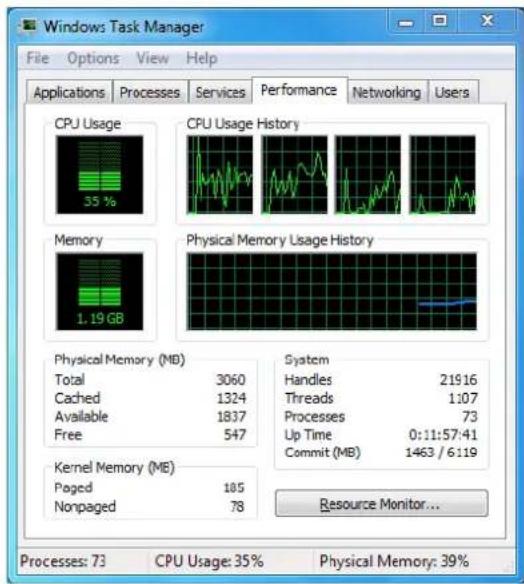

Windows Task Manager File Options View Help Applications Processes Services Performance Networking Users CPU Usage 35 % CPU Usage History Memory 1.19 GB Physical Memory Usage History Physical Memory (MB) Total 3060 Cached 1324 Available 1837 Free 547 Kernel Memory (MB) Paged 185 Nonpaged 78 System Handles 21916 Threads 1:07 Processes 73 Up Time 0:11:57:41 Commit (MB) 1463 / 6:119 Resource Monitor... Processes: 73 CPU Usage: 35% Physical Memory: 39%

Windows task management interface

• Select the "Performance" tab; check the status of the CPU and Memory.

• If the resource is not enough, please end some unnecessary processes.

• Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- When using the NVR to get the live view audio, there is no sound or there is too much noise, or the volume is too low.

Possible Reasons:

a) Cable between the pickup and IP camera is not connected well; impedance mismatches or incompatible.
b) The stream type is not set as "Video & Audio".

c) The encoding standard is not supported with NVR.

Steps:

1. Verify the cable between the pickup and IP camera is connected well; impedance matches and compatible.

Log in the IP camera directly, and turn the audio on, check if the sound is normal. If not, please contact the manufacturer of the IP camera.

1. Verify the setting parameters are correct.

Select "Menu > Record > Parameters > Record", and set the Stream Type as "Audio & Video".

1. Verify the audio encoding standard of the IP camera is supported by the NVR.

NVR supports G722.1 and G711 standards, and if the encoding parameter of the input audio is not one of the previous two standards, you can log in the IP camera to configure it to the supported standard.

1. Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- The image gets stuck when NVR is playing back by single or multi-channel.

Possible Reasons:

a) Poor network between NVR and IP camera, and there exists packet loss during the transmission.
b) The frame rate is not the real-time frame rate.
c) The NVR supports up to 16-channel synchronize playback at the resolution of 4CIF, if you want a 16-channel synchronize playback at the resolution of 720p, the frame extracting may occur, which leads to a slight stuck.

Steps:

1. Verify the network between NVR and IP camera is connected.

1) When image is stuck, connect the RS-232 ports on PC and the rear panel of NVR with the RS-232 cable.
2) Open the Super Terminal, and execute the command of "ping 192.168.0.0 -1 1472 -f" (the IP address may change according to the real condition), and check if there exists packet loss.

Simultaneously press the Ctrl and C to exit the ping command.

1. Verify the frame rate is real-time frame rate.

Select "Menu > Record > Parameters > Record", and set the Frame Rate to "Full Frame".

1. Verify the hardware can afford the playback.

Reduce the channel number of playback.

Select "Menu > Record > Encoding > Record", and set the resolution and bitrate to a lower level.

1. Reduce the number of local playback channel.

Select "Menu > Playback", and uncheck the checkbox of unnecessary channels.

1. Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- No record file found in the NVR local HDD, and prompt "No record file found".

Possible Reasons:

a) The time setting of system is incorrect.
b) The search condition is incorrect.
c) The HDD is error or not detected.

Steps:

1. Verify the system time setting is correct.
   Select "Menu > Configuration > General > General", and verify the "Device Time" is correct.
2. Verify the search condition is correct.
   Select "Playback", and verify the channel and time are correct.
3. Verify the HDD status is normal.
   Select "Menu > HDD > General" to view the HDD status, and verify the HDD is detected and can be read and written normally.
4. Check if the fault is solved by the above steps.
   If it is solved, finish the process.
   If not, please contact the engineer from our company to do the further process.

Summary of Changes

Version 3.0.13

Add

1. Set the strong password to activate the device is needed for the first-time startup (Chapter 2.2)

Updated

1. Optimize the steps of login and logout. (Chapter 2.4)
2. Optimize the adding of IP camera. (Chapter 2.5)
3. Optimize the EZVIZ cloud P2P configuration. (Chapter 9.2.1)
4. Optimize the DDNS configuration. (Chapter 9.2.2)
5. Three methods are selectable for restoring to the default settings. (Chapter 12.6)
6. Optimize the user account management. (Chapter 13.5)

Version 3.0.6

Updated

1. Optimize the PTZ control panels and operations. (Chapter 4)
2. Change the ezviz Cloud to EZVIZ Cloud P2P. (Chapter 9.2.2)
3. Add the models of DS-7100NI series, DS-7600NI-SE series and DS-7600NI-V(P) series NVR.

Version 3.0.4

Added

1. Connectable to smart IP cameras, and VCA alarm detection and recording are supported. (Chapter 5.2, Chapter 5.5 and Chapter 8.5)
2. Support video searching, playing back and backing up by VCA events. (Chapter 6.1.3 and Chapter 7.1.3)
3. Support smart playback by VCA rules. (Chapter 6.1.5)
4. Support P2P protocol and access by ezviz. (Chapter 9.2.2)

Deleted

- Combine the smart search function with the smart playback function, and the smart search section is deleted. (Chapter 6.2.2 Smart Search)

List of Compatible IP Cameras

List of Hikvision IP Cameras

For the list, our company holds right to interpret.

Type	Model	Version	Max. Resolution	Sub-stream	Audio
HD Network Camera	DS-2CD883F-E	V5.1.0 build 131202	2560×1920	√	√
	DS-2CD783F-E(I)DS-2CD783F-E(I)(Z)	V5.1.0 build 131202	2560×1920	√	√
	DS-2CD8283F-E(I)	V5.1.0 build 131202	2560×1920	√	√
	DS-2CD886BF-E	V4.0.3 build 120913	2560×1920	√	√
	DS-2CD886MF-E	V4.0.3 build 120913	2560×1920	√	√
	DS-2CD854F-E	V5.1.0 build 131202	2048×1536	√	√
	DS-2CD754F-E(I)	V5.1.0 build 131202	2048×1536	√	√
	DS-2CD7254F-EZH	V5.1.0 build 131202	2048×1536	√	√
	DS-2CD8254F-E(I)	V5.1.0 build 131202	2048×1536	√	√
	DS-2CD754FWD-E(I)	V5.1.0 build 131202	1920×1080	√	√
	DS-2CD754FWD-EIZ	V5.1.0 build 131202	2048×1536	√	√
	DS-2CD753F-E(I)	V5.1.0 build 131202	1600×1200	√	√
	DS-2CD853F-E	V5.1.0 build 131202	1600×1200	√	√
	DS-2CD8253F-E(I)	V5.1.0 build 131202	1600×1200	√	√
	DS-2CD7253F-EZH	V5.1.0 build 131202	1600×1200	√	√
	DS-2CD8153-E	V5.1.0 build 131202	1600×1200	√	√
	DS-2CD7153-E	V5.1.0 build 131202	1600×1200	√	×
	DS-2CD876BF-E	V4.0.3 build 120913	1600×1200	√	√
	DS-2CD876MF-E	V4.0.3 build 120913	1600×1200	√	√
	DS-2CD877BF	V4.0.3 build 120913	1920×1080	√	√
	DS-2CD855F-EDS-2CD8255F-EIZ	V5.1.0 build 131202	1920×1080	√	√
	DS-2CD752MF-EDS-2CD852MF-EDS-2CD852F-E	V2.0 build 110426	1600×1200	√	√
	DS-2CD862MF-E	V2.0 build 110426	1280×960	√	√
	DS-2CD8464F-EI	V5.1.0 build 131202	1280×960	√	√
	DS-2CD863PF/NF-E	V5.1.0 build 131202	1280×960	√	√
	DS-2CD864FWD-E	V5.1.0 build 131202	1280×720	√	√
	DS-2CD764FWD-E(I)	V5.1.0 build 131202	1280×720	√	√
	DS-2CD763PF/NF-E	V5.1.0 build 131202	1280×960	√	√
	DS-2CD763PF/NF-EI	V5.1.0 build 131202	1280×960	√	√
	DS-2CD7263PF/NF-EZH	V5.1.0 build 131202	1280×960	√	√
	DS-2CD7164-E	V5.1.0 build 131202	1280×720	√	×
	DS-2CD8264FWD-E(I)	V5.1.0 build 131202	1280×720	√	√
	DS-2CD8264FWD-EZ	V5.1.0 build 131202	1280×720	√	√
	DS-2CD3012-I	V5.1.2 build140116	1280×960	√	×
	DS-2CD3112-I
	DS-2CD3212-I3/I5
	DS-2CD3312-I
	DS-2CD2212-I3/I5
	DS-2CD2312-I
	DS-2CD2412F-I	V5.1.2 build140116	1280×960	√	√
	DS-2CD2512F-I	V5.1.2 build140116	1280×960	√	×
	DS-2CD2612F-I
	DS-2CD2712F-I
	DS-2CD2512F-IS	V5.1.2 build140116	1280×960	√	√
	DS-2CD2612F-IS
	DS-2CD2712F-IS
	DS-2CD2232-I3/I5	V5.1.2 build140116	2048×1536	√	×
	DS-2CD2332-I
	DS-2CD2432F-I	V5.1.2 build140116	2048×1536	√	√
	DS-2CD2532F-I	V5.1.2 build140116	2048×1536	√	×
	DS-2CD2632F-I
	DS-2CD2732F-I
	DS-2CD2532F-IS	V5.1.2 build140116	2048×1536	√	√
	DS-2CD2632F-IS
	DS-2CD2732F-IS
	DS-2CD3132-I	V5.1.2 build140116	2048×1536	√	×
	DS-2CD3032-I
	DS-2CD3332-I
	DS-2CD3232-I3/I5
	DS-2CD2010-I	V5.1.0 build 131202	1280×960	√	×
	DS-2CD2110-I
	DS-2CD2210-I
	DS-2CD2310-I
	DS-2CD2210-I3/I5	V5.1.0 build 131202	1280×960	√	×
	DS-2CD2810F	V5.1.0 build 131202	1280×960	√	√
	DS-2CD864-EI3(B)	V5.1.0 build 131202	1280×960	√	×
	DS-2CD864-EI5(B)
	DS-2CD2510FDS-2CD2610F-I	V5.1.2 build140121	1280×960	√	×
	DS-2CD2710F-I
	DS-2CD2610F-IS	V5.1.2build140121	1280×960	√	√
	DS-2CD2710F-IS
	DS-2CD4012F
	DS-2CD4212F-IS(2.8-12mm)	V5.1.3 build 140117	1280×960	√	√
	DS-2CD4112F-I(2.8-12mm)
	DS-2CD4312F-IS
	DS-2CD4212F-I(2.8-12mm)	V5.1.3 build 140117	1280×960	√	×
	DS-2CD4024F
	DS-2CD4124F-I(2.8-12mm)	V5.1.3 build 140117	1920×1080	√	√
	DS-2CD4224F-IS
	DS-2CD4324F-IS
	DS-2CD4224F-IS	V5.1.3 build 140117	1920×1080	√	√
	DS-2CD4032FWD
	DS-2CD4332FWD-IS	V5.1.3 build 140117	2048×1536	√	√
	DS-2CD4232FWD-IS(2.8-12mm)
	DS-2CD4132FWD-I(2.8-12mm)
	DS-2CD4232FWD-I	V5.1.3 build 140117	2048×1536	√	×
	DS-2CD4032FHWD	V5.1.3 build 140117	2048×1536	√	√
	DS-2CD4132FHWD-I
	DS-2CD4012FWD
	DS-2CD4112FWD-I	V5.1.3 build 140117	2048×1536	√	√
	DS-2CD4212FWD-IS
	DS-2CD4312FWD-IS
	DS-2CD6412FWD
	DS-2CD4212FWD-I	V5.1.3 build 140117	2048×1536	√	×
	DS-2CD4026FWD-SDI	V5.1.3 build 140117	2048×1536	√	√
	DS-2CD4026FWD	V5.1.0 build 131202	1920×1080	√	√
	DS-2CD6026FHWD	V5.1.0 build 131202	1920×1080	√	√
	DS-2CD6213F	V5.1.0 build 131202	2048×1536	√	×
	DS-2CD6223F	V5.1.0 build 131202	1920×1080	√	×
	DS-2CD6233F	V5.1.0 build 131202	2048×1536	√	×
	DS-2CD6233F-SDI	V5.1.0 build 131202	2048×1536	√	×
SD Network Camera	DS-2CD7133F-E	V5.1.0 build 131202	640×480	√	×
	DS-2CD733F-E(I)	V5.1.0 build 131202	640×480	√	√
	DS-2CD833F-E	V5.1.0 build 131202	640×480	√	√
	DS-2CD8133F-E	V5.1.0 build 131202	640×480	√	√
	DS-2CD8233F-E	V5.1.0 build 131202	640×480	√	√
	DS-2CD7233F-EZH	V5.1.0 build 131202	640×480	√	√
	DS-2CD8433F-EI	V5.1.0 build 131202	640×480	√	√
	DS-2CD802NFDS-2CD812PFDS-2CD832FDS-2CD892PF/NF	V2.0 build 090522	704×576	√	√
	DS-2CD893PF-EDS-2CD893PFWD-EDS-2CD793PF-EIDS-2CD793PFWD-EI	V5.1.0 build 131202	704×576	√	√
	DS-2CD893NF-EDS-2CD893NFWD-EDS-2CD793PF/NF-EDS-2CD793NF-EIDS-2CD793PFWD-EDS-2CD793NFWD-EIDS-2CD793NFWD-EI	V5.1.0 build 131202	704×576	√	√
Intelligent Traffic Camera	DS-2CD9121	V3.4.2 build 130718	1600×1200	√	×
	iDS-2CD9121	V3.4.2 build 130718	1600×1200	√	×
	iDS-2CD9121A	V3.5.0 build130906	1600×1200	√	×
	DS-2CD9121A	V3.6.1 build140103	1600×1200	√	×
	DS-2CD9122	V3.5.0 build131012	1920×1080	√	×
	DS-2CD9122-H	V3.5.0 build131018	1920×1080	√	×
	DS-2CD9131	V3.6.1 build140103	2048×1536	√	×
	iDS-2CD9131	V3.6.1 build140103	2048×1536	√	×
	DS-2CD9131K	V3.6.1 build140103	2048×1536	√	×
	iDS-2CD9131E	V3.6.1 build140103	2048×1536	√	×
	DS-2CD9111(B)	V3.5.0 build130906	1360×1024	√	×
	DS-2CD9151AiDS-2CD9151AiDS-2CD9151A-E	V3.6.1 build140103	2448×2048	√	×
	DS-2CD9120-II	V3.6.1 build140103	1600×1200	√	×
	DS-2CD9152iDS-2CD9152	V3.5.0 build131012	2560×1920	√	×
	DS-2CD966(B)DS-2CD966-V(B)	V3.1.0 build120423	1360×1024	×	×
	DS-2CD976(B)DS-2CD976(C)DS-2CD976-V(B)DS-2CD976-V(C)	V3.1 build 120423	1600×1200	×	×
	DS-2CD977(B)DS-2CD977(C)	V3.1 build 120423	1920×1080	×	×
	DS-2CD986A(B)DS-2CD986A(C)	V3.1.0 build120423	2448×2048	×	×
	DS-2CD986C(B)	V2.3.6 build 120401	2560×1920	×	×
Network	DS-2DF7274-A/D/AF	V5.1.4 build 131219	1920×1080	√	√
Speed Dome	DS-2DM7274-A
	DS-2DF5274-A/D/A3/D3/AF/A3F
	DS-2DM5274-A/A3
	DS-2DF7284-A/D/AF	V5.1.4 build 131219	1920×1080	√	√
	DS-2DF7286-A/D/AF
	DS-2DF5284-A/D/A3/D3/AF/A3F
	DS-2DF5286-A/D/A3/D3/AF/A3F
	DS-2DE5172-A/A3	V5.1.0 build 131203	1280×960	√	√
	DS-2DE5174-A/AE/AE3/A3/D/D3
	DS-2DE5176-A/AE
	DS-2DE7172-A
	DS-2DE7174-A/AE/D
	DS-2DE7176-A/AE
	DS-2DE5182-A/A3	V5.1.0 build 131203	1280×960	√	√
	DS-2DE5184-A/AE/AE3/A3/D/D3
	DS-2DE5186-A/AE
	DS-2DE7182-A
	DS-2DE7184-A/AE/D
	DS-2DE7186-A/AE
	DS-2DF1-5702	V4.1.6 build 130422	1280×720	√	√
	DS-2DF1-572
	DS-2DM1-5702
	DS-2DM1-572
	DS-2DM1-5732
	DS-2DF1-772
	DS-2DM1-772
	DS-2DF1-77A	V4.1.6 build 130422	1280×960	√	√
	DS-2DF1-570A
	DS-2DF1-573A
	DS-2DF1-57A
	DS-2DF1-5734D	V4.1.6 build 130422	1280×960	√	√
	DS-2DF1-574D
	DS-2DM1-574D
	DS-2DM1-5734D
	DS-2DF1-774D
	DS-2DM1-774D
	DS-2DF1-584D	V4.1.6 build 130422	1920×1080	√	√
	DS-2DF1-784D
	DS-2DF1-518	V3.2.0 build131223	704×576	√	√
	DS-2DM1-718
	DS-2DM1-518
	DS-2DF1-718
	DS-2DF1-514DS-2DF1-714
	DS-2DF1-402DS-2DF1-402N	V3.2.0 build131223	704×576	√	√
Network Zoom Camera	DS-2ZCN2006DS-2ZCN3006	V5.0.2 build130926	1280×960	√	√
	DS-2ZMN2006DS-2ZMN3006	V5.0.2 build130926	1280×960	√	√
	DS-2ZCN2007DS-2ZCN3007	V5.0.2 build130926	1280×960	√	√
	DS-2ZMN2007DS-2ZMN3007DS-2ZMN0407	V5.0.2 build130926	1280×960	√	√
SD Encoder	DS-6501HFI DS-6502HFI DS-6504HFI	V1.0.1 build130607	704×576	√	√
	DS-6501HFI-Sata DS-6502HFI-Sata DS-6504HFI-Sata	V1.0.1 build130607	704×576	√	√
	DS-6508HFI DS-6516HFI	V1.0.1 build130607	704×576	√	√
	DS-6508HF-Sata DS-6516HF-Sata DS-6508HFI-Sata DS-6516HFI-Sata	V1.0.1 build130607	704×576	√	√
	DS-6501HCI DS-6502HCI DS-6504HCI DS-6501HCI-sata DS-6502HCI-sata DS-6504HCI-sata	V1.0.1 build130607	704×576	√	√
	DS-6508HCI DS-6508HCI-sata	V1.0.1 build130607	704×576	√	√
	DS-6516HCI DS-6516HCI-sata	V1.0.1 build130607	704×576	√	√
	DS-6601HCI DS-6602HCI DS-6604HCI	V1.2.1 build 131202	704×576	√	√
	DS-6601HFI DS-6602HFI DS-6604HFI	V1.2.1 build 131202	704×576	√	√
HD	DS-6601HFHI	V1.0.4 build 130115	1920 × 1080	√	√
Encoder	DS-6601HFHI/L

List of Third-party IP Cameras

ONVIF compatibility refers to the camera can be supported both when it uses the ONVIF protocol and its private protocols. Only ONVIF is supported refers to the camera can only be supported when it uses the ONVIF protocol. Only AXIS is supported refers to the function can only be supported when it uses the AXIS protocol.

IP CameraManufacturer orProtocol	Model	Version	Max.Resolution	Sub-stream	Audio
ACTI	TCM4301-10D-X-00083	A1D-310-V4.12.09-AC	1280× 1024	×	√
	TCM5311-11D-X-00023	A1D-310-V4.12.09-AC	1280× 960	×	√
	TCM3401-09L-X-00227	A1D-220-V3.13.16-AC	1280× 1024	×	×
ARECONT	AV8185DN	65172	1600× 1200	×	×
	AV1305M	65175	1280× 1024	√	×
	AV2155	65143	1600× 1200	√	×
	AV2815	65220	1920× 1080	√	×
	AV3105M	65175	1920× 1080	√	×
	AV5105	65175	1920× 1080	√	×
AXIS	M1114	5.09.1	1024× 640	√	×
	M3011(ONVIFcompatibility)	5.21	704× 576	√(Only AXIS issupported)	×
	M3014(ONVIFcompatibility)	5.21.1	1280× 800	√	×
	P3301(ONVIFcompatibility)	5.11.2	768× 576	√	√(Only AXIS issupported)
	P3304(ONVIFcompatibility)	5.20	1440× 900	√	√(Only AXIS issupported)
	P3343(ONVIFcompatibility)	5.20.1	800× 600	√	√(Only AXIS issupported)
	P3344(ONVIFcompatibility)	5.20.1	1440× 900	√	√(Only AXIS issupported)
	P5532	5.15	720× 576	√	×
	Q7404	5.02	720× 576	√	√
Bosch(ONVIF compatibility)	AutoDome Jr 800HD	39500450	1920× 1080	×	√
	NBC 265 P	07500453	1280× 720	×	√
	Dinion NBN-921-P	10500453	1280× 720	×	√
Brickcom	FB-130Np (ONVIFcompatibility)	V3.1.0.8	1280× 1024	×	√
	CB-500Ap (ONVIFcompatibility)	V3.2.1.3	1920× 1080	×	√
	WFB-100Ap	V3.1.0.9	1280×800	×	√
Canon	VB-M400	Ver.+1.0.0	1280×960	×	√
	VB-M6000D	Ver.+1.0.0	1280×960	×	×
	VB-M7000F	Ver.+1.0.0	1280×960	×	√
HUNT	HLC_79AD	V1.0.40	1600×1200	√	×
Panasonic	WV-SW152(ONVIFcompatibility)	Application:1.66Image data:1.05	800×600	√	×
	WV-SC386(ONVIFcompatibility)	Application:1.66Image data:1.05	1280×960	√	√
	WV-SW155(ONVIFcompatibility)	Application:1.66Image data:1.05	1280×960	√	×
	WV-SW316(ONVIFcompatibility)	Application:1.66Image data:2.03	1280×960	√	√
	WV-SP105(ONVIFcompatibility)	Application:1.66Image data:1.03	1280×960	√	×
	WV-SF132(ONVIFcompatibility)	Application:1.66Image data:1.03	640×360	√	×
	WV-SP102(ONVIFcompatibility)	Application:1.66Image data:1.03	640×480	√	×
	WV-SP509(ONVIFcompatibility)	Application:1.30Image data:2.21	1280×960	√	√
	WV-SW559(ONVIFcompatibility)	Application:1.30Image data:2.21	1920×1080	√	√
	WV-SW558(ONVIFcompatibility)	Application:1.30Image data:2.21	1920×1080	√	×
	WV-SW355(ONVIFcompatibility)	Application:1.66Image data:1.04	1280×960	√	√
	WV-SW352(ONVIFcompatibility)	Application:1.66Image data:1.04	800×600	√	√
	WV-SF342(ONVIFcompatibility)	Application:1.66Image data:1.06	800×600	√	√
	WV-SF332(ONVIFcompatibility)	Application:1.66Image data:1.06	800×600	√	√
	WV-SF346(ONVIFcompatibility)	Application:1.66Image data:1.06	1280×960	√	√
	WV-SP306H	Application:1.34Image data:1.06	1280×960	√	√
	WV-SP336H	Application:1.06Image data:1.06	1280×960	√	√
PELCO	D5118	1.8.2-20120327-2.9310-A1.7852	1280×960	√	×
	IXE20DN-AAXVUU2	1.8.2-20120327-2.9081-A1.7852	1920×1080	√	×
	TX30DN-ACFZHB3	1.8.2-20120327-2.9080-A1.7852	2048×1536	√	×
SAMSUNG(ONVIF compatibility)	SNB-5080P	V3.10_130416	1280×1024	√(Only ONVIF is supported)	√
SANYO	VCC-HD2300P	2.03-02(110318-00)	1920×1080	×	×
	VCC-HD2500P	2.02-02(110208-00)	1920×1080	×	√
	VCC-HD4600P	2.03-02(110315-00)	1920×1080	×	√
SONY	SNC-CH220	1.50.00	1920×1080	×	×
	SNC-RH124(ONVIF compatibility)	1.73.00	1280×720	√	√
	SNC-EP580(ONVIF compatibility)	1.53.00	1920×1080	√	√
	SNC-DH220T(Only ONVIF is supported)	1.50.00	2048×1536	×	×
Vivotek	IP7133	0203a	640×480	×	×
	FD8134(ONVIF compatibility)	0107a	1280×800	×	×
	IP8161(ONVIF compatibility)	0104a	1600×1200	×	√
	IP8331(ONVIF compatibility)	0102a	640×480	×	×
	IP8332(ONVIF compatibility)	0105b	1280×800	×	×
ZAVIO	D5110	MG.1.6.03P8	1280×1024	√	×
	F3106	M2.1.6.03P8	1280×1024	√	√
	F3110	M2.1.6.01	1280×720	√	√
	F3206	MG.1.6.02c045	1920×1080	√	√
	F531E	LM.1.6.18P10	640×480	√	√

0300041040418

First

First Choice for Security Professionals
