Product Type	Subwoofer
Brand	MTX Audio
Model	3510-02
Size	10 inches
Impedance	4 ohms
RMS Power Handling	250 watts
Peak Power Handling	500 watts
Sensitivity	87 dB
Frequency Response	30 Hz - 500 Hz
Mounting Depth	5.5 inches
Cutout Diameter	9.25 inches
Enclosure Type	Sealed or ported
Recommended Enclosure Volume (Sealed)	0.8 cubic feet
Recommended Enclosure Volume (Ported)	1.2 cubic feet
Voice Coil	Single 4-ohm
Cone Material	Polypropylene
Surround Material	Rubber
Grille Included	Yes
Terminal Type	Spring-loaded push terminals
Dimensions (Diameter x Depth)	10.5 x 6.25 inches
Weight	8.5 lbs
Power Supply	Passive (amplifier required)
Cleaning Instructions	Wipe with a dry cloth; avoid moisture
Safety	Use in well-ventilated area; avoid overdriving
Repairability	Replacement parts available; cone and surround serviceable

Frequently Asked Questions - 3510-02 MTX Audio

What is the RMS power handling of the MTX Audio 3510-02 subwoofer?

The RMS power handling is 250 watts. Ensure your amplifier delivers clean power within this range to avoid damage.

What is the recommended enclosure volume for a sealed box?

For a sealed enclosure, use 0.8 cubic feet of internal volume. This provides balanced sound with tight bass.

Can I use this subwoofer in a ported enclosure?

Yes, it works well in a ported box. The recommended volume is 1.2 cubic feet with a tuning frequency around 35 Hz for optimal output.

What type of amplifier should I pair with this subwoofer?

Use a mono subwoofer amplifier rated at 250-500 watts RMS at 4 ohms. Match the impedance for best performance.

What is the mounting depth and cutout size?

Mounting depth is 5.5 inches, and cutout diameter is 9.25 inches. Ensure your enclosure has adequate clearance.

Is the subwoofer suitable for car audio systems?

Yes, it is designed for car audio. It can handle the vibrations and temperature variations typical in vehicles.

Does the subwoofer come with a grille?

Yes, a protective grille is included to prevent damage from debris.

How do I clean and maintain the subwoofer?

Wipe the cone and surround with a dry, soft cloth. Avoid using liquids or cleaning agents. Keep the subwoofer away from moisture.

What is the warranty coverage?

MTX Audio typically offers a 1-year warranty against defects. Check with your retailer for specific terms.

Can I replace the cone or surround if damaged?

Yes, replacement parts are available. However, it is recommended to have repairs performed by a professional to avoid further damage.

USER MANUAL 3510-02 MTX Audio

Xmax: 0.32 in (8.128 mm)

D: 8.84 in (224.536 mm)

Sd: 60.5275 in² (390.5 cm²)

Vd: 19.37 in³ (0.3174 liters)

Qes: 0.924

Re: 1.7 Ω

BI: 8 Tm

Prms: 250 Watts

Qts: 0.69

n0: 0.126%

SPLo: 83.2 dB

SPL 2.83V/1m: 89.9 dB

3510-02 500W Peak Power Subwoofer

Technical line drawing of a mechanical bearing assembly (no text or symbols)

Specifications
Las especificaciones, Specifications, Spezifikationen

Recommended Power Rating of 125 - 250 Watts RMS

La Potencia nominal recomendada, Le Pouvoir recommandé Evaluant, Empfohlene Kraft Einzuschätze

3510-02 Recommended Enclosures

For the best possible sound quality where space is a premium, MTX recommends using a sealed enclosure. For excellent sound quality with increased output compared to sealed enclosures (3dB or more), MTX recommends using a vented enclosure. All recommended enclosures have been designed and thoroughly tested by MTX.

For additional enclosure designs check the MTX website, the barcode will take you to the box design page.

Sealed Enclosure

Isometric line drawing of a 3D geometric structure with hexagonal panels and a central circular cutout (no text or symbols)

Net Internal Volume: 0.75 ft³

Vented Enclosure

Descargar Cerco, Ci ture donnere vent. Vented Einschlie ung

Isometric line drawing of a modular device with multiple compartments and a central circular cutout (no text or symbols)

Net Internal Volume: 2.00 ft³

3510

500W Peak Power

Subwoofer

SPECIFICATIONS

Diameter: 10" (25.4cm)

Mounting Depth: 4-5/8" (11.8cm)

RMS Power: 250W

Peak Power: 500W

SPL1W/1m:(3510-02)83.2dB

SPL1W/1m:(3510-04)83.3dB

SPL2.83V/1m(3510-02)86.9dB

SPL2.83V/1m(3510-04)86.9dB

Impedance: (3510-02) 2Ω

Impedance: (3510-04) 4Ω

Frequency Response: (3510-02) 28Hz - 130Hz

Frequency Response:(3510-04)28Hz-130Hz

Cutout Diameter: 9-3/16" (23.34cm)

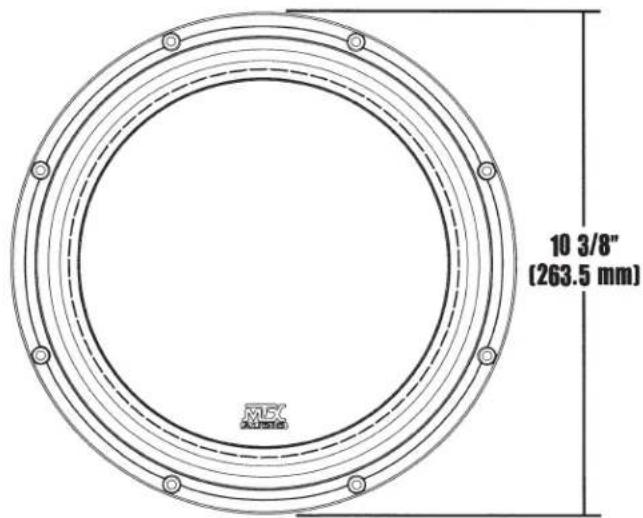

Overall Diameter: 10-3/8" (26.35cm)

ESPECIFICACIONES

Impédance: (3510-02) 20

Impédance: (3510-04) 4Ω

Response: (3510-02) 28Hz - 130Hz

Réponse: (3510-04) 28Hz · 130Hz

This box contains a highly sophisticated, performance machine.

The enclosed subwoofer is designed to produce extreme bass and high SPL levels that will bring your music to life.

This device should only be used by someone that is looking to take their in-car listening experience to a level others have only dreamed about.

If you are one of these people, congratulations! Use caution when listening to and sharing your system, prolonged exposure to a high performance stereo system may cause jealousy and stereo envy among your friends.

You have been warned.

Now install it, get in, and turn it up.

MTX Audio - Feel the Thunder

© 2013 Mobil Corp. All rights reserved. MTX is a trademark of Mobil Corp.
Due to continued product development, all specifications are subject to change without notes
MTX Audio, 45-6 East Satellite Road, Phoenix, Arizona 15042 U.S.A. MTX00496 Raya 313
