Product Type	Car Speaker
Brand	Sony
Model	XS-F6920
Speaker Type	4-Way Coaxial
Size (Inches)	6 x 9
Shape	Oval
Impedance	4 ohms
Sensitivity	92 dB/W/m
Frequency Response	30 Hz – 25 kHz
RMS Power Handling	50 W
Peak Power Handling	400 W
Woofer Cone Material	Mica Reinforced
Tweeter Type	Balanced Dome
Dimensions (W x H x D)	7.1 x 10.2 x 3.1 in (180 x 259 x 79 mm)
Weight	1.3 kg (2.9 lbs)
Mounting Depth	2.5 in (64 mm)
Cutout Dimensions	6.1 x 8.9 in (155 x 226 mm)
Installation	Surface or flush mount with included grilles
Recommended Amplifier Power	20 – 100 W RMS per channel
Material	Polypropylene Woofer Cone
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Ensure proper mounting to avoid vibration
Included Accessories	Mounting hardware, speaker grilles, manual

Frequently Asked Questions - XS-F6920 SONY

What are the dimensions of the Sony XS-F6920 speaker?

The speaker measures approximately 7.1 x 10.2 x 3.1 inches (180 x 259 x 79 mm).

What is the power handling capacity?

RMS power handling is 50 watts per speaker, with a peak capacity of 400 watts.

What impedance does the XS-F6920 have?

The speaker has an impedance of 4 ohms.

Is this speaker compatible with my car?

It fits standard 6x9 inch openings. Check mounting depth (2.5 inches) and cutout dimensions (6.1 x 8.9 inches) for compatibility.

What type of sound does this speaker produce?

It is a 4-way coaxial design with a woofer and balanced dome tweeter, delivering clear highs and solid lows across 30 Hz – 25 kHz.

Can I use these speakers with an aftermarket amplifier?

Yes, they work well with amplifiers providing 20–100 watts RMS per channel at 4 ohms.

How should I install these speakers?

They can be surface or flush mounted. Use the included grilles and hardware. Ensure secure mounting to prevent rattles.

What materials are the cones made of?

The woofer cone is made of mica-reinforced polypropylene for durability and sound quality.

How do I clean the speakers?

Wipe gently with a dry, soft cloth. Avoid using water or cleaning agents.

Are replacement parts available?

Contact Sony support or authorized dealers for grilles, screws, or other parts.

USER MANUAL XS-F6920 SONY

16×24cm Coaxial 2-way Speaker

Instructions

User Manual

Instructions

Instruction Manual

XS-F6920

Sony Corporation © 1999

Precautions

• Do not continuously drive the speaker system over the power handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.

If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.

Precautions

• A depth of at least 74.5 mm (3 in.) is required for mounting the woofer. Keep the following in mind when choosing a mounting location.
• A hole may already be provided in the metal frame of the front door.
• Nothing should interfere with the speaker inside the door. The speaker inside the door must not come into contact with the window when it is open.
• Be careful that speakers are out of the way of the window cranks, door handles, and arm rests.

If you cannot find an appropriate mounting location, check with your car dealer or consult the nearest Sony dealer.

Before mounting

Remove the grille net.

3

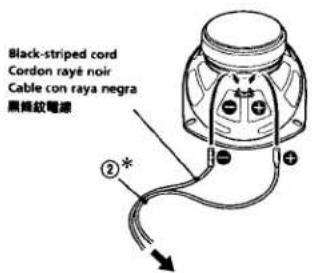

* White cord — Left speaker Gray cord — Right speaker • White cord — Left speaker Gray cord — Right speaker • White cable — Left speaker Gray cable — Right speaker - White wire — Left speaker Gray wire — Right speaker Power amplifier, etc. Power amplifier, etc. Power amplifier, etc. Power amplifier, etc.

4 A

Mounting from the trunk (Bottom mounting)

How to remove the grille net

Specifications

Speaker	Coaxial 2-way:Woofer 16 × 24 cm ( 6 × 9 in.),polypropylene cone typeTweeter 3.5 cm ( 1°/in. ),PEI, balance dome type
Maximum input power	160 W
Rated input power	40 W
Impedance	4 ohms
Sensitivity	90 dB/W/m
Frequency response	30 - 30,000 Hz
Mass	Approx. 1,065 g (21 lb. 6 oz.)per speaker

Design and specifications are subject to change without notice.
