XS-E85 - Haut-parleur auto SONY - Free user manual and instructions

Product Type	Car Speaker
Brand	Sony
Model	XS-E85
Speaker Type	2-way system
Woofer Size	8.7 cm (3 1/2 inches) cone type
Tweeter Size	4.1 cm (1 5/8 inches) cone type
Maximum Input Power	40 watts
Impedance	4 ohms
Sensitivity	90 dB/W/m
Frequency Response	90 - 20,000 Hz
Weight (per speaker)	Approx. 400 g (14 oz)
Precautions	Keep away from magnetic media; do not touch cone
Mounting	Refer to car-specific mounting example in manual
Connections	Follow wiring diagram provided
Safety	Avoid overdriving speaker beyond maximum input power

Frequently Asked Questions - XS-E85 SONY

What is the maximum input power of the Sony XS-E85 speaker?

The maximum input power is 40 watts.

What is the impedance of the XS-E85?

The impedance is 4 ohms.

What is the sensitivity rating?

The sensitivity is 90 dB/W/m.

What is the frequency response range?

The frequency response is 90 - 20,000 Hz.

How much does each speaker weigh?

Each speaker weighs approximately 400 g (14 oz).

What type of speakers are these?

They are a 2-way speaker system with an 8.7 cm cone woofer and a 4.1 cm cone tweeter.

Do I need to buy additional mounting hardware?

The manual does not specify included hardware; please check with your dealer for proper mounting accessories.

Can I install these speakers in any car?

The manual provides a mounting example for specific car types. It is recommended to consult your car dealer or Sony dealer for compatibility.

What precautions should I take during installation?

Avoid touching the speaker cone to prevent damage. Also keep speakers away from magnetic media like tapes and credit cards.

Are there any special wiring instructions?

Yes, the manual includes a connection diagram. Ensure correct polarity and do not exceed maximum input power.

USER MANUAL XS-E85 SONY

Before mounting the unit, please read this instruction manual thoroughly and retain it for future reference.

Mode d'emploi

The parts numbers in the list are keyed to those in the "Mounting Example" and "Connections".

Sony Corporation ©1991 Printed In Japan

Precautions

• Be careful not to drive the speaker over the maximum input power.
• Keep recorded tapes, watches, or personal credit cards using magnetic coding away from the speaker to prevent them from possible damage caused by the magnets in the speakers.
• During mounting, be careful not to touch the cone of the speaker as it will be damaged.

Précautions

There is a mounting example of the unit for the car types shown in the table. Install the unit as the illustration shows. However the interior paneling of listed cars may be different from that of the illustrated mounting example. This is due to the car manufacturers' decision to change or modify the model. In such a case, consult your car dealer or nearest Sony dealer before installation.

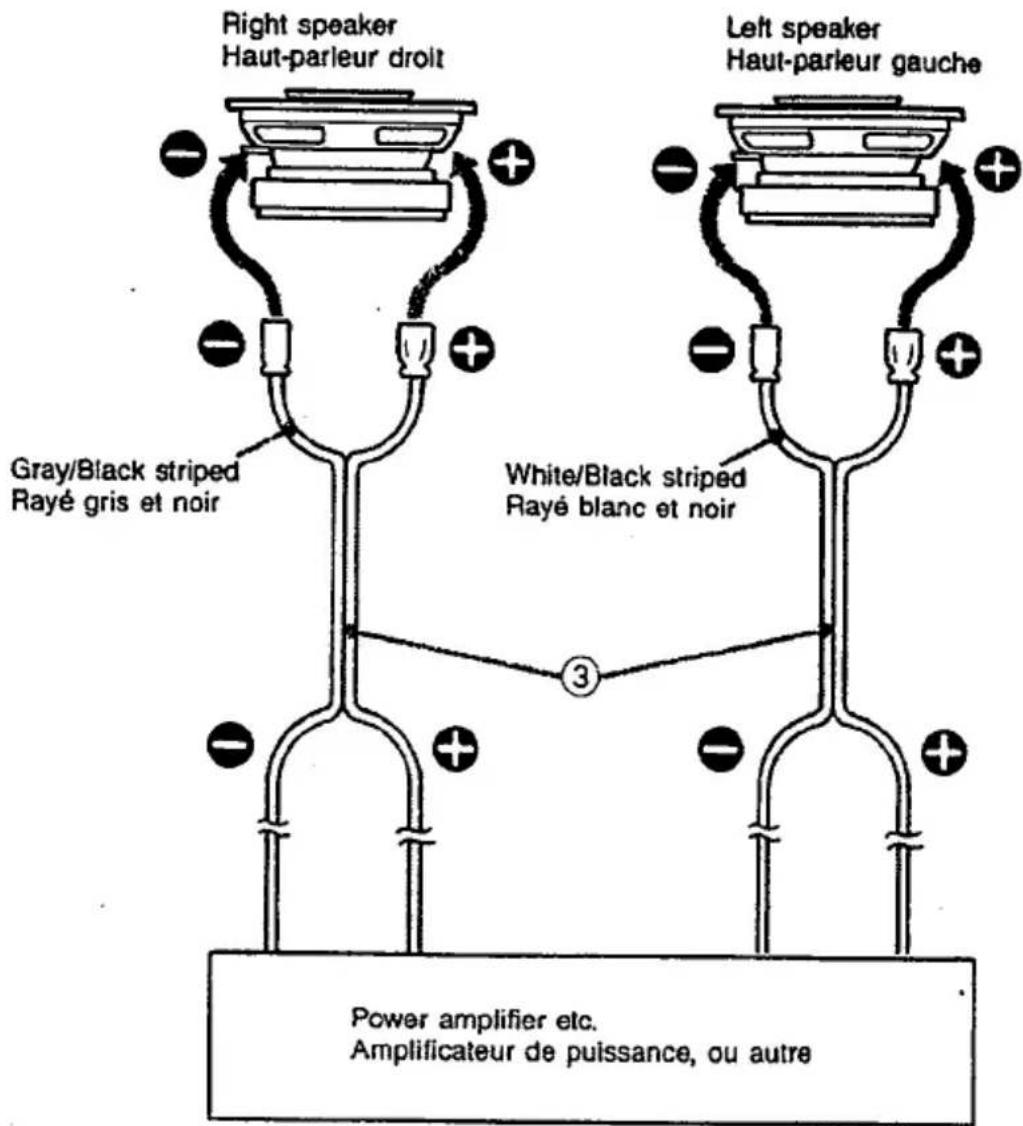

Connections

Connexions

Advantages of Multi-speakers

Woofer 8.7 cm (3 ^1/2 inches) cone type

Tweeter 4.1 cm ( 1^5/_8 inches) cone type

Maximum input powr

40 watts

Impedance

4 ohms

Sensitivity

90 dB/W/m

Frequency response

90-20,000 Hz

Weight

Approx. 400 g (14 oz) per speader

Design and specifications subject to change without notice.

Haut-parleur

2 voies

Wooler:

8.7 cm

(3 ^1/2 pouces) type conique

Tweeter 4,1 cm

(1 ^5 / _6 pouces) type conique

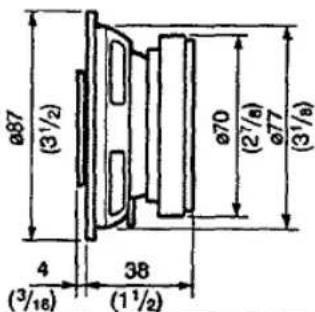

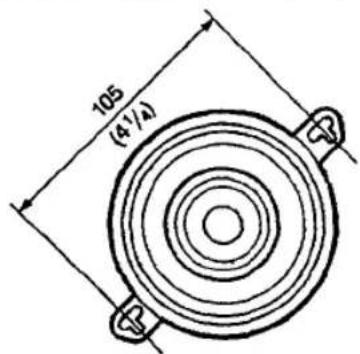

Dimensions Dimensions

Unit: mm (inches)

Unité: mm (pouces)
