Product Type	Car Speaker (Coaxial)
Size	6 x 9 inches (16 x 23 cm)
Speaker Configuration	4-way (woofer, midrange, tweeter, super tweeter)
Peak Power Handling	400 W
RMS Power Handling	60 W
Impedance	4 ohms
Frequency Response	30 Hz - 25 kHz
Sensitivity	92 dB (1W/1m)
Woofer Cone Material	Polypropylene mica reinforced
Tweeter Type	Polyester film dome
Magnet Weight	200 g (estimated)
Mounting Depth	2.5 inches (64 mm)
Cutout Diameter	5.9 x 8.3 inches (150 x 210 mm)
Weight (per speaker)	1.2 kg
Recommended Amplifier Power	20-100 W RMS per channel
Installation	Standard 6x9 mount, includes grilles and screws
Cleaning	Wipe with a dry, soft cloth. Do not use solvents.
Safety	Disconnect battery before installation. Avoid moisture.
Spare Parts Availability	Not available individually, replace speaker if damaged.
Warranty	1 year (may vary by region)
Compatibility	Designed for most cars with 6x9 speaker openings

Frequently Asked Questions - XS-F6947R SONY

What is the difference between peak and RMS power for the XS-F6947R?

Peak power (400 W) is the maximum short-term power the speaker can handle. RMS power (60 W) is the continuous power it can handle for extended periods. Match amplifier RMS to speaker RMS for best performance.

Will the XS-F6947R fit in my car?

This speaker is a standard 6x9 inch size. Check your car's speaker cutout dimensions (approx. 150 x 210 mm) and mounting depth (64 mm). It fits most vehicles with factory 6x9 openings.

Do I need an amplifier for these speakers?

While they can run on head unit power, an external amplifier (20-100 W RMS per channel) is recommended to achieve full volume and sound quality.

How do I install the XS-F6947R?

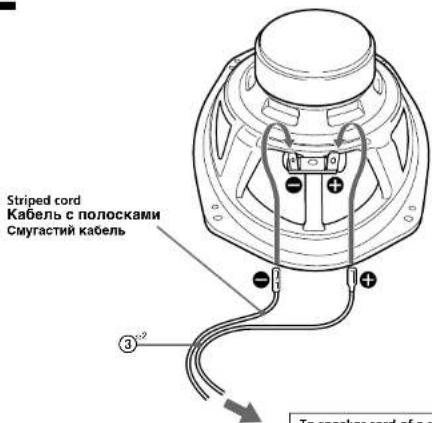

Disconnect the car battery, remove old speaker, connect wires observing polarity (positive to positive, negative to negative), mount speaker with screws provided, and reconnect battery.

What is the impedance of this speaker?

The impedance is 4 ohms. Ensure your amplifier or head unit is rated for 4-ohm loads to avoid damage.

How sensitive are these speakers?

Sensitivity is 92 dB, meaning they produce relatively high volume with low power. This makes them efficient for both moderate and high-power systems.

What type of music sounds best with the XS-F6947R?

With a frequency response of 30 Hz to 25 kHz, they reproduce deep bass, clear mids, and crisp highs, suitable for all genres from rock to classical.

Can I use these speakers in a boat or outdoor?

No, they are not marine or weather-rated. Exposure to moisture or extreme temperatures may damage them. Use only in dry, interior car locations.

How do I clean the XS-F6947R?

Wipe the speaker grille and frame with a dry, soft cloth. Do not use water, cleaners, or solvents. Avoid touching the cone or tweeter.

What is the warranty on the XS-F6947R?

Sony typically offers a 1-year limited warranty. Check your region's warranty terms or contact Sony support for details.

USER MANUAL XS-F6947R SONY

Speaker Conaxial 4-way:

Wooler 16 × 24 cm cone type Midrange 5.5 cm cone type Tweeter 2.5 cm balanced dome type Super tweeter 2.5 cm balanced dome type

Peak power 330 W

Rated power 80 W

Impedance 4.0

Sensitivity 52 dB/W/m

Бротверст response 25 - 27 000 Hz

Mass Approx. 1,190 g per speaker

Supplied accessories Parts for installation

XS-F6937R

Speaker Coaxial 3-way:

Woofer 16 × 24 cm cone type Midrange 5.5 cm cone type Tweeter 2.5 cm balanced dome type

Peak power 310 W

Rated power 80 W

Impedance 4 Ω

Sensitivity 91 dB/W/m

Frequency response 25 - 25,000 Hz

Mass Approx. 1,190 g per speaker

Supplied accessories Parts for installation

Design and specifications are subject to change without notice.

- Do not continuously use the speaker system beyond the peak power handling capacity.

- Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.

If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.

Меры

предосторожности

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed user to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

© 2007 Sony Corporation Printed in Thailand

A depth of at least 79 mm is required for flush mounting. Measure the depth of the area where you are to mount the speaker, and ensure that the speaker is not obstructing any other components of the car. Keep the following in mind when choosing a mounting location:

• Make sure that nothing is obstructing around the mounting location of the rear tray where you are to mount the speaker.

- A hole for mounting may already be cut out of the inner panel of the rear tray. In this case, you need to modify the board only.

- If you are to mount this speaker system in the rear tray, make sure that the speaker terminals, frame or magnet do not touch any inner parts of the car, such as the torsion bar springs (when you open or close the trunk lid), etc. Also make sure that the speaker grille does not touch any inner fittings, such as seat belts, head rests, center brake lights, inner covers of the rear wipers, curtains or air purifiers etc.

Перед монтажом

Mounting from the car interior

Mark the 4 bolt holes and make them 3.3mm^*1 in diameter.
