USER MANUAL VC 019R HYUNDAI

Black and silver compact vacuum cleaner with a black handle and white base (no visible text or symbols)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

Line drawing of a handheld vacuum cleaner (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

Technical line drawings of a mechanical component, showing front and side views with no visible text or symbols

Close-up of a Hyundai vacuum cleaner with a black base and attached top (no visible text or symbols)

Exterior view of a Hyundai vacuum cleaner (no text or symbols visible on the device body)

Black BYD camera lens with a small connector, shown against a plain white background (no text or symbols visible)

Close-up of a Hyundai vacuum cleaner with a black base and cap, no visible text or symbols on the device itself.

Exterior view of a Hyundai air purifier with black base and white top (no text or symbols visible)

Line drawing of a handheld vacuum cleaner (no text or symbols)

CZYSZCZENIE I KONSERWACJA

Technical line drawings of a mechanical component, showing front and side views with arrows indicating motion (no text or symbols)

Producent: Hyundai Corporation, Seoul, Korea

Importer: DIGISON Polska sp. z o.o., ul. Krzemieniecka 46, Wrocław 54 613 Poland

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• If a vacuum cleaner can be equipped with a hand-held accessory with rotating parts a warning has to be given concerning entrapment.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.
• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
  • Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• Check the adaptor and the cable for damage on a regular basis. Do not use the adaptor if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Pay careful attention to the following "Special Safety Instructions for this unit".

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

• Check before operation that the local power supply is the same as the specifications on the rating label.
• Do not use outdoors or on wet surfaces
• Do not plug or adaptor with wet hands.
• Do not suck up red hot ashes, glowing cigarette ends or matches, sharp objects, glass splinters.
• Do not use the vacuum cleaner without dirt container and filter in place. Check that the filter is inserted correctly!
• Do not leave the device unsupervised when the charging plug is connected.
• Check the device and connections regularly for visible damage. The device must not be used if the housing is damaged or other damage is present.
• Do not trap the mains adapter cable and when using the adapter, pay attention to where the cable is to prevent any danger of tripping over it. Keep the cable away from heated surfaces (e.g. cooker surfaces).
• Do not use the device to pick up inflammable fluids (e.g. Fuel or solvent) or burning objects (e.g. ash cigarettes).
• Never vacuum up sharp objects such as shards of glass etc.
• I Do not point the vacuum cleaner at persons or animals when in operation.
• If a vacuum cleaner can be equipped with a hand-held accessory with rotating parts a warning has to be given concerning entrapment.

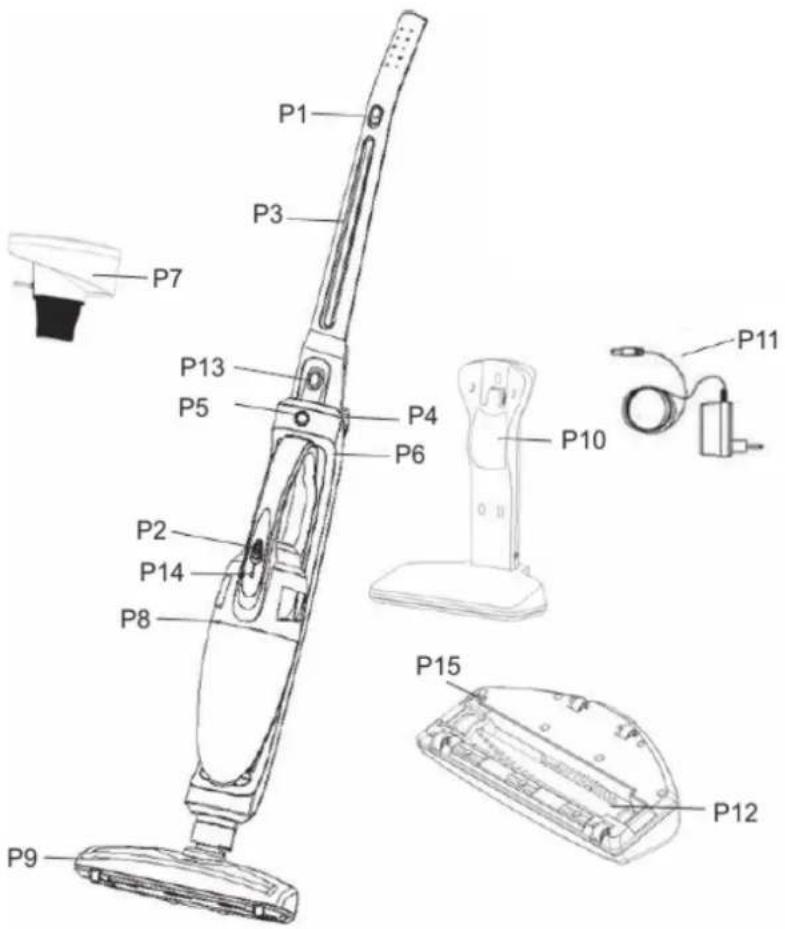

DESCRIPTION OF THE CONTROLS

P1 Sticky vacuum cleaner switch
P2 Handy vacuum cleaner switch
P3 Upper handle
P4 Handle foldable axis
P5 Release button
P6 Main body
P7 Filter assembly
P8 Handy Vacuum cleaner
P9 Electrical turbo brush
P10 Charging base
P11 Charger
P12 Rolling brush assembly
P13 Handle folding button
P14 Charging indicator
P15 Screw of roller brush cover

UNPACKING AND ASSEMBLY

Check that all the parts in the box.

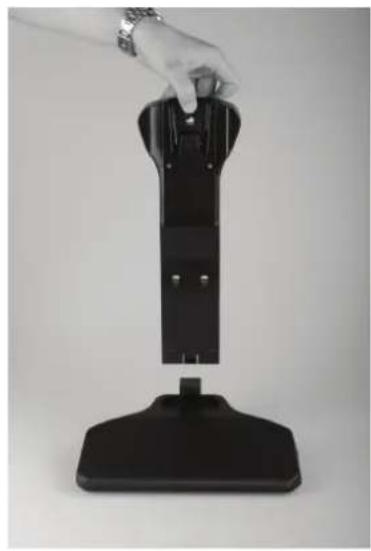

1) Fit the charging station closely

2) Fit the electrical brush by carefully inserting it into the vacuum compartment.

3) Position the charging station close to a mains socket (well away from heat sources or wet places). Insert the adaptor into the mains socket and connect the charging station.

CHARGING

Hang the device on the charging station (Note: Always make sure that the device is turned off). The indicator lights P14 will flash once the device has made contact with the charging station. It takes 10-14 hours to fully charge the batteries before the first use. When the device is totally discharged, approximately 8-14 hours' charging is required for the battery to regain full capacity. When charging is completed indicator light P15 will come on. In order to ensure that it is always ready for use, the device should be left on charger when not being used. The adaptor may become warm during charging-this is normal.

The significant advantage is that the program is for intelligent charging, it will regain the full capacity according to the battery capacity left, that's mean not every time it need to be charged full 14 hours. If you only use it for a while, then less charging time will be needed.

VACUUMING FLOORS AND CARPETS

You should regularly check that the nozzle cushions and the brush roller are clean in order to avoid scratching sensitive floors.

Start the device by pushing the on/off button away from you.

VACUUMING TABLES, FURNITURE, CAR SEATS ETC.

Keep pressing the release button and the hand unit will be able to be taken out. The hand unit will now come free and can easily be removed.

Line drawing of a handheld vacuum cleaner (no text or symbols)

EMPTYING/CLEANING

Careful cleaning of the dust container and filters

1) Remove the whole dust container by pressing the release button and turning the dust container off.

Technical line drawings of a mechanical component, showing front and side views with labeled parts (B1), no readable text or symbols beyond labels.

2) Pulling out the filters and emptying the contents of the dust container into a suitable vessel or bag. (The filter can be shaken clean or cleaned and rinsed using warm water. Make sure that the parts are dry before they are re-installed.)

3) Re-install the components. Firstly re-install the filter after the filter baffle plate is placed into the dust container. Place to match up with the both ventilation positions. Secondly assembling the dust container following up the opposite procedures of detaching the dust container. filter filter baffle plate.

Cleaning the roller brush

If the roller brush becomes blocked or jammed for any reason, the vacuum will be lower down. The roller brush may then need to be cleaned. First turn off the device, and then carefully use a pair of scissors or a sharp knife to remove any items such as threads that may have become entangled. If the roller brush needs to be lifted out – open the hatch cover by turning the locking screw P15 anti-clockwise with a coin or other tool. The hatch cover will come slightly free and can now be removed.

Lift out the roller brush and clean it. Replace the roller brush and make sure that it fits into its guiding tracks, and make sure that it can spin freely. Replace the hatch cover and lock by turning anticlockwise as far as possible.

Cleaning of wheel axles

If a wheel is jammed by threads or dirt:

Remove the wheels by carefully loosening them with a screwdriver inserted into the cavity.

Remove threads or any other objects that may have become jammed in the wheels axles.

Reassemble the wheels by pressing them tightly together.

TECHNICAL SPECIFICATIONS

• Rechargeable 2-in-1 stick vacuum cleaner
  • Usage as hand vacuum cleaner or stick vacuum cleaner - electric sweeper
• Bagless vacuuming – includes permanent washable filter
• Operating time 20 minutes
  • Electric rotating brush for easy cleaning
• Removable brush for easy cleaning
• Capable of cleaning all types of floor
• Swivel connector allows movement to the sides
• Parking base use as charging station
• Charging indicator
• Foldable handle for easy storage
• Rechargeable battery 12 V, 1800mAh NiMh
  • Power consumption during charging 8,5 W max.
  • Color: black-silver (009BL), red-silver (009R)
  • Power supply: 230 V \~ 50 Hz
• Noise level < 75 dB
  • Size: 27 x 113 x 15 cm
• Weight: 3,3 kg

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible

negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

Black plastic object with a small protrusion on top, isolated on white background (no text or symbols)

Hand placing a black mechanical component on a black base (no text or symbols visible)

Black plastic mechanical component with a flanged top and base, isolated on white background (no text or symbols)

Black MTUROU plastic clip with a small protrusion on top, isolated on white background (no text or symbols visible)

Close-up of a Hyundai air purifier with a black base and plastic chimney (no visible text or symbols)

Close-up of a Hyundai vacuum cleaner with black base and white top (no visible text or symbols)

Line drawing of a handheld vacuum cleaner (no text or symbols)

Technical line drawings of a mechanical component, showing front and side views with labeled parts B1 (no text or symbols beyond labels)

Licensed by Hyundai Corporation, Korea.
