CJR5E88TGAW - Network connector Panduit - Free user manual and instructions

Product Type	RJ45 Keystone Jack Module
Brand	Panduit
Model	CJR5E88TGAW
Category	Uncategorized
Dimensions (Approx.)	1.5 x 0.6 x 0.6 inches
Weight (Approx.)	0.01 lbs
Power Supply	None (passive device)
Wiring Standards	T568A and T568B
Cable Compatibility	22-26 AWG solid or stranded data cable
Max Conductor Insulation Diameter	0.062 inches (1.57 mm)
Re-terminations	Minimum 20 times
Installation Guidelines	TIA/EIA 568-C compliant installation required for specified performance
Technical Support	www.panduit.com/resources/install_maintain.asp
Maintenance	Clean with a dry cloth; avoid moisture
Safety Precautions	Do not install during lightning storms; avoid wet locations; disconnect network interface before handling
Spare Parts	None specific; jack module is the complete unit
Reparability	Re-terminable up to 20 times; otherwise replace the module
Certifications	Complies with TIA/EIA 568-C

Frequently Asked Questions - CJR5E88TGAW Panduit

What is the Panduit CJR5E88TGAW?

The Panduit CJR5E88TGAW is an RJ45 keystone jack module used for terminating Ethernet cables in structured cabling systems.

What cable types does this jack support?

It supports 22-26 AWG solid or stranded data cable with a maximum insulated conductor diameter of 0.062 inches (1.57 mm).

What wiring standards can be used?

The jack supports both T568A and T568B wiring standards. The wiring diagram is on the label side.

How many times can I re-terminate this jack?

The jack module can be re-terminated a minimum of 20 times without degradation.

Does this product require power?

No, it is a passive device that does not require any external power supply.

Where can I find the installation instructions?

Installation instructions are available at www.panduit.com/resources/install_maintain.asp along with technical support.

What are the safety precautions for installation?

Never install during lightning storms, avoid wet locations, and disconnect the network interface before handling uninsulated wiring.

Is this jack compatible with all keystone faceplates?

Yes, it follows standard keystone dimensions and should fit most keystone wall plates and patch panels.

How do I clean the jack module?

Clean with a dry cloth. Do not use liquids or solvents.

What tools are needed for termination?

A standard punch-down tool with a 110 or 66 blade is typically used for terminating wires into the jack.

USER MANUAL CJR5E88TGAW Panduit

Understanding the Label

IMPORTANT!: Determine the desired direction of cable before wiring the cap. The cap, in relation to the jack, must be kept consistent throughout the entire termination.

1

2a 2b

Do not pre-arrange conductors.

3a

4a

5a

(OR)

Do not pre-arrange conductors.

3b

4b

5b

(OR)

For Technical Support: www.panduit.com/resources/install_maintain.asp

6a
T568B Wiring

Termination side

Label side

T568A Wiring

Termination side Label side

(OR)

1.

[Non-Text]

(OR)

1.
   →

2.

[Non-Text]

6b
T568B Wiring

Termination side

Label side

T568A Wiring

Termination side Label side

ide

(OR)
1.

1.2.
→

1.

2.

(OR)

1.2.

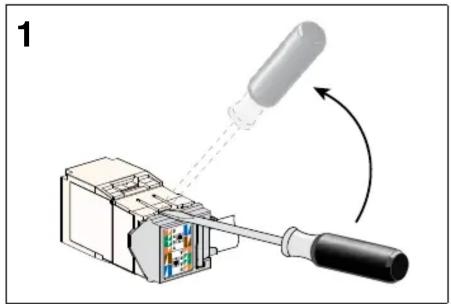

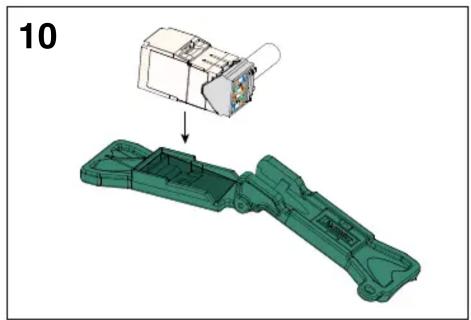

REMOVAL STEPS

Notes:

1. For specified performance, follow TIA/EIA 568-C installation guidelines.
2. Jack Modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter.
3. Jack Modules may be re-terminated a minimum of 20 times.
4. For technical and performance information, consult Panduit Technical Support.

As with all Wiring Accessories, the following statements apply:

1. Never install communications wiring during a lightning storm.
2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
4. Use caution when installing or modifying communication wiring.

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

E-mail:
