Panasonic®

Operating Instructions Air-to-Water Heatpump

Model No.

Indoor Unit Outdoor Unit

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

Before operating the unit, make sure the installation has been carried out correctly by authorized dealer correctly and precisely following the installation instructions given.

FRANÇAIS 10 \~ 17

Thank you for purchasing Panasonic Product

TABLE OF CONTENTS

SAFETY PRECAUTIONS

2\~3

CONTROL PANEL

4\~7

INDOOR UNIT

8

TROUBLESHOOTING

9

INFORMATION

74\~76

NOTE

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

OPERATION CONDITION

Water outlet Temperature (°C)		Indoor
HEATING	Max.	55
	Min.	25

Ambient Temperature (°C)		Outdoor
HEATING	Max.	35
	Min.	-20

NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly and outdoor unit might stop for protection control.

SAFETY PRECAUTIONS

• Panasonic Air-to-Water Heatpump is a split system consisting only of an indoor unit and an outdoor unit. This system designed for combination with Panasonic Tank Unit. In case of non-Panasonic Tank Unit is being used with Panasonic Air-to-Water Heatpump System, Panasonic cannot guarantee neither good operation nor reliability of the system.
• This manual describes how to operate the Heatpump system between indoor and outdoor units only.
• Other operation such as water tank, radiator, external thermo controller and underfloor system, please refer to respective manufacturer operation manuals.

To prevent personal injury, injury to others, or property damage, please comply with the following.

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an action that is COMPULSORY.

WARNING

	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
	Please consult authorized dealer or specialist to repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.
	Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.
	Do not insert your fingers or other objects into the indoor or outdoor unit, rotating parts may cause injury.
	Do not touch the outdoor unit during lightning, it may cause electric shock.
	Do not attempt to repair the unit by yourself. Otherwise, it may cause injury if it is mishandling.
	Do not install the indoor unit at outdoor. This is designed for indoor installation only.

WARNING
POWER SUPPLY
	Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.
	Do not share the same power outlet with other equipment to prevent overheating and fire.
	Do not operate with wet hands to prevent electric shock.
	If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
	This unit is equipped with Residue Current Circuit Breaker (RCCB). It is strongly recommended to check the operation of the RCCB after installation and periodically after servicing or maintenance by authorized dealer to ensure it is in good working order. Otherwise, it may cause electrical shock or fire in case of malfunction.
	It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire.
	It is recommended to wear gloves during servicing or maintenance in order to avoid hazard.
	This equipment must be earthed to prevent electrical shock or fire.
	Prevent electric shock by switching off the power supply when:- Before cleaning or servicing.- Extended non-use.- Abnormally strong lightning activity.
	This appliance is for multiple uses. All power supply circuits must be turn off before access to any of the terminals in the indoor unit, to avoid electrical shock, burn or fatal injury.

Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock)

Examples of abnormality/failure

• The RCCB switches off by itself.
- Burning smell, abnormal noise or vibration sound is observed when the unit is in use.
- Hot water keeps on coming off the unit.

Contact immediately your local dealer for maintenance/repair.

CAUTION

	Do not wash the indoor unit with water, benzene, thinner or scouring powder.
—	Do not install the unit close to any combustible equipment or at bathroom. Otherwise, it may cause electric shock or fire.
	Do not touch the water discharge pipe at the indoor unit during operation.
	Do not place anything on top or beneath of the unit.
	Do not sit or step on the unit, you may fall down accidentally.
	Do not touch the sharp aluminium fin, sharp parts may cause injury.
	Ensure drainage pipe is connected properly. Otherwise, leakage may occur.
	Check the installation rack periodically to make sure that it is not damaged. After long periods of use, the strength of the installation rack may have deteriorated.
CONTROL PANEL
	Do not let the control panel get wet. Otherwise, it may cause electric shock or fire.
	Do not press the buttons on the control panel with hard, pointed objects. Otherwise, it may damage the unit.
	Do not wash the control panel with water, benzene, thinner or scouring powder.
	Do not inspect or service the control panel by yourself. Please consult authorized dealer. Otherwise, it may cause injury if mishandling.

	Ensure drainage pipe is connected properly. Otherwise, leakage may occur.
	Check the installation rack periodically to make sure that it is not damaged. After long periods of use, the strength of the installation rack may have deteriorated.
CONTROL PANEL
	Do not let the control panel get wet. Otherwise, it may cause electric shock or fire.
	Do not press the buttons on the control panel with hard, pointed objects. Otherwise, it may damage the unit.
	Do not wash the control panel with water, benzene, thinner or scouring powder.
	Do not inspect or service the control panel by yourself. Please consult authorized dealer. Otherwise, it may cause injury if mishandling.

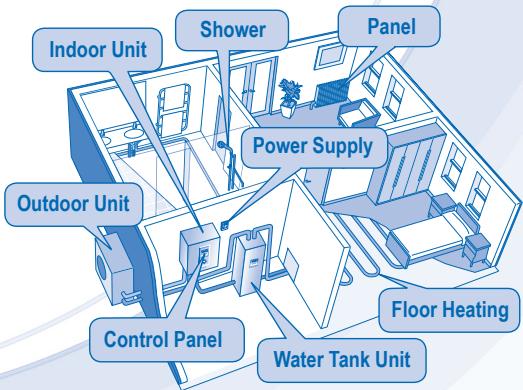

Indoor Unit Shower Panel Power Supply Outdoor Unit Control Panel Floor Heating Water Tank Unit

CONTROL PANEL

• Some functions described in this manual may not be applicable to your unit.
• Consult your nearest authorized dealer for further information.

- For normal operation, the ERROR RESET, FORCE and PUMPDW buttons are not in use.

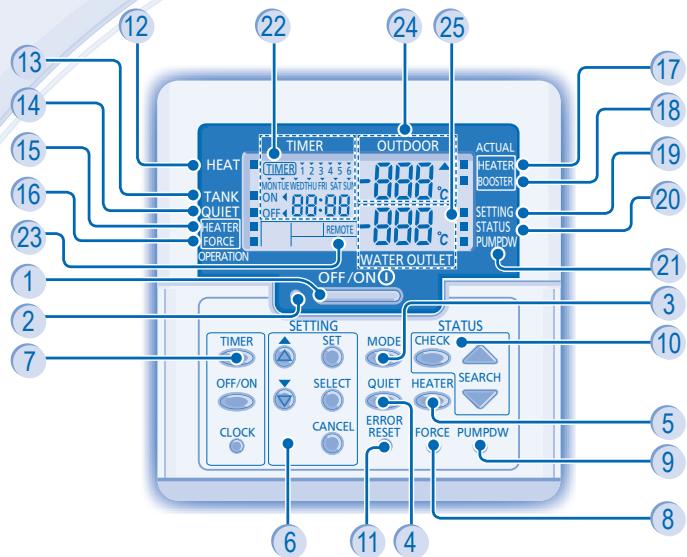

12 13 14 15 16 23 1 2 7 6 11 4 22 24 25 17 18 19 20 21 3 10 5 9 8 OFFSET ON OFFSET OUTLET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OFFSET OUTPUTOR OUTDOOR HEAT TANK QUIET HEATER FORCE OPERATION TIME 1 2 3 4 5 TIME 6 TIME 7 TIME 8 TIME 9 TIME 10 TIME 11 TIME 12 TIME 13 TIME 14 TIME 15 TIME 16 TIME 17 TIME 18 TIME 19 TIME 20 TIME 21 TIME 22 TIME 23 TIME 24 TIME 25 TIME 26 TIME 27 TIME 28 TIME 29 TIME 30 TIME 31 TIME 32 TIME 33 TIME 34 TIME 35 TIME 36 TIME 37 TIME 38 TIME 39 TIME 40 TIME 41 TIME 42 TIME 43 TIME 44 TIME 45 TIME 46 TIME 47 TIME 48 TIME 49 TIME 50 TIME 51 TIME 52 TIME 53 TIME 54 TIME 55 TIME 56 TIME 57 TIME 58 TIME 59 TIME 60 TIME 61 TIME 62 TIME 63 TIME 64 TIME 65 TIME 66 TIME 67 TIME 68 TIME 69 TIME 70 TIME 71 TIME 72 TIME 73 TIME 74 TIME 75 TIME 76 TIME 77 TIME 78 TIME 79 TIME 80 TIME 81 TIME 82 TIME 83 TIME 84 TIME 85 TIME 86 TIME 87 TIME 88 TIME 89 TIME 90 TIME 91 TIME 92 TIME 93 TIME 94 TIME 95 TIME 96 TIME 97 TIME 98 TIME 99 TIME

1 OFF/ON Button
2 Operation LED
3 Operation Mode Button
4 Quiet Operation Button
5 Indoor Unit Backup Heater Operation Button
6 System Setting Mode Buttons
7 Timer Setting Group Buttons
8 Force Heater Mode Button
9 System Pumpdown Mode Button
10 System Status Check Mode Buttons
11 Error Reset Button
12 Heat Mode OFF/ON Indicator
13 Tank Mode OFF/ON Indicator

14 Quiet Operation OFF/ON Indicator
15 Backup Heater Request OFF/ON Indicator
16 Force Heater Request OFF/ON Indicator
17 Backup Heater Actual Operation (OFF/ON) Indicator
18 Booster Heater Actual Operation (OFF/ON) Indicator
19 System Setting Mode OFF/ON Indicator
20 System Status Check Mode OFF/ON Indicator
21 System Pumpdown Mode OFF/ON Indicator
22 Timer/Clock Setting Display
23 Remote Display
24 Outdoor Ambient Temperature Display
25 Water Outlet Temperature Display

CONTROL PANEL PREPARATION

Setting Current Day and Time

CLOCK

1. Press

1. Press

1. Press

1. Repeat steps 2 and 3 to set the current time.

Notes:

• The current day and time need to be set when:
• The power is turned on for the first time.
• After a long time has elapsed since the power was last turned on.
• The current time that has been set will be the standard time for all the Timer operations.

SETTING UP THE SPECIAL FUNCTIONS

• After initial installation, you can manually adjust the settings. The initial setting remains active until the user changes it.
- The control panel can be used for multiple installations. Some functions may not be applicable to your unit.
- Ensure the operation LED is in OFF condition before setting.

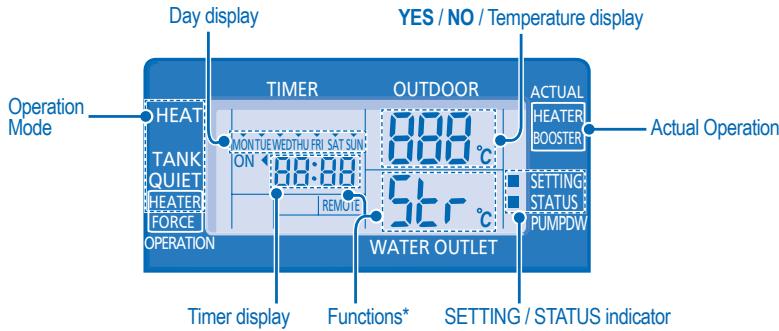

Day display YES / NO / Temperature display Operation Mode HEAT TANK QUIET HEATER FORCE OPERATION TIMER OUTDOOR 000 °C MONTUE WEDTHU FRI SAT SUN ON 00:00 REMOTE 527 °C WATER OUTLET Actual HEATER BOOSTER Actual Operation Timing display Functions* SETTING / STATUS indicator

SELECT FUNCTIONS AND SET YOUR DESIRED TIMER

1. Press SET and CHECK simultaneously for 5 seconds to enter special setting mode. "SETTING" and "STATUS" indicator is ON.

2. Press ▲ or ▼ to browse functions.

3. Press SELECT to enter the function.

4. Press ▲ or ▼ to enable YES or disable NO function, or set your desired day and time.

5. Press SET to confirm.

Function *	Operation Mode/ Actual Operation	Description
con	ro oī	External Thermo Controller (YES / NO)To set external thermo controller connection.
con	TANK	Tank Connection (YES / NO)To set tank connection.
Pry	HEAT	Heating Priority (YES / NO)To choose the heat pump only use for Heating side during HEAT + TANK mode.
int	HEAT	Heating Heat-up Interval SetTo set timer for Heating during HEAT + TANK mode (0.5hour ~ 10hours).
int	TANK	Tank Heat-up Interval SetTo set timer for Tank during HEAT + TANK mode (5minutes ~ 1hour 35minutes).
dly	BOOSTER	Booster Heater Delay Time SetTo set delay timer for booster heater to ON if tank temperature is not reached (20minutes ~ 1hour 35minutes).
Fun	Strl	Sterilization (YES / NO)To set sterilization, if required.
Str		Sterilization Day & Time SetTo set timer for sterilization (only once a week).
bo	Strl	Sterilization Temperature SetTo set temperature for sterilization function (40°C ~ 75°C).
oPr	Str	Sterilization Continue TimeTo set timer to maintain heating temperature in order to complete the sterilization function (5minutes ~ 1hour).

TO TURN ON OR OFF THE UNIT

- When unit is ON, operation LED is lit and the actual temperature for water outlet and outdoor ambient are shown on the control panel display.

• To turn ON or OFF the panel/floor heating operation.
• In this mode, the outdoor unit will provide heating capacity to the indoor unit.

- HEAT + TANK MODE

• In this mode, the outdoor unit will provide heating capacity to the sanitary tank and indoor unit.
• This operation is not used when the sanitary water tank is not installed.

- TANK MODE

• To turn ON or OFF the sanitary tank operation.
• In this mode, the outdoor unit will provide heating capacity to the sanitary tank.

TO ENJOY QUIET ENVIRONMENT

- This operation reduces outdoor unit noise. In this condition, it may cause decrease in heating capacity.

• The backup heater provides extra heating capacity during cold outdoor temperature and only can operate at heat mode operation for indoor unit.
• The backup heater will automatically turn ON when the setting conditions is fulfilled.
• To cancel the Heater operation manually, press the respective button again.

SYSTEM STATUS CHECK MODE

1. Press CHECK for 5 seconds to enter STATUS mode.
2. Press ▲ or ▼ to check the Water Inlet Temperature, Tank Temperature, Compressor Running Frequency or Error History.

- Press CANCEL to exit STATUS mode.

- Once STATUS mode is entered, "STATUS" indicator is ON.

- STATUS mode cannot be activated when the "SETTING" indicator is ON.

• It is strongly recommended to contact the nearest authorized dealer to change the water temperature range.
• Using the control panel could set the temperature range for water outlet temperature and outdoor ambient temperature.

SYSTEM SETTING MODE

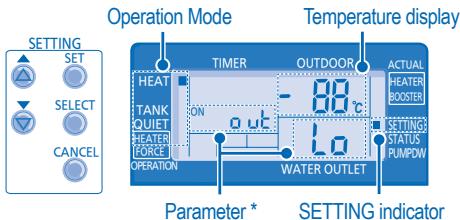

OPERATION MODE Temperature display SETTING SET SELECT CANCEL TIME OUTDOOR ACTUAL HEATER BOOSTER TANK QUICKET OUT 1.0 SETTINGS STATUS PUMPDW OPERATION WATER OUTLET Parameter * SETTING indicator

1. Press SET for 5 seconds to enter "SETTING" mode. "SETTING" indicator is ON.
2. Press ⬆ or ⬇ to choose a parameter.
3. After selecting the desired parameter, press to enter the parameter.
4. Press ▲ or ▼ to set the desired temperature.
5. Press SET again to confirm the setting.
6. Repeat steps 2 to 5 to set other parameters.

Operation Mode Parameter * Description

HEAT	out Lo	Outdoor ambient set temperature at low water outlet temperature (-15°C ~ 15°C).
HEAT	out Hi	Outdoor ambient set temperature at high water outlet temperature (-15°C ~ 15°C).
HEAT	H20 Lo	Water outlet set temperature at low outdoor ambient temperature (25°C ~ 55°C).
HEAT	H20 Hi	Water outlet set temperature at high outdoor ambient temperature (25°C ~ 55°C).
HEAT	OFF	Set temperature for turning OFF heating operation (5°C ~ 35°C).
HEATER	out ON	Outdoor ambient set temperature for turning ON heater operation (-15°C ~ 20°C).
TANK	SET	Sanitary tank set temperature (40°C ~ 75°C).

WATER TEMPERATURE THERMO SHIFT SETTING

1. Press SET within 5 seconds.
2. Repeat steps 3 to 5 to set the desired shift temperature (-5^ 5^) .

Notes:

• Press 📋 or wait 30 seconds to exit "SETTING" mode.
• The setting temperature will be stored in the system once confirm.
• “SETTING” mode cannot be activated when the “PUMPDW” and “STATUS” indicator is ON.

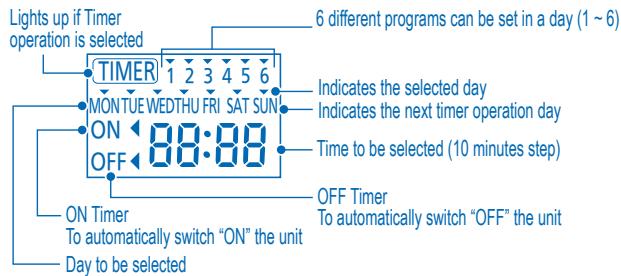

Timer Display

Lights up if Timer operation is selected 6 different programs can be set in a day (1 ~ 6) TIMER MON TUE WEDTHU FRI SAT SUN ON OFF Indicates the selected day Indicates the next timer operation day Time to be selected (10 minutes step) OFF Timer To automatically switch "OFF" the unit Day to be selected

TIMER OFF/ON CLOCK SETTING SET SELECT CANCEL

Function	Step
Enter timer mode	Timer.
Set day & time	Pressorto select your desired day.Pressto confirm“1” will be blinking, pressto set program 1.Pressto select ON or OFF timer.Pressorto select your desired time.If you want to set the timer together with other operations, pressMODEandQUIET.Pressto confirm program 1. The selected day will be highlighted withAfter 2 seconds, the display will move to the next program.Repeat steps 4 to 7 to set programs 2 to 6.During timer setup, if no button is pressed within 30 seconds, or if thebutton is pressed the setting at that moment is confirmed and timer setup is ended.
Add/Modify timer	Repeat the steps above.
Disable timer	Timer, then pressCANCEL.
Enable timer	Timer, then pressSET.
Check timer	Timer.2. Pressoruntil your desired day is shown, pressto confirm your selection.Pressorto check the set programs.
Cancel timer	Timer.2. Pressoruntil your desired day is shown.SELECTto enter program setting.Pressoruntil your desired program is shown.CANCEL5. Pressto cancel the program.

Notes:

• You can set the Timer for each day of the week (Monday to Sunday) with 6 programs per day.
• When the unit is switched on by the ON TIMER, it will use the previously set temperature to control the room temperature.
• Same timer program cannot be set in the same day.
• You may also select collective days with same timer setting.
• Promotes energy saving by allowing you to set up to 6 programs in any given day.

CAUTION

- Switch off the power supply before cleaning.

CLEANING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.
• Use only soap (≈ pH7) or neutral household detergent.
• Do not use water hotter than 40^ .

HINT

- To ensure optimal performance of the unit, cleaning maintenance has to be carried out at regular intervals. Please consult authorized dealer.

Illustration of a digital payment terminal with a meter and interface (no text or symbols)

Panasonic

WATER PRESSURE GAUGE

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and mounting flanges (no text or symbols beyond measurement indicators)

- Do not press or hit the glass cover with hard, pointed objects. This may damage the unit.

- Ensure that the water pressure is between 0.05 to 0.2MPa.

- In case the water pressure is out of the above range, please consult authorized dealer.

INDOOR UNIT & CONTROL PANEL

• Do not splash water directly.
• Wipe the unit gently with a soft, dry cloth.

EXTERNAL FILTER

- Please clean the external filter at least once a year. Fail to do so might cause filter clogged, consequent system breakdown. Please consult authorized dealer.

OUTDOOR UNIT

• Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to assure the ventilation.
• During winter, please clean and remove the snow near outdoor unit so that the snow does no cover the air inlet and air outlet vents.

INSPECTION

• In order to ensure optimal performance of the unit, seasonal inspections on the unit, external filter and field wiring have to be carried out at regular intervals. This maintenance should be carried out by authorized dealer.
• Clear any obstruction at the air inlet and air outlet vents of outdoor unit.

FOR EXTENDED NON-USE

- Turn off the power supply.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the control panel.
• Water leaks from Indoor unit.
- Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM

Flowing sound during operation.

Operation is delayed a few minutes after restart.

Outdoor unit emits water/steam.

Outdoor unit emits steam during heating mode.

Outdoor unit does not operate.

Air-to-Water Heatpump system operation will turn off.

System difficult to heat-up.

System cannot get warm instantly.

Operation starts after power resumes.

CAUSE

Refrigerant flow inside the unit.

The delay is a protection to the unit's compressor.

Condensation or evaporation occurs on pipes.

This is due to defrost operation happens at the heat exchanger.

When the outdoor temperature is out of the operation condition range, the heatpump system enter protection control.

If indoor unit water inlet temperature is lower than 20°C.Backup heater power will turn on to heat up the water.

When heating is operated by indoor unit together with floor heating or panel heater simultaneously, there may be case where warm water temperature is getting lower and cause floor heating or panel heater heat-up is weaken.When outdoor air temperature is low, it may be difficult to get warm.Is the snow pile blocking the discharge outlet or intake inlet of outdoor unit.When water outlet set temperature is low, it may be difficult to get warm.

Due to the nature of the heatpump system, it may take some time to heat-up the water if the unit is operated from cold-start.

Unit is operates under auto restart function.

Check the following before calling for servicing.

SYMPTOM

Heating operation is not working efficiently.

Noisy during operation.

The unit does not work.

Operation LED is no lit or control panel display is blank.

CHECK

Set the temperature correctly.Is the panel heater valve closed.Clear any obstruction at the air inlet and air outlet vents of outdoor unit.

Check if the unit has been installed at an incline or the cover is not closed properly.

Check if the circuit breaker is tripped.Is the power supply off or power failure.

The operation LED blinks and error code appear on control panel display.

TIMER TIMER 1 2 3 4 5 6 MON TUE WEDTHU FRI SAT SUN ON ← 88:88 OFF ←

Force Heater Mode Button

FORCE

• Turn the unit off and reveal the error code to authorized dealer.
• Timer operation cancel when error code occur.

- Press OFF/ON ① to stop the force heater operation.

- During Force Heater mode, all other operations are not allowed.

Front view of a Panasonic industrial control panel with indicator lights and a central device (no text or symbols on the device itself)

JAUGE DE PRESSION D'EAU

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and mounting flanges (no text or symbols beyond measurement indicators)

Illustration of a pressure gauge connected to a digital display panel (no text or symbols)

Panasonic

Close-up of a pressure gauge with needle pointing to 0.3 MPa, no visible text or symbols beyond the scale markings

Illustration of a digital device with a screen and control dial (no text or symbols)

Panasonic

MANOMETER FÜR WASSERDRUCK

Blue industrial pressure gauge with needle pointing at 0.3 MPa (no text or symbols beyond scale markings)

UNITÀ INTERNA E UNITÀ ESTERNA

Illustration of a pressure gauge connected to a digital display panel (no text or symbols visible)

Panasonic

WATERDRUKMETER

Front view of a pressure gauge with blue casing and black dial, showing MPa measurement (no text or symbols beyond scale markings)

BINNEN-UNIT & CONTROLEPANEEL

Pure electrical circuit lines without any symbols

Panasonic

MANÓMETRO DA ÁGUA

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and adjustment knobs (no text or symbols beyond measurement indicators)

Illustration of a computer monitor with a dial indicator (no text or symbols)

Panasonic

ΕΥΡΟΣ ΠΙΕΣΗΣ ΝΕΡΟΥ

Close-up of a blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and mounting flanges (no text or symbols beyond measurement indicators)

Illustration of a pressure gauge connected to a digital display (no text or symbols)

Panasonic

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and adjustment knobs (no text or symbols beyond measurement indicators)

Information for Users on Collection and Disposal of Old Equipment

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany
