TDP-S21 - Video projector TOSHIBA - Free user manual and instructions

Brand	Toshiba
Model	TDP-S21
Product Type	Video Projector
Display Technology	DLP
Native Resolution	1024 x 768 (XGA)
Brightness	2000 ANSI Lumens
Contrast Ratio	2000:1
Lamp Life (Normal Mode)	2000 hours
Lamp Life (Eco Mode)	3000 hours
Zoom Ratio	1.2x Manual
Keystone Correction	Vertical ±30°
Inputs	VGA, Composite, S-Video
Audio	Built-in 1W Speaker
Weight	2.5 kg (approx.)
Dimensions (W x D x H)	300 x 220 x 100 mm (approx.)
Power Consumption	250W (max)
Power Supply	AC 100-240V, 50/60Hz
Cleaning	Clean air filter every 100 hours; gently wipe lens with soft cloth
Safety	Do not look directly into the lens; ensure proper ventilation
Repairability	Lamp and filter user-replaceable; other parts service by qualified technician

Frequently Asked Questions - TDP-S21 TOSHIBA

How do I connect the Toshiba TDP-S21 to a laptop?

Use a VGA cable to connect the laptop's VGA output to the projector's VGA input. Ensure the projector is set to the correct input source using the Source button.

What is the recommended lamp replacement interval?

The lamp should be replaced after 2000 hours of use in normal mode, or 3000 hours in eco mode. A warning message will appear when replacement is needed.

How do I clean the air filter?

Turn off the projector and unplug it. Slide out the filter cover, remove the filter, and gently wash it with mild detergent. Let it dry completely before reinstalling. Clean every 100 hours of use.

The projector does not power on. What should I do?

Check the power cable and outlet. Ensure the Power button on the projector or remote is pressed. If the lamp indicator blinks, the lamp may need replacement or the projector may be overheating.

Can I use the projector with a Blu-ray player?

Yes, connect the Blu-ray player's composite or S-video output to the corresponding input on the projector. For HD content, a VGA converter may be needed.

How do I adjust the picture size?

Use the Zoom ring on the lens to adjust the image size. Move the projector closer or further from the screen for larger adjustments.

What is the keystone correction and how do I use it?

Keystone correction adjusts the trapezoidal distortion when the projector is tilted. Use the Keystone buttons in the menu to correct vertical distortion up to ±30°.

Can I mount the projector on the ceiling?

Yes, the Toshiba TDP-S21 is compatible with standard ceiling mounts. Ensure the mount is rated for the projector's weight (2.5 kg) and follow the installation instructions.

The image is blurry. What can I do?

First, clean the lens with a soft cloth. Then use the Focus ring to sharpen the image. Also ensure the projector is at the correct distance from the screen.

How do I reset the lamp timer after replacement?

After replacing the lamp, go to the Menu > Options > Lamp Reset and select 'Yes'. This clears the lamp usage counter.

USER MANUAL TDP-S21 TOSHIBA

Line drawing of a projector with ventilation grilles and a circular vent (no text or symbols)

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

WARNING: Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling

WARNING: This [product] contains mercury. Disposal of mercury may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

MODEL NAME: TDP-S20 USA only

TRADE NAME: DATA PROJECTOR

MODEL NAME: TDP-S20

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RESPONSIBLE PARTY: TOSHIBA AMERICA INFORMATION SYSTEMS, INC.

9740 Irvine Blvd., Irvine, CA 92618-1697 U.S.A

Phone: [phone]

WARNING: USA only

Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user's authority to operate the equipment.

Notice: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil

FCC Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class

USA only A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiates radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING: Changes or modifications made to this equipment, not expressly approved by USA only Toshiba, or parties authorized by Toshiba, could void the user's authority to operate the equipment.

Notice: This Class A digital apparatus complies with Canadian ICES-003. Cet appareil

WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read Owner's Manual

After unpacking this product, read the owner's manual carefully, and follow all the operating and other instructions.

2. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

3. Source of Light

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes or sight.

4. Ventilation

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

5. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

6. Water and Moisture

Do not use this product near water. - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.

7. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft cloth for cleaning.

8. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

9. Overloading

Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

IMPORTANT SAFETY INSTRUCTIONS (Continued)

10. Lightning storms

For added protection for this product during storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges. However, while it is thundering or lightning, do not touch the apparatus and any connected cable and/or equipment. This will prevent you from receiving the electric shock by an electric surge.

11. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12. Do not place the product vertically

Do not use the product in the upright position to project the pictures at the ceiling, or any other vertical positions. It may fall down and dangerous.

13. Stack Inhibited

Do not stack other equipment on this product or do not place this product on the other equipment. Top and bottom plates of this product develops heat and may give some undesirable damage to other unit.

14. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

15. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

16. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e) If the product has been dropped or damaged in any way.

f) When the product exhibits a distinct change in performance - this indicates a need for service.

17. If glass components, including lens and lamp, should break, contact your dealer for repair service.

This product incorporates glass components, including a lens and a lamp. If such parts should break, please handle with care to avoid injury and contact your dealer for repair service. The broken pieces of glass may cause to injury. In the unlikely event of the lamp rupturing, thoroughly clean the area around the projector and discard any edible items placed in that area.

18. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS (Continued)

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. (Replacement of the lamp only should be made by users.)

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Do not leave thermal-paper documents or easily deformed items on top of the unit or near the air exhaust for long periods of time.

The heat from the unit could erase the information on the thermal paper, or cause deformation or warping.

22. Do not get your hands between the camera arm and the main unit when setting the camera arm back in its original position. (Models equipped with document camera)

To avoid injury, be careful not to get your hands caught when setting the camera arm back in its original position. Families with children should be particularly careful.

23. Do not carry by the camera arm. (Models equipped with document camera)

Do not carry the projector by the camera arm. Doing so can result in damage or injury.

24. Do not move the projector while the arm is still erect. (Models equipped with document camera)

Always store the arm back in position when moving the projector. Otherwise injury or damage may result.

25. Do not use the product in a closed installation state.

Do not place the product in a box or in any other closed installation state. Otherwise it may overheat. This could result in a risk of fire.

POWER SUPPLY CORD SELECTION

If your line voltage is 220 to 240V, use one of the following types of cable.

Plug configuration

Plug type

Line voltage

Use a 5A fuse which is approved by ASTA or BSI to BSI362. Always replace the fuse cover after changing the fuse.

Plug configuration

Plug type Line voltage

Australian 200 – 240V 240V 10A

Switzerland 200 – 240V 240V 6A

North American 200 – 240V 240V 15A

IMPORTANT PRECAUTIONS

Save Original Packing Materials

The original shipping carton and packing materials will come in handy if you ever have to ship your projector. For maximum protection, repack the set as it was originally packed at the factory.

Moisture Condensation

Never operate this unit immediately after moving it from a cold location to a warm location. When the unit is exposed to such a change in temperature, moisture may condense on the crucial internal parts. To prevent the unit from possible damage, do not use the unit for at least 2 hours when there is an extreme or sudden change in temperature.

Place and Manner of Installation

• Do not place in hot locations, such as near heating equipment. Doing so could cause malfunction, and shorten the life of the projector.
• Avoid locations with oil or cigarette smoke. Doing so will dirty the optical parts, shortening their lives, and darkening the screen.
• Do not use the product vertically in any upright position or slantwise in an angle of 20 degrees or more.
• Using this instrument near a TV or radio may cause interference to the images or audio sound. If this happens, move it away from the TV or radio.
• Moving the projector from a low-temperature room to a high-temperature room may cause condensation on the lens or internal parts in the instrument. If you continue to use it in that situation, the malfunction may result. Ensure to wait until the condensation naturally disappears.
• In a high altitude location where air is thin, cooling efficiency is reduced so use it with the ambient temperature being lowered.

IMPORTANT PRECAUTIONS (Continued)

Avoid Volatile Liquid

Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time. They will leave marks on the finish. If cleaning with a chemically saturated cloth, be sure to follow the product's precautions.

In the spaces provided below, record the Model and Serial No. located at the bottom of your projector.

Model No. Serial No.

Retain this information for future reference.

EXEMPTION CLAUSES

• Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, operation, theft or mischief by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems.
• Toshiba Corporation bears no responsibility for incidental damages (lost profit, work interruption, corruption or loss of the memory contents, etc.) arising from the use of or the inability to use this unit.
• Toshiba Corporation accepts no liability whatsoever for any damages arising from not having followed the descriptions in this Instruction Manual.
• Toshiba Corporation accepts no liability whatsoever for any damages arising from malfunctions arising from combination with equipment or software that is not related to Toshiba Corporation.

OTHER CAUTIONS AND INFORMATIONS

Copyrights

Showing or transmitting commercial imaging software or broadcast or cable-broad casting programs with the purpose of other than the personal and private viewing, including modifying images using the freeze or resize functions, or displaying with the varying aspect ratio of the images, could violate the direct or indirect copyrights of the imaging software or broadcast program, etc., if done without first consulting with the copyright holder. For this reason, please take appropriate measures before performing one of the actions listed above, including obtaining a license from the copyright holder.

Disposal

This product contains substances which are harmful to humans and the environment. • Solder used in the internal parts contains the lead.

•The lamp contains inorganic mercury.

Please dispose of this product or used lamps in accordance with local regulations.

Trademarks

• VGA, SVGA, XGA, SXGA, UXGA are trademarks or registered trademarks of International Business Machines Corporation.
- Digital Light Processing, Digital Micromirror Device and DMD are trademarks of Texas Instruments.
•Macintosh is a registered trademark of Apple Computer, Inc.
- Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.
- Adobe is a registered trademark and Acrobat Reader is a trademark of Adobe Systems Incorporated.

Notational Conventions Used in This Manual

•References to pages with related information are annotated as follows. For example, if making a reference to page 36: p.36
- The illustrations in this document are for reference purposes only and may not reflect your package exactly.

REMOTE CONTROL BATTERIES

• Be sure to use AA size batteries.
• Do not reverse the polarity when inserting the battery.
• Do not recharge, heat, disassemble, short-circuit, or burn the battery.
• Do not use the battery beyond the expiration date indicated on the battery or leave a dead battery in the remote control.
• Do not mix batteries of different types, such as alkaline and manganese. Do not mix new and used batteries.

Using the batteries improperly may cause them to explode or leak and lead to burn or injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor. If the fluid is spilt on an instrument, avoid contact and wipe it off using tissue paper. (Dispose of the used tissue paper as flammable garbage after moistening with water.)

CONTENTS

Before Using

SAFETY PRECAUTIONS 2

IMPORTANT SAFETY INSTRUCTIONS 4

POWER SUPPLY CORD SELECTION 9

IMPORTANT PRECAUTIONS 9

EXEMPTION CLAUSES 10

OTHER CAUTIONS AND INFORMATIONS 11

REMOTE CONTROL BATTERIES 11

CONTENTS 12

Preparations

Checking the package contents 14

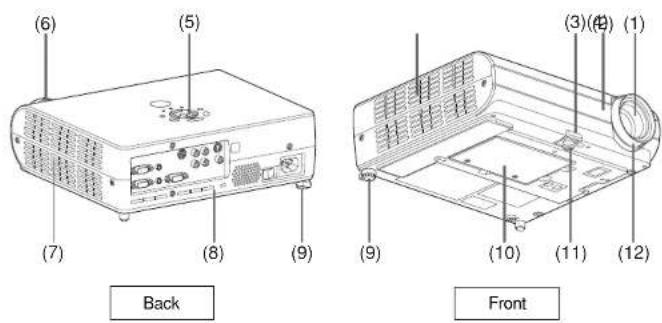

Names of each part on the main unit 15

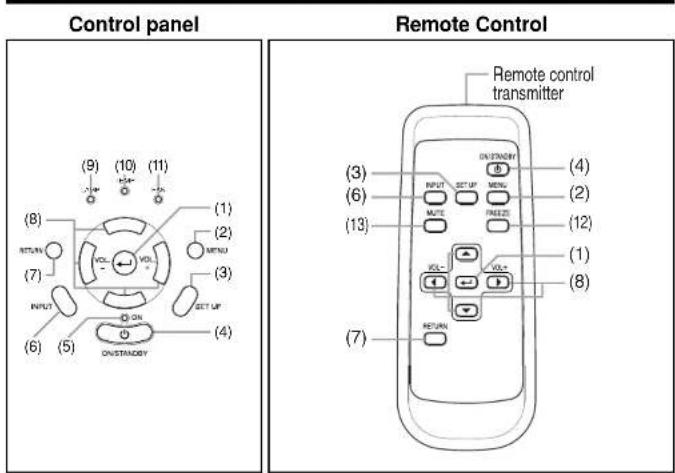

Names of each part on the control panel and remote control 16

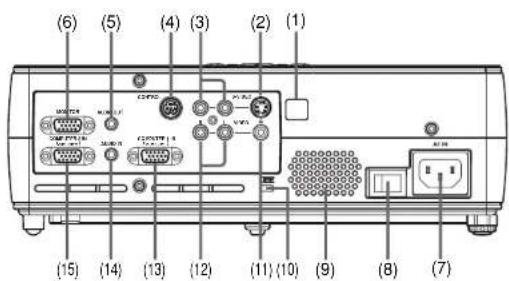

Parts on the rear panel 17

Names of each part on the document camera (TDP-S21) 18

Preparing and using the remote control 19

Placement 20

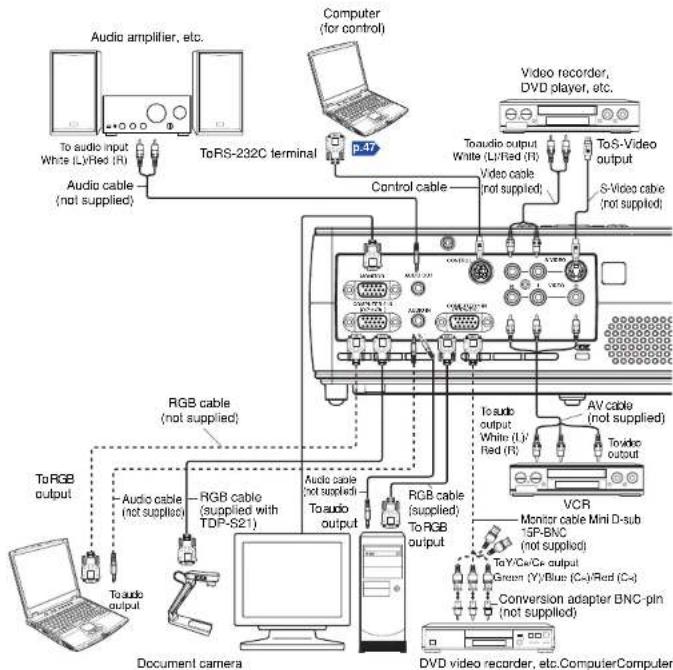

Connection 21

Operations

Turning the power on and off 22

Basic operations 24

Using handy features 26

Using auto setting 26

Cutting off the picture and sound temporarily (Mute) 28

Freezing the image (Freeze) 28

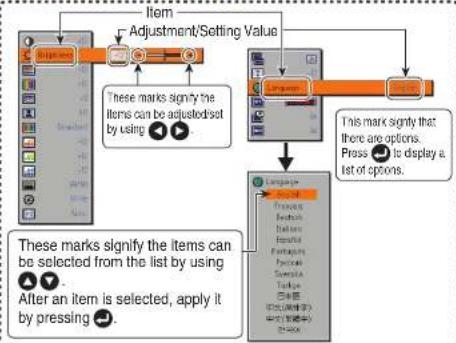

Using the menus 29

How to use the menus.... 29

The image adjustment menu 30

The display setting menu 31

The default setting menu 32

Displaying Information (Status display) 33

Using the document camera 34

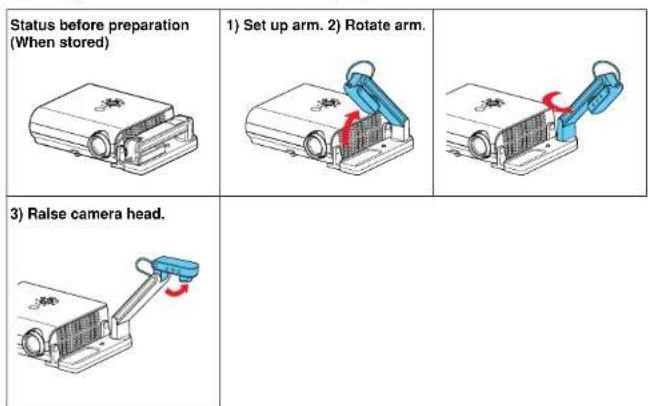

How to use the document camera.... 34

Image projection with the document camera.... 36

Locking the white balance 37

Maintenance

About lamp 38

Lamp replacement 38

Lens and main unit cleaning 40

Others

Trouble indications 41

Before calling service personnel 42

Specifications 44

List of general specifications 44

Document camera specifications (TDP-S21) 44

List of supported signals (RGB signals) 45

List of supported signals (Y/PB/PR signals) 46

List of supported signals (Video, S-Video signals) 46

Pin assignment of COMPUTER-1/2 & MONITOR terminals 46

CONTROL terminal 47

Separately Sold Product 47

Checking the package contents

Please make sure that the following items are included in the box, along with the main unit. If any item is missing, please contact the store immediately where you purchased the product.

(1)

(4)

(7)

(2)

(5)

[Non-Text]

(3)

(6)

(1) Remote control
☐ (2) R6 (SIZE AA) batteries for remote control (2)
(3) CD-ROM
☐ (4) Owner's Manual
(5) Power cord (See note)
□ (6) RGB cable (3m)
□(7) Carrying bag
(8) RGB cable (25cm)*
*: Supplied with TDP-S21

Note

The shape and number of supplied power cords vary depending on the product destination.

◆The Supplied CD-ROM

The supplied CD-ROM contains an owner's manual, including information not available for the printed Owner's manual (Getting started) and Acrobat® Reader™ to view the manual.

■ Installing Acrobat® Reader™

Windows ^7 : Run the CD-ROM, select the Reader/English folder, and run ar500enu.exe. Follow the on-screen instructions. Macintosh: Run the CD-ROM, select the Reader/English folder, and run Reader Installer. Follow the on-screen instructions to install the software.

■ Viewing the manual

Run the CD-ROM and double-click on Start.pdf. Acrobat® Reader™ launches, and the menu screen of the Owner's manual appears. Click on your language. The Owner's Manual cover and list of bookmarks appear. Click on a bookmark title to view that section of the manual. Click on p. to view a reference page with related information. See the Help menu for more information about Acrobat® Reader™.

Names of each part on the main unit

Name : Function

(1) Lens : Projects expanded image.
(2) Infrared remote sensor : Senses commands from the remote control.
(3) Foot adjuster release button : Press to stow the foot adjuster. p.25
(4) Air exhaust : Expels air that has grown hot inside the projector.
(5) Control panel: Operates the projector
(6) Zooming lever : Adjusts screen size.
(7) Air intake : Draws in air from outside the projector.
(8) Rear panel: Connects external devices.
(9) Tilt adjuster: Adjusts the projector's horizontal tilt.
(10) Lamp cover : Remove to replace lamp. p.39
(11) Foot adjuster : Adjusts the vertical projection angle. p.25
(12) Focusing lever : Adjusts screen focus. p.25

Names of each part on the control panel and remote control

Name: Main Function

(1) ENTER button
(2) MENU button
(3) SET UP button
(4) ON/STANDBY button
(5) ON indicator
(6) INPUT button
(7) RETURN button
(8) Selection button
(9) LAMP indicator
(10) TEMP indicator
(11) FAN indicator
(12) FREEZE button
(13) MUTE button
: Accepts the selected mode.
: Displays menus. p.29
: Sets up image and mode. p.26
: Turns the power on/off (standby). p.22
: Displays whether power is on or off. p.22
: Selects input. p.24
: Goes back one screen.
: Menu selections and adjustments,etc. p.30
: Displays lamp mode. p.23
: Lights when internal temperature too high. p.41
: Displays cooling fan mode. p.41
: Pauses image. p.28
: Cuts off the picture and sound temporarily. p.28

Note

- For the remainder of this manual, buttons are referred to as follows:

Selection buttons → ▲ ▼ ◀ ▶; ENTER button → 📞

Parts on the rear panel

(1) Infrared remote sensor: Senses commands from the remote control.
(2) S-VIDEO terminal : Input S video signals from video equipment.
(3) AUDIO (L/R) terminal : Input audio signals from video equipment.
(4) CONTROL terminal: When operating the projector via a computer, connect
this to the controlling computer's RS-232C port. p.47

(5) AUDIO OUT terminal : Outputs audio signals.

(6) MONITOR terminal : Connect to a computer display, etc.

(7) AC IN socket : Connect the supplied power cord here.

(8) Main power switch : AC power line ON (standby)/OFF.

(9) Speaker : Outputs audio sound.

(10) Antitheft lock hole : Attach a safety cable or any other antitheft device.

(11) VIDEO terminal : Input video signals from video equipment.

(12) AUDIO (L/R) terminal : Input audio signals from video equipment.

(13) COMPUTER 1 terminal : Input RGB signal from a computer or other source, or a component video signal (Y/Pa/Pr) from video equipment.

(14) AUDIO IN terminal : Input audio signals from a computer or video equipment with a component video signal output terminal.

(15) COMPUTER 2 terminal : Input RGB signal from a computer or other source, or a component video signal (Y/PB/PR) from video equipment.

For TDP-S21, use exclusively for document camera connection.

Note

- Although this owner's manual abbreviates component video signals as Y/PB/PR, the product also supports signals from video equipment marked "Y/CB/CR."

Names of each part on the document camera (TDP-S21)

Name : Function

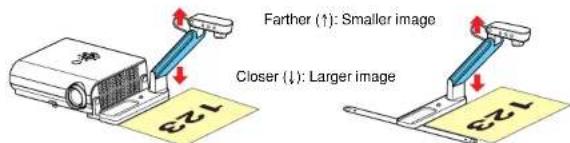

(1) Camera head : Document camera.
(2) Camera lens : Shooting lens for the document camera.
(3) Focusing lever : Adjusts the focus.
(4) Camera arm : Adjusts the shooting angle
(5) Lock lever: Used when the document camera is detached from the

(6) CAMERA button

tray.

(7) CAMERA GAIN buttons

: Toggles between the camera input and previous input.

(8) Tip resistant bar

: Adjusts the camera gain.

p.36

(9) Camera output terminal (CAMERA OUT)

: Pulled out when a camera is used separated from the

(10) Tray

projector.

(11) Lock lever: Locks the document camera onto the tray.

: Used when the document camera is attached/detached to/from the tray.

(12) Lock switch

Preparing and using the remote control

■ Loading dry-cell batteries into the remote control

① Remove the battery cover.

② Insert the dry-cell batteries.

Be sure to align the plus and minus ends of the batteries properly.

Two batteries (R6, SIZE AA) are used.

③ Replace the battery cover.

■ Operating the remote control

Point the remote control toward the projector's infrared remote sensor, and press a button on the remote control.

- Operating the projector from the front

- Operating the projector from the rear

Dry-cell batteries

• Before using the batteries, be sure to observe the Safety Precautions described in previous pages.
• Remove batteries from remote control when not using for extended periods.
• If the remote control stops working, or if its range decreases, replace all the batteries with new ones.

The remote control

• The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.
• Do not drop or bang.
• Do not leave in hot or humid locations.
• Do not get wet or place on top of wet objects.
• Do not take apart.
• In rare cases, ambient conditions could impede the operation of the remote control. If this happens, point the remote control at the main unit again, and repeat the operation.

Placement

Placement Styles

As shown in the figures below, this device can be placed in 4 different styles.

The factory setting is "floor-mounted front projection." Set the Projection mode in the default setting menu p.32, in accordance with your needs.

WARNING

• Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit. Attempting to clean/replace the lamp at a high site by yourself may cause you to drop down, thus resulting in injury.
- If you wish to mount the projector on the ceiling, be sure to ask your dealer to do so. Mounting the projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge. Improper mounting could cause the projector to fall, resulting in an accident.
- If the projector is ceiling-mounted, install the breaker for turning off the power in case of anomaly. Let everyone involved with the use of the projector know that fact.

Projection Distance and Size

Use the figures, tables, and formulas below to determine the projection size and projection distance. (Projection sizes are approximate values for full-size picture with no keystone adjustment.)

a is the distance (m) between the lens and the screen, and corresponds to a range of 1.15 m to 10.00 m. H is the height from the image bottom to the center of the lens.

a (min length) = projection size (inches) - 1.516/29.85

a (max length) = projection size (inches) - 1.264/24.88

projection size (inches)	projection distance a (m)		height (H) (cm)
	min length max length (zooming max)	zooming min)
30—	1.15 5.5
36	1.15	1.40 6.6
40	1.29	1.56 7.3
60	1.96	2.36	11.0
80	2.63	3.17	14.6
100	3.30	3.97	18.3
150	4.97	5.98	27.4
200	6.65	7.99	36.6
250	8.32 10.00	45.7
300	10.00	—	54.9

Connection

Before connection

• Read the owner's manual of the device you are connecting to the projector.
• Some types of computer cannot be used or connected to this projector.
  Check for an RGB output terminal, supported signal p.45, etc.
  • Turn off the power of both devices before connecting.
• The figure below is a sample connection. This does not mean that all of these devices can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)

Notes

• COMPUTER terminals 1 and 2 function identically.
- For TDP-S21, the document camera should be connected to COMPUTER terminal 2.
• The AUDIO IN terminal doubles for devices connected to COMPUTER terminals 1 and 2.

Turning the power on and off

■ Connecting the power cord

① Insert the power cord connector into the AC IN socket of the projector.

② Insert the power cord plug into a wall or other power outlet. (Sup

■ Removing the lens cover

Be sure to remove the lens cover when the power is turned on. If it is left on, it could become deformed due to heat.

■ Turning the power on

① Turn on the main power switch

The ON indicator will change to orange, indicating standby mode.

② Press the ON/STANDBY button.

The power turns on, and the following 3 green indicators light: ON, LAMP, and FAN. After a moment, the start-up screen appears.

CAUTION

• Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes or sight.
• Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating.
• Do not place your hands, face, or other objects near the air exhaust. Doing so could cause burns, deform/break the object.

Notes

• The start-up screen will disappear after a moment. You can dismiss the start-up screen before this by performing any operation. You can also configure the start-up screen not to appear via the Display setting menu p.31.
• The first time you use the projector after purchase, after the start-up screen disappears, the Language menu is displayed p.24.

■ Turning the power off

1 Press the ON/STANDBY button.

A message appears on the screen, confirming that you wish to shut off the power. This message will disappear after a moment. (This operation is no longer valid after the message disappears.)

② Press the ON/STANDBY button again.

The screen turns off, but the internal cooling fan continues to operate for a short while. Then, the projector goes into standby mode.

A During cooling, the LAMP indicator flashes. In this state, the power cannot be turned back on.
B After the LAMP indicator goes off, the cooling fan continues to operate for a short while, in order to expel excess internal heat. If you are in a hurry, there is no problem with unplugging the power cord or turning off the main power switch in this state.
C In standby mode

Note

- The projector consumes about 6W of power in standby. We recommend that you unplug the power cord or turn off the main power switch if you will not be using the projector for an extended period.

PRECAUTION

- If the power cord is unplugged before cooling is complete, give the lamp time (about 5 minutes) to cool before plugging it back in. If the lamp overheats, it may fail to light, and its lifetime will be shortened.

Basic operations

① Turn on the power.

Turn on the power by following the instructions in "Turning on the power" p.22.

② Select the language and the lamp power (When using the first time).

When the projector is used for the first time after purchase, menu for language and lamp power selection and configuration is displayed in English. (If the screen is out of focus, adjust it according to the step 6.)

① Use the 📊 button to select the desired language and press the 🔒 button. Message for setup confirmation is displayed in a selected language. Then, the menu for lamp power selection and configuration is displayed. It is automatically set as Standard. To change the setting, follow the step ②.

English	English
Français	French
Deutsch	German
Italiano	Italian
Español	Spanish
Português	Portuguese
Russian	Russian
Swedish	Swedish
Türkçe	Turkish
日本語	Japanese
中文(简体字)	Chinese (simplified)
中文(繁體字)	Chinese (traditional)
한국이	Korean

② Using the 📋 or button, select Standard or Low for the lamp power (menu item) and press the 🔒 button.

The lamp power, if selected, will be toggled without pressing the ⏻ button. The display automatically disappears in a few seconds.

Notes

• When the projector is turned on the next time, the Language and Lamp power menus do not appear upon startup. However, if "Reset all" is executed from the Default setting menu 9.32, the Language and Lamp power menus will be displayed the next time when the power is turned on.
• The language can also be set via the Display setting menu p.31 and Lamp power via the Default setting menu p.32.
  • This owner's manual assumes that English has been selected.

③ Activate the connected device.

Turn on and start the connected device such as a computer.

4 Press the INPUT button.

An image of the connected equipment is projected. Each time you press the INPUT button, it switches to the input of the connected equipment.

Notes

• When [Auto input search] is set to [On] in the default setting menu p.32, the image of the equipment which is connected and turned on is projected.
• Moving pictures generated with the DVD software for computers may appear unnatural if it is projected with this projector, but it is not a malfunction.

⑤ Projector placement angle adjustments

The placement angle and the height of the projected image can be adjusted by the foot adjuster.

① Lift up the front of the projector to the desired angle, then press the foot adjuster release button. The foot adjuster extends. Release the button to lock the position.
② Turn the foot adjuster to fine-tune the angle.
③ To adjust the horizontal angle, use the tilt adjuster.

Tostow the foot adjuster, hold up the projector while pressing the foot adjuster release button, then slowly lower the projector.

⑥ Adjusting the screen size and focus

① Use the zooming lever to adjust the screen size.
② Use the focusing lever to adjust the focus.

⑦ Adjusting the volume with the ● buttons

The speaker volume can be adjusted when an audio signal is being input.

Notes

• Note that a lamp characteristics may rarely cause the brightness to fluctuate slightly.
• A lamp is consumable item. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on conditions of use.)
• The DMD ^TM is made using extremely advanced technology, but there may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. Please note that these are not malfunctions.
• Although this projector supports a wide range of RGB signals p.45, any resolutions not supported by this projector (SVGA) will be expanded or shrunk, which will affect image quality slightly. To view high-quality images, it is recommended that the computer's external output should be set to SVGA (800 × 600) resolution.
• With some models of computer having LCD displays or the like, displaying images simultaneously on the projector and the monitor's display may prevent the images from displaying properly. If this happens, turn off the computer's LCD display. For information on how to turn off the LCD display, see the owner's manual of your computer.
• If a signal not supported by the projector is input, the "Unsupported signal" will appear.
• If no signal is being input from the connected device, the "No signal" will appear.
• If an unavailable operation button is pressed, the ✗ icon will appear.

Using handy features

■ Using auto setting

This function sets up the projector to the optimum state for each type of the input signal by using simple operations.

1 Press the SET UP button.

The Set up menu appears.

② Press the SET UP button again.

The menu item is automatically adjusted/set. For computer input, the 📄 icon will appear during processing.

For manual adjustment and setting, see the following table p.27.

Notes

• The image may not be projected or auto adjustment/setting may not be performed correctly for input signals other than those supported by the projector p.45, p.46.
• K e ystone adjustment cannot be corrected automatically.

● Correcting the keystone distortion

When the foot adjuster p.25 is used to change the projector placement angle while projecting the image, the picture will undergo keystone (trapezoidal) distortion. This projector is capable of correcting this keystone distortion.

● Manual adjustment

Press the SET UP button to display the Set up menu and select [Keystone]. Use the 🔊 buttons for keystone adjustment. When the adjustment is finished, press the RETURN button. The menu disappears.

Notes

• Depending on the amount of keystone adjustment and the content of images, some information may be lost, or the picture quality may suffer.
• Keystone adjustment is available for the keystone distortion in a slant angle of ± 15 degrees.
• Keystone adjustment will not change the shape of the menus, the start-up screen, and the background (with no signal input).

● Manual adjustments and settings

The menu items of the Set up menu vary depending on the input type, as shown in the table below. Use the 🔊 🔒 🔔 to adjust the items in the table below, then press the RETURN button when you are finished.

Select Item	Description	Computer	Y/Pu/Pn	Video S-video	Camera
	Correct the keystone (trapezoid) distortion of the screen.Screen shrinking ⚪️ ⚪️ Screen shrinking downward upward	Yes	Yes	Yes	Yes
Auto setting	Automatically adjusts items such as the sampling phase depending on the type of input signal.Press the SET UP button.	Yes	No	No	No
	Adjust with ⚪️ ⚪️ to eliminate flicker.	Yes	No	No	No
	Adjust with ⚪️ ⚪️ to eliminate periodic patterns and flickering when many vertical lines appear on the screen.	Yes	No	No	No
	Adjust the horizontal position of the image.Move left ⚪️ ⚪️ Move right	Yes	No	No	No
	Adjust the vertical position of the image.Move down ⚪️ ⚪️ Move up	Yes	No	No	No
	Adjusts the clamp pulse position.Lower ⚪️ ⚪️ Higher	Yes	No	No	No
	Adjusts the clamp pulse width.Narrower ⚪️ ⚪️ Wider	Yes	No	No	No

Using handy features (Continued)

■ Cutting off the picture and sound temporarily (Mute)

When you want to project the images of another projector, overhead projector, etc. temporarily, this projector's images and sound can be turned off.

- Press the remote control's MUTE button.

The picture and sound are cut off. (The Mute function is released when pressing the MUTE button again.)

Notes

• The □ on will appear while mute is in effect.
- Operating any other functions will also cancel the muting.

■ Freezing the image (Freeze)

The image being projected can be made to be frozen. This function is to be used to pause a video during a presentation, etc.

- Press the remote control's FREEZE button.

The picture pauses. (The Freeze function is released when pressing the FREEZE button again.)

Notes

• The icon will appear while freeze is in effect.
• Other operation will also release the freeze.

- E v en if an image is frozen on the projector, the pictures are running on the video or other equipment.

- If you use this function on video software sold on the market, broadcast or broadcast on cable except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

Remote Control

Remote Control

Using the menus

You can call up on-screen menus, and conduct a number of adjustments and settings using the operation buttons p.16 on the control panel (main unit side) and remote control.

■ How to use the menus

The menu shown below is for operation instructions purposes and might differ from the actual display.

1. Press the MENU button Display the Setting display menu

2. Select a Category

Select a category by using There are following four categories:

Image adjustment menu

Display setting menu

Default setting menu

Status display menu

Displays the current adjustments and settings of selected category. Item shown with gray cannot be adjusted with the current input source.

3. Adjustments & Settings ↓ Press 🔍 to open the menu.
    [Chinese]
    [Italian]
    [German]
    [Simplified]
    [Turkish]
    [Japanese]
    [Chinese (English)
    [Chinese (Italian)]
    [English (Japanese)]
    [English (Japanese)]
    [English (English)]
    [English (English)]
    [English (English)]
    [English (English)]
    [English (English)]
    [English (English)]
    C --> F["This mark signify that there are options. <br>Press it to display a list of options."]

The figure shows displays given for operation instructions purposes. As the display may differ depending on the item, use the following pages as a reference.

1. Back

Note

- Menu adjustments and settings are saved when the power is turned off via the ON/STANDBY button. If the power cable is disconnected before this, or the power goes out, then the data will not be saved.

Using the menu (Continued)

■ The image adjustment menu

Use this menu to adjust image-related items.

Items that can be adjusted are marked with "Yes", and those that cannot be marked with "No".

Item ▲Description		Computer	Y/Ps/Pr	Video S-video	Camera
Contrast Adjust	the image contrast. Yes Yes Yes Yes Lower ▶ Higher
Brightness	Adjust the brightness of the image. Yes Yes Darker ▶ Brighter	Yes Yes	Yes
Color Adjust	the color of the image. No Yes Yes No Lighter ▶ Deeper
Tint *1	Adjust the tint of the image color. No No Reddish ▶ Greenish	Yes No
Sharpness	Adjust the sharpness of the image. Softer ▶ Sharper	No	Yes	Yes	Yes
Noise reduction	Set the function to reduce screen noise. On (Enable) ▶ Off (Disable)	No	Yes	Yes	No
Picture mode	Press ▶ Toggle the picture mode with ▶ / ▶Bright/Standard/True color	Yes	Yes	Yes	No
R-level	Adjust red of the image color. Less red ▶ More red	Yes	Yes	Yes	Yes
G-level	Adjust green of the image color. Less green ▶ More green	Yes	Yes	Yes	Yes
B-level	Adjust blue of the image color. Less blue ▶ More blue	Yes	Yes	Yes	Yes
NTSC mode*1	Set the black level with ▶ button. No No US: NTSC (US) modeJapan: NTSC (JAPAN) mode	Yes No
Shutter(TDP-S21)	Set the shutter speed of the camera to the local power frequency. 50 Hz ▶ 60 Hz	No	No	No	Yes
White balance*2(TDP-S21)	Set the white balance of the document camera.Auto ▶ Lock	No	No	No	Yes

*1: [Tint] and [NTSC mode] can be displayed and adjusted only when the video signal is set to [NTSC] and [NTSC4.43]. (NTSC mode is set to JAPAN when the language is set to Japanese. It is set to US for other languages.)

*2: Even if the white balance is set to [Lock], turning the projector off disables this function and turning it on again the next time resets the menu to [Auto]. (TDP-S21)

■ The display setting menu

Use this menu to set screen display-related items.

Item	Description
	Select one of the languages below to use for displaying the menu and messages [●: Enter setting mode] → [▲▼:Selection] → [Apply:●] English/Français/Deutsch/Italiano/Espanol/Português/Russian/Swedish/Türkçe/日本語 / 中文(簡体字)/中文(繁体字) / 한국어

Note

- If "Thru" is selected for screen size, portions exceeding the native resolution (800 × 600 pixels) will not appear on the screen. Note that for RGB signals with clock frequency 110MHz or lower, all input pixel signals are sampled. However, if the clock speed is higher than this, the RGB pixel signal is thinned before sampling.

Using the menu (Continued)

■ The default setting menu

This menu shows placement status and other settings.

Item	Description
Projection mode	Sets projection mode in accordance with Placement Style. p.20(Standard)(Rear)(Mounted from ceiling)(Pcar mounted from ceiling)
No signal power off	Set the timer to wait for the power to be turned off after signal input stops.Press 🚫 . Switch with ▲ and √.Off (not turned off)/1 min./5 min./10 min./30 min./60 min.
Auto input search	Set whether the input with signals is only selected or not.On ⬇ Off
Power on	Sets whether to turn on the power when the ON/STANDBY button is pressed (Manual), or when the power cord is plugged in (Auto). Manual ⬇ Auto
Lamp power [Note 1]	Sets the lamp power.Low ⬇ Standard
Fan mode [Note 2]	Sets the cooling fan speed.Standard ⬇ High
Reset all	Press 🚫 .Resets all adjustments and settings to their factory settings. Yes ⬇ No

Notes

1: When Lamp power is set to Low, the screen becomes a little darker, but the cooling fan noise gets quieter. This setting will be cleared when you turn the power off.
2: Setting [Fan mode] to [High] increases the cooling fan speed. Set this option to use the projector, for example, at high altitude (over 1,500 meters above sea level).

Notes

• Note that in the event of a power outage but the power is restored afterwards, the projector power will come on if Power on is set to Auto, and the power cord is plugged in.
• When you turn off the projector even if Power on is set to Auto, you must press the ON/STANDBY button to turn the power off.

■ Displaying Information (Status display)

This displays information about the input signal, lamp use time, etc.

"Yes": displayed, "No": not displayed

Item Description		Computer	Y:Pa/Pr	Video S-video	Camera
Input Input source	name Yes Yes Yes Yes
Mode name RGB input mode [Note 1]		Yes No	No No
H-resolution Horizontal resolution (in dots) Yes No No
V-resolution	Vertical resolution (in dots)	Yes	No	No	No
H-frequency	Horizontal sync frequency	Yes	No	No	No
V-frequency Vertical sync frequency [Note 2]		Yes No	No No
Sync Sync signal polarity [Note 3]		Yes No	No No
Signal format	Y/Pa/Pr signal format	No	Yes	No	No
Video mode	Color method of video signal	No	No	Yes	No
Lamp time	Time of lamp use [Note 4]	Yes Yes	Yes	Yes
Lamp reset count	The count for lamp replacement	Yes	Yes	Yes	Yes
Total time	The total time that this projector is used	Yes	Yes	Yes	Yes
Version	Firmware version [Note 5]	Yes	Yes	Yes	Yes

Notes

1: The mode of supported RGB signals p.45 is shown.
2: Same as the refresh rate of the computer signal.
3: Sync signal polarity shown as P (positive) or N (negative) for [H/V].
4: Displays [Lamp time] as a measure of when the lamp should be replaced. (Cannot be used as a counter of guaranteed lamp time.) When the displayed time approaches 3,000 hours, consult with a store about getting a TLPLV4 replacement lamp (sold separately) prepared.
5: [Version] shows the version of the projector's internal control program. This version is referred to for customer service, etc.

Note

- The displayed information will not be refreshed if the status changes. To refresh the information, dismiss the display, then display it again.

Using the document camera

Please read this chapter if the model you purchased is TDP-S21 which includes a document camera.

■ How to use the document camera

● Using the camera attached on the projector

PRECAUTIONS

• For camera interconnection, be sure to use the supplied RGB cable (25 cm or 3 m). If you use the other cables, the normal operation may not be achieved and even the malfunction may result.
• When moving the projector with the camera attached, do not grab the camera arm and/or the camera head.
• When moving the projector with the camera attached, first ensure that the camera is securely locked in position on the tray.
• Insert the RGB cable straight and securely until it is fixed in place.
• Do not jolt or force the camera head or camera arm. Doing so could cause malfunction.
• Note that when extending or rotating the camera arm, the arm moves in an arc. Take care not to bump yourself or others with it.
• When placing the projector in the carrying bag, remove the connection cables. Otherwise, damage to the connectors and cables may result.

● Using the camera removed from the projector

Status before preparation(When stored)	1) Disconnect the RGB cable, then slide the lock switch to release lock.	2) While pushing the lock lever in the arrow direction, lift up the document camera.
3) Remove the document camera from the tray.Pull up toward direction1	4) Extend the tip resistant bars to set the document camera.	5) Connect the document camera and the projector using the supplied RGB cable.

PRECAUTIONS

• Installation of the document camera onto the tray should be performed in the reverse order shown above.
- When replacing the document camera on the tray, ensure that the lock lever is securely locked in position.
- When using the tip resistant bars, pull them fully until each forms the angle of 90 degree. If you don't use the bars, the camera may topple over.

Using the document camera (Continued)

■ Image projection with the document camera

① Place the document.

Set the document at the side of the projector.

Technical line drawings of two mechanical device components with yellow base plates (no text or symbols)

② Press the CAMERA button, and select camera input.

• The input returns to the previous input when the CAMERA button is pressed again.
• Camera input can also be selected by pressing either the remote control or projector's INPUT button.

Rotate the camera head to align the orientation of the document for shooting by checking the screen.

Two diagrams showing a projector with rotating arm and base, no text or symbols present

4 Move the camera arm up and down to adjust the image size.

- Closeup shot with the distance shorter than 100 mm cannot be performed.

⑤ Adjust the focus using the focusing lever on the camera head

Focusing lever Rotate the focusing lever to either NEAR or FAR, whichever is better in focusing. • Near : 100 mm to 300 mm Far : 300 mm to 5 m

6 If the screen is too dark or too bright, use the CAMERA GAIN (+/-) buttons to make it easier to see.

The Sharpness of the camera image can also be adjusted using the Image adjustment menu p.30.

⑦ After use, fold up the document camera.

Fold up the camera using the reverse order from unfolding the document camera p.34.

Notes

- There is no audio output when camera input is selected.

- If the room's fluorescent lighting causes the image to flicker, either turn off the fluorescent light, or set the Shutter from the Image adjustment menu p.30. Note that changing the Shutter setting may not eliminate the flicker, depending on the lighting, state of the document, or image adjustment.

■ Locking the white balance

Although the projector's camera is constantly adjusting the color balance of the images it photographs, the color balance may be disrupted, depending on the color layout of the document. If this happens, the white balance can be locked using the procedures below.

f Lay down a piece of white paper, and adjust so it fills the screen.

Adjust the camera head and arm so that the white paper fills the screen completely.

② Set the White balance to Lock in the Image adjustment menu. p.30

The white balance is locked. If you want to return to the auto adjustment, set the White balance to Auto in the Image adjustment menu.

Notes

- If the white balance is set to Lock, once power is turned off, the setting goes back to Auto.

- The color of the room lighting may prevent the white balance from being adjusted to the optimum level. In this situation, or if you want to use a certain tinting, adjust the R-level, G-level and B-level on the Image adjustment menu p.30.

About lamp

The product's light source is a mercury lamp that lights at increased internal pressure. Be sure to fully understand the following characteristics of the lamp and handle it with extreme care.

• The lamp may explode with a loud noise due to impact or deterioration, or fail to light at the expiration of its life.
• How long it takes before the lamp explodes or the life expires may vary greatly by lamp. Some may explode shortly after first use. (Free replacement is available if the lamp explodes within the warranty period. Contact the dealer from whom you purchased the product in such a case.)
• Explosion is likely to happen if the lamp is used after the replacement period has elapsed.
• When the lamp explodes, the broken pieces of glass may get inside the product or be released outside from the openings for ventilation.
• When the lamp explodes, a slight amount of mercury gas enclosed in the lamp along with glass dust may be released from the openings for ventilation.

- Immediately replace the lamp when a sign appears on the screen.

• When the replacement time approaches, a message will appear on the screen.
• The risk of explosion will increase if the lamp is continuously used without being replaced.
• Frequently check the used hours and prepare spares when the replacement time approaches. (Refer to "Status display". p.33)

■ When the lamp is broken

• If glass components, including a lamp and a lens, should break, handle the broken pieces with care to avoid injury and contact your dealer for repair service.
• In the event of lamp explosion, unplug the product from the wall outlet, leave and completely ventilate the room. Then, thoroughly clean the area around the projector and discard any edible items placed in that area.
• When the lamp explodes, consult a doctor if glass dust or mercury gas gets into your eyes or you breathe it.

Lamp replacement

A lamp is consumable supplies. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on condition of use.) If this happens, replace it with a new one.

WARNING

• If the projector is mounted on a ceiling, request a lamp replacement from your projector dealership.
• When replacing, always use lamp "TLPLV4" (sold separately).

CAUTION

• If you have been using the projector, the lamp will be very hot, and may cause burn injuries. Wait for the lamp to cool (for longer than 1 hour) before replacing it.
• If the lamp should break, please handle with care to avoid injury due to broken pieces and contact your dealer for repair service.

① Unplug power cord.

② Wait until lamp is sufficiently cooled.

Wait for at least 1 hour.

③ Remove the lamp cover.

Loosen the 2 screws, then pull up to the direction of the arrow with your fingers as shown to remove the lamp cover. Use care to avoid any damage to nails and/or tip of your finger(s). If you have any difficulty in removal, you can use a screwdriver or any other smaller tool for your convenience.

④ Pull out the lamp.

Loosen the 2 screws holding the lamp in place, and pull up the handle to remove the lamp.

⑤ Mount the new lamp.

Align the orientation, press down until the bottom is reached, and lock in place using the two lamp locking screws.

⑥ Replace the lamp cover.

Align the cover, and press it in, then tighten the screws loosened in step ③ until the lamp cover is no longer loose.

7 Reset the lamp timer.

See the lamp's manual for instructions on resetting the lamp timer.

Notes and Precautions

• Press the 📋 button twice to display (a rough guide) the time of lamp use, the Lamp time item, in the Status display menu. p.33
• It is recommended that the lamp be replaced after 3,000 hours of use. When Lamp time reaches 3,000 hours, the 📋 icon and a message will appear. This display disappears when you press 🔒 button.
• Attach the lamp cover correctly so that it is not loose. If it is not attached correctly, the lamp may fail to come on p.41, and the lamp's lifetime may be shortened.
  • Always replace the lamp with a new one.
• The lamp is made out of glass. Do not touch the glass surface with your bare hands, bang it, or scratch it. (Dirt, jolts, scratches and the like could break the lamp.)

Lamp replacement (Continued)

Used Lamps

This projector's lamps contain trace amounts of environmentally harmful inorganic mercury. Be careful not to break used lamps, and dispose of them in accordance with local regulations.

Lens and main unit cleaning

WARNING

- Request cleaning and maintenance of a ceiling-mounted unit from your projector dealership. Attempting to clean/replace the lamp at a high site by yourself may cause you to drop down, thus resulting in injury.

Lens cleaning

- Clean the lens with a commercially available blower and/or lens cleaner. - The lens is easily scratched, so do not rub it with hard objects, or strike it.

Main unit cleaning

- Clean the main unit after unplugging the power cord. - Wipe dirt off the main unit gently with a soft cloth. - If the soiling is severe, dip the cloth in a neutral detergent diluted in water, wring well, and gently wipe off the dirt, then finish up by wiping with a dry cloth.

Replacing cooling fans

To maintain the performance, it is recommended that cooling fans should be replaced about every 2 to 3 years. Consult with your dealer for details.

Trouble indications

The indicator lights inform you of internal abnormalities.

	No power⇒ Problem with projector• Unplug the power cord, and contact your dealer.
LAMPTEMPFANON(CI)	Lamp went out during use, or won't come on→ Lamp temperature is high so that it is difficult to turn on, the lifetime of the lamp has ended or the projector is malfunctioning.• Unplug the power cord and wait for a short while, then turn the power back on.• If a lamp burns out, replace it with a new one.* After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.
LAMPTEMPFAN(Red it)ON(Red it)
LAMPTEMPFAN(Red it or flashing)(Green it)ON(Red it)ON(Red it)	Power went out during use⇒ Internal overheating, or the outside temperature is too high.• Place the projector so that the air intake and exhaust are not blocked.• Unplug the power cord and wait for a short while, then turn the power back on.* Theicon will appear before the power goes out.* After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.
LAMPTEMPFAN(Red it or flashing)ON(Red it)ON(Red it)
LAMPTEMPFAN(Red it or flashing)ON(Red it)ON(Red it)	Power went out during use⇒ Problem with Internal cooling fan.• Unplug the power cord, and contact your dealer.* Theicon will appear before the power goes out.* After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.
LAMPTEMPFAN(Red it)ON(Red it)
LAMPTEMPFAN(Red it or charging)ON(Red it)
TDP-S21TEMPFAN(Red it)ON(Red it)	Power went out during use, or power won't come on⇒ The lamp cover is not properly attached.• Unplug the power cord, and reattach the lamp cover.p39* After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.

PRECAUTION

- Make sure to unplug the power cord if something goes wrong.

Before calling service personnel

If you think something is wrong, check the followings before contacting customer service. Please see "Trouble indications" p.41 as well.

If This Happens	Check
No power	• Is the power cord plugged in? Is it connected to the projector?• Is the lamp cover loose? p.39
Power goes out during use	• Is the ambient temperature high? p.41• Is the air intake or air exhaust blocked? p.41
No picture	• Is the projector turned on? p.24• Is the mute function on? p.26• Is the brightness setting minimized? p.30• Are the connections set up correctly? p.21• Are all the connected devices functioning properly?
No audio	• Is the projector turned on? p.24• Is the mute function on? p.26• Is the volume setting minimized? p.25• Are the connections set up correctly? p.21• Are all the connected devices functioning properly?
Picture not displayed correctly	• Is the input signal supported by the projector? p.45 , p.46• Is there something generating an abnormal video signal, for instance the video tape?
Picture blurred Part of picture out of focus	• Is the lens dirty? p.40• Is the lens focus adjusted optimally? p.25• Is the projection distance within the projector's supported range? p.20• Is the projector's screen placement angle tilted too far? p.20• Are the sharpness or sampling phase adjustments off? p.27 p.30
Image is dark	• Are the brightness or contrast adjustments off? p.30• Is the lamp nearing the end of its service life? p.33
Colors too light Bad shading	• Are the color, tint, R-level, G-level, or B-level adjustments off? p.30• Is the screen dirty?• Is the lamp nearing the end of its service life? p.33
Remote control doesn't work	• Are the remote control's batteries drained?• Are the batteries inserted into the remote control correctly? p.19• Is the remote control being used within the effective range? p.19• Are there any obstructions between the remote control and projector?• Are there any fluorescent or other bright lights shining at the projector's infrared remote sensor?

If This Happens	Check
TDP-S21The images from the document camera are blurry	• Is the document imaging camera's lens dirty?• Is the document imaging camera out of focus? p.36• Is the location of the object being focused too dark?
TDP-S21The images from the document camera are flickering	• Is there impact from the room's fluorescent lighting?Turn off the fluorescent lights, or change the shutter speed settings. p.30

Specifications

■ List of general specifications

Item Specification
Consumption Power 230 W
Weight		TDP-S20: 3.0 kgTDP-S21: 3.9 kg
External Dimensions(including protruding parts)		TDP-S20: 285 × 98 × 254 mm ( W × H × D )TDP-S21: 369 × 98 × 259 mm ( W × H × D )
Cabinet material* PC+ABS		resin and ABS resin
Conditions for usage environment		Temp: 5°C to 35°C; relative humidity: 30% to 70%
Display pixels		1 chip DMD ^TM
Picture elements		480,000 pixels (800H × 600V)
Lens Zoom lens F=2.0-2.2 f=18.20-21.84 mm
Lamp High-pressure mercury lamp
Projection screen size 30-300 inches
Projection distance 1.15-100m
Speaker 1 W (Monaural)
Connection terminal	COMPUTER-1 terminal	Mini D sub 15 pin RGB / Y/PB/PR (dual use)
	COMPUTER-2 terminal	Mini D sub 15 pin RGB / Y/PB/PR (dual use) / CAMERA (TDP-S21)
	MONITOR terminal	Mini D sub 15 pin RGB / Y/PB/PR (dual use)
	S-VIDEO terminal Mini D	IN 4 pin
	AUDIO (L/R) terminal	RCA Pin Jack × 2, 1.5 V (rms), 22 kΩ or more
	VIDEO terminal	RCA Pin Jack, 1 V (p-p), 75 Ω
	AUDIO IN terminal	ø3.5mm dia. stereo mini-jack, 1.5V (rms); 22 kΩ or more
	AUDIO OUT terminal	ø3.5mm dia. stereo mini-jack
	CONTROL terminal	Mini DIN 8 pin (RS-232C)

■ Document camera specifications (TDP-S21)

Item Specification
Lens F=2.8, f=2.8mm
Focusing	Switching in two steps
Zooming	None (adjusted through distance from subject)
Image element	1/4.2 inches honeycomb CCD
Effective pixels for pickup section	629,856 pixels (648H × 486V × 2)

* Each plastic part displays the materials it is made from, in order to facilitate recycling after this product becomes no longer usable.

Note

- Design, specifications, etc. subject to change without notice for improvements, etc.

■ List of supported signals (RGB signals)

This projector supports the following RGB signals. Note, however, that depending on the computer model, the screen may show flicker or streaking. Please adjust the projector if this happens.

(Press the SET UP button, and adjust automatically or manually. p.26 , p.27 )

Resolution	Mode	Refresh rate (Hz)	H-frequency (kHz)	Clock (MHz)
720 x 400	720x400_85	85.039	37.927	35.500
640 x 480	VGA_60	59.940	31.469	25.175
	VGA_72	72.809	37.861	31.500
	VGA_75	75.000	37.500	31.500
	VGA_85	85.008	43.269	36.000
800 x 600	SVGA_56	56.250	35.156	36.000
	SVGA_60	60.317	37.879	40.000
	SVGA_72	72.188	48.077	50.000
	SVGA_75	75.000	46.875	49.500
	SVGA_85	85.061	53.674	56.250
832 x 624	MAC16"	74.550	49.725	57.283
1024 x 768	XGA_60	60.004	48.363	65.000
	XGA_70	70.069	56.476	75.000
	XGA_75	75.029	60.023	78.750
	XGA_85	84.997	68.667	94.500
	MAC19"	74.700	60.134	79.857
1152 x 864	SXGA1_75	75.000	67.500	108.000
1280 x 960	QuadVGA_60	60.000	60.000	108.000
	QuadVGA_85	85.002	85.938	148.500
1280 x 1024	SXGA3_60	60.020	63.981	108.000
	SXGA3_75	75.025	79.976	135.000
	SXGA3_85	85.024	91.146	157.500
1400 x 1050	SXGA+	60.012	63.973	118.094
1600 x 1200	UXGA_60	60.000	75.000	162.000
	UXGA_65	65.000	81.250	175.500
	UXGA_70	70.000	87.500	189.000
	UXGA_75	75.000	93.750	202.500
	UXGA_85	85.000	106.250	229.500

Note

- Signals which resolution exceeds the native resolution (800 × 600 pixels) will be compressed. For this reason, some information may be lost, or image quality may be affected.

Specifications (Continued)

■ List of supported signals (Y/P B /P R signals)

Signal format fh(kHz) fv(Hz)
480i(525i)@60Hz 15.73 59.94
480p(525p)@60Hz 31.47 59.94
576i(625i)@50Hz 15.63 50.00
576p(625p)@50Hz 31.25 50.00
720p(750p)@60Hz 45.00 60.00
720p(750p)@50Hz 37.50 50.00
1080i(1125i)@60Hz 33.75 60.00
1080i(1125i)@50Hz 28.13 50.00
1035i(1125i)@60Hz 33.75 60.00
1152i(1250i)@50Hz 31.25 50.00

■ List of supported signals (Video, S-Video signals)

Video mode fh(kHz)	fv(Hz) fsc(MHz)
NTSC 15.73 60	9.58
PAL15.63 50	4.43
SECAM 15.63 50	4.25 or 4.41
PAL-M 15.73 60	3.58
PAL-N 15.63 50	3.58
PAL-60	15.73 60	4.43
NTSC4.43	15.73 60	4.43

■ Pin assignment of COMPUTER-1/2 & MONITOR terminals

Mini D sub 15 Pin connector

Input Signal

- RGB input

RGB signals: 0.7V (p-p) 75 Ω

Horizontal sync signal: TTL level (Pos/neg polarity)

Vertical sync signal: TTL level (Pos/neg polarity)

- Y/P B /P R input

Y signal: 1.0V (p-p) 75 Ω

P_B/P_R signals: 0.7V (p-p) 75 Ω

Pin No.	Pin description
	During RGB input	During YFPB/PR input
1	Video signal (R)	Color difference signal (PR)
2	Video signal (G)	Luminance signal (Y)
3	Video signal (B)	Color difference signal (PS)
4	GND
5	GND
6	GND (R) GND (P)	n)
7	GND (G)	GND (Y)
8	GND (B)	GND (P0)
9	N.C
10	GND
11	GND
12	N.C
13	Horizontal sync signal
14	Vertical sync signal
15	N.C

* Do not connect anything.

■ CONTROL terminal

● Pin assignment

Mini DIN 8 pin connector

Pin No.	Signal Name	Description
1	RXD	Receiving data
2	CTS	Consent to send
3	DSR	Data set ready
4	GND	Signal ground
5	RTS	Request to send
6	N.C	No connection
7	TXD	Sending data
8	GND	Signal ground

- Interface format

1 Communication method RS-232C, 9600bps, No Parity, Data Length: 8 bits; Stop Bit Length: 1 bit
2 Communication format STX (02h) Command (3Byte) ETX (03h)
Only 1 command valid per communication.
3 Data format For input commands, only ASCII-compliant all-uppercase alphanumeric characters supported.

4 Replies Acknowledge ACK (06h) CR (0Dh) Data ... Normally ended ACK (06h) ESC (1Bh) ... Aborted No acknowledge NAK (15h)

If commands are to be sent consecutively, wait for the response from the projector before sending the next command.

● Main Commands

Item	Command
Power on	PON
Power off	POF
Icon display on	MO0
Icon display off	MO1
Auto setting (RGB input)	PAT
Status display on	DON
Status display off	DOF

Item	Command
Computer (1) input select	IN1
Computer (2) input select	IN2
Video input select	IN3
S-video input select	IN4
Camera input select (TDP-S21)	IN5

Note

- Contact your dealer for control cable and other commands.

■ Separately Sold Product

Replacement Lamp Model TLPLV4

TOSHIBA CORPORATION
