Product Type	Portable Air Conditioner
Model	FWAD10M16
Cooling Capacity	10,000 BTU
Coverage Area	Up to 450 sq. ft.
Dimensions (W x D x H)	18.5 x 13.5 x 30.5 inches
Weight	65 lbs
Power Supply	115V / 60Hz
Power Consumption	900 W (cooling)
Modes	Cool, Fan, Dehumidify
Fan Speeds	3 (Low, Medium, High)
Remote Control	Included
Timer	24-hour programmable
Air Filter	Washable mesh filter
Filter Cleaning	Every 2 weeks
Noise Level	52 dB (approx.)
Exhaust Hose	5 ft. (included)
Window Kit	Adjustable (included)
Safety Features	Auto shut-off, overload protection
Energy Star Certified	Yes
Refrigerant	R-32

Frequently Asked Questions - FWAD10M16 Fortress

How do I install the FWAD10M16 portable air conditioner?

Installation requires attaching the exhaust hose and window kit. Ensure the unit is level and the exhaust is vented outside. Refer to the user manual for detailed step-by-step instructions.

What does the 'F0' error code mean?

Error code F0 typically indicates a communication error between the main board and display board. Try unplugging the unit for 5 minutes and restarting. If it persists, contact customer support.

How often should I clean the air filter?

Clean the washable mesh filter every 2 weeks for optimal performance. A dirty filter reduces airflow and efficiency. Use warm water and mild detergent, then dry completely before reinserting.

Can I use the unit without the exhaust hose?

No, the exhaust hose must always be vented outside to expel hot air. Without it, the unit will not cool properly and may overheat.

What is the recommended room size for this air conditioner?

The FWAD10M16 is suitable for rooms up to 450 square feet. For larger spaces, cooling performance may be reduced.

Does the unit have a self-evaporation system?

Yes, it features self-evaporation that recycles condensate for better cooling efficiency. However, in very humid conditions, you may need to drain the tank manually.

How do I reset the Wi-Fi connection?

This model does not have Wi-Fi capability. It is controlled via remote or front panel.

What should I do if the unit is not cooling?

Check that the exhaust hose is not kinked, the air filter is clean, and the room size is appropriate. Also ensure the set temperature is lower than room temperature.

Is the remote control included?

Yes, a remote control is included for convenient operation. Batteries may or may not be included depending on the region.

How do I access the warranty information?

The warranty period is 1 year from date of purchase. Register your product online or retain the receipt. Contact Fortress support for claims.

USER MANUAL FWAD10M16 Fortress

SAFETY INSTRUCTION....2

PARTS DESCRIPTION....5

TROUBLESHOOTING ....16

SPECIFICATIONS....17

WARRANTY 18

Read This User Manual

You can find many helpful information on how to use and maintain the air conditioner properly. Just a little preventive care on the parts can extend the life of the air conditioner. Read the troubleshooting tips before call the service centre. Many common problems can be solved by the chart of troubleshooting tips.

CAUTION

• Contact the authorised service technician for repair or maintenance of this unit.
• Contact the authorised service technician for installation of this unit.
• The air conditioner is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the air conditioner.
• If the power cord is damaged, it must be replaced by the manufacturer, the authorised service technician or qualified person in order to avoid a hazard.
• Make sure the unit power and the circuit breaker are turned off before cleaning and maintenance.

SAFETY INSTRUCTION

Please follow below instructions to prevent injury and property damage.

■ Meanings of symbols in this user manual.

	Never do this.
	Always do this.

WARNING

It may cause death or serious injury

Do not put the power cord near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.

- It may cause an explosion or fire.

Close the door while the air conditioner is running.

- It may affect the cooling effectiveness.

Do not damage or use an unspecified power cord.

• It may cause electric shock or fire.
• If the power cord is damaged, it must be replaced by the manufacturer or an authorised service centre or a qualified person in order to avoid a hazard.

Do not change the power cord length or share the outlet with other appliances.

- It may cause electric shock or fire due to heat generation.

Do not operate with wet hands.

- It may cause electric shock.

Do not direct airflow at room occupants.

• This could damage your health.

Ensure earthed effectively.

- Incorrect earthing may cause electric shock.

Do not allow water to run into electric parts.

- It may cause failure of machine or electric shock.

Always install circuit breaker and a dedicated power circuit.

- Incorrect installation may cause fire and electric shock.

○ Disconnect the main power if strange sounds, smell or smoke comes from the unit.

- It may cause fire and electric shock.

Do not put the power cord close to any heating sources.

- It may cause fire and electric shock.

Do not open the unit during operation.

- It may cause electric shock.

©Ventilate room before operating air conditioner if there is a gas leakage from another appliance.

- It may cause explosion, fire and burns.

Do not disassemble or modify the unit.

- It may cause failure and electric shock.

CAUTION

It may cause injury or damage to property

When remove the air filter, do not touch the metal parts of the unit.

- It may cause an injury.

Do not clean the air conditioner inner with water.

- The insulation will be degraded if water enter the unit. It may cause an electric shock.

① Ventilate the room well when used together with a stove, etc.

• An oxygen shortage may occur.

Switch off the main power and the circuit breaker before cleaning and maintenance.

- Do not clean the unit when power on as it may cause fire, electric shock or injury.

Do not put a pet or plant to direct air flow.

- This could injure the pet or plant.

Do not use this air conditioner to preserve precision devices, food, pets, plants, and art objects.

- It may cause deterioration of quality.

Stop operation and close the window in storm or hurricane.

- Windows opened may cause wetting of indoor and soaking of household furniture.

Do not drink water drained from air conditioner.

- It contains contaminants and could make you sick.

Turn off the main power when not using the unit for a prolonged period.

- It may cause failure of product or fire.

Do not put anything around air-inlets or inside the air-outlet.

- It may cause failure of appliance or accident.

① Ensure the installation bracket of the outdoor appliance is not damaged due to prolonged exposure.

- If bracket is damaged, it may cause damage due to falling of unit.

- Ensure the filter is inserted securely. Clean the filter once every two weeks.

- Operation without filter may cause failure.

Do not use strong detergent such as thinner but use a soft cloth.

- Appearance may be deteriorated due to change of product color or scratching of its surface.

Do not put anything on the power cord and ensure that the cord is not compressed.

- There is danger of fire or electric shock.

① Be careful when unpacking and installing. Sharp edges could cause injury.

If water enters the unit, turn the unit off and switch off the circuit breaker. Isolate supply by taking the power-plug out and contact a qualified service technician.

SAFETY INSTRUCTION

Before operation

1. Contact an installation specialist for installation.
2. Do not use a damaged or non-standard power cord.
3. Do not share the same outlet with other appliances.

Usage

1. Exposure to direct airflow for a long period of time could be hazardous to the health. Do not expose occupants, pets, or plants to direct airflow for a long period of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when use together with stoves or other heating devices.
3. Do not use the air conditioner for non-specified purposes (e.g. preserving precision devices, food, pets, plants, and art objects), otherwise it could harm the property.

Cleaning and maintenance

1. Do not touch the metal parts of the unit when removing the filter. Injuries may occur when handling sharp metal edges.
2. Do not use water to clean the air conditioner inner. Water enter the unit can degrade the insulation and may lead to electric shock.
3. Make sure the unit power and the circuit breaker are turned off before cleaning and maintenance.

Operating Temperature

Cooling operation	Outdoor temp:	18-43°C
	Indoor temp:	17-32°C
Notes: The indoor relative humidity should be less than 80%. If the unit is used in a condition with a relative humidity over 80%, there will be condensed water on the appearance of the unit.

If the unit is operated beyond the conditions specified above, it may cause a failure of the unit.

PARTS DESCRIPTION

NOTE: The front panel and cabinet may be slightly different according to the models but the functions are the same. The following illustration is for explanation purpose only, the actual shape of the machine may be slightly different.

1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Control panel
8. Power cord
9. Control panel cover
10. Remote control

Accessories

Seal

(Used on drain joint)

1

Drain Joint

1

Drain Tray

1

Screw

2 ( ≤ 12000Btu ) 4 ( ≥ 18000Btu )

Note:

1. Power cord conductors are distinguished according to color as follows (see Fig.1)
2. Please contact the manufacturer, its service agent or a qualified person when replace the power cord.
3. Be sure that the unit being correctly grounded. The wall outlet (switch) should be provided with reliable earth wire for the safety and protection, the unit is earthed through the power cord (see Fig.2).
4. The unit should be provided with an individual circuit and the circuit breaker/fuse rating should be same as that of the power cord and wall outlet.

E-Earth wire, yellow/green
N-Neutral wire, blue
A-Active wire, brown
Fig. 1

The control panel will look like the following:

NOTE: The outline of the operation panel is based on typical model, the function is same with the actual machine even some differences may exist in appearance.

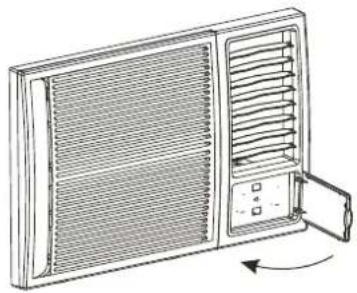

Vent Control

The vent control is located above the control panel. The operation method is different on different models (see the following figures).

For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.

OPEN the vent to discharge stale air.

CLOSE VENT OPEN

To open the vent, pull the lever toward To close it, push it in.

CLOSE OPEN

To open the vent, set the lever to the right position To close it, set the lever in the left position.

Press the POWER button to turn the unit on/off.

(The TIMER button controls the auto stop feature of the unit.)

MODE:

Press the “MODE” button to select the appropriate operating mode. The mode selection including AUTO, COOL, FAN and DRY. The green indicator light beside the "MODE" button will illuminate to identify the mode selected.

When the unit is under the DRY and AUTO mode, the fan speed cannot be adjusted. The fan speed is LOW in DRY mode and MED in AUTO mode. (Some models without MED speed, the fan speed will be HIGH in AUTO mode.)

▲ TEMPERATURE SETTING UP:

Press the ▲ button to increase the set (operating) temperature of the unit.

Each time the button is pressed the temperature increases 1^irc C (Celsius scale).

Maximum setting is 30^irc C.

▼ TEMPERATURE SETTING DOWN:

Press the ▼ button to decrease the set (operating) temperature of the unit.

Each time the button is pressed the temperature decreases 1^irc C (Celsius Scale).

Minimum setting is 17^irc C.

FAN:

Press the "FAN" button to activate the fan speed setting. Each press of the button will alternate through HIGH, MED, LOW fan speed options.

The green indicator light beside the FAN speed option will illuminate to identify the fan speed selected.

SWING:

Press the "SWING" button to activate the automatic oscillation feature. The green indicator light adjacent to the "SWING" button will illuminate. The vertical louvers will oscillate back and forth (side to side) automatically sweeping air alternately for comfortable cooling. To stop the oscillation feature, press the "SWING" button again, the green indicator light adjacent to the button will turn off.

Press the "SWING" button for 2 seconds will activate the SLEEP mode which can reduce noise and create a comfortable sleeping environment.

TIMER:

First press the Timer button, the indicator light besides word on illuminates. It indicates the Auto Start program is initiated.

Press or hold the Up(▲) or Down(▼) to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.

In the DRY mode, the air conditioner will generally operate in the form of a dehumidifier.

COOL:

The temperature setting are adjustable between 17^irc C to 30^irc C. Cooling begins automatically when the room temperature is 1^irc C above the set point, and stops when the room temperature is 1^irc C below the set point. The fan will remain running.

AUTO:

The fan speed is MED in AUTO mode. (Some models without MED speed, the fan speed is HIGH in AUTO mode.) The unit will be operated in the appropriate mode FAN or COOL based on the temperature difference between the actual and desired room temperature. If the actual room temperature is 2^irc C above the set point, the unit be operated in COOL mode. When the actual room temperature is not 2^irc C or higher above the set point and not 1^irc C or lower below the set point, the unit will be operated in FAN mode.

Note: If activating the SLEEP mode when the unit is operated in AUTO mode, the fan speed will be changed into LOW immediately.

SLEEP:

Press the "SWING" button for 2 seconds to activate/deactivate the "SLEEP" feature. In the COOL mode, the cooling temperature set point will increase 1^ircC per hour after the "SLEEP" mode is activated. Two hours later, the set point will not be changed and the fan speed will be kept on LOW.

Note: When activating the SLEEP mode in AUTO mode, the set temperature will not be changed over time.

Failure Indicator Display:

Er Indicates a malfunction of the indoor room temperature sensor
En Indicates a malfunction of the evaporator temperature sensor
Eo Indicates a malfunction of the outdoor condenser temperature sensor
Ed Indicates frosting protection (Turn off the unit and restart it to return to normal operation).

Note: When one of the above malfunctions occurs, turn off the unit, and check for any obstructions.

Restart the unit, if the malfunction is still present, turn off the unit and unplug the power cord.

Contact the manufacturer or its service agents or a similar qualified person for service.

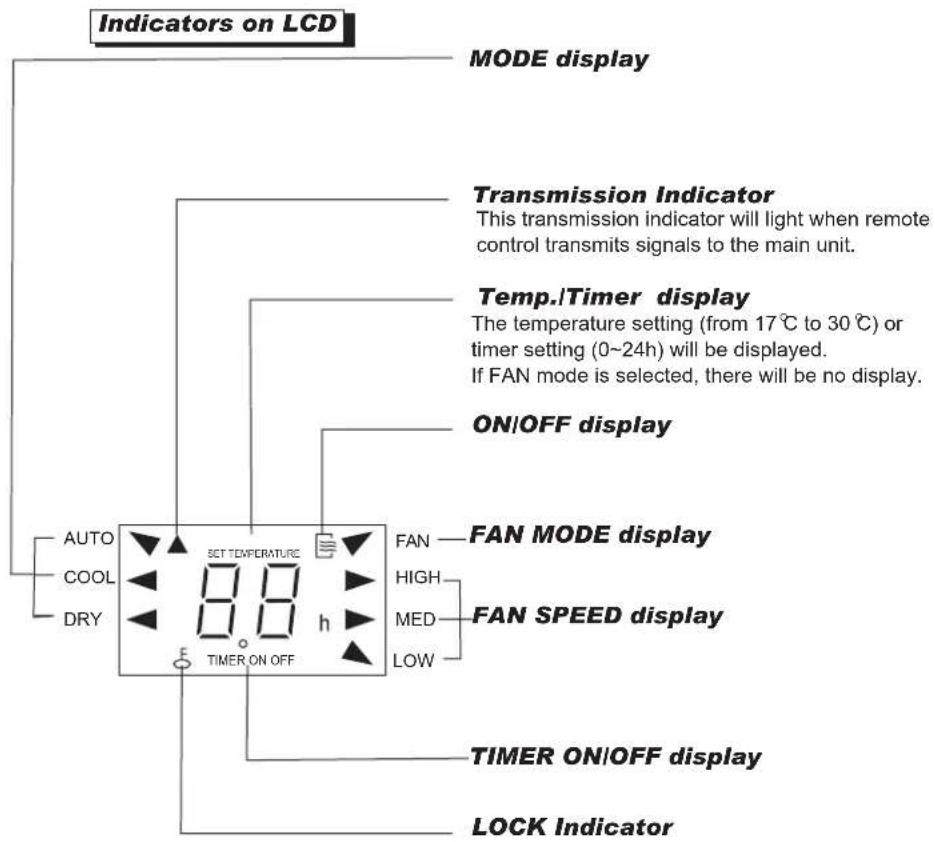

• Use the remote control within a distance of 5 meters from the air conditioner. A sound of beep will be generated by the air conditioner when signals received.
• Never immerse the remote control in water or other liquids. Do not put it under direct sunshine.
• If the signal receiver on the air conditioner is exposed to direct sunshine, the air conditioner may be not function properly.
• Remove the batteries in the remote control if it is not in use for prolonged period.

① TEMP DOWN Button

Press the button to decrease the set (operating) temperature of the unit. Each time the button is pressed the temperature decreases 1°C (Celsius Scale). Minimum setting is 17°C.

② TEMP UP Button

Press the button to increase the set (operating) temperature of the unit. Each time the button is pressed the temperature increases 1°C (Celsius scale). Maximum setting is 30°C.

③ MODE Button

Press the MODE button to select the appropriate operating mode. The mode selection including AUTO, COOL, FAN and DRY. When the unit is under the DRY and AUTO mode, the fan speed cannot be adjusted. The fan speed is LOW in DRY mode and MED in AUTO mode. (Some models without MED speed, the fan speed will be HIGH in AUTO mode.)

4 SWING Button

Press the "SWING" button to activate the automatic oscillation feature. The green indicator light adjacent to the "SWING" button will illuminate. The vertical louvers will oscillate back and forth (side to side) automatically sweeping air alternately for comfortable cooling. To stop the oscillation feature, press the "SWING" button again, the green indicator light adjacent to the button will turn off.

⑤ RESET Button

Press the "RESET" button to cancel all of the current settings.

⑥ ON/OFF Button

Press the "ON/OFF" button to turn the appliance ON/OFF.

7 FAN SPEED Button

Press the "FAN" button to activate the fan speed setting. Each press of the button will alternate through LOW, MED, HIGH fan speed options.

8 TIMER ON :

Press the "TIMER ON" button to activate the auto on time setting. Each press will increase the time setting in 30 minutes increments, up to 10 hours, then at 1 hour increments up to 24 hours. To cancel the auto on time setting, press the button until the time setting is 0.

9 SLEEP Button

Press the "SLEEP" button to activate/deactivate the "SLEEP" feature. In the COOL mode, the cooling temperature set point will increase 1°C per hour after the "SLEEP" mode is activated. Two hours later, the set point will not be changed and the fan speed will be kept on LOW.

Note: When activating the SLEEP mode in AUTO mode, the set temperature will not be changed over time.

10 TIMER OFF :

Press the "TIMER OFF" button to activate the auto off time setting. Each press will increase the time setting in 30 minutes increments, up to 10 hours, then at 1 hour increments up to 24 hours. To cancel the auto off time setting, press the button until the time setting is 0.

⑪ LOCK :

Press the "LOCK" button to lock all current settings and the remote control will not accept any operation. Press the "LOCK" button again to cancel the LOCK function.

REMOTE CONTROL DISPLAY

NEVER operate the air conditioner without the air filter, as dust/dirt particles can cause equipment failure.

CONTROL PANEL COVER

Line drawing of a front panel with ventilation grilles and a door open, showing airflow direction (no text or symbols)

Grasp the right of the control panel cover and pull it upwards to open it.

Line drawing of a front panel with ventilation grilles and a door open, showing internal structure and airflow direction (no text or symbols)

Close the control panel cover and press the right of the cover again until it snaps into the locked position.

Manual vertical air flow adjustment

Diagram of a ventilation system with horizontal slats and a side panel showing two hanging wires (no text or labels)

To adjust vertical air flow direction of the up or low horizontal louvers, adjust any one of the up or low horizontal louver blades.

Always keep the top or bottom blades in horizontality. This can prevent water drops condensed on the front panel of the unit.

Air Filter

The air filter behind the inlet grille should be checked and cleaned at least once every 2 weeks (or as necessary) to maintain optimal performance of the air conditioner.

How to remove the air filter

1. Hold the tabs under the front panel, then uplift it outwards, and remove the front panel.
2. Pinch the handle under the air filter and make the air filter arched, remove it from the slot from underside to upside.
3. Clean the filter with warm water. The water should be below 40^irc C to prevent distortion of the filter.
4. Rinse off and gently shake off excess water from the filter. Allow the filter to dry before re-install it. To prevent distortion of the filter, do not dry it in direct sunlight.

Illustration of a portable air conditioner unit with ventilation grilles and ventilation ducts (no text or symbols)

Line drawing of a modular air conditioner unit with internal grid structure (no text or symbols)

Illustration of a hand washing a water tank with a faucet (no text or symbols)

Drainage

Different requirement for different type of air conditioner, there are two methods to treat the condensed water.

See the following procedures to perform back drainage:

1. Fit the seal onto the drain joint (which is provided with the air conditioner accessory).
2. Remove the rubber plug from the back of the unit and insert the rubber plug into the bottom drain hole of the unit.
3. Attach the drain joint to the back of the cabinet where you remove the plug and rotate 90^irc to securely assemble them.
4. Connect the drain joint with an extension drain hose.

See the following procedures to perform bottom drainage:

1. Remove the rubber plug from the bottom of the cabinet and attach to the back drain hole.
2. Take out the drain tray and screws (which are provided with the air conditioner accessory).
3. Install the drain tray at the bottom of the unit and secure with screws provided.
4. Connect the drain hose to the outlet located at one side of the drain tray. You can purchase the drain hose or tubing locally to satisfy your particular needs.

Suggestion: To ensure the condensed water drain off smoothly, always keep the drain outlet of the the drain tray downward when install the drain tray.

Back Drainage

Bottom Drainage

Note: If you choose non-drainage, both the bottom and the back drain hole of the unit should be inserted with the rubber plug.

INSTALLATION INSTRUCTION

Select the best location

1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly.
   If the unit is installed under direct sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, such as a fence or wall, within 50cm from the back of the cabinet because it will prevent heat radiation of the condenser.
   Restriction of outside air will greatly reduce the cooling efficiency of the air conditioner.
4. Install the unit a little obliquely outward not to leak the condensed water into the room (about 10mm with level).
5. Install the unit with its bottom portion 75\~150cm above the floor level.
6. The power cord must be connected to an independent circuit. The yellow/green wire must be earthed.

CAUTION

* All side louvers of the cabinet must remain exposed to the outside of the structure.
* The appliance shall be installed in accordance with local wiring regulations.

Installation of the Cabinet

Step 1

Remove the air conditioner from the package, remove fixing screws and slide the air conditioner out from the cabinet (Refer to Installation Steps).

Step 2

Drill holes in the wall to ensure the cabinet can be well supported. Holes from the outside through to the cavity should be sealed. The cabinet should slope down towards the rear by about 10mm to allow water drainage during operation.

Step 3

Install and secure the cabinet into the wall. Ensure the foam seals are not damaged. Flash, seal or fill gaps around the inside and outside to provide satisfactory appearance and protection against the weather, insects and rodents.

NOTE: UNIT CAN BE SUPPORTED BY A SOLID FRAME FROM BELOW OR BY A HANGER FROM A SOLID OVERHEAD SUPPORT.

Preferred method of installation into a timber framed wall, partition or window.

Installation of the unit into the Cabinet

1. Slide the unit into the cabinet until it is firmly against the rear of the cabinet. Ensure the foam sealing strips on the cabinet remain in position.
2. Connect the air conditioner to the power and put excess cord on the air conditioner base.
3. Engage the chassis fixing brackets into the bottom cabinet rail and secure to the base with the screw provided.
4. Remove the front panel from the carton and plastic bag and fit as per the Installation Instruction.
5. Switch unit on to check for operation of the unit and vibration in the installation.
6. Fit the drain pan to the cabinet and run a drain tube to a suitable location if required.

Alternative method of installation if external support cannot be provided.

Installation of the unit into the wall

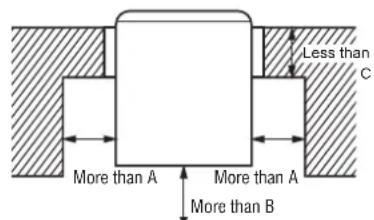

The minimum gap between the wall and the cabinet or air inlet louvers:

Wall thickness is less than C

If the wall thickness is more than c scrape the wall as shown above.

	Size(mm)
A	200*
B	500
C	210
D	60

Make rear side lower so that water will drain out smoothly.

[Non-Text]
* Position A is determined by the specific model and environment, however, the installation distance must not be less than 200 mm.

Installation Steps

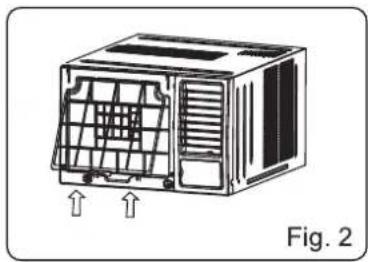

Step 1. Remove the front panel and the air filter

1. Hold the tabs under the front panel, then uplift it outwards, and remove the front panel (See Fig.1).
2. Pinch the handle under the air filter and make the air filter arched, remove it from the slot from underside to upside (See Fig.2).

Diagram of a portable air conditioner unit with ventilation grilles and cooling fins (no text or symbols)

Diagram of a car air conditioner unit with internal grid structure and ventilation slots (no text or symbols)

Technical line drawing of a computer chassis with ventilation grilles and ventilation ducts (no text or symbols)

Diagram of an air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

Line drawing of a refrigerated industrial unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a computer case with ventilation slots and a handle, labeled Fig.6 (no text or symbols on the diagram itself)

Step 2. Remove the frame.

1. Remove two fixing screws from the frame (See Fig.3).
2. Grasp the left corner of the frame's underside, release the coupler plugs, then loosen the frame (See Fig.4).

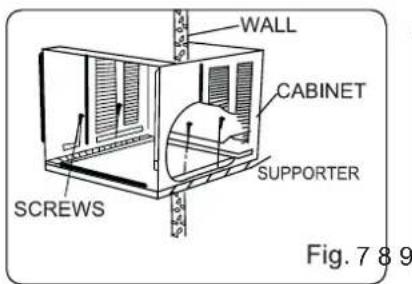

Step 3. Installation.

1. Remove two fixing screws on the chassis fixing brackets, then remove the chassis fixing brackets (See Fig.5).
2. Grasp the handle on the chassis and carefully slide the air conditioner out of the cabinet (See Fig.6).
3. Remove shipping pad from around compressor before operation and make sure the discharge points to the drain pan are aligned before the chassis is pushed into the cabinet (See Fig.7).
4. Push the unit chassis into the cabinet (See Fig.8).
5. Install two chassis fixing brackets by two fixing screws (See Fig.5).

Line drawing of a computer unit with ventilation slots and a cable, labeled 'Fig.' (no text or symbols on the diagram itself)

Line drawing of an internal air conditioner unit with cooling fins and wiring, labeled 'Fig.' (no text or symbols on the device itself)

Step 4. Install the frame.

1. Install the frame and connect the coupler plugs, make sure not to interfere with the temperature sensor cable (See Fig.9).
2. Fix the screws on the frame (See Fig.3).

Step 5. Install the air filter and front panel.

1. Install the air filter into the frame's slot from upside to underside (See Fig.2).
2. Hang the front panel on the frame's buckle, then press the front panel into the frame's slot until you hear a click (See Fig.10).

Line drawing of a small air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

TROUBLESHOOTING

Please review the chart first before you call for service.

Normal Operation

• You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high.
• You may hear the thermostat click when the compressor turns on and off.
• Water will be collected in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
• The fan may continue operation when the compressor is off.

Abnormal Operation

Problem	Possible Causes	What To Do
Air conditioner does not work	■ The air conditioner is unplugged.	● Make sure the air conditioner plug is pushed completely into the outlet.
	■ The fuse is blown/circuit breaker is tripped.	● Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
	■ Power failure.	● If power failure occurs, switch off and disconnect /unplug the power cord. When power is restored, reconnect (plug in) the power cord, switch on the power and wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
Air conditioner does not cool as it should	■ Airflow is restricted.	● Make sure there are no curtains, blinds, or furniture blocking the front of the air conditioner.
	■ The air filter is dirty.	● Clean the filter at least every 2 weeks. See the operating instruction section.
	■ The room was hot.	● When the air conditioner is first turned on, it takes some time for the room to cool down.
	■ Cold air is escaping.	● Check for open furnace floor registers and cold air returns. ● Set the air conditioner's vent to the closed position.
	■ Cooling coils have iced up.	● See "Air conditioner freezing up" below.
Air conditioner freezing up	■ Ice blocks the air flow and stops the air conditioner from cooling the room.	● Set the fan at MED or HIGH until the ice melts.

SPECIFICATIONS

TYPES(Btu/h)	BODY DIMENSION(mm)(W x H x D)	WIRING SIZE( mm2 )
≤9000	450x346x585	≥3*1.0
> 9000 and ≤12000	600x380x560	≥3*1.5
≥18000	660x428x680	≥3*2.5

WARRANTY

1. The product has 3 years warranty from the date of purchase.
2. The warranty shall not apply:

A. to any product subjected to misuse, alteration, act of God, improper handling, improper transport, improper testing or unauthorized repair;
B. to cosmetic problems or defects which result from normal wear and tear under ordinary use yet not affecting the performance or use of the product;
C. if the product is disassembled or altered;
D. to any packing, transportation, export / import tax or any related expenses.

Within warranty coverage period, all checking, repair and spare parts cost will be waived for those defects arising from normal usage.

Free replacements of spare parts do not include the following:

• Any filter, outer cabinet, plastics accessories
  • Product not used for personal or domestic purpose

3. CUSTOMER MUST PRESENT THE SALES INVOICE OR RECEIPT FOR 3 YEARS WARRANTY SERVICES.

4. All require for service, please contact Fortress Service Centre Hotline, Tel: [phone]

NOTES

• This appliance must be plugged or connected into a specific 220-240V socket. Please make sure the plug is fully plugged-in before use. Do not use any adapter or extension cord.
• This appliance is a high energy consumption product, please do not use it with other high energy consumption products in the same supply socket.
  • THE APPLIANCE IS FOR HOUSEHOLD USE ONLY.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help preserving the environment.

IMPORTANT NOTICES

IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR INJURY, LOSS OF PROPERTY, BUSINESS PROFITS, BUSINESS INTERRUPTION) OR FROM ANY BREACH OF WARRANTY, EVEN IF OUR COMPANY OR SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL OUR COMPANY OR SUPPLIER'S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT.

Specifications, designs and dimensions are subject to change without prior notice.

目錄

安全注意事項……2

產品零件介紹 5

操作說明....6

安裝說明....13

疑難小百科 16

規格表....17

保用期資料 18

閱讀本使用說明書

Line drawing of a front panel with ventilation grilles and a door open, showing airflow direction (no text or symbols)

握緊控制面板右側開關門，向右側拉開。

Line drawing of a front panel with ventilation grilles and a door open, showing airflow direction (no text or symbols)

Diagram of a ventilation duct system with horizontal slats and a side panel, showing no text or symbols.

Line drawing of a portable air conditioner unit with ventilation grilles and ventilation ducts (no text or symbols)

Line drawing of a modular air conditioner unit with internal grid structure (no text or symbols)

Illustration of a faucet spraying water onto a grid-patterned surface (no text or symbols)

冷凝水的處理

Diagram of a solar panel or air vent system with directional arrows indicating airflow or movement (no text or labels present)

Diagram of an air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Technical line drawing of an air conditioner unit with labeled components (no text or symbols)

Diagram of a 3D air vent or fan structure with airflow arrows indicating direction (no text or symbols)

Line drawing of a computer cooling unit with ventilation slots and cooling fins (no text or symbols)

Line drawing of a computer case with ventilation slots and a paper clip (no text or symbols)

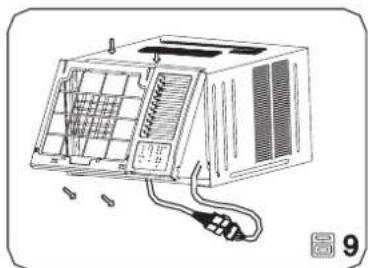

第二步 拆卸面框

Line drawing of a computer case with ventilation slots and a cable, showing no text or symbols

Line drawing of an open air conditioner unit with visible internal grid and wiring (no text or symbols)

第四步 安装面框

Diagram of a small air conditioner unit with airflow arrows indicating cooling or ventilation (no text or symbols)

疑難小百科

聯絡維修中心前請先看看下表。

一般操作
