USER MANUAL SB-CSS150 TECHNICS

(Shown with grille removed /

Black rectangular object with three circular speaker holes, no visible text or symbols

Before operating this unit, please read these instructions completely. Please save this manual.

Black-and-white photo of a speaker with two circular speakers (no visible text or symbols)

SB-S150

SB-CSS150

Thank you for purchasing this Technics product.

The SB-S150 is designed to reproduce low frequency signals from the front and mid-to-high frequency signals from the rear of the speaker. With Technics specially developed mode, the dipole sound field shown in the figure above is created around mid range signals. This means the listener can enjoy natural sound effect without being bombarded by direct sound.

Caution

Using a receiver stronger than that indicated, you risk blowing either the amplifier or the speakers, moreover possible fire. If equipment is damaged in any way or unexpected trouble occurs during playback, unplug the system from its outlet and call an authorized servicentre for assistance.

Supplied accessories /Accessoires fournis

Metal wall mounts (4 pcs.)

3. Install the speakers on the wall / installation au mur

Location / wall installation

Centre channel speaker SB-AFC150

Set either on top of, or underneath, the TV or on the wall.

The centre channel speaker is designed so as to be able to be used in close proximity to the TV, but irregular colouring may result due to how the system is placed. If such distortion occurs, turn off the TV for between 15 and 30 minutes. The demagnetizing function of the TV will eliminate the distortion. If the irregular colouring is still visible, then move the speakers further away from the TV.

Please note that if there is a magnetic (metal) object near the TV, irregular colouring may result due to the interaction between the TV and the speaker.

Alternatively, the centre channel can be mounted on the wall with the metal wall mounts (2) that are included. You can mount the speaker horizontally or vertically depending on your personal taste. Follow the metal wall mount installation, described above, for the surround speakers. The Technics emblem can be rotated to match the position. The wall is required to hold a weight of 5.7 kg (12.6 lbs).

Caution

Do not attempt to attach these speakers to walls using methods other than those described in this manual.

Notes

1. Be sure to reduce the volume level setting at the receiver when the signal input exceeds the rated allowable input, in order to avoid damage to circuitry or other malfunctions.
2. Avoid locations such as those described below:

• In direct sunlight

• Near heating appliances or other sources of heat

• Where the humidity is high

1. Never use alcohol, paint thinner, benzine or other similar chemicals to clean the unit as they may damage the finish.
2. Do not touch the diaphragms. To do so may cause distortion.

When placing on top of a shelf or on the floor.

The wall is required to hold a weight of 4.7 kg (10.4 lbs).

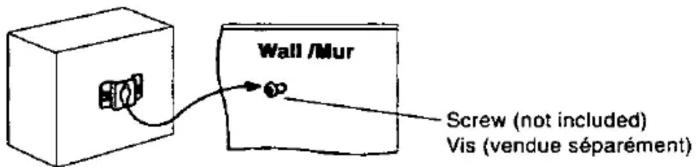

Screw the wood screw into a thick and hard part of the wall.

Pure mechanical diagram showing a lever and base assembly without any text or symbols

Speaker feet (included.) Pieds de l'enceinte (fournis)

Surround speakers SB-S150

Attach the speaker to the wall at a position which is at ear level and slightly behind the listening point.

(See the installation procedure.)

If the speaker cannot be attached to the wall, it can alternatively be placed on top of a shelf or on the floor.

Note

To enjoy the natural surround effect, do not mistake the left speaker for the right, or the front speaker for the rear. The speakers are marked on the top with a label so the left and right speakers can be easily identified and faced in the proper direction.

Connections

Notes:

• Before making the connections, switch OFF the power to the receiver.
• Check to see if your receiver can handle the speakers impedance (8Ω).
• Be sure to connect only positive (+) wires to positive (+) terminals and negative (−) wires to negative (−) terminals.

To prevent damage, never provoke a short-circuit.

Note

TV set, receiver, front speakers and connection cables are sold separately.

SB-S150 surround speakers
Enceintes ambiophoniques

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

(Right / droite)

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

(Left / gauche)

Speaker cables / Câble de raccordement

Connections / Raccordements

1

Twist / Torsader.

2

3

Insert/ Insérer.

NO! NON!

This unit incorporates speaker protection circuitry to protect the speaker from damage caused by excessive input or abnormal signals; when excess input is detected, the input is automatically interrupted.

■ If sound is interrupted ...

1. Reduce the volume setting of the receiver.
2. Check the sound source and connections for any problems. If there is no problem, the protection circuit will reset in a few minutes.
   ■ After the protection circuit is reset ...

Take care not to increase the receiver's volume too high.

Technical specifications

Centre channel speaker SB-AFC150

Type	2 way, 3 speaker systembass reflex
Speakers:
Woofer	12 cm (4-3/4") cone type X2
Tweeter	2.5 cm (1") dome type X1
Impedance	8 Ω
Input power	200 W Music, 100 W (DIN)
Sound pressure level	85 dB/W (1.0 m)
Crossover frequency	3.5kHz
Frequency response	52 Hz ~ 40 kHz (-16 dB)
	61 Hz ~ 36 kHz (-10 dB)
■ GENERAL
Dimensions (W x H x D)	460 × 175 × 235 mm(18-1/8" × 6-7/8" × 9-1/4")
Weight	5.7 kg (12.6 lbs)

Surround speakers SB-S150

Type	2 way, 3 speaker systembass reflex
Speakers:
Woofer	12 cm (4-3/4") cone type
Tweeter	2.5 cm (1") dome type
Impedance	8 Ω
Input power	200 W, music,100 W (DIN)
Sound pressure level	81 dB/W (1.0 m)
Crossover frequency	3.5 kHz
Frequency range	44 Hz ~ 40 kHz (-16 dB)51 Hz ~ 36 kHz (-10 dB)
■ GENERAL
Dimensions (W x H x D)	295 × 310 × 175 mm(11-5/8" × 12-7/32" × 6-7/8")
Weight	4.7 kg (10.4 lbs)

Note:

Specifications are subject to change without notice.

Weight and dimensions are approximate

Product service

Do not attempt to remove the cover(s) or repair the unit yourself.

Refer servicing to qualified personnel only.

Product information

For product service, product information or assistance in product operation, refer to the servicentre directory.

For detailed instructions, contact an authorized servicentre in the U.S.A. and Panasonic Canada Inc. Customer Care Centre in Canada. In the U.S.A. 1-800-332-5368 or web site

(http://www.panasonic.com)

In Canada 905-624-5505 or web site

www.panasonic.ca
