| Product Type | Split Air Conditioner |
| Model | KSE26HRC |
| Brand | Kelvinator |
| Cooling Capacity | 2.6 kW (9,000 BTU/h) |
| Heating Capacity | 2.8 kW (9,500 BTU/h) |
| Energy Efficiency Ratio (EER) | 3.2 |
| Power Supply | 220-240 V, 50 Hz |
| Refrigerant | R32 |
| Indoor Unit Dimensions (W x H x D) | 790 x 275 x 225 mm |
| Outdoor Unit Dimensions (W x H x D) | 700 x 550 x 250 mm |
| Indoor Unit Weight | 9.5 kg |
| Outdoor Unit Weight | 22.0 kg |
| Airflow Volume | 500 m³/h |
| Noise Level (Indoor) | 28-38 dB(A) |
| Noise Level (Outdoor) | 50 dB(A) |
| Functions | Cool, Heat, Fan, Dehumidify, Auto |
| Filter Type | Washable, Antibacterial |
| Remote Control | Included |
| Timer | 24-hour programmable |
| Sleep Mode | Yes |
| Installation Type | Wall-mounted, requires professional installation |
| Maintenance | Clean filters every 2 weeks; professional service annually |
| Safety Features | Overload protection, auto restart, self-diagnosis |
Frequently Asked Questions - KSE26HRC KELVINATOR
How do I clean the air filters?
Turn off the unit and open the front panel. Remove the filters and wash them with warm water and mild detergent. Let them dry completely before reinstalling. For best performance, clean every two weeks.
What should I do if the air conditioner does not turn on?
Check the power supply and ensure the circuit breaker is on. Verify the remote control batteries. If the issue persists, reset the unit by unplugging it for 5 minutes. Contact a technician if still not working.
How often should I service the air conditioner?
We recommend professional maintenance at least once a year. This includes checking refrigerant levels, cleaning coils, and inspecting electrical components.
Can I use the air conditioner for heating in winter?
Yes, the KSE26HRC is a reversible heat pump model, providing both cooling and heating. However, its efficiency drops at very low outdoor temperatures (below -5°C).
What do the error codes mean?
Error codes are displayed on the indoor unit. Common codes: E1 (temperature sensor fault), E2 (defrost sensor fault), E3 (compressor overload). Refer to the manual for full list. Contact service if error persists.

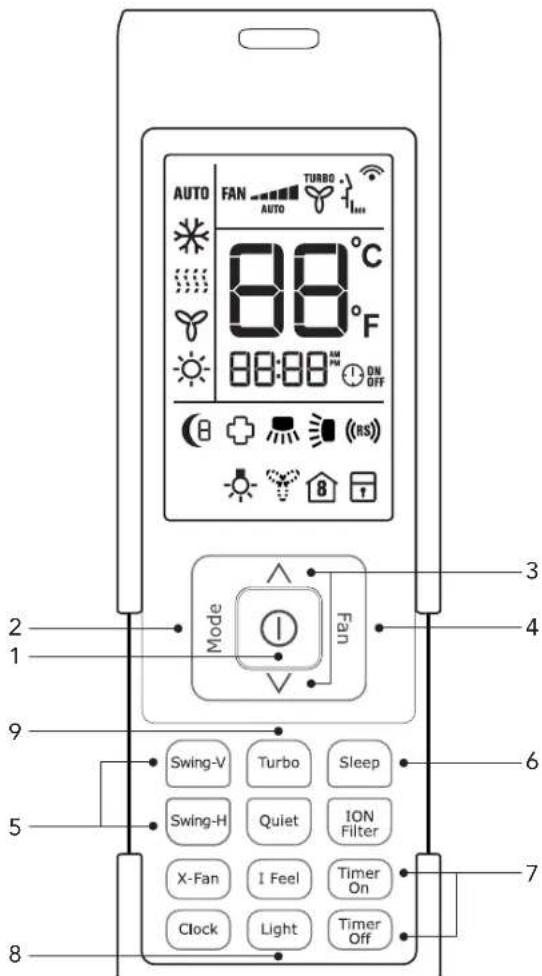

How do I set the timer?
Press the Timer button on the remote. Use the +/- buttons to set the desired on/off time. The unit will automatically start or stop at the set time.
Why is water leaking from the indoor unit?
This may be due to a clogged drain pipe or a dirty filter. Check and clean the filter. Also ensure the drain hose is not blocked or kinked. If problem continues, call a technician.
What is the recommended room size for this air conditioner?
The KSE26HRC is suitable for rooms up to 20-25 m² (215-270 sq ft) for cooling, depending on insulation and sunlight exposure.
Can I install the unit myself?
No, professional installation is required to ensure proper operation, safety, and warranty validity. The unit must be installed by a certified HVAC technician.
How do I switch between cooling and heating modes?
Press the Mode button on the remote until you see the desired mode icon (sun for heat, snowflake for cool). The unit will adjust accordingly.
