Product Type	LED-backlit LCD Monitor
Screen Size	32 inches (81.3 cm)
Resolution	1920 x 1080 (Full HD)
Panel Type	IPS (In-Plane Switching)
Brightness	300 cd/m²
Contrast Ratio	1000:1 (Typical)
Response Time	5 ms (GTG)
Viewing Angle	178° / 178°
Input Connectors	VGA, DVI, HDMI, DisplayPort
Built-in Speakers	2 x 2W
VESA Mount	100 x 100 mm
Tilt Adjustment	-5° to 20°
Dimensions (W x H x D) with Stand	726 x 489 x 220 mm
Weight (with Stand)	8.5 kg (18.7 lbs)
Power Consumption (Typical)	45 W
Power Input	AC 100-240V, 50/60 Hz
Compliance	CE, FCC, RoHS
Cleaning Instructions	Use a soft, dry cloth. Do not use liquid cleaners.
Safety Precautions	Keep away from heat sources and moisture. Use only supplied power cord.
Spare Parts Availability	Contact AG Neovo support for power supply, stand, and cables.

Frequently Asked Questions - SC-32 AG Neovo

What is the screen resolution of the AG Neovo SC-32?

The AG Neovo SC-32 features a Full HD resolution of 1920 x 1080 pixels.

Does the SC-32 have built-in speakers?

Yes, it includes two built-in speakers of 2W each for basic audio output.

What video inputs are available on the SC-32?

It offers VGA, DVI, HDMI, and DisplayPort inputs for versatile connectivity.

Can the SC-32 be mounted on a wall?

Yes, it supports VESA 100 x 100 mm wall mounts.

How do I clean the screen?

Use a soft, dry cloth to gently wipe the screen. Avoid abrasive materials or liquid cleaners.

What is the power consumption of the SC-32?

Typical power consumption is 45W, with standby less than 0.5W.

Does the monitor come with a remote control?

No, the SC-32 does not include a remote control. All adjustments are made via the on-screen display (OSD) buttons.

What is the response time of the SC-32?

It has a response time of 5 ms (GTG), suitable for most office and home use.

Is the SC-32 flicker-free?

Yes, it uses flicker-free technology to reduce eye strain during extended use.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format.

USER MANUAL SC-32 AG Neovo

• FCC information 3
• CE information ---- 3
  ● Safety Precautions 3
• Scope 5
• Functional specification 5
• Controls and indicators 7
• OSD Menu 10
• Regulatory Agency 23
• Mechanical 24
• Wall mount notes 26

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with emission limits.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CE INFORMATION

The product must be installed according to the currently valid installation regulations for EMC to guarantee the designed use and to prevent EMC problems.

The device supplied with this manual is according to the EC, EMC Directive, 2004/108/EC & LVD 2006/95/EC

SAFETY PRECAUTIONS

1. Do not modify the three-prong grounding type monitor power plug in any way.
2. Operate this unit only from the type of power source indicated on the label.
3. Do not block or cover ventilation openings on the back or bottom of the monitor cabinet.
4. Do not place this monitor near a radiator or heating vent.
5. Do not push objects of any kind through cabinet openings. This may result in fire or electrical shock.
6. Before adding attachments always ask a service technician to perform routine safety tests to determine that equipment is in safe operating condition. Ground potential tests should be part of the routine safety check made by the service technician.

7. Do not place monitor on an unstable cart, stand, or shelf where it may fall and injure personnel or damage equipment.

8. Route power cords so that they cannot be walked upon or tripped over. Do not allow anything to rest on the power cord.

9. Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not spill liquid of any kind on the unit.

10. Unplug the power cord from the unit before cleaning the display. Use only a damp cloth. Do not use alcohol, spirits, or ammonia to clean the display. DO NOT ATTEMPT TO CLEAN THE INTERIOR OF THIS UNIT- THIS ACTION MUST BE PERFORMED BY THE SERVICE TECHNICIAN AS REQUIRED DURING NORMAL MAINTENANCE.

11. Refer all servicing to qualified service personnel. REMOVAL OF BACK COVER BY UNAUTHORIZED PERSONNEL MAY EXPOSE THE USER TO DANGEROUS VOLTAGES OR OTHER HAZARDS.

12. Unplug the unit immediately and notify the service technician.

A. If liquid has been spilled into the display or the display has been exposed to rain or water.
B. If the unit has been dropped or the cabinet damaged.
C. If fuses continue to blow.
D. If the power cord is damaged or frayed.
E. If a distinct change from normal operation is apparent.

When replacement parts are required, be sure that the service technician uses components specified by the manufacturer which have the same characteristics as the original parts. UNAUTHORIZED SUBSTITUTIONS MAY RESULT IN FIRE, ELECTRICAL SHOCK OR OTHER HAZARDS.

Upon completion of any service or repairs, ask the technician to perform safety checks to determine that the equipment is in safe operating condition.

WARNING: SERIOUS SHOCK HAZARDS EXIST WITHIN THE COVERS OF THIS MONITOR. DO NOT OPEN THE COVERS UNDER ANY CIRCUMSTANCES, THERE ARE NO USER SERVICEABLE COMPONENTS INSIDE

1. Scope

This specification is used to define the performance of SC-32 & SC-42 series color TFT LCD monitor. This system also supports both video input and PC input. In video input mode, the system can automatically detect the NTSC signal and PAL signal. In PC mode, this system can support up to 1920 x 1080 VESA standard.

The user friendly OSD menu is also provided to make this system easy to operate.

2. Functional Specifications

2.1 Power Supply

The power supply spec is listed below,

AC INPUT

AC power input range : Rated voltage 100 – 240 Vac +/- 10%, 47\~63Hz, 2 Amps max.

* Power consumption : 90W max.

* Power efficiency : 80% typical at normal line input and full load

2.2 Video Characteristics

Composite Video (CVBS): 1.0 Vp-p (0.5 - 1.5Vpp), Automatic switching from 75 Ω unbalanced termination to Hi-Z with loop-through operation.

Y/C (S-video): 1.0 Vp-p (0.5 - 1.5Vpp), Automatic switching from 75 Ω unbalanced termination to Hi-Z with loop-through operation.

2.3 PC Input

- VGA Input

Analog RGB: 0.707 Vp-p.

Support VESA Standard Timing

- HDMI Input

HDMI Compatible Interface

Digital Signal: TMDS.

HDCP: HDCP 1.1

2.4 Audio Input

Signal Level: 1.0 Vrms

2.5 Environmental

- Temperature

Operating: 0^irc C to +40^irc C

Storage: -20^ircC to +60^ircC

- Humidity

Operating: 10% to 85% (non-condensing)

Storage: 10% to 95% (non-condensing)

2.6 EDID

This series of displays support EDID, but does not support DDC2B function.

2.7 Connectors

A. HDMI INPUT: HDMI Connector
B. VGA INPUT: D-SUB 15 pins Connector
C. S-VIDEO (Y/C) INPUT: Mini-DIN 4 pins Connector
D. CVBS INPUT: BNC Connector

E. CVBS OUTPUT: BNC Connector

F. AUDIO INPUT: Phone Jack, Stereo

G. AUDIO OUTPUT: Phone Jack, Stereo

H. AC Input: Power cable (AC Power Plug IEC 320,C14)

Set up sequence

1. Make sure the power of PC and/or Video source were turned off.
2. Plug the Video signal and VGA cable to monitor.
3. Turns the PC and/or Video source power on.
4. Plug the AC power cord onto AC Socket.

(Use reverse sequence to teardown the monitor)

3. Controls and indicators

SC-32 & SC-42 MONITOR

A. “” Power button

Press the button to turn ON or turn OFF the monitor

B. “” Source button

Press the button to show source menu. Select DHMI, S-Video, VGA and VIDEO input signal

C. "Menu button

Press the button to show the OSD main menu.

As a confirmation key during the OSD operation.

D. “ ▲”Up button

Press the buttons to scrolling the cursor to desired function.

E. "Down buttons

Press the buttons to scrolling the cursor to desired function.

F. “Volume+ buttons

Press the buttons to increase volume

Press the buttons to increase the value of selected function in sub OSD menu.

G. “◀”Volume-button

Press the buttons to decrease volume

Press the buttons to decrease the value of selected function in sub OSD menu.

H. Power Switch

Press the Switch to turn ON or turn OFF the monitor Power

POWER LED Indication

• Green - Power on
  ● LED light off - Power switch off
• Red - Power off
  ● Red + Flash Green - Sleep mode (PC mode only)

Remote control

Power: Power On or Off the monitor

Mute: Mute the audio

Key Lock: Lock and unlock push buttons

Menu/ Left/ Right/ Up/ Down/ OK/ Exit:

Monitor OSD control

◀ ▶ : Hot key for volume control

Auto: VGA mode picture Adjust

VIDEO: Select Video source

S-VIDEO: Select S-Video source

Info: Display Monitor source information

HDMI: Select HDMI source.

VGA: Select VGA source.

SDI: Reserve

4. OSD Menu

Hot key :

Quick adjust keys from front panel hot keys :

VOLUME :

Press ◀ or button to select the function and press / buttons to adjust the volume, the press 📋 button to exit OSD menu.

KEY LOCK : Push for 6 sec to enable this function.

KEY UN-LOCK : Push for 6 sec to disable this function.

VGA & HDMI mode :

Use the → to select the VGA, HDMI, CVBS, or S-VIDEO, the menu structure within each varies, refer to sections below on how to set-up each option.

VGA / HDMI mode :

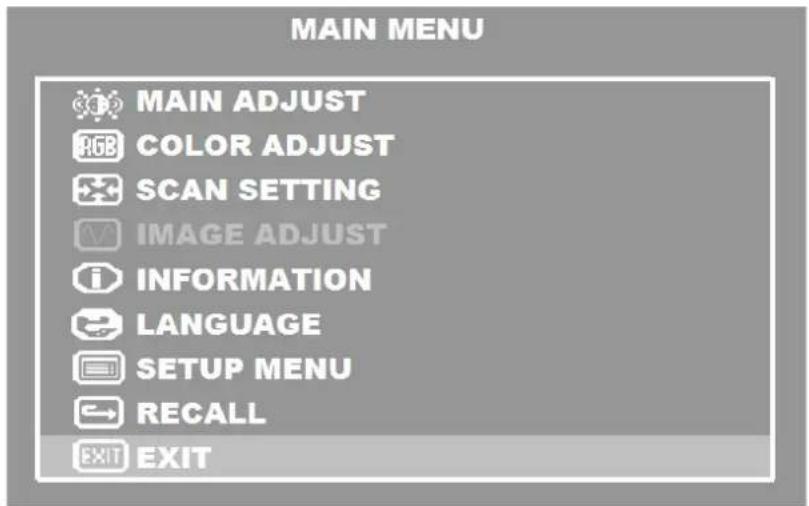

Press 📄 to bring up the MAIN MENU Page. The following page will appear

Press ▲/▼ buttons to select an icon, then Press □ to change the values in the sub menu.

VGA MAIN MENU

HDMI MAIN MENU

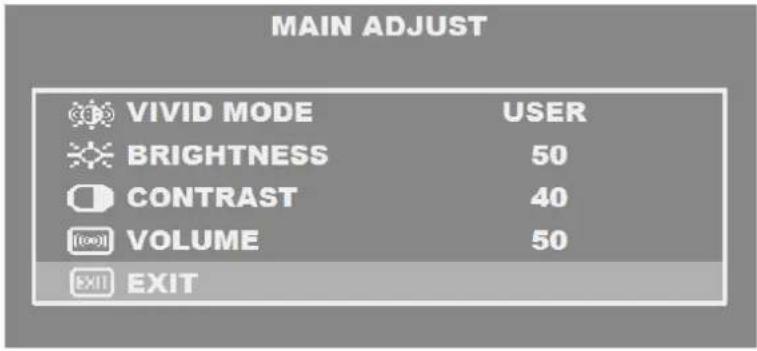

MAIN ADJUST :

1. Press ▲ / ▼ to select an icon.
2. Press ☐ to select item,
3. Press ◀ / ▶ t to adjust the value
4. Press to return

VIVID MODE : Select the VIVID MODE (0\~3 and USER)

USER, 0: TEXT, 1: PHOTO, 2: MOVIE, 3: GAME

BRIGHTNESS : Adjust the brightness value

CONTRAST : Adjust the contrast value

VOLUME : Adjust the volume

EXIT : Press ☐ to return to the main menu

COLOR ADJUST :

Set the color temperature of the LCD monitor for the CIE coordinate 9300°k or 6500°k or USER MODE

1. Press ▲ / ▼ to select an icon
2. Press ☐ to select adjust item,
3. Press ◀ / ▶ to adjust the value
4. Press 📋 to return

USER COLOR : Adjust the color temperature.

RED : Adjust the RED value for user mode.

GREEN : Adjust the GREEN value for user mode.

BLUE : Adjust the BLUE value for user mode.

EXIT : Press to return to the main menu

IMAGE ADJUST (VGA ONLY) :

IMAGE ADJUST

AUTO ADJUST

H. POSITION 50

V. POSITION 50

PHASE 48

CLOCK 50

EXIT

1. Press ▲ / ▼ to select an icon
2. Press ☐ to select adjust item
3. Press ◀ / ▶ to adjust the value
4. Press 📋 to return

AUTO ADJUST : Press ☐ to auto adjust the H. Position,

V. Position, Phase, Clock

H. POSITION : Adjust the horizontal position value

V. POSITION : Adjust the vertical position value

PHASE : Adjust the phase value

CLOCK : Adjust the clock value

EXIT : Press ☐ to return to the main menu

INFORMATION :

Press to get the VGA timing information

INFORMATION

H. FREQUENCY

64KHZ

V. FREQUENCY

60HZ

RESOLUTION

1280X 1024

LANGUAGE : Press

to enter the sub-menu

LANGUAGE

ENGLISH

FRANCIS

DEUTSCH

ESPAÑOL

ITALIANO

DUTCH

PORTUGUês

EXIT

1. Press ▲ / to select language
2. Press to enter

SETUP MENU :

SETUP MENU

OSD TIMEOUT

15 sec

GREEN MODE

OFF

AUTO SHIFT

OFF

EXIT

1. Press / to select an icon
2. Press ☐ to select adjust item
3. Press / to adjust the value
4. Press to return

OSD TIMEOUT : Adjust the OSD Show time (5 \~120 sec)

GREEN MODE : Off or On (5 min\~10 min)

OFF – No function

ON – Screen will reduce back light to 80% within (5 min to 10 min)

Screen will back to normal when any button is being touched.

AUTO SHIFT : Adjust AUTO SHIFT ON/OFF

OFF - No Function

ON – Every one hour there will one scan line from top to bottom (Every 1 second down one scan line) to prevent panel sticking.

EXIT : Press

to return to the main menu

RECALL :

Brightness, Contrast, Volume, Vivid Mode, OSD Timeout, Green Mode, Auto Shift return to default Value.

Video mode :

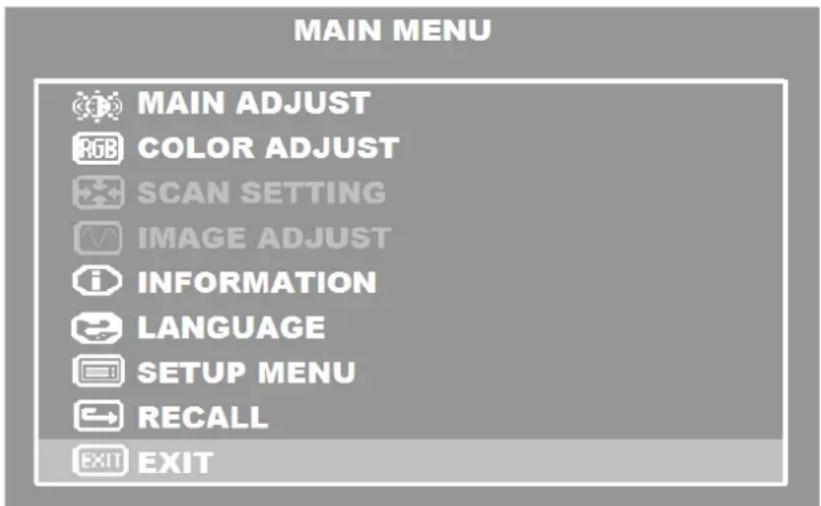

Press 📄 to bring up the MAIN MENU Page. The following page will appear

Press ▲ / ▼ to select an icon, then Press 📋 to change the values in the sub menu.

MAIN ADJUST

VIVID MODE USER

BRIGHTNESS 50

CONTRAST 40

SHARPNESS 49

SATURATION 50

TINT 50

VOLUME 49

EXIT

1. Press ▲ / ▼ to select an icon
2. Press ☐ to select item
3. Press ◀ / ▶ to adjust the value
4. Press to return

VIVID MODE : Select the VIVID MODE (0\~3 and USER)

USER, 0: TEXT, 1: PHOTO, 2: MOVIE, 3: GAME

BRIGHTNESS : Adjust the brightness value.

CONTRAST : Adjust the contrast value.

SHARPNESS : Adjust Image sharp.

SATURATION : Adjust Image saturation.

TINT : Adjust Image tint. (NTSC only).

VOLUME : Adjust the volume .

EXIT : Press ☐ to return to the main menu.

COLOR ADJUST :

Set the color temperature of the LCD monitor for the CIE coordinate 9300°k or 6500°k or USER MODE

1. Press ▲ / ▼ to select an icon
2. Press ☐ to select adjust item,
3. Press ◀ / ▶ t to adjust the value
4. Press to return

USER COLOR : Adjust the color temperature.

RED : Adjust the RED value for user mode.

GREEN : Adjust the GREEN value for user mode.

BLUE : Adjust the BLUE value for user mode.

EXIT : Press 📋 to return to the main menu

1. Press ☐ to select the sub-menu
2. Press ◀ / ▶ to select Scan Setting state.
3. Press to return

INFORMATION :

Press ☐ to get the timing information

LANGUAGE : Press ☐ to enter the sub-menu

1. Press ▲ / ▼ to select language
2. Press ☐ to enter

SETUP MENU

OSD TIMEOUT

15 sec

GREEN MODE

OFF

AUTO SHIFT

OFF

EXIT

1. Press ▲ / ▼ to select an icon
2. Press ☐ to select adjust item
3. Press ◀ / ▶ to adjust the value
4. Press to return

OSD TIMEOUT : Adjust the OSD Show time (5 \~120 sec)

GREEN MODE : Off or On (5 min\~10 min)

OFF – No function

ON – Screen will reduce back light to within (5 min to 10 min)

Screen will back to normal when any button is being touched.

AUTO SHIFT : Adjust AUTO SHIFT ON/OFF

OFF - No Function

ON – Every one hour there will one scan line from top to bottom

(Every 1 second down one scan line) to prevent panel sticking.

Simple geometric line drawing with no text, numbers, or symbols

Anti-Burn-in ^TM scan line

EXIT : Press

to return to the main menu.

RECALL :

Brightness, Contrast, Sharpness, Saturation, Tint, Volume, Vivid Mode, OSD Timeout, Green Mode, Auto Shift return to default Value.

5. Regulatory Agency

5.1 Safety Approvals

This series design shall meet the standards of the following domestic and foreign agencies:

CE LVD : EN60950

5.2 EMI/EMS Emission Approvals

This series design shall meet following EMI/EMS specifications:

FCC Compliance: FCC Rules and Regulations, Part 15, subpart B, Class B.

CE COMPLIANCE: EN55022 class B, EN55024, EN50130-4

6. Mechanical

6.1 Cabinet

Material: Plastic

Finish: Black

6.2 Dimensions

WxDxH mm

SC-32:

752.5x48.7x461.3mm (Without base)

752.5x189x503.8mm (With base)

SC-42:

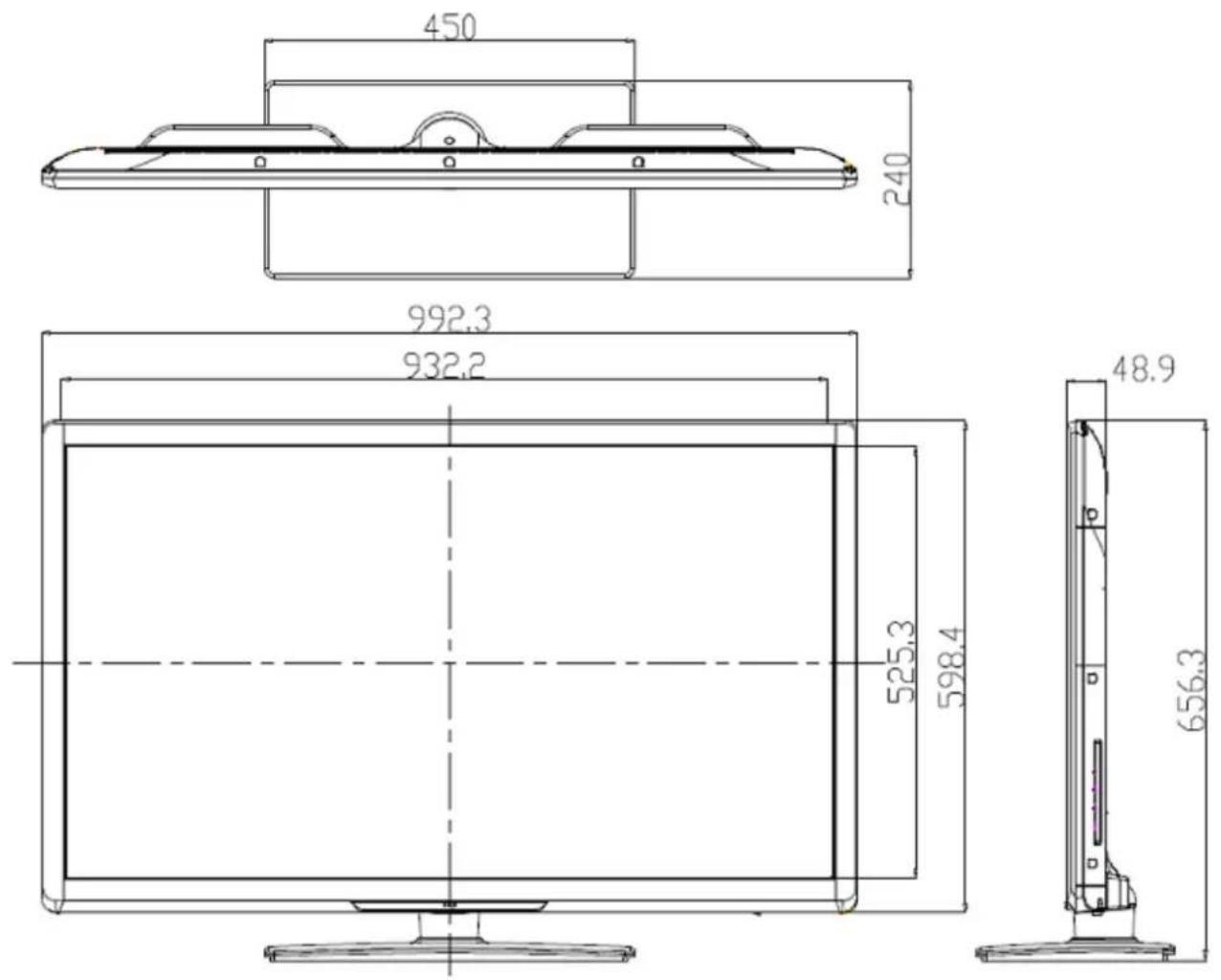

992.3x48.9x598.4 mm (Without base)

992.3x240x656.3 mm (With base)

SC-32:

SC-42:

6.3 Packaging Dimensions

WxHxD mm

SC-32: 807x548x118

VESA Hole : 200x100mm

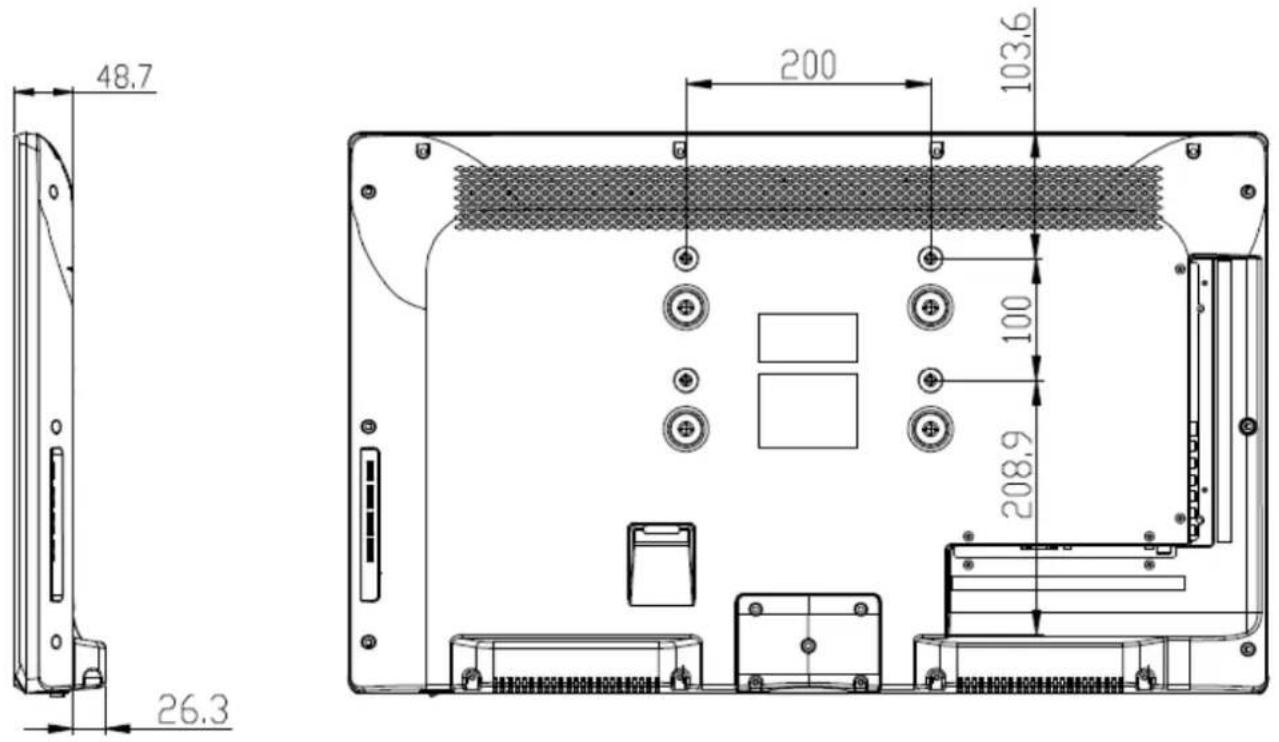

To avoid interference with speaker area, please notice the dimension 208.9mm and 26.3mm as indicated in the drawing.

SC-42

VESA Hole : 400x400mm

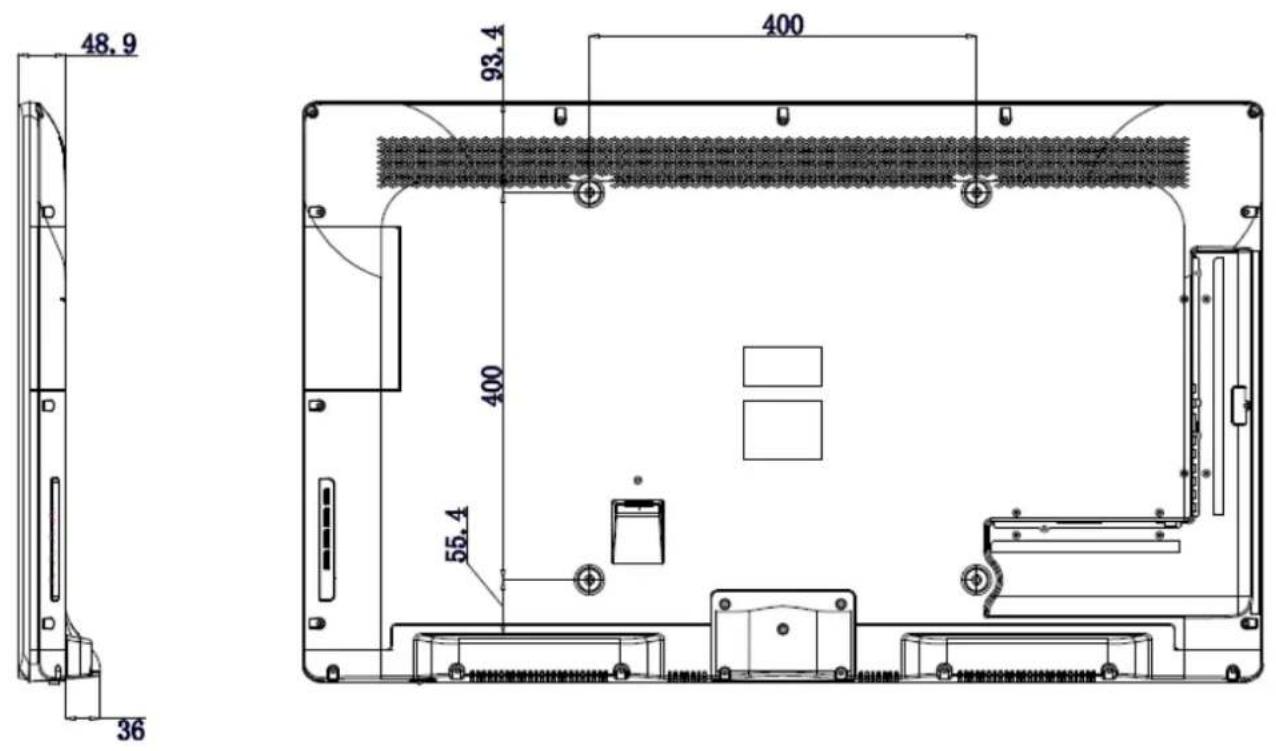

To avoid interference with speaker area, please notice the dimension 55.4mm and 36mm as indicated in the drawing.

Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.
