Product Type	LCD Monitor
Brand	AG Neovo
Model	LW-22G
Screen Size	22 inches (55.9 cm diagonal)
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Panel Type	TN or IPS (depending on variant)
Brightness	250 cd/m² (typical)
Contrast Ratio	1000:1 (typical)
Response Time	5 ms (typical)
Viewing Angles	170°/160° (typical)
Input Connectors	VGA, DVI-D, DisplayPort
Audio	Built-in speakers (2 x 1W)
Power Supply	100-240V AC, 50/60Hz
Power Consumption	Typical: 25W, Standby: <0.5W
Dimensions (W x H x D) with Stand	510 x 405 x 200 mm
Weight (with Stand)	5.2 kg
VESA Mount	100 x 100 mm
Security	Kensington lock slot
Cleaning	Use a soft, dry cloth; avoid solvents
Repairability	Limited; consult authorized service center

Frequently Asked Questions - LW-22G AG Neovo

How do I connect my computer to the AG Neovo LW-22G monitor?

Use the appropriate cable (VGA, DVI-D, or DisplayPort) to connect your computer's output to the monitor's input. Ensure both devices are powered off before connecting. Then turn on the monitor and select the correct input source via the OSD menu.

What is the recommended resolution for the LW-22G?

The native resolution is 1920 x 1080 (Full HD). For best image quality, set your computer's display settings to this resolution.

Can I mount the LW-22G on a wall?

Yes, the monitor supports VESA 100 x 100 mm mounting. Use a compatible wall mount bracket and follow the instructions provided with the mount.

How do I clean the screen safely?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water or a screen-cleaning solution. Wipe gently; do not spray liquid directly on the screen. Avoid using paper towels or harsh chemicals.

What should I do if the monitor shows no display?

Check that the power cable is securely connected and the monitor is turned on. Verify that the video cable is properly attached to both the monitor and computer. Try a different input source or cable. If the issue persists, test with another device.

Does the LW-22G have built-in speakers?

Yes, it has two built-in speakers (1W each). Audio can be played through the monitor when connected via HDMI or DisplayPort (audio-capable cables). You may need to select the monitor as the audio output device in your computer's sound settings.

How do I adjust the monitor settings?

Use the buttons on the front or side of the monitor to access the On-Screen Display (OSD) menu. From there you can adjust brightness, contrast, color settings, input source, and other options.

Is the monitor compatible with Mac computers?

Yes, the LW-22G works with Mac computers that have VGA, DVI, DisplayPort, or HDMI (via adapter) outputs. Connect using the appropriate cable and adjust resolution in System Preferences > Displays.

What is the power consumption of the LW-22G?

Typical power consumption is about 25W. In standby mode, it consumes less than 0.5W. To save energy, turn off the monitor when not in use.

How can I get replacement parts or repair for my LW-22G?

Contact AG Neovo's customer support or an authorized service center for spare parts and repairs. Do not attempt to open the monitor yourself as it may void the warranty and pose electrical hazards.

USER MANUAL LW-22G AG Neovo

Cautions When Using....5

Cleaning and Maintenance....6

Notice for the LCD Monitor....6

CHAPTER 1: PRODUCT DESCRIPTION

1.1 Package Contents....7
1.2 Installation 8

1.2.1 Installing the Stand....8
1.2.2 Adjusting the Tilt 8
1.2.3 Wall Mounting....9

1.3 Overview ...... 10

1.3.1 Front View 10
1.3.2 Control Buttons.... 11
1.3.3 Rear View.... 13

CHAPTER 2: MAKING CONNECTIONS

2.1 Connecting the AC Power 14
2.2 Connecting Input Source Signals....15
2.3 Connecting Audio Devices 16

CHAPTER 3: ON SCREEN DISPLAY MENU

3.1 Using the OSD Menu 17
3.2 OSD Menu Tree 18

CHAPTER 4: ADJUSTING THE LCD MONITOR

4.1 Colour Setting....20
4.2 Picture Setting....21
4.3 OSD Setting 22
4.4 Other Setting 23
4.5 Reset Setting....24

CHAPTER 5: APPENDIX

5.1 Warning Messages....25
5.2 Troubleshooting....26
5.3 Transporting the LCD Monitor 27

CHAPTER 6: SPECIFICATIONS

6.1 Monitor Specifications ...... 29
6.2 Monitor Dimensions....30

SAFETY INFORMATION

WEEE

Information for users applicable in European Union countries

The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. Each country in the European Union should have its collection centers for electrical and electronic equipment recycling. For information about your recycling drop off area, please contact your local related electrical and electronic equipment waste management authority or the retailer where you bought the product.

PRECAUTIONS

PRECAUTIONS

Symbols used in this manual

This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product.

This icon indicates important operating and servicing information.

Notice

• Read this User Manual carefully before using the LCD monitor and keep it for future reference.
• The product specifications and other information provided in this User Manual are for reference only. All information is subject to change without notice. Updated content can be downloaded from our web site at www.agneovo.com.
• To protect your rights as a consumer, do not remove any stickers from the LCD monitor. Doing so may affect the determination of the warranty period.

Cautions When Setting Up

Do not place the LCD monitor near heat sources, such as a heater, exhaust vent, or in direct sunlight.

Do not cover or block the ventilation holes in the housing.

Place the LCD monitor on a stable area. Do not place the LCD monitor where it may subject to vibration or shock.

Place the LCD monitor in a well-ventilated area.

Do not place the LCD monitor outdoors.

Do not place the LCD monitor in a dusty or humid environment.

Do not spill liquid or insert sharp objects into the LCD monitor through the ventilation holes. Doing so may cause accidental fire, electric shock or damage the LCD monitor.

Cautions When Using

	Use only the power cord supplied with the LCD monitor.
	The power outlet should be installed near the LCD monitor and be easily accessible.
	If an extension cord is used with the LCD monitor, ensure that the total current consumption plugged into the power outlet does not exceed the ampere rating.
	Do not allow anything to rest on the power cord. Do not place the LCD monitor where the power cord may be stepped on.
	If the LCD monitor will not be used for an indefinite period of time, unplug the power cord from the power outlet.
	To disconnect the power cord, grasp and pull by the plug head. Do not tug on the cord; doing so may cause fire or electric shock.
	Do not unplug or touch the power cord with wet hands.

WARNING:

Unplug the power cord from the power outlet and refer to qualified service personnel under the following conditions:

• When the power cord is damaged.
• If the LCD monitor has been dropped or the housing has been damaged.
• If the LCD monitor emits smoke or a distinct odor.

Ceiling mount or mount on any other horizontal surface overhead are not advisable.

WARNING:

Installation in contravention of the instructions may result in undesirable consequences, particularly hurting people and damaging property. Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience.

Cleaning and Maintenance

Do not attempt to service the LCD monitor yourself, refer to qualified service personnel.

Opening or removing the covers may expose you to dangerous voltage or other risks.

Notice for the LCD Monitor

In order to maintain the stable luminous performance, it is recommended to use low brightness setting.

Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time.

When static images are displayed for long periods of time, the image may cause an imprint on the LCD monitor. This is called image retention or burn-in.

To prevent image retention, do any of the following:

• Set the LCD monitor to turn off after a few minutes of being idle.
• Use a screen saver that has moving graphics or a blank white image.
• Switch desktop backgrounds regularly.
• Adjust the LCD monitor to low brightness settings.
• Turn off the LCD monitor when the system is not in use.

Things to do when the LCD monitor shows image retention:

• Turn off the LCD monitor for extended periods of time. It can be several hours or several days.
• Use a screen saver and run it for extended periods of time.
• Use a black and white image and run it for extended periods of time.

There are millions of micro transistors inside the LCD monitor. It is normal for a few transistors to be damaged and to produce spots. This is acceptable and is not considered a failure.

CHAPTER 1: PRODUCT DESCRIPTION

1.1 Package Contents

When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer.

LCD Monitor

Blank white image with a thin black border and no visible content or text.

Base Mount

LW-22G LW-24G

Quick Start Guide

Stand

LW-22G LW-24G

Power Cord

HDMI Cable

Warranty CardAudio Cable

Note:

• Use only the supplied power cord.
• The above pictures are for reference only. Actual items may vary upon shipment.

1.2 Installation

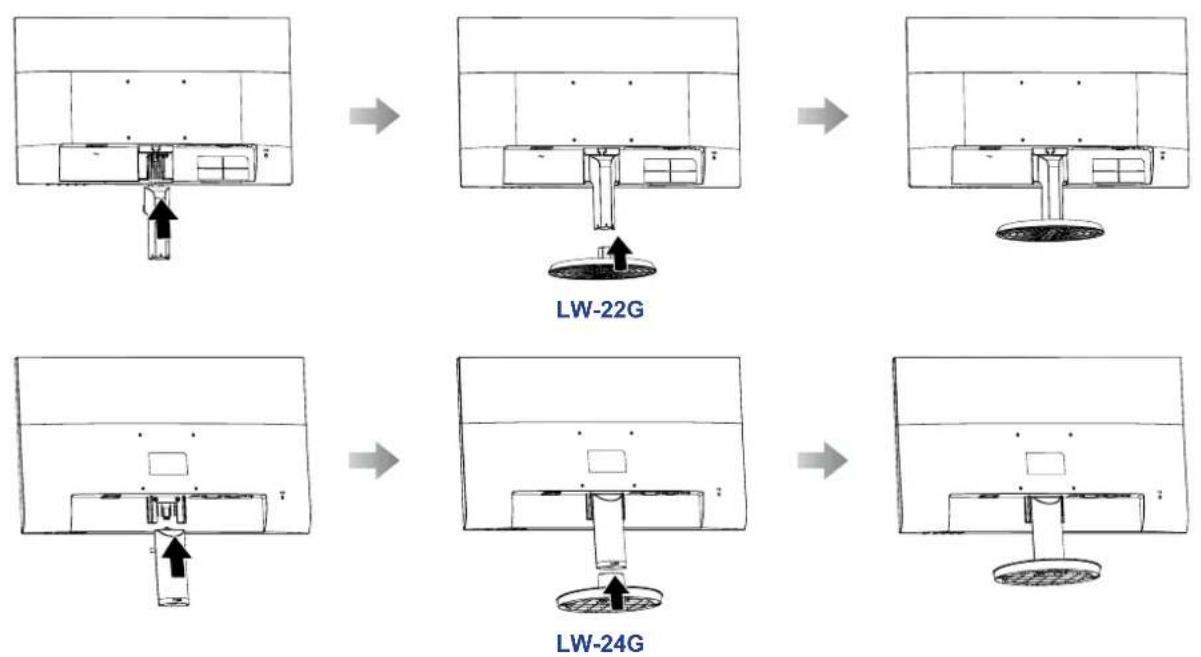

1.2.1 Installing the Stand

1. Place the LCD monitor with the screen side down on a cushioned surface.
2. Attach the stand to the LCD monitor.

a. Install the base mount to its compartment on the monitor.
b. Attach the stand to the base mount.

1.2.2 Adjusting the Tilt

For comfort viewing, tilt the LCD monitor up to an angle of 20^irc . Hold the stand with one hand and use the other to adjust the LCD monitor to the desired angle.

LW-22G LW-24G

PRODUCT DESCRIPTION

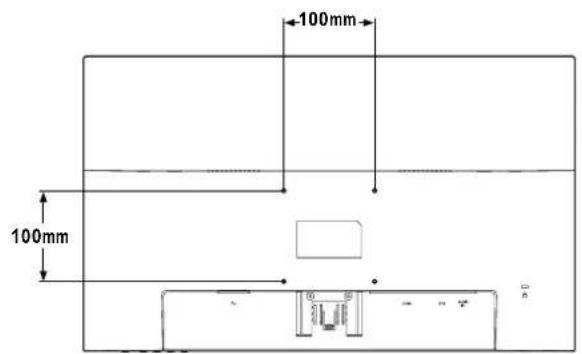

1.2.3 Wall Mounting

To wall mount the LCD monitor, do the following steps:

1. Remove the stand.

Please refer to page 27.

2. Wall mount the LCD monitor.

Screw the mounting bracket to the VESA holes at the rear of the LCD monitor.

LW-22G LW-24G

Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters.

• Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard.
• Secure the LCD monitor on a solid wall strong enough to bear its weight.
• It is suggested to wall mount the LCD monitor without tilting it facing downward.

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

PRODUCT DESCRIPTION

1.3 Overview

1.3.1 Front View

1 Monitor screen

2 Control buttons

Press the button to perform its function. For more information about each button, refer to pages 11-12.

PRODUCT DESCRIPTION

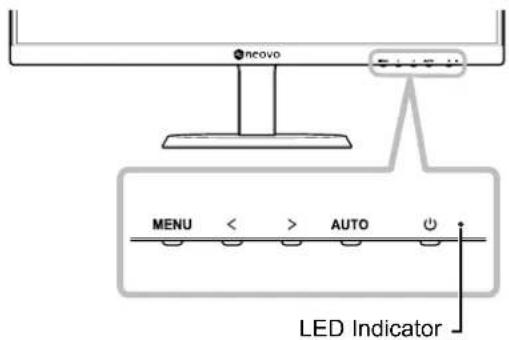

1.3.2 Control Buttons

LW-22G LW-24G

Button Description
Menu Button (MENU)	On Screen Display (OSD)Press to call out the OSD menu.During OSD menuUse to confirm the selection or enter a submenu.
Left / Right Button (◄/►)	Volume BarPress the ► button to call out the volume bar.Then press the ◀/► button to adjust the volume level.Note: During volume or menu setting adjustment, press and hold the ◀/► button to change the values continuously.Input Select BarPress the◄button to call out the Input Select bar.Then press the ◀/► button to switch the input source and press the MENU button to confirm.During OSD menuUse to scroll through the menu options.Use to select an option and adjust the settings.

PRODUCT DESCRIPTION

Button Description
Auto Button(AUTO)	Auto Adjustment (available in VGA input only)Press to perform auto adjustment. This function automatically tunes the LCD monitor to its optimal setting, including horizontal position, vertical position, clock, and phase.When auto adjustment is initiated, the below message is displayed on the screen.When the message disappears, this indicates the auto adjustment is completed.Note:During auto adjustment, the screen will slightly shake for a few seconds.It is recommended to use the auto adjustment function when using the LCD monitor for the first time or after a resolution or frequency change.During OSD menuUse to close the OSD menu or exit a submenu.During volume adjustmentUse to close the volume bar.
Power Button (⏻)	Power ON/OFFPress once to turn the monitor ON.Press again to turn the monitor OFF.
LED Indicator LED lights	green during normal operation and blinks green when on standby mode.

1.3.3 Rear View

1 \~

AC power input.

2 HDMI

Connect HDMI signals input.

3 VGA

Connect VGA signals input.

4 AUDIO IN

Connect audio signals input (3.5 mm Stereo Audio Jack).

CHAPTER 2: MAKING CONNECTIONS

CAUTION:

Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury.

2.1 Connecting the AC Power

1. Connect the power cord to the AC power input at the rear of the LCD monitor.
2. Connect the plug to a power outlet or power supply.

CAUTION:

When unplugging the power cord, hold the power cord by the plug head. Never pull by the cord.

MAKING CONNECTIONS

2.2 Connecting Input Source Signals

Input source signals can be connected with either of the following cables:

• HDMI

Connect one end of an HDMI cable to the HDMI connector of the LCD monitor and the other end to the HDMI connector of the computer.

• VGA

Connect one end of a D-sub 15-pin cable to the VGA connector of the LCD monitor and the other end to the D-sub connector of the computer.

MAKING CONNECTIONS

2.3 Connecting Audio Devices

- Audio Input

Connect one end of an audio cable to the audio port of the LCD monitor and the other end to the audio port of the computer.

CHAPTER 3: ON SCREEN DISPLAY MENU

3.1 Using the OSD Menu

1. Press the MENU button to call out the OSD window.

1. Press the ◀ or ▶ button to select a menu and press the MENU button to enter the selected menu.

A selected menu is highlighted in grey and the text of the selected menu option turns yellow.

1. Press the ◀ or ▶ button to select an option and press the MENU button to enter its submenu.

The text of the selected menu option or submenu turns yellow.

1. Press the ◀ or ▶ button to adjust the settings.
2. To exit the submenu, press the AUTO button.
3. To close the OSD window, press the AUTO button twice.

Note: When settings are modified, all changes are saved when the user does the following:

• Proceeds to another menu
- Exits the OSD menu
- Waits for the OSD menu to disappear

3.2 OSD Menu Tree

Main Menu Sub menu Reference
Colour Contrast Refe	to page 20.
	Brightness
	Color Temp. 9300
		6500
		5500
		USER
	Auto Adjust
	Color Adjust
Picture H. Position Re	fer to page 21.
	V. Position
	Clock
	Phase
OSD Language English Refer to page 22.
		Français
		Deutsch
		Italiano
		Русский
		Spanish
		Portuguese
		日本語
		한국어
		繁體中文
		简体中文
		Polski
		OSD H. Pos.
		OSD V. Pos.
		OSD Timer
		Transparency

ON SCREEN DISPLAY MENU

Main Menu Submenu Reference
Other Mode PC Refer to page 23.
		Vivid
		Movie
		Audio Volume
		Signal Source VGA
			HDMI
		Aspect Ratio 16:9
			AUTO
			4:3
		Active Contrast On
			Off
		Anti Blue Light
		ANTI-BURN-IN
Reset Reset Refer to page 24.

Note: Availability of some menu items depend on the input source signal. If the menu is not available, it is disabled and greyed out.

CHAPTER 4: ADJUSTING THE LCD MONITOR

4.1 Colour Setting

1. Press the MENU button to call out the OSD window.
2. Press the ◀ or ▶ button to select 🎨 and press the MENU button to enter the Colour menu.

1. Press the ◀ or ▶ button to select an option and press the MENU button to enter its submenu.

Item Function Operation Range
Contrast Adjusts	the difference between the black level and the white level.	Press the ◀ or ► button to adjust the value.	0 to 100
Brightness Adjusts	is the luminance of the screen image.
Color Temp.(Colour Temperature)	Provides several colour adjustment settings.	Press the ◀ or ► button to select the setting.	930065005500USER
	Colour temperature can be set to:9300 - Applies a bluish tint for cooler colours.6500 - This is the default colour temperature commonly used for normal lighting conditions.5500 - Applies a reddish tint for warmer colours.USER - This allows users to set the colour temperature by adjusting the red, green, or blue setting according to one's preference.a. Select USER and press the MENU button.b. Press the ◀ or ► button to select the colour you want to adjust. Then press the MENU button to enter its submenu.c. Press the ◀ or ► button to adjust the value (0 ~ 255).Note: Activate Reset to return the colour to its default setting.
Auto Adjust Automatically optimises image display.Note: This menu option is only available if the input source is VGA.		Press the MENU button to execute the function.	-
Color Adjust Operates the white balance and automatically adjusts the colour settings.Note: This menu option is only available if the input source is VGA.			-

ADJUSTING THE LCD MONITOR

4.2 Picture Setting

Note: This menu is only available if the input source is VGA.

1. Press the MENU button to call out the OSD window.
2. Press the ◀ or ▶ button to select 📋 and press the MENU button to enter the Picture menu.

1. Press the ◀ or ▶ button to select an option and press the MENU button to enter its submenu.

Item Function Operation Range
H. Position (Horizontal Position)	Moves the screen image to the left or right.	Press the ◀ or ► button to adjust the value.	0 to 100
V. Position (Vertical Position)	Moves the screen image up or down.
Clock Adjusts the frequency timing to synchronise with the video signal.
Phase Adjusts the phase timing to synchronise with the video signal.

ADJUSTING THE LCD MONITOR

4.3 OSD Setting

1. Press the MENU button to call out the OSD window.
2. Press the ◀ or ▶ button to select 📄 and press the MENU button to enter the OSD menu.

1. Press the ◀ or ▶ button to select an option and press the MENU button to enter its submenu.

Item Function Operation Range
Language Choose the language used for OSD menus.		Press the ◀ or ► button to select the setting.	EnglishFrançaisDeutschItalianoРусскийSpanishPortuguese日本語한국어繁體中文简体中文Polski
OSD H. Pos.(Horizontal Position)	Moves the OSD window to the left or right of the screen.	Press the ◀ or ► button to adjust the value.	0 to 100
OSD V. Pos.(Vertical Position)	Moves the OSD window up or down the screen.
OSD Timer Sets	the length of time (in seconds) the OSD screen is displayed. When the time elapses, the OSD screen is automatically inactivated.		5 to 60
Transparency Adjusts the transparency level of the OSD screen.			0 to 4

ADJUSTING THE LCD MONITOR

4.4 Other Setting

1. Press the MENU button to call out the OSD window.
2. Press the ◀ or ▶ button to select ✗ and press the MENU button to enter the Other menu.

1. Press the ◀ or ▶ button to select an option and press the MENU button to enter its submenu.

Item Function Operation Range
Mode Selects the	display mode.	Press the ◀ or ► button to select the setting.	PCVIVIDMovie
Audio Volume Adjusts the volume level of the built-in speaker.		Press the ◀ or ► button to adjust the value.	0 to 100
Signal Source Switches the input source.		Press the ◀ or ► button to select the setting.	VGAHDMI
Aspect Ratio Selects the aspect ratio of the screen image.			16:9AUTO4:3
Active Contrast Automationally adjusts the image contrast according to the scene.Note: If this function is On, Colour >Brightness/Contrast are grey out.			OnOff
Anti Blue Light	Enables/Disables the blue light filter function.When enabled, it decreases the amount of blue light displayed on the screen,ensuring users a comfortable viewing experience by reducing eyestrain after long periods of use.		0 to 100
ANTI-BURN-IN ENABLES	ENABLEEnables or disables Anti-Burn-inTM function.		OnOff
	INTERVAL (HOURS)Selects the interval time (hour) between activating the Anti-Burn-inTM function.		4568

ADJUSTING THE LCD MONITOR

4.5 Reset Setting

1. Press the MENU button to call out the OSD window.
2. Press the ◀ or ▶ button to select 📁 and press the MENU button to enter the Reset menu.

1. Press the MENU button to restore your device to factory settings.

CHAPTER 5: APPENDIX

5.1 Warning Messages

When any of these warning messages appear, check the following items.

Warning Message Cause Solution
	The resolution or the refresh rate of the graphics card of the computer is set too high.	√ Change the resolution or the refresh rate of the graphics card.
	The LCD monitor cannot detect the input source signal.	√ Check if the input source is turned ON.√ Check if the signal cable is properly connected.√ Check if any pin inside the cable connector is twisted or broken.

5.2 Troubleshooting

Problems Possible	Cause and Solution
No picture.• LED indicator is OFF.	• Check if the LCD monitor is turned ON.• Check if the power cord is properly connected to the LCD monitor.• Check if the power cord is plugged into the power outlet.
• LED indicator is green. •	Check if the computer is turned ON.• Check if the computer is in standby mode, move the mouse or press any key to wake up the computer.
Image position is incorrect.	• For VGA input, adjust the H. Position and H. Position settings in Picture ( menu (refer to page 21).
The displayed texts are blurry.	• For VGA input, do the following:√ Press the AUTO button to auto-adjust the monitor (refer to “Auto Button (AUTO)” on page 12).√ Adjust the Clock and Phase settings in Picture ( menu (refer to page 21).
Red, blue, green, white dots appear on the screen.	• There are millions of micro transistors inside the LCD monitor. It is normal for a few transistors to be damaged and to produce spots. This is acceptable and is not considered a failure.
No audio output. • Check if the volume is set to 0 (refer to page 11).• In Other ( ✉ ) menu, check if the Audio Volume setting is set to 0 (refer to page 23).• For VGA input, check the audio setting of the computer.
Dew formed on the LCD monitor.	• This normally happens when the LCD monitor is moved from a cold room to a hot room temperature. Do not turn ON the LCD monitor, wait for the dew condensation to disappear.
Faint shadows from a static image appear on the screen.	• Turn off the LCD monitor for extended periods of time.• Use a screen saver or a black and white image and run it for extended periods of time.

5.3 Transporting the LCD Monitor

To transport the LCD monitor for repair or shipment, place the monitor in its original packaging box.

1. Remove the stand.

a. Place the LCD monitor with the screen side down on a cushioned surface.
b. Press the latch(es) to detach the stand from the base mount. Then remove the stand.
c. Press the latch to detach the base mount. Then remove the base mount from its compartment on the monitor.

Technical diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Diagram of a mechanical or architectural component with a central shaft and base, showing no text or symbols.

LW-22G

Technical line drawing of a monitor with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a monitor with a base and a circular base, no text or symbols present.

LW-24G

1. Put the LCD monitor inside its original plastic. Then place the LCD monitor into the lower foam cushion.
2. Place the upper foam cushion on the top of the LCD monitor.
3. Put all accessories on their designated area.
4. Carefully place the items into the box. Then close and tape the box.

Note:

• It is recommended to use the original packaging box.
• When repacking, carefully place the LCD monitor in its box and protect the glass panel from touching any object.

CHAPTER 6: SPECIFICATIONS

6.1 Monitor Specifications

LW-22G LW-24G
Panel Panel Type LED	-Backlit TFT LCD (VA Technology)	LED-Backlit TFT LCD (VA Technology)
	Panel Size 21.5" 23.8"
	Max. Resolution FHD 1920 x	1080 FHD 1920 x 1080
	Pixel Pitch 0.248 mm 0.275 mm
	Brightness 250 cd/m2 250 cd/m2
	Contrast Ratio 20,000,000:1	(DCR) 20,000,000:1 (DCR)
	Viewing Angle (H/V)	178°/178°	178°/178°
	Display Colour	16.7M	16.7M
	Response Time	5 ms	5 ms
Frequency (H/V)	H Freq.	30 kHz-83 kHz	30 kHz-83 kHz
	V Freq.	50 Hz-75 Hz	50 Hz-75 Hz
Input VGA 15-Pin D-Sub x 1		15-Pin D-Sub x 1
		HDMI	1.4 x 1
Audio	Audio In	Stereo Audio Jack (3.5 mm)	Stereo Audio Jack (3.5 mm)
	Speaker	2W x 2	2W x 2
Power	Power Supply	Internal	Internal
	Power Requirements	AC 100-240V, 50/60 Hz AC 100-240V, 50/60 Hz
	On Mode	17W (On)	19W (On)
	Stand-by Mode	< 0.5 W	< 0.5 W
	Off Mode	< 0.3 W	< 0.3 W
Operating Conditions	Temperature	0°C-40°C (32°F-104°F)	0°C-40°C (32°F-104°F)
	Humidity	10%-85% (non-condensing)	10%-85% (non-condensing)
Transport/ Storage Conditions	Temperature	-20°C-60°C (-4°F-140°F) -20°C-60°C (-4°F-140°F)
	Humidity	5%-85% (non-condensing)	5%-85% (non-condensing)
Mounting	VESA FPMPMI	Yes (100 x 100 mm) Yes (100 x 100 mm)
Stand	Tilt	-5° to 20°	-5° to 20°
Security	Kensington Security Slot	Yes	Yes
Dimensions	Product with Base(W x H x D)	489.3 x 378.1 x 186.8 mm(19.3" x 14.9" x 7.4")	540.0 x 409.3 x 197.8 mm(21.3" x 16.1" x 7.8")
	Packaging(W x H x D)	541.0 x 110.0 x 368.0 mm(21.3" x 4.3" x 14.5")	614.0 x 112.0 x 410.0 mm(24.2" x 4.4" x 16.1")
Weight	Product with Base	2.8 kg (6.2 lb)	3.3 kg (7.3 lb)
	Packaging 3.6 kg (7.9 lb)	4.4 kg (9.7 lb)

Note: All specifications are subject to change without prior notice.

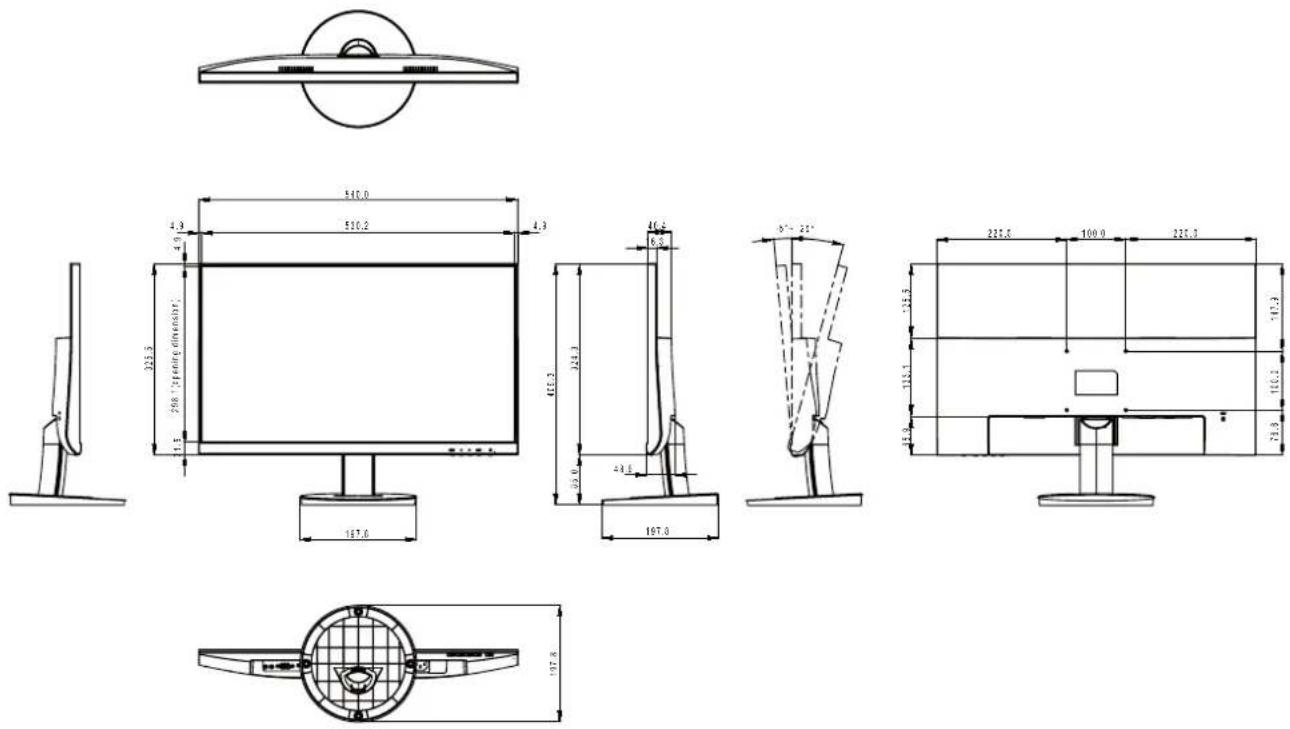

6.2 Monitor Dimensions

LW-22G

LW-24G

AG Neovo

Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.

Copyright © 2020 AG Neovo. All rights reserved.

LW4G00/LW2G00_UM_V011
