USER MANUAL H-CCR8089 HYUNDAI

Two glossy spheres with reflections, no text or symbols present

USB/SD/MMC MEDIA PLAYER WITH BUILT-IN 3" TFT-DISPLAY

USB/SD/MMC-MEDIAPLEEP CO

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 3

Utilization of the product 3

Important safeguards 3

Installation/Connection 4

Installation 4

General notes 4

Din Front/Rear-Mount 4

1. DIN front-mount (Method A) 4

Dismantling the unit 5

Trim frame installation 5

1. DIN rear-mount (Method B) 5

Detachable control panel 5

Anti-theft system 6

Connection 6

Connection diagram 6

ISO connection table 6

Using the ISO connector 7

Parking wire connection 7

Operation 8

Control elements 8

Front panel 8

Inner panel 8

Remote controller 9

Changing battery 9

General operations 10

Turning on/off 10

Volume control 10

Mute function 10

Setting the sound characteristics 10

System setup 10

Mode setting 11

AUX jack 11

Radio operations 11

Band selection 11

Manual/Auto tuning 11

Programming preset stations 11

Auto memory store 11

Preset scan 11

RDS function 11

AF (Alternative Frequencies) function ... 11

TA (Traffic Alarm)/TP function 12

PTY (Program Type) 12

USB/SD/MMC operations 12

USB/SD/MMC notes 12

Inserting a memory card/USB device ... 12

Play/pause 12

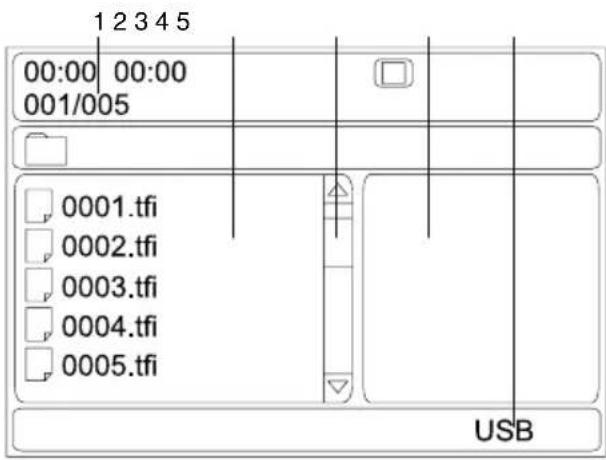

MP3/DivX/JPEG file playback 13

Stop playback 13

Selecting tracks 13

Fast forward/rewind 13

A-B segment repeat 13

Repeat playback 13

Goto 13

Random playback 13

OSD function 13

Zooming in/out 14

Changing angle 14

Selecting audio language 14

Selecting subtitle language 14

Selecting audio channel 14

ID3 tag information 14

System setup.... 14

General setup page 14

Speaker setup 15

Dolby Digital setup 15

Video setup 15

Preference setup 15

General information 17

Accessories.... 17

Troubleshooting guide.... 17

Cleaning the unit body 17

Specification 18

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

• Using the unit with the temperature that goes beyond the operation temperature greatly

decreases the operation resource of the screen and other components of the unit and can result in an outage.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.

- Keep the volume low enough so that you can hear sounds from outside the vehicle.

- Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

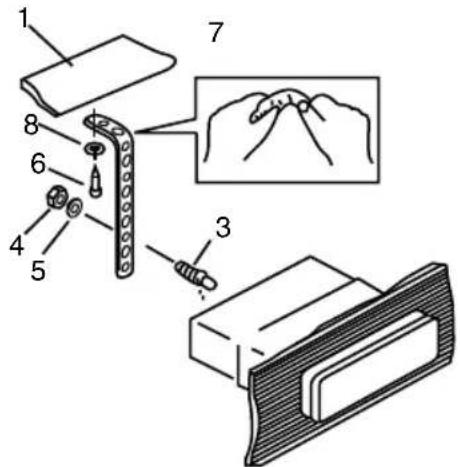

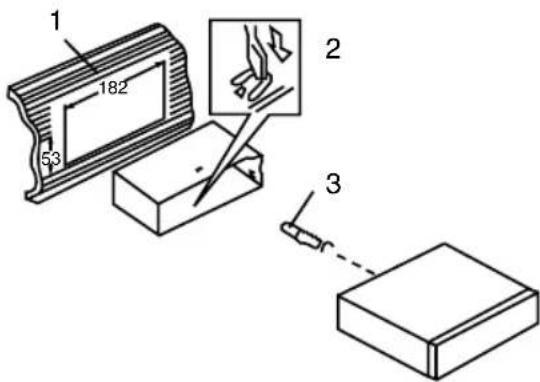

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 x 25 mm)
7. Metal strap
8. Flat washer

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.

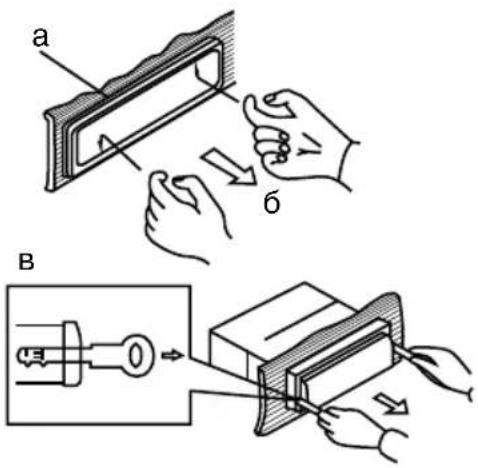

Dismantling the unit

a - Trim frame
b – Frame uninstall direction
c - Release key insertion

1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to click, as shown in the picture. To extract the unit from the dashboard, pull the release keys or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

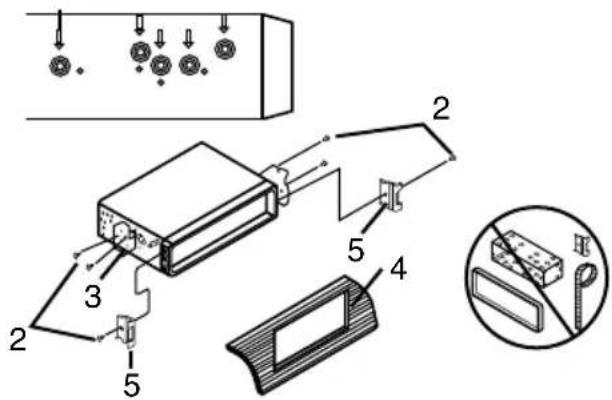

2. DIN rear-mount (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

The outer trim frame and mounting sleeve are not used for method of installation.

Detachable control panel

Insert the left locker of the body into the fixing hole on the side of the panel, then insert the right locker into the right hole of the panel. Press on the upper part of the panel until a click.

To detach the front panel, press OPEN button. Hold the panel at 45 degree angle and push it to the left to detach the right locker. Then detach the left locker.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with you.

Connection

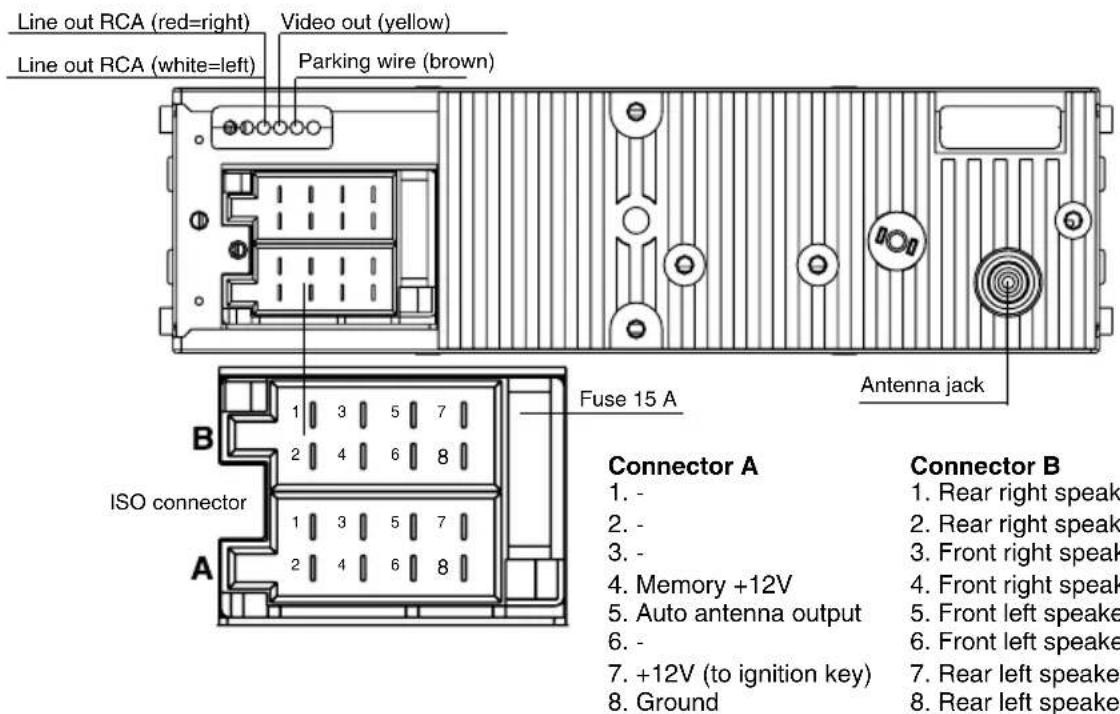

Connection diagram

ISO connection table

Location	Function
	Connector A Connector B
1 - Rear right (+) - Purple
2 - Rear right (-) - Purple/Black
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Power antenna/Blue Front left (+) - White
6 - Front left (-) - White/Black
7 Ignition key (+12V)/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black

Power antenna wire is intended for power supply of the antenna and for remote control of an additional amplifier.

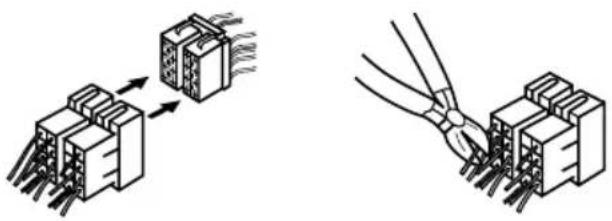

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

Two-step diagram showing a connector assembly process: one with internal wiring and arrow indicating direction, the other with hands holding pins (no text or symbols)

1. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table above for speaker and power cable connections.

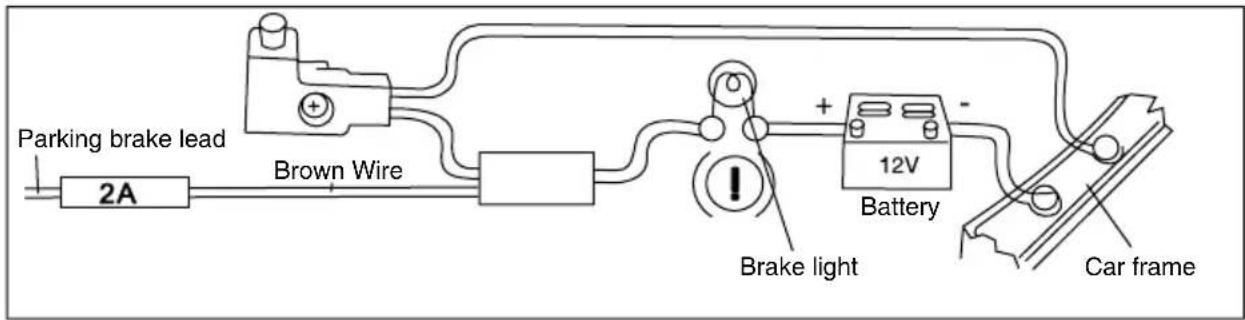

Parking wire connection

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status. When the car is moving ahead, if the video is played, the screen shows warning and blank screen. The warning screen will prevent the driver from watching images.

Control elements

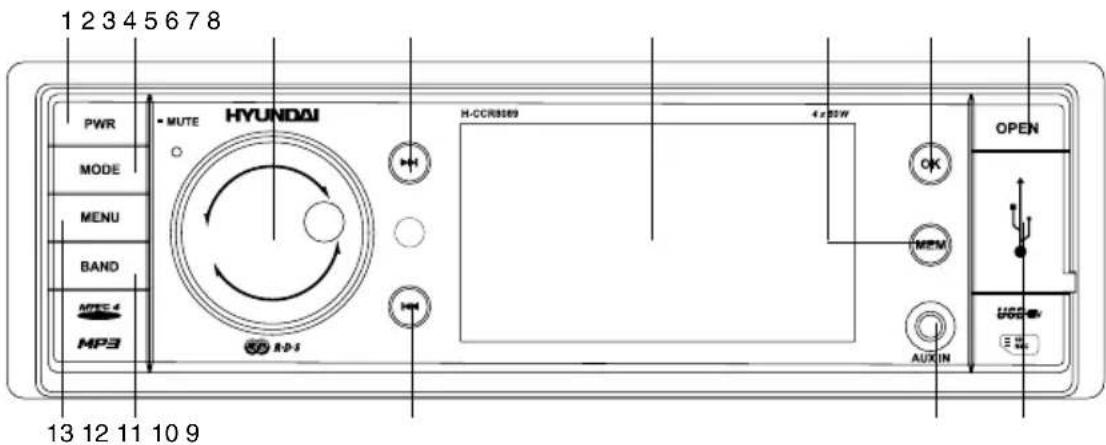

Front panel

1. PWR/MUTE button
2. MODE button
3. VOLUME knob
4. ▶ button
5. Display

6. MEM button

7. OK button

8. OPEN button
9. USB slot
10. AUX in jack
11. Button
12. BAND button
13. MENU button

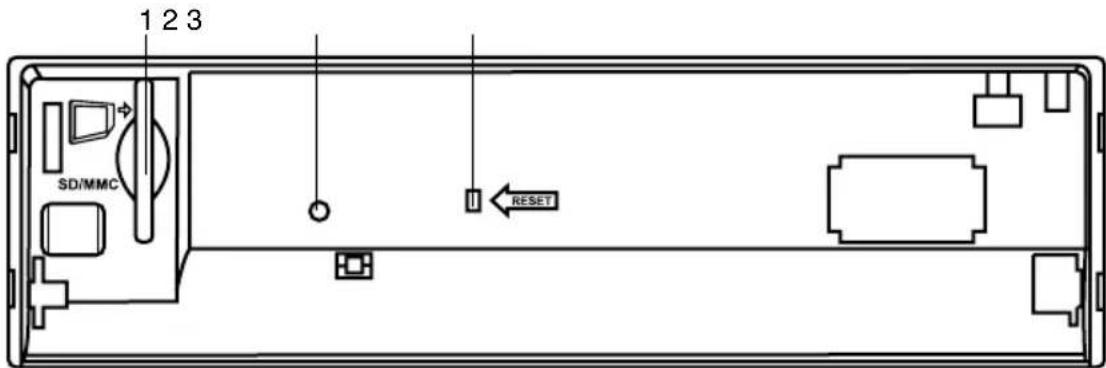

Inner panel

1. SD/MMC memory card slot
2. Panel status indicator
3. RESET button (hole)

Pressing RESET hole will erase the

clock setting and stored stations.

Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.

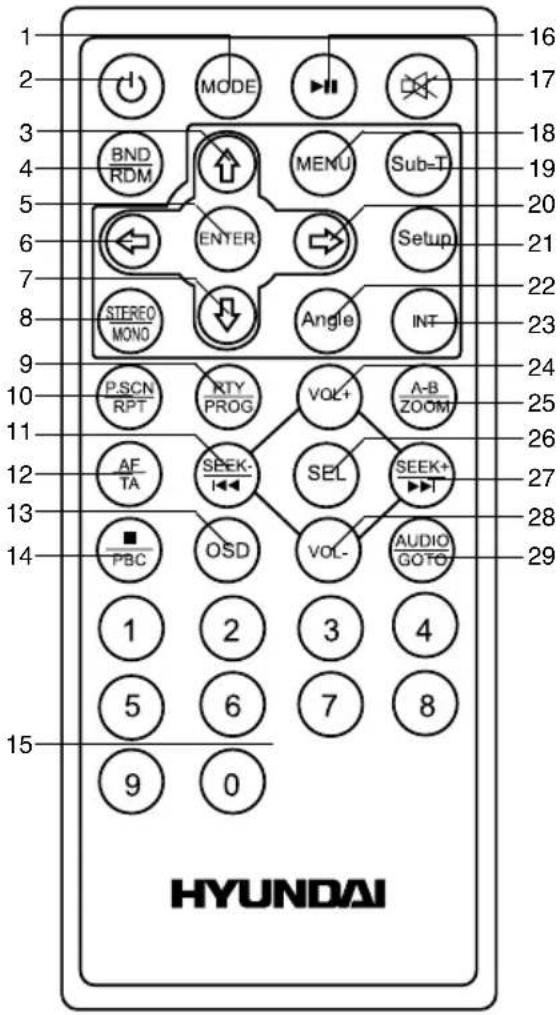

Remote controller

1. MODE button
2. POWER button
3. UP cursor button
4. BND/RDM button
5. ENTER button
6. LEFT cursor button
7. DOWN cursor button
8. STEREO/MONO button
9. PTY/PROG button
10. P.SCN/RPT button
11. SEEK-/button
12. AF/TA button
13. OSD button
14. PBC button
15. MODE button
16. POWER button
17. UP cursor button
18. BND/RDM button
19. ENTER button
20. LEFT cursor button
21. DOWN cursor button
22. STEREO/MONO button
23. PTY/PROG button
24. P.SCN/RPT button
25. SEEK-/button
26. AF/TA button
27. OSD button

28. PBC button

29. Digit buttons

30. ▶ button
31. MUTE button
32. MENU button
33. SUB-T button
34. RIGHT cursor button
35. SETUP button
36. ANGLE button
37. Button not operable for this model
38. VOL+ button
39. A-B/ZOOM button
40. SEL button
41. SEEK+/button
42. VOL- button
43. AUDIO/GOTO button

Changing the battery

1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 x lithium battery, type CR

2025 3 V with (+) mark facing up. Insert the battery tray into the remote control.

General operations

Turning on/off

Press POWER/MUTE button on front panel or press POWER button on the RC to turn on the unit. Press and hold one of these buttons to switch the unit off.

Volume control

Rotate VOLUME regulator or press VOL+/VOL- buttons on the RC to adjust the volume level.

Mute function

Press PWR/MUTE button on the panel or MUTE button on the RC to turn the sound off. Press it again or adjust the volume to turn the sound on.

Setting the sound characteristics

- Press repeatedly SEL button on the RC to enter the audio setting menu consisting of following items: VOL (Volume) => BAS (Bass) => TRE (Treble) => BAL (Balance) => FAD (Fader).

- Press VOL+/VOL- buttons on the RC or rotate VOL button on front panel to adjust the selected item.

If you turn off the power all the settings of each mode will be saved. If you don't adjust setting within 5 seconds after selecting the desired setting, the unit will automatically return to the current mode.

System setup

• Press MENU button to enter the setting mode.
• In the menu press LEFT/RIGHT cursor buttons on the RC to select a setting page. Press UP/DOWN cursor buttons on the RC to choose a setting.
• Rotate VOLUME knob on the panel or press VOL+/VOL- buttons on the RC to adjust a setting.
• Following setting pages are available: SETUP

ST: Set radio reception at STEREO or MONO mode. Improvement of reception of distant stations can be done by selecting mono mode, which may cut down some reception noise. To select stereo or mono you can also press STEREO/MONO button on the RC.

Time: Set the current time.

Time: Select 12-/24-hour time mode.

Beep: ON (beep sound will be heard when buttons are pressed) and OFF (no beep sound for button pressing).

Clock: Select ON to show the current time on the display. Select OFF not to show time.

Retune: 30S/60S. RETUNE refers to the time period the unit allows for radio scan when reception is interrupted. "30S" represents a time period of 30 seconds and "60S" represents a time period of 60 seconds.

Mask: DPI/ALL. During DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.

TA: Seek/Alarm. In SEEK mode, the unit will seek for traffic announcement program when TA is pressed; in ALARM mode, no TA/TP is displayed and the alarm is set off.


Mode: select picture mode: STD/SOFT/BRIGHT/USER.

Brightness: Supports 50 levels.

Color: Supports 50 levels.

Contrast: Supports 50 levels.

EQ

Mode: EQ OFF => POP => ROCK => CLASSIC => JAZZ => FLAT.

Bass: support 14 levels. Default level is 0.

Treble: support 14 levels. Default level is 0.

AUDIO

Balance: support 7 levels for each left and right channel.

Fade: support 7 levels for each front and rear channel.

Loud: Set loudness on or off. LOUD function is to emphasize the bass output.

Sub-w: not functional for this model.

Mode setting

Press MODE button to select between unit operation modes: TUNER => USB => Card => AV IN.

AV IN jack

AV input jack is intended for connecting an external audio or video equipment to amplify the sound. If connection is made correctly, the audio signal from the external source will be translated through the acoustics of the head unit. This enables to adjust the volume and quality of the sounding. For example, you can connect an MP3-player to listen to tracks using the car acoustic system.

Radio operations

Band selection

Press repeatedly BAND button on the panel or RDM/BAND button on the RC to select your desired radio band in RADIO mode: FM1, FM2, FM3, MW1 (AM1), MW2 (AM2). In each set of the bands you can store up to 6 preset stations, making total 30 preset memory stations.

Manual/automatic tuning

Manual tuning: To find a station, select a band first, then press and hold ◀◀◀▶buttons on the RC until MANUAL appears on the display or press and hold SEEK+/SEEK- buttons on the panel to enter MANUAL tuning, then press these buttons repeatedly to search for the needed frequency upward or downward.

Automatic tuning: To find a station, select a band first, then press ◀◀/▶buttons on the panel or press ◀◀/▶buttons on the RC, the automatic downward/upward search will start. It will play when a station is found.

Programming preset stations

- To store a station: Select a band (if needed); find a station by manual/automatic tuning. Then press repeatedly MEM button to choose a memory position (1-6), and finally press and hold MEM button to confirm. Or, after finding a station, press and hold a number button (1-6) on the RC to save the station in the corresponding memory position.

- To recall a station: Select a band (if needed); Press MEM button on the panel. Or press a number button (1-6) on the RC to call the station saved in the corresponding position.

Auto memory store

Select a band, press and hold RPT/P.SCAN button on the RC to enter auto store mode. The radio will automatically store 6 stations to the 6 preset memories of the current band. To stop auto store, press this button again.

During auto station preset, the unit will search and store stations with the strong signal first, and then weaker signal stations until the memories are full.

Preset scan

Select a band, press RPT/P.SCAN button on the RC to scan all preset stations in the memories of the current band, each preset scan for 5 seconds. To stop preset scan, press the button again.

RDS function

RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

AF (Alternative Frequencies) function

Press AF/TA button on the RC to turn on AF function. If the AF function is on, the display will show "AF".

When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when

driving between different transmitter coverage areas. When AF symbol is on, it means RDS information is received; when AF symbol is flashing, it means RDS information is not yet received. If RDS service is not available in your area, turn off the AF mode.

TA (Travel Announcement) / TP (Travel Program Identification)

Enable or disable TA mode by pressing and holding AF/TA button on the RC. Default setting is OFF.

When TA function is activated, it will search the station with TA information automatically. If there is no TA information, it will search the station with TP information automatically, if there is no TP information either, it will return to the previous station after searching.

When receiving the station with TP information but without TA information, TP icon is on and TA icon keeps blinking; when receiving the station with TP and TA information, both TP and TA icons are on.

When playing in other mode and TA information is received, it will change to the radio mode automatically. After playing over, it will return to the previous mode. To ignore the TA information, press AF/TA button on the RC or press and hold OK button on the panel.

PTY (Program Type) (for FM radio)

This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program.

Press PTY/PROG button on the RC repeatedly to show the various program type lists. In each list, press 1 - 6 number buttons to choose different programs available.

When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected. If no buttons are pressed within several seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, the unit will return to previous mode. Press PTY/PROG button on the RC to switch the PTY function off.

USB/SD/MMC operations

USB/SD/MMC notes

USB format supports 2.0. Capacity: up to 8 Gb.

For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb.

Inserting an SD/MMC card/USB device

Open the front panel and insert an SD/MMC memory card into the card slot. Open the USB slot cover on the front panel and insert a USB into the USB slot. Then the playing mode will be changed into Card or USB mode automatically. The first card/USB device track playback will start.

When SD/MMC card and USB device are both inserted, the playing mode will be changed into the mode of the device inserted later.

Play/pause

The unit will automatically play from the first sound track recorded on a SD/MMC/USB device. To ensure good system performance, wait until the unit finishes reading the device information before proceeding. Press ▶ button on the RC to pause playback, press it again to resume playback.

MP3/DivX/JPEG file playback

When you insert a storage containing MP3/DivX/JPEG file, the screen will show following interface:

1. Current playback information (elapsed/remaining time, bit rate, etc.)

2. Current folder/file list

3. Slide bar

4. ID3-tag window

5. Current storage

Use cursor buttons to navigate in the interface and press ENTER button to confirm your selection.

Some AVI files cannot be played due to their parameters and recording conditions. Video files more than 2 Gb having AVI extension can be played partially.

Stop playback

During playback of a USB/SD/MMC card, press ■PBC button on the RC to stop the playback. Press ▶button on the RC to start playback again. Playback will resume from the point it was stopped at. If you press ■PBC button on the RC twice, playback will stop completely and can be resumed only from the beginning of the contents.

Selecting tracks

During playback press SEEK- button on the RC or button on the panel to play the previous track. Press SEEK+ button on the RC or button on the panel to play the next track. Press number buttons (0-9) on the RC to select the desired track/chapter.

Fast forward/rewind

Press and hold repeatedly SEEK- or SEEK+ buttons on the RC or press repeatedly buttons on the panel for fast backward or forward playing correspondingly. With each pressing playback speed will increase. While fast playback, press button on the RC to resume normal speed.

When fast backward/forward playback reaches the previous or next track, the unit will resume normal playback.

A-B segment repeat

Press A-B/ZOOM button to set point A, press one more time to set point B and start A-B repeating. Press this button one more time to cancel the repeating function.

Repeat playback

Press P.SCAN/RPT button repeatedly for repeat playing in different modes: track/chapter repeat, folder repeat, repeat all, repeat cancel (depending on the format used).

GOTO

Press and hold AUDIO/GOTO button to show the playback parameters for the current chapter/track/time (track/title/chapter number or time). Press cursor buttons to navigate between the parameters and use number buttons to input needed settings. Press OK button on the panel or ENTER button on the RC to start playback from the set number or time.

Random playback

Press BND/RDM button on the RC to activate random playing mode. Press one more time to return to normal playing.

OSD (On-Screen Display) function

Press and hold OSD button on the RC repeatedly to show current playback information, such as number of track/chapter/title, current track/chapter/title elapsed/remaining, total track/chapter/title time remaining (depending on the file type).

Zooming in/out

During playback of video or images, press and hold repeatedly A-B/ZOOM button on the RC, the picture will be zoomed in the sequence: 2X => 3X => 4X => 1/2 => 1/3 => 1/4 => Normal.

Changing angle (for video only)

Press ANGLE button on the RC to playback images at different camera angles. If a file doesn't support multi-angle playback, this function will not work.

Selecting audio language (for video)

During DVD playback, press AUDIO/GOTO button on the RC repeatedly to select the audio language to listen. This function will not work if the file does not support multi-language audio (if ON is selected in Audio Type setting).

Selecting sound channel (for video)

During playback press AUDIO/GOTO button on the RC to select the channel: Mono L => Mono R => MIX Mono => Stereo (if OFF is selected in Audio Type setting).

Selecting subtitle language (for video)

If your DVD supports multi-language subtitle, press SUB-T button on the RC repeatedly to switch among supported languages.

ID3-Tag function

If a MP3 file has ID3-tag information in the supported ID3-format, such information will be displayed on the LCD while playback

System setup

1. Press SETUP button on the RC to enter the setup menu.
2. Use LEFT/RIGHT cursor buttons to choose the setup page: General, Speaker, Dolby, Video, Preference.
3. Use UP/DOWN cursor buttons to select

the option you want to adjust.

1. Press RIGHT cursor button to enter the adjustment list. Use UP/DOWN cursor buttons to select the adjustment and press ENTER button to confirm.

General setup page

GENERAL SETUP PAGE

TV DISPLAY

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

- TV DISPLAY

Normal/PS: When the unit connects to the normal TV set, the wide-screen image shows on the full screen, but some part is cut off (4:3).

Normal/LB: When the unit connects to the normal TV set, the wide-screen image shows and black bars appear on the top and bottom of screen (4:3).

Wide: Use this item when the unit is connected with the wide screen (16:9) TV set.

- ANGLE MARK

It will show the angle mark when playing DVD disc with multi-angle view if selecting On.

- OSD LANG

Select on-screen display language.

- CAPTIONS

This function doesn't work when the disc without caption. The default setup is On.

- SCREEN SAVER

If the Screen saver is set On and the unit is switched on without a disc playing for 3 minutes, a moving picture appears on the TFT.

Speaker setup

SPEAKER SETUP PAGE

DOWNMIX

- DOWNMIX

LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1CH format.

STEREO: The audio out format is stereo even if the original sound is 5.1CH.

Dolby Digital setup

DOLBY DIGITAL SETUP

DUAL MONO

- DUAL MONO

Select Stereo, L-Mono, R-Mono and Mix-Mono channel mode.

Video setup

VIDEO SETUP PAGE

SHARPNESS BRIGHTNESS CONTRAST

- SHARPNESS, BRIGHTNESS, CONTRAST

You can adjust sharpness, brightness and contrast in accordance with your preference.

Preference setup

PREFERENCE PAGE

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

- TV TYPE

This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or AUTO.

Auto: the TV system is auto switched according to the broadcasting system.

NTSC: this system is used in USA, Taiwan, Japan etc.

PAL: this system is used in China, Europe, Hong Kong etc.

• AUDIO, SUBTITLE, DISC MENU

Set the desired languages for all the settings. If a setting is supported by disc content, it will work. Otherwise the disc default value works.

- PARENTAL

The control level is for parental to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level can not be played.

Set the control level:

(1) with the least limits when playing.
(8) with the most limits when playing.

Original setting: OFF.

The rating can be selected only under the Password unlocked status, and the limits can be worked only under the password locked status.

- PASSWORD

OLD PASSWORD

NEW PASSWORD

CONFIRM PWD

OK

In order to make the Parental feature works, the password mode must be turned on. If you want to set the rating limit, you will need to enter the default password, which is 1369, then press ENTER to confirm. To change the password, enter the Password change submenu. Use the cursor buttons to select the desired field. In the Old password field insert the old password or 1369 (if you forget the old one). If you change the password, the default password 1369 will be void.

In New Password field insert the new password. Insert it again in Confirm password field. Press ENTER to save the new password.

- DEFAULT

Reset to the initial factory setups.

In this Manual, the OSD Menu may be changed without prior notice and thus differ from your real screen shown. This manual is just a sample to help you how to operate the menu setting.

Accessories

1. Receiver 1 pc
2. Front panel 1 pc
3. Protective case 1 pc
4. ISO adaptor set 1 pc

5. Remote controller 1 pc

6. Mounting parts:

Nut 5 mm 1 pc

Spring washer 1 pc

Plain washer 1 pc

Bolt 4 pcs

Screw 1 pc

Metal strap 1 pc

Release key 2 pcs

Mounting collar 1 pc

Trim frame 1 pc

Rubber cushion 1 pc

1. Instruction manual 1 pc

2. Warranty card 1 pc

3. Consumer information 1 pc

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom	Cause	Solution
No power	The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
	The fuse is blown.	Replace the fuse.
No sound	Volume is in minimum.	Adjust volume to a desired level.
	Wiring is not properly connected.	Check wiring connection.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak. Select stations manually.

Specifications

General

Power supply 12 V DC

Current consumption max. 10 A

Maximum power output 4 x 50 W

Dimensions 178 x 50 x 175 mm

Temperature range -10 ^ C - +60 ^ C

Display

Display 3" TFT

PAL/NTSC support +

Aspect ratio 16:9

Resolution 320 (RGB) x 240

Brightness 250 cd/m ^2

Contrast 400:1

View angle 120

FM stereo radio

Frequency range 87.5 - 108.0 MHz

Presettable stations 18

Usable sensitivity <15 dB

MW Section

Frequency range 522 kHz-1620 kHz

Presetable stations 12

Player

Storage support USB/SD/MMC

Format support MP3/MPEG4 (DivX)

Specifications are subject to change without notice. Dimensions are approximate.

Снятие устройства

Diagram of two connected electrical connectors with arrows indicating flow direction (no text or symbols)

Illustration of a hand connecting pins to an electrical connector (no text or symbols)
