USER MANUAL H-CMMD4059 HYUNDAI

Hyundai hydrogen fuel monitor displaying a gold sedan at sunset (no visible text or symbols on the device screen)

Two glossy spheres with reflections, no text or symbols present

MULTIMEDIA DVD RECEIVER WITH MOTORIZED 7" TFT DIS- PLAY AND TV TUNER

МУЛЬТИМЕДИЙНЫЙ

DVD-РЕСИВЕР С

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 4

Utilization of the product 4

Important safeguards 4

Installation/Connection 5

Installation.... 5

General notes 5

DIN front/rear mounting 5

DIN front mount (Method A) 5

Dismantling the unit 5

Trim frame installation 6

DIN-rear mount (Method B) 6

Detachable control panel 6

Anti-theft system 6

Connection 7

Connection diagram.... 7

Using the ISO Connector 7

ISO connection table 8

Parking wire connection 9

Reverse driving cable connection ..... 9

Illumination wire 9

Operation 10

Control elements 10

Front panel 10

Remote controller 11

Changing the battery 11

General operations 11

Touch screen 12

Turning the unit on/off 12

Open the monitor 12

Volume control 12

Setting the sound characteristics 12

Mute function 12

Mode selection 12

Angle setting 12

Monitor in/out 12

AV in jack 13

Subwoofer 13

Dual zone function 13

System setup 13

Sound page 13

Display page 13

RDS and Radio page 13

General page 14

DVD page 14

System info page 14

Radio operations 15

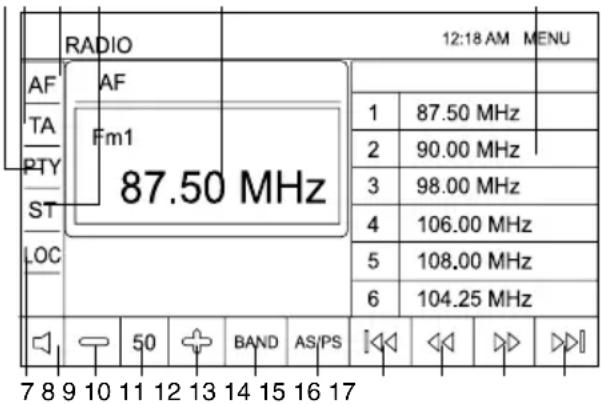

User interface of Radio mode 15

Band selection 15

Manual/automatic tuning 15

Programming tuner stations 15

Auto memory store/preset scan 15

RDS background 16

AF (Alternative frequencies) function .... 16

TA (Traffic alarm) function 16

Program type (PTY) 16

TV tuner operations 16

Disc/USB/SD/MMC operations 16

USB/SD/MMC notes 16

Insert/Eject disc.... 17

Inserting a memory card/USB device .... 17

DVD touch interface 17

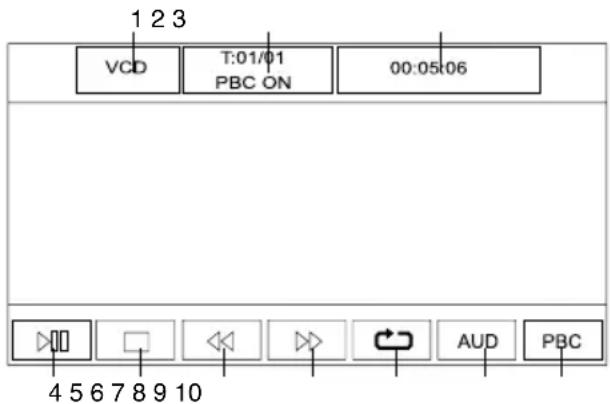

VCD touch interface 17

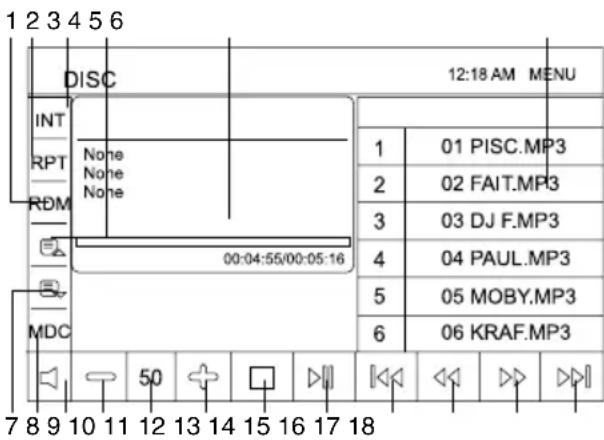

MP3/DivX/JPEG touch interface 17

Play/pause 18

Stop playback 18

Selecting tracks 18

Fast forward/rewind 18

A-B segment repeat 18

Repeat playback 19

Intro playback 19

Goto 19

Random playback.... 19

OSD function 19

Zooming in/out 19

PBC function 19

Changing angle.... 19

Selecting audio language 19

Selecting subtitle language 19

Selecting sound channel 19

Menu navigation 19

ID3 tag function 19

General information 20

Handling compact discs 20

Cleaning discs 20

Cleaning the unit body 20

Accessories 20

Troubleshooting guide 21

Specification 22

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

- Using the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen

and other components of the unit and can result in an outage.

- Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

- The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.

- When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

- Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

- Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.

- Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.

• Always keep the volume low enough so that you can hear sounds from outside the vehicle.

- Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 35^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

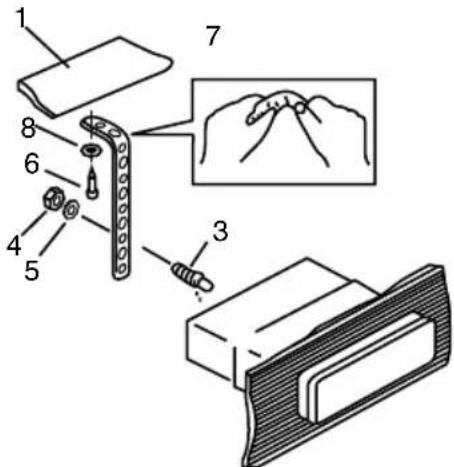

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 x 25 mm)
7. Metal strap
8. Flat washer

1 182 53 2 3

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve and screw in four frontal screws.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations

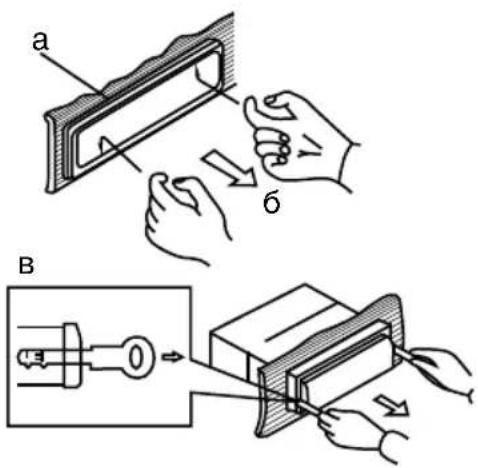

Dismantling the unit

a - Trim frame
b – Frame uninstall direction
c - Screws to be taken out

a b

1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.
3. Unscrew the four frontal screws nad pull out the unit from the sleeve towards yourself. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

2. DIN rear-mount (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

The outer trim frame and mounting

sleeve are not used for method of installation.

Technical diagram of a device with numbered components and an inset showing a close-up view of a component with a tool.

Detachable control panel

Put the right fixing hole of the panel onto the locker on the right side of the body, then press on the left part of the panel until a click.

To detach the front panel, press REL button. When it unfastens, carefully pull the panel out.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with you.

Connection

Connection diagram

Subwoofer (black wire with green head) Camera (black wire with yellow head) Rear video out (black wire with yellow head) TV antenna (black wire with black head) Radio antenna (black wire with black head) Rear output left (grey wire with white head) Rear output left (grey wire with red head) Line output front left (brown wire with white head) Line output front right (brown wire with red head) Line output rear left (grey wire with white head) Line output rear right (grey wire with red head) ISO connector 15 B 1 3 5 7 2 4 6 8 1 3 5 7 2 4 6 8

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

1.2.

1.2.

Illustration of a hand connecting pins to an electrical connector (no text or symbols)

1. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

ISO connection table

Location	Function
	Connector A Connector B
1 - Rear right (+) - Purple
2 Reverse/Pink Rear right (-) - Purple/Black
3 Parking/Brown Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Antenna, Amplifier control/Blue Front left (+) - White
6 Illumination/Orange Front left (-) - White/Black
7 Ignition/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black

Power antenna wire is intended for

power supply of the antenna and for remote control of an additional amplifier.

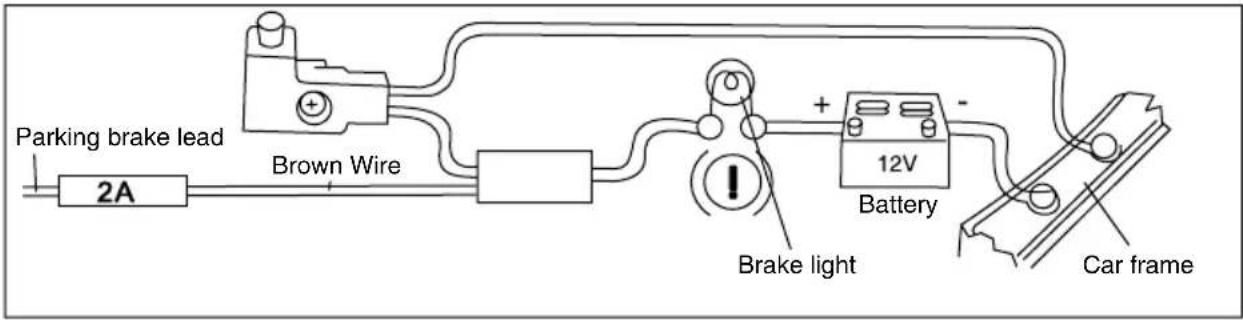

Parking wire connection

Parking brake lead 2A Brown Wire + - 12V Battery Brake light Car frame

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status, system setup and input video sources. When the car is moving ahead, if the video disc is played, the screen shows "ATTENTION!! You cannot use this function while driving", and blank screen. The above warning screen will prevent the driver from watching images.

Reverse driving cable connection

If the rear view video camera is connected, the unit automatically switches to CAMERA source during reverse driving. The unit returns to the original work mode after the reverse driving is done.

Illumination wire

The illumination wire should be connected to marker lights of the vehicle. The illumination (backlight) backlight is possible only when the marker lights are switched on.

Control elements

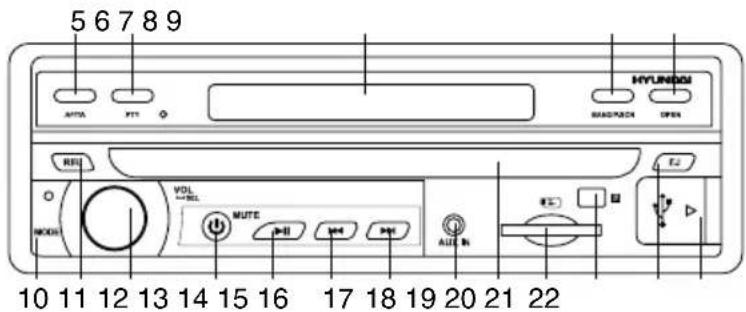

Front panel

1. TFT display
2. OSD button
3. IN/OUT button
4. TILT button
5. AF/TA button
6. PTY button
7. LCD display
8. BAND/P.SCN button
9. OPEN button
10. MODE button
11. REL button
12. VOL regulator/SEL button
13. POWER/MUTE button
14. ▶ button
15. ◀ button
16. ▶▶ button
17. AUX input
18. Disc slot
19. SD/MMC card slot
20. IR sensor
21. EJ button
22. USB port (under plastic cover)

Not indicated: panel status indicator (under the front panel) - flashes when the front panel is detached

HYUNDAI H-CMWD4093 4 x 50W 1 2 3 4

5 6 7 8 9 HYUNDDI AUTO FTT MUTRACH OPEN REF VOL REL MODE MUTE PHI PHI PHI AUTO IN 10 11 12 13 14 15 16 17 18 19 20 21 22

Remote controller (RC)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 MODE BND RDM ENTER EJECT PTY VOL+ AF PBC OSD SEL VOL- A/DIO GOTO MODE MENU Setup Angle A-B ZOOM SEEK- TILT DUAL HYUNDAI 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

1. MODE button
2. POWER button
3. UP cursor button
4. BND/RDM button
5. ENTER button
6. LEFT cursor button
7. DOWN cursor button
8. EJECT button
9. PTY button
10. P.SCN/RPT button
11. SEEK-/button
12. AF button

13. OSD button

14. ■/PBC button

15. Digit buttons
16. ▶Button
17. MUTE button
18. MENU button
19. SUB-T button
20. RIGHT cursor button
21. SETUP button
22. ANGLE button
23. INT button
24. VOL+ button
25. A-B/ZOOM button
26. SEL button
27. SEEK+/▶ button
28. VOL- button
29. AUDIO/GOTO button
30. TILT button
31. DUAL button

Changing the battery

1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 lithium battery, type CR2025 (3 V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote controller.

• Store the battery where children

cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.
• Please direct the Remote controller to the IR sensor of the front panel.

General operations

Touch screen

Due to the touch screen, you can fulfill most functions not only by pressing buttons but also by touching the options you need.

Turning the unit on/off

Press any button (except REL button and EJECT button) to switch the unit on. Press and hold POWER button on the RC or POWER/MUTE button on the panel to turn off the power.

Open the monitor

Press OPEN button on the unit to open the monitor. Press the button again, the monitor returns to the previous state. Do not obstruct opening/closing the monitor and do not do it manually.

Volume control

Press VOL+/VOL- buttons on the RC or rotate VOL regulator on the unit to increase/decrease the sound level.

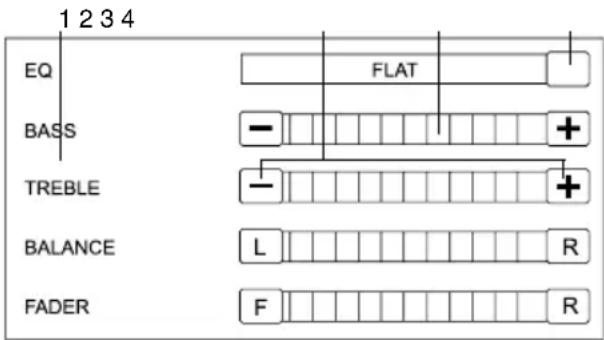

Setting the sound characteristics

Press SEL button to open the following menu:

1 2 3 4 EQ FLAT BASS - + TREBLE - + BALANCE L R FADER F R

1. Setting list. Touch a setting to select its adjustment.
2. Adjustment buttons. Touch them to adjust corresponding setting.
3. Adjustment slider. Touch to adjust a setting.
4. Equalizer mode selection button. Touch to

go to the mode list.

You can also adjust Equalizer, Bass, Treble, Balance and Fader by pressing the cursor buttons on the RC.

Mute function

Press MUTE button on the RC or POWER/MUTE button on the unit to turn off the sound. Press the button again or adjust volume to resume the sound output.

Mode selection

• Repeatedly press MODE button on the RC or on the unit to select a mode: Radio => Disc => USB => SD => TV => AV-in.
• In any mode touch right top corner of the screen or press MENU button on the RC to display the Main menu as follows:

MAIN Radio Disc USB SD TV AV-in Settings

In the menu, touch the item of the mode you need to select the corresponding mode.

The Disc, USB and SD modes are only available when a disc, USB or SD/MMC card is inserted into the unit.

Angle setting

Press repeatedly TILT button to adjust the desired angle of the monitor.

Please do not adjust the monitor tilt manually, otherwise it can get damaged.

Monitor in/out

Press repeatedly IN/OUT button on the front panel to adjust the monitor in/out position when the monitor is opened.

AV in jack

AV jack is intended to receive audio and video signals by connecting to external device.

Subwoofer

Connect a subwoofer to this unit using the Subwoofer output of this unit. For subwoofer operation an external amplifier is required.

Dual zone function

DUAL - dual zone function enabling user to listen to radio or watch TV in the front zone, and at the same time play audio or video from disc, USB or memory card.

For Dual zone en external monitor with is required having its own acoustic system and possibility of volume adjustment.

Press and hold SEL button on the front panel or press DUAL button on the RC to select between C-DUAL (buttons perform operations for the current mode of the front zone) or D-DUAL (buttons perform DVD functions).

System setup

When you select SETTING mode or press SETUP button on the RC, the menu will be displayed, in which you can touch any item to perform operations as follows:

1234

SETTINGS 12:18 AM MENU SOUND EQ FLAT DISPLAY BASS RDGS/RADIO TREBLE GENERAL L R DVD BALANCE F R FADER SYSTEM INFO SOUND 1 5 6

1. Menu page list. Touch any page icon to go to corresponding menu page.

2. Setting list. Touch a setting to select its adjustment.

3. Adjustment buttons.

4. Option selection button. Touch to go to option list for corresponding setting. Touch an option to select it.

5. Subpage number.

6. Subpage selection button. Touch to switch between suppages of each setting list.

You can also navigate in the menu by pressing cursor buttons on the RC and confirm your selection by pressing ENTER button on the RC.

Sound page

- EQ: Select Flat, Classic, Pop, Rock or User equalizer mode.

- Bass: Adjust the low-frequency level.

- Treble: Adjust the hogh-frequency level.

• Balance: Adjust the balance between left and right channels.

- Fader: Adjust the balance between front and left channels.

• Volume: Adjust the sound volume level.

- Beep: Select ALL (beep is heard at any button pressing), 2ND (beep is heard when a button is pressed and held) or OFF (no beep).

- Loud: Selecting loudness ON will emphasize the low frequency output.

- Subwoofer: set the subwoofer on or off.

Display page

• Screen: Select 16:9, 4:3 or FULL screen modes.
• Backlight: select LOW, MID or HIGH display backlight level.

RDS and Radio page

• Stereo: Select ON (stereo reception mode) or OFF (mono reception). When the received stereo signal is weak, switch to mono mode to improve the signal. The function is available only in FM bands.
• Local: Select ON (only local station reception) or OFF (local and distant station reception). The function is available only in FM bands.
  • TA volume: Adjust level of TA volume.
• Retune: Long/Short. RETUNE refers to the

time period the unit allows for radio scan when reception is interrupted. "Short" represents a time period of 30 seconds and "Long" represents a time period of 90 seconds.

• PI: Mute/Sound. PI sound refers to the reception noise when the AF function tries to scan alternative frequency.
• REG: REG ON (the receiver accepts regional variants of the tuned station with REG icon turned on), and REG OFF (the receiver ignores regional variants).
• Mask: DPI/ALL. During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.
• EON TA: DX/Local. If you want to receive information from local stations only, select EON TA Local mode. Otherwise, select EON TA DX mode.
• TA: Seek/Alarm. In TA SEEK mode, the unit will seek for traffic announcement program when TA is pressed; in TA ALARM mode, no TA/TP is displayed and the alarm is set off.

General page

• Dual: Select ON or OFF the Dual zone function.

• Key: Use buttons at CURRENT (buttons perform operations for the current mode of the front zone) or DVD (buttons perform DVD functions). This function is available only if ON is selected for DUAL.

• Tilt angle: Select the monitor tilt angle.

• Tilt IN/OUT: Select the monitor in/out position.
• Clock display: Select ON (clock is displayed) or OFF (clock is not displayed).
• Clock hour: select 12-hour or 24-hour clock display mode.
• Clock setting: A touchable keyboard is displayed. Input the current time and touch OK to confirm.

DVD page

- OSD lang: Select on-screen display

language.

• Subtitle lang: Select a DVD subtitle language.
• Audio lang: select a language of the DVD audio.
• DVD menu lang: Select a language of the DVD menu.
• Password: In order to make the Rating feature work, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 0000, then press ENTER to confirm. To change the password, enter the Password change submenu. If you change the password, the default password 0000 will be void.
• Rating: The Rating control level is for parents to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level can not be played.
• TV shape: Select 4:3/PS (the wide-screen image shows on the full screen, but some part is cut off, 4:3/LB (the wide-screen image shows and black bars appear on the top and bottom of screen, Wide (wide-screen image is shown).
• NTSC/PAL: Select color system NTSC or PAL.
• Default: Reset to the initial factory settings.

System info page

In this menu you can see the current version information. Besides, calibration function is available:

- Calibration: “Carefully press and hold stylus on the center of the target longer than 1 second” is displayed. Touch and hold the red cross in each position until it moves to a different position. After repeating it 4 times, the calibration of the screen is complete. The calibration procedure is useful when some malfunction occur with the touch screen, and it needs adjustment.

Radio operation

User interface of Radio mode

123456

RADIO 12:18 AM MENU AF TA PTY ST LOC AF Fm1 87.50 MHz 1 87.50 MHz 2 90.00 MHz 3 98.00 MHz 4 106.00 MHz 5 108.00 MHz 6 104.25 MHz 50 BAND AS/PS

When the unit is switched to Radio mode, the above touchable user interface will be displayed on the display.

1. PTY button. Touch to enable/disable PTY function. In the PTY list, touch a program type to start its search.
2. TA button. Touch to enable/disable TA function.
3. AF button. Touch to enable/disable AF function.
4. ST button. Touch to select stereo/mono reception mode.
5. Current band and frequency.
6. Preset station button. Touch to select the station. Touch and hold to save the current frequency under the preset number.
7. LOC button. Touch to select local/distant station reception.
8. Mute button; touch to switch sound on/off.
9. Volume down button. Touch to decrease volume.
10. Volume level.
11. Volume up button. Touch to increase volume.
12. BAND button. Touch to select bands.
13. AS/PS button. Touch to scan all saved stations in current band. Touch and hold to find and save 6 available stations in current band.

14. ◀ button. Touch for automatic search of the nearest station downwards.

15. ◀ button. Touch repeatedly to change frequency step by step downwards.

16. ▶ button. Touch repeatedly to change frequency step by step upwards.
17. ▶Button. Touch for automatic search of the nearest station upwards.

Band selection

Press BAND/RDM button on the RC or BND/P.SCN button on the panel to switch to the bands in the following order: FM1 - FM2 - FM3 - MW1 - MW2.

Manual/automatic tuning

• Manual tuning: press I buttons on the panel or SEEK-/▲ and SEEK+/▶ on the RC and hold for 2 seconds to enter the manual tuning mode. Press these buttons repeatedly to select a frequency downward or upward step by step.
• Automatic tuning: press ◀◀/▶buttons on the panel or SEEK-/◀◀ and SEEK+/▶◀ on the RC, the automatic search will start. It will play when finds the station.

Programming tuner stations

There are 6 numbered preset buttons on the RC, with which you can store and recall stations for each band (18 FM, 12 MW). Select a station, then press and hold a preset button. The station will be saved in the memory under the corresponding number. To recall a stored station, press the corresponding preset button.

Auto memory store/Preset scan

Auto store: Select a band, press and hold BAND/P.SCN button on the panel or P.SCN/RPT button on the RC to enter auto store mode. The radio will automatically store 6 stations to the 6 preset memories of the current band. To stop auto store, press the button again.

During auto station preset, the unit will search and store stations with the strong signal first, and then weaker signal stations until the memories are full.

Preset scan: Select a band, press BAND/P.

SCN button on the panel or P.SCN/RPT button on the RC to scan all preset stations in the memories of the current band. To stop preset scan, press the button again.

RDS background

RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available.

AF (Alternative frequencies) function

Briefly press AF button on the RC or press and hold AF/TA button on the panel to enable AF function. When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength.

AF indicator on the display will flash until RDS information is received. If RDS service is not available in your area, turn off the AF mode.

TA (Traffic alarm) function

Press TA button on the panel to switch on the TA function. When TA is on, the TA displays on TFT, or else, if there is no TP information, the mode will search TP station automatically. When TA is playing, the volume will be adjusted to a TA level automatically. When other modes are activated (such as DVD, AUX), if a TA program is played the mode will skip to the RDS mode automatically. It will resume to the primary mode after the TA is over.

Program type (PTY)

Briefly press PTY button on the RC or on the panel to activate PTY function. When PTY is on, you can press UP/DOWN cursor buttons or number buttons on the RC to select a program type to search the special program. When PTY info is available, press OSD button on the RC to display such information. If PTY is off, the searching is stopped.

TV tuner operation

• Connect a TV antenna to the TV antenna jack of the unit. Select TV mode.
• To access the TV mode menu, press MODE button on front panel or remote to select TV mode or Tap TV icon on main menu screen to enter TV mode, then press ▶ button on the RC or panel. To select a menu page (Auto Program or Manual Program) press UP/DOWN cursor buttons on the RC or touch these items on the screen. To enter the selected page press ENTER button on the RC. Press UP/DOWN cursor buttons on the RC or touch the needed item on the screen to select an item, and then press ENTER button on the RC or press the item on the screen to adjust the setting. Touch BACK item on the screen or press ▶ button on the RC or panel to return to last settings list.

AUTO PROGRAM

• System: select TV system (SECAM/PAL).
  • Audio: select sound system (DK/BG/I).
• Search: select to start automatic search and storing of TV channels.

MANUAL PROGRAM

• Storage: select the storage number of the channel.
• System: select TV system (SECAM/PAL).
  • Audio: select sound system (DK/BG/I).
• Channel: Select the number of the channel.
• Fine: perform fine tuning of picture quality.
• Memory: select on (memorize the found channel) or off (not memorize).

Disc/USB/SD/MMC operations

USB/SD/MMC notes

USB format supports 1.1. Capacity: up to 8 Gb.

For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb.

Insert/Eject disc

• Insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit. The first file in the root folder will be played.
• Press EJECT button to eject the disc from the slot. If the disc is not removed from the slot within several seconds, it will be automatically loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to another mode.

Inserting an SD/MMC card/USB device

Insert an SD/MMC memory card into the card slot. Open the USB slot cover on the front panel and insert a USB into the USB slot. Then the playing mode will be changed into Card or USB mode automatically. The first card/USB device track playback will start.

When SD/MMC card and USB device are both inserted, the playing mode will be changed into the mode of the device inserted later.

DVD touch interface

When a DVD is played, touch the center of the screen; the screen will show following interface:

1 2 3 DVD T:01/01 C:001/090 00:05:06 4 5 6 7 8 9 10 11 SUBT AUD MENU

1. Disc type
2. Current playback title/chapter/track number
3. Current playback time
4. PLAY/PAUSE button. Touch to start, pause or resume playback.

5. STOP button. Touch to stop playback

6. ◀ button. Touch repeatedly to change rewind speed.

7. ▶ button. Touch repeatedly to change fast forward speed.
8. REPEAT button. Touch repeatedly to select repeat playback mode.
9. SUBT button. Touch to select disc subtitle language.
10. AUD button. Touch to select disc audio language.
11. MENU button. Touch to go to the disc root menu.

VCD touch interface

When a VCD is played, touch the center of the screen; the screen will show following interface:

1 2 3 VCD T:01/01 PBC ON 00:05:06 4 5 6 7 8 9 10 AUD PBC

1. Disc type

2. Current playback title/chapter/track number and PBC status

3. Current playback time

4. PLAY/PAUSE button. Touch to start, pause or resume playback.

5. STOP button. Touch to stop playback

6. ◀ button. Touch repeatedly to change rewind speed.

7. ▶ button. Touch repeatedly to change fast forward speed.

8. REPEAT button. Touch repeatedly to select repeat playback mode.

9. AUD button. Touch to select audio channel.

10. PBC button. Touch to switch BPC function on or off.

MP3/DivX/JPEG disc touch interface

When a file disc, USB or a memory card is played, touch the center of the screen; the screen will show following interface:

1 2 3 4 5 6 DISC 12:18 AM MENU INT RPT None None RDM None 00:04:55/00:05:16 1 PISC.MP3 2 FAIT.MP3 3 DJ F.MP3 4 PAUL.MP3 5 MOBY.MP3 6 KRAF.MP3

1. RDM button. Touch for random playback.
2. RPT button. Touch to select repeat layback modes.
3. INT button. Touch for intro playback.
4. Touch the button to go to the previous file list page.
5. ID3-tag window.
6. File list. Touch the needed file to start its playback.
7. Touch to go to the next file list page.
8. MDC button. Touch to go to folder selection.
9. Mute button; touch to switch sound on/off.

10. Volume down button. Touch to decrease volume.

11. Volume level.

12. Volume up button. Touch to increase volume.

13. STOP button. Touch to stop playback.

14. PLAY/PAUSE button. Touch to pause or resume playback.

15. Touch to go to the previous file/track.

16. Touch the button repeatedly to select track rewind speed.

17. Touch the button repeatedly to select track fast-forward speed.

18. Touch the button to go to the next file/track.

Use cursor buttons to navigate in the interface and press ENTER button to confirm your selection.

Manufacturer guarantees regular playback of licensed discs only. Some AVI files cannot be played due to their parameters and recording conditions.

Play/pause

The unit will automatically play from the first sound track recorded on a disc/SD/MMC/USB device. To ensure good system performance, wait until the unit finishes reading the disc/device information before proceeding. Press ▶ button on the RC or on the panel to pause playback, press it again to resume playback.

Stop playback

During playback of a disc/USB/SD/MMC card, press ■/PBC button on the RC to stop the playback. Press ▶ button on the RC or on the panel to start playback again. Playback will resume from the point it was stopped at. If you press ■/PBC button on the RC twice, playback will stop completely and can be resumed only from the beginning of the disc.

Selecting tracks

During playback press SEEK-◀◀ button on the RC or ◀◀ button on the panel or on the screen to play the previous track. Press SEEK+▶◀ button on the RC or ▶◀ button on the panel or on the screen to play the next track. Press number buttons (0-9) on the RC to select the desired track/chapter number in 0001 format.

Fast forward/rewind

Press long repeatedly SEEK-◀◀ or SEEK+▶◀◀ buttons on the RC or press repeatedly ◀◀◀ or ▶◀◀ buttons on the panel or corresponding buttons on the screen for fast backward or forward playing correspondingly. With each pressing playback speed will increase. While fast playback, press ▶button on the RC or on the panel to resume normal speed.

When fast backward/forward playback reaches the previous or next track, the unit will resume normal playback.

A-B segment repeat

Press A-B/ZOOM button to set point A, press one more time to set point B and start A-B repeating. Press this button one more time to cancel the repeating function.

Repeat playback

Press P.SCAN/RPT button repeatedly for repeat playing in different modes: track/chapter repeat, folder repeat, disc repeat, repeat cancel (depending on the format used).

Intro playback

Press INT button on the RC to activate introduction function. Several initial seconds of each track will be played. Press the button again to cancel intro playback.

GOTO

Press and hold AUDIO/GOTO button to show the playback parameters for the current chapter/track/time (track/title/chapter number or time). Press cursor buttons to navigate between the parameters and use number buttons to input needed settings. Press ENTER button on the RC to start playback from the set number or time.

Random playback

Press BND/RDM button on the RC to activate random playing mode. Press one more time to return to normal playing.

OSD setting (for DVD)

Press and hold OSD button to access the on-screen menu in which you can adjust color parameters (brightness, contrast etc.) of the image by touching corresponding item.

Zooming in/out

During playback of video or images on disc/USB/SD/MMC, press and hold repeatedly A-B/ZOOM button on the RC, the picture will be zoomed in the sequence: Zoom2 =>Zoom3 =>Zoom4 =>Zoom1/2 => Zoom1/3 => Zoom1/4 => Normal.

PBC (Playback Control) (for VCD only)

This function is only available for the VCD with PBC function.

Press and hold ■/PBC button on the RC to set PBC on/off; when PBC is off, the screen will show PBC menu if you switch PBC on. If the menu consists of a list of titles, you can select a desired one using number buttons on the RC.

Changing angle (for DVD only)

Press ANGLE button on the RC to playback images at different camera angles. If a disc doesn't support multi-angle playback, this function will not work.

Selecting audio language (for DVD only)

During DVD playback, press AUDIO/GOTO button on the RC repeatedly to select the audio language to listen. This function will not work if a disc does not support multi-language audio.

Selecting subtitle language (for DVD)

If your DVD disc supports multi-language subtitle, press SUB-T button on the RC repeatedly to switch among disc-supported languages.

Selecting sound channel (for VCD only)

During VCD disc playback press AUDIO/GOTO button on the RC to select the channel: Mono L => Mono R => MIX Mono => Stereo.

Menu navigation (for DVD only)

Press and hold MENU button on the RC to activate the disc menu list on the screen. Choose the desired item. Press ENTER button or ▶ button on the RC or on the panel or touch corresponding button on the screen to confirm the selected item and start playing.

Title and menu are only available if the disc has these functions.

ID3 Tag function

If a MP3 file has ID3 tag information in the supported ID3 format, such information will be displayed on the LCD while playback.

Handling compact discs

Handling compact discs

• Do not insert anything other than a CD into the CD loading slot.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player.
• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
• Store discs in their cases when not in use.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature (such as leaving the discs in your car during summertime) can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use shaped discs.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Illustration of hands holding a leaf with a crossed-out arrow indicating force or pressure (no text or symbols)

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Accessories

1. Receiver ...1.pc......
2. Front panel ....1.pc ....
3. Protective bag ....1.pc....
4. Remote controller ..1 pc....
5. ISO connector ....1.pc ....
6. Audio-video cable ..1.pc.....
7. Mounting parts: Mounting sleeve ... 1 pc....

Outer trim ring ....1.pc....
Steel bar ....1 pc ....
Screw M5 ...4.pcs......
Nut M5 ....1.pc....
Flat washer ....1 pc ....
Spring washer ...1 pc....
Rear mounting bolt ..1.pc......
Release keys ...2.pcs......

1. Consumer information ...1.pc ....
2. Warranty card .....1.pc.....
3. Instruction manual ....1 pc ....

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause Solution
No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
No sound Volume is in minimum. Adjust volume to a desired level.
Bad sound quality	The installation angle is more than 35 degrees.	Adjust the installation angle to less than 35 degrees.
	The disc is extremely dirty or defective.	Clean the compact disc/try to play a new one.
Disc cannot be loaded or ejected	The unit already contains a disc.	Remove the disc in the player then put a new one.
	Moisture condensation. Leave the unit idle for an hour, then retry.
Disc cannot be read	The disc is inserted upside down.	Insert the compact disc with the label side facing upward.
	Compact disc is extremely dirty or defective.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off until the ambient temperature returns to normal.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak.	Select stations manually.

Specifications

General

Power supply: 12 V DC

Maximum power output: 4 x 50 W

Dimensions 165 x 50 x 178 mm

Mounting angle 0 to +/-30

Working temperature range -20 ^ C - +60 ^ C

Display

Display Motorized 7" TFT

Resolution: 480 (RGB) x 234

Aspect ratio: 16:9

Contrast ratio: 500:1

Brightness: 200 cd/m ^2

View angle: 120

FM Stereo Radio

Frequency range: 65.0 – 74.0/87.5 – 108.0 MHz

Preset memory stations: 18

MW Radio

Frequency range: 522 kHz - 1620 kHz

Preset memory stations: 12

TV Tuner

Color System: PAL/SECAM

Tuning Range: 48.25 – 863.25 MHz

Disc player

ESP function: 8 sec. for DVD, 40 sec. for Audio-CD, 120 sec. for MP3

Compatible storages: DVD/DVD±R/±RW, CD-R/-RW, USB/SD/MMC

Compatible formats: DVD-video/DVD-audio/SVCD/VCD/HDCD/MP3/CDDA/JPEG/MPEG4 (DivX/XviD)

Terminals

Stereo output RCA (2 V) 2

AUX input 1

Audio-video output (RCA) 3

Subwoofer pre-out 1

Rear camera input 1

Specifications are subject to change without notice. Dimensions are approximate.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations and magnified detail view

Снятие устройства

Technical diagram of a device with numbered components and exploded view, including labeled parts and a magnified inset showing a component being cut.

Diagram of two connected electrical connectors with heat exchangers, no text or symbols present

Diagram of a connector with pins being inserted into a terminal block (no text or symbols)

MAIN Radio Disc USB SD TV AV-in Settings

Illustration of two hands performing a manual manipulation or disassembly task (no text or symbols present)
