Product Type	Freestanding Condenser Tumble Dryer
Brand	Teka
Model	WDK 81050 WH
Color	White
Drying Capacity	8 kg
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	Approximately 40 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	2000 W
Energy Efficiency Class	B (estimated)
Drying Programs	Cotton, Synthetics, Delicates, Quick, Shirts, Mixed, Wool, Eco
Key Functions	Delay Start, Anti-Crease, Child Lock, Drying Level Selection, Timer, Sensitive Drying System
Noise Level	65 dB (estimated)
Condenser Auto-Clean	Yes (with self-cleaning condenser technology)
Lint Filter	Easy-access, washable
Water Tank Capacity	3.5 L (approx.)
Door Hinge	Left (reversible)
Display	LED with program status
Maintenance	Clean lint filter after each cycle; empty water tank; clean condenser periodically
Safety Features	Overheat protection, child lock, start delay, anti-flood system
Spare Parts Availability	Available through Teka service centers or authorized dealers
Reparability	Designed for easy access to key components; repair manuals available
Included Accessories	Condenser brush, user manual, warranty card

Frequently Asked Questions - WDK 81050 WH TEKA

What is the drying capacity of the Teka WDK 81050 WH?

The Teka WDK 81050 WH has a drying capacity of 8 kg, suitable for medium to large loads.

How do I clean the lint filter?

Open the door and pull out the lint filter located at the bottom of the door opening. Rinse under running water, dry thoroughly, and reinsert. Clean after every drying cycle for optimal performance.

What should I do if the dryer does not start?

Check if the power cord is plugged in, the door is fully closed, and the program is selected. Also ensure the child lock is disabled. If still not starting, consult the troubleshooting section.

How do I empty the water tank?

Pull out the water tank drawer located at the bottom left or top right (depending on model). Pour out the water and replace the tank. An indicator will notify when full.

What are the common drying programs?

Programs include Cotton, Synthetics, Delicates, Quick (30 min), Shirts, Mixed Load, Wool, and Eco. Choose based on fabric type.

How can I reduce energy consumption?

Use Eco programs for full loads, clean the lint filter regularly, and ensure proper ventilation. Also, spin clothes at high speed in the washer before drying.

Is the Teka WDK 81050 WH vented or condenser?

It is a condenser tumble dryer that uses a heat exchanger to remove moisture. No external venting required; water collects in a tank or can be drained via a hose.

What is the noise level during operation?

The noise level is approximately 65 dB, similar to a normal conversation. It is considered quiet for a tumble dryer.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a padlock icon) for 3 seconds until the indicator lights up. To deactivate, repeat the same step.

What is the warranty period for this dryer?

Teka typically offers a 2-year manufacturer warranty for domestic use. Registration may extend coverage. Check your warranty card for details.

USER MANUAL WDK 81050 WH TEKA

Modern kitchen interior with glossy black cabinets and stainless steel ovens, featuring a 'TEKA' logo in the top-right corner (no other text or symbols)

User Manual

WDK 81050 WH

EN ES PT

SAFETY INSTRUCTIONS

■ Safety Instructions .... 2

INSTALLATION

■ Product Description 9

■ Installation 10

OPERATION

■ Quick Start 13

■ Before Each Washing 15

■ Detergent Dispenser 16

■ Control Panel.... 18

■ Programmes....19

Option.... 23

MAINTENANCE

■ Cleaning and Care 27

■ Trouble Shooting 30

■ Technical Specifications .... 31

■ Product Fiche 32

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

⚠ Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  Risk of electric shock!

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children should be supervised that they do not play with the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
- Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.

• Do not operate the machine in rooms with a temperature of below 5^ircC . This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning of drain pump filter") to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washer dryer, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
  • Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

⚠ Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
  • Always pull at the plug, not at the cable.
  • Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate.

• The washer dryer is not to be used if industrial chemicals have been used for cleaning. Risk of explosion.

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance.
  • Thoroughly rinse items that have been washed by hand.
• Do not dry unwashed items in the appliance.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

• Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person
-Accumulated water shall be drained out of the machine
- This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use. Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

• This appliance is intended to be used in household and similar applications such as:
  -Staff kitchen areas in shops, offices and other working environments;
  -Farm houses;
  -By clients in hotels, motels and other residential type environments;
  -Bed and breakfast type environments;
  -Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

■ Product Description

Note!

- The product picture is for illustration only, please refer to real product as reference.

Accessories

Four-panel image showing four circular objects and a magnifying glass, alongside an open book (no text or symbols)

4 x Cover caps
1x Supply hose cold water
1x Owner's manual

■ Installation

Installation area

⚠ Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface

2.Avoid direct sunlight

1. Sufficient ventilation

4.Room temperature is above 0^ircC

1. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a rectangular box with a central circle and two intersecting X-shaped lines (no text or symbols)

Unpacking the washer dryer

⚠ Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a mechanical component with a wrench and circular screw head, no visible text or symbols

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, with a striped pattern on the side (no text or symbols)

Close the holes using the cover caps.

Levelling the washer dryer

⚠ Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a white camera lens mounted on a base with a blue circular arrow indicating rotation (no text or symbols)

1. Loosen the lock nut.

2. Turn the foot until it reaches the floor.

3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

⚠ Warning!

To prevent leakage or water damage, follow the instructions in this chapter

· Do not kink, crush or modify water inlet hose.

Illustration of a white cartoon character with blue arrows indicating motion or rotation (no text or symbols)

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Close-up of a faucet with blue directional arrows indicating flow or movement (no text or symbols)

4 Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough. 2. Connect it to the branch drain pipe of the trough.

Quick Start

① Caution!

• Before washing, please make sure the washer dryer is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washer dryer, so that provide the best performance. The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washer dryer and press "Temp." and ".Dohaltaneously for 10 seconds until "t19" is displayed;
4- Press [▷||] to start the appliance and wait till “****” is displayed.

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

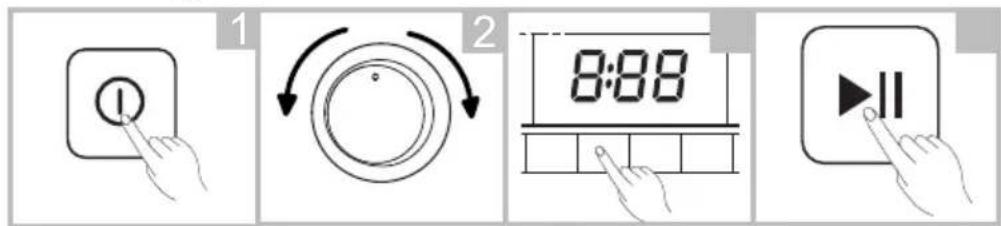

2. Washing

Power On
Select programme
Select function or remain default settings
Press
Start/Pause to start the program

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

• The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a decorative bag and patterned tie (no text or symbols)

Check the care label

Simple line drawing of a bag being filled with plastic bags, showing a handbag and bag inside a basket (no text or symbols)

Sort laundry according to color and textile type

Take all items out of the pockets

Two handbags with circular designs, one wrapped in a strap and the other in a blanket (no text or symbols)

Tie together long textile strips and belts, close zips and button

Line drawing of a money bag with a grid pattern and a small animal on its side (no text or symbols)

Put small items into a laundry bag

Line drawing of a knitted sweater with three arms (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

⚠ Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	|	||/△	✿	Programme	|	||/△	✿
Cotton	○	●	○	Rinse &Spin			○
Mix	○	●	○	Wool		●	○
Wash and Dry		●	○	ECO 40-60		●	○
Dry Only				Sterilization		●	○
20°C		●	○	Fast		●	○
Baby Care	○	●	○
Drum Clean
Spin Only

● Means must ○ Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton,ECO 40-60,Mix	20/30/40/60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton,ECO40-60,Mix, 20°C	Cold/20/30/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20°C	Cold/20/30/40	Coloured laundry made from easy care fibres or synthetic materials
Special wool detergent	Wool	20 30/	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
  · To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
  · Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
  · Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

Control Panel

1 On/Off

Turn the appliance on and off.

2 Start/Pause

Start or pause your programme.

3 Option

This allows you to select additional functions and will light when selected.

4 Programmes

Available according to the laundry type.

5 Display

The display shows settings, estimated remaining time, options and status messages.

Programmes

Programme	Load(kg) Default	Time
	10.0	10.0
Cotton	10.0/7.0	3:39
Mix	10.0/7.0	1:20
Wash and Dry	10.0/7.0	5:23
Dry Only	-7.0	4:33
20°C	5.0	1:01
Baby Care	10.0/5.0	1:42
Drum Clean	-	1:18
Spin Only	10.0	0:12
Rinse&Spin	10.0	0:20
Wool	2.0	1:07
ECO 40-60	10.0	3:59
Sterilization	5.0	2:27
Fast	2.0/1.0	0:15

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Programmes

WDK 81050 WH
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in KWh/cycle	Water consumption in L/cycle	Highest washing temperature ircC1)	Residual moisture in % / Spin speed in rpm2)
20°C	5.0	20	1:01	0.195	51	20	65% / 1000
Cotton (60°C)	10.0	60	3:44	1.972	85	60	53% / 1500
Mix	10.0	40	1:20	0.871	85	40	70% / 800
Fast	2.0	Cold	0:15	0.030	31	Cold	75% / 800
Sterilization	5.0	70	2:27	1.950	65	70	70% / 800
ECO 40-60 3)	10.0	-	3:59	1.015	70.6	38	53% / 1450
	5.0	-	3:00	0.635	55.3	33	53% / 1450
	2.5	-	3:00	0.286	38.8	23	53% / 1450
Wash and Dry 4)	7.0	-	9:40	4.255	115.0	30	3% / 1500
	3.5	-	7:00	2.193	77.0	21	3% / 1500

- The above data is for reference only, and the data may change due to different actual use conditions.

- The valves given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.

- Concerning to EN 60456:2016/pr/2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: D

Energy test program: ECO 40-60. Other as the default.

Energy test program: Wash and Dry; Extra Dry. Other as the default.

Half load for 10.0kg machine:5.0kg.

Quarter load for 10.0kg machine:2.5kg.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
Rinse&Spin	Extra rinse with spin.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C	20% default, can choose cold water.
ECO 40-60	Suitabale for laundry washing at about 40 -60°C
Fast	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
1h W/D	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts).
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Spin Only	Extra spin with selectable spin speed.
Drum Clean	Specially set in this machine to clean the drum and tube. It applies 90°C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.
Dry Only	Select it to dry clothes, the temperature is different. The drying time according to the load.
Wash and dry	The standard energy program.
Sterilization	Consistent 70°C washing ensures sterilization effects.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^irc C or 60^irc C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.
4) The Wash and Dry programme, dry level setting Extra Dry is able to clean normally soiled cotton laundry declared to be washable at 40^irc C or 60^irc C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washer-dryer up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

⚠ Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm	Additional functions
1500
Cotton	40	1500
Mix	40	800
Wash and Dry	-	1500
Dry Only	-	1500
20°C	20	1000
Baby Care	60	1000
Drum Clean	90	-
Spin Only	-	1000
Rinse &Spin	-	1000
Wool	40	600
ECO 40-60	-	1500
Sterilization	70	800
Fast	Cold	800

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 and Wash and Dry programs, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Temp.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.

Spin

When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 0-400-600-800-1000-1200-1400-1500

Delay

1. Select a programme
2. Press the Delay button to choose the delaying time 0-24h
3. Press [Start/Pause] to start the delay operation

Choose programme

StartSetting time

To cancel the Delay function, press the "Delay" button before starting the program until the display shows 0 h. If the program has already started, switch the appliance off and afterwards on and select a new programme.

Pre Wash

Extra washing function before the main washing cycle starts to increase the washing performance. Note: Detergent needs to be added to the compartment I.

Extra Rinse

The laundry will undergo an extra rinse after selecting this function.

Speed Wash

The function decreases the washing time.

Steam

SpaCare function can be selected by choose "Cotton", "Mix", and "Baby Care". The customers can see the steam in the drum when operate SpaCare function.

Favorite

To memory the frequently used programme. After choosing the programme and setting the options, press [Spin] 3 sec. before start to wash. The default setting course is Cotton.

Caution!

- Don't use the Reload function when the water level over the edge of the inner tub or the temperature is higher.

Dry Level

Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry/Timed Dry.

Extra Dry: Need to wear clothes immediately, we can choose this function

NormalDry: The normal dry procedure

Timed Dry: We can choose this function to dry clothes for a specific time.

Note!

· Drying hints

• Clothes could be dried after spinning
• To ensure quality dry the textiles, please classify them according to their kinds and the drying temperature.
• Synthetic should be set the proper drying time.
• If you want to iron the clothes after drying, please put them for a while.

• Clothes not suitable for drying

• Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.
• Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.
• Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Mute the buzzer

Start

Press the [Temp. button for 3sec.,the buzzer is mute.]

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

- MuAfter ting the buzzer function, the sounds will not be activated any more.

Child Lock

This function is meant to keep children from misusing the controls.

Press [Spin] and [Simultaneously for 3 sec. until the buzzer beep. The child lock indicator switches on.

Caution!

When the Child Lock is activated, the display will alternately show "CL" and the remaining time.

Pressing any other button will cause the Child Lock indicator to flash.

When the program ends, "CL" and "End" will alternate on the display.

The Child Lock deactivates the function of all buttons except the On/Off button and the Child lock button!

Only the simultaneous pressing of the two buttons [Spin] and [Function] can deactivate the Child Lock!

Please deactivate the Child Lock before selecting a new program!

Silence

Select this function, if spin speed is more than 800rpm, then change to 800rpm, meanwhile cancel the button sound.

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum.

The state is unsafe and the door cannot be opened forcefully. To press

[Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.

2. The door lock is unlocked.

3. Close the door when the clothes are reloaded and press the [ ▷] II button.

P3sress[1] ec.

Reload the clothes

Start

Caution!

- Don't use the Reload function when the water level over the edge of the inner tub or the temperature is higher.

■ Cleaning and Care

⚠ Warning!

- Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine (no text or symbols)

① Caution!

- Never use abrasive or caustic agents, formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

· Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram showing a valve mechanism with rotating arrows and a base component (no text or symbols)

Line drawing of a hand holding a tool with a pen, no text or symbols present

Illustration of a hand holding a small device with a magnified inset showing the internal mechanism (no text or symbols)

Line drawing of a tennis racket being inserted into a table, no text or symbols present

Clean The Detergent Dispenser

1. Press down the release [ ☑ on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and internal compartments (no text or symbols)

Clean the dispenser drawer and the softener cover under water

Line drawing of a hand inserting a small object into a container (no text or symbols)

Clean the recess with an soft brush

Technical line drawing of a mechanical component with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand pressing a button on a device with an arrow indicating rotation (no text or symbols)

Open the filter by turning to the counter clockwise

Remove extraneous matter

Technical diagram of a mechanical component with rotational arrows indicating movement (no text or symbols)

Close the lower cover cap

Caution!

- When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can't be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years.

In case of questions please contact our customer service at:

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective.
  You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~50Hz
MAXCurrent	10A
Standard Water Pressure	0.05MPa~1MPa

Model	WDK 81050 WH
Washing Capacity	10.0kg
Drying Capacity	7.0kg
Dimension( W*D*H )	595*565*850
Net Weight	72kg
Rated Power	1900W
Drying Power	1300W

■ Product Fiche

Supplier's name or trade mark( ^a )' ( ^d ):

Supplier's address( ^a )' ( ^d ):

Model identifier ^(a) : WDK 81050 WH

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (kg)	Rated capacity (°)	7.0	Dimensions in cm (a)(d)	Height	85
	Rated washing capacity (b)	10.0		Width	60
				Depth	57
Energy Efficiency Index	EEIW (b)	60.0	Energy efficiency class	EEIW (b)	B (°)
	EEIWD (°)	67.0		EEIWD (°)	D (°)
Washing efficiency index	IW (b)	1.031	Rinsing effectiveness (g/kg dry textile)	IR (b)	5.0
	JW (°)	1.031		JR (°)	5.0
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0.593		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used	3.430
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	52		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	100
Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the eco 40-60 programme	Rated washing capacity	38	Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the wash and dry cycle	Rated capacity	30
	Half	33		Half	21
	Quarter	22
Spin speed (rpm) (b)	Rated washing capacity	1450	Weighted remaining moisture content (%) (b)	53.9
	Half	1450
	Quarter	1450
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:59	Spin-drying efficiency class (b)	B (c)
	Half	3:00
	Quarter	3:00
Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity (dB(A) re 1 pW)	80		wash and dry cycle duration (h:min)	Rated capacity	9:40
				Half	7:00
Type	free-standing		Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing capacity	C (c)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (*)' (d):
This product has been designed to release silver ions during the washing cycle			NO
Additional information(a)'(d):
Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found:
(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.(b) for the eco 40-60 programme.(c) for the wash and dry cycle.(d) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.(e) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.'

1) The actual energy consumption will depend on how the appliance is used.

2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.

3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Simple line drawing of a rectangular box with a central circle and two X-shaped cross marks (no text or symbols)

Desembalaje de la lavadora-secadora

⚠️ ¡Advertencia!

Diagram of a box with an arrow pointing upward, and a magnified inset showing a small 3D object labeled 'a' (no text or symbols present)

Close-up of a mechanical component with a wrench and circular screw head, no visible text or symbols

Close-up of a mechanical component with a red arrow pointing to a small metallic part (no text or symbols visible)

Close-up of a white object with a dark circular feature and a red arrow pointing to it, no visible text or symbols.

Close-up of a mechanical component with a red curved arrow indicating rotation (no text or symbols)

Close-up of a white flower with red arrows indicating direction (no text or symbols)

Close-up of a faucet with a white plastic component and red arrows indicating rotation or movement (no text or symbols)

¡Nota!

Simple line drawing of a sweater with a decorative bag and patterned tie (no text or symbols)

Simple line drawing of a bag being filled with paper, showing a folding step and packaging (no text or symbols)

Two handbags with circular designs, one wrapped around a bow and the other with a bow (no text or symbols)

Line drawing of a bag with grid pattern and a small object inside (no text or symbols)

Line drawing of a knitted sweater with three arms (no text or symbols)

! ¡Precaución!

Line drawing of a hand washing a washing machine with a bird on top (no text or symbols)

¡Precaución!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram showing a valve mechanism with rotating arrows and a base, no text or symbols present

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

Illustration of a hand holding a tool with a circular inset showing a mechanical component (no text or symbols)

Line drawing of a hand holding a tennis racket inside a mirror (no text or symbols)

Line drawing of a mechanical component with an arrow pointing to a circular feature (no text or symbols)

Line drawing of a mechanical device with a lever and internal compartments (no text or symbols)

Line drawing of a hand inserting a small object into a container (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Hand holding a tool interacting with a circular button on a tray (no text or symbols visible)

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Three-panel image showing four circular objects and a magnifying glass, alongside an open book (no text or symbols)

Simple line drawing of a rectangular box with a central circular pattern and two intersecting X marks (no text or symbols)

Desembalando a máquina de lavar e secar

Aviso!

Diagram of a 3D box with an arrow pointing upward, and a magnified inset showing a small structure labeled 'a' (no text or symbols present)

Close-up of a mechanical component with a wrench and screw head, no visible text or symbols

Close-up of a mechanical component with a red arrow pointing to a small metallic part (no visible text or symbols)

Close-up of a white object with a dark circular feature and a red arrow pointing to it, no visible text or symbols.

Close-up of a mechanical component with a red curved arrow indicating rotation or motion (no text or symbols visible)

Close-up of a white object with two red arrows pointing to a circular object, no visible text or symbols.

Close-up of a faucet with a white plastic component being adjusted by red arrows (no text or symbols)

Nota!

Simple line drawing of a sweater with a decorative bag and patterned shirt (no text or symbols)

Simple line drawing of a basket with an arrow indicating rotation or movement (no text or symbols)

Two handbags with circular designs, one wrapped around a bow and the other a blanket (no text or symbols)

Simple line drawing of a money bag with a grid pattern and a small object inside (no text or symbols)

Line drawing of a knitted sweater with three arms (no text or symbols)

! Cuidado!

Recarregue as roupas

Iniciar

Cuidado!

Line drawing of a hand washing a washing machine (no text or symbols)

Cuidado!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram showing a valve mechanism with rotating arrows and a base component (no text or symbols)

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

Hand holding a small object with a magnified inset showing a mechanical component (no text or symbols visible)

Line drawing of a tennis racket being inserted into a table tennis receiver (no text or symbols)

Limpe o Dispensador de Detergente

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Line drawing of a hand using a tool to insert or remove material inside a container (no text or symbols)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Hand pressing a button on a device with an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical component with rotational arrows indicating movement (no text or symbols)

World map silhouette showing continents and countries without any text or labels
