IOPEXTHUB279G - USB Hub IOPLEE - Free user manual and instructions

Product Type	USB Hub
Model	IOPEXTHUB279G
Brand	IOPLEE
Number of Ports	4
Port Type	USB-A 3.2 Gen 1
Input Interface	USB-A 3.2 Gen 1 (integrated cable)
Data Transfer Rate	Up to 5 Gbps (backward compatible with USB 2.0/1.1)
Cable Length	180 mm
Dimensions (L x W x H)	76.5 x 41.1 x 11.5 mm
Material	Plastic
System Compatibility	Windows 10/8/7/Vista/XP, Mac OS 10.2 and above
Power Supply	Bus-powered via host USB port
Maximum Charging Output per Port	Up to 4.5 W
Safety Precautions	Keep dry; do not disassemble; avoid extreme temperatures; do not use damaged cables or plugs; do not bend cable excessively
Maintenance	Keep ports free of debris and lint; do not pull cable when disconnecting
Warranty Period	2 years for personal use (subject to conditions)
Disposal	Do not dispose with household waste; recycle at WEEE collection points
Manufacturer	Exertis Supply Chain Services Limited, Dublin, Ireland
Country of Origin	China

Frequently Asked Questions - IOPEXTHUB279G IOPLEE

What devices are compatible with the IOPLEE IOPEXTHUB279G USB Hub?

The hub is compatible with Windows 10/8/7/Vista/XP and Mac OS 10.2 and above. It works with laptops and desktops that have a USB-A port.

How do I connect the hub?

Simply plug the integrated USB-A cable into a USB-A port on your computer. Then connect your USB devices (mouse, keyboard, USB drives, etc.) to any of the four ports on the hub.

Does the hub support charging?

Yes, each port can provide up to 4.5W (5V/0.9A) for charging compatible devices like mobile phones. However, the hub may not charge tablets or high-power devices.

What data transfer speed does the hub support?

The hub supports USB 3.2 Gen 1 with data transfer rates up to 5 Gbps. It is also backward compatible with USB 2.0 and USB 1.1 devices, though speeds will be limited to the connected device's standard.

Can I use the hub with a USB-C port?

The hub has a USB-A connector. To use it with a USB-C port, you will need a USB-C to USB-A adapter or a cable. The hub itself does not include a USB-C connection.

How many devices can I connect at once?

You can connect up to four USB devices simultaneously. The hub has four USB-A 3.2 Gen 1 ports.

Is the hub hot-swappable?

Yes, the hub supports hot-swapping. You can connect and disconnect devices without turning off your computer.

Do I need to install drivers?

No additional drivers are required. The hub is plug-and-play and will be recognized automatically by compatible operating systems.

What is the warranty period?

The IOPLEE IOPEXTHUB279G comes with a 2-year warranty for personal use, provided it is purchased from an official dealer. The warranty covers defects in workmanship and conformity under normal usage conditions.

What should I do if the hub stops working?

First, check that the USB connection is secure and try a different USB port on your computer. Ensure your devices are compatible. If the issue persists, contact the retailer with your proof of purchase and a description of the problem. The warranty may cover replacement if applicable.

USER MANUAL IOPEXTHUB279G IOPLEE

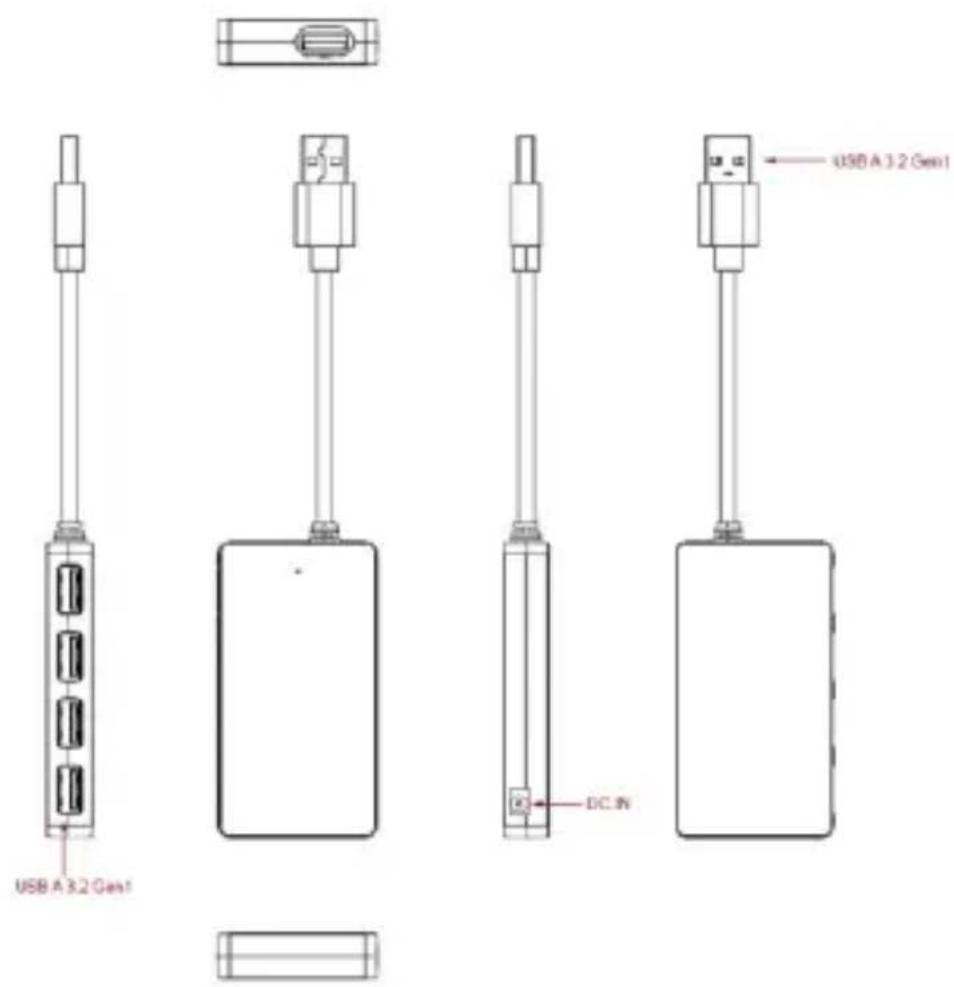

Line drawing of a portable electronic device with a USB cable and connector (no text or symbols)

4 PORTS OUTPUT

5 Gbps TRANSFER DATA

USB-A 3.2 GEN 1 INPUT

COMPATIBLE WITH: MACOS, CHROME, WINDOWS

Hub USB 3.2 a 4 porte

IOPEXTHUB279G

Gentile cliente,

Thank you very much for purchasing one of our products. We kindly ask you to read this instruction manual carefully and to keep it, as it provides valuable information regarding safe use and maintenance.

INDEX

1 Safety Warnings
2 Description of the Appliance
3 Before first use
4 Operation
5 Technical Specification
6 Disposal
7 Warranty and Compliance

1 Safety Warnings

• Please do not get the product wet
- Please do not take the product apart. There are no user serviceable parts inside
- Please do not modify or alter the product or accessories
• Please do not expose the product to extreme temperatures or rapid changes of hot to cold or vice versa
• Please do not use damaged cables or plugs, or loose electrical sockets
- Please do not touch cables, plugs, or the electrical socket with wet hands or other wet body parts
• Please do not pull the cable excessively when disconnecting it if the cable is not fixed
• Please do not bend or damage the cable
• Please do not drop or cause an impact to the product
• Please do not place near or place on naked flame sources, such as lighted candles on the product

2 Description of the Appliance

3 Before first use

Check that all the appliance components are complete before first use. Ensure that all USB ports are free from obstruction and clear of debris/lint

4 Operation

1 Connect the hub to the USB-A port on your

2 device.

Connect the external devices to the appropriate

3 ports in the hub.

Only connect the converter with compatible USB-A laptops and desktops.

NOTE: The 4 ports on the hub are USB 3.2

Gen1 which can be connected to accessories such as a mouse and keyboard, or to USB devices such as USB disk, mobile hard disk, etc.

The USB interface can also be connected to a compatible charging cable to charge some mobile phones, with power up to 4.5W max.

5 Technical Specification

Size	76,5 (L)x41,1(L)x11,5(H)mm
Materials Plastic
Cable Length	180 mm
Interface	Input: USB A 3.2 Gen 1Output: 4*USB A 3.2 Gen 1
Transmission Rate	USB3.0 with data transfer up to 5Gbps, and backwards compatible with USB2.0/1.1
System compatible	Windows 10/8/7/Vista / XP and Mac OS 10.2 and above

6 Disposal

Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other

European countries operating a selective waste collection system).

This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information regarding the recycling of this product, please contact your municipality, local waste disposal centre or the store where the product was purchased.

In accordance with Legislative Decree of March 14, 2014, No. 49, "Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)" the crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of the product by the user may result in the application of administrative sanctions provided by current regulations.

7 Warranty and Compliance

This Ioplee Warranty applies only to Ioplee products purchased for personal use and not those intended for resale.

Your loplee product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other circumstances demonstrate, with reasonable certainty, that the purchase itself is not exclusively aimed at private consumption .

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

• Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.
• Cosmetic damage such as scratches, dents, or other breakage of plastic parts, caused by handling errors.
• Defects resulting from normal product wear and tear (product aging).
• Incompatibility with other hardware/software products not listed in the minimum system requirements.
• Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labour or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

Due to the rapidly evolving nature of our products, the content of this manual may be subject to change without prior notice.

Made in China

ioplee

Manufactured and imported by Exertis Supply Chain Services Limited.

Unit 21 Fonthill Business Park, Clondalkin.

Dublin 22, D22 FR82, Dublin, Ireland

"IOPLEE" used under license from Unieuro
