Enigmatic - Audio effect pedal Universal Audio - Free user manual and instructions

Product Type	Instrument Amplifier / Effects Processor
Brand	Universal Audio
Model	Enigmatic
Dimensions	Approximately 12 x 6 x 4 inches (30.5 x 15.2 x 10.2 cm)
Weight	Approximately 3.5 lbs (1.6 kg)
Power Supply	AC 100-240V, 50/60Hz; consumes 30W typical
Power Input	Standard IEC power cord or 9V DC center-negative adapter
Audio Inputs	1/4" instrument input, XLR line input
Audio Outputs	1/4" speaker output, XLR direct out, headphones out
Controls	Gain, EQ (Bass/Mid/Treble), Reverb, Master Volume, Effects blend
Presets / Recall	Effect recall sheet with user-definable settings
Built-in Effects	Digital reverb, delay, chorus, overdrive
Connectivity	MIDI In/Out (5-pin DIN), USB for firmware updates
Construction	Steel chassis with powder-coated finish
Operating Temperature	0°C to 40°C (32°F to 104°F)
Included Accessories	Power cord, user manual, effect recall sheet
Maintenance	Clean with a soft, dry cloth; avoid liquid cleaners
Safety Precautions	Do not open chassis; no user-serviceable parts inside
Spare Parts	Contact Universal Audio authorized service centers
Repairability	Servicing by qualified personnel only

Frequently Asked Questions - Enigmatic Universal Audio

How do I save my effect settings on the Enigmatic?

Use the included Effect Recall Sheet to write down your settings. The device has no internal memory; settings must be stored externally.

What type of power supply does the Enigmatic require?

It accepts an AC power cord (100-240V) or a 9V DC center-negative adapter (minimum 300mA).

Can I use the Enigmatic with a bass guitar?

Yes, it is designed for both electric guitar and bass. The EQ and gain controls accommodate a wide frequency range.

How do I clean the Enigmatic?

Wipe the surface with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Is there a way to reset the Enigmatic to factory defaults?

There is no factory reset function. Settings are entirely manual; adjust controls to your preferred baseline.

What are the dimensions of the Enigmatic?

Approximately 12 x 6 x 4 inches (30.5 x 15.2 x 10.2 cm).

Does the Enigmatic have a headphone output?

Yes, it includes a 1/4'' headphone jack for silent practice.

Can I connect the Enigmatic directly to a mixer?

Yes, use the XLR direct output for connecting to a mixer or recording interface.

What should I do if the Enigmatic does not power on?

Check the power cable and outlet. If using a 9V adapter, ensure it is center-negative and supplies sufficient current. If still no power, contact support.

Is the Enigmatic compatible with pedalboards?

Yes, it can be placed on a pedalboard. Dimensions allow it to fit on most standard boards. Ensure adequate ventilation.

USER MANUAL Enigmatic Universal Audio

WOODROW

55 Instrument Amplifier

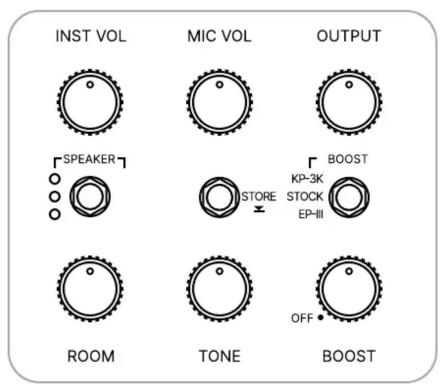

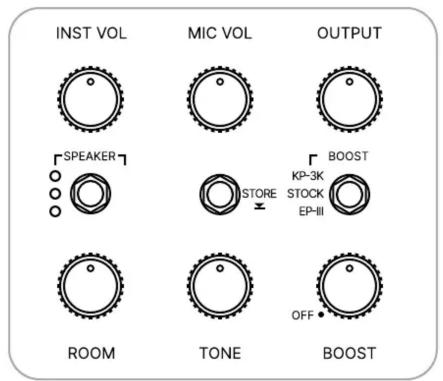

EFFECT RECALL SHEET

NOTES
