HSA-D950SS - Rice cooker Heinner - Free user manual and instructions

Product Type	Rice Cooker
Brand	Heinner
Model	HSA-D950SS
Capacity	1.8 L (approximately 10 cups cooked rice)
Power	600 W
Voltage	220-240 V
Frequency	50/60 Hz
Dimensions (L x W x H)	25 x 25 x 25 cm
Weight	2.5 kg
Inner Pot Material	Non-stick coated aluminum
Functions	Cook, Keep Warm
Keep Warm Function	Automatic after cooking
Automatic Shut-off	Yes, when cooking cycle completes
Steaming Basket Included	Yes
Cord Length	1.0 m
Safety Features	Overheat protection, anti-slip feet
Cleaning	Removable non-stick inner pot, hand wash with soft sponge
Spare Parts Available	Inner pot, lid seal, steam basket
Warranty	2 years

Frequently Asked Questions - HSA-D950SS Heinner

How do I cook rice with the Heinner HSA-D950SS?

Measure rice using the provided cup, rinse, place in inner pot, add water up to corresponding level mark, close lid, select 'Cook' function. The cooker will automatically switch to 'Keep Warm' when done.

What is the maximum capacity of this rice cooker?

The maximum capacity is 1.8 L, which can cook approximately 10 cups (180 ml each) of uncooked rice, yielding about 10-12 servings.

Can I cook other grains besides rice?

Yes, you can cook quinoa, oats, barley, and other grains. Adjust water ratio according to the grain type. The cooker's simple on/off operation works for most grains.

How do I clean the rice cooker?

Unplug the cooker and let it cool. Remove the inner pot and wash it with warm soapy water using a soft sponge. Do not use abrasive cleaners. Wipe the outer body with a damp cloth. The lid can be wiped carefully.

Can I use the steam basket?

Yes, the included steam basket allows you to steam vegetables, fish, or dumplings while cooking rice. Add water to the pot, place the basket, and start the cooking cycle.

How long does it take to cook rice?

Cooking time varies by rice type and quantity. Typically, white rice takes 20-30 minutes, brown rice 40-50 minutes. The cooker automatically switches to keep warm when finished.

What should I do if the rice is undercooked?

If rice is undercooked, add a small amount of water (a few tablespoons), stir, and close the lid. Select 'Cook' again to continue cooking for a few more minutes.

How does the keep warm function work?

After cooking completes, the cooker automatically switches to 'Keep Warm' mode, maintaining rice at an ideal serving temperature (around 65°C) without overcooking. It stays on until you unplug the unit.

Is the Heinner HSA-D950SS safe to leave unattended?

Yes, it has automatic shut-off and overheat protection. However, we recommend not leaving it unattended for extended periods, especially when using with other accessories.

Where can I find spare parts for this rice cooker?

Spare parts such as the inner pot, lid seal, and steam basket can be ordered from Heinner's official website or authorized service centers. Contact customer support for availability.

USER MANUAL HSA-D950SS Heinner

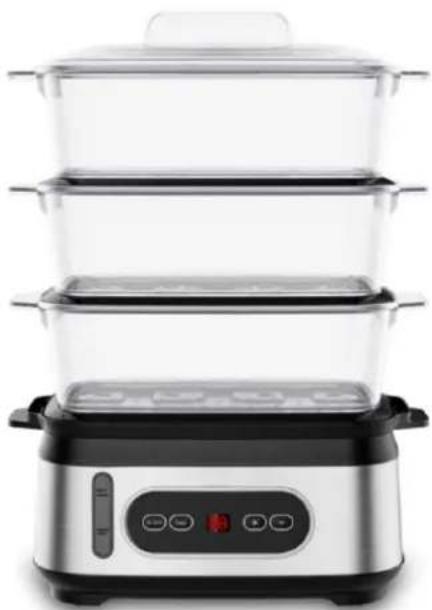

Modern kitchen steamer with three-tiered digital display and control buttons (no visible text or symbols)

Close-up of a transparent plastic container with a small rectangular object inside, no visible text or symbols.

Modern kitchen steamer with three-tiered digital display and control buttons (no visible text or symbols)

• Steamer
  • 3 layers steam containers BPA free
• Capacity: 9 L

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Steamer
User manual
Warranty card
▶ Declaration of conformity

III. SAFETY MEASURES

Please read the instructions carefully when using this product.

Before switching on the power supply, please check whether the voltage marked on this product is consistent with the voltage in your home. If not, please do not use this product and contact the store where your product was purchased.

Do not hang the power cord on the edge of the table or touch the high temperature surface to avoid damage to the power cord.

This product shall not be used on or near a high temperature gas or electric stove.

Please do not dry burn without water, which is easy to damage the heating tube.

Unplug the power cord in time if the water in the kettle is too little or the kettle is dry burning carelessly. Let cool for 15 minutes before filling with cold water.

Do not immerse the water storage device in water or other liquids to avoid fire, electricity leakage or personal safety. When the steamer is working, please be careful of the steam coming out of the hole in the steamer cover and the steam pouring out after the steamer cover is opened. Do not face people when the steamer cover is opened.

Wear gloves when moving parts; After the food is steamed, please carefully open the lid of the steamer to avoid being scalded by the steam. When the other components of the steamer cool down, the water in the reservoir and tank will still be very hot, please handle with care. When using, the machine should be placed in a smooth and inaccessible place for children, do not let children near the product to pull the power cord or knock the steamer, in order to prevent the steamer from falling over and hurting people or damaging the steamer.

This product should not be operated by children, and children should be carefully watched to avoid scalding them. Do not touch the hot water storage device, heating body in the water storage device, steaming bowl, steamer bracket, steamer cover and other high temperature parts, in order to avoid scalding.

It is best not to move the steamer when it is working; If you do need to move, be very careful to avoid scalding. Do not use spare parts not recommended by the manufacturer to avoid fire, electricity leakage or other injury. Unplug the power plug when you are not using it or ready to clean it. The steamer must be cooled before cleaning.

Do not continue to use the product when the power cord, plug or other electrical parts are damaged. Must contact the product dealer or your special service department for repair.

Warning: If the supply cord is damaged, to avoid danger, it must be replaced by a professional from the manufacturer, its maintenance department or similar department. Appliances are not intended to be used by persons (including children) who have a physical, sensory or mental capacity deficiency or lack experience and knowledge of their use, unless they are supervised or instructed in connection with the use of the appliance by a person responsible for their safety.

Children should be taken care of to ensure that they do not play with the device.

Children should not clean and maintain appliances without supervision.

Note:

A. Turn off the power switch before moving the appliance.
B. If the total volume of water and ingredients in the appliance exceeds the scale specified in the instruction manual, liquid may overflow.

Usage Tips

1. When used at high altitudes, the required time should be increased, and the increased time varies with the terrain.
2. The time on the menu is for reference only, depending on the size and location of the food, its freshness, and personal preference;
3. When you are skilled in using it, you can set the time at will;
4. Single-layer food cooks faster than multi-layer food, so food in large quantities takes longer to cook.
5. For better results, the size of the food should be similar, if the food size changes greatly, put smaller pieces on the top;
6. Do not fill the steaming bowl with food, and leave space between the food so that the maximum amount of steam can pass through;
7. When cooking a large amount of food, the lid of the steamer can be opened for stirring in the middle (pay attention to the use of long-handled utensils and gloves to protect hands). Do not add salt or seasonings in the water storage tank during cooking to prevent damage to the heating element;
8. The liquid in the sink can be used to make soups, grates, sauces, etc.
9. Do not directly steam frozen meat or poultry, please defrost completely first;
10. The time indicated on the menu is calculated by using cold water;
11. Steam plate can be used to steam other food, such as fruit, vegetables, pudding, quick cooked bread, etc.
12. Use multi-layer steaming tray at the same time to place large pieces of food that need to be steamed for a long time in the lower steaming tray;
13. You may put different foods in a steaming dish, and since juices will seep down from the top, note that both taste the same. If you are steaming meat with vegetables, place the meat in the lower layer to prevent juices from dripping on other foods when they are steaming.

IV. PRODUCT DESCRIPTION

V. USING THE PRODUCT

BEFORE FIRST USE

Before first use, wash all components (except the main unit) with clean water and detergent. Fill the water tank with water, boil the water after fitting all components, pour out all the water after 30 minutes, then you can use the appliance.

In order to prolong the service life of the product it is recommended to use only clean water for filling the tank.

Steam cookers can be used to cook rice.

The lid of the steamer is fitted with a practical handle to prevent the steam from burning you when you lift the lid.

The water tank is arranged around the heating element, which can cause the steamer to produce rapid steam when the water heats up.

The water level indicator window shows the amount of water in the appliance.

USE OF THE APPLIANCE

1. Place the steamer on a level surface;

2. Add tap water to the tank as needed: If food needs to be steamed for 15-90 minutes, put water up to full level. If you want to steam food for less than 15 minutes, add water up to the minimum/medium level.

Note:

a. To avoid damaging the heating element, do not add salt, pepper, flavourings, essences, wine or other liquids to the water in the tank.

b. When using this appliance, make sure that the volume of water in the tank is between the maximum and minimum level.

c. The water tank should be arranged around the heating element so that it can heat the small amount of water in the appliance to produce steam quickly.

1. This product can be used in three ways:

a. Using a single steam box

b. Using two steam boxes

c. Using the three steam boxes simultaneously: place large pieces of food to be steamed for a longer period in the bottom steam box, then use the other two steam boxes.

Note: food in the lower steam box will cook faster than food in the upper steam box. When using more than one steam box, place food that cooks easily in the upper steam box.

1. Cover the steamer. Attention should be paid to avoid high temperature scald during use. In addition, do not directly touch the high-temperature anti-hot label with your hands, you need to hold the handle. As shown in the figure, high temperature anti-hot label.

Close-up of a transparent plastic container with a triangular warning symbol and a rectangular strip (no text or symbols visible)

1. Plug in the power and ensure that the steamer bracket and steamer cover are in place before starting.

2. It is recommended that the remaining water be poured out after the product is completely cooled.

3. Do not directly touch the high temperature area of the handle. Hold the lower part of the handle.

COMPONENTS

1. Indicating light: Show the working state, it would be illuminated only after the time has been set.

2. PCB: Set steaming food time within 90 minutes, a bell will be heard after finishing steaming food

3. Water Trough: For the purpose of facilitating filling water into reservoir, both of the left and right owning a spout.

4. Body: Hold water for steaming food, don't place any other liquid in the reservoir.

5. Steam Box: In order to identify the steam column conveniently, every one of them is the same; this particular design for steaming egg easily, only place the egg on it vertically. Every steam plate has eight steam egg sockets.

6. Steam Box Bracket: Each steam column has corresponding steam plate, and they can be combined in a steam assembly. To clean the steam plate readily, this is detachable.

7. Rice pan: It can be placed on any steam plate to cook rice. For the sake of reducing space, the rice pan can be stored in the reservoir when not in use. But it should be overturned, then position it in place.

8. Lid Handle Cover: the steam lid can match with any Steam Box.

9. Base: Appliance which have the electronic components.

OPERATING INSTRUCTIONS

1. When the device is switched on, it beeps twice and goes into standby, and the LED display flashes and shows "-".
2. When the product is in standby, if no button is pressed for 1 minute, the product beeps twice and switches off.
3. When the product is switched off, press the on/off button once and the appliance will beep and go into standby.
4. When the product is running, if you want to stop using it, you can press the on/off button. This will activate the 'Cancel' function and the appliance will beep.
5. Press and hold the on/off button for 3 seconds and the product will beep twice and turn off.

Function selection:

When the product is in standby, press the on/off button. The appliance emits a short beep and activates the cooking time setting function. The default time "40 min" flashes on the LED display. Each press of the "+" (or "-" ) button increases (or decreases) the time by 5 minutes. If you press and hold the button for 2 seconds, the time increases continuously. The duration adjustment range is from 0 to 90 minutes.

Select a specific run time and press the on/off button. The machine beeps briefly and displays the duration. After the duration has expired, the device beeps briefly and returns to standby.

Programmed operation

After setting the operation time, press the "Timer" button. The LED display shows "--" and it is possible to select the tile left until operation starts (in the range 1h-12h). The LED display flashes the time, each press of the "+" (or "-" ) "-" button increases (or decreases) the time by 1h. After setting the time left, press the on/off button to activate the programmed operation mode and the LED display will show the time. When the operating cycle is complete, the product activates the heating function. When the heating is complete, the appliance emits a short beep. The product goes into standby and if no button is pressed for 1 minute, the product beeps twice and switches off.

Descaling

After using for a period of time, there will be some scale sediment on the body and heating body, which is a normal phenomenon. The amount of sediment also depends on the hardness of the water where you are, so it is necessary to periodically remove scale to extend the service life of the product or use pure water.

1. Fill a water reservoir with about 3 cups white vinegar to full scale.
   Note: Do not use any other chemicals or scale remover.
2. Connect the power supply, then the sink, steaming bowl and steamer cover should be in the correct position:
3. Set steaming for 20-25 minutes.

Note: if white vinegar boils and spills, please unplug the power supply, reduce some white vinegar.

1. When the work is finished, the buzzer rings, unplug the power supply, and pour out the white vinegar after cooling;

2. Wash the body with cold water several times, and clean other parts according to the "cleaning the appliance" part below.

RECIPE

Food type	Weight	Steaming time
Rice	400g	45-50 min
Potato	900g	40 min
Carrot	550g	25 min
Egg	8 eggs	15-20 min
Salmon	550g	40 min

*the time or weight above mentioned is only referenced, you can adjust them according to food weight, thickness or taste, for better results.

VI. CLEANING THE APPLIANCE

1. Disconnect the power supply and allow the machine to cool down before cleaning. Do not immerse the main unit, power cord or plug in water or other liquids to prevent the risk of electric shock.
2. Do not use metal brushes or corrosive solvents such as bleach to clean components.
3. Wash all components (except the main unit) with clean water and detergent.
4. Pour an adequate amount of warm water into the water tank, pour the water out after cleaning and wipe the water tank with a dry cloth. With the exception of the main unit, the other components can be cleaned in the dishwasher.

VII. TECHNICAL DETAILS

Power	800-950W
Voltage	220-240V; 50 Hz

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

ÉTELPÁROLÓ

Modell: HSA-D950SS

Modern kitchen steamer with three-tiered digital display and control buttons (no visible text or symbols)

Close-up of a transparent triangular plastic component with a small rectangular base (no visible text or symbols)

Modern kitchen steamer with three-tiered digital display and control buttons (no visible text or symbols)

Close-up of a transparent plastic container with a small rectangular object inside, no visible text or symbols.
