USER MANUAL CA-MIC-MB.001 PIONEER

Microphone adapter interface installation kit for:

MERCEDES

Model: Vito V447 / Sprinter W906

Year: 2015>

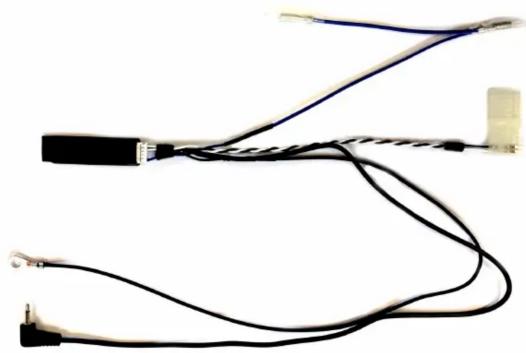

Kit content: microphone adapter wiring harness

Customer code: CA-MIC-MB.001

Coiled black and blue cables with connectors, no visible text or symbols

INSTALLATION MANUAL

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

11/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R0

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

11/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

Pure electrical circuit lines without any symbols

Connect cables as follow:

1- Quadlock insert -> connect to quadlock car connector
2- Ground -> connect to ground (chassis)
3- Remote -> connect to radio remote out
4- Microphone jack -> connect to radio microphone socket

Close-up of a hand holding a plastic connector with grid pattern, no visible text or symbols
