Product Type	Centrifugal Juicer
Brand	Ciarra
Model	CASO12-W
Color	White
Dimensions (H x W x D)	30 cm x 20 cm x 25 cm
Weight	3.0 kg
Power Consumption	800 W
Voltage	220-240 V, 50/60 Hz
Capacity (Pulp Container)	1.5 L
Capacity (Juice Jug)	1.0 L
Feed Chute Width	75 mm
Functions	Juice extraction, pulp separation
Speed Settings	2 speeds (low/high)
Overload Protection	Yes
Maintenance & Cleaning	Dishwasher-safe parts (jug, lid, filter); cleaning brush included
Safety Features	Non-slip feet, safety lock system
Spare Parts Available	Filter, jug, pusher, lid
Warranty	2 years
General Information	BPA-free materials, easy to assemble

Frequently Asked Questions - CASO12-W CIARRA

How do I assemble the juicer?

Place the motor base on a flat surface. Attach the pulp container, then the filter basket, and lock the lid by aligning the arrows. Finally, place the juice jug under the spout and the pusher on top.

Can I juice soft fruits like oranges?

Yes, use low speed for soft fruits. Peel oranges if desired to reduce bitterness.

How do I clean the juicer?

Disassemble all removable parts and rinse immediately after use. Most parts are dishwasher safe (top rack). Use the included brush for the filter.

What is the pulp container capacity?

The pulp container holds up to 1.5 liters of pulp.

Why is the juicer not working?

Ensure all parts are properly assembled and the lid is locked. Check that the power cord is plugged in and the overload protector hasn't tripped.

Can I juice leafy greens or wheatgrass?

This centrifugal juicer is not ideal for leafy greens. For best results, use a masticating juicer. However, you can juice small amounts by wrapping leaves around harder vegetables.

How loud is the juicer?

The noise level is approximately 80-85 dB, typical for centrifugal juicers.

What is the warranty period?

Ciarra offers a 2-year warranty against manufacturing defects. Keep your receipt.

Can I put the jug in the microwave?

No, the juice jug is not microwave-safe. Avoid extreme temperature changes.

How do I prevent clogging?

Cut ingredients into smaller pieces and alternate hard and soft items. Avoid overfilling the feed chute.

USER MANUAL CASO12-W CIARRA

Steam Oven with Air Fryer

Instruction Manual

Modern black oven with digital display and control buttons, no visible text or symbols on the appliance itself.

MODEL:

CASO12-W

CASO12-G

CASO12-S

1. IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cords, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. "Use extreme caution when removing tray or disposing of hot grease."
15. "Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock."
16. Oversize foods or metal utensils must not be inserted in a toaster-oven as they may create a fire or risk of electric shock.
17. A fire may occur if the toaster oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
18. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
19. Extreme caution should be exercised when using containers constructed of other than metal or glass.

20. Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use.

21. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.

22. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
23. To disconnect, press the power button at any time during the cooking process. The machine will be turned off, and the display screen will not darken. Then, unplug the power cord from the wall outlet to close all functions of the machine.

Note: Hot surface - the surface may become hot during use.

1. RISK OF ELECTRIC SHOCK COOK ONLY IN REMOVABLE CONTAINER
2. FOR HOUSEHOLD USE ONLY
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. If the SUPPLY CORD is damaged, it must be replaced by the manufacturer or certified technician in order to avoid a hazard.
7. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Save these Instructions.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

a) A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a longer detachable power-supply cord or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally;

2. Precautions

To prevent oil, smoke, and steam from the exhaust port contaminating furniture during the cooking process or causing a fire due to overheating, it is important to maintain a certain distance between the Nosh Oven and the walls and cabinets. Please position it at the safe distance indicated in the picture below.

Top 30cm or more Left & Right 10cm or more Front Open Space Back 10cm or more

Attention High Temperature

NOTE

• To prevent injury and property damage to users, essential instructions regarding correct and safe usage methods are documented in the product body and instruction manual.
- The purpose of the icons and explanatory symbols is solely to aid in comprehension and may vary from the actual product.
- Before use, carefully read and adhere to the relevant signs and labels; ensure to retain the manual for future reference and use.

Precautions for Use

All packaging materials must be removed before use.

If the packaging is not removed, it may cause fire, and burns during operation.

Please do not use it for purposes other than cooking. This product is designed for home heating and cooking food and is not suitable for other industrial or commercial use.

The Nosh Oven is strictly prohibited from being operated by children during use and should be placed out of reach of children.

It is strictly prohibited to place any objects on top of the Nosh Oven while working to prevent fire.

It is strictly prohibited to place paper, plastic, wooden skewers and other non-high temperature resistant or flammable objects in the Nosh Oven for cooking, or store other items in the Nosh Oven, as this may cause a fire.

It is strictly prohibited to place closed containers in the Nosh Oven for heating, as this may cause an explosion.

Before use, please check whether the cooking utensils used are suitable for the Nosh Oven, it is recommended to use high temperature resistant glass, ceramic or metal containers to hold food.

Please clean the Nosh Oven regularly to prevent residual grease from catching fire.

When moving or cleaning the Nosh Oven, unplug the power cord first and wait until the Nosh Oven cools down.

The power cord and plug should not be close to the high temperature or humid place to avoid the power cord aging and causing danger.

If the power cord or power plug is damaged, please stop using it immediately. Do not use the loose socket, otherwise it will possibly lead to fire, electric shock and injury.

After use, be sure to unplug the power supply in time, do not put it near the fire source or submerged in water; do not put the power cord and plug directly on top outer cover to prevent the residual heat of the cover from damaging the power cord.

When not in use for a long time, the plug should be unplugged from the power outlet to avoid leakage and fire caused by the aging of the insulated rubber cord.

If the power cord is damaged, it must be replaced by the manufacturer, our service department or a specialist in order to avoid danger.

The product will heat up during use. Take care to avoid contact with the heat generating unit inside the product.

WARNING During use, accessible parts may become hot, children should be kept away, and some surfaces may be hot during operation. The surface with the "High Temperature Surface" symbol will become hot during use.

Please be careful not to bump the glass of the cavity and the door when taking the food.

Care must be taken when heating fluid foods such as soups and beverages. Heating beverages can cause delayed spatter boiling, so care must be taken when removing them. Bottles and baby food jars should be stirred or shaken, and the temperature of the bottle should be checked before feeding to avoid scalding.

After cooling, clean the oven cavity to remove any leftover residue.

Clean the oven cavity frequently to maintain proper heating.

Maintenance Precautions

High voltage power is present inside. Do not attempt to remove the outer cover for repair or modification.

WARNING It is dangerous for anyone other than qualified service personnel to perform maintenance operations. If you encounter obstacles during use, please contact our maintenance customer service center.

Only professional personnel should disassemble and repair this product.

Unauthorized attempts may pose a risk of danger.

Warning If the door or door seal has been damaged, it must not be used again until it is repaired by qualified maintenance personnel.

Cleaning and Maintenance Precautions

Wipe the housing with a damp cloth dipped in mild detergent, then wipe it clean with a damp cloth, and finally dry it with a dry cloth. Do not use hard objects such as wire brushes to clean the product.

Warning Do not use rough scrubbers or sharp metal scrapers to clean the oven, so as not to cause abrasion on the surface of the machine, the abrasion may cause the machine surface to shatter.

Before cleaning the interior of the Nosh Oven, switch off the Nosh Oven and unplug it from the mains.

If the device will not be used for a long time, please disconnect the power supply and clean the inner cavity and water tank of the Nosh Oven. Store it in a environment free of corrosive gases.

Never wrap the power cord around the device or place any object over the power cord as this may cause damage and the cord to break.

If there is an odor inside the Nosh Oven after long-term use, you can put 5-6 slices of lemon in the inner pot, press [Mode] to select the pure steam function, and the odor can be removed by working in one cycle.

Basic Parameters

Product Name	$team Oven with Air Fryer	Rated Voltage	120V Rated	Frequency	50-60Hz
Product Model	Rated	Capacity	12L Rated	Power 1100W

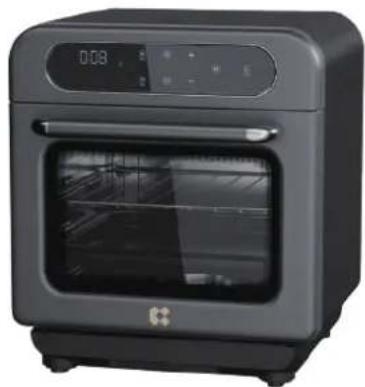

Exterior view of a modern kitchen oven with digital display and control panel (no visible text or symbols)

Black rectangular baking tray with rounded edges (no text or symbols visible)

Simple wire mesh diagram with no text or symbols

Bake Pan Wire rack

88:88 Steam Rapid Vaper Steam Add + Steam Steam Bake Clean Clean Water Air Fry Bake Dried Ferment Turn Over MODE + ON/OFF

Control Panel

3. Operation Instructions

Once the power cord is connected, you can start using the Nosh Oven.

First, pull out the water tank from the bottom of the oven, open the silicone cover of the water tank, and add purified water, it is strictly prohibited to add hot water above 100^ to avoid affecting the lifespan of the machine. After adding water, cover the water tank with silicone cover, and push the water tank into the base completely. (When the Nosh Oven starts working, do not add water to avoid danger.)

Second, After using the Nosh Oven, remove the water tank, drain any remaining water and waste, and clean to prevent bacterial and limestone buildup.

Third, using the menu with steam requires filling the water tank with water and installing the water tank in place correctly.

3.1 MODE SELECTION (eg. Steam)

Click the

button, "----" is displayed and enter the standby state.

Preset menu	Heating principle	Default Temperature	Default Time	Adjustable Temperature	Adjustable Time
Steam	Use steam to heat food	212°F	20mins	Non-adjustable	1min-60mins
Rapid Steam	Heating using heating tube + micro steam circulation.	360°F	30mins	212°F-425°F	1min-60mins
Vapor Bake	Steam + circulation heating.Steam first and then bake, the time is allocated 1:1 to achieve crispy outside, tender and juicy inside	380°F	30mins	212°F-425°F	15mins-60mins
Air fry	Heating using heating tubes + circulating air.Recipe examples:French fries, chicken wings	360°F	15mins	85°F-425°F	1min-60mins
Bake	Heating using heating tubes + circulating air.Recipe examples: cakes,tarts, pizza, bread	320°F	30mins	85°F-425°F	1min-60mins
Dried	Heating using heating tubes + circulating airRecipe examples: fruits and vegetables	165°F	60mins	85°F-245°F	1min-12hours
Ferment	Low temperature for fermentation	95°F	60mins	85°F-110°F	1min-12hours
Steam Clean	High temperature steam cleaning inner tank.	212°F	30mins	Non-adjustable	1min-60mins

When the machine is turned on, the default is "Steam" mode. Press the [ ⟹ ] button to enter the preset menu state, and then press the 【+】 or 【—】 key to select the recipe menu. After selecting the mode, click the ▶|| button to start working.

3.2 Pause Key

When the machine is working, press the ▶|| key to pause.

3.3 [+] [−] Key

Select【+】to increase time and temperature; Press【-】to decrease time and temperature.

3.4 Light Key

Press this button to light on or off the Nosh Oven.

3.5 Temperature/ Time Key

Press the [19], the digital screen will display "time character" or "temperature character". Which character is displayed on the digital screen indicates which parameter can be adjusted. Press the 【+】 or 【-】 key to increase or decrease the time or temperature.

3.6 ③ Reheat function

Temperature default is 250^ F (heating with air fryer), default time 10 minutes, adjustable time 1-60 minutes.

3.7 Clean

Select the cleaning mode and press the ▶▶▶ key to start working.

Pay attention

The surface of the Nosh Oven is hot during use or immediately after use. Please avoid touching it to prevent burns. If the food being baked contains moisture or fresh food is being baked, some water droplets will condense on the inner glass door.

When steaming and grilling food in ceramic utensils, they should be placed on a baking tray when cooking.

First time using

Before using it for the first time, please empty the Nosh Oven and remove any new equipment odors by following the procedure below:

① Turn on the machine, clean the water tank, press the [Mode] and select the clean mode, and press the ▶ key to initiate the cleaning process. Once finished, wipe the Nosh Oven with a clean cloth.
② Press the [Mode] key (The default setting is 425^ F and 15 minutes),

Press the ▶II key to begin the process. After completion, wait until the chamber has completely cooled down before using the Nosh Oven again.

Cooking tips

① Adjust cooking time based on food type, quantity, and personal experience.
② Frozen food may require extended cooking time. Adjust accordingly based on cooking conditions.
③ Monitor food closely while cooking to prevent burns when removing it.
④ Avoid wiping the glass with water during or immediately after use to prevent breakage.
⑤ Avoid removing food during cooking to ensure thorough heating.
