Product Type	Stereo Receiver with Amplifier
Brand	Pyle
Model	Pro PTAU23
Power Output	200W + 200W RMS (4 ohms)
Number of Channels	2
Amplifier Class	AB
Frequency Response	20 Hz - 20 kHz (±1 dB)
Total Harmonic Distortion	< 0.05%
Signal-to-Noise Ratio	> 90 dB
Input Sensitivity	200 mV (RCA)
Audio Inputs	2x RCA, 1x 3.5mm, Bluetooth, USB, SD Card, FM Antenna
Audio Outputs	2x Speaker Binding Posts, 1x RCA Line Out, 1x 1/4" Headphone Jack
Bluetooth Version	4.0 with 30 ft range
USB Playback	MP3, WMA, WAV
SD Card Playback	Up to 32 GB, MP3/WMA
FM Tuner	87.5 - 108 MHz, 20 presets
Remote Control	Included (IR)
Dimensions (W x D x H)	17.0 x 12.0 x 5.0 inches (432 x 305 x 127 mm)
Weight	15.4 lbs (7.0 kg)
Power Supply	110-240V AC, 50/60 Hz (external adapter)
Power Consumption	400W max
Cooling	Internal fan, vented chassis
Safety Features	Overload, short circuit, and thermal protection
Package Contents	Receiver, remote control, FM antenna, power adapter, user manual

Frequently Asked Questions - Pro PTAU23 Pyle

How do I connect speakers to the Pyle Pro PTAU23?

Connect speaker wires to the binding posts on the back. Ensure polarity (+/-) matches. Use 4-8 ohm speakers. Tighten knobs securely.

How do I pair a Bluetooth device?

Press the Bluetooth button on the front panel or remote. Enable Bluetooth on your device and select 'Pyle PTAU23'. Pairing is automatic.

Why is there no sound from the speakers?

Check speaker connections, input source selection, and volume level. Ensure the receiver is not in mute mode. Try a different input source.

How do I use the FM radio?

Connect the included FM antenna. Press FM button. Use Tuning knob or remote to scan for stations. Press MEM to save presets.

What USB and SD card formats are supported?

USB drives up to 32 GB formatted in FAT32. SD cards up to 32 GB. Supported audio files: MP3, WMA, WAV.

How do I reset the receiver to factory settings?

Turn off the unit. Press and hold the Power button for 5 seconds until 'RESET' appears on the display. Release and turn on again.

Can I use the receiver with a subwoofer?

Yes, connect a powered subwoofer to the Line Out RCA jack. Adjust subwoofer volume using its own controls.

What is the maximum power output per channel?

The receiver delivers 200W RMS per channel at 4 ohms. At 8 ohms, output is approximately 100W RMS per channel.

How do I clean and maintain the receiver?

Disconnect power. Wipe with a dry, soft cloth. Do not use liquids or solvents. Ensure vents are free from dust. Avoid moisture.

Does the receiver include a warranty?

Yes, Pyle offers a 1-year limited warranty against defects. Keep your receipt. Contact Pyle support for claims.

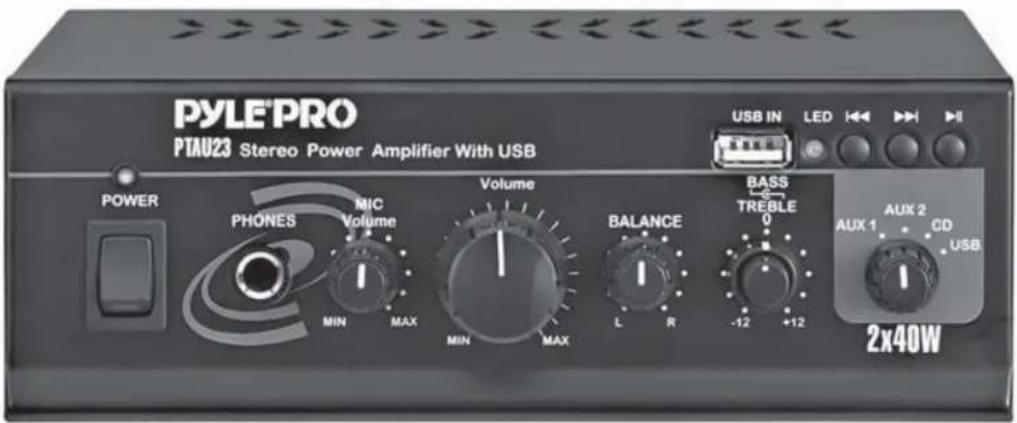

USER MANUAL Pro PTAU23 Pyle

2x40W Max Stereo Power Amplifier with USB input and MIC PAGER

PYLEPRO PTAU23 Stereo Power Amplifier With USB USB IN LED POWER PHONES MIC Volume Volume BALANCE BASS TREBLE 0 AUX 1 AUX 2 CD USB MIN MAX MIN MAX L R -12 +12 2x40W

www.pyleaudio.com

IMPORTANT SAFETY INSTRUCTIONS

1. Read Instructions — All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions — The safety and operating instructions should be retained for future reference.
3. Heed Warnings — All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions — All operang and use instructions should be followed.
5. Water and Moisture — The appliance should not be used near water -for example, near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool, or a wet basement.
6. Ventilation — The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings: or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. Heat — The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
8. Power Sources — The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
9. Grounding or Polarization — Precaution should be taken to insure that the grounding or polarization means of an appliance is not defeated.
10. Power-Cord Protection — Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the appliance.
11. Cleaning — The appliance should be cleaned only as recommended by the manufacturer.
12. Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
13. Nonuse Periods — The power cord of the appliance should be unplugged from the outlet when the appliance is to be left unused for a long period of time.
14. Object and Liquid Entry — Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
15. Carts and Stands — If the appliance is used with a cart or stand, the cart or stand should be a type recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces cause the appliance and cart combination to overturn.

1. Mounting — The appliance should be mounted only as recommended by the manufacturer.

2. Damage Requiring Service — The appliance should be serviced by qualified service personnel when:

A. The power-supply cord or plug has been damaged.
B. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
C. The appliance has been exposed to rain.
D. The appliance has been dropped, or the enclosure damaged.
E. The appliance does not appear to operate normally or exhibits a marked change in performance.

1. Servicing — The user should not attempt to service the appliance beyond that described in the user's operating instructions. All other servicing should be referred to qualified personnel.
2. Overloading — Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
3. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4. Safety Check — Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operating condition.

WARNING: To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture.	This symbol is intended to alert you to the - 6 presence of un-insulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.
CAUTION: Risk of ELECTRIC SHOCK DO NOT OPEN
CAUTION: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified personnel.	This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product.

Your new Pyle Pro PTAU23 Stereo Power Amplifier

gives you the power and versatility you need in a professional sound system. Its wide frequency response make it suitable for amplifying music or vocal program material.

The front located USB 2.0 interface allow you to connect the input of your MP3 devices conveniently, and the MIC PAGER/MIXING function offers the flexibility of using it at paging or musical events. It can be used for meeting halls, house, restaurant, school, stores, live bands, or office.

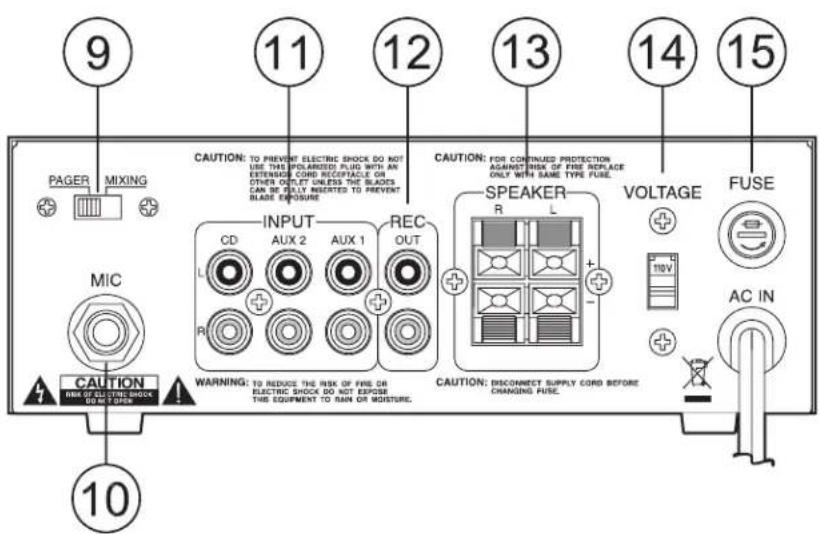

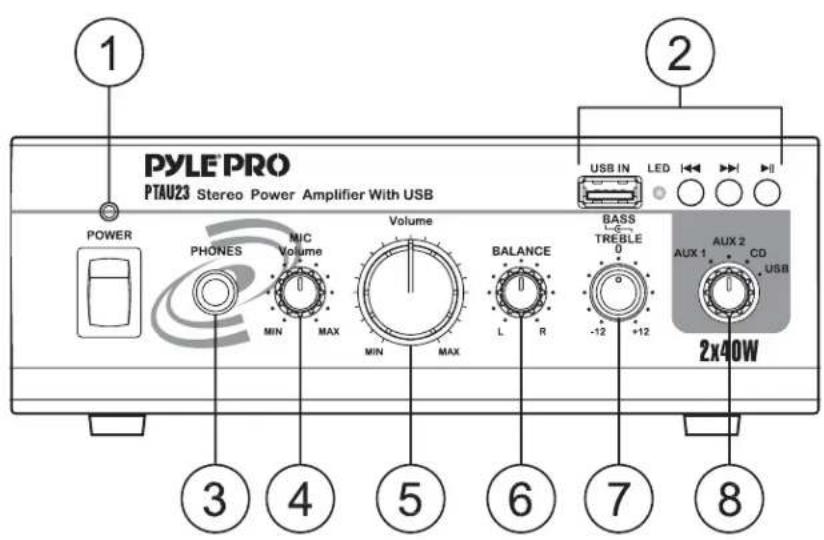

FEATURES AND CONTROLS

1 PYLEPRO PTAU23 Stereo Power Amplifier With USB POWER PHONES MIN MIC Volume MAX Volume MIN MAX BALANCE L R BASS TREBLE 0 -12 +12 2x40W USB IN LED I II AUX 1 CD USB 3 4 5 6 7 8

9 11 12 13 14 15 PAGER MIXING CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARDED PLUG WITH AN EXTENDS CORD RECEPTACLE OR OTHERS OUTLET UNLESS THE BLADES CAN BE ONLY INSERTED TO PREVENT BLADE EXPOSURE CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE ONLY WITH SAME TYPE FUSE. SPEAKER R L VOLTAGE FUSE MIC CAUTION RISK OF EXTERNAL BLOCK GO NOT OVER WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THE EQUIPMENT TO RAIN OR MOISTURE. CAUTION: DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE. 10 110V AC IN

FEATURES AND CONTROLS

(1) Power On/Off and LED Indicator

Main power switch, the indicator lights when the amplifier is turned on.

(2)USB 2.0 Input Interface with LED Indicator

Press ◀◀ to play the last song backward, press ▶▶I to play the next song forward, and press ▶II to play and/or pause the song. When the song is ceased from playing, it will be memorized to resume once the amplifier is reactivated and/or the USB input is selected again.

(3)1/4" PHONE Jack

Accepts headphones with 1/4" plug.

(4)MIC Volume Control

Lets you adjust the volume of connected MIC to the proper setting.

(5)MASTER Volume Control

Lets you control the overall volume level. It doesn't affect the volume of MIC.

(6)BALANCE Control

Lets you adjust the sound balance between the left and right of amplifier outputs.

(7)BASS and TREBLE Control

Allows you to boost or attenuate bass and treble for the desired sound.

(8)AUX 1/AUX 2/CD/USB Input Selector

Lets you select the desired input music source. When it is switched to AUX1, AUX2, or CD input while the USB is still on playing, the playing signal of USB continues, just it is not sent to the amplifier's output.

(9)Switchable MIC PAGER and MIXING Modes

Set to PAGER, the signal from AUX 1/AUX 2/CD will be attenuated BY -12dB and the signal from MIC will override to page (Auto Talkover), it is good for paging system. Set to MIXING, the signals from AUX 1/AUX 2/CD and MIC will be existed at the same time, it acts like playing at KARAOKE event.

(10)1/4" MIC Input Jack

Lets you connect a microphone with a 1/4" plug.

(11)AUX 1/AUX 2/CD RCA Inputs

Lets you connect most high level audio sources such as CD player, tape deck, tuner, camcorder, or VCR.

(12)REC RCA Output

Lets you connect the amplifier to a tape deck for recording.

(13)Push Type Speaker Terminal

Lets you easily connect speaker wires directly to the amplifier. The speaker impedance can be ranged from 4 to 8 Ohms for the general stereo output. The total speaker impedance must be at least 4-Ohm per channel at stereo mode.

(14)110/220 Voltage Selector

This amplifier has selectable input voltage from 110V/60Hz (the standard in USA and CANADA) to 220V/50Hz (for EUROPEAN operation). Please make sure the switch is in the proper position before operating, otherwise, the severe damage will be incurred and not covered by the warranty.

(15)Replaceable Power Fuse

The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse and if necessary replace it with a 1 amp, 250-volt, fast-acting, 5x20mm fuse (not supplied).

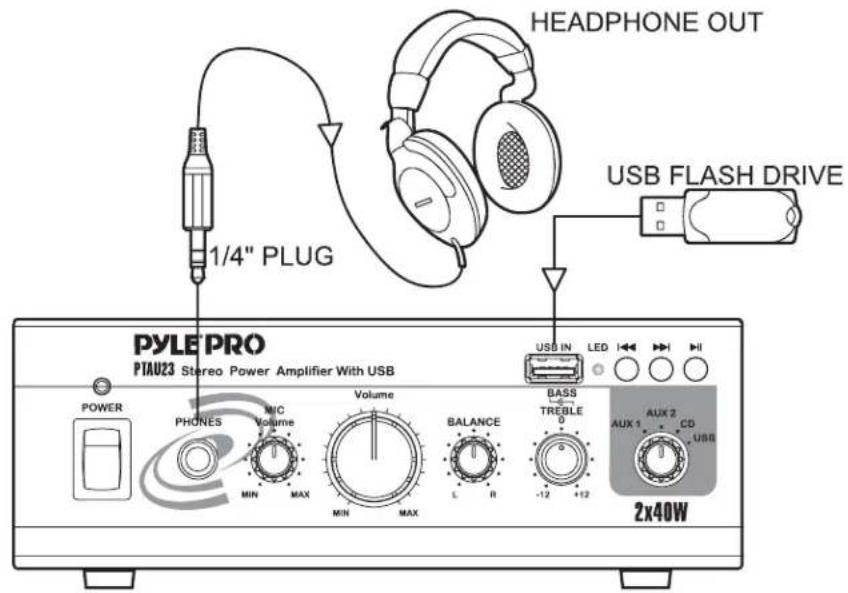

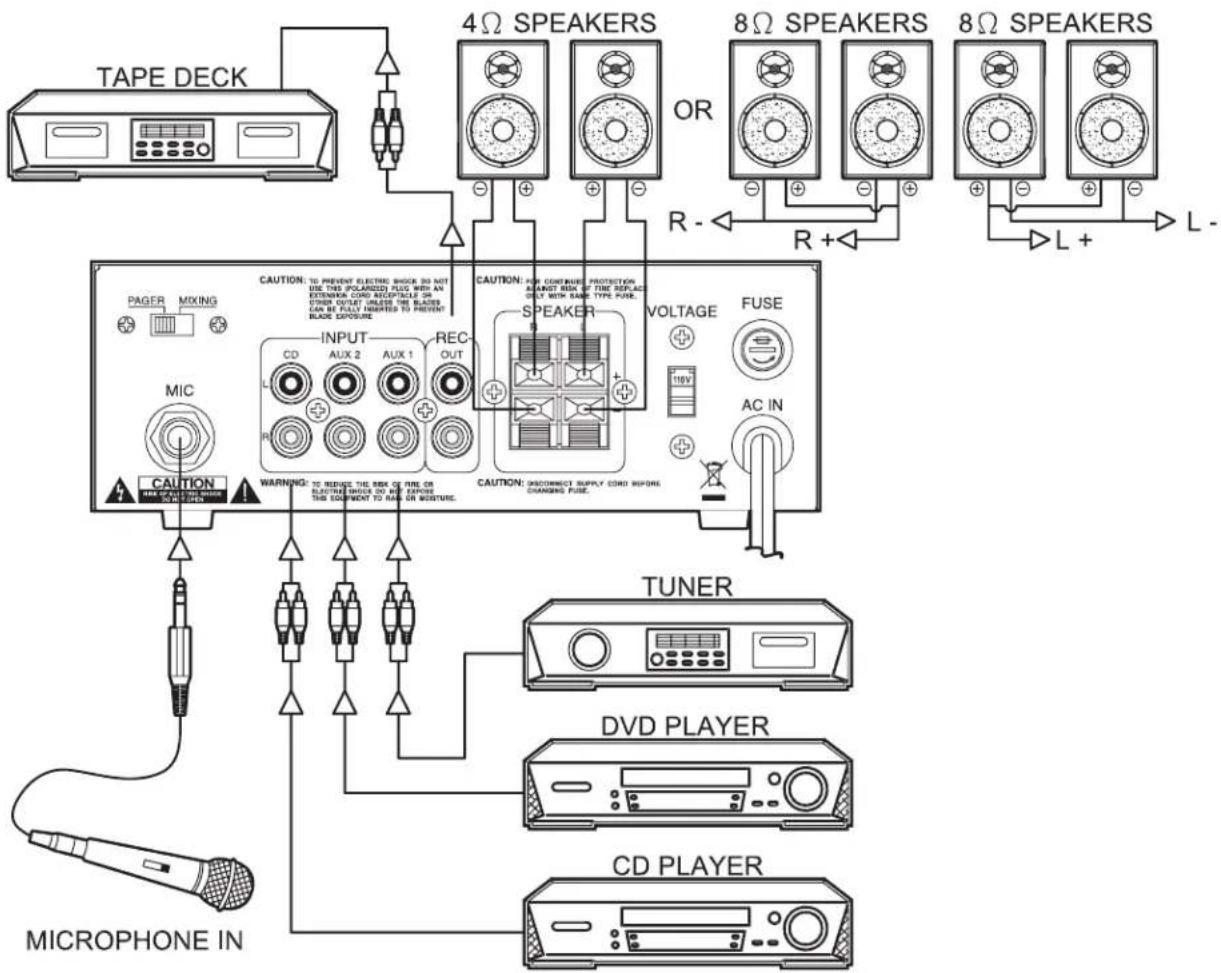

CONNECTION DIAGRAM

HEADPHONE OUT USB FLASH DRIVE 1/4" PLUG PYLE PRO PTAU23 Stereo Power Amplifier With USB POWER PHONES MIC Volume MIN MAX MIN MAX BALANCE L R BASS TREBLE 0 -12 +12 AUX 1 AUX 2 CD USB 2x40W

Specifications

Output Power, 2 channels driven

4-Ohm, 1 kHz, 1% THD 8Wx2

4-Ohm, 1 kHz, 10% THD 10Wx2

Max Power 40Wx2

Total Harmonic Distortion, 1 kHz Rated Power 0.3%

Input Sensitivity, 1 kHz, 4-Ohm Rated Power

AUX 1 200mV

AUX 2 200mV

CD 200mV

USB 200mV

MIC 2.5mV

Frequency Response 20Hz-20kHz

Signal to Noise Ratio, 1 kHz, 4-Ohm Rated Power

AUX 1 80dB

AUX 2 80dB

CD 80dB

USB 80dB

MIC 70dB

Tone Controls

BASS +/-12dB, 100Hz

TREBLE +/-12dB, 10kHz

Power Requirement 120V AC 60Hz/230V AC 50Hz

Power Fuse 1A, 250V fast-acting, 5x20mm

Dimensions, inches (mm) WxHxD 7.48 x 2.72 x 5.39 (190 x 69 x 137)

Weight, lbs (kg) 3.97 (1.8)

Specifications are typical; individual units might vary.

Specifications are subject to change and improvement without notice.

Limited Warranty

All PYLE PRO products are carefully constructed and tested before shipment. Units purchased in the USA are warranted to be free of defects in material and workmanship for one (1) year from the date of purchase. This warranty is limited to the original retail purchaser of the amplifier.

Should the unit fail due to factory defects in material or workmanship, your unit will be repaired or replaced at the sole discretion of PYLE.

To obtain warranty service, you must first call our Consumer Return Hotline at [phone] to obtain a Return Authorization Number. This R.A. # must appear on the outside of your package and on all paperwork relating to your return.

When returning the unit to us for warranty service, it must be carefully packed and shipped, prepaid, to:

R.A.#:

PYLE PRO Service Center

1600 63rd Street

Brooklyn, NY 11204

You must also include the following items with your return:

• A copy of your sales receipt or other proof of purchase
• A brief letter, indicating the problem you are experiencing with the product
- Include in your letter your return address, daytime phone number and R.A. number
- Also include a check or money order for \$20.00 for return
shipping, handling and insurance, or provide your Visa/MC number with expiration date.

Our obligation under this warranty is limited to the repair or replacement of the defective unit when it is returned to us prepaid. This warranty will be considered void if the unit was tampered with, improperly serviced or subject to misuse, neglect or accidental damage.

Please complete warranty card, detach and return

Thank you for purchasing this PYLE product. To activate your warranty, please mail this card within 10 days.

warranty registration card

PYLE PRO AMPLIFIER

Name

Address

City, State ZIP

Model No.

Serial # (if available)

Date of Purchase

Purchased at:

○ Music Products Store
○ Catalog Merchandiser

○ Sound Contractor/Installer ○Mail Order
○ Other

Care and Maintenance

Your Pyle Pro Amplifier is an example of superior design and craftsmanship. The following suggestions will help you care for your amplifier so you can enjoy years of use:

• Keep the amplifier dry. If it gets wet, wipe immediately.
• Use the amplifier only in well-ventilated installations.
• Handle the amplifier gently and carefully - do nto drop!
• Keep the amplifier away from dust adn dirt.
• Wipe occasionally with a damp cloth to keep it looking new. Do not use harsh chemicals, solvents or detergents!
