| Product Type | Brush Cutter |
| Brand | Maruyama |
| Model | BCF5021H-RS |
| Engine Type | 2-stroke, air-cooled |
| Engine Displacement | 21.2 cc |
| Power Output | 0.75 kW (1.0 hp) |
| Fuel Type | Mixed gasoline (50:1 ratio) |
| Fuel Tank Capacity | 0.4 L |
| Cutting Width | 255 mm (10 in) |
| Cutting Blade | Steel blade or nylon line head (interchangeable) |
| Shaft Type | Straight shaft, adjustable |
| Overall Length | 1,650 mm (65 in) |
| Net Weight | 4.5 kg (9.9 lbs) |
| Vibration Level (rear handle) | 2.7 m/s² (K factor 1.5 m/s²) |
| Sound Pressure Level | 92 dB(A) (K factor 2.5 dB(A)) |
| Sound Power Level | 105 dB(A) (K factor 2.5 dB(A)) |
| Ignition System | Electronic (CDI) |
| Starting System | Recoil start |
| Anti-Vibration System | Yes |
| Operator Protective Gear Required | Eye protection, gloves, sturdy boots, hearing protection |
| Maintenance | Clean air filter, check spark plug, sharpen blade, fuel filter replacement |
| Warranty | 2 years limited |
Frequently Asked Questions - BCF5021H-RS Maruyama
What type of fuel does the Maruyama BCF5021H-RS require?
The brush cutter uses a mixture of unleaded gasoline and 2-stroke oil at a ratio of 50:1. Use fresh fuel and a high-quality oil designed for air-cooled engines.

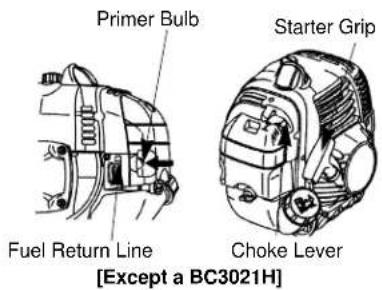

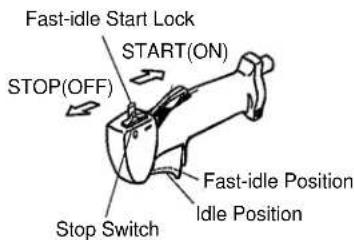

How do I start the Maruyama BCF5021H-RS?
Set the choke, prime the bulb, pull the starter rope gently until resistance is felt, then pull sharply. Once warm, turn off choke. Refer to the manual for detailed starting procedure.
What is the correct blade for thick brush?
For heavy brush, use the steel brush blade provided. For grass and weeds, use the nylon line head. Always choose the appropriate cutting tool for the vegetation.
How often should I clean the air filter?
Check the air filter after every 10 hours of use. Clean it with soap and water if dirty, or replace it if damaged. A clogged filter reduces performance and increases fuel consumption.
What is the recommended spark plug gap?
The electrode gap should be set to 0.6–0.7 mm. Use a spark plug wrench to remove and check the gap with a feeler gauge. Refer to the manual for the exact plug type.
Can I use a harness with this brush cutter?
Yes, the BCF5021H-RS is designed to be used with a shoulder harness for safety and comfort. Ensure the harness is adjusted to distribute weight evenly.
How do I replace the cutting line?
Turn off the engine. Remove the spool cover, take out the old spool, and wind new line (diameter 2.4 mm) following the direction arrows. Cut the line to the specified length and reassemble.
What should I do if the engine won't start?
Check fuel quality, spark plug condition, and air filter. Ensure the choke is set correctly. If still no start, inspect the carburetor or contact a certified service center.
Is the shaft adjustable?
Yes, the straight shaft can be adjusted to suit your height and cutting angle. Loosen the clamp, slide to desired position, and tighten securely.
Where can I find replacement parts?
Genuine Maruyama parts are available through authorized dealers and online retailers. Use only original parts to ensure proper fit and safety.
