Product Type	Panel Heater
Brand	Kogan
Model	KAPEPH24WPA
Power Output	2400W
Heating Type	Convection
Voltage	220-240V ~ 50/60Hz
Dimensions (W x H x D)	800 x 450 x 100 mm
Weight	5.0 kg
Thermostat Control	Adjustable mechanical thermostat
Power Settings	2 heat settings (1200W / 2400W)
Overheat Protection	Yes, automatic shut-off
Tip-Over Switch	Yes, safety cut-off
IP Rating	IP21
Cable Length	1.5 m
Material	Steel body with powder coating
Mounting	Free-standing or wall-mounted (brackets not included)
Noise Level	Silent operation (no fan)
Energy Efficiency Class	D
Warranty	2 years

Frequently Asked Questions - KAPEPH24WPA Kogan

How do I set the desired temperature on the Kogan KAPEPH24WPA heater?

Turn the thermostat dial clockwise to increase the temperature or counterclockwise to decrease. The heater will automatically maintain the selected temperature.

Can I use the heater in a bathroom?

The heater has an IP21 rating, meaning it is protected against dripping water. It can be used in a bathroom but must be installed at least 0.6 meters away from a bath or shower.

How do I clean the heater?

Unplug the heater and let it cool completely. Wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the heater in water.

What should I do if the heater turns off unexpectedly?

The heater may have activated its overheat protection. Check for obstructions blocking airflow, and ensure the heater is on a stable, level surface. If the problem persists, unplug and contact Kogan support.

Does the heater have a tip-over safety feature?

Yes, the heater is equipped with a tip-over switch that automatically cuts off power if the unit is knocked over, ensuring safe operation.

Can I paint the heater to match my decor?

No, do not paint the heater as it can affect heat dissipation and cause fire risk. The finish is designed for safe operation.

What is the maximum room size for this heater?

The 2400W heater is suitable for rooms up to approximately 24 square meters, depending on insulation and ambient temperature.

How long is the power cord?

The power cord is 1.5 meters long. Do not use an extension cord as it may overheat.

Is the heater suitable for commercial use?

No, the Kogan KAPEPH24WPA is designed for domestic indoor use only. Commercial use may void the warranty.

Where can I find replacement parts?

Contact Kogan customer service for genuine replacement parts. For small repairs, refer to the user manual; otherwise, seek professional assistance to maintain safety.

USER MANUAL KAPEPH24WPA Kogan

Two white electric heat exchangers with ventilation grilles, displayed on wheels (no visible text or symbols)

PANEL HEATER

1500W & 2400W

KAPEPH15WPA & KAPEPH24WPA

SAFETY & WARNINGS

• The heater is for household use only. This heater should be used only as intended.
• Check the heater carefully before use. Do not switch the heater on with defects or a damaged cord. Contact help.Kogan.com for support.
• Placing the heater in water is forbidden.
• Only plug the heater into an AC power source.
• The heater should be connected to the same voltage as started on the rating label and packaging.
• The heater must only be plugged in to a grounded socket.
• Do not use a non-standard power supply.
• Switch off the heater before plugging it in.
• Do not use the heater outdoors.
• Protect the heater from the impact of the sharp corners and high humidity.
• Do not touch the heater with wet hands.
• If there is water on the surface of the heater, unplug it immediately.
• If the heater falls in water, unplug it immediately. Before next use, the heater should be checked by licensed professional.
  • Always unplug the heater after use, before cleaning or if you find defects.
• Do not carry the heater by the cord.
• When you switch off the heater, keep your hand on the plug and pull it. Do not pull the cord.
• Do not wrap the cord around the heater after the use.
• Do not attempt to repair the heater yourself. If the heater or cord are damaged, cease use immediately and contact help.Kogan.com for support.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or metal capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not plug the heater in before it is wall mounted or set on wheels.
• Do not cover the heater when it is operating.
• Avoid placing foreign objects in the air vents.
• Do not pull and twist the cord.
• Never leave the heater unattended while in use.

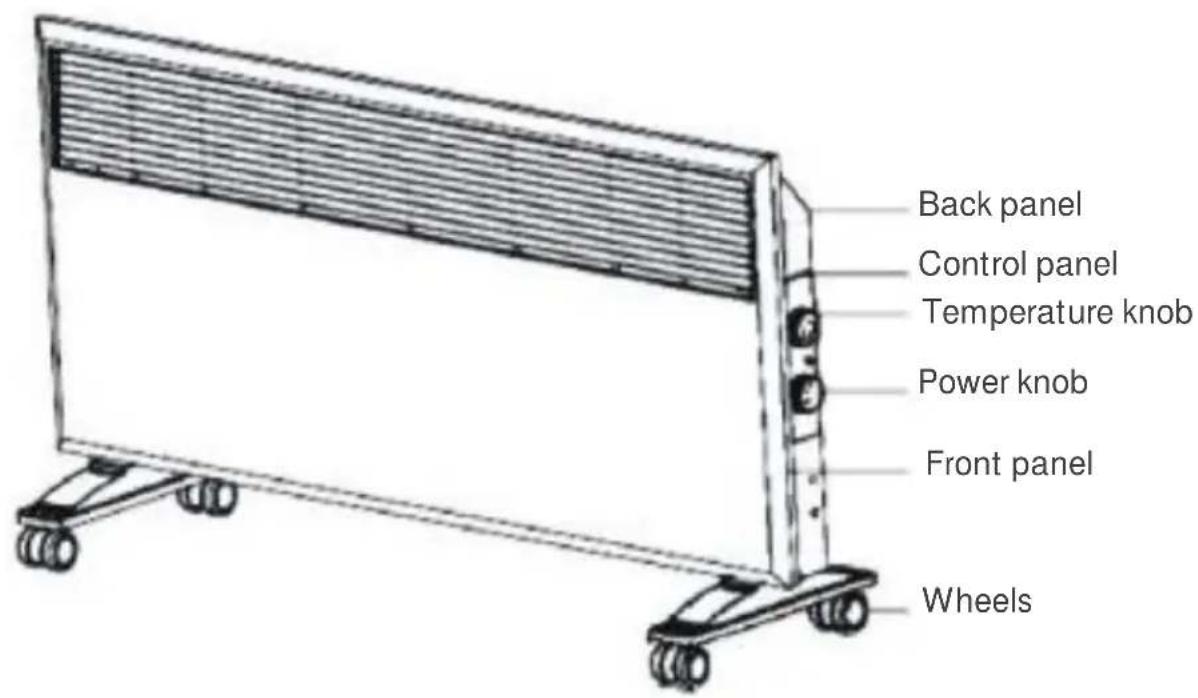

OVERVIEW

COMPONENTS

• Short screws (x6)
• Long screws (x4)
• Wall anchors (x4)
• Brackets (x2)
• Spacers (x2)
• User guide

INSTALLATION

Before Use

• Take the heater out of the box.
- Remove the packaging.
- Check the installation parts.

Wheels

1. Carefully turn the heater upside down.
2. Press the x4 wheels into the x2 wheel plates. The wheels will audibly click into place.
3. Secure the wheel plates to the heater using x2 short screws per wheel plate.
4. Place the heater upright.

Illustration of a flat-screen TV with two clamps above it (no text or symbols visible)

Notes:

• There must be at least 200mm between the bottom edge of the heater and the floor. Other objects should be at least 200mm from the sides and 500mm in front of the heater.
• Do not place the heater under an electrical outlet.

• Do not place the heater in a bathroom or near a swimming pool.
  • This heater has IP24 protection.

• Drill x2 ∅8mm holes 220mm (1500W) or 500mm (2400W) apart. Then, drill a ∅8mm hole 25mm from the outer side of each hole.

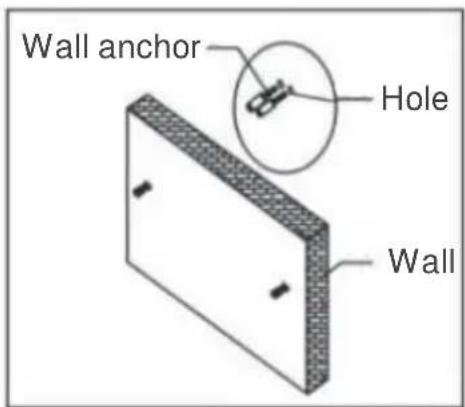

• Insert the x4 wall anchors into the drilled holes.

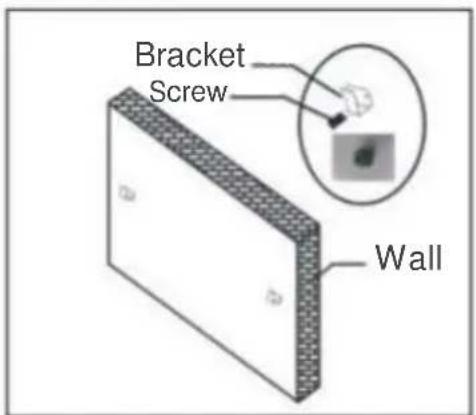

• Secure x1 bracket to x2 wall anchors using x2 long screws. Repeat this to secure the other bracket to the other x2 wall anchors.
• Locate the x2 holes in the back panel of the heater. Secure the x2 spacers to the back panel using x2 short screws.
• Hook the heater on the brackets.

Diagram of a door frame with directional arrows indicating movement, shown in an inset view (no text or symbols)

OPERATION

1. Place the heater on flat, stable surface.
2. Ensure the power knob is turned towards 'off'.
3. Plug the heater in to an electrical outlet.
4. Turn the power knob to the desired fan speed and the temperature knob to the desired temperature. The indicator will illuminate.
5. When the set temperature has been reached, turn the temperature knob anticlockwise until it audibly clicks. All heating elements and the indicator will switch off.
6. The heater will automatically switch on when the ambient temperature decreases and will automatically switch off when the ambient temperature increases to maintain a comfortable ambient temperature.
7. Unplug the heater if it will not be used for a long time.

CLEANING & CARE

• Before cleaning the heater, wait until it cools down and unplug it.
• Do not use abrasives and solvents. Wipe the heater with a soft, damp cloth.
• Remove dust from the surface of the heater regularly.
• Do not wash the heater or place it in water.
• If the heater will not be used for long time, wipe the surface and store it in its original packaging in a dry, ventilated room. Do not expose the heater to humidity.

SPECIFICATIONS

Voltage	220-240V (1500W), 230-240V (2400W)
Frequency	50-60Hz
Power	750/1500W (1500), 1200/2400W (2400W)

Disposal

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
