Type	Test Oscillator / Signal Generator
Brand	Rolls
Model	MO2020se
Country of Manufacture	USA
Frequency Range	20 Hz - 24 kHz
Output Waveforms	Sine and Square
Output Connectors (Sine)	XLR (balanced), RCA, 1/4" (unbalanced)
Output Connector (Square)	1/4" unbalanced
Output Level (Sine)	+11 dB
Output Level (Square)	+14 dB
Output Impedance	100 Ω
Total Harmonic Distortion (Sine)	<1%
VCO Control Input	1/4" jack, accepts 1.2 - 5 V DC for external sweeping
-30 dB Pad	Yes, for referencing
Power Requirement	12 - 15 V DC
Power Supply Included	Rolls PS27s
Dimensions (W x H x D)	4.25" x 3.75" x 1.75" (108 x 95 x 44 mm)
Weight (approx.)	1 lb (0.45 kg)
Included Accessories	Owner's manual, PS27s power supply
Maintenance	Wipe with a dry cloth; keep away from moisture and extreme temperatures
Safety	Use only the specified power supply. No user-serviceable parts inside.
Spare Parts / Repairability	Contact Rolls for service or replacement parts
Application	Audio device testing and signal tracing

Frequently Asked Questions - MO2020se Testoscillator ROLLS

What is the frequency range of the MO2020se?

The MO2020se covers 20 Hz to 24 kHz, suitable for audio frequency testing.

What types of output waveforms are available?

It provides both sine wave and square wave outputs for various testing applications.

What connectors are used for outputs?

The sine wave output is available on XLR (balanced), RCA, and 1/4" unbalanced jacks. The square wave output is on a 1/4" unbalanced jack.

What is the output impedance?

The output impedance is 100 Ω for both sine and square wave outputs.

How is the unit powered?

It requires a 12–15 V DC power supply. An included Rolls PS27s power supply provides the correct voltage.

Does the MO2020se have a balanced output?

Yes, the XLR connector provides a balanced sine wave output for professional audio equipment.

What is the VCO input used for?

The VCO input (1/4" jack) accepts 1.2 to 5 V DC to control or sweep the output frequency externally.

What is the purpose of the -30 dB pad?

The -30 dB pad attenuates the output level for referencing low-level signals without overloading the device under test.

What are the physical dimensions of the unit?

The MO2020se measures 4.25" x 3.75" x 1.75" (108 x 95 x 44 mm) and weighs approximately 1 lb.

How accurate is the frequency selection?

Frequency markings on the dial are approximate. For precise frequency settings, use an external frequency counter.

USER MANUAL MO2020se Testoscillator ROLLS

1 - Made in USA MO2020se
1 - This owners manual
1 - Rolls PS27s Power supply

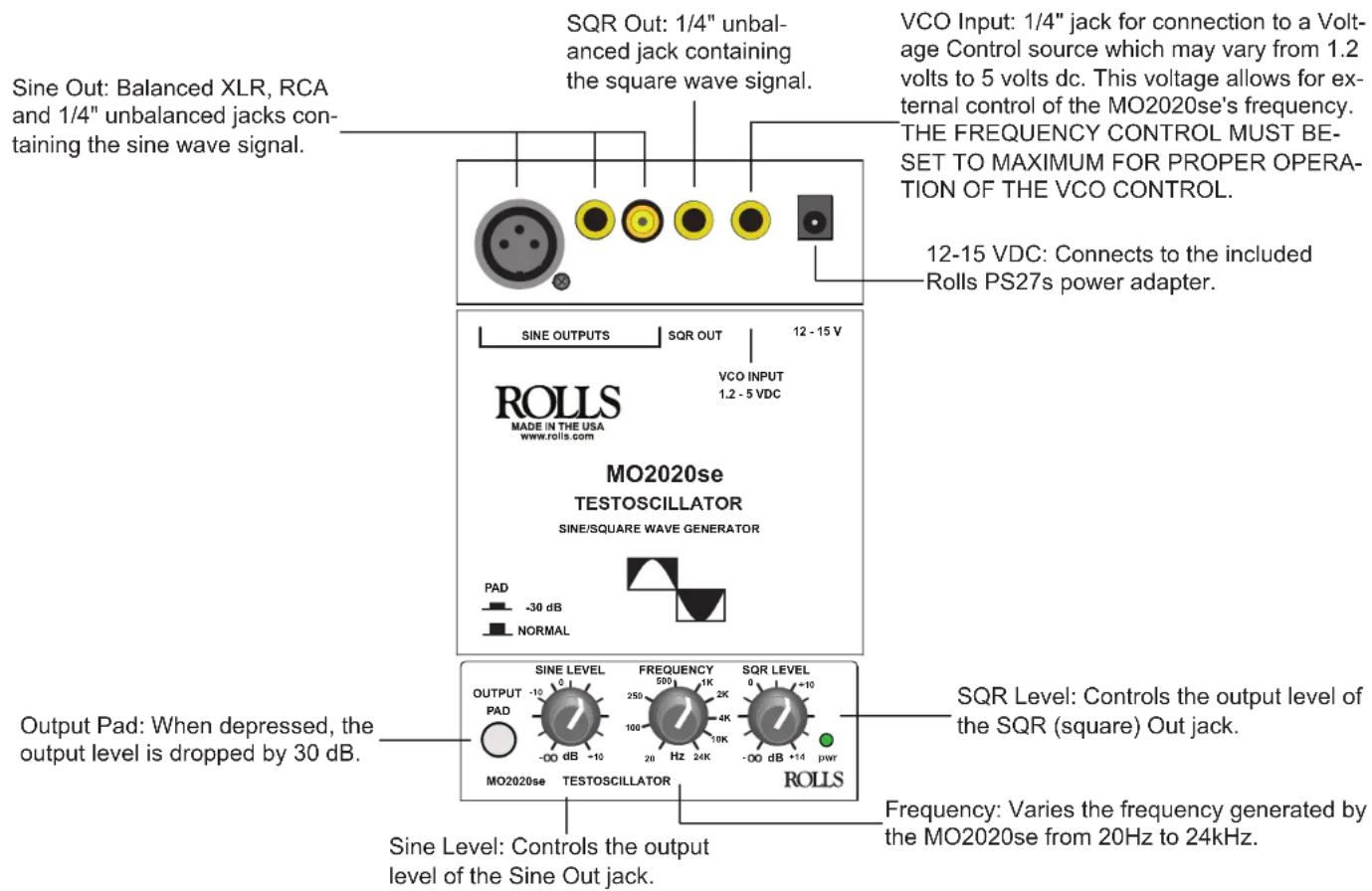

The MO2020se is a signal generator for electronic testing in the audio frequency range. It has XLR, RCA and 1/4" unbalanced sine wave outputs, and a 1/4" unbalanced square wave output. For external control or sweeping of the frequency range, a 1/4" VCO input is provided to receive 1.2 to 5 volts dc.

• Frequency range from 20Hz to 24kHz
• Balanced XLR, RCA and 1/4" unbalanced Outputs
• Sine and Square wave outputs
- -30 dB pad for referencing

SPECIFICATIONS:

Output Level:

+11 dB Sine

+14 dB Square

Output Impedance: 100 Ω

THD (Sine):

<1%

Size:

4.25" x 3.75" x 1.75"

Power:

12 - 15 Volts DC

The MO2020se is designed to provide a sine wave, or square wave outputs, for testing audio devices. The units frequency output varies from 20Hz to 24kHz.

PLEASE NOTE: THE FREQUENCY MARKINGS ON THE MO2020 ARE APPROXIMATE AND MAY VARY. FOR ACCURATE FREQUENCY SELECTION, USE A RELIABLE FREQUENCY COUNTER.
