USER MANUAL UP 2162 RCF

OWNER MANUAL MANUALE D'USO

UP 2082 UP 2162

• DUAL AMPLIFIER
• DOPPIO AMPLIFICATORE

INDEX INDICE

ENGLISH

SAFETY PRECAUTIONS 4

OPERATING PRECAUTIONS 5

DESCRIPTION 6

FRONT PANEL 6

REAR PANEL 7

'PRIOR IN1' AND 'MUTE IN1' COMMANDS 8

LOUDSPEAKER CONNECTION 9

POWER SUPPLY VOLTAGE CHANGE 10

SPECIFICATIONS | 11

EXAMPLEOFCONNECTIONS 11

ITALIANO

AVVERTENZEPERLASICUREZZA 12

PRECAUZIONI D'USO 13

DESCRIZIONE 14

PANNELLO FRONTALE 14

PANNELLO POSTERIORE 15

COMANDI "PRIOR IN1" E "MUTE IN1" 16

COLLEGAMENTO DEI DIFFUSORI ACUSTICI 17

Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference.

The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions.

RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

WARNING: To prevent the risk of fire or electric shock, never expose this product to rain or humidity.

SAFETY PRECAUTIONS

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.

2. POWER SUPPLY FROM MAINS

a. The mains voltage is sufficiently high to involve a risk of electrocution; therefore, never install or connect this product when its power cable is plugged in.
b. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please contact your RCF dealer.
c. The metallic parts of the unit are earthed by means of the power cable. An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
d. Protect the power cable from damage; make sure it is positioned in a way that it cannot be stepped on or crushed by objects.
e. To prevent the risk of electric shock, never open the product: there are no parts inside that the user needs to access.

1. Make sure that no objects or liquids can get into this product, as this may cause a short circuit. This apparatus shall not be exposed to dripping or splashing. No objects filled with liquid, such as vases, shall be placed on this apparatus. No naked sources (such as lighted candles) should be placed on this apparatus.
2. Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.

Contact your authorized service centre or qualified personnel should any of the following occur:

• The product does not function (or functions in an anomalous way).
• The power supply cable has been damaged.
• Objects or liquids have got in the unit.

• The product has been subject to a heavy impact.

• If this product is not used for a long period, disconnect the power cable.

• If this product begins emitting any strange odours or smoke, switch it off immediately and disconnect the power supply cable.

• The terminals marked with the symbol are HAZARDOUS LIVE and their connection is to be made by an INSTRUCTED PERSON or the use of ready-made cables is required.

• Do not connect this product to any equipment or accessories not foreseen. For suspended installation, only use the dedicated anchoring points and do not try to hang this product by using elements that are unsuitable or not specific for this purpose. Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws,

IMPORTANT

WARNING

brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

To prevent the risk of falling equipment, do not stack multiple units of this product unless this possibility is specified in the user manual.

9. RCF S.p.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms) who can ensure correct installation and certify it according to the regulations in force.

The entire audio system must comply with the current standards and regulations regarding electrical systems.

10. Supports and trolleys

The equipment should be only used on trolleys or supports, where necessary, that are recommended by the manufacturer. The equipment / support / trolley assembly must be moved with extreme caution. Sudden stops, excessive pushing force and uneven floors may cause the assembly to overturn.

1. There are numerous mechanical and electrical factors to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.).

12. Hearing loss

Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices. When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones.

See the technical specifications in loudspeaker instruction manuals to know their maximum sound pressure levels.

OPERATING PRECAUTIONS

IMPORTANT NOTES

To prevent the occurrence of noise on microphone / line signal cables, use screened cables only and avoid putting them close to:

- Equipment that produces high-intensity electromagnetic fields (for example, high power transformers)

- Mains cables

- Loudspeaker lines

OPERATING PRECAUTIONS

• Do not obstruct the ventilation grilles of the unit. Situate this product far from any heat sources and always ensure adequate air circulation around the ventilation grilles.
• Do not overload this product for a long time.
• Never force the control elements (keys, knobs,etc.).
• Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product.

IMPORTANT NOTES

OPERATING PRECAUTIONS

RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN DESIGNED TO GUARANTEE RELIABILITY AND HIGH PERFORMANCES.

DESCRIPTION

UP 2082 and UP 2162 are devices with 2 separated and independent 80 W (UP 2082) / 160 W (UP 2162) amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact.

Both the audio inputs are at 'line' level: for pre-amplified signals or music sources (e.g. CD players, tuners, etc.).

Each amplifier output is available either for low impedance loudspeakers (min. 4 Ω) or a 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers).

On each amplifier:

• The input 1 can get the priority, which mutes the input 2, through an external command connected to the PRIOR IN.1 contact.
• The input 1 can be muted through an external command connected to the MUTE IN 1 contact.

Each amplifier has its (common) BASS and TREBLE tone controls.

Front panel LEDs indicate the device state (ON), protections (PROT), the priority activation (PRIOR) and the signal / peak level (SIG/PK) of the respective amplifier.

FRONT PANEL

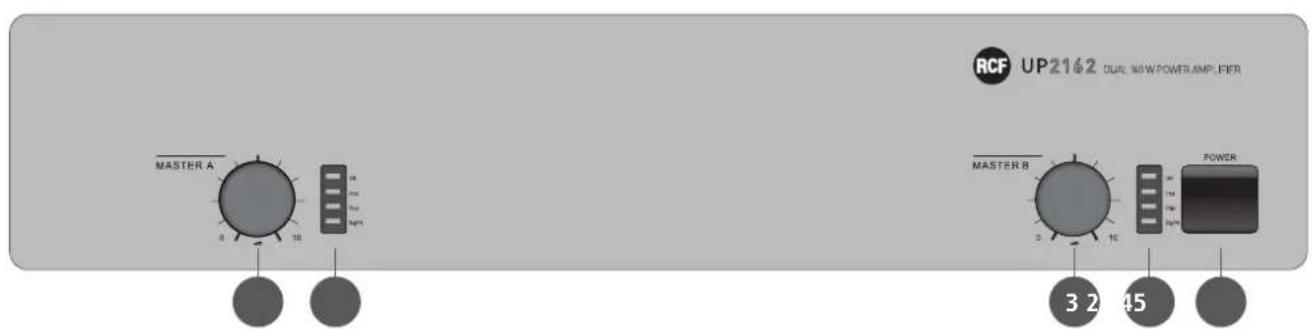

RCF UP2162 DUAL NOW POWERAMPLIFIER MASTER A 0 10 Power MASTER B 3 2 45 POWER

1 Main POWER switch (0 = off; I = on)

2 Amplifier B LEDs:

ON green: the amplifier is operating

PROT red: overload protection orange: thermal protection

PRIOR yellow: INPUT 1 priority

SIG/PK green: the signal level is higher than -15 dB green + red: the signal level is in the 0 ÷ +2 dB range red (peak): the signal level is equal or higher than +3 dB

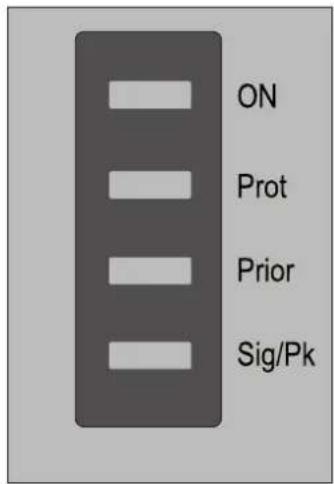

ON Prot Prior Sig/Pk

0 dB = SIGNAL LEVEL THAT ALLOWS TO GET THE AMPLIFIER MAXIMUM POWER.

THE INTERNAL 'LIMITER' CIRCUIT HELPS TO AVOID THE AMPLIFIER OVERLOAD, YET IT IS ADVISABLE TO REDUCE THE RESPECTIVE MASTER VOLUME WHEN THE SIG/PK LED IS CONTINUOUSLY INDICATING RED.

③ MASTER B volume control
4 Amplifier A LEDs (see 2: 'Amplifier B LEDs').
5 MASTER A volume control.

REAR PANEL

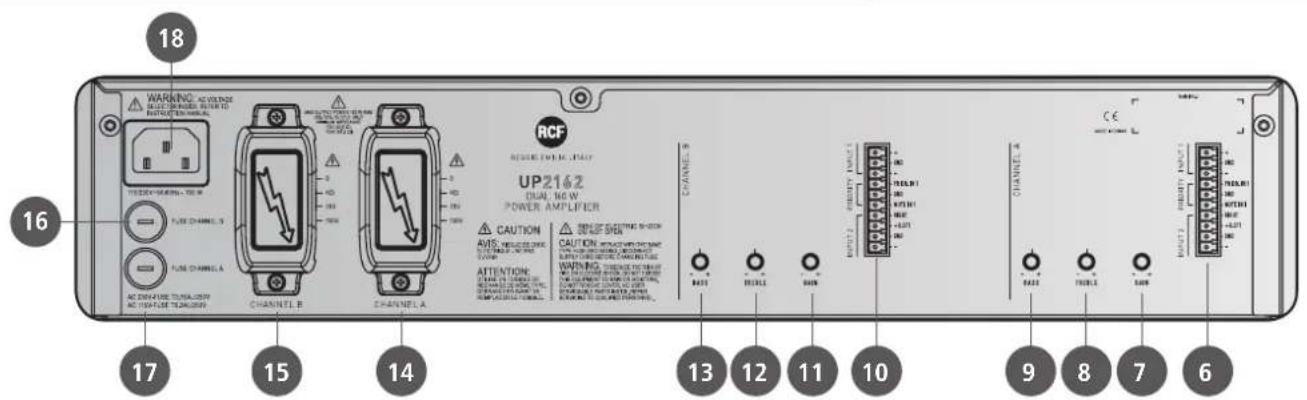

18 WARNING: AC VOLTAGE SELECT ON BIASER SWITCH TO RISSEMENT CHANNEL THE DRY WIREING - THE W FUBE CHANNEL 5 FUBE CHANNEL A AC ENGLISH TURSALAWAY AC FLOWE TURSALAWAY 16 17 15 14 RCF RESURE PUBLIC TURSALAWAY UP2162 DUAL: 100 W POWER AMPLIFIER CAUTION AVES REPROVED CAUTION WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THRESH SELLING WITH CANCICUM WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THRESH SELLING WITH CANCICUM ATTENTION: WARNING: THUSH SELLING WITH CANCICUM ATTENTION: WARNING: THUSH SELLING WITH CANCICUM ATTENTION: WARNING: THUSH SELLING WITH CANCICUM ATTENTION: WARNING: THUSH SELLING WITH CANCICUM ATTENTION: WARNING: THUSH SELLING WITH CANCICUM ATTENTION: WARNING: THUSH SELLING WITH CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THUSH SELLING WITHOUT CANCICUM ATTENTION: WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT CANCICUM WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING WITHOUT ANNUAL POWER WARNING: THRESH SELLING 13 12 11 10 9 8 7 6

6 Amplifier A audio inputs and commands (removable connector):

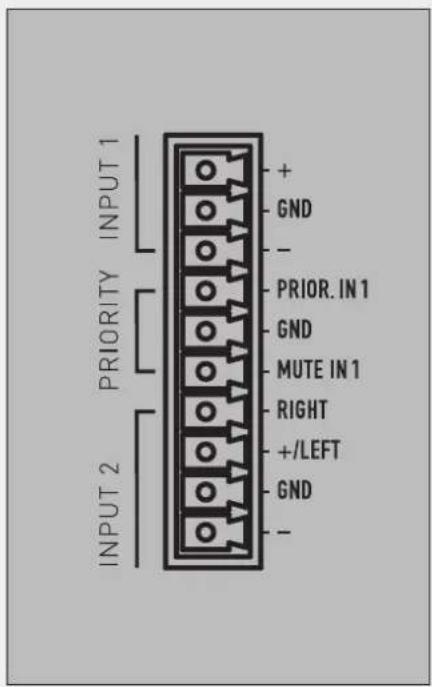

INPUT 1 + GND - PRIOR. IN 1 GND MUTE IN 1 RIGHT +/LEFT GND - INPUT 2

INPUT 1	+ Audio input 1, hot
	GND Audio input 1, ground
	- Audio input 1, cold
PRIORITY	PRIOR.IN1	Input 1 priority command(active when linked to the ground).
	GND Ground
	MUTE IN1	Input 1 mute command(active when linked to the ground).
INPUT 2	RIGHT Audio input 2, hot (right)*
	+/LEFT Audio input 2, hot (left)*
	GND Ground
	- Audio input 2, cold (common)*

* The two channels (left and right, of the stereo source connected to the INPUT 2) are summed internally (to get a mono signal).

7 GAIN control of the amplifier A input 2 (only).
8 Amplifier A TREBLE tone control.
9 Amplifier A BASS tone control.

P Amplifier B audio inputs and commands (removable connector).

See 6 'Amplifier A audio inputs and commands' for connections.

{ GAIN control of the amplifier B input 2 (only).

} Amplifier B TREBLE tone control.

Q Amplifier B BASS tone control.

W Amplifier A output (UP 2082: max. 80 W, UP 2162: max. 160 W) to loudspeakers

(100 / 70 V constant voltage line - 4 Ω impedance).

Use 1 output only (read the section 'Loudspeaker connection').

e Amplifier B output (UP 2082: max. 80 W, UP 2162: max. 160 W) to loudspeakers (100 / 70 V constant voltage line - 4 Ω impedance).

Use 1 output only (read the section 'Loudspeaker connection').

Γ Amplifier B fuse.

t Amplifier A fuse.

THE PROPER FUSE TYPES ARE MARKED ON THE REAR PANEL (BELOW THE AMPLIFIER A FUSE t).

y Connector for the power cable.

'PRIOR IN1' AND 'MUTE IN1' COMMANDS

When no command is activated, the inputs 1 and 2 are both open.

THE VOLUME OF THE MUSIC SOURCE (E.G. CD PLAYER, TUNER, ETC.) CONNECTED TO THE INPUT 2 ALSO DEPENDS ON ITS RESPECTIVE GAIN [7] / {} CONTROL ON THE REAR PANEL.

When the 'PRIOR.IN1' priority command is activated, the input 2 is muted.

When the 'MUTE IN1' command is activated, the input 1 is muted.

THE 'PRIOR.IN1' COMMAND OVERRIDES THE 'MUTE IN1' ONE.

Use 1 output only (either 100 V or 70 V or 4 Ω) per amplifier ('channel')!

100 / 70 V CONSTANT VOLTAGE OUTPUTS

• Each loudspeaker shall have a line transformer with the input voltage equal to the line voltage (100 / 70 V).
• The loudspeaker total power shall not be higher than the amplifier maximum power (UP 2082: 80 W, UP 2162: 160 W).

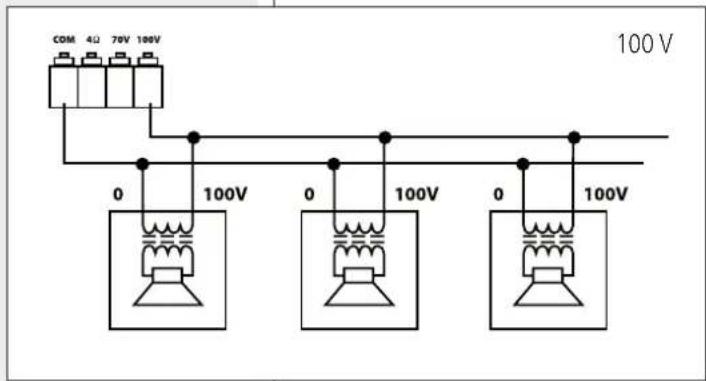

CDM 4Ω 70V 100V 100 V 0 100V 0 100V 0 100V

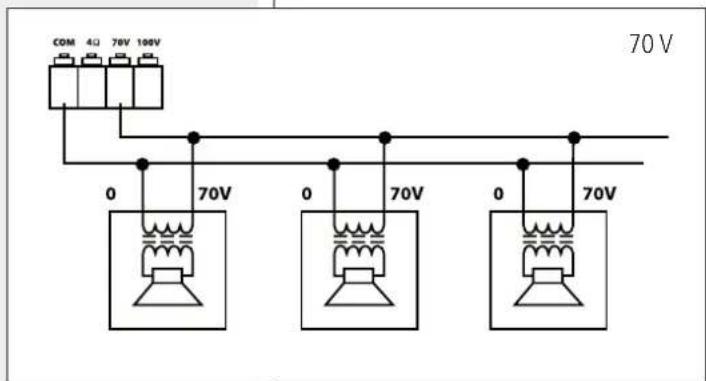

70 V COM 4Q 70V 100V 0 70V 0 70V 0 70V

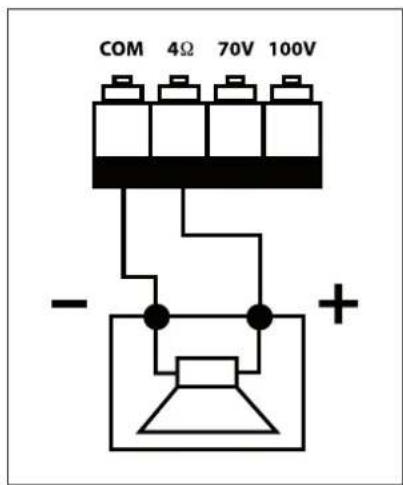

LOW IMPEDANCE OUTPUT (4 Ω)

- The loudspeaker total impedance shall not be lower than 4 Ω.

NOTE: A TOTAL IMPEDANCE EQUAL TO 4 Ω ALLOWS THE AMPLIFIER MAXIMUM POWER DELIVERY. A HIGHER IMPEDANCE LEADS TO A REDUCTION OF THE POWER DELIVERED BY THE AMPLIFIER (E.G. 8 Ω: APPROX. ½ POWER, 16 Ω: APPROX. ¼ POWER). AN IMPEDANCE LOWER THAN 4 Ω OVERLOADS THE AMPLIFIER.

• Loudspeaker models shall be chosen by considering the max. power (UP 2082: 80 W on 4 Ω load, UP 2162: 160 W on a 4 Ω load) that the amplifier can deliver.
• Loudspeaker line should be as short as possible; long cables may need large wire cross-sections.
• Do not use, at the same time, both the low impedance output (4 Ω) and the constant voltage output (100V or 70V), as this overloads the amplifier.

COM 4Ω 70V 100V - +

POWER SUPPLY VOLTAGE CHANGE

IMPORTANT: THIS MANUAL SECTION CONCERNS QUALIFIED PERSONNEL ONLY. THE FOLLOWING INSTRUCTIONS ARE TO BE IGNORED BY USERS.

Make sure the device is not connected to the mains (unplug the power cable).

Remove the lid.

Inside there are 2 identical amplifiers: the voltage change must be applied to both.

IMPORTANT

Interior view of an electronic device showing internal components like capacitors, inductors, and connectors (no visible text or symbols)

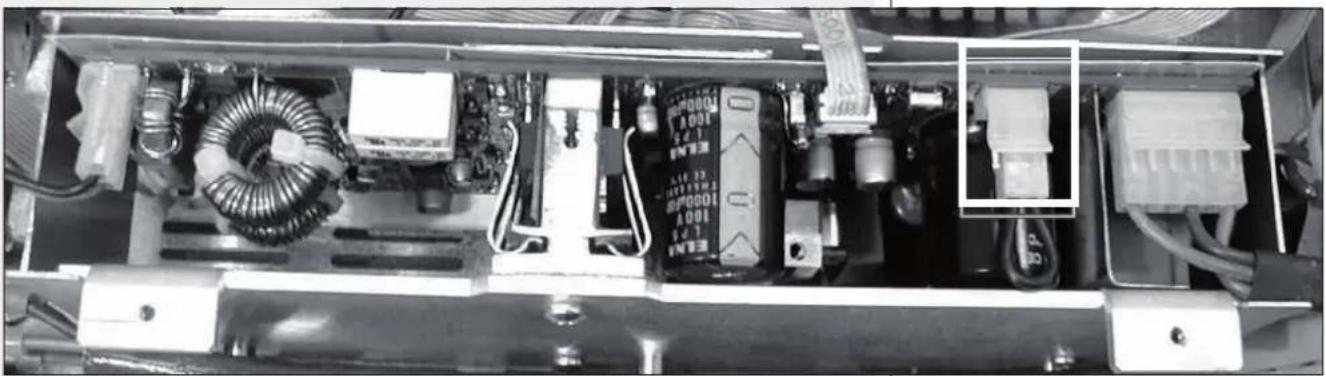

In the picture 1, the voltage change connector is highlighted by a square.

If the mains voltage is 230 V, set the connector to the 230Vac position (see the picture 2), according to the PCB indication (looking at the connector front, the central pin is connected to the right one).

If the mains voltage is 115 V, set the connector to the 115 Vac position (see the picture 3), according to the PCB indication (looking at the connector front, the central pin is connected to the left one).

Refit the device lid.

Before connecting the device to the mains, make sure that both the fuses 16, 17 are the correct current rating for the mains voltage (read the indication on the rear panel, below the fuse A 17).

PICTURE 1

PICTURE 2

PICTURE 3

AMPLIFIERS

Output RMS power

Frequencyresponse

Signal / noise ratio

Distortion (at 1 kHz, nominal power)

TONE CONTROLS

Bass

Treble

INPUT SENSITIVITY / IMPEDANCE

INPUT1

INPUT2

LOUDSPEAKEROUTPUTS

Lowimpedance

Constant voltage (UP 2082)

Constant voltage (UP 2162)

PROTECTIONS

Amplifier

Powersupply

GENERAL

Operating voltage

Max. consumption (power)

Dimensions (w, h, d)

Net weight

80 + 80 W (UP 2082); 160 + 160 W (UP 2162)

50 Hz ÷ 16 kHz

80 dB

< 0.3 %

± 8 dB @ 100 Hz

± 8 dB @ 10 kHz

Balanced, -12 dBu / 20 kΩ

Bal., adj. -12 ÷ -32 dBu / 20 kΩ (stereo: 10 kΩ)

4 Ω

70 V (63 Ω) / 100 V (125 Ω)

70 V (31 Ω) / 100 V (63 Ω)

Overload, Short circuit, Thermal

Separate fuse per amplifier

115-230V / 50-60 Hz

350 W (UP 2082), 700 W (UP 2162)

442 mm, 87 mm, 230 mm (two 19" rack units)

3.8 kg (UP 2082), 7 kg (UP 2162)

EXAMPLE OF CONNECTIONS

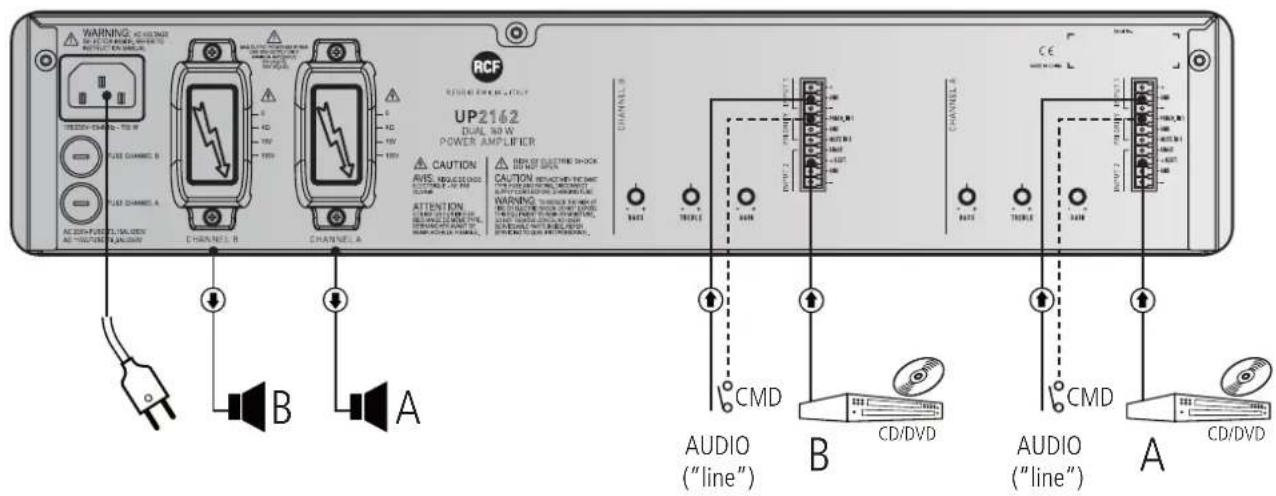

WARNING ACCELERATION UP2162 DUAL 90 W POWER AMPLIFIER RCF UP2162 CHANNEL R CHANNEL A CAUTION AVS. REQUIRED DOG CAUTION RETACH WITH THE CNT WARNING SWITCHER SWITCHER ATTENTION WARNING SWITCHER SWITCHER AUDIO (“line”) AUDIO (“line”) A B C CMD CD/DVD A CD/DVD
