OD-50 - Musical instrument Chord - Free user manual and instructions

Product Type	Overdrive/Distortion Guitar Pedal
Brand	Chord
Model	OD-50
Item Reference	174.170UK
Power Supply	9V battery (included) or optional 9V DC adaptor (centre-negative, 100mA or higher)
Controls	Gain, Tone, Level
Footswitch	Effect on/off footswitch
Input	6.3mm (1/4") jack
Output	6.3mm (1/4") jack
Indicator	LED effect on/off indicator
Dimensions (approx.)	2.8 x 4.5 x 2.1 in (71 x 114 x 53 mm)
Weight (approx.)	0.5 lb (227 g)
Material	Metal chassis
Included Accessories	9V battery, user manual
Disposal	Do not dispose with household waste; follow local regulations for electronic waste
Cleaning	Wipe with a dry cloth; do not use solvents
Maintenance	Unplug input jack to save battery; remove battery if not used for long periods
Warranty	Damage caused by misuse not covered

Frequently Asked Questions - OD-50 Chord

How do I power the OD-50 pedal?

The pedal can be powered by a 9V battery (included) or an optional 9V DC adaptor with centre-negative polarity and a rating of 100mA or higher. Connect the battery to the clip inside the battery compartment, or plug the adaptor into the DC jack.

Why is the pedal not turning on?

Ensure the battery is properly connected or the DC adaptor is plugged in. Also check that the input jack is inserted (the pedal is powered via the input jack). If using a battery, it may be depleted. Replace with a new 9V battery.

How do I adjust the distortion level?

Turn the Gain control clockwise to increase the amount of overdrive/distortion. For more distortion, increase Gain and reduce the Level control to avoid excessive volume.

What does the Tone control do?

The Tone control adjusts the tonal character of the effect. Turn it to tame the edgy sound or help the pedal cut through the mix for solos.

Can I use the OD-50 with a bass guitar?

Yes, the OD-50 can be used with bass guitar. The overdrive effect works well with bass, but you may need to adjust the Tone and Gain to suit the lower frequencies. It is primarily designed for electric guitar.

How do I connect the pedal to my amplifier?

Connect your guitar to the Input jack (6.3mm) and connect the Output jack to your amplifier input. Make sure the pedal is powered and press the footswitch to engage the effect.

What type of power adapter should I use?

Use a 9V DC adaptor with centre-negative polarity and a current rating of at least 100mA. Many standard guitar pedal power supplies work, but check polarity to avoid damage.

How to change the battery?

Unscrew or open the battery compartment on the underside of the pedal. Carefully remove the old battery and disconnect the clip. Connect the clip to a new 9V battery, place it in the compartment, and secure the cover.

Why is there no sound when the pedal is engaged?

Check that the pedal is powered and the footswitch is pressed (the LED should be on). Ensure all cables are properly connected and the amplifier is on. If using a battery, it may be dead. Also verify that the Level control is turned up.

How to clean the pedal?

Clean the exterior with a soft, dry cloth. Do not use harsh chemicals or solvents. Keep the jacks and switches free from dust and debris. Unplug all cables before cleaning.

USER MANUAL OD-50 Chord

Overdrive / Distortion Pedal

Item ref: 174.170UK

User Manual

Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty

Thank you for choosing a Chord effect pedal to give your instrument a new sound dimension. Please read below for an explanation of the controls and to get the best results from your new effect.

Each Chord 50-series effect pedal is supplied with a 9V battery, which needs to be connected to the battery clip inside the underside battery compartment. Carefully remove the plastic cover by squeezing its clip and levering outwards. Clip back into place once the battery is fitted.

Controls and connections are described below.

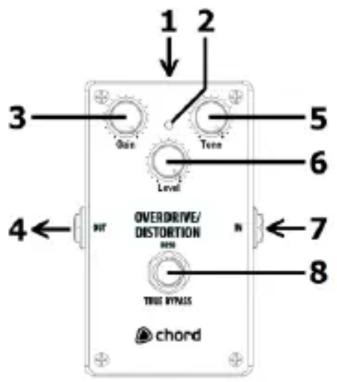

1. Optional 9V DC jack power input
2. Effect on/off indicator
3. Gain - adjusts the amount of drive / distortion
4. 6.3mm jack output - to amplifier
5. Tone - adjusts the tonal character of the effect
6. Level - adjusts the output level of the effect
7. 6.3mm jack input - from guitar
8. Effect on/off footswitch

The OD-50 provides an overdrive effect when switched on, which emulates an over-driven amplifier to give an aggressive, thrashy and distorted character to the guitar tone. The resulting sound is hard-edged and compressed, ideal for many genres of rock music.

Increase Gain for more distortion and counteract the resulting increase in volume by backing off the Level control. Use the Tone control to tame the edgy sound or help it cut through the mix for solos.

Unplug the guitar input jack to preserve the battery when not in use. If the pedal is not being used for long periods, it is advised to remove the 9V battery. Optional external power can be from a 9Vdc adaptor, centre-negative polarity with a rating of 100mA or higher recommended.

Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted. Copyright© 2023. AVSL Group Ltd.
