USER MANUAL SP 5210 SINBO

Black-and-white photo of a cooking pot with baked goods and a gas stove, no visible text or symbols

www.sinbo.com

TR

EN

RU

AR

CİHAZIN AÇIKLAMASI • DESCRIPTION OF DEVICE ОПИСАНИЕ УСТРОЙСТВА
وصف الجهاز

Değerli Müsterimiz,

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Pure technical diagram of a mechanical component with no text or symbols

CİHAZIN KURULUMU

Hand holding a circular dial with an arrow, no text or symbols visible

Please read the user manual carefully before you continue.

• Do not touch hot surfaces, use the handles of the pan to carry it.
• If there has been voltage fluctuations, check the appliance, its power cable and socket regularly against damages. If it is damaged, do not use the appliance and contact your nearest authorized service organization.
• Be careful with children when using the appliance. Do not leave children unattended near the appliance.

- Do not immerse the appliance, its cable and socket into water or any other liquid.

- Only use authentic spare parts. Otherwise the appliance may be dangerous.

- Keep the appliance away from hot surfaces and objects and flammable/explosive materials such as LPG, etc.

- Do not carry the appliance while its working; hot oil and hot foods contained in the pan may spill.

- Set the desired temperature setting and plug in the appliance.

- This appliance is designed for cooking food for household use and not for commercial use.

- Ensure that the appliance does not work empty.

- Children should be supervised to avoid them to play with the appliance.

- Unless accompanied by a person responsible for their safety or has instructed about the safe use and related risks about it, the appliance should not be used by children aged >8 and adults with limited physical, sensory or mental capacity, or without adequate information or experience. Children should not tamper with the appliance.

- Children aged 8 or unattended children should not perform cleaning or maintenance of the appliance. Keep the appliance and its cable from the reach of children aged 8.

- Unless accompanied by a person responsible for their safety or has instructed about the safe use, the appliance should not be used by adults with limited physical, sensory or mental capacity, or without adequate information or experience (including children).

- Children should be supervised against playing with the appliance.

- The appliance is not suitable for use with an external timing system or a separate remote control system.

APPLIANCE FEATURES

• Cast body
• Fast cooking and high energy savings with built-in resistor
• Delicious food thanks to uniform heat distribution
  • Non-sticking cooking surface
  • 100 to 260°C thermostat setting range

• Large cooking area with diameter 32cm depth 8cm
• High tempered safety glass cover
- Portable use with insulated handle
- Suitable for different foods (Pop corn, roasts, pancakes, etc.)
- AC230V, 50Hz, 1200W

CAUTION!

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

OVERVIEW OF THE APPLIANCE

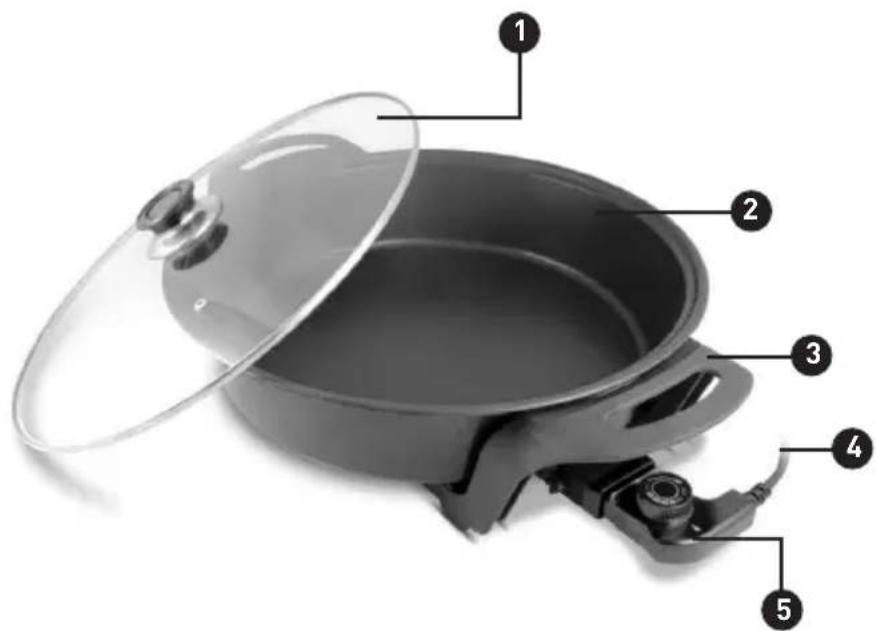

1. Glass cover, 2. Pan, 3. Carrying handles, 4. Power cord with thermostat, 5. Control lamp

INSTALLING THE COVER HOLD HANDLE

Simple line drawing of a circular object with a ring and a small protrusion, no text or symbols present.

SETTING UP THE DEVICE

Warning: Clean the pan and the cover before use.

1) Set the temperature setting button to 'Off' position and insert the automatic heat regulator into the plug.
2) Insert the socket to the 230V plug.
3) Set the temperature depending on the foods you are cooking. The control lamp will light when the pan heats.

COOKING

Wait for 5 to 10 min. after setting the temperature. You can start cooking when the control lamp is lit.

NOTE:

• The lamp goes off when the temperature thermostat activates, this is doing not indicate a fault.
• Any discolorations are only on the surface, they do not have any impact on the cooking

performance of the pan.

• During the first use, you might notice a slight smell (caused by coating or dusts) which is absolutely normal. Provide sufficient ventilation and the smell will go away in subsequent uses.
• Use the steam outlet on the cover to control the steam formation inside the pan.
• Do not place any flammable materials on the pizza pan.

AFTER USE

1) After use, switch the setting button to 'Off' position.
2) Disconnect from the plug and remove the automatic temperature regulator from the pan.
3) Do not pull the cable to unplug the appliance, hold and pull from the socket.

WARNING: The tip of the temperature regulation

Hand holding a circular dial with a smiley face, no text or symbols visible

thermostat gets very hot during use. Allow for the pan to cool down before removing this piece.

4) Clean the pan with a dry and soft cloth after cooling.
5) Be careful when handling the glass cover. Do not cool it rapidly and do not use it if you notice apparent scratches and/or cracks on the surface.

When handling the pan, please observe the following:

The surface of the pan is non-sticking teflon, therefore:

• Don't use any sharp pointed objects.
• Only use wooden or heat resistant plastic utensils in order to avoid damage to the coating.
• Do not use a sharp knife to slice foods while they are inside the cooking plate. Use another plate for slicing.
• Do not leave the temperature regulating thermostat on the pan.
• Do not use plastic or metal brushes for cleaning. These materials will cause abrasion on the pan surface. Clean the pan using a damp cloth after use.

The remaining frying oil and other food remains may cause risk of fire.

INFORMATION ABOUT USAGE FAULTS

Only use the specified voltage for the appliance. Check with your local voltage to see if they match.

To avoid any risk hazards, a damaged power cable must be changed by the manufacturer, service organization or a likewise qualified technician. Do not attempt to open the device yourself in case of a

failure, contact our maintenance center or after sales service.

Do not attempt to repair the device yourself. Doing so will void your warranty and our company will assume no responsibility for resulting failures.

DURING TRANSPORTATION AND HANDLING

• Do not drop the product,
• Protect from impacts,
• Ensure it doesn't get crushed or squeezed,
• Observe the marks on the packaging,
• Use the original packing materials during transport.

Safety Precautions and Recommendations:

Observe the following against the risk of electric shock, fire and other damages:

• The voltage of the mains plug should be 230V.
• The cable should not kink or get damage.
• Do not pull from the cable when unplugging the appliance.
• Do not place the pan in cold water while it is still hot.
• Allow the appliance to dry after cleaning for cooking.

Do not place the appliance on these surfaces:

- Unstable, flammable surfaces (paper, table cloth, carpets, etc.)

- Keep a distance of 15 cm from the walls.

Temperature Regulation Thermostat

• The thermostat is a sensitive piece of equipment and it should not be dropped or damaged.
• Only use authentic thermostat for the appliance.
• Make sure you place the thermostat correctly. Do not pull from its cable, hold the connection point to pull.
  • Take the thermostat to the nearest service organization if it is damaged.
• When installing or removing the thermostat, make sure that the power button in the 'OFF' position and the plug is disconnected from the mains.

CLEANING AND MAINTENANCE

Clean the appliance as follows after use.

APPLIANCE PART CLEANING CAUTION
PAN Clean the pan using	a damp clothor soft papertowel after use, when it is still warm. If youcannot remove some of the food remains,put a little water into the pan and start theappliance. The remains will be easy to removewhen the pan is warm.	Do not use detergents, plastic or metal brushesas these may damage the pan. Do not applycold water to the pan when its still hot.
COVER Clean with a	soft sponge or just a littledetergent.	Do not use thinner, benzene, detergents orsimilar chemical materials. Otherwise it maydamage the glass surface.
TEMPERATUREREGULATIONTHERMOSTAT	Clean using a dry, soft towel or soft papertowel.	Clean the temperature regulation thermostatcarefully and do not let it get in contact withwater.

MAINTENANCE

• Information about the Timing and Qualified Persons to Perform the Periodic Maintenance When Required

The appliance does not require periodic maintenance.

This product is virtually maintenance free and it has no parts that can be repaired by the user. Do not attempt to repair the device yourself.

Servicing should be performed by qualified service technicians.

Proper disposal of the product:

This sign indicates that this product should be separated from the household wastes and disposed of separately. Recycle the product in an environmentally responsible way so that the wastes do not pose a threat for the environment and people, and ensure that the materials can be used again in an sustainable manner. Return the used products to return and collection centers or contact the dealer you purchased the product.

They can accept the products for recycling.

The usable life of this product is 7 years as specified and declared by the ministry.
