DM55V2 - Microphone Eikon - Free user manual and instructions

Product Type	Dynamic Microphone
Polar Pattern	Cardioid
Frequency Response	50 Hz - 15 kHz
Impedance	600 Ohms
Sensitivity	-54 dBV/Pa
Connector	XLR (3-pin)
Dimensions (Diameter x Length)	50 mm x 180 mm
Weight	350 g
Power Source	No battery required (dynamic)
On/Off Switch	Yes
Included Accessories	Microphone clip, stand adapter, pouch
Main Functions	Vocal recording, live performance, podcasting
Cleaning Instructions	Wipe with dry cloth; avoid moisture
Safety Recommendations	Keep away from liquids; do not disassemble
Spare Parts Availability	Replacement grilles and clips available
Repairability	Moderate; professional service recommended
Brand	Eikon
Model	DM55V2

Frequently Asked Questions - DM55V2 Eikon

What type of microphone is the Eikon DM55V2?

The Eikon DM55V2 is a dynamic microphone with a cardioid polar pattern, ideal for vocals and live sound.

Does the DM55V2 require phantom power?

No, as a dynamic microphone, it does not require phantom power. It can be used with any standard XLR input.

What is the frequency response of the DM55V2?

The frequency response ranges from 50 Hz to 15 kHz, providing a clear sound suited for speech and music.

Can I use the DM55V2 for podcasting?

Yes, its cardioid pattern and durable build make it suitable for podcasting and home studio recordings.

How do I clean the DM55V2 microphone?

Use a dry, soft cloth to wipe the exterior. Avoid getting moisture into the grille. A separate pop filter can protect the capsule.

What accessories are included with the DM55V2?

It comes with a microphone clip, a stand adapter, and a protective pouch.

Is the DM55V2 compatible with wireless systems?

It can be used with wireless bodypack transmitters that accept XLR input but is primarily a wired microphone.

What is the impedance of the DM55V2?

The impedance is 600 ohms, which is standard for dynamic microphones and compatible with most mixers.

Can I replace the grille if damaged?

Yes, replacement grilles are available. Contact Eikon support for compatible spare parts.

How should I store the DM55V2 when not in use?

Store in the provided pouch in a cool, dry place to avoid dust and moisture damage.

USER MANUAL DM55V2 Eikon

Vintage-style microphone on a black stand, no visible text or symbols on the device body

ENGLISH

General

EIKON DM55V2 Vintage microphone is a high grade moving coil dynamic microphone, which features big size diaphragm, for an extra accurate low, medium and high frequency response. The integrated rubber shock-mount support helps to reduce handling noise. DM55V2 is the right choice for professional speech live applications and stage performance, requiring a vintage style.

Features

○ Satin chrome-plated die-cast casing for pure vintage look and feel
○ Cardioid Polar Pattern
- Frequency Response tailored for vocals and instrumental music
- Internal shock mount for reduced handling noise
○ On-off switch Self-tensioning swivel mount
○ EIKON custom design

Specifications

Model.....DM55V2

Polar Pattern....cardioid

Frequency response.... 50Hz- 16Kh

Sensitivity.... - 52 dB

Nominal Impedance.... 300 ohms

Max imput Spl.... 130 db

Connector....xlr 3 Pin

Weight....485 gr.

Dimensions.... H 185 x L 56 x W 67 mm

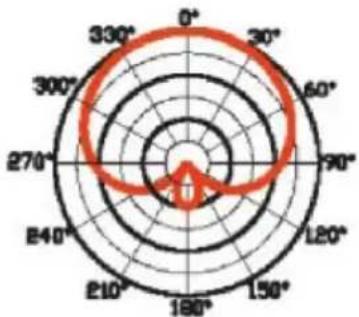

Figure 1: Polar pattern

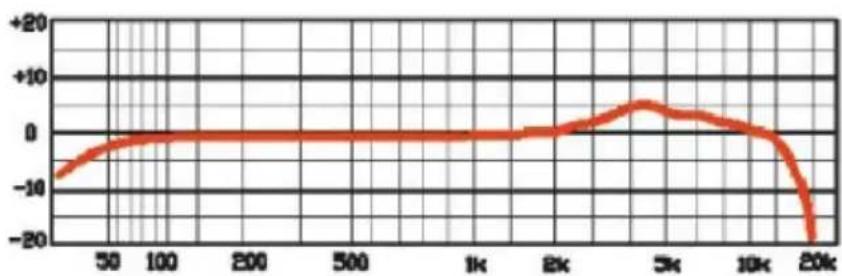

Figure 2: Frequency response

EIKON

is a brand of

PROEL S.p.A.

(World Headquarters - Factory)

Via all a Ruenia 37/43

64027 Sant 'Omero (Te) - Italy

Tel: [phone]

Fax: [phone]

www.eikon-audio.com
