USER MANUAL LLMC10 Luxor

Assembly Instructions

Tools Required:

Phillips Head Screwdriver

Parts Key
A x1

Charging Cabinet

B x1

Cord Wrap

C x2

Bolt,
Phillips Head

D x4

Thumbscrew

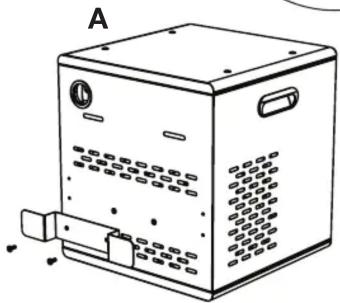

1 Position cord wrap on the rear of the cabinet, over the corresponding threaded mount holes.

Line drawing of a portable oven or refrigerator unit with control panel and side buttons (no text or symbols)

2 Insert each bolt into a lock washer, then a flat washer, then use to attach the casters to the Dolly.

Line drawing of a rectangular electronic device with ventilation slots and mounting tabs (no text or symbols)

3 Remove the drawer from the bottom/lower cabinet by pressing the release lever on each side of the drawer track.

Pure mechanical assembly diagram showing a bracket and mounting bracket without any text or symbols

Line drawing of an open industrial machine with internal components and ventilation slots (no text or labels)

4 Remove the rubber caps from the top of the cabinet.

Simple line drawing of a curved surface with a labeled point D and a dashed vertical line (no text or symbols beyond label)

Line drawing of an open industrial control cabinet with internal components (no text or symbols)

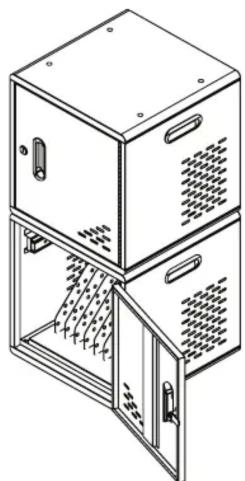

5 Position a second cabinet on top, aligning the threaded mount holes.

Line drawing of a two-tiered storage cabinet with open door and ventilation slots (no text or symbols)

6 Using the thumbscrews attach the lower Cabinet to the upper Cabinet.

Line drawing of an open metal cabinet with internal components (no text or symbols)

LUXOR

WORKSPACES

www.luxorworkspaces.com 800-323-4656

LLMCDP

Modular Charging Cabinet -Double Dolly

Assembly Instructions

Tools Required:

Phillips Head Screwdriver

Parts Key

Caster, Locking

Caster, Non-Locking

C x16

Bolt, Phillips Head

D x16

Lock Washer

Ex16

Flat Washer

F x8

Thumbscrew

1 Flip the Dolly over and position the casters over the corresponding threaded mount holes.

IMPORTANT: Position the locking casters on the end next to the power strip.

Technical line drawing of a mechanical frame with two wheels and labeled points A and B (no text or symbols beyond labels)

2 Insert each bolt into a lock washer, then a flat washer, then use to attach the casters to the Dolly.

Technical line drawing of a mechanical frame with two wheels and a diagonal guide line (no text or symbols)

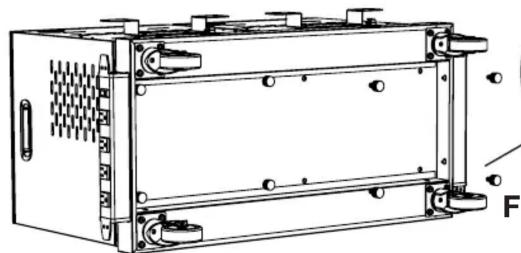

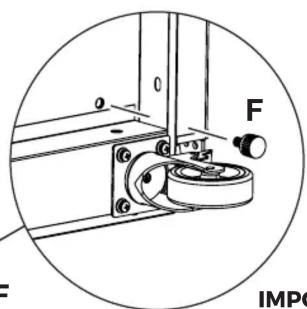

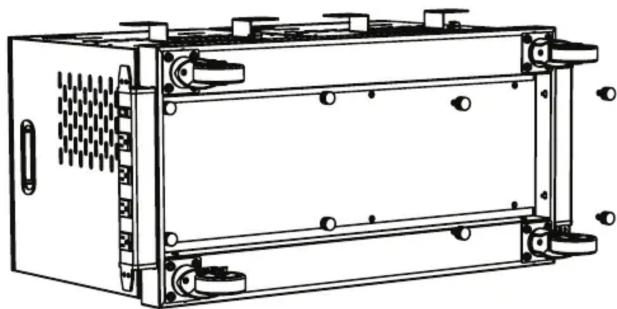

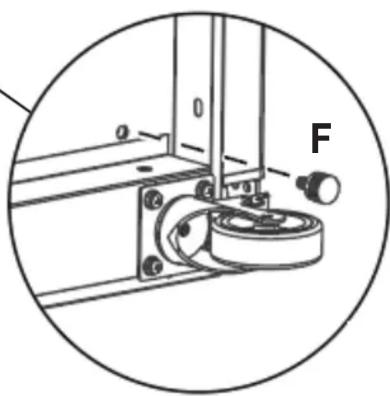

3 Using the thumbscrews, attach the Modular Charging Cabinets.

IMPORTANT: Position the Charging Cabinets so the cabinet doors face perpendicular to the edges of the Dolly with the power strips.

Technical line drawing of a rectangular electronic device with mounting brackets and internal components (no text or symbols)

Mechanical assembly diagram showing a pulley system with labeled component 'F' (no text or symbols beyond label)

Line drawing of a two-wheeled industrial machine with wheels and doors (no text or symbols)

LUXOR

WORKSPACES

www.luxorworkspaces.com

800-323-4656

LLMCDC

Modular Charging Cabinet

- Dolly Connection Plate

Assembly Instructions

Tools Required:

Phillips Head Screwdriver

* Phillips head bolts come with the Dolly assemblies.
** Thumbscrews come with the Modular Charging Cabinet assemblies.

Parts Key
A x1

Technical line drawing of a mechanical component with flanged ends and bolt holes (no text or symbols)

Connection Plate

B x4

Caster, Locking

C x4

Caster, Non-Locking

D x32E x32

Bolt, Phillips Head

G x8
Lock Washer

Flat Washer

Thumbscrew

1 Flip the Dollies over, position them end-to-end with the power strips facing out, and position the casters at each corner over the corresponding threaded mount holes.

IMPORTANT: Position at least one set of locking casters on one end. If desired, you can place a locking caster at all four corners.

Technical diagram of a mechanical assembly with labeled components A and B, showing two views (no text or symbols present)

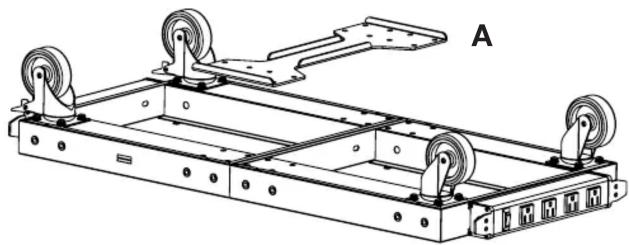

2 Position the Connection Plate over the corresponding threaded mount holes where the two Dollies are joined.

Technical line drawing of a mechanical frame assembly with wheels and mounting brackets (no text or symbols)

3 Insert each bolt into a lock washer, then a flat washer, then use 16 bolts to attach the casters to the Dollies.

Technical line drawing of a mechanical frame with two wheels and a separate inset showing a component labeled D, E, F (no text or symbols present)

4 Use the remaining 16 bolts to attach Connection Plate to the Dollies.

Technical line drawing of a mechanical frame assembly with wheels and mounting holes, plus a close-up detail showing bolted fasteners (no text or symbols)

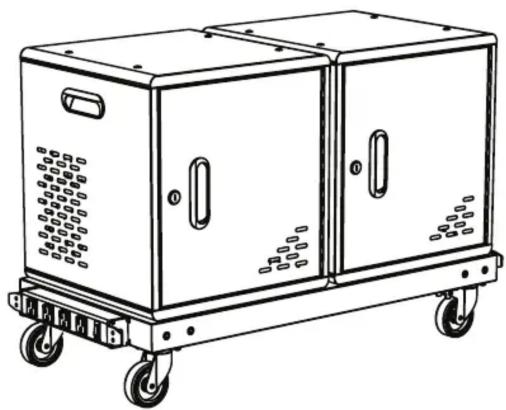

5 Using the thumbscrews, attach the Modular Charging Cabinets.

Technical line drawing of a mechanical enclosure or housing with mounting brackets and ventilation slots (no text or symbols)

Mechanical assembly diagram showing a bearing and mounting bracket (no text or symbols)

Line drawing of a two-wheeled industrial cart with wheels and doors (no text or symbols)

IMPORTANT: Position the Charging Cabinets so the cabinet doors face perpendicular to the power strips.

LUXOR

WORKSPACES

www.luxorworkspaces.com

800-323-4656

LLMCPH

Modular Charging

Cabinet – Dolly Handle

Assembly Instructions

Parts Key
B x4

Pure mechanical bracket diagram without any text or symbols

Handle

Bolt, Socket Head

C x4

Split Washer

1 Line the handle up with the corresponding threaded mount holes on the sides of the Dolly.

NOTE: While the handle can be attached to either end, it's generally best to attach the handle to the end with the power strip and caster locks.

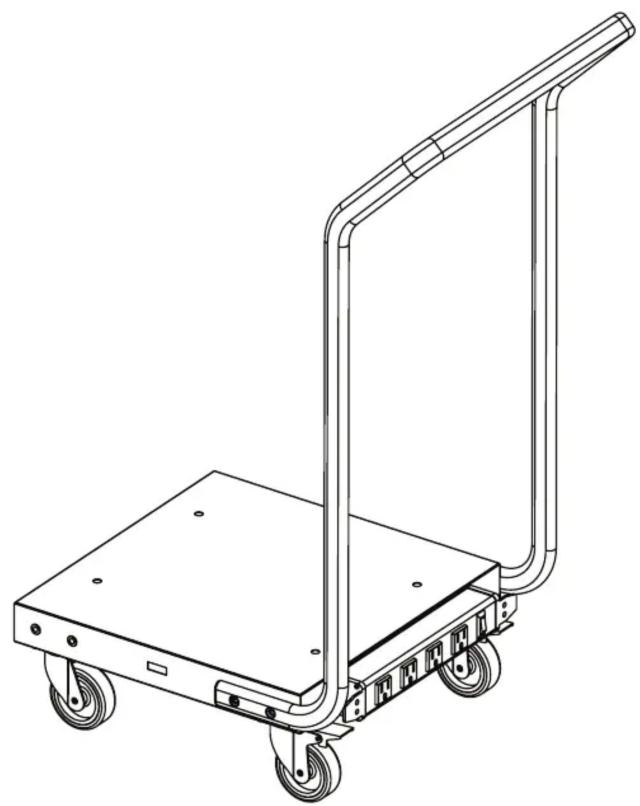

2 Use the socket head bolts and split washers to attach the handle to the Dolly.

Line drawing of a two-wheeled cart with a handle and wheels (no text or symbols)
