Type of product	Signal Splitter / DI Box
Brand	Rolls
Model	MS20C
Dimensions (approximate)	1.5 x 3.5 x 4.5 inches
Weight (approximate)	0.6 lbs (270 g)
Power supply	Passive (no external power required)
Input connectors	1/4" TS unbalanced
Output connectors	2 x 1/4" TS unbalanced
Primary function	Split one audio signal into two outputs
Additional features	Compact design, rugged metal chassis
Maintenance & cleaning	Wipe with a dry soft cloth; avoid liquids
Safety precautions	Do not expose to moisture or extreme temperatures
Spare parts & repairability	Not user-serviceable; no spare parts available
General information	Professional audio signal splitter for stage or studio use

Frequently Asked Questions - MS20C ROLLS

What is the Rolls MS20C used for?

The MS20C is a passive signal splitter designed to split one audio signal into two identical outputs without power.

Does the MS20C require a power supply?

No, the MS20C is a passive device and does not need any external power source.

What type of cables work with the MS20C?

It uses standard 1/4-inch TS (unbalanced) instrument cables for input and outputs.

Can I use the MS20C with a microphone?

No, it is designed for line-level signals from instruments or audio sources, not microphones.

Will the MS20C affect sound quality?

The splitter is transparent and should not degrade audio quality under normal use.

How do I connect the MS20C?

Connect your source to the Input jack. Then connect two separate outputs to the two Output jacks.

Is the MS20C suitable for stereo splitting?

No, it splits a mono signal. For stereo, you would need two units.

What is the build quality of the MS20C?

It features a rugged metal chassis suitable for live and studio use.

Can I use the MS20C in a rackmount?

No, it is a compact standalone unit; no rack ears are available.

How should I clean the MS20C?

Wipe the exterior with a dry soft cloth. Do not use cleaners or water.

USER MANUAL MS20C ROLLS

MS20c 1/8" (3.5mm) jack

- The MS20c 1/8" (3.5mm) Input is a balanced TRS input. This Input, however, may be connected to an unbalanced signal source (Tip-Sleeve) such as a mixer output or line-level instrument output, and the MS20c balanced outputs connected to a snake or mixer's balanced input. NOTE: The Ring of the 1/8" jack MUST be connected to the Sleeve, and the bottom XLR Output jack will have it's pin 3 grounded.

- The 1/8" jack may also be used as an unbalanced output. Connect a balanced signal to the top XLR Input, the 1/8" jack may be connected via a Tip-Sleeve jack to an unbalanced input.

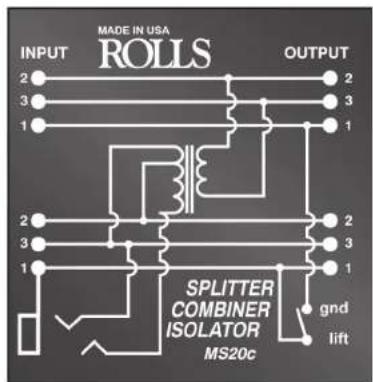

- By referring to the diagram on the top of the MS20c, you can identify the signal and grounding paths for all the jacks.

MS20b Splitter Combiner Isolator

• Splits balanced XLR input, or 1/8" input to two balanced XLR outputs
  • Combines two balanced XLR signals to one XLR output. NOTE: Will only pass phantom power to one microphone.
  • One signal is transformer isolated from the other.
  • Ground Lift switch for noise elimination

ROLLS

Rolls Corporation Salt Lake City, UT 4/06

ROLLS

MS20c

Splitter

Combiner

Isolator

OWNERS MANUAL

Thank you for your purchase of the MS20c Splitter, Combiner, and balanced signal Isolator

This versatile unit will split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals, along with a 1/8" (3.5mm) TRS signal together into a single output, or simply isolate a balanced line for buzz or hum elimination.

INSPECTION

1. Unpack and Inspect the MS20c package Your MS20c was carefully packed at the factory in a protective carton. Nonetheless, be sure to examine the unit and the carton for any signs of damage that may have occurred during shipping. If obvious physical damage is noticed, contact the carrier immediately to make a damage claim. We suggest saving the shipping carton and packing materials for safely transporting the unit in the future.

2. For warranty information, visit our website at www.rolls.com, and click on the REGISTER YOUR WARRANTY HERE text. If you are unable to register online, please complete the Warranty Registration Card and return it to the factory.

DESCRIPTION

INPUT: 2 Female XLR jacks, and 1 1/8" (3.5mm) TRS jack for connection to the microphone or other signals to be split/combined. IMPORTANT NOTICE: THE 1/8" JACK IS NOT A STEREO INPUT, IT IS A BALANCED INPUT. PLUGGING A STEREO SIGNAL INTO THIS JACK WILL RESULT IN A DIMINISHED OUTPUT LEVEL OUTPUT: 2 Male XLR jacks for connection to a mixing console or signa processing devices

GROUND LIFT: Switch when in "GROUND" position, indicates that pins 1 of the INPUT and OUTPUT jacks are connected. In the "LIFT" position, the ground pins have been separated.

SPECIFICATIONS

Input Impedance: XLR: 600 Ω 1/ E^* (3.5mm): 10K Ω

Output Impedance: 600 Ω

Frequency Response: 35 Hz - 20 kHz

Max Level: +26 dBm

Dimensions: 3 x 2.25 x 1.2 inches

Weight: 10 Ounces

OPERATION

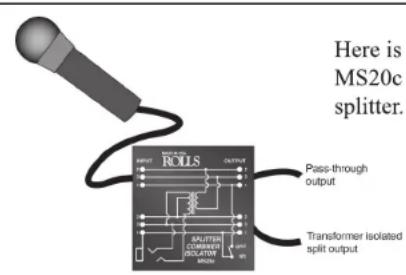

Shown below are some examples of how to connect your MS20c.

Here the MS20c is connected as a mic combiner. NOTE: PHANTOM POWER IS PASSED TO ONLY ONE MICROPHONE.

To transformer isolate a balanced signal, connect the cable with the signal to be isolated to the INPUT, and the mixer or next device to the OUTPUT.
