USER MANUAL MTB-4PSSKR Micro Matic

• Distinctive spun metal style – adds a classic touch.
• The draft tower is a marketing tool, not just a bar fixture.
• Commanding presence on the bar top.
• All stainless steel contact with the beer for the ultimate in draft purity.

Close-up of a stainless steel pour-over shaver with black handle handles and metallic casing (no text or symbols visible on the device itself)

Close-up of a brass water tap vessel with black handles and a golden cap (no text or symbols visible on the device itself)

Features

Faucet knobs not included.

Certified

by the National

Sanitation Foundation.

Stainless Steel

beer contact for the pure taste of fresh draft beer.

The integrated Kool-Rite module provides

optimum cooling at the point of dispense.

Modular construction makes the installation process as simple as PLUG "N" POUR.

Part No. Faucets Finish Dispense System Shipping Weight Box Dimensions

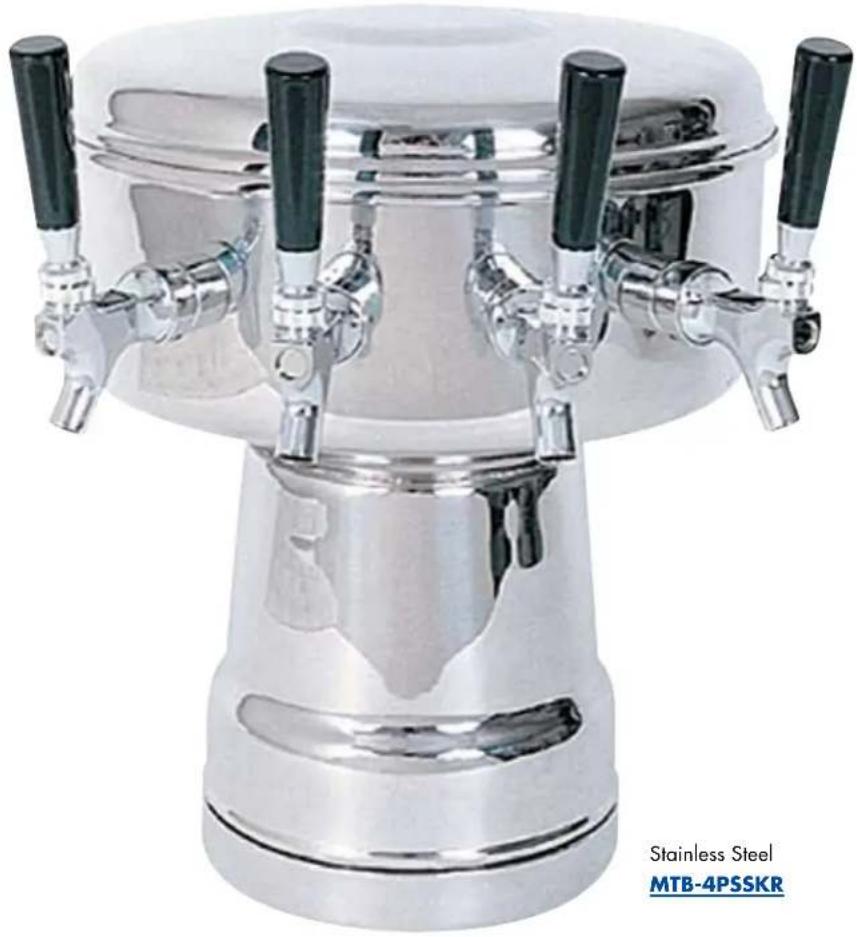

MTB-4PSSKR*	4	Polished S/S	Kool-Rite (Glycol)	15 kg	1245mm L x 610mm W x 356mm H
				32 lbs	40"L x 24"W x 21"L

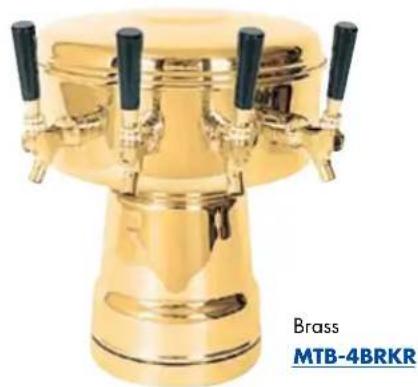

MTB-4BRKR*	4	Brass	Kool-Rite (Glycol)	15 kg	1245mm L x 610mm W x 356mm H
				32 lbs	40"L x 24"W x 21"L

Certified

Dimensions
