Product Type	Beer Dispenser (Kegerator)
Brand	Micro Matic
Model	DP-120D-30
Dimensions (W x D x H)	17 x 18 x 34 inches
Weight	82 lbs
Power Supply	120V AC, 60Hz, 2.5A
Cooling System	Forced air circulation
Temperature Range	33°F to 40°F
Keg Capacity	1 1/6 barrel (5.16 gallon) or 1 full-size keg (15.5 gallon)
Dispensing	Draft beer tower with faucet
Foam Control	Adjustable pressure regulator
Cleaning	Removable drip tray and beer line cleaning kit compatible
Safety Features	Locking casters, safety relief valve, grounded power cord
Warranty	1 year parts and labor
Spare Parts Availability	Faucet, tower shank, coupler, CO2 regulator, keg cap, beer line
Reparability	Modular design with accessible components; DIY-friendly
Included Accessories	CO2 tank (not included), keg coupler, drip tray, tower, faucet
Certifications	ETL, NSF

Frequently Asked Questions - DP-120D-30 Micro Matic

How do I install the CO2 tank?

Connect the CO2 regulator to the tank, then attach the gas line to the keg coupler. Open the tank valve slowly and set the regulator to the recommended pressure (typically 10-12 psi).

What is the ideal temperature for storing beer?

Set the thermostat between 33°F and 38°F. Avoid freezing, which can damage the beer. Allow 24 hours after first plugging in for temperature to stabilize.

How often should I clean the beer lines?

Clean lines every two weeks with a beer line cleaning kit to prevent bacteria and off-flavors. Use a solution of warm water and line cleaner, then flush with fresh water and sanitizer.

Why is my beer too foamy?

Check the CO2 pressure (should be 10-12 psi), ensure the keg is not over-carbonated, and verify the beer is properly chilled. Also clean the faucet and line. If using a long draw system, adjust the flow control.

Can I use this dispenser for home brewing?

Yes, it works with standard cornelius or ball-lock kegs with an appropriate coupler. Ensure your keg fits inside the unit (max height 23 inches).

How do I change the beer tower or faucet?

Disconnect the beer line, unscrew the tower from the top of the unit, and replace with compatible parts. Use a wrench to tighten fittings. Ensure a proper seal to avoid leaks.

What size CO2 tank is recommended?

A 5 lb or 10 lb CO2 tank is ideal. The unit has space for a standard tank; ensure it is secured upright and properly connected.

Why is my dispenser not cooling?

Check if the power cord is plugged in, the thermostat is set correctly, and the condenser is clean. If the compressor runs but doesn't cool, it may need professional service.

How do I replace the drip tray?

Slide the drip tray forward to remove it. Clean with warm soapy water. To install, align the tabs and push until it clicks into place.

Is a CO2 tank included with the dispenser?

No, you must purchase a CO2 tank separately. The unit comes with a regulator, but no tank. Tanks can be exchanged at local gas suppliers or homebrew shops.

USER MANUAL DP-120D-30 Micro Matic

• Easy installation: simply drill one hole to locate and secure.
• Robust 18 gauge stainless steel construction.
• Welded corners, finished smooth for safety and appearance.
• Fast draining, precision louvered screen.

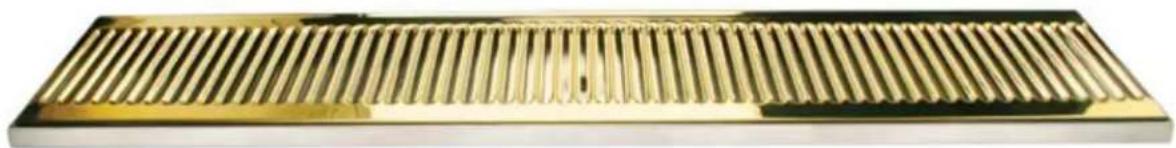

Close-up of a metallic grating or drain with vertical slats and central slots (no text or symbols visible)

PVD Brass

DP-120DSSPVD-30

Metallic slatted grating or drain with evenly spaced ridges (no text or symbols visible)

Stainless Steel

DP-120D-30

Features

Tarnish Free PVD Brass.

Stainless Steel for hygiene and durability.

www.micromatic.com 1

[phone]

Part No. Description Shipping Weight Box Dimensions

DP-120D-30 Stainless Steel	3 kg 787mm L x 203mm W x 51mm H
		6 lbs	31"L x 8"W x 2"H
DP-120DSSPVD-30	PVD Brass	3 kg	787mm L x 203mm W x 51mm H
		6 lbs	31"L x 8"W x 2"H

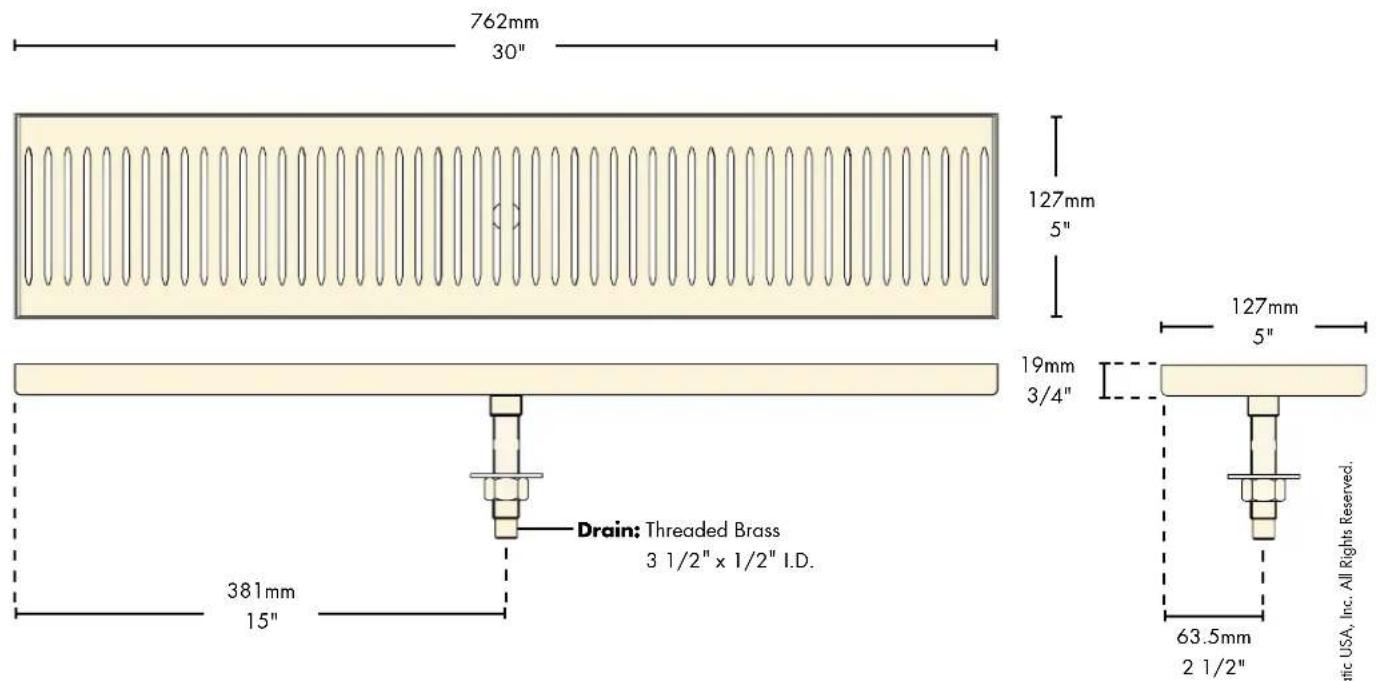

Dimensions
