Product Type	Beer Dispenser (Draft Beer Tower)
Brand	Micro Matic
Model	DP-120D-36GR
Dimensions (H x W x D)	Approx. 1200 x 400 x 400 mm
Weight	Approx. 25 kg
Power Supply	220-240V, 50/60Hz
Power Consumption	200 W (cooling)
Cooling System	Forced air circulation, compressor-based
Temperature Range	2°C to 8°C (adjustable)
Beer Types	Compatible with kegs (standard D system)
Number of Taps	2 (twin tap tower)
Flow Control	Adjustable flow regulators per tap
Material	Stainless steel tower, plastic drip tray
Cleaning	Removable drip tray, cleaning cycle with beer line cleaner
Safety Features	Overload protection, temperature control thermostat
Installation	Freestanding or countertop, requires ventilation
Warranty	2 years (parts and labor)
Included Accessories	Keg coupler, beer line, CO2 regulator (if applicable)
Spare Parts Availability	Through Micro Matic distributors
User Manual	Available for download on notice-facile.com

Frequently Asked Questions - DP-120D-36GR Micro Matic

What is the temperature range of the Micro Matic DP-120D-36GR?

The temperature range is adjustable from 2°C to 8°C, ideal for serving most beers at optimal temperature.

How do I clean the beer dispenser?

Regular cleaning involves removing the drip tray and wiping it with mild detergent. For the beer lines, use a beer line cleaner solution and follow the flushing procedure in the manual.

Can I use this dispenser with any keg type?

It is compatible with standard D system kegs commonly used in commercial draft beer. For other keg systems, an adapter may be required.

What is the power requirement?

The unit requires 220-240V, 50/60Hz power supply with a standard household outlet.

How many taps does it have?

It features 2 taps on a twin tower, allowing you to serve two different beers simultaneously.

Is the dispenser easy to install?

Yes, it can be placed on a countertop or used as a freestanding unit. Ensure proper ventilation around the compressor for optimal performance.

What should I do if the cooling is not working?

Check if the power cord is plugged in and the thermostat is set correctly. If the compressor does not start, contact Micro Matic customer support for service.

Does it come with a CO2 regulator?

Some models include a CO2 regulator. Check your specific package contents; if not included, it can be purchased separately.

How do I adjust the flow rate?

Each tap has a flow control knob that adjusts the speed of beer dispensing. Turn clockwise to decrease flow, counterclockwise to increase.

Where can I download the user manual?

The manual is available for free on notice-facile.com in PDF format for the Micro Matic DP-120D-36GR.

USER MANUAL DP-120D-36GR Micro Matic

• Add European style while creating dispense excitement
• Condition the glass before pouring – invert glass, push down on sprayer for cold water rinsing
• Robust 18 gauge stainless steel construction
  • Welded corners, finished smooth for safety and appearance

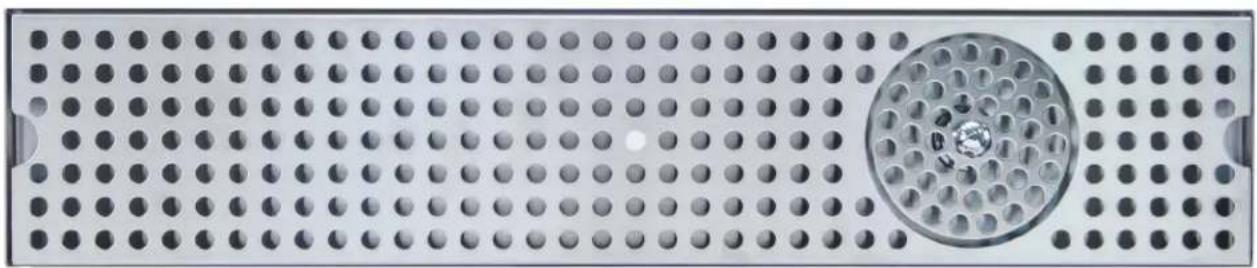

Metal perforated tray with circular holes and a circular vent filled with granular material (no text or symbols visible)

DP-120D-36GR

Brushed Stainless Steel

Part No. Dimensions Description Shipping Weight Box Dimensions

DP-120D-36GR

5"W x 36"L x 3/4"H Stainless Steel TBD TBD

Rinser Water Inlet Installation

• Always check local plumbing codes first.
• Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure).
• Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking).
• Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly).
- If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45^ 1/2'' O.D. barb for the drains if line is not hard plumbed into the system.
• Install a shut-off for the rinser water supply if line is not hard plumbed into the system.

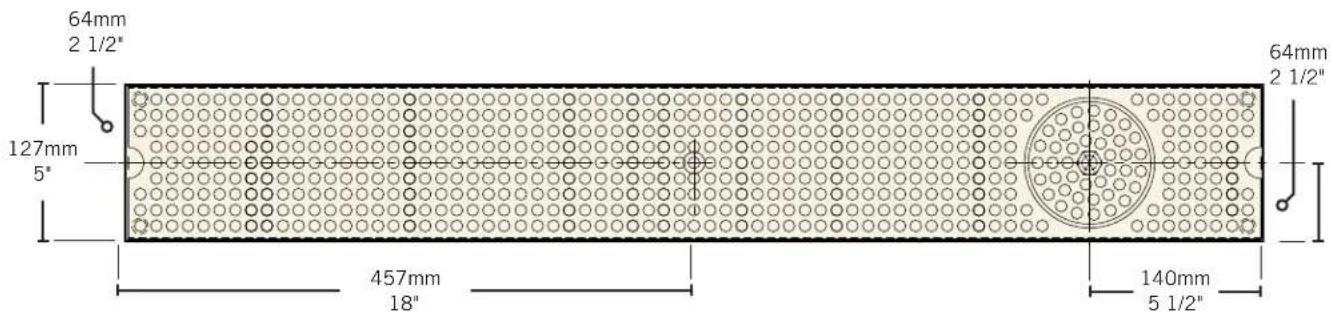

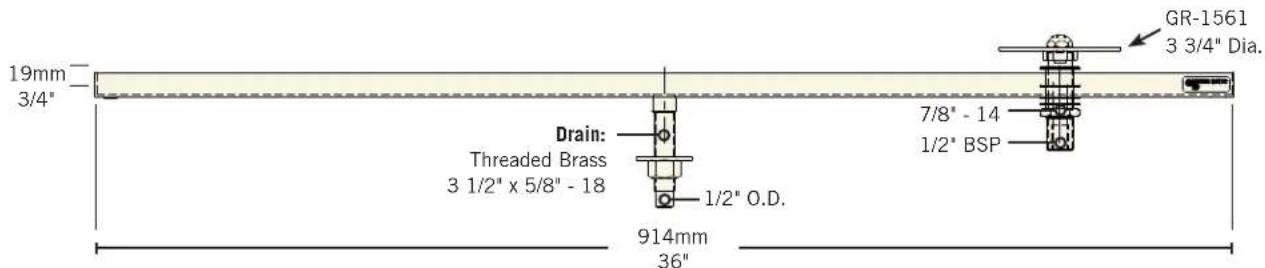

Dimensions
