Product Type	Car Stereo Wiring Harness
Brand	Scosche
Model	VW2317AB
Compatibility	Select Volkswagen models (1998-2005)
Connector Type	20-pin Molex
Wire Color Coding	Standard aftermarket (yellow, red, black, etc.)
Material	High-grade plastic and copper wiring
Dimensions	Approx. 6 x 3 x 1 inches
Weight	0.2 lbs
Power Handling	Up to 50W per channel
Installation Type	Plug-and-play, no cutting required
Included Components	Harness, color-coded wire diagram
Certifications	CE, RoHS
Operating Temperature	-40°F to 185°F
Warranty	1 year limited

Frequently Asked Questions - VW2317AB Scosche

What vehicles is the Scosche VW2317AB compatible with?

It is designed for select Volkswagen models from 1998 to 2005, including Jetta, Golf, Passat, and Beetle.

Do I need to cut any wires for installation?

No, the VW2317AB is a plug-and-play harness. It connects directly to the factory wiring without cutting.

What is the wire color code?

The harness uses standard aftermarket colors: yellow (constant 12V), red (switched 12V), black (ground), and speakers in pairs.

Does this harness support amplified systems?

It is compatible with most factory amplified systems, but may require an additional adapter for premium sound.

What is the pin configuration?

The harness uses a 20-pin Molex connector that matches Volkswagen's proprietary shape.

Can I use this harness with an aftermarket stereo?

Yes, it is designed to connect aftermarket radios to the vehicle's wiring seamlessly.

Is there a diagram included?

Yes, a color-coded wiring diagram is included with the harness.

What tools are needed for installation?

Typically only a trim removal tool and possibly a screwdriver. No wire strippers or crimpers required.

How long is the harness?

The wire leads are approximately 12 inches long, providing enough length for most installations.

Does Scosche offer technical support?

Yes, Scosche provides customer support via phone and email. Check their website for details.

USER MANUAL VW2317AB Scosche

IN-DASH STEREO INSTALLATION Kit FOR 2006-UP VW JETTA/PASSAT/GOLF

INTRODUCTION/PRELIMINARY

This premium installation kit is for 2006 VW Jetta/Passat/Golf vehicles. Included are all the parts you need to mount your car stereo or CD player into your vehicle's dash. Refer to the individual instruction in this manual to remove your vehicle's factory radio and assemble the kit.

CAUTION

DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHM METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIRBAG WIRING - AIRBAGS CAN ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.

NOTES

• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo for proper wiring and mounting instructions.

FACTORY WIRING CODES

For Factory Wiring Codes go to: www.scosche-cars.com

CAR STEREO CONNECTORS

PROVIDE EASY CONNECTION OF YOUR CAR STEREO TO FACTORY WIRING HARNESS.

VWO3B

2002-up Volkswagen power/speaker connector

VWA4B

2000-up select Audi/BMW/VW Amplified Antenna Adapter

VW03B

VWA4B

LIABILITY DISCLAIMER

This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes and information pertaining to installation of this kit (VW2317AB) in 2006-Up VW Jetta/Passat/Golf vehicles. Scosche Industries, Inc. cannot be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.

If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3

FACTORY STEREO REMOVAL

2006-UP VW JETTA/GOLF

1. Carefully insert a panel removal tool into the crack between the upper vent panel and the lower bezel that surrounds the stereo.
2. With the panel removal tool in the proper position, push in an upward motion to unsnap the vent panel from the lower bezel. The vent panel does not need to be completely removed.
3. This will expose two (2) T20 Torx head screws. Extract the two (2) screws.
4. Use the panel removal tool to unsnap the bezel surrounding the stereo.
5. Extract four (4) T20 Torx screws securing stereo. Lift away, disconnect and remove.

2006-UP VW PASSAT

1. Carefully insert a panel removal tool underneath the bezel that surrounds the stereo. Lift up to unsnap the clips in dash, and repeat around the bezel until it can be removed.
2. Extract four (4) T20 Torx screws securing stereo. Lift away, disconnect and remove.

MOUNTING THE STEREO

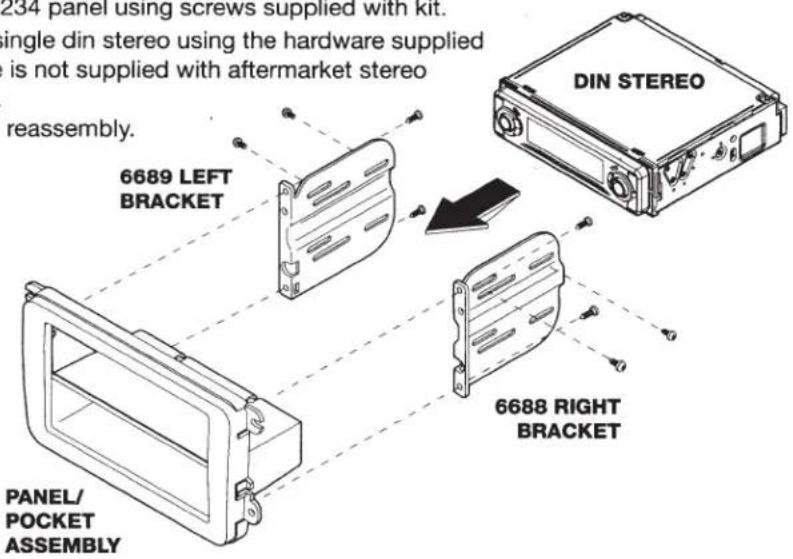

SINGLE DIN MOUNT

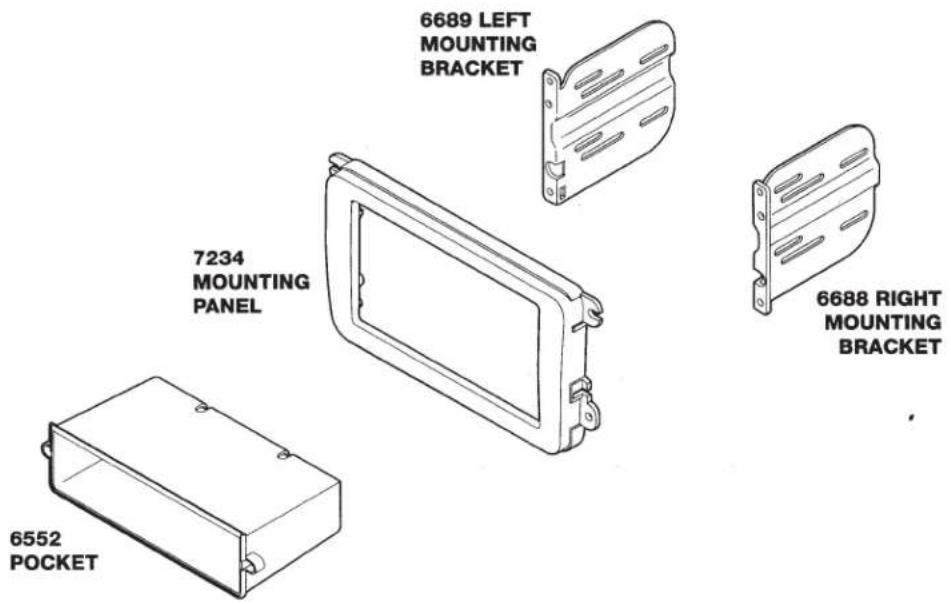

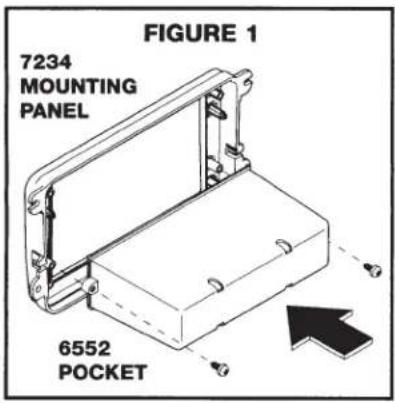

1. Attach 6552 pocket to 7234 panel using screws supplied with kit (Figure 1).
2. Attach 6688 & 6689 brackets to 7234 panel using screws supplied with kit.
3. Align and attach the aftermarket single din stereo using the hardware supplied with the stereo. Note: If hardware is not supplied with aftermarket stereo use hardware from factory stereo.
4. Reconnect stereo and finish dash reassembly.

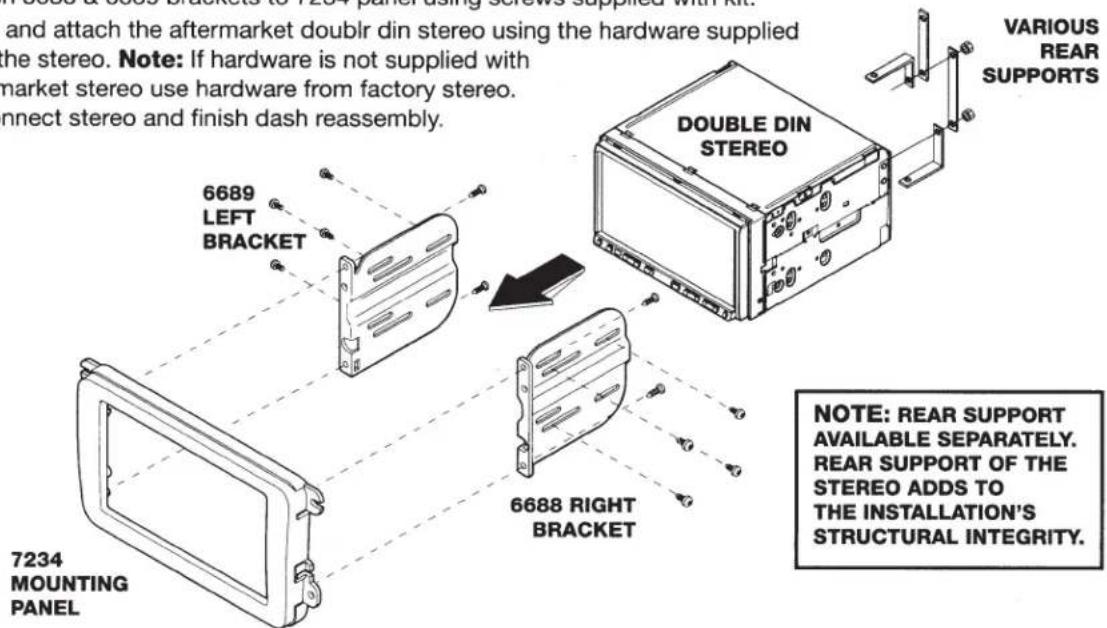

DOUBLE DIN MOUNT

1. Attach 6688 & 6689 brackets to 7234 panel using screws supplied with kit.
2. Align and attach the aftermarket doublr din stereo using the hardware supplied with the stereo. Note: If hardware is not supplied with aftermarket stereo use hardware from factory stereo.
3. Reconnect stereo and finish dash reassembly.

VW2317AB

2006-Up Volkswagen Double DIN and DIN with Pocket Installation Kit
