| Product Type | Microwave with Grill and Convection |
| Brand | CASO |
| Model | MCDG 25 Pro |
| Capacity | 25 liters |
| Microwave Power | 900 W |
| Grill Power | 1000 W |
| Convection Power | 1350 W |
| Dimensions (W x D x H) | 482 x 386 x 281 mm |
| Interior Dimensions | 320 x 310 x 210 mm |
| Weight | 14.5 kg |
| Power Supply | 230 V, 50 Hz, 10 A |
| Functions | Microwave, Grill, Convection, Combination, Defrost, Auto Cook |
| Control Type | Digital with Touch Panel |
| Interior Light | Yes |
| Turntable | Yes, 270 mm diameter |
| Child Lock | Yes |
| Cleaning | Wipe interior with damp cloth; do not use abrasive cleaners |
| Spare Parts Availability | Contact CASO customer service for genuine parts |
| Repairability Index | Good (standard components, modular design) |
| Included Accessories | Glass turntable, roller ring, instruction manual |
Frequently Asked Questions - MCDG 25 Pro CASO
User questions about MCDG 25 Pro CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwaves in PDF format for free! Find your manual MCDG 25 Pro - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MCDG 25 Pro by CASO.
USER MANUAL MCDG 25 Pro CASO
Raiffeisenstraße 9
D-59757 Arnsberg
Tel.: +49 (0) 29 32 / 54 76 6 - 99
Fax: +49 (0) 29 32 / 54 76 6 - 77
email: kundenservice@caso-germany.de
Internet: www.caso-germany.de
Dokument-Nº: 3034 01.04.2012
11.2 Information on this manual 51
11.3 Warning notices....52
11.4 Limitation of liability 53
11.5 Copyright protection....53
12 Safety....54
12.1 Intended use....54
12.2 General Safety information 55
12.3 Sources of danger....56
12.3.1 Danger due to microwaves....56
12.3.2 Danger of burns....56
12.3.3 Danger of fire....57
12.3.4 Danger of explosion 58
12.3.5 Dangers due to electrical power 59
13 Commissioning 60
13.1 Safety information....60
13.2 Delivery scope and transport inspection....60
13.3 Unpacking....61
13.4 Disposal of the packaging....61
13.5 Setup 62
13.5.1 Setup location requirements:....62
13.5.2 Avoiding radio interference....62
13.6 Assembling the accessories....63
13.6.1 Glass turntable 63
13.7 Electrical connection....64
14 Design and Function......65
14.1 Complete overview 65
-
Protective door latch 65
-
Oven window....65
-
bottom grill....65
-
Drive shaft....65
-
Door opener 65
-
Operating panel....65
-
Oven ventilation opening....65
-
Glass turntable....65
- top grill....65
14.2 Operating elements and displays....66
14.3 Signal tones....66
14.4 Safety equipment 67
14.4.1 Warning notices on device 67
14.4.2 Door latch....67
14.4.3 Child-proof lock 68
14.4.4 Overheating protection 68
14.5 Rating plate....68
15 Operation and Handing....69
15.1 Principles of microwave cooking 69
15.2 Operating modes: 70
15.3 Information on microwave cookware 71
*both, Microwave+grill and microwave+hot air 71
15.4 Opening / closing door 72
15.5 Activation after selecting the programme....72
15.6 Quick start 72
15.7 De-activation: 73
15.8 Setting the clock 73
15.9 "Microwave" mode....74
15.10 “(Double-)Grill” mode 75
15.10.1 Table with times for grilling fresh food 75
15.11 “Microwave and Grill” mode 77
15.11.1 Table with times for heating ready meals 77
15.11.2 Table with microwave cooking times for fresh food .....79
15.11.3 Table with microwave cooking times for frozen food .....80
15.12 “Convection” mode 81
15.12.1 "Preheating and Convection cooking" mode....83
15.13 "Microwave and convection" mode 84
15.14 "Cooking Program" Mode 85
16 Cleaning and Maintenance....86
16.1 Safety information....86
16.2 Cleaning 87
17 Troubleshooting....89
17.1 Safety notices....89
17.2 Fault indications....89
17.3 Causes and rectification of faults....90
18 Disposal of the Old Device....91
19 Guarantee....92
20 Technical Data....93


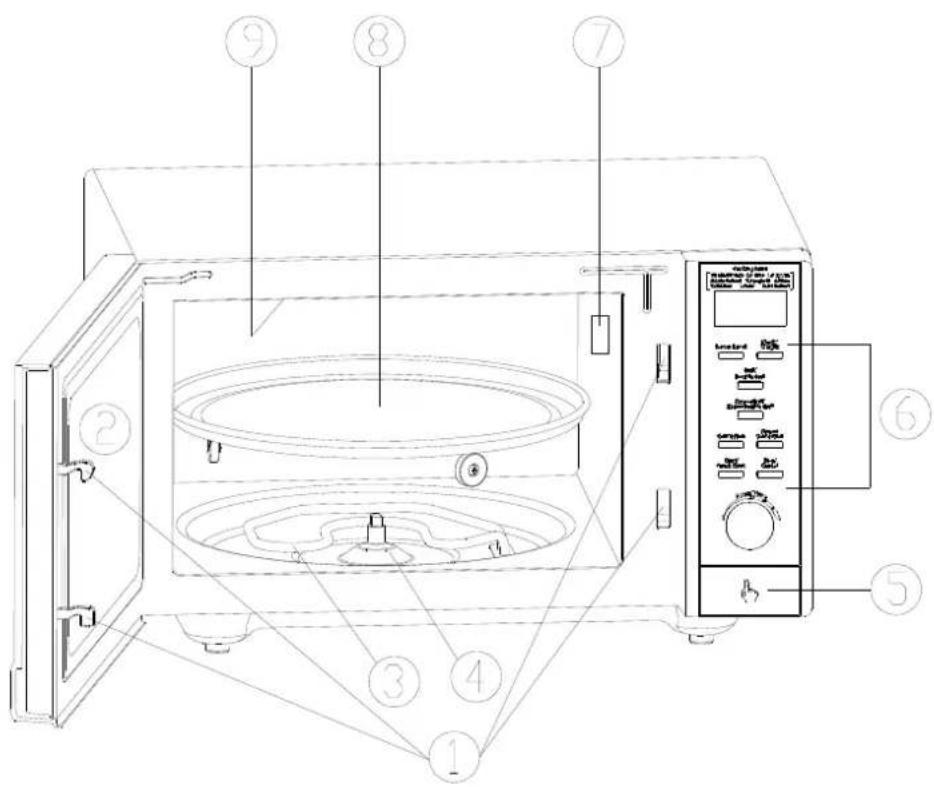

Technical diagram of a microwave oven with numbered components for identification and assembly reference.Microwave, (double)-grill and convection
MCDG 25 Pro


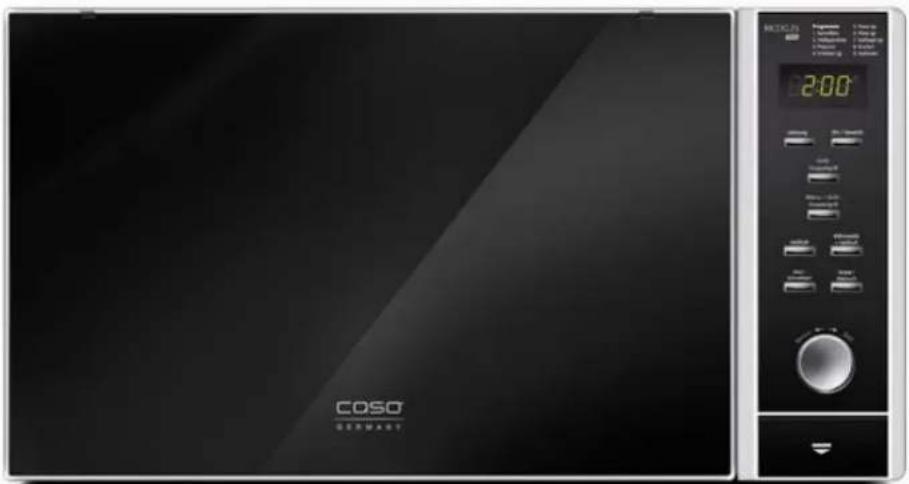

Exterior view of a COSO brand microwave oven with control panel and digital display (no readable text or symbols beyond branding)11 Operating Manual
